2BG7E-PINGITGPS Tracker

Confidential, Property of Konexial, Inc. User Manual Konexial PingIT Device Confidential, Property of Konexial, Inc. Steps to take to activate and install PingIT device: 1. Unpack from shipping packaging. 2. Plug charger into wall and place PingIT device on charger for 2 hours to bring to full charge. 3. The recommended install location for the PingIT device is under the passenger seat. 4. Take PingIT device to vehicle to be installed and ensure there is no buildup of dust or debris under the passenger seat. 5. Place device under the passenger seat and ensure the built-in magnet has connected to the metal floorboard or metal around the seat. 6. Push and hold the side orange button for 3 seconds until you hear a beep. 7. Monitor the device on the Konexial app for location and batter levels. FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator& your body.

Konexial, Inc. Add: 415 Locust St Suite 200 Knoxville, TN 37902 United States Tel: + 1 (865) 73 7-6920 Email: admin迎konexial.com Attestation letter Date: 2024-07-07 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7 435 Oakland Mills Road Co lumbia, MD 21046 Dear Sir or Madam, T he RF chip, model STM32WB55CEU6, which installed in our product GPS Tracker, Model: PinglT, FCC ID: 2BG7E-PINGIT. For use in America and this chip Only s upports BLE IM. The other functions has been shielded by the manufacturer using the software, the end user has no capability to activate it. Sincerely, Signature: Printed name: Kenneth L Evans Title: CEO

Konexial, Inc. Add: 415 Locust St Suite 200 Knoxville, TN 37902 United States Tel:+ 1 (865) 737-6920 Email: [email protected] Attestation Letter Date: 2024-07-07 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Roa d Columbia, MD 21046 Ref: A ttestation Statements CFR 47 §2.91 l(d)(5)(i) Filing F CC ID: 2BG7E-PINGIT Konexial, Inc. certifies that the equipment for which authorization is sought, is not "covered" equipment prohibited f rom receiving an equipment authorization pursuant to section 2. 903 of the FCC rules. Sincerely, Signature 之三 Printed name: Kenneth L Evans Ti tle: CEO CFR 47 §2.91 l(d)(5)(i) Attestation Letter

Konexial, Inc. Add: 415 Locust St Suite 200 Knoxville, TN 37902 United States Tel: +l (865) 737-6920 Email: [email protected] Attestation Letter Date: 2024-07-07 FEDERAL COMMUNICATIONS COMMISSIONS A uthorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.91 I(d)(5)(ii) Filing FCC ID: 2BG7E-PINGIT Konexial, Inc. certifies that as of the date of the filing of the application, the applicant过皿 identified on the Covered List as an entity producing "covered" equipment. Sincerely, S ignature 名-#？乏乏 Printed name: Kenneth L Evans Title: CEO CFR 47 §2.911 (d)(S)(ii) Attestation Letter

U.S. AGENT LETTER OF ATTESTATION Date: 2024-07-07 FEDERAL COM吓CATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.91 I(d)(7) Filing FCC I D: 2BG7E-PINGIT Konexi吐Inc. ("the Applicant") c ertifies that, as of the date of the filing of the application, Konexial, Inc(U.S. agent). is our de signated U.S. agent for service of process for the above referenc ed FCC ID. Konexial, Inc. ("the Applicant'') accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the c onclusion of any Commission-related proceeding involving the equipment Konexial, Inc. (U.S. agent) accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent and Applicant Information: Name: Konexial, Inc. A ddress: 415 Locust St Suite 200 Knoxville, TN 37902 United States F RN: 0035347053 Tel.:+ 1 (865) 737-6920 Email: [email protected] Si gned by(printed name): Kenneth L Evans Signature: �

Konexial, Inc. Add: 415 Locust St Suite 200 Knoxville, TN 37902 United States Tel: +1 (865) 737-6920 Email: [email protected] FCC Authorization Date: 2024-05-07 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Konexial, Inc. the undersigned, hereby authorizes Bay Area Compliance Laboratories Corp. (Shenzhen) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. (Shenzhen) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Kenet22 Printed name: Kenneth L Evans Title: CEO QA-FR-170-B7/29/2014

Konexial, Inc. Add: 415 Locust St Suite 200 Knoxville, TN 37902 United States Tel: +I (865) 737-6920 Email: [email protected] FCC Confidential Authorization Date: 2024-07-07 FEDERAL COM卢CATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Su bject: Confidentiality Request regarding application for certification of FCC ID: 2BG7E-PINGIT In accordance with Sections 0.457 and 0.459 of the Commission's Rules, Konexial, Inc. hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram •Schematics •Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: �三 Printed name: Kenneth L Evans Title: CEO

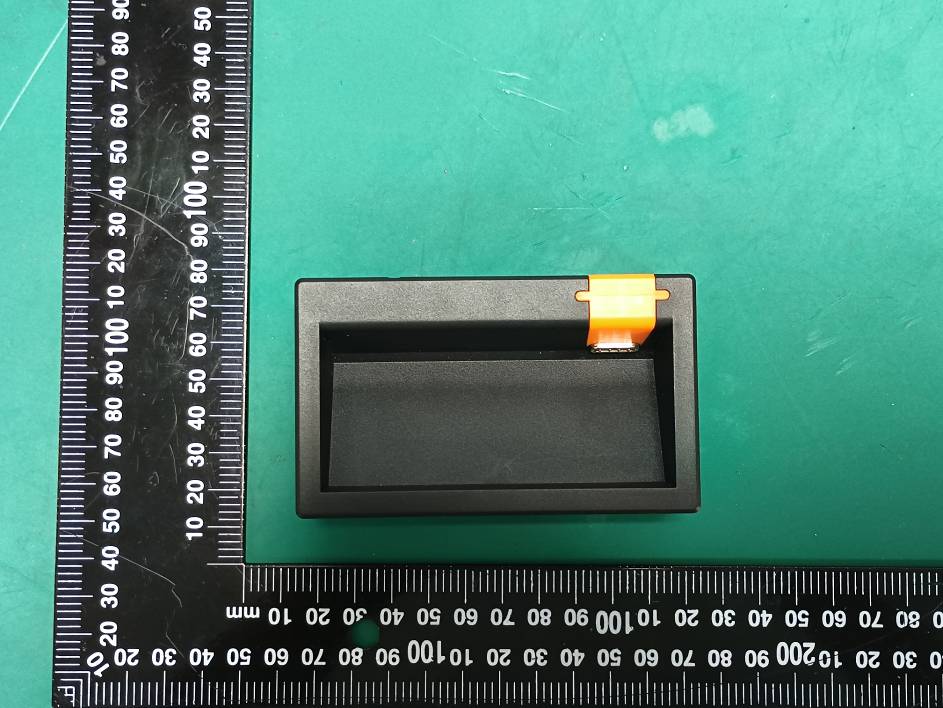

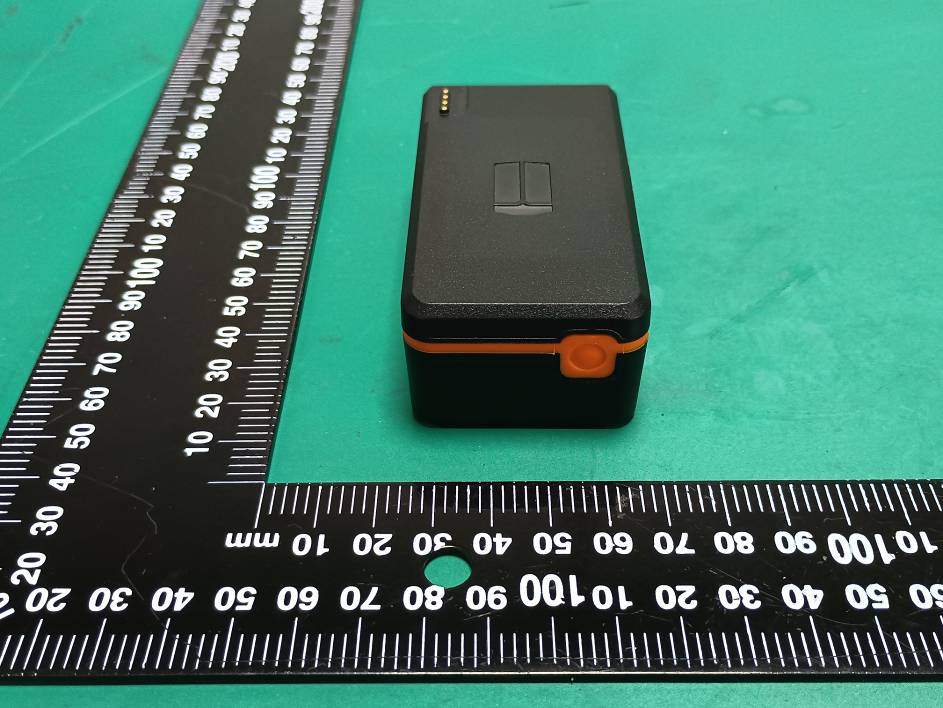

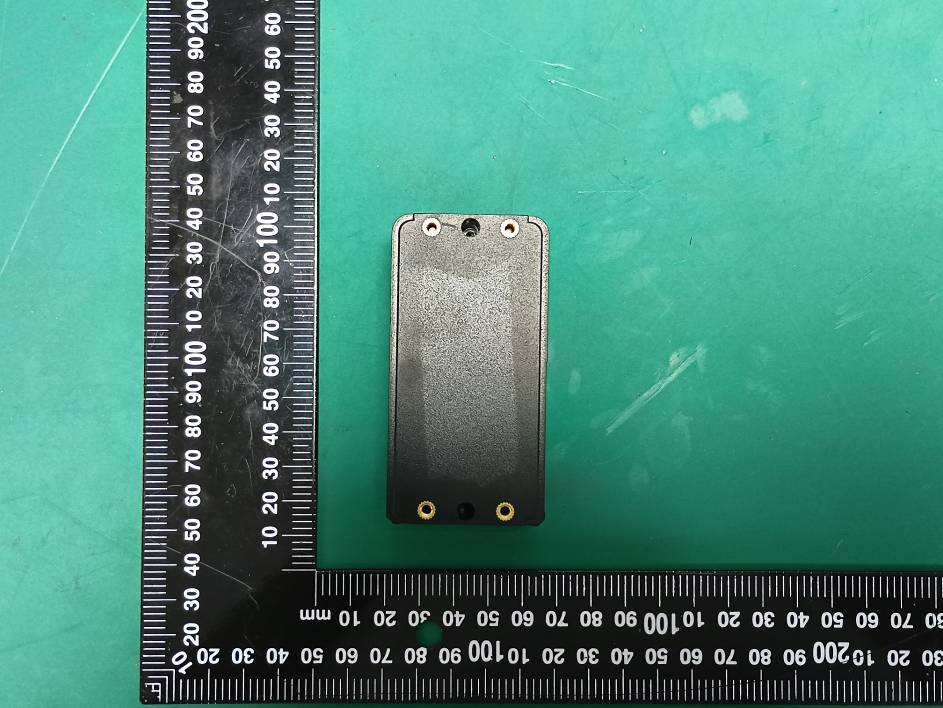

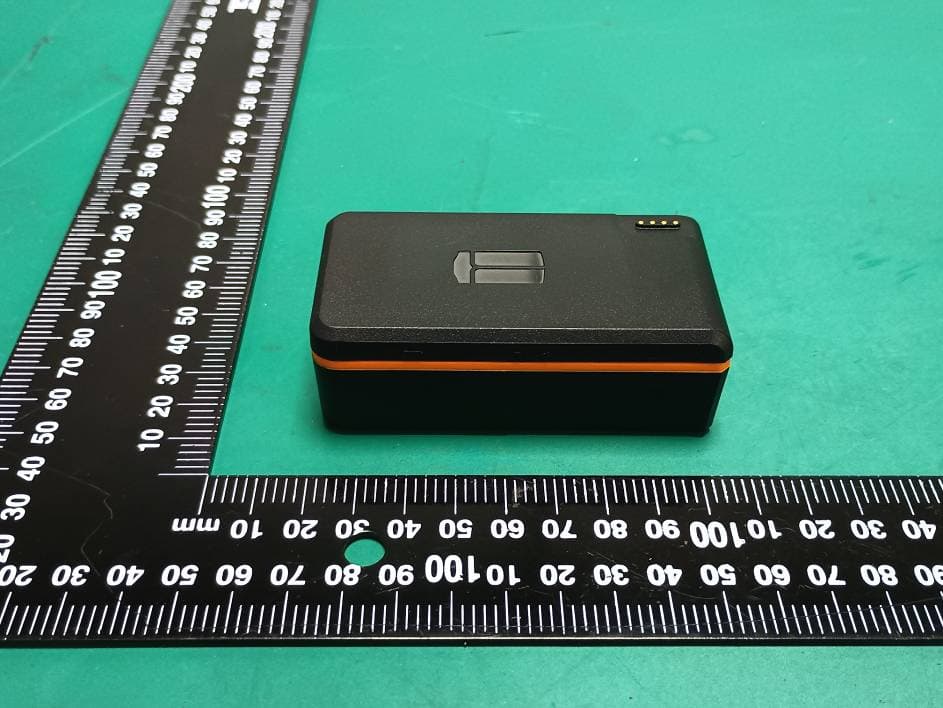

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240327-15983E-RF Page 1 of 7 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240327-15983E-RF Page 2 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240327-15983E-RF Page 3 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240327-15983E-RF Page 4 of 7 charger Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240327-15983E-RF Page 5 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240327-15983E-RF Page 6 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240327-15983E-RF Page 7 of 7

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240327-15983E-RF EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240327-15983E-RF Page 1 of 6 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240327-15983E-RF Page 2 of 6 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240327-15983E-RF Page 3 of 6 GNSS Antenna Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240327-15983E-RF Page 4 of 6 BLE Antenna Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240327-15983E-RF Page 5 of 6 GSM/LTE Antenna Charger Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1240327-15983E-RF Page 6 of 6

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZ1240327-15983E-RF-00 TR-EM-RF003 Page 13 of 46 Version 1.0 (2023/10/07) FCC §15.247 (i) & §1.1307 (b) (3) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247 (i) and subpart 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. According to KDB 447498 D04 Interim General RF Exposure Guidance MPE-Based Exemption: General frequency and separation-distance dependent MPE-based effective radiated power (ERP) thresholds are in Table B.1 [Table 1 of § 1.1307(b)(3)(i)(C)] to support an exemption from further evaluation from 300 kHz through 100 GHz. Ris the minimum separation distance in meters f = frequency in MHz Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZ1240327-15983E-RF-00 TR-EM-RF003 Page 14 of 46 Version 1.0 (2023/10/07) Result Mode Frequency (MHz) Tune up conducted power Antenna Gain ERP Evaluation Distance (m) ERP Limit (W) (dBm) (dBi) (dBd) (dBm) (W) BLE 2402-2480 1.00 3.14 0.99 1.99 0.002 0.2 0.768 GSM 850 824 ~ 849 35.00 -7.11 -9.26 25.74 0.375 0.2 0.422 PCS 1900 1850 ~ 1910 32.00 -5.84 -7.99 24.01 0.252 0.2 0.768 NB-IoT Band 2 1850 ~ 1910 25.70 -5.84 -7.99 17.71 0.059 0.2 0.768 NB-IoT Band 5 824 ~ 849 25.70 -7.11 -9.26 16.44 0.044 0.2 0.422 NB-IoT Band 12 699 ~ 746 25.70 -10.28 -12.43 13.27 0.021 0.2 0.358 NB-IoT Band 13 746 ~ 787 25.70 -9.97 -12.12 13.58 0.023 0.2 0.382 NB-IoT Band 17 704 ~ 746 25.70 -10.28 -12.43 13.27 0.021 0.2 0.360 NB-IoT Band 26 814 ~ 894 25.70 -7.11 -9.26 16.44 0.044 0.2 0.417 CAT-M1 Band 2 1850 ~ 1910 25.70 -5.84 -7.99 17.71 0.059 0.2 0.768 CAT-M1 Band 4 1710 ~ 1755 25.70 -18.20 -20.35 5.35 0.003 0.2 0.768 CAT-M1 Band 5 824 ~ 849 25.70 -7.11 -9.26 16.44 0.044 0.2 0.422 CAT-M1 Band 12 699 ~ 746 25.70 -10.28 -12.43 13.27 0.021 0.2 0.358 CAT-M1 Band 13 746 ~ 787 25.70 -9.97 -12.12 13.58 0.023 0.2 0.382 CAT-M1 Band 26 814 ~ 894 25.70 -7.11 -9.26 16.44 0.044 0.2 0.417 Note 1: The tune up conducted power and antenna gain was declared by the applicant. Note 2: The target power of WWAN radio is from the contain ID of module with report number B18W50279-MPE Simultaneous transmitting consideration (worst case): The ratio= ERP BLE /limit+ GSM 850/limit= 0.002/0.768+0.375/0.422=0.891<1.0 To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20cm from nearby persons. Result: Compliant.

ANTENNA TEST REPORT Manufacture: Lightbug Ltd Address: Knapps Lane, Bristol, BS5 7UN, UK Product Name: BT: Bluetooth Antenna GSM/NB-IoT/Cat-M1: Primary Antenna Product Model: BT: Bluetooth Antenna GSM/NB-IoT/Cat-M1: Primary Antenna Report Number: CR240315992-ANT Test Date: 2024/4/2 Tested by: Judson Du Date Of Issue: 2024/4/10 Approved By: Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR240315992-ANT Page 2 of 25 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR240315992-ANT Page 3 of 25 CONTENTS DOCUMENT REVISION HISTORY .......................................................................................... 4 1. GENERAL INFORMATION ................................................................................................. 5 2. TEST CONFIGURATIONS ................................................................................................... 6 2.1 TEST ENVIRONMENT ...................................................................................................................... 6 2.2 TEST ENVIRONMENT ...................................................................................................................... 6 3. TEST RESULTS ...................................................................................................................... 7 3.1 GAIN AND EFFICIENCY .................................................................................................................. 7 3.2 RADIATION PATTERN .................................................................................................................... 8 4. EUT PHOTOGRAPHS ......................................................................................................... 24 5. TEST SETUP PHOTOGRAPHS ......................................................................................... 25 China Certification ICT Co., Ltd (Dongguan) Report No.: CR240315992-ANT Page 4 of 25 DOCUMENT REVISION HISTORY Revision Number Report Number Description of Revision Date of Revision 1.0 CR240315992-ANT Original Report 2024/4/10 China Certification ICT Co., Ltd (Dongguan) Report No.: CR240315992-ANT Page 5 of 25 1. GENERAL INFORMATION Product Name: BT: Bluetooth Antenna GSM/NB-IoT/Cat-M1: Primary Antenna Product Model: BT: Bluetooth Antenna GSM/NB-IoT/Cat-M1: Primary Antenna Antenna Type: BT: PCB Antenna GSM/NB-IoT/Cat-M1: Spring Antenna Test Items: Gain; Efficiency; Radiation Pattern Test Frequency(MHz): BT: 2402/2440/2480 B12/B17: 699/716 B13: 777/787 GSM850/B5/B26: 814/836/849 B4: 1710/1733/1755 GSM1900/B2:1850/1880/1910 Serial Number: 2J8S-1 EUT Received Date: 2024.4.2 EUT Received Status: Good China Certification ICT Co., Ltd (Dongguan) Report No.: CR240315992-ANT Page 6 of 25 2. TEST CONFIGURATIONS 2.1 Test Environment Temperature ()°C 24.5 Humidity (%RH) 66.2 Atmospheric Pressure (kPa) 100.5 2.2 Test Environment Test Instrument R&S ZNB8 China Certification ICT Co., Ltd (Dongguan) Report No.: CR240315992-ANT Page 7 of 25 3. TEST RESULTS 3.1 Gain and Efficiency Frequency (MHz) Peak Gain (dBi) Efficiency (%) 2402 2.36 36.31 2440 3.14 40.93 2480 3.10 40.13 699 -10.73 2.06 716 -10.56 2.38 777 -10.28 2.30 787 -9.97 2.33 814 -9.00 3.06 836 -8.72 3.48 849 -7.11 4.76 1710 -23.58 0.09 1733 -21.58 0.18 1755 -18.20 0.60 1850 -5.84 14.45 1880 -6.23 12.37 1910 -6.20 14.71 China Certification ICT Co., Ltd (Dongguan) Report No.: CR240315992-ANT Page 8 of 25 3.2 Radiation Pattern 2402MHz 3D Theta = 90, Phi = 0 Theta = 90, Phi = 90 Theta = 0, Phi = 0 Theta = 90, Phi = 180 Theta = 90, Phi = 270 Theta = 180, Phi = 0 China Certification ICT Co., Ltd (Dongguan) Report No.: CR240315992-ANT Page 9 of 25 2440MHz 3D Theta = 90, Phi = 0 Theta = 90, Phi = 90 Theta = 0, Phi = 0 Theta = 90, Phi = 180 Theta = 90, Phi = 270 Theta = 180, Phi = 0 China Certification ICT Co., Ltd (Dongguan) Report No.: CR240315992-ANT Page 10 of 25 2480MHz 3D Theta = 90, Phi = 0 Theta = 90, Phi = 90 Theta = 0, Phi = 0 Theta = 90, Phi = 180 Theta = 90, Phi = 270 Theta = 180, Phi = 0 China Certification ICT Co., Ltd (Dongguan) Report No.: CR240315992-ANT Page 11 of 25 699MHz 3D Theta = 90, Phi = 0 Theta = 90, Phi = 90 Theta = 0, Phi = 0 Theta = 90, Phi = 180 Theta = 90, Phi = 270 Theta = 180, Phi = 0 China Certification ICT Co., Ltd (Dongguan) Report No.: CR240315992-ANT Page 12 of 25 716MHz 3D Theta = 90, Phi = 0 Theta = 90, Phi = 90 Theta = 0, Phi = 0 Theta = 90, Phi = 180 Theta = 90, Phi = 270 Theta = 180, Phi = 0 China Certification ICT Co., Ltd (Dongguan) Report No.: CR240315992-ANT Page 13 of 25 777MHz 3D Theta = 90, Phi = 0 Theta = 90, Phi = 90 Theta = 0, Phi = 0 Theta = 90, Phi = 180 Theta = 90, Phi = 270 Theta = 180, Phi = 0 China Certification ICT Co., Ltd (Dongguan) Report No.: CR240315992-ANT Page 14 of 25 787MHz 3D Theta = 90, Phi = 0 Theta = 90, Phi = 90 Theta = 0, Phi = 0 Theta = 90, Phi = 180 Theta = 90, Phi = 270 Theta = 180,…

Text truncated - open the document above for the full version.

Note: The information marked # is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “▼”. Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) , 6F, 7F, the 3rd Phase of Wan Li Industrial Building D, Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn TR-EM-RF003 Page 1 of 46 Version 1.0 (2023/10/07) TEST REPORT Applicant Name: Konexial, Inc. Address: 415 Locust St Suite 200 Knoxville, TN 37902 United States Report Number: SZ1240327-15983E-RF-00 FCC ID: 2BG7E-PINGIT Test Standard (s) FCC PART 15.247 Sample Description Product Type: GPS Tracker Model No.: PingIT Multiple Model(s) No.: N/A Trade Mark: Konexial Date Received: 2024/03/27 Issue Date: 2024/07/12 Test Result: Pass ▲ ▲ In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Jojo Guo Nancy Wang RF Engineer RF Supervisor Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZ1240327-15983E-RF-00 TR-EM-RF003 Page 2 of 46 Version 1.0 (2023/10/07) TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 GENERAL INFORMATION ....................................................................................................................................... 5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 5 OBJECTIVE ................................................................................................................................................................... 5 TEST METHODOLOGY .................................................................................................................................................. 5 MEASUREMENT UNCERTAINTY .................................................................................................................................... 6 TEST FACILITY ............................................................................................................................................................. 6 SYSTEM TEST CONFIGURATION .......................................................................................................................... 7 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 7 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 DUTY CYCLE ................................................................................................................................................................ 8 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 8 EXTERNAL I/O CABLE .................................................................................................................................................. 8 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 9 SUMMARY OF TEST RESULTS ............................................................................................................................. 11 TEST EQUIPMENT LIST ......................................................................................................................................... 12 FCC §15.247 (I) & §1.1307 (B) (3) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ........................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 RESULT ...................................................................................................................................................................... 14 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 15 APPLICABLE STANDARD ............................................................................................................................................ 15 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 15 FCC §15.207 (A) – AC LINE CONDUCTED EMISSIONS .................................................................................... 16 APPLICABLE STANDARD ............................................................................................................................................ 16 EUT SETUP ................................................................................................................................................................ 16 EMI TEST RECEIVER SETUP ...........................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZ1240327-15983E-RF Page 1 of 3 EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZ1240327-15983E-RF Page 2 of 3 Radiated Emissions View (9 kHz- 30 MHz) Radiated Emissions View (30-1000 MHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZ1240327-15983E-RF Page 3 of 3 Radiated Emissions View (1-18 GHz) Radiated Emissions View (18-25 GHz)
