2BG7O-H19Bluetooth headset

蓝牙版本：V5.3 传输距离:>10米 通话时间:3-4小时 充电时间:1-2小时 耳机电池:25毫安 机仓电池:200毫安加保护板 喇叭:F13喇叭 充电口:type-c 操作 开机:耳机从充电仓拿出开机 关机:长按触摸键5S或者入仓关机 TWS自动配对模式:首次开机自动TWS配对 暂停/播放:单击左右耳 上一曲:双击左边多功能键 下一曲:双击右边多功能键 音量加:三击右边多功能键 音量减:三击左边多功能键 接听来电:单击左右耳 语音助手:长按2S左右耳 拒接来电:长按2S左右耳 电量显示:仅支持ISO系统设备和部分安卓系统设备 同类此方案其它产品上出现的问题是否重现或规避 智能休眠状态:无连接状态时,约3分钟自动关机 自动回连:耳机重新开机后,蓝牙自动重新连回手机 远距离断开自动回连:远距离断开,回到10米内蓝牙自 动连接手机 充电自动关机:播放状态下,休眠,待机，耳机进入充电 仓都会关机 充电盒充电:用数据线插入座充充电时,仓指示灯闪烁, 充满后指示灯长亮 充电模式:耳机放入充电仓后耳机充电,充电仓灯灭, 耳机充满后关机 1.请勿暴力对待本产品,也不要用重物挤压, 远离高温高湿环境。 2.远离WF1及路由器及其它高频发射设备, 这样会影响本机的信号接收,造成声音的卡断 及断连。 3.请在有效环境(10m内)中使用本产品,并且 蓝牙设备与耳机之间不要有实体阻挡(例如墙 等) 4.为了防止因电池休眠而导致无法充电,请尽 量将充电仓保持20%的电量以上。 注:本产品可以与任何一款具有藍牙功能的设备进行连接使用。 功能参数 注意事项 Bluetooth version : V5.3 Wireless distance : 10 meters Working time : 3-4 hours Charging time : 1-2 hours Earphone battery : 25mAh*2 Charging case battery :200mAh with protection board Speaker : F13 horn Charging port : type-c Instructions： Power on : Take the earphones out of the charging case Power off : Long press the multi-function button for 5S or put the earphones back into the charging case TWS pairing : automatically paired when the product is turned on for the first time. TWS using : 2 earphones can be used together and can be used alone Pause/Play : Click the multi-function button Previous song : Double-click the left multi-function button Next song : Double-click the right multi-function button Volume up : Triple-click the right multi-function button Volume down : Triple-click the left multi-function button Answer an incoming call : Click the multi-function button Voice assistant : Long press the multi-function button for 2S Reject calls : Long press the multi-function button for 2S Battery display : only supports ISO system devices and some Android system devices Intelligent dormancy mode : when there is no connection, it will automatically power off in about 3 minutes. Automatic connection : After the earphones are turned on again, Bluetooth will automatically reconnect to the phone. Automatic power-off : Earphones will automatically power off when put back into the charging case to charge Charging case charging: The indicator light of the case will flash when charging . The indicator light stays on when fully charged Earphone charging: put the earphones back into the charging case to charge. 1.Do not treat this product violently , and do not squeeze it with heavy objects , and keep it away from high temperature and high humidity environment. 2 . Keep away from WIFI, routers and other high-frequency transmitting equipment , which will affect the signal reception of this machine , causing sound jamming and disconnection. 3 . Please use this product in an effective environment (within 10m), and there should be no physical obstruction (such as a wall , etc.) between the Bluetooth device and the product. 4 . In order to prevent charging failure due to battery hibernation , please try to keep the charging case above 20% of the power. Note : This product can be connected with any device with Bluetooth function This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF Exposure Information The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. FCC Statement

62 Shenzhen is Sansheng intelligent Electronics Co., LTD Zhiyun ONE1908, 283 Huafan Road, Longhua District, Shenzhen Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia,MD 21046 2024-07-18 To whom it may concern: We, Shenzhen is Sansheng intelligent Electronics Co., LTD,hereby certify that the equipment for which authorization is sought (FCC ID: 2BG7O-H19)is not"covered"equipment prohibited from receiving an equipment authorization pursuant to §2.903 of the FCC rules. We also certify that,as of the date of the filing of the application,we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist ) as an entity producing"covered"equipment. By signing this form,we confirm the above and that we are aware of the application requirements listed under §2.911(b)and (d)(5)and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Ambert Gao Shenzhen is Sansheng intelligent Electronics Co., LTD

ShenzhenisSanshengintelligentElectronicsCo.,LTD ZhiyunONE1908,283HuafanRoad,LonghuaDistrict,Shenzhen FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 2024/07/18 U.S.AgentDesignation ShenzhenisSanshengintelligentElectronicsCo.,LTDacknowledgestheirconsentforthefollowingcontact locatedintheUnitedStatestoactastheiragentforserviceofprocessfortheequipmentforwhichauthorization issought (FCCID:2BG7O-H19): NameandcompanyofU.S.agent:MoloImportExportLLC PhysicalU.S.addressofagent:2334CrystalMileCT,TomsRiver,NJ,08755,USA FRNofU.S.agent: 0033490996 EmailaddressofU.S.agent:[email protected] MoloImportExportLLCacknowledgestheirobligationtoacceptserviceofprocessonbehalfofShenzhenis SanshengintelligentElectronicsCo.,LTD ShenzhenisSanshengintelligentElectronicsCo.,LTDwiththeFRN[0035601582]acceptsitsobligationto maintainanagentforserviceofprocessintheUnitedStatesfornolessthanoneyearaftereitherthegranteehas permanentlyterminatedallmarketingandimportationoftheapplicableequipmentwithintheU.S.,orthe conclusionofanyCommission-relatedadministrativeorjudicialproceedinginvolvingtheequipment,whicheveris later. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirementslistedunder§ 2.911(d)(7). TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB 986446D01. Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,thegranteeisobligatedtonotify theFCCwithin30daysviathegrantingTCB. Sincerely, Signature AmbertGao Manager ShenzhenisSanshengintelligentElectronicsCo., LTD Signature SamuelWeiss Manager MoloImportExportLLC 4 8 _ [ m o d e l ] U S _ A g e n t _ 2 . 9 1 1 ( d ) ( 7 ) - U , V 0 5

ShenzhenisSanshengintelligentElectronicsCo.,LTD Add:ZhiyunONE1908,283HuafanRoad,LonghuaDistrict,Shenzhen Date:2024-07-18 FCCID:2BG7O-H19 DearSir/Madam, We,ShenzhenisSanshengintelligentElectronicsCo.,LTDHerebydeclares thefollowingstatementforFederalCommunicationsCommission,PCB board,circuit,structureandinternalofthesemodel(s)arethesame,Onlymodelnumber isdifferentforthesemodel: Productname:Bluetoothheadset Modelno:H19,S168,S170,S90,S99,S176,S2,PRO13,V77,V99,S96,S190,V300,V400, S195,S210,S300,S510,S530,V350,N10,N20,N50,D1160,H7,H8,H9,H10,H11, H12,H13,S178,S230,S310,S320,S330,S560,S570,S610,S620,S600 Sincerely, Name/Title: Company Address: Phone: Fax: E-Mail: AmbertGao/N/A ShenzhenisSanshengintelligentElectronicsCo.,LTD ZhiyunONE1908,283HuafanRoad,LonghuaDistrict,Shenzhen 18589044591 N/A [email protected]

CONFIDENTIALITYREQUEST forCertificationServiceinUSA FederalCommunicationCommission EquipmentAuthorizationDivision,ApplicationProcessingBranch 7435OaklandMillsRoad Columbia,MD21046 Date:<2024-07-18> PursuanttoParagraphs$0.457and0.459oftheCommission'sRules(47C.F.R.)and Section§552(b)(4)oftheFreedomofInformationAct,werequestsconfidentiality forthefollowingproducts: FCCID Modelname 2BG7O-H19H19 Fortheproductstatedabove,werequestthatthefollowinginformationbe heldconfidential; Thelong-termconfidentialityexhibitscontainourtradesecretsandproprietary informationthatcouldbeofbenefittoourcompetitors. Theshort-termconfidentialityonthebasisofensuringthatbusinesssensitive informationremainsconfidentialuntiltheactualmarketingofournewdevice. Ifyouhaveanyquestions,pleasefeelfreetocontactmeattheaddressshownbelow. Sincerely Name/Title:AmbertGao /N/A Company:ShenzhenisSanshengintelligentElectronicsCo.,LTD Address:ZhiyunONE1908,283HuafanRoad,LonghuaDistrict,Shenzhen Phone:18589044591 Fax: N/A E-Mail:[email protected]

Shenzhen is Sansheng intelligent Electronics Co., LTD Zhiyun ONE1908, 283 Huafan Road, Longhua District, Shenzhen Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia,MD 21046 2024 -07-18 To whom it may concen: W e, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matt ers relating to applications for equipment authorization FCC ID: 2BG7O-H19 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the sam e effect as acts of our own. By signing this application form,we agree to Eurofins'current valid General Terms and Conditions (AGB),Testing and Certification Regulations(PZO)which can be view ed on following website www.eurofins.de/ee or retrieved on request. W e also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. Sincerely Name/Title Company: Address: Phone: Fax: E-Mail: Ambert Gao/N/A Shenzhen is Sansheng intelligent Electronics Co., LTD Zhiyun ONE1908, 283 Huafan Road, Longhua District, Shenzhen 18589044591 NA [email protected]

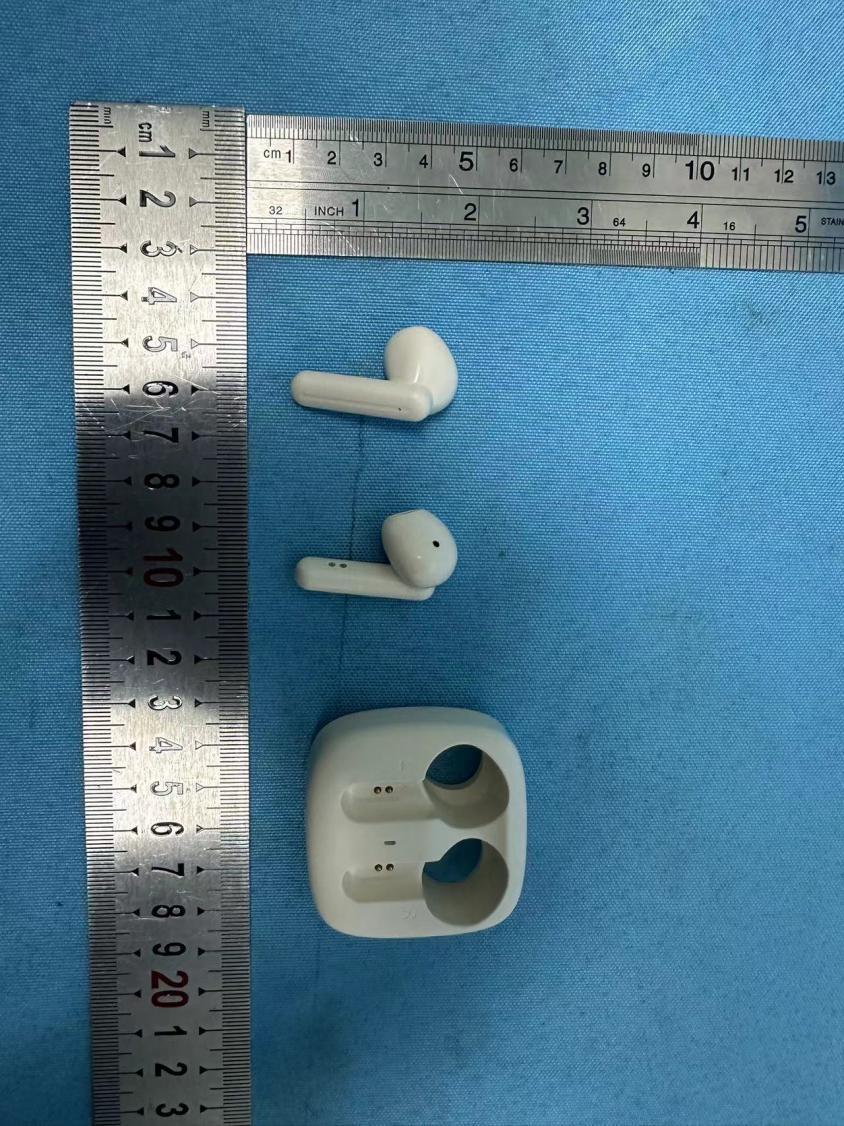

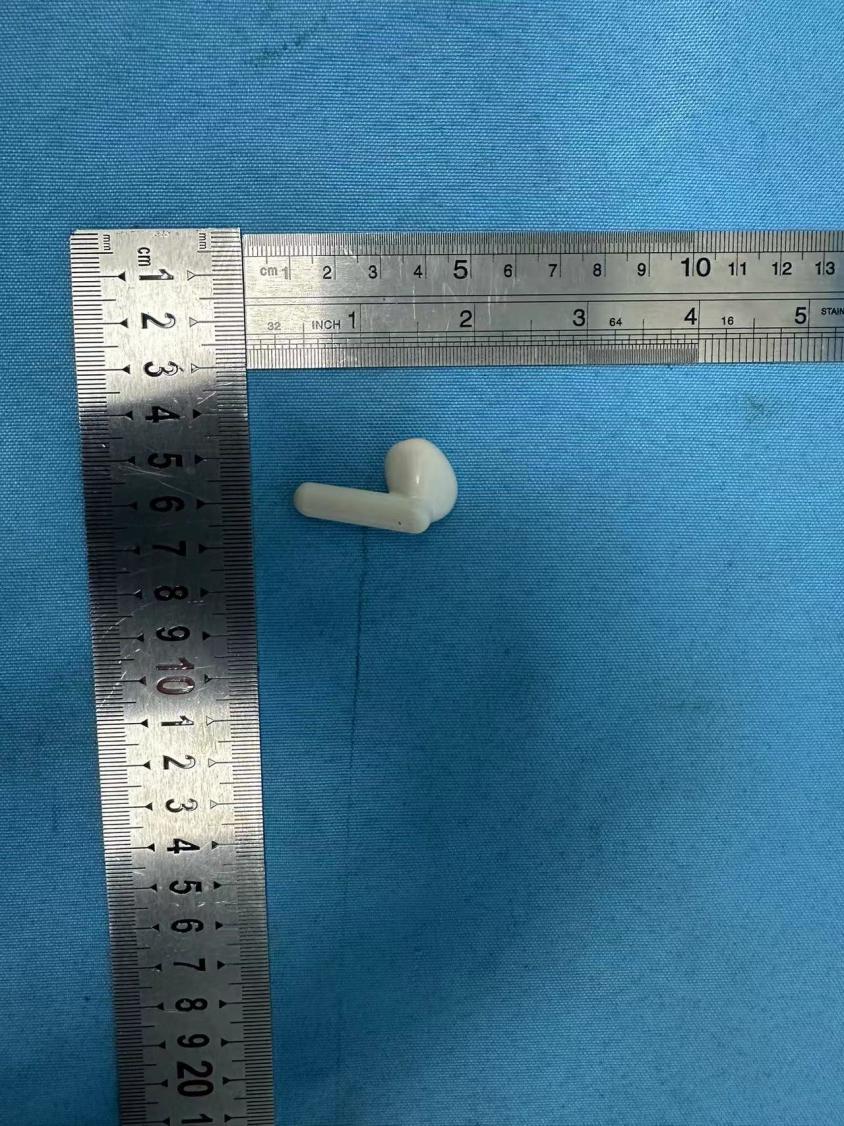

Page: 1 of 4 PHOTOGRAPHSOFEUT FCCID:2BG7O-H19 ExternalPhotos Page: 2 of 4 ExternalPhotos Page: 3 of 4 ExternalPhotos Page: 4 of 4 ExternalPhotos

DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] RFExposureEvaluationReport ApplicationNo.: DNT241387R1796-5125 Applicant: ShenzhenisSanshengintelligentElectronicsCo.,LTD AddressofApplicant: ZhiyunONE1908,283HuafanRoad,LonghuaDistrict,Shenzhen EUTDescription: Bluetoothheadset ModelNo.: H19,S168,S170,S90,S99,S176,S2,PRO13,V77,V99,S96,S190,V300,V400, S195,S210,S300,S510,S530,V350,N10,N20,N50,D1160,H7,H8,H9,H10, H11,H12,H13,S178,S230,S310,S320,S330,S560,S570,S610,S620,S600 FCCID: 2BG7O-H19 Powersupply DC3.7VFromBattery ChargingVoltage: DC5V Standards: 47CFRPart2.1093 FCCKDB447498D04v01 TradeMark: N/A DateofReceipt: 2024/7/5 DateofTest: 2024/7/6to2024/7/16 DateofIssue: 2024/7/19 TestResult:PASS PreparedBy:(TestingEngineer) ReviewedBy:(ProjectEngineer) ApprovedBy:(Manager) Note:Ifthereisanyobjectiontotheresultsinthisreport,pleasesubmitawritteninquirytothecompanywithin15daysfromthedateof receivingthereport.Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,andisissuedbythecompanyinaccordance withtherequirementsofthe"ConditionsofIssuanceofTestReports"printedintheattachedpage.Unlessotherwisestated,theresults presentedinthisreportonlyapplytothesamplestestedthistime.Partialreproductionofthisreportisnotallowedunlessapprovedbythe companyinwriting. ReportNo.:DNT241387R1796-5125Date：July19,2024Page： 2 / 7 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] ReportReviseRecord ReportVersionReviseTimeIssuedDateValidVersionNotes V2.0/Jul.19,2024ValidOriginalReport ReportNo.:DNT241387R1796-5125Date：July19,2024Page： 3 / 7 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] Contents RFEXPOSUREEVALUATIONREPORT.............................................................................................................................................1 1GENERALINFORMATION..................................................................................................................................................................4 1.1TESTLOCATION.................................................................................................................................................................................4 1.2GENERALDESCRIPTIONOFEUT.....................................................................................................................................................4 2RFEXPOSUREEVALUATION............................................................................................................................................................5 2.1RFEXPOSURECOMPLIANCEREQUIREMENT..................................................................................................................................5 ReportNo.:DNT241387R1796-5125Date：July19,2024Page： 4 / 7 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 1GeneralInformation 1.1TestLocation Company:DongguanDNTestingCo.,Ltd Address: No.1,WestFourthStreet,SouthXinfaRoad,WushaLiwu,Chang＇anTown, DongguanCity,GuangdongP.R.China Testengineer:WayneLin 1.2GeneralDescriptionofEUT Manufacturer: ShenzhenisSanshengintelligentElectronicsCo.,LTD AddressofManufacturer: ZhiyunONE1908,283HuafanRoad,LonghuaDistrict,Shenzhen EUTDescription: Bluetoothheadset TestModelNo.:H19 AdditionalModel(s): S168,S170,S90,S99,S176,S2,PRO13,V77,V99,S96,S190,V300,V400, S195,S210,S300,S510,S530,V350,N10,N20,N50,D1160,H7,H8,H9,H10,H11, H12,H13,S178,S230,S310,S320,S330,S560,S570,S610,S620,S600 ChipType: AB5656T2 Serialnumber: PR241387R1796 PowerSupply: DC3.7VFromBattery ChargingVoltage: DC5V TradeMark:NA HardwareVersion:V1.0 SoftwareVersion:V1.0 SampleType:PortableDevice,Module,MobileDevice AntennaType: External,Integrated AntennaGain: Providedbyapplicant 2.7dBi Remark: *Allmodelsarejustcolordifferences,motherboard,PCBcircuitboard,chip,electroniccomponents,appearance isallthesame. *Sincetheabovedataand/orinformationisprovidedbytheapplicantrelevantresultsorconclusionsofthisreport areonlymadeforthesedataand/orinformation,DNTisnotresponsiblefortheauthenticity,integrityandresultsof thedataandinformationand/orthevalidityoftheconclusion. ReportNo.:DNT241387R1796-5125Date：July19,2024Page： 5 / 7 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 2RFExposureEvaluation 2.1RFExposureComplianceRequirement 2.1.1Limits HumanexposuretoRFemissionsfromportabledevices(47CFR§2.1093),asdefinedbytheFCC,mustbe evaluatedwithrespecttotheFCC-adoptedlimitsforSAR.Evaluationofmobiledevices,asdefinedbytheFCC,may alsobeperformedwithrespecttoSARlimits,butinsuchcasesitisusuallysimplerandmorecost-effectiveto evaluatecompliancewithrespecttofieldstrengthorpowerdensitylimits.Forcertaindevicesthataredesignedtobe usedinbothmobileandportableconfigurationssimilartothosedescribedin47CFR§2.1091(d)(4),suchascertain desktopphonesandwirelessmodemmodules,complianceformobileconfigurationsisalsosatisfiedwhenthesame deviceisevaluatedforSARcomplianceinportableconfigurations. Referto47CFR§2.1093: Aportabledeviceisdefinedasatransmittingdevicedesignedtobeusedinotherthanfixedlocationsandto generallybeusedinsuchawaythattheRFsource'sradiatingstructure(s)is/arewithin20centimetersofthebody oftheuser. Evaluationofcompliancewiththeexposurelimitsin§1.1310ofthischapter,andpreparationofanEAifthelimits areexceeded,isnecessaryforportabledeviceshavingsingleRFsourceswithmorethananavailab…

Text truncated - open the document above for the full version.

SymbolsLWTA Dimensions1.60±0.200.80±0.200.80±0.200.30±0.10 NumberTerminal Name ① INPUT ② NC Dimensions（Unit：mm） L w ① ② T ( Side View ) ( Bottom View ) ( Top View ) A Features 1.Surface Mounted Devices with a small dimension of 1.6 x 0.8 x 0.8 mm meet future miniaturization trend. 2,Embedded and LTCC (low temperature co-fired ceramic) technology is able to integrate with system design as well as beatifying the housing of final product. 3.High stability and low tolerance. Applications 1.Bluetooth 2.Wireless LAN 3.ISM band 2.4GHz wireless applications P/N: H LX16 0 8 0 8 D 0 6 地址：深圳市宝安区西乡街道共乐社区铁仔路九方广场2栋1905 TEL: 0755-23591525, FAX: 0755-23591525 Evaluation Board and Matching Circuits P/N: H LX16 0 8 0 8 D 0 6 地址：深圳市宝安区西乡街道共乐社区铁仔路九方广场2栋1905 TEL: 0755-23591525, FAX: 0755-23591525 P/N: H LX16 0 8 0 8 D 0 6 S11-Parameter Frequency(MHz)2400245024802500 VSWR1.561.161.481.79 地址：深圳市宝安区西乡街道共乐社区铁仔路九方广场2栋1905 TEL: 0755-23591525, FAX: 0755-23591525 Radiation Pattern coordinates： Y-Z Plane X-Z Plane P/N: H LX16 0 8 0 8 D 0 6 地址：深圳市宝安区西乡街道共乐社区铁仔路九方广场2栋1905 TEL: 0755-23591525, FAX: 0755-23591525 X-Y Plane Frequency2400MHz2450MHz2490MHz Avg. gain1.300.930.45 Peak gain2.72.62.5 Efficiency57%54%53% P/N: H L X16 0 8 0 8 D 0 6 地址：深圳市宝安区西乡街道共乐社区铁仔路九方广场2栋1905 TEL: 0755-23591525, FAX: 0755-23591525 Temperature：40±2°C Humidity：90~95%RH Duration：500h Recovery conditions：Room temperature Recovery Time：24h (Class1) or 48h (Class2) Solderability At least 95% of the terminal electrode is covered by new solder.Preheating conditions:80 to 120°C; 10~30s. SolderTemperature:235± 5°C Duration:2 ±0.5s , SolderTemperature:245±5°C Duration:2±0.5s Optimum Solder Amount for Reflow Soldering Operating Temperature Temperature Relative Humidity Moisture Proof -25°C~+85°C 5~40°C 20~70% Too much solderCracks tend to occur due to large stress. Not enough solder Weak holding force may cause bad connection between the capacitor and PCB. Recommended Soldering amounts The optimal solder fillet amounts for re-flow soldering 天线厚度 以下 The optimal solder fillet amounts for wave soldering P/N: H LX16 0 8 0 8 D 0 6 Dependability Test Test Temperature: 25°C±3°C 地址：深圳市宝安区西乡街道共乐社区铁仔路九方广场2栋1905 TEL: 0755-23591525, FAX: 0755-23591525 Resistanceto SolderingHeat Preheating80 to 120°C; 10~30s.SolderTemperature:235±5°C Duration:2±0.5s，SolderTemperature:245±5°C Duration:2±0.5s，Preheating100to200°C;10±2min. Solder Temperature: 265±5°C Duration: 10±1s Clean the capacitor with solvent and examine it with a 10X(min.) microscope. Recovery Time: 24±2h Recovery condition: Room temperature Resistance to Flexure of Substrate Test Board: Al2O3 or PCB Warp: 1mm Speed: 0.5mm/sec. Unit: mm The measurement should be made with the board in the bending position. P/N: H LX16 0 8 0 8 D 0 6 Temperature Cycle Test 10±1S Applied Force: 5NDuration: 10±1S Preheating conditions: up-category temperature, 1h Recovery time: 24±1h Initial Measurement Cycling Times: 5 times, 1 cycle, 4 steps: 地址：深圳市宝安区西乡街道共乐社区铁仔路九方广场2栋1905 TEL: 0755-23591525, FAX: 0755-23591525 While in preheating,please keep the temperature difference between soldering temperature and surface temperature of chips as: T≤150°C. P/N: H LX16 0 8 0 8 D 0 6 地址：深圳市宝安区西乡街道共乐社区铁仔路九方广场2栋1905 TEL: 0755-23591525, FAX: 0755-23591525 Dimensions of paper taping for 0603types Reel（4000 pcs/Reel） Storage Period The guaranteed period for solderability is 6 months (Under deliver package condition).Temperature5~40°C /Relative Humidity20~70% P/N: H LX16 0 8 0 8 D 0 6 Unit：mm 地址：深圳市宝安区西乡街道共乐社区铁仔路九方广场2栋1905 TEL: 0755-23591525, FAX: 0755-23591525

DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] FCC Test Report ApplicationNo.: DNT241387R1796-5125 Applicant: Shenzhenis SanshengintelligentElectronicsCo., LTD Addressof Applicant: ZhiyunONE1908,283 HuafanRoad,LonghuaDistrict,Shenzhen EUT Description: Bluetoothheadset ModelNo.: H19,S168,S170,S90,S99,S176,S2,PRO13,V77,V99,S96,S190,V300,V400, S195,S210,S300,S510,S530,V350,N10,N20,N50,D1160,H7,H8,H9,H10,H11, H12,H13,S178,S230,S310,S320,S330,S560,S570,S610,S620,S600 FCC ID: 2BG7O-H19 PowerSupply: DC 3.7VFromBattery ChargingVoltage: DC 5V TradeMark: / Standards: 47 CFRFCCPart 2, SubpartJ 47 CFRPart 15, SubpartC ANSIC63.10:2020 Dateof Receipt: 2024/7/5 Dateof Test: 2024/7/6to 2024/7/16 Dateof Issue: 2024/7/19 Test Result:PASS PreparedBy:(TestingEngineer) ReviewedBy:(ProjectEngineer) ApprovedBy:(Manager) Note:If thereis any objectionto the resultsin this report,pleasesubmita writteninquiryto the companywithin15 daysfrom the date of receivingthe report.The test reportis effectiveonly with both signatureand specializedstamp,and is issuedby the companyin accordance with the requirementsof the "Conditionsof Issuanceof Test Reports"printedin the attachedpage.Unlessotherwisestated,the results presentedin this reportonly applyto the samplestestedthis time.Partialreproductionof this reportis not allowedunlessapprovedby the companyin writing. ReportNo.:DNT241387R1796-5125Date：July 19 , 202 4Page： 2 / 65 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] ReportReviseRecord ReportVersionReviseTimeIssuedDateValidVersionNotes V1.0/ Jul .19 , 202 4 ValidOriginalReport ReportNo.:DNT241387R1796-5125Date：July 19 , 202 4Page： 3 / 65 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 1 TestSummary Test ItemTest RequirementTest MethodTest ResultResult AntennaRequirement 15.203/247(b) --Clause3.1PASS 20dBEmissionBandwidth 15.247(a)(1) ANSIC63.10:2020Clause3.2PASS ConductedPeakOutput Power 15.247(b)(1) ANSIC63.10:2020Clause3.3PASS CarrierFrequencies Separation 15.247(a)(1) ANSIC63.10:2020Clause3.4PASS DwellTime 15.247(a)(1) ANSIC63.10:2020Clause3.5PASS HoppingChannelNumber 15.247(a)(1) ANSIC63.10:2020Clause3.6PASS Band-edgefor RF ConductedEmissions 15.247(d) ANSIC63.10:2020Clause3.7PASS RF ConductedSpurious Emissions 15.247(d) ANSIC63.10:2020Clause3.8PASS RadiatedSpurious emissions 15.247(d); 15.205/15.209 ANSIC63.10:2020Clause3.9PASS Restrictedbandsaround fundamentalfrequency(Radiated Emission) 15.247(d); 15.205/15.209 ANSIC63.10:2020Clause3.10PASS AC PowerLine Conducted Emission 15.207 ANSIC63.10:2020Clause3.1 1N/A Note: 1. “N/A ” denotestest is not applicablein this test report . ReportNo.:DNT241387R1796-5125Date：July 19 , 202 4Page： 4 / 65 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] Contents 1 Test Summary.............................................................................................................................................................3 2 GeneralInformation.....................................................................................................................................................5 2.1Test Location................................................................................................................................................5 2.2GeneralDescriptionof EUT .........................................................................................................................6 2.3ChannelList .................................................................................................................................................7 2.4Test Environmentand Mode........................................................................................................................8 2.5PowerSettingof Test Software....................................................................................................................9 2.6Descriptionof SupportUnits........................................................................................................................9 2.7Test Facility..................................................................................................................................................9 2.8MeasurementUncertainty(95%confidencelevels,k= 2) ..........................................................................10 2.9EquipmentList ............................................................................................................................................11 2.10Assistantequipmentusedfor test ..............................................................................................................12 3 Test resultsand MeasurementData .........................................................................................................................13 3.1AntennaRequirement................................................................................................................................13 3.220dBEmissionBandwidth.........................................................................................................................14 3.3ConductedOutputPower...........................................................................................................................15 3.4CarrierFrequenciesSeparationy...............................................................................................................16 3.5DwellTim e..................…

Text truncated - open the document above for the full version.

ReportNo.:DNT241387R1796-5125Date：July 19 , 202 4Page： 46 / 65 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] TestGraphs DH1_Ant1_Hop DH3_Ant1_Hop DH5_Ant1_Hop ReportNo.:DNT241387R1796-5125Date：July 19 , 202 4Page： 47 / 65 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 2DH1_Ant1_Hop 2DH3_Ant1_Hop 2DH5_Ant1_Hop ReportNo.:DNT241387R1796-5125Date：July 19 , 202 4Page： 48 / 65 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 3DH1_Ant1_Hop 3DH3_Ant1_Hop 3DH5_Ant1_Hop ReportNo.:DNT241387R1796-5125Date：July 19 , 202 4Page： 49 / 65 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] AppendixF: Numberof hoppingchannels TestResult TestModeAntennaFreq(MHz)Result[Num]Limit[Num]Verdict DH5Ant1Hop79≥15PASS 2DH5Ant1Hop79≥15PASS 3DH5Ant1Hop79≥15PASS ReportNo.:DNT241387R1796-5125Date：July 19 , 202 4Page： 50 / 65 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] TestGraphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop ReportNo.:DNT241387R1796-5125Date：July 19 , 202 4Page： 51 / 65 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] AppendixF: Bandedgemeasurements TestResult Test ModeAntennaCh NameFreq(MHz) Ref Level [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant1 Low2402-17.05-51.66≤-37.05PASS High2480-20.42-51.69≤-40.42PASS LowHop_2402-18.56-52.03≤-38.56PASS HighHop_2480-21.65-51.69≤-41.65PASS 2DH5Ant1 Low2402-17.97-51.04≤-37.97PASS High2480-20.23-50.89≤-40.23PASS LowHop_2402-18.00-51.98≤-38PASS HighHop_2480-22.56-51.48≤-42.56PASS 3DH5Ant1 Low2402-16.73-52.36≤-36.73PASS High2480-21.66-51.3≤-41.66PASS LowHop_2402-21.20-51.93≤-41.2PASS HighHop_2480-20.76-51.29≤-40.76PASS . ReportNo.:DNT241387R1796-5125Date：July 19 , 202 4Page： 52 / 65 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] TestGraphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 ReportNo.:DNT241387R1796-5125Date：July 19 , 202 4Page： 53 / 65 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 ReportNo.:DNT241387R1796-5125Date：July 19 , 202 4Page： 54 / 65 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 3DH5_Ant1_Low_2402 ReportNo.:DNT241387R1796-5125Date：July 19 , 202 4Page： 55 / 65 DongguanDN Tes…
