www.websensor.com 400 029 2168 CS-iWPT302 Wireless Bluetooth Pressure Transmitter CS-iWPT302-24.0-SS_EN 1 / 7 CS-iWPT302 Description CS-iWPT302 wireless Bluetooth pressure transmitter uses lithium battery power supply, built-in disposable lithium battery, adopts the international first-class transmitter core, transmitter ASIC and accessories, supports Bluetooth communication, parameters can be configured. The main application areas include pressure collection of oil, gas, heating and other transmission pipelines and other facilities, and transmission through Bluetooth, with Bluetooth host receive and use, can monitor and collect data through mobile APP. Applications ● Wireless pressure measurement ● Pipeline pressure monitoring ● Inspection and collection Features ● Built-in disposable lithium battery ● High measurement accuracy ● Parameters can be configured ● High measurement accuracy ● Small size, easy to install ● Low power design, long battery life www.websensor.com 400 029 2168 CS-iWPT302 Wireless Bluetooth Pressure Transmitter CS-iWPT302-24.0-SS_EN 2 / 7 Performance Specifications Item Technical parameter Remark Transmission mode Bluetooth 5.1 Pressure range 0～50bar （ Customized ） The default gauge pressure is 50bar Pressure accuracy ± 0.5%FS @25 ° C ± 1.0%FS @-20~80 ° C Overload pressure 1.5X Typ. Burst pressure 2.5X Typ. Pressure connector NPT 1/4 Customized Insulate Resistance 100M Ω @100VDC Measuring medium Compatible with SS and fluororubbers for liquids or gases Core compensated temperature (-20 ～ +80) °C Temperature range -40 ～ 85 °C The internal ambient temperature of the product Temperature accuracy ± 2 °C Typical value Power mode 3.6VDC ER14250 Disposable lithium battery Max working current 6mA Battery life ＞ 5 Years @25 °C 60 seconds sampling interval 10 second broadcast interval Shell material 304SS, ABS+PC IP Rating IP65 Operating temperature (-40 ～ +85) °C Storage temperature (-40 ～ +85) °C Recommended that the storage temperature not exceed 30 °C ATEX certification TBD Note1：The sampling interval ranges from 2 to 180s (60s by default), and the Bluetooth broadcast interval ranges from 1 to 10s (10s by default). Note2：The default unit of pressure value is Bar. Optional units are kpa and Psi. Conversion relationship: 1Bar = 14.5Psi, 1Bar = 100kPa. www.websensor.com 400 029 2168 CS-iWPT302 Wireless Bluetooth Pressure Transmitter CS-iWPT302-24.0-SS_EN 3 / 7 Structure and Dimension (mm) Instructions 1. Product Activation After delivery, the product is in deep hibernation state (no broadcast, no sampling) and needs to be activated. Activation method: Use a magnetic steel close to the top and remove it. After successful activation, the unconnected broadcast is automatically sent. Turn on the Bluetooth of the mobile phone or other Bluetooth devices to scan the Bluetooth broadcast information (product Bluetooth broadcast name: "CS-IWPT"), analyze the Bluetooth broadcast data to obtain the pressure value. 2. Communication Protocol Refer to《CS-iWPT302-XY Bluetooth Pressure Transmitter Communication Protocol》。 3. Modify Parameters Refer to《CS-iWPT302-XY Bluetooth Pressure Transmitter Communication Protocol》。 www.websensor.com 400 029 2168 CS-iWPT302 Wireless Bluetooth Pressure Transmitter CS-iWPT302-24.0-SS_EN 4 / 7 Example for modifying the broadcast interval: Use the magnetic steel close to the top and remove it, switch the device to the connectable broadcast mode, turn on Bluetooth on the mobile phone and use Bluetooth debugging software to connect the device, and find the following information after successful connection Service ID and UUID： Service ID：18424398-7cbc-11e9-8f9e-2a86e4085a59； UUID:772ae377-b3d2-4f8e-4042-5481d1e0098c Open the Notify channel under this UUID, and enter the command intva3- in the write channel to change the broadcast interval. After the change is successful, the command is returned in the Notify channel：OK, Intva:3。 Battery Level The relationship between voltage and remaining power is shown below： www.websensor.com 400 029 2168 CS-iWPT302 Wireless Bluetooth Pressure Transmitter CS-iWPT302-24.0-SS_EN 5 / 7 FAQ The following table lists possible problems with sensor terminals and solutions. If your problem is not listed or the solution does not address your problem, please contact us. Fault analysis and elimination Num Fault Case analysis Method 1 Broadcast data exception There are too many Bluetooth broadcast signals on site, and the received information is interfered Calculate and compare broadcast data CRC to exclude abnormal data 2 Hard to scan the broadcast signal The Bluetooth broadcast interval is too large Modify broadcast interval 3 The pressure changes but the broadcast pressure does not change Excessive sampling interval Modified sampling interval Disposal methods of hazardous wastes such as waste circuit boards and their components after the end of product life After the end of the product life, each part shall be distinguished according to the “National hazardous waste list” to determine whether it is hazardous waste. Among them, the waste lithium battery not disassembled is not www.websensor.com 400 029 2168 CS-iWPT302 Wireless Bluetooth Pressure Transmitter CS-iWPT302-24.0-SS_EN 6 / 7 hazardous waste, and the waste circuit board (including components, chips, plug-ins, pins, etc. attached to the waste circuit board) belongs to hazardous waste. The part that is not hazardous waste shall be treated as general industrial solid waste, and the lithium battery shall be handed over to the nearby renewable resource recovery department or sent to the product manufacturer for recycling. Hazardous wastes must be handed over to legally qualified departments for disposal in accordance with national regulations, and shall not be dumped or stacked without authorization.If it is really necessary to store temporarily, protective measures meeting the national environmental protection standards must be taken, and the storage period shall not exceed one y…

Text truncated - open the document above for the full version.

Xi'anChinastarM&CLimited FederalCommunicationsCommissionDate:2024-07-29 AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 SUBJECT:FCCSDoCdeclarationforFCCID:2BG7WCS-IWPT302 ToWhomitmayconcern, We,asthegranteeofthisproject,wouldliketodeclarethatthisdevicehasbeen testedaccordingtotheFCCrequirementandfoundcompliantwiththefollowing standards:FCCPart15SubpartB. ProductName:CS-iWPT302WirelessBluetoothTransmitterSeries BrandName: ModelName: CS-iWPT302-P-LLP5-B34WNM-N0X00-00， CS-iWPT302-P-LP5-B34WNM-N0X00-00， CS-iWPT302-P-LP5-B34WNM-W0X00-00， CS-iWPT302-P-HP5-B34WNM-W0X00-00，CS-iWPT302-T/a AndotherCS-iWPT302Derivedmodels： CS-iWPT302-P- □ -B34W □-□ 0X00 -□ ,CS-iWPT302-T /□ Modeldifferences tablefordetails : ForCS-iWPT302-P- □ -B34W □ - □ 0X00- □： The"①"representPressurerange&Pressureaccuracy，The"②" representPressureconnectortype,The"③"representsealing material,The"④"representsomespecialinstructions “①”：Pressurerange&Pressureaccuracy，eg：LP5 "②"：Pressureconnectortype，eg：NM Code1Pressureconnectortype GMG1/4externalthread GFG1/4internalthread G2G1/2externalthread GTG1/2internalthread G8G1/8externalthread G3G3/4externalthread GEG3/8internalthread GSG3/8externalthread NMNPT1/4externalthread NFNPT1/4internalthread N2NPT1/2externalthread N8NPT1/8externalthread RMR1/4externalthread R2R1/2externalthread R8R1/8externalthread M2M20×1.5externalthread 7M7/16-20UNFexternalthread 7F7/16-20UNFinternalthread 9M9/16-20UNFexternalthread "xx" Refertothecorresponding manual Cod e1 PressurerangeCode2Pressureaccuracy FLPX<02±0.25%F.S LLP 0～2≤X≤5bar 5±0.5%F.S LP 0～5＜X≤50bar A±1.0%F.S HP 0～50＜X≤600bar B±1.5%F.S XXnolimitC±3%F.S 1±0.1%F.S OtherundefinedcodesOtherundefinedvalues Sincerely, Signature:________________________________ "③"：Sealingmaterial，eg：W "④"：Somespecialinstructions，eg：00 ForCS-iWPT302-T/□ The“□”maybethenumbers0to9orthelettersA~Zora~z,or ablankspace,thatindicatesdifferenttypesoftemperaturesensorsor differenttemperaturemeasurementaccuracies,pleaserefertothe instructionmanual. CodeSealingmaterial NNitrilerubber Cchloroprenerubber Ffluororubber Wweldedseal CodeRemark 00Nospecialrequirements S1Specialrequirement1 S2Specialrequirement2 SxSpecialrequirementx TestingLab:CentreTestingInternationalGroupCo.,Ltd CompanyName:Xi'anChinastarM&CLimited Name:YanFeng JobTitle:Projectleader E-mail:[email protected] Tel.:+862988325620EXT8320

Rev2/17/2023 Xi'anChinastarM&CLimited FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:July18,2024 Ref:AttestationStatementsPart2.911(d)(5)(i)Filing FCCID:2BG7WCS-IWPT302 Xi'anChinastarM&CLimited(“theapplicant”)certifiesthattheequipmentforwhichauthorizationis soughtisnot“covered”equipmentprohibitedfromreceivinganequipmentauthorizationpursuantto section2.903oftheFCCrules. Sincerely, Signature: Printedname:YanFeng

Rev2/17/2023 Xi'anChinastarM&CLimited FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:July18,2024 Ref:AttestationStatementsPart2.911(d)(5)(ii)Filing FCCID:2BG7WCS-IWPT302 Xi'anChinastarM&CLimited(“theapplicant”)certifiesthat,asofthedateofthefilingoftheapplication, theapplicantisnotidentifiedontheCoveredList(asaspecificallynamedentityoranyofitssubsidiaries oraffiliates)asanentityproducing“covered”equipment. Sincerely, Signature: Printedname:YanFeng

Rev1/26/2023 Xi'anChinastarM&CLimited FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:July17,2024 Ref:AttestationStatementsPart2.911(d)(7)Filing FCCID:2BG7WCS-IWPT302 ApplicantFRN:0035601954 Xi'anChinastarM&CLimited(“theapplicant”)certifiesthat,asofthedateofthefilingoftheapplication, FCCUSAgent,LLCisourdesignatedU.S.agentforserviceofprocessfortheabovereferencedFCCID: 2BG7WCS-IWPT302 Xi'anChinastarM&CLimitedacceptstomaintainanagentofserviceofprocessintheUnitedStatesfor nolessthanoneyearaftereitherthegranteehaspermanentlyterminatedallmarketingandimportation oftheapplicableequipmentwithintheU.S.,ortheconclusionofanyCommission-relatedadministrative orjudicialproceedinginvolvingtheequipment,whicheverislater. FCCUSAgent,LLCaccepts,asofthedateofthefilingoftheapplication,theobligationofthedesignated U.S.agentforserviceofprocessfortheabovereferencedFCCID:2BG7WCS-IWPT302 DesignatedU.S.AgentInformation: Name:FCCUSAgent,LLC U.S.AgentFRN:0033402884 Address:3722IllinoisAvenue,SaintCharles,IL,60174,USA ContactPerson:TimPayne Tel.:708-571-3148 Email:[email protected] Sincerely, FCCUSAgent,LLC U.S.Agentprintedname:TimPayne U.S.Agentsignature Xi'anChinastarM&CLimited Applicantprintedname:YanFeng Applicantsignature::

Rev11/20/07 Xi'anChinastarM&CLimited FederalCommunicationsCommission AuthorizationandEvaluationDivision ConfidentialityRequestregardingapplicationforcertificationofFCCID:2BG7WCS-IWPT302 PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestconfidential treatmentofinformationaccompanyingthisapplicationasoutlinedbelow: ExhibitTypeFileName (BlockDiagram,Schematics,Operational Description) (BlockDiagram.pdf,Schematics.pdf, OperationalDescription.pdf) Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. TheapplicantunderstandsthatpursuanttoSection0.457oftheRules,disclosureofthis applicationandallaccompanyingdocumentationwillnotbemadebeforethedateoftheGrant forthisapplication. PursuanttoDA04-1705June15,2004oftheCommission’spublicnotice,wealsorequestthat theinformationattachedtothisapplicationbetemporarilyconfidentialfor180daysasoutlined below: Exhibit Type / Sincerely, Signature: printed name:Yan Feng File Name / Date: July 18, 2024

M:\MasterDocuments\TEMPLATES\POA_Letter.doc Xi'anChinastarM&CLimited FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Date:July18,2024 SUBJECT:FCCApplicationfor(FCCID:2BG7WCS-IWPT302) ToWhomItMayConcern: We,theundersigned,herebyauthorizeLitingNongatCentreTestingInternationalGroup Co.,Ltd/BuildingC,HongweiIndustrialParkBlock70,Bao'anDistrict,Shenzhen,China onourbehalf,toapplytotheFederalCommunicationsCommissiononourequipment. AnyandallactscarriedoutbyLitingNongatCentreTestingInternationalGroupCo.,Ltd /BuildingC,HongweiIndustrialParkBlock70,Bao'anDistrict,Shenzhen,Chinaonour behalfshallhavethesameeffectasactsofourown. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct.We,the applicant,arenotsubjecttoadenialoffederalbenefitspursuanttoSection5301ofthe Anti-DrugActof1988,21USC853a,andnopartytotheapplicationissubjecttoadenial offederalbenefitspursuanttothatsection. Regards, Signature: printedname:YanFeng

CS-iWPT302Seriesmodelsimilaritiesanddifferences TheCS-iWPT302seriesproductsincludetwotypes:wirelessBluetooth pressuretransmitterCS-iWPT302-PandwirelessBluetoothtemperaturetransmitter CS-iWPT302-T. AllmodelsintheCS-iWPT302seriesusethesamecircuitprinciple,core components,andRFcommunicationparameters.Thedifferencesareasfollows: 1.)Thetypeofsensorisdifferent:thepressuretransmitterusesaresistive pressuresensor,andthetemperaturetransmitterusesathermistorasatemperature sensor; 2.)Therangeofthesensorisdifferent:thepressuresensorusesdifferenttypes ofpressuresensorsaccordingtodifferentrangerequirements; 3.)Theexcitationboardisslightlydifferent:thesensorisdifferentiatedbythe excitationsource,whichcanbevoltageexcitationorcurrentexcitation; 4.)Thedifferentshellcolors:Differentcustomersmayrequiredifferentcolors. There ， 1. ） WirelessBluetoothpressuretransmitterCS-iWPT302-Pincludesthe followingmodels: CS-iWPT302-P-LLP5-B34WNM-N0X00-00、 CS-iWPT302-P-LP5-B34WNM-N0X00-00、 CS-iWPT302-P-LP5-B34WNM-W0X00-00、 CS-iWPT302-P-HP5-B34WNM-W0X00-00。 AndotherCS-iWPT302-Pderivedmodels ： CS-iWPT302-P-□-B34W□-□0X00-□(Refertomodeldifferencestable fordetails) 2. ） ThewirelessBluetoothtemperaturetransmitterCS-iWPT302-Tincludesthe followingmodels: CS-iWPT302-T/a AndotherCS-iWPT302-Tderivedmodels ： CS-iWPT302-T/□(Refertomodeldifferencestablefordetails) Note: Allmodelsareidenticaltoeachotherexcepttransformerboardandsensor modelsused.Asaresult,modelsCS-iWPT302-P-LP5-B34WNM-W0X00-00 waschosentoconductthefulltests. Modeldifferencestablefordetails: ForCS-iWPT302-P-□-B34W□-□0X00-□： The"①"representPressurerange&Pressureaccuracy，The"②"represent Pressureconnectortype,The"③"representsealingmaterial,The"④"represent somespecialinstructions “①”：Pressurerange&Pressureaccuracy，eg：LP5 "②"：Pressureconnectortype，eg：NM Code1Pressureconnectortype GMG1/4externalthread GFG1/4internalthread G2G1/2externalthread GTG1/2internalthread G8G1/8externalthread G3G3/4externalthread GEG3/8internalthread GSG3/8externalthread NMNPT1/4externalthread NFNPT1/4internalthread N2NPT1/2externalthread Code 1 PressurerangeCode2Pressureaccuracy FLPX<02±0.25%F.S LLP 0～2≤X≤5bar 5±0.5%F.S LP 0～5＜X≤50bar A±1.0%F.S HP 0～50＜X≤600bar B±1.5%F.S XXnolimitC±3%F.S 1±0.1%F.S OtherundefinedcodesOtherundefinedvalues N8NPT1/8externalthread RMR1/4externalthread R2R1/2externalthread R8R1/8externalthread M2M20×1.5externalthread 7M7/16-20UNFexternalthread 7F7/16-20UNFinternalthread 9M9/16-20UNFexternalthread "xx" Refertothecorresponding manual " ③ " ： Sealingmaterial ， eg ： W "④"：Somespecialinstructions，eg：00  ForCS-iWPT302-T /□ The“ □ ”maybethenumbers0to9orthelettersA~Zora~z,orablank space,thatindicatesdifferenttypesoftemperaturesensorsordifferent temperaturemeasurementaccuracies,pleaserefertotheinstructionmanual. Herebycertified! Signature: Xi’anChinastarM&CLimited 2024-05-30 CodeSealingmaterial NNitrilerubber Cchloroprenerubber Ffluororubber Wweldedseal CodeRemark 00Nospecialrequirements S1Specialrequirement1 S2Specialrequirement2 SxSpecialrequirementx

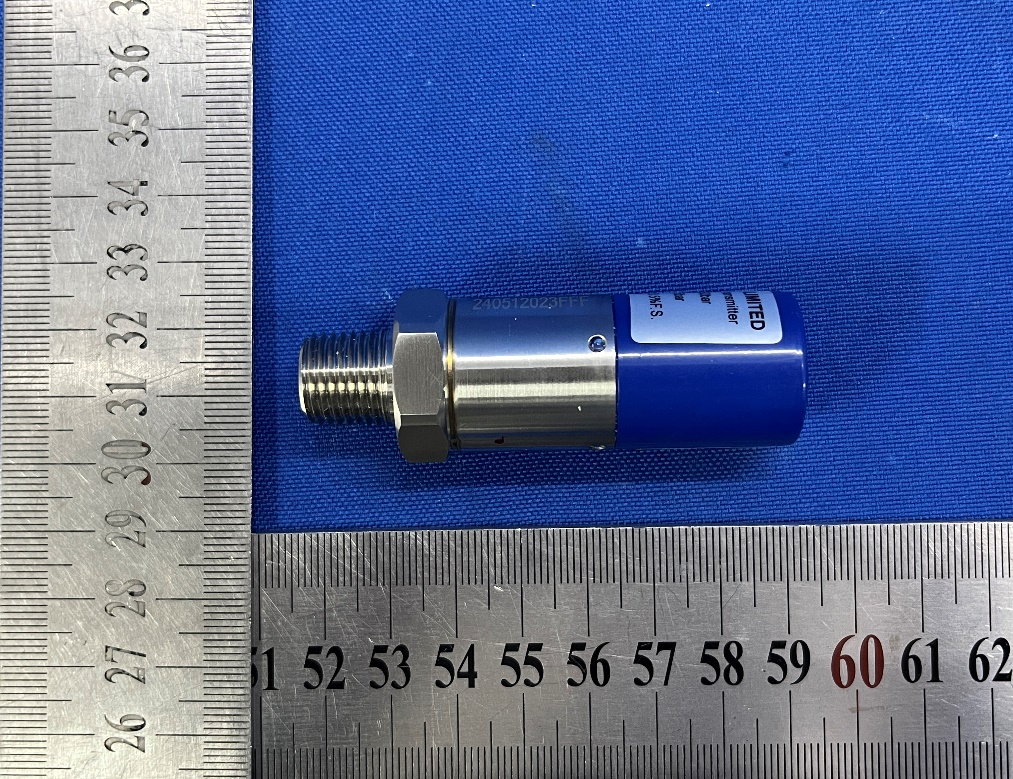

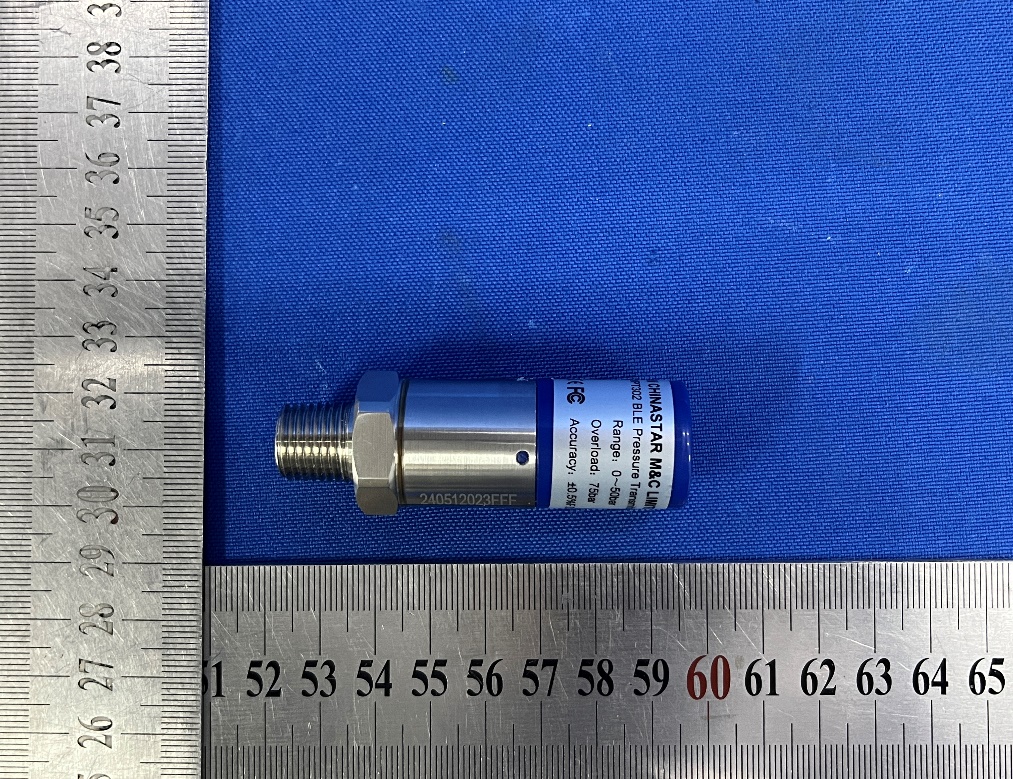

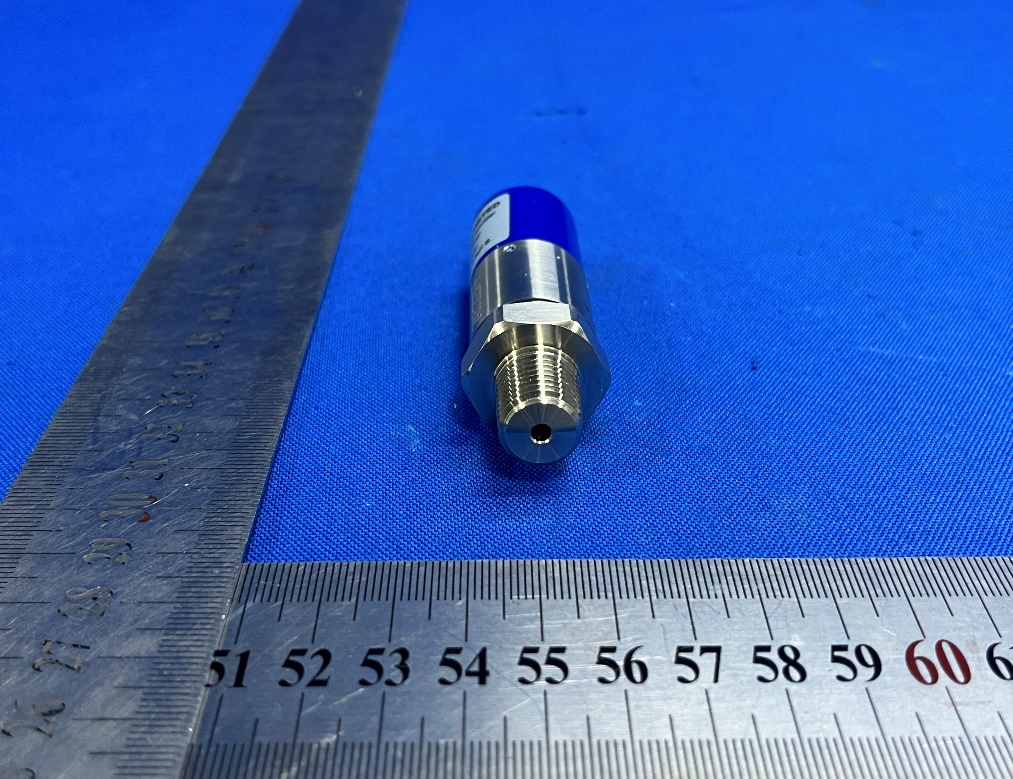

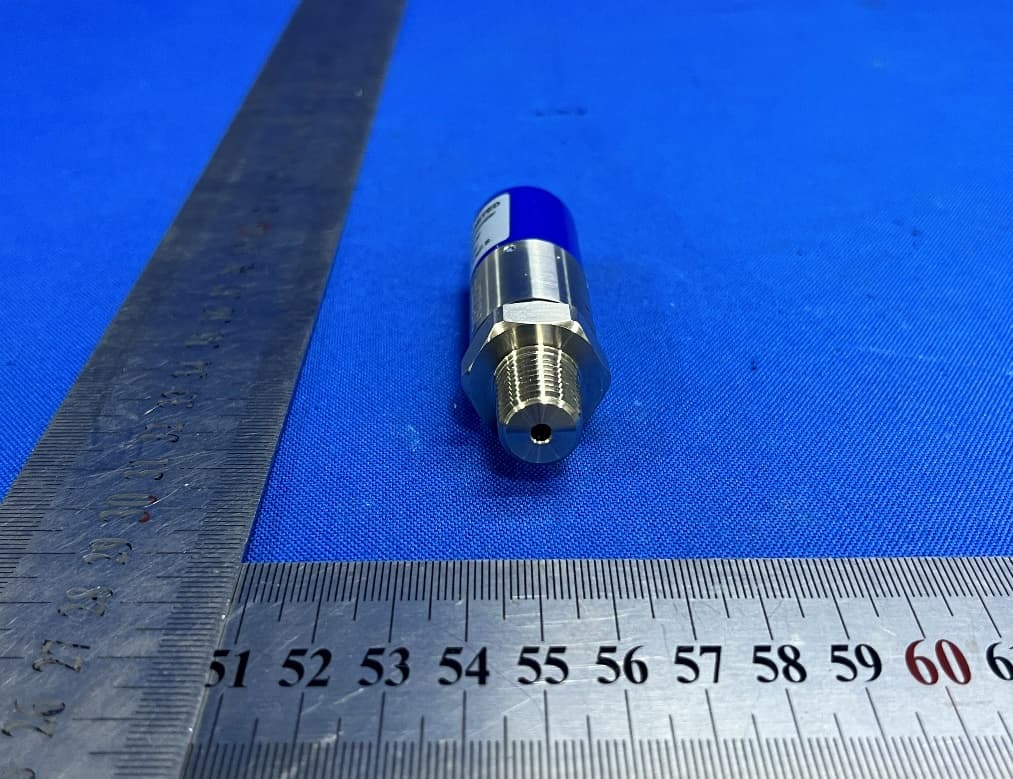

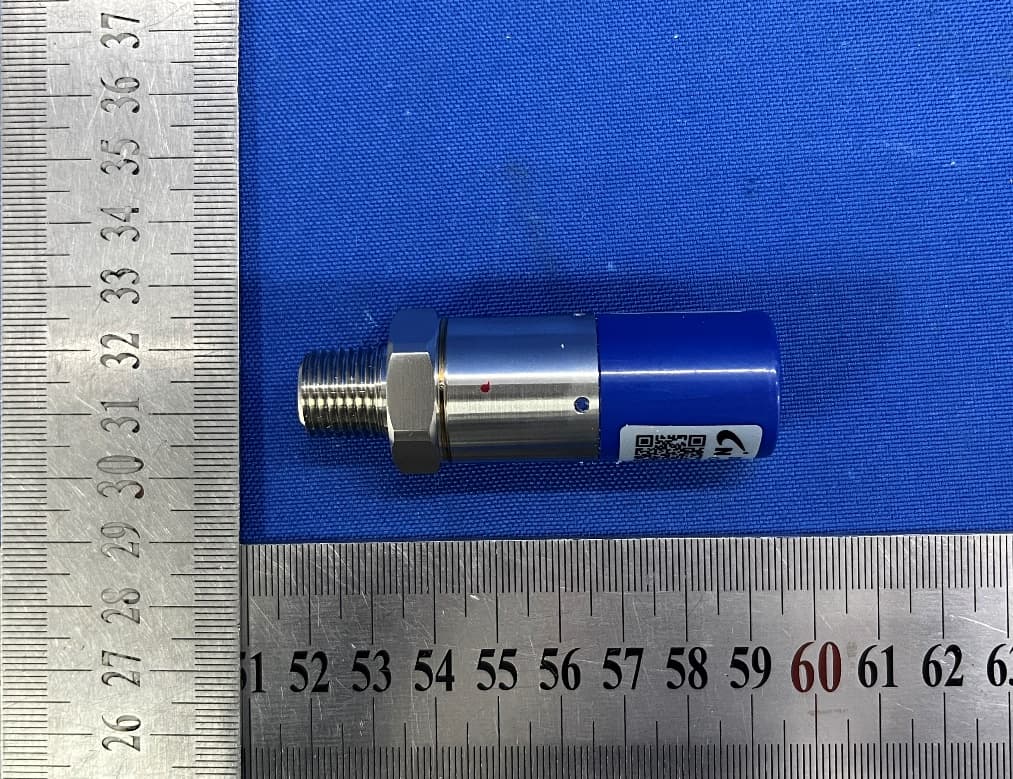

Report No. : EED32Q80776501Page 33 of 41 10 PHOTOGRAPHS OF EUT Constructional Details View of Product-01 View of Product-02 Report No. : EED32Q80776501Page 34 of 41 View of Product-03 View of Product-04 Report No. : EED32Q80776501Page 35 of 41 View of Product-05 View of Product-06

Report No. : EED32Q80776501Page 36 of 41 View of Product-07 View of Product-08 Report No. : EED32Q80776501Page 37 of 41 View of Product-09 View of Product-10 Report No. : EED32Q80776501Page 38 of 41 View of Product-11 View of Product-12 Report No. : EED32Q80776501Page 39 of 41 View of Product-13 View of Product-14 Report No. : EED32Q80776501Page 40 of 41 View of Product-15 View of Product-16 Report No. : EED32Q80776501Page 41 of 41 View of Product-17 View of Product-18 The test report is effective only with both signature and specialized stamp, The result(s) shown in this report refer only to the sample(s) tested. Without written approval of CTI, this report can’t be reproduced except in full. *** End of Report ***

Report No. : EED32Q80776502Page 1 of 9 1 COVER PAGE RF Exposure Evaluation Report Product:CS-iWPT302 Wireless Bluetooth TransmitterSeries Trade mark:N/A Model/Type reference :See section 4.2 Serial Number:N/A Report Number:EED32Q80776502 FCC ID:2BG7WCS-IWPT302 Date of Issue:Jul. 26, 2024 Test Standards: 47 CFR Part 1.1307 47 CFR Part 1.1310 47 CFR Part 2.1091 47 CFR Part 2.1093 447498 D04 Interim General RF Exposure Guidance v01 Test result:PASS Prepared for: Xi’an Chinastar M&C Limited F6, bldg A, No.1309 shanglinyuan 4th Rd, Xi’an Hi-tech Development Zone, Xi’an, China Prepared by : Centre Testing International Group Co., Ltd. Hongwei Industrial Zone, Bao’an 70 District, Shenzhen, Guangdong, China TEL: +86-755-3368 3668 FAX: +86-755-3368 3385 Compiled by:Reviewed by: Zhenxia WenFrazer Li Approved by:Date:Jul. 26, 2024 Aaron Ma CheckNo.: 8954050624 Report No. : EED32Q80776502Page 2 of 9 2Version Version No.DateDescription 00Jul. 26, 2024Original Report No. : EED32Q80776502Page 3 of 9 3 Contents Page 1 COVER PAGE....................................................................................................................................................................1 2 VERSION............................................................................................................................................................................ 2 3CONTENTS........................................................................................................................................................................ 3 4 GENERAL INFORMATION..............................................................................................................................................4 4.1 C LIENT I NFORMATION ...................................................................................................................................4 4.2 G ENERAL D ESCRIPTION OF EUT.................................................................................................................. 4 4.3 P RODUCT S PECIFICATION SUBJECTIVE TO THIS STANDARD .............................................................................4 4.4 T EST L OCATION ...........................................................................................................................................7 4.5 D EVIATION FROM S TANDARDS ......................................................................................................................7 4.6 A BNORMALITIES FROM S TANDARD C ONDITIONS .............................................................................................7 4.7 O THER I NFORMATION R EQUESTED BY THE C USTOMER ..................................................................................7 5 SAR EVALUATION...........................................................................................................................................................8 5.1 RF E XPOSURE C OMPLIANCE R EQUIREMENT ................................................................................................. 8 5.1.1 Limits..................................................................................................................................................8 5.1.2 Test Procedure...................................................................................................................................8 5.1.3 EUT RF Exposure Evaluation.............................................................................................................9 Report No. : EED32Q80776502Page 4 of 9 4 General Information 4.1 Client Information Applicant:Xi’an Chinastar M&C Limited Address of Applicant:F6, bldg A, No.1309 shanglinyuan 4th Rd, Xi’an Hi-tech Development Zone, Xi’an, China Manufacturer:Xi’an Chinastar M&C Limited Address of Manufacturer:F6, bldg A, No.1309 shanglinyuan 4th Rd, Xi’an Hi-tech Development Zone, Xi’an, China Factory:Xi’an Chinastar M&C Limited Address of Factory:No.1309 shanglinyuan 4th Rd, Xi’an Hi-tech Development Zone, Xi’an, China 4.2 General Description of EUT Product Name: CS-iWPT302 Wireless Bluetooth Transmitter Series Model No.: CS-iWPT302-P-LLP5-B34WNM-N0X00-00, CS-iWPT302-P-LP5-B34WNM-N0X00-00, CS-iWPT302-P-LP5-B34WNM-W0X00-00, CS-iWPT302-P-HP5-B34WNM-W0X00-00, CS-iWPT302-T/a And other CS-iWPT302 Derived models：CS-iWPT302-P-□-B34W□-□ 0X00-□, CS-iWPT302-T/□(Refer to model differences table for details) Test Model No.: CS-iWPT302-P-LLP5-B34WNM-N0X00-00 Trade mark: N/A 4.3 Product Specification subjective to this standard Frequency Range: 2402MHz~2480MHz Modulation Type: GFSK Test Power Grade:Default Test Software of EUT:SmartSnippets Toolbox v5.0.16 Antenna Type: PCB Antenna Antenna Gain: -2.34dBi Power Supply: Battery: DC 3.6V Sample Received Date: Jul. 09, 2024 Sample tested Date: Jul. 09, 2024 to Jul. 15, 2024 Remark: Company Name and Address shown on Report, the sample(s) and sample Information was/ were provided by the applicant who should be responsible for the authenticity which CTI hasn’t verified. Model No.: CS-iWPT302-P-LLP5-B34WNM-N0X00-00, CS-iWPT302-P-LP5-B34WNM-N0X00-00, CS- iWPT302-P-LP5-B34WNM-W0X00-00, CS-iWPT302-P-HP5-B34WNM-W0X00-00, CS-iWPT302-T/a And other CS-iWPT302 Derived models：CS-iWPT302-P-□-B34W□-□0X00-□, CS-iWPT302-T/□(Refer to model differences table for details), Only the model CS-iWPT302-P-LLP5-B34WNM-N0X00-00 was tested. All models are identical to each other except transformer board and sensor models used. See the table as below for more details. As a result, models CS-iWPT302-P-LP5-B34WNM-W0X00-00 was chosen to conduct the full tests. Model differences table for details: For CS-iWPT302-P-□-B34W□-□0X00-□： Report No. : EED32Q80776502Page 5 of 9 The "①" represent Pressure range & Pressure accuracy，The "②" represent Pressure connector type, The "③ " represent sealing material, The "④" represent some special instructions “①”：Pressure range & Pressure accuracy，eg：LP5 "②"：Pressureconnectortype，eg：NM Code 1Pressure connector typ…
