2BGCZ-KMHARLEYCHarley Speaker

1. Please read the instructions carefully and verify that each item is in the list. 2. Please retain these installation instructions for further reference and parts ordering information. 1. Please read the installation instructions carefully before you start. 2. If the vehicle is clean and f ree of other debris, it will be easy to install. 3. For your safety and to ensure a satisfactory installation, please complete all the installation steps in the order shown below. PRODUCT MANUAL SKU: F0507-00102-BK Complete journey of dreams BEFORE YOU BEGIN PRODUCT INFORMATION INSTALLATION TIPS IMPORTANT www.kemimoto.com Designed by Kemimoto Group Kemimoto All Rights Reserved,Inf ringement must be prosecuted. KKK 1 1 of 2 1 1 Bluetooth Speakerx1 Estimated installation time: 20 minutes FRONT Reserve C C B B A A Reserve B Reserve A STEP 1: Remove the original screw [A]. STEP 3: Remove the original screw [C]. STEP 2: Remove the original bracket, and then remove the screws [B] on both sides. STEP 4: Thread the [1]-button panel through the middle of the f ront of the vehicle. Original Shell www.kemimoto.com Designed by Kemimoto Group Kemimoto All Rights Reserved,Inf ringement must be prosecuted. KKK 2 of 2 Original Plug Original Shell C B B A A D D D 1 1 1 1 1 1 STEP 5: Fix button [1] with the original screw [C].STEP 6: Unplug the original plug [D]. STEP 7: Plug the [1] speaker plug into the original plug [D] and the vehicle light separately. STEP 8: Use the original screw [B] to attach [1] to the vehicle, with both sides. STEP 9: Install the original vehicle shell with original screw [A]. Button function description. STEP 10: Installation complete. FUNCTION Indicator Light Power Supply Quick Volume Switching 0% 50% 100% Next Song Volume Down Volume Up Previous Song Pause FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

(GuangZhouYouNiFeiQiCheYongPinYouXianGongSi) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2024-07-31 FCC ID: (2BGCZ-KMHARLEYC) Ref. #1: Attestation Statements Part 2.911(d)(5)(i) Filing (“GuangZhouYouNiFeiQiCheYongPinYouXianGongSi”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Ref. #2: Attestation Statements Part 2.911(d)(5)(ii) Filing (“GuangZhouYouNiFeiQiCheYongPinYouXianGongSi”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates)as an entity producing “covered” equipment. Applicant: GuangZhouYouNiFeiQiCheYongPinYouXianGongSi Address: Unit L3A03-3 No.31 XiCha Road Baiyun District, Guangzhou, Guangdong, China Contact Person: Clarice Xie Tel.: Manager Email: [email protected] Sincerely, Signature:

GuangZhouYouNiFeiQiCheYongPinYouXianGongSi Address: Unit L3A03-3 No.31 XiCha Road Baiyun District, Guangzhou, Guangdong, China Date: 2024-07-31 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements Part 2.911(d)(7) Filing SUBJECT: FCC Application for FCC ID: 2BGCZ-KMHARLEYC FRN: 0033851213 (“GuangZhouYouNiFeiQiCheYongPinYouXianGongSi”) certifies that, as of the date of the filing of the application, Bouge Tech Inc. is our designated U.S. agent for service of process for the above referenced FCC ID. (“GuangZhouYouNiFeiQiCheYongPinYouXianGongSi”) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Bouge Tech Inc accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: Bouge Tech Inc Address: 457 E MCGLINCY LN, CAMPBELL, CA 95008 FRN: 0033768409 Contact Person: Jason Zheng Email: [email protected] Sincerely, Signed on behalf of GuangZhouYouNiFeiQiCheYongPinYouXianGongS i Signed on behalf of Bouge Tech Inc Name: Clarice Xie Name: Jason Zheng Title: Manager Title: GM Date: 2024-07-31 Date: 2024-07-31

ANTENNA SPECIFICATION Summary Item Describe Produdt Name Gain 1.43dBi(Max) Design By ITON Technology Corp. Tested By Shenzhen ZHONGTIAN XUN Co., Ltd. Antenna Type PCB Antenna Antenna Photo Manufacturer: GuangZhouYouNiFeiQiCheYongPinYouXianGongSi Address: Unit L3A03-3 No.31 XiCha Road Baiyun District, Guangzhou, Guangdong, China 2.4G ANT

ANTENNA SPECIFICATION Shenzhen Feimin Technology Co.,Ltd 1 ShenZhen City FeiMin Technology CO.,LTD. SPECIFICATION FOR APPROVED CUSTOMER: Dongguan baiyun electronic technology co., ltd. PRODUCTS: 2.4G antenna Antenna type Spec.: FM-S1562-MN-40 Data: 2023.12.22 REMARK:Please send us one(or copy)of this approval with stamp after accepting,other copies filed by the customer. ADD:Room 303,Building C,Hengnan one Road,Gushu community,Xixiang Street,Bao’an District,Shenzhen City Tel: 0755-23035723 Fax: 0755-23036702 E-mail: [email protected] HTTP:www.fmant.cn CUSTOMER ACCEPTED BY CHECKED BY APPROVED BY SUPPLIER PREPARED BY CHECKED BY APPROVED BY FanMa XingxiXia DongdongMa PIFA Antenna ANTENNA SPECIFICATION Shenzhen Feimin Technology Co.,Ltd 2 目录 1.项目信息Project Information .................................................................................. 2 1.1. 外观尺寸Appearance and Dimensions .......................................................... 2 2.电气性能 Electrical Characteristics ......................................................................... 4 2.1. 测试环境条件Test Environment Conditions ................................................. 4 2.2. 测示方法Measurement method ..................................................................... 4 2.2.1. 天线电压驻波比Antenna VSWR ............................................................... 4 2.2.2. 天线回波损耗Antenna Return loss ................................................... 5 2.3. 天线无源测试数据 Antenna passive test data ................................. 5 2.3.1. 测试系统Test system ............................................................................... 5 2.3.2.天线效率及增益Antenna efficiency and gain ............................. 5 2.3.3.天线辐射方向图Antenna Radiation Pattern ....................................... 6 3.Notes ............................................................................................. 7 4.产品包装规范Product packaging specification ......................... 9 ANTENNA SPECIFICATION Shenzhen Feimin Technology Co.,Ltd 3 Revision history version date condition A1 2023-12-22 First edition Changes: First change: Before the change: (If necessary, please add corresponding pictures, and the details of the change should be clearly described here) After the change: (If necessary, please add corresponding pictures, and the details of the change should be clearly described here) ANTENNA SPECIFICATION Shenzhen Feimin Technology Co.,Ltd 2 1.Project Information 1.1. Appearance and Dimensions ANTENNA SPECIFICATION Shenzhen Feimin Technology Co.,Ltd 3 1.2. A physical diagram of the antenna ANTENNA SPECIFICATION Shenzhen Feimin Technology Co.,Ltd 4 2.Electrical Characteristics 2.1. Test Environment Conditions Temperature Ordinary Temperature (5 to 35°C) Humidity Ordinary Humidity (25 to 85% RH) 2.2. Measurement method 2.2.1. Antenna VSWR ANTENNA SPECIFICATION Shenzhen Feimin Technology Co.,Ltd 5 2.2.2. Antenna Return loss 2.3. Antenna passive test data 2.3.1. Test system Shenzhen Feimin Technology Co., Ltd. (24-probe OTA microwave darkroom) ANTENNA SPECIFICATION Shenzhen Feimin Technology Co.,Ltd 6 2.3.2.Antenna efficiency and gain 2.3.3. Antenna Radiation Pattern 天线 Freq(MHz) Efficiency (％) Gian(dBi) 2400 50.26 3.02 2410 51.33 3.08 2420 52.02 3.12 2430 53.06 3.23 2440 53.74 3.29 2450 52.72 3.01 2460 53.55 3.33 2470 55.17 3.44 2480 54.39 3.46 2490 55.89 3.24 2500 55.15 3.25 ANTENNA SPECIFICATION Shenzhen Feimin Technology Co.,Ltd 7 3.Notes 1. When installing, be careful not to be too close to the metal part to avoid affecting the antenna performance. 2. This antenna is only suitable for this model, and the position of the antenna cannot be changed at will. If it is used on other machines, the effect will become worse, which has nothing to do with our company. 3. The data (such as antenna efficiency, gain, etc.) used in this acknowledgement are all obtained from the laboratory test of this recognition project/antenna in Shenzhen Feimin Technology Co., Ltd. 4.Product packaging specification Product name: 2.4G antenna 1、Labeling requirements The inner label is 7CM long and 4CM wide The outer label is 7CM long, about 5CM 2、Packing process Job description： 1.The product __PCS is packed in PE open pockets, and the inner label is affixed to each pouch; Put the __ small bag into the big PE sealing tape bag, except the tail number and spare parts. 2.Each box contains __ large bags of products, and the boxes are sealed with adhesive tape in the shape of "I"。 3.Paste the outer label on the upper right corner of the box, and there must be no missing or wrong filling. 3、Precautions When packing the box, please pay attention to lay the antenna flat and avoid serious shaking after sealing. If the whole box is not filled, it needs to be filled with foam to avoid transportation Circumstances that caused product defects in the process。 client's name supplier Shenzhen Feimin Technology Co., Ltd. Order number ************* Material coding ************* Specification model ****** product name ******* quantity *****PCS QC: spare parts ***PCS Notes supplier Shenzhen Feimin Technology Co., Ltd. product name ************* Material coding ************* Specifications ********** quantity ***PCS product

GuangZhouYouNiFeiQiCheYongPinYouXianGongSi Date:2024-07-31 Product Model Number: BV121000 FCC ID: 2BGCZ-KMHARLEYC To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following: • Testing • Approval applications and procedures We declare that ORGANIZATION. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by ORGANIZATION. on our behalf shall have the same effect as acts of our own. By: Contact Listed on FCC Wesbite Title: Manager Email: [email protected] Telephone: 13423772540 On behalf of: GuangZhouYouNiFeiQiCheYongPinYouXianGongSi

GuangZhouYouNiFeiQiCheYongPinYouXianGongSi Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: July 31, 2024 Subject; Request for Confidentiality FCC ID: 2BGCZ-KMHARLEYC To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Clarice Xie Title: Manager

GuangZhouYouNiFeiQiCheYongPinYouXia nGongSi FCC Software Configuration Control Declaration Date: July 31, 2024 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product/ Model Number: Harley Speaker / KM-harleyC Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Clarice Xie Date: July 31, 2024 Title: Manager Signature of applicant ：

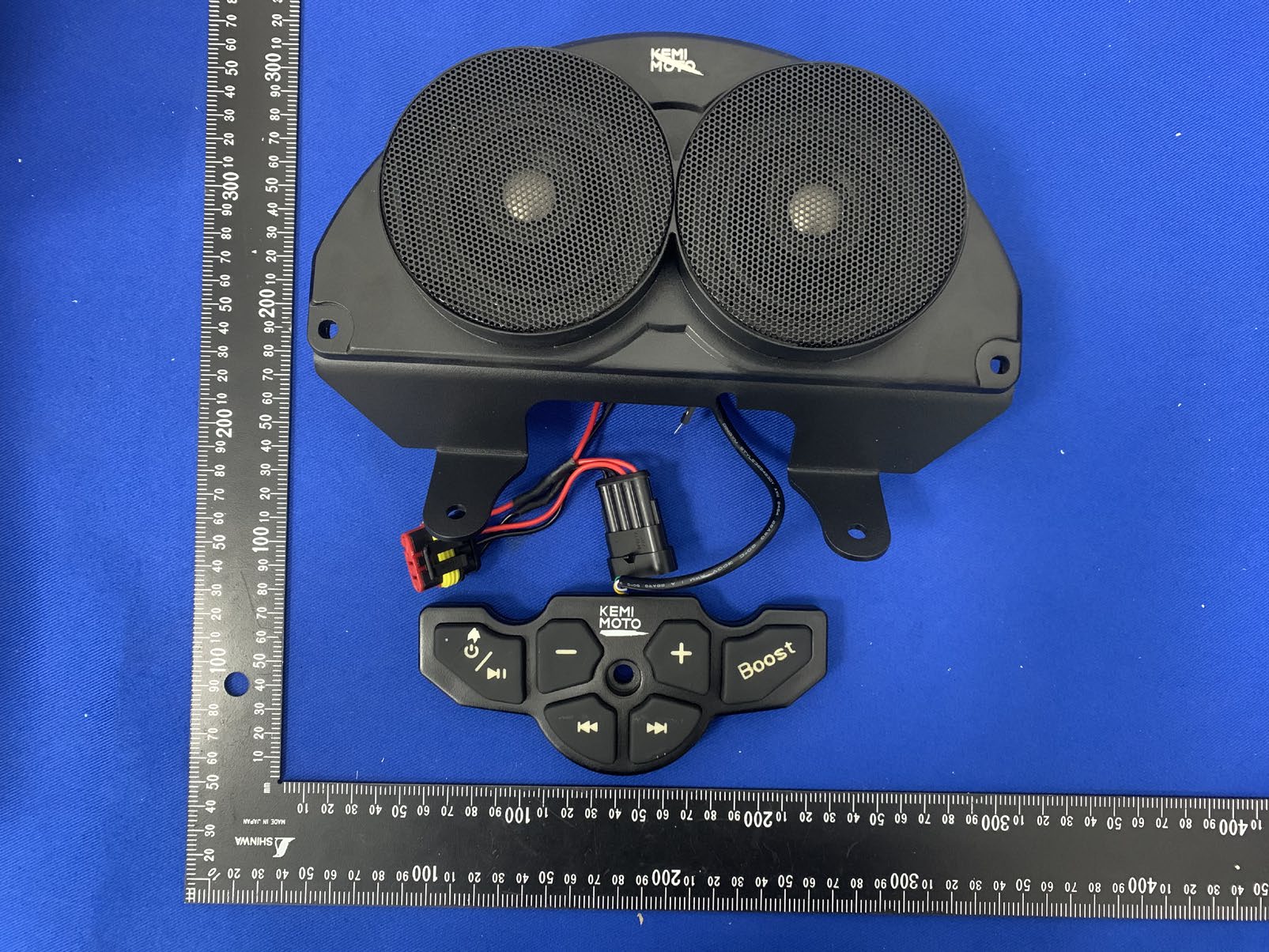

Page 1 of 4 Report No.: 8228EU012510W-AB ANNEX B EXTERNAL PHOTOS PHOTO 1 PHOTO 2 Page 2 of 4 Report No.: 8228EU012510W-AB PHOTO 3 PHOTO 4 Page 3 of 4 Report No.: 8228EU012510W-AB PHOTO 5 PHOTO 6 Page 4 of 4 Report No.: 8228EU012510W-AB PHOTO 7 --- End ---

Label Location On EUT Label Sizes: 90mm*51mm

Page 1 of 4 Report No.: 8228EU012510W-AC ANNEX C INTERNAL PHOTOS PHOTO 1 PHOTO 2 BLE PCB ANT BT PIFA ANT Page 2 of 4 Report No.: 8228EU012510W-AC PHOTO 3 PHOTO 4 Page 3 of 4 Report No.: 8228EU012510W-AC PHOTO 5 PHOTO 6 Page 4 of 4 Report No.: 8228EU012510W-AC PHOTO 7 --- End ---

RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) FCC ID: 2BGCZ-KMHARLEYC EUT Specification EUT Harley Speaker Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.24GHz WLAN: 5.745GHz ~ 5.825GHz Others: 2.402GHz~2.480GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power BLE: -16.74 dBm (0.0002W) BDR&EDR: 3.41 dBm (0.0022W) Antenna gain (Max) BLE: 1.43 dBi BDR&EDR: 3.46 dBi Evaluation applied MPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 Friis transmission formula: Pd=(Pout*G)\(4*pi*R2) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in Mw G= gain of antenna in linear scale Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm2. If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Measurement Result Operating Mode Channel Frequency (MHz) Measured Power (dBm) Tune up tolerance (dBm) Max. Tune up Power (dBm) Antenna Gain (dBi) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/cm 2 ) BLE 2402 -16.74 -16.74±1 -15.74 1.43 0.00001 1 2440 -16.79 -16.79±1 -15.79 1.43 0.00001 1 2480 -17.54 -17.54±1 -16.54 1.43 0.00001 1 BDR&E DR 2402 1.12 1.12±1 2.12 3.46 0.00072 1 2441 1.15 1.15±1 2.15 3.46 0.00072 1 2480 0.38 0.38±1 1.38 3.46 0.00061 1 2402 3.21 3.21±1 4.21 3.46 0.0012 1 2441 3.41 3.41±1 4.41 3.46 0.0012 1 2480 2.60 2.60±1 3.60 3.46 0.0010 1 BLE and BDR&EDR not support simultaneous transmission. Test result: Pass

TEST REPORT Report No.: 8228EU012510W1 Applicant: GuangZhouYouNiFeiQiCheYongPinYouXianGongSi Address: Unit L3A03-3 No.31 XiCha Road Baiyun District, Guangzhou, Guangdong, China Product Name: Harley Speaker Model No.: KM-harleyC (refer to clause 2.4) Trademark: N/A FCC ID: 2BGCZ-KMHARLEYC Test Standard(s): 47 CFR Part 15 Subpart C Date of Receipt: Apr. 25, 2024 Test Date: Apr. 25, 2024 – Jul. 19, 2024 Date of Issue: Jul. 31, 2024 ISSUED BY: SHENZHEN EU TESTING LABORATORY LIMITED Prepared by: Reviewed and Approved by: ____________________ _____________________ Mikey Zhu/ Engineer Sally Zhang/ Manager Page 2 of 30 Report No.: 8228EU012510W1 TRF No.: FCC Part 15 Subpart C_BLE (A01) Revision Record Report Version Issued Date Description Status V0 Jul. 31, 2024 Original Valid Page 3 of 30 Report No.: 8228EU012510W1 TRF No.: FCC Part 15 Subpart C_BLE (A01) Table of Contents 1 COVER PAGE .................................................................................................................................. 1 2 GENERAL INFORMATION ...................................................................................................................... 5 2.1 APPLICANT INFORMATION .................................................................................................................. 5 2.2 MANUFACTURER INFORMATION .......................................................................................................... 5 2.3 FACTORY INFORMATION ..................................................................................................................... 5 2.4 GENERAL DESCRIPTION OF E.U.T. ..................................................................................................... 5 2.5 TECHNICAL INFORMATION OF E.U.T. .................................................................................................. 6 3 TEST SUMMARY ...................................................................................................................................... 7 3.1 TEST STANDARD ............................................................................................................................... 7 3.2 TEST VERDICT ................................................................................................................................... 7 3.3 TEST LABORATORY ........................................................................................................................... 7 4 TEST CONFIGURATION .......................................................................................................................... 8 4.1 TEST ENVIRONMENT .......................................................................................................................... 8 4.2 TEST EQUIPMENT .............................................................................................................................. 8 4.3 DESCRIPTION OF SUPPORT UNIT ........................................................................................................ 9 4.4 TEST MODE ...................................................................................................................................... 9 4.5 MEASUREMENT UNCERTAINTY ........................................................................................................... 9 4.6 DEVIATION FROM STANDARDS ........................................................................................................... 9 4.7 ABNORMALITIES FROM STANDARD CONDITION ................................................................................... 9 5 TEST ITEMS ........................................................................................................................................... 10 5.1 ANTENNA REQUIREMENT .................................................................................................................. 10 5.1.1 Test Requirement ........................................................................................................... 10 5.1.2 Antenna Anti-Replacement Construction ........................................................................ 10 5.1.3 Antenna Gain .................................................................................................................. 10 5.2 CONDUCTED EMISSION AT AC POWER LINE ..................................................................................... 11 5.2.1 Test Requirement ........................................................................................................... 11 5.2.2 Test Setup Diagram ........................................................................................................ 11 5.2.3 Test Procedure ............................................................................................................... 11 5.2.4 Test Data......................................................................................................................... 11 5.3 DTS BANDWIDTH ............................................................................................................................ 12 5.3.1 Test Requirement ........................................................................................................... 12 5.3.2 Test Setup Diagram ........................................................................................................ 12 5.3.3 Test Procedure ............................................................................................................... 12 5.3.4 Test Data......................................................................................................................... 12 5.4 MAXIMUM CONDUCTED OUTPUT POWER .......................................................................................... 13 5.4.1 Test Requirement ........................................................................................................... 13 5.4.2 Test Setup Diagram .............................................................…

Text truncated - open the document above for the full version.

Page 1 of 24 Report No.: 8228EU012510W-AD ANNEX D TEST DATA For Project No.: 8228EU012510W Client: GuangZhouYouNiFeiQiCheYongPinYouXianGongSi Product Description: Harley Speaker Model No.: KM-harleyC FCC ID: 2BGCZ-KMHARLEYC Technology: Bluetooth BLE Test Engineer: Test Date: 2024-07-19 Page 2 of 24 Report No.: 8228EU012510W-AD Test Summary Item Result Duty Cycle Pass Bandwidth Pass Maximum Conducted Output Power Pass Maximum Power Spectral Density Pass Unwanted Emissions In Non-restricted Frequency Bands Pass Page 3 of 24 Report No.: 8228EU012510W-AD 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 1M SISO 2402 2.095 3.125 67.04 1.74 16.78 2440 2.095 3.126 67.02 1.74 16.77 2480 2.095 3.125 67.04 1.74 16.81 Page 4 of 24 Report No.: 8228EU012510W-AD 1.2 Test Graph 1.2.1 Ant1 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 5 of 24 Report No.: 8228EU012510W-AD 1M_HCH_2480MHz_Ant1_NTNV Page 6 of 24 Report No.: 8228EU012510W-AD 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 1.014 / Pass 2440 1 1.015 / Pass 2480 1 1.014 / Pass 2.1.2 6dB BW Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 0.640 >=0.5 Pass 2440 1 0.648 >=0.5 Pass 2480 1 0.638 >=0.5 Pass Page 7 of 24 Report No.: 8228EU012510W-AD 2.2 Test Graph 2.2.1 OBW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 8 of 24 Report No.: 8228EU012510W-AD 1M_HCH_2480MHz_Ant1_NTNV Page 9 of 24 Report No.: 8228EU012510W-AD 2.2.2 6dB BW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 10 of 24 Report No.: 8228EU012510W-AD 1M_HCH_2480MHz_Ant1_NTNV Page 11 of 24 Report No.: 8228EU012510W-AD 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 1M SISO 2402 -1.44 <=30 Pass 2440 -1.37 <=30 Pass 2480 -2.16 <=30 Pass Page 12 of 24 Report No.: 8228EU012510W-AD 4. Maximum Power Spectral Density 4.1 Test Result 4.1.1 PSD Mode TX Type Frequency (MHz) Maximum PSD (dBm/3kHz) Verdict ANT1 Limit 1M SISO 2402 -16.74 <=8 Pass 2440 -16.79 <=8 Pass 2480 -17.54 <=8 Pass Page 13 of 24 Report No.: 8228EU012510W-AD 4.2 Test Graph 4.2.1 PSD 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 14 of 24 Report No.: 8228EU012510W-AD 1M_HCH_2480MHz_Ant1_NTNV Page 15 of 24 Report No.: 8228EU012510W-AD 5. Unwanted Emissions In Non-restricted Frequency Bands 5.1 Test Result 5.1.1 Ref Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 1M SISO 2402 1 -1.78 2440 1 -1.67 2480 1 -2.37 Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2020, the channel contains the maximum PSD level was used to establish the reference level. 5.1.2 CSE Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 1M SISO 2402 1 -1.78 -21.78 Pass 2440 1 -1.67 -21.67 Pass 2480 1 -2.37 -22.37 Pass Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2020, the channel contains the maximum PSD level was used to establish the reference level. Page 16 of 24 Report No.: 8228EU012510W-AD 5.2 Test Graph 5.2.1 Ref 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 17 of 24 Report No.: 8228EU012510W-AD 1M_HCH_2480MHz_Ant1_NTNV Page 18 of 24 Report No.: 8228EU012510W-AD 5.2.2 CSE 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV Page 19 of 24 Report No.: 8228EU012510W-AD 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV Page 20 of 24 Report No.: 8228EU012510W-AD 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 21 of 24 Report No.: 8228EU012510W-AD 1M_MCH_2440MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 22 of 24 Report No.: 8228EU012510W-AD 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV Page 23 of 24 Report No.: 8228EU012510W-AD 1M_HCH_2480MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV Page 24 of 24 Report No.: 8228EU012510W-AD 1M_HCH_2480MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV --------- End of Report -------

Page 1 of 1 Report No.: 8228EU012510W-AA ANNEX A TEST SETUP PHOTOS PHOTO 1 Photo of Radiated Emission Test (Below 1GHz) PHOTO 2 Photo of Radiated Emission Test (Above 1GHz) --- End ---
