2BGDO-HS-V223 IN 1 Fast Wireless Charger

FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radiofrequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The FCC certification of this device refers to RF exposure testing performed in typical operating conditions, where a person is no closer than 20 centimeters from the device surface at all times, except for non-repetitive patterns with transient time intervals in the order of a second. Only in the stated conditions, the device is shown to fully comply with the FCC RF Exposure requirements of KDB 447498.

- Shenzhen Huasheng Jiahe Electronic Technology Co., Ltd - Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 7/11/2024 U.S. Agent Designation Shenzhen Huasheng Jiahe Electronic Technology Co., Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BGDO-HS-V22): Name and company of U.S. agent: UUX GROUP INC Physical U.S. address of agent: 36 South 18th Avenue, Suite A Brighton, CO USA 80601 FRN of U.S. agent: 0033701590 Email address of U.S. agent: [email protected] UUX GROUP INC acknowledges their obligation to accept service of process on behalf of Shenzhen Huasheng Jiahe Electronic Technology Co., Ltd. Shenzhen Huasheng Jiahe Electronic Technology Co., Ltd with the FRN 0035414739 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature jack bu Manager Shenzhen Huasheng Jiahe Electronic Technology Co., Ltd Signature Jack Fu Manager UUX GROUP INC 48_[model] US_Agent_2.911(d)(7) - U, V05

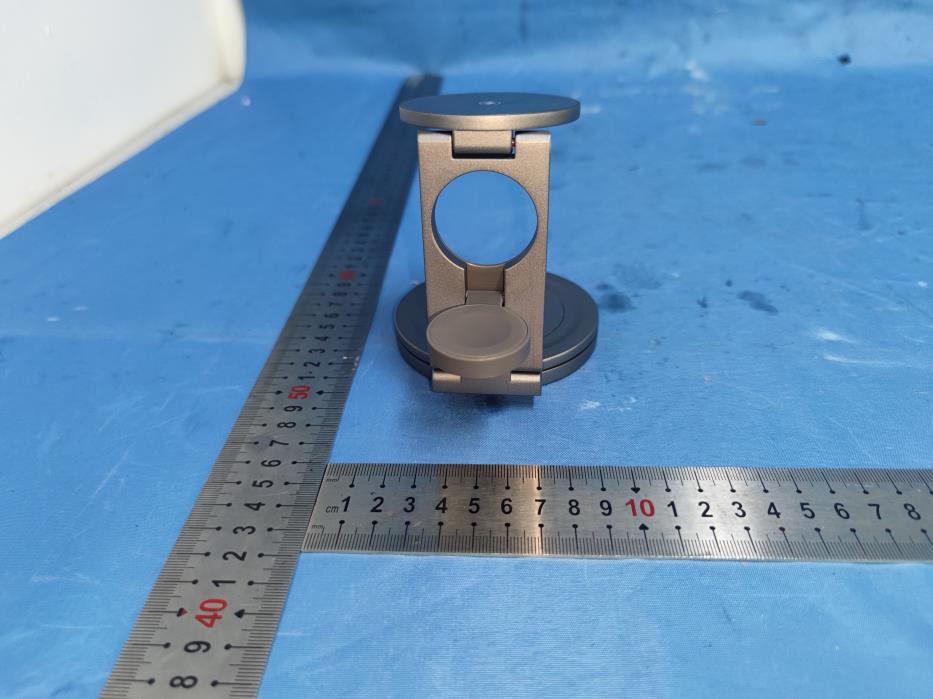

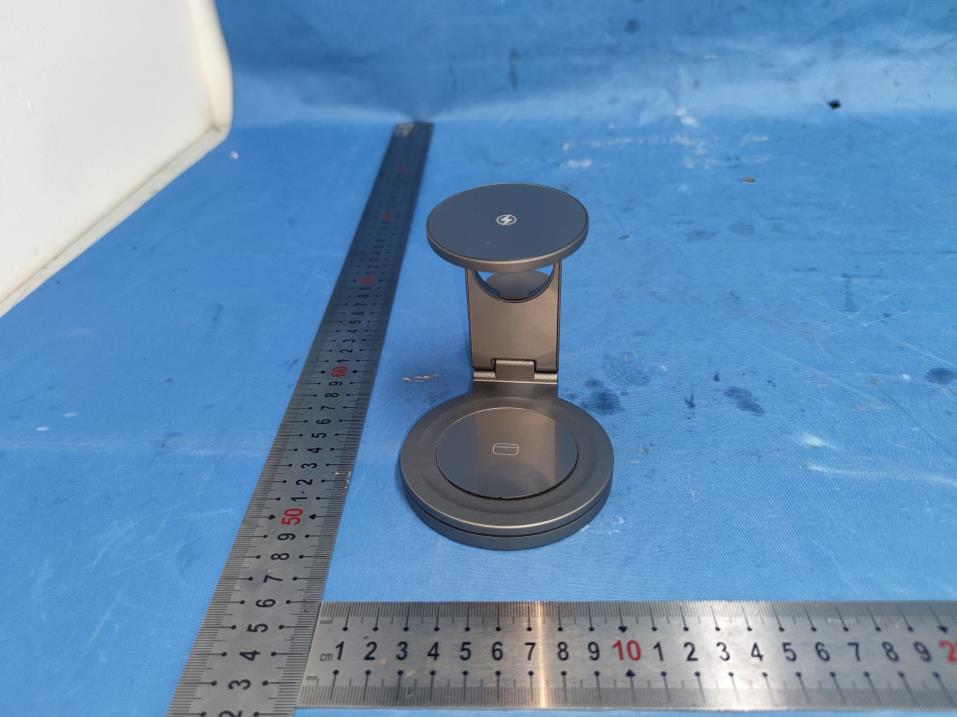

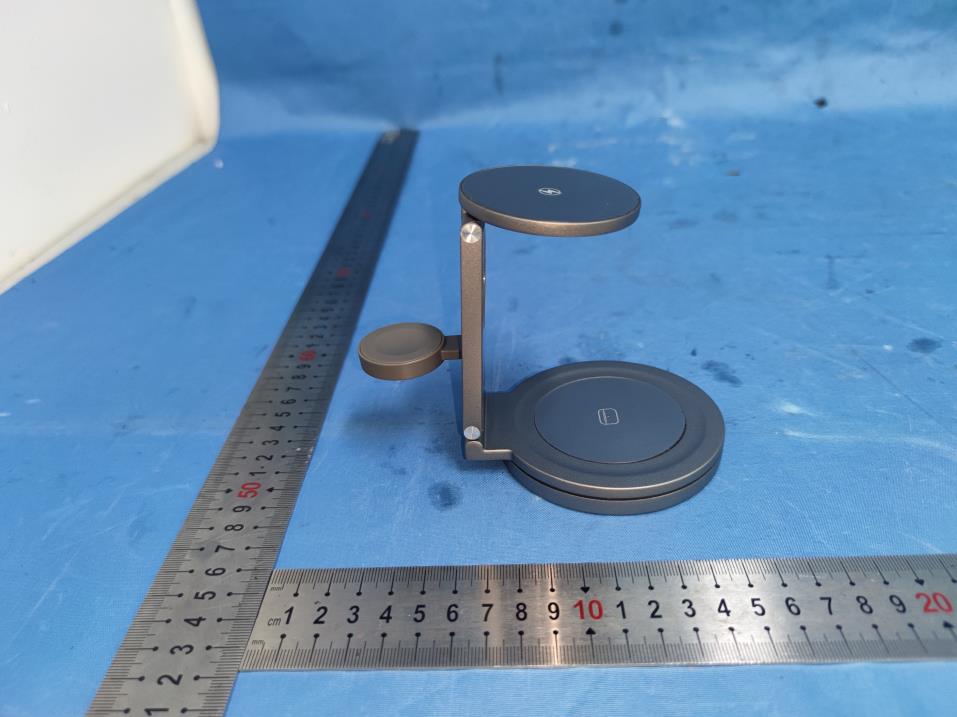

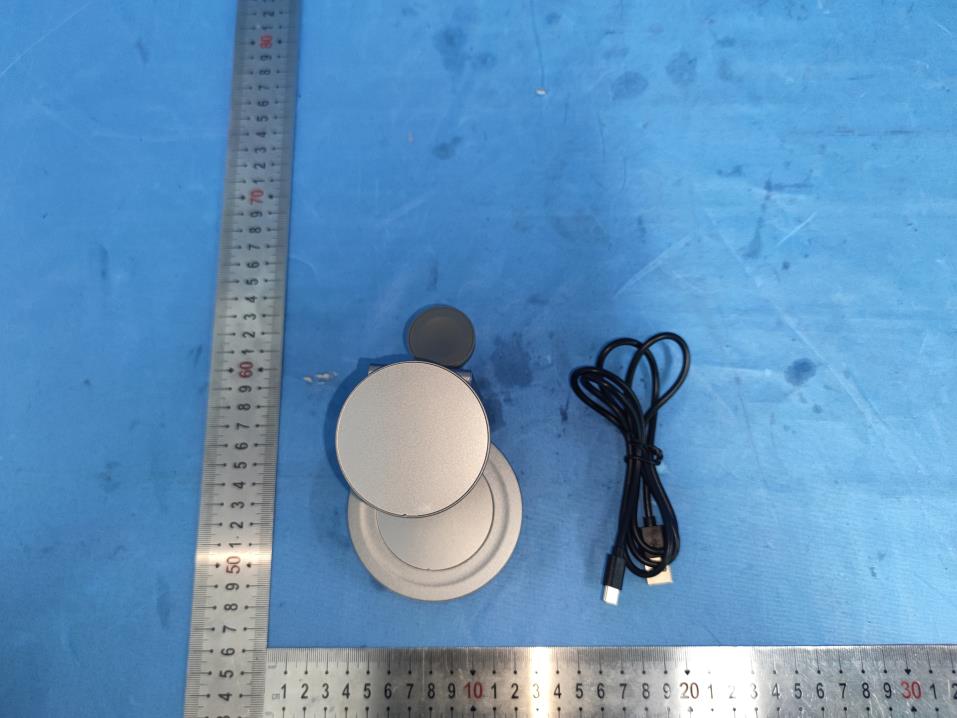

Page 1 of 4 FCC ID: 2BGDO-HS-V22 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details External EUT Photo Photo 1 Photo 2 Page 2 of 4 FCC ID: 2BGDO-HS-V22 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 4 FCC ID: 2BGDO-HS-V22 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 Page 4 of 4 FCC ID: 2BGDO-HS-V22 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 7 Photo 8 ---The End---

Label Size: L60mm * W45mm 1. The label is silk-screen on the sample 3 IN 1 Fast Wireless Charger Model Name: HS-V22 FCC ID: 2BGDO-HS-V22 L W

Page 1 of 8 FCC ID: 2BGDO-HS-V22 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details Internal EUT Photo Photo 1 Photo 2 Page 2 of 8 FCC ID: 2BGDO-HS-V22 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Watch Coil Earphone Coil Page 3 of 8 FCC ID: 2BGDO-HS-V22 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 Phone Coil Page 4 of 8 FCC ID: 2BGDO-HS-V22 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 7 Photo 8 Page 5 of 8 FCC ID: 2BGDO-HS-V22 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 9 Photo 10 Page 6 of 8 FCC ID: 2BGDO-HS-V22 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 11 Photo 12 Page 7 of 8 FCC ID: 2BGDO-HS-V22 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 13 Photo 14 Page 8 of 8 FCC ID: 2BGDO-HS-V22 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 15 ------End------

Page 1 of 18 Report No.: AITSZ24062402W3 RF Exposure Evaluation Client Information: Applicant: Shenzhen Huasheng Jiahe Electronic Technology Co., Ltd Applicant add.: C301, Building 78, Fourth Industrial Zone, Mashantou Community, Matian Street, Guangming District, Shenzhen,China Manufacturer: Shenzhen Huasheng Jiahe Electronic Technology Co., Ltd Manufacturer add.: C301, Building 78, Fourth Industrial Zone, Mashantou Community, Matian Street, Guangming District, Shenzhen,China Product Information: Product Name: 3 IN 1 Fast Wireless Charger Model No.: HS-V22 Brand Name: N/A FCC ID: 2BGDO-HS-V22 Applicable standards: FCC CFR 47 PART 1, § 1.1310 KDB 680106 D01 Wireless Power Transfer v04 Prepared By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Date of Receipt: Jun. 24, 2024 Date of Test: Jun. 24, 2024 ~ July 03, 2024 Date of Issue: July 03, 2024 Test Result: Pass This device described above has been tested by Guangdong Asia Hongke Test Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited, this document may be altered or revised by Guangdong Asia Hongke Test Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Leon.yi Sean She Page 2 of 18 Report No.: AITSZ24062402W3 1 CONTENTS COVER PAGE Page 1 CONTENTS 2 2 TEST FACILITY 4 2.1 Deviation from standard 4 2.2 Abnormalities from standard conditions 4 2.3 Test Location 4 3 GENERAL INFORMATION 5 4 TEST METHODOLOGY 6 4.1 Measuring Standard 6 4.2 Requirements 6 4.3 Limits 6 4.4 Test Setup 7 4.5 Test Procedure 7 5 Equipment Approval Considerations 8 5.1 Description of the test mode 9 5.2 Peripheral List 9 5.3 Test Instruments list 9 5.4 Duty Cycle 10 5.5 Test Result 12 5.6 Test Setup photo 16 Page 3 of 18 Report No.: AITSZ24062402W3 Revision History Revision Issue Date Revisions Revised By 00 July 03, 2024 Initial Issue Sean She Page 4 of 18 Report No.: AITSZ24062402W3 2 TEST FACILITY The test facility is recognized, certified or accredited by the following organizations: FCC-Registration No.: 251906 Designation Number: CN1376 Guangdong Asia Hongke Test Technology Limited has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. IC —Registration No.: 31737 CAB identifier: CN0165 The 3m Semi-anechoic chamber of Guangdong Asia Hongke Test Technology Limited has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 31737 A2LA-Lab Cert. No.: 7133.01 Guangdong Asia Hongke Test Technology Limited has been accredited by A2LA for technical competence in the field of electrical testing, and proved to be in compliance with ISO/IEC 17025: 2017 General Requirements for the Competence of Testing and Calibration Laboratories and any additional program requirements in the identified field of testing. 2.1 Deviation from standard None 2.2 Abnormalities from standard conditions None 2.3 Test Location Guangdong Asia Hongke Test Technology Limited Address: B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Page 5 of 18 Report No.: AITSZ24062402W3 3 GENERAL INFORMATION EUT Name: 3 IN 1 Fast Wireless Charger Model No: HS-V22 Serial Model: WC47, MF09, IBW018 Test sample(s) ID: AITSZ24062402-1 Sample(s) Status: Engineer sample Operation frequency: Coil1: For Phone: 113kHz-205kHz Coil2: For Earphone: 113kHz-205kHz Coil3: Watch: 300kHz-350kHz Modulation Technology: ASK Antenna Type: Coil1/Coil2/Coil3: Loop coil Antenna Antenna gain: 0dBi Hardware version.: N/A Software version.: N/A Power Supply: Input: 9V/2A,9V/2.7A Mobile phone output: 15W(MAX) Airpods output: 3W(MAX) iWatch output: 2.5W(MAX) Model different: Different model names Note: For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 6 of 18 Report No.: AITSZ24062402W3 4 TEST METHODOLOGY 4.1 Measuring Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. According KDB680106 D01: KDB 680106 D01 Wireless Power Transfer v04. 4.2 Requirements According to the item 3 of KDB 680106 D01v04: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation. (1) Mobile Device and Portable Device Configurations (2) Equipment Authorization Procedures for Devices Operating at Frequencies Below 4 MHz (3) The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away from the top surface. 4.3 Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Page 7 of 18 Report No.: AITSZ24062402W3 4.4 Test Setup 4.5 Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The measurement probe was placed at test distance (15 cm from all sides and 20 cm from the top) which is between the edge of the charger and the geometric cente…

Text truncated - open the document above for the full version.

Page 1 of 25 Report No.: AITSZ24062402W2 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. FCC TEST REPORT Client Information: Applicant: Shenzhen Huasheng Jiahe Electronic Technology Co., Ltd Applicant add.: C301, Building 78, Fourth Industrial Zone, Mashantou Community, Matian Street, Guangming District, Shenzhen,China Manufacturer: Shenzhen Huasheng Jiahe Electronic Technology Co., Ltd Manufacturer add.: C301, Building 78, Fourth Industrial Zone, Mashantou Community, Matian Street, Guangming District, Shenzhen,China Product Information: Product Name: 3 IN 1 Fast Wireless Charger Model No.: HS-V22 Brand Name: N/A FCC ID: 2BGDO-HS-V22 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Prepared By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Date of Receipt: Jun. 24, 2024 Date of Test: Jun. 24, 2024 ~ July 03, 2024 Date of Issue: July 03, 2024 Test Result: Pass This device described above has been tested by Guangdong Asia Hongke Test Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited, this document may be altered or revised by Guangdong Asia Hongke Test Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Leon.yi Sean She Page 2 of 25 Report No.: AITSZ24062402W2 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. 1 Contents Page COVER PAGE 1 CONTENTS ........................................................................................................................................................... 2 2 TEST SUMMARY .................................................................................................................................................. 5 2.1 STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................. 5 2.2 MEASUREMENT UNCERTAINTY ............................................................................................................................ 5 3 TEST FACILITY ..................................................................................................................................................... 6 3.1 DEVIATION FROM STANDARD ............................................................................................................................... 6 3.2 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................... 6 3.3 TEST LOCATION ................................................................................................................................................. 6 4 GENERAL INFORMATION ................................................................................................................................... 7 4.1 EUT TEST MODE ............................................................................................................................................... 8 4.2 DESCRIPTION OF TEST SETUP............................................................................................................................. 8 4.3 PERIPHERAL LIST ............................................................................................................................................... 9 4.4 EUT PERIPHERAL LIST ....................................................................................................................................... 9 5 EQUIPMENTS LIST FOR ALL TEST ITEMS ..................................................................................................... 10 6 CONDUCTED EMISSION TEST ......................................................................................................................... 11 6.1 CONDUCTED EMISSION MEASUREMENT ................................................................................................ 11 6.2 POWER LINE CONDUCTED EMISSION LIMITS ........................................................................................... 11 6.3 TEST PROCEDURE ...................................................................................................................................... 11 6.4 DEVIATION FROM TEST STANDARD ......................................................................................................... 11 6.5 TEST SETUP ................................................................................................................................................. 12 6.6 EUT OPERATING CONDITIONS .................................................................................................................. 12 6.7 TEST RESULT .................................................................................................................................................. 13 7 RADIATED EMISSION MEASUREMENT .......................................................................................................... 15 7.1 RADIATED EMISSION LIMITS .............................................................................................................................. 15 7.2 ANECHOIC CHAMBER TEST SETUP DIAGRAM ..................................................................................................... 16 7.3…

Text truncated - open the document above for the full version.

深圳市三盛创电子科技有限公司 Shenzhen Sansheng Chuang electronic Technology Co., LTD 承 認 書 客 戶： CUSTOMER: 中立冠达【深圳】智能有限公司 客 戶 料 號： CUST P/N: ZLGD-A1-0326 三盛创 料 號： FINE P/N: I40-6.5uH single coil 0.08*24P*2P*11TS 産 品 型 號： DESC: Φ40MMX5.3MMX0.8MM slotting 日 期： DATE: 2024.05.13 版 本： Version: A.0 擬制 PREPARED BY 審核 CHECKED BY 批准 APPROVED BY 客戶承認 CUSTOMER APPROVE 郭柳 安帅印 安帅印 深圳市三盛创电子科技有限公司 Shenzhen Sansheng Chuang electronic Technology Co., LTD 工廠地址：深圳市光明区玉塘街道玉律社区大洋一路19号2楼 Factory address: 2nd Floor, No. 19, Dayang Road, Yulu Community, Yutang Street, Guangming District, Shenzhen 版本變更履歷 Version Change History 版本 Rev. 變 更 前 Before Change 變 更 後 After Change 更 改 日 期 Change Date 批 准 Approved By A.0 新发行 ---- 2024.05.13 安帅印 SPECIFICATION 産 品 型 號： DESC Φ20.5x38-7.7uH-0.08*24P-5mm 版本 Rev：A.0 客戶CUST: 中立冠达 客户料号CUST P/N: ZLGD-A1-0326 一、尺寸DIMENSION:(mm) 二、原理图SCHEMATIC DIAGRAM: A 40±0.5 B 38±1.0 C 20.5±0.5 F 3±1.0 H 5±1.5 I 0.8±0.1 T 1.8±0.2 Note: 1. Cross out wire; 2. Wrap 5mm(ref) width high-temperature adhesive paper 1-2Ts around the cable outlet position. 3. The coil is attached to the circular hard magnetic disc with groove, the magnetic disc size is 40±0.5mm, the inner hole is 5.3mm, and the thickness is 0.8±0.1mm. 三、绕线参数Winding Specification: 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 Winding Direction 1 S F Hot air wire 0.08*24P 11Ts CCW 四、电气特性ELECTRICAL CHARACTERISTICS: 温度TEMPERATURE:25±10°C, 湿度RELATIVE HUMIDITY:65±20% 序号 NO. 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TEST FREQUENCY 测试仪器 TEST EQUIPMENTS 1 IND. S-F 4.8uH ±10% Individual coil 100KHz/1.0V LCZ METER 1062B 2 IND. S-F 7.7uH ±10% Magnetized sheet 100KHz/1.0V LCZ METER 1062B 3 DCR S-F ≤99mΩ 100KHz/1.0V LCZ METER 502B 4 Q S-F ≧40 100KHz/1.0V LCZ METER 502B 擬制/日期PREPARED BY/DATE 審核/日期CHECKED BY/DATE 郭柳2024.05.13 安帅印2024.05.13 天线增益Antenna gain： Operation frequency: 300kHz-350kHz Antenna Type: Loop coil Antenna Antenna gain: 0dBi

东莞市德弗力五金电子材料有限公司 Dongguan city DFL Electronic Technology Co.,LTD 承 认 书 客户名称(CUSTOMER): 客户料号(PART NO.): 品 名(DESCRIPTION): 规格(SPECIFICATION): 东莞市石碣镇新风西路107号 电话：0769-86016320 传真：0769-86372427 第 1 页 共 2 页 日 期(DATE): 13x39.5,0.08×105P， 20240422 SPECIFICATION FOR APPROVEAL 本司确认（TRX APPROVAL） 制作 审核 客户确认（CUSTOMER APPROVAL） 确认结果(Result): 合格不合格 其它 承认日期 工程 批准 承认日期 曾小仙 邱志辉 20240422 线圈+磁片 ZLGD-A1-0325 ZLGD-Y13×39.5-5-FR Coil + diskette The magnetic edge is 5MM manufacture examine date date ENGINEERING Give permission to C D E F 序号 NO. 客户/日期CUSTOMEU/DATE 端子 TERMINAL 项目 ITEM 标准 SPECIFICATION 测试条件 TEST FREQUENCY 测试仪器 TEST EQUIPMENTS 1 2 3 4 IND. IND. Q值 DCR 20240422 13.0±1.0 39.5±1.5 1 0.08×105P丝包线 13TS 逆时针 J K L 43.2MAX M N O P 7.4uH±10%加磁片 100KHz/1.0V SHDA 1062 H 线圈+磁片 5.0±2.0 3.0±2.0 0.8±0.15 ZLGD-A1-0325 ZLGD-Y13×39.5-5-FR 产品型号: SPECIFICATION 二、 拟制/日期PREPARED BY/DATE 审核/日期CHECKED BY/DATE 东莞市德弗力五金电子材料有限公司 Dongguan city DFL Electronic Technology Co.,LTD DESC Rev:A 版本 Customer: Date: Description: 一、尺寸DIMENSION:(mm) A B C D E F G I 三、绕线参数(WindingSpecification:) 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 Winding Direction 四、电气特性 ELECTRICAL CHARACTERISTICS: 温度 TEMPERATURE:25±10°C,湿度 RELATIVE HUMIDITY:65±20% B A Note: 1. The coil is attached with G43.2MAX*0.8 hard magnetic 2. Wrap 8MM of high-temperature tape around the cable outlet positionÿ 3. Attach double-sided tape with ear on the back of the magnetic discÿ 4. Coil can not be loosened, press the wire

惠州启泰电子科技有限公司 HuizhouQitaiElectronicTechnologyCo.,LTD SPECIFICATIONSSHEET CUSTOMER: 客户 DESCRIPTION: 品名描述 CUSTOMERP/N: 客户品名 PARTNUMBER: 制造商料号 DATEOFAPPLICATION: 提出日期 中利冠达 苹果手表线圈-8mm 2022-12-08 CLASSIFICATIONOFSPEC.PRESENTATION.(Ticktherelevantbox"√") oNewapplication新规格 √Newpartisaddedtoacceptedspecification新产品规格追加记录 oRevisionofacceptedspecification既存规格图面变更 ACCEPTANCESTAMP( ) APPROVALBY 承认 CHECKBY 审查 PREPAREBY 制作 ADDRESS:3rdFloor,No.181,Mingyue2ndRoad,ShiwanTown,BoluoCounty,Huizhoucity TELPHONE:0752-6668681 E-MAIL:[email protected] Apple Watch coil -8mm 惠州启泰电子科技有限公司 HuizhouQitaiElectronicTechnologyCo.,LTD HistoryForRevisedSpecification CUSTOMERP/N: 客户品名 中利冠达 PARTNUMBER: 制造商料号 Item 项次 DESCRIPTION(ContentOrReasonForChanged) 变更内容 Rev. 版本 CustRev. 客户版本 Date 日期 Revisor 修订者 1 InitialRelease(初版发行) A0 2022-12-08 陈骏 APPROVEDBY 承认 CHECKEDBY 审查 PREPAREDBY 制作 DATE 日期 PAGE 页码 晁子奇 陈骏 2022-12-08 1of3 惠州启泰电子科技有限公司 HuizhouQitaiElectronicTechnologyCo.,LTD Specification 规格内容 CUSTOMERP/N: 客户品名 中利冠达 PARTNUMBER: 制造商料号 1.DIMENSIONS( ):(Unit:mm) 单位（Unit）：毫米（mm） ABCDEF 21Max 14±0.57.5±0.58±11.5±0.5 2.8Max 1.软磁出线处开线槽。 2.磁铁尺寸φ7.5*2.2,磁力3000GS±150 APPROVEDBY 承认 CHECKEDBY 审查 PREPAREDBY 制作 DATE 日期 PAGE 页码 2022-12-08 2of3 gum 1. Open cable slots at the outlet of soft magnetic cables. 2. Magnet size ÿ7.5*2.2, magnetic force 3000GS±150 惠州启泰电子科技有限公司 HuizhouQitaiElectronicTechnologyCo.,LTD Specification 规格内容 CUSTOMERP/N: 客户品名 中利冠达 PARTNUMBER: 制造商料号 2.WINDINGDETAILS(绕线详细说明) Coil1 圈数 Turns 线径 WireDia 绕线方式疏/密 Wdg.Type Spred/Close 绕线方向 Wdg.Direction 相交是/否 Intersect Yes/Not 14TS 0.08*24P热风绞线(HotAir strandedWire) 密绕（Close） 逆绕 是（Yes） 3.电气特性（ELECTRICALCHARACTERISTICS）: 温度TEMPERATURE:25±10 ,RELATIVEHUMIDITY:6510% 序号 NO. 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TESTFREQUENCY 测试仪器 TESTEQUIPMENTS Coil1 1.INDS-F 8.1±0.3 100kHz/VUC2906A 2.QS-F 20Min 100kHz/VUC2906A 3. DCRS-F 135Max 100kHz/VUC2906A APPROVEDBY 承认 CHECKEDBY 审查 PREPAREDBY 制作 DATE 日期 PAGE 页码 2022-12-08 3of3 backwind

Page 1 of 2 FCC ID: 2BGDO-HS-V22 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Test Setup Photo DCD Conduction Radiation (9KHz-30MHz) Page 2 of 2 FCC ID: 2BGDO-HS-V22 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Radiation (30MHz-1000MHz) ------End------
