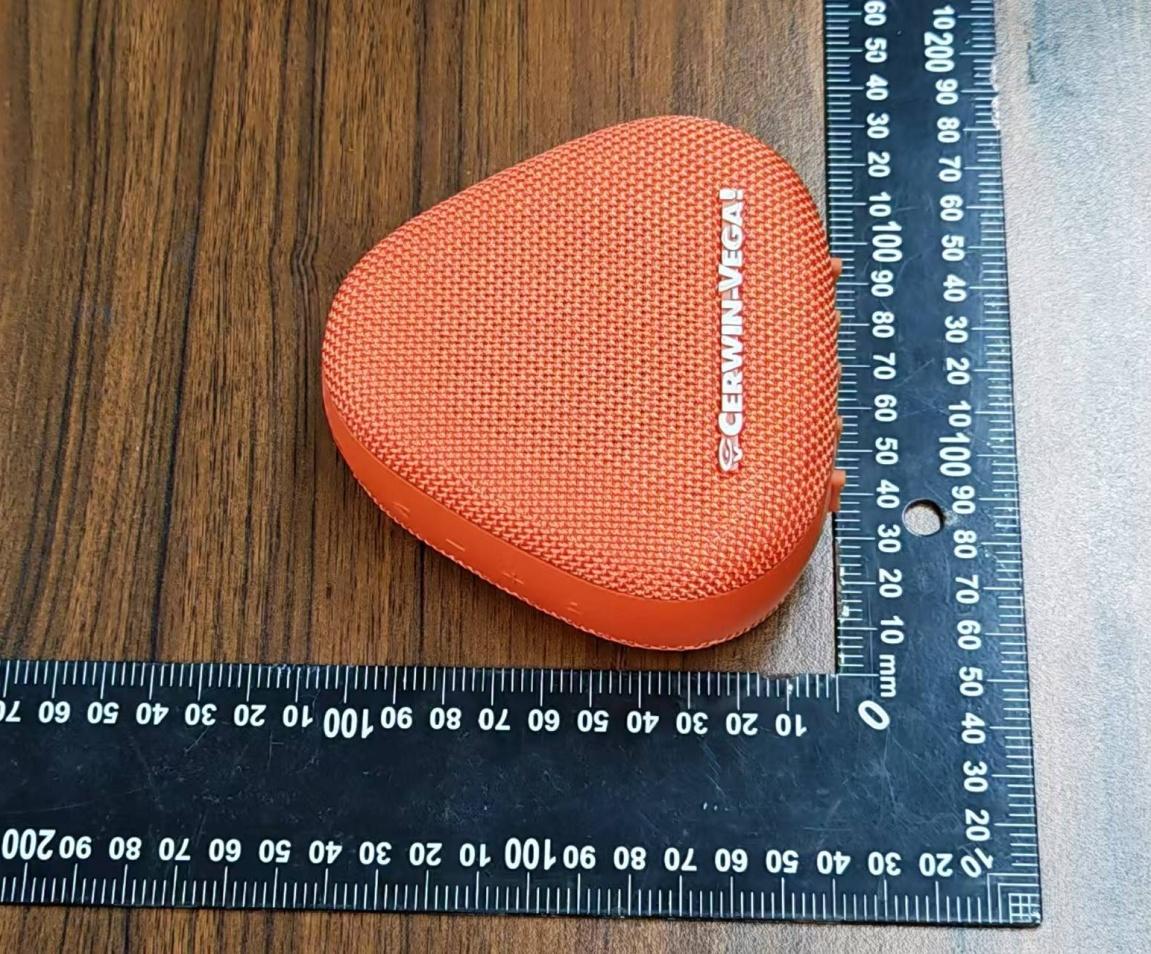

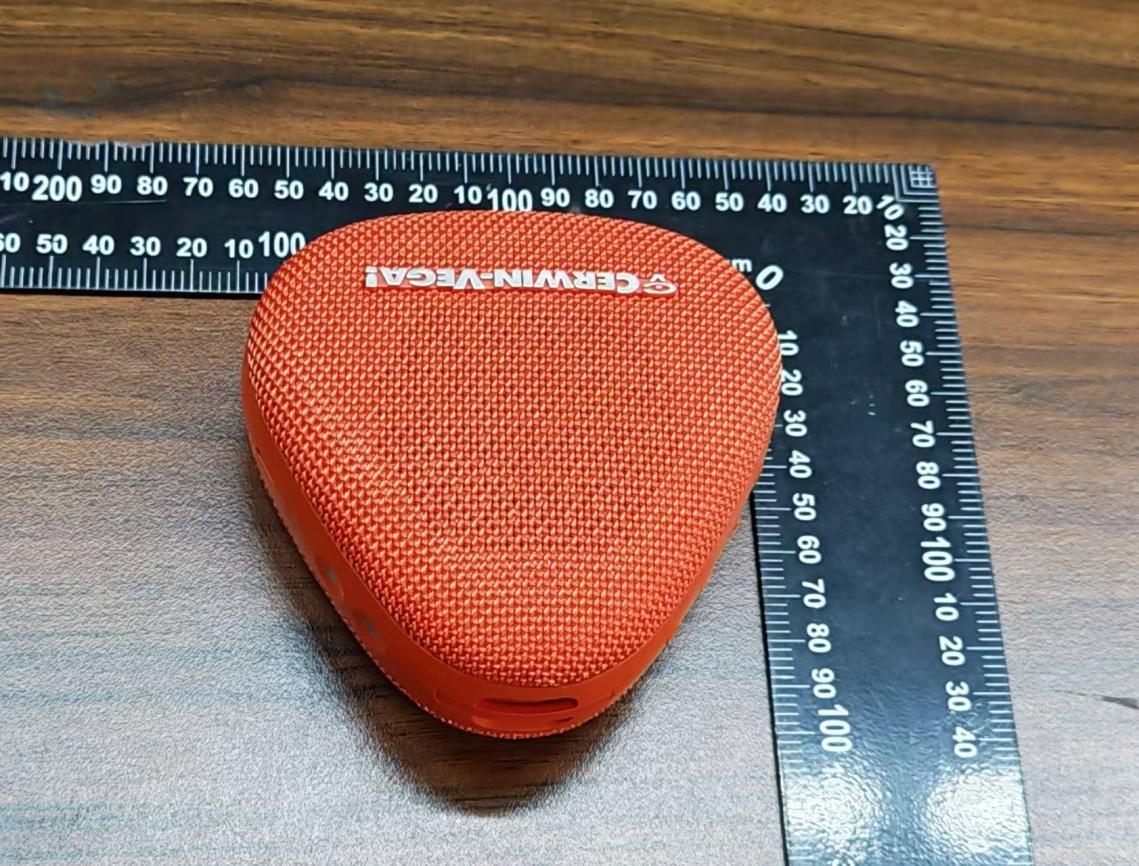

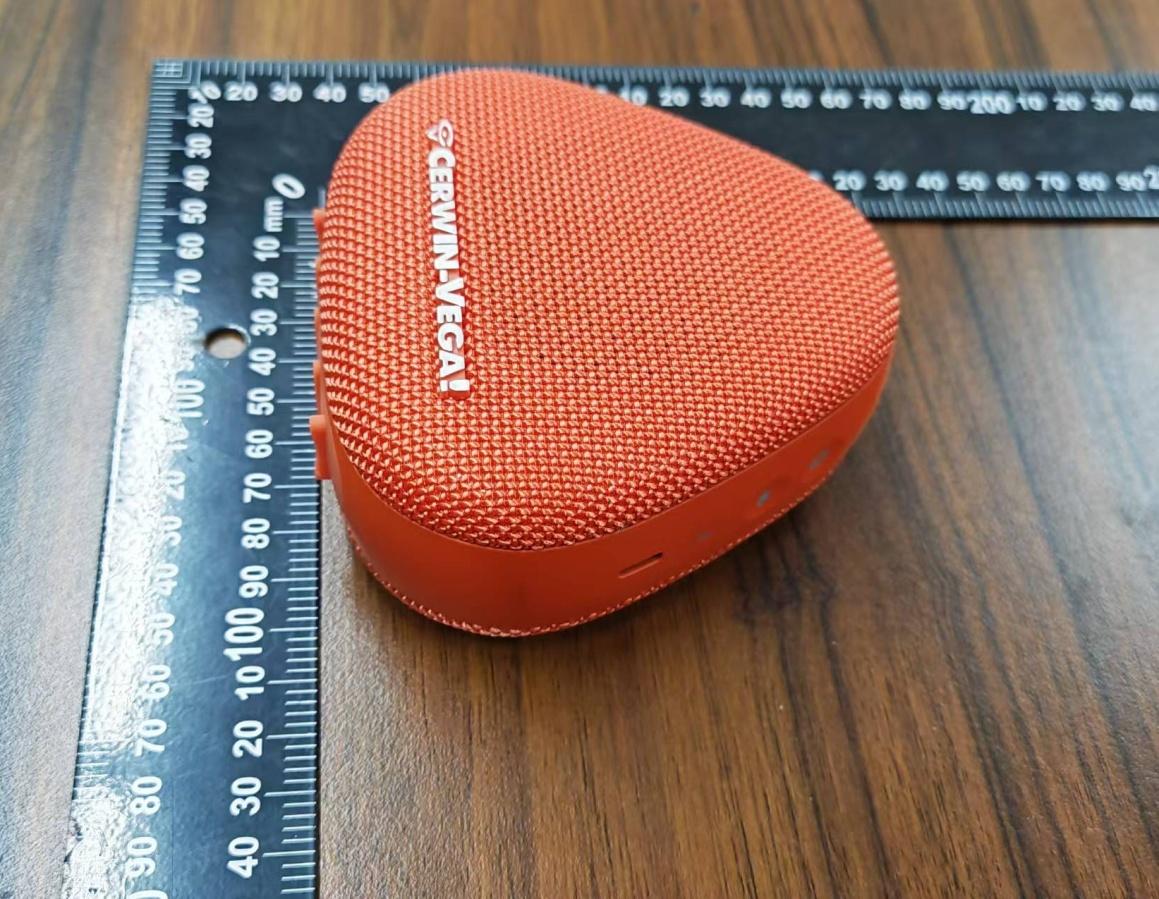

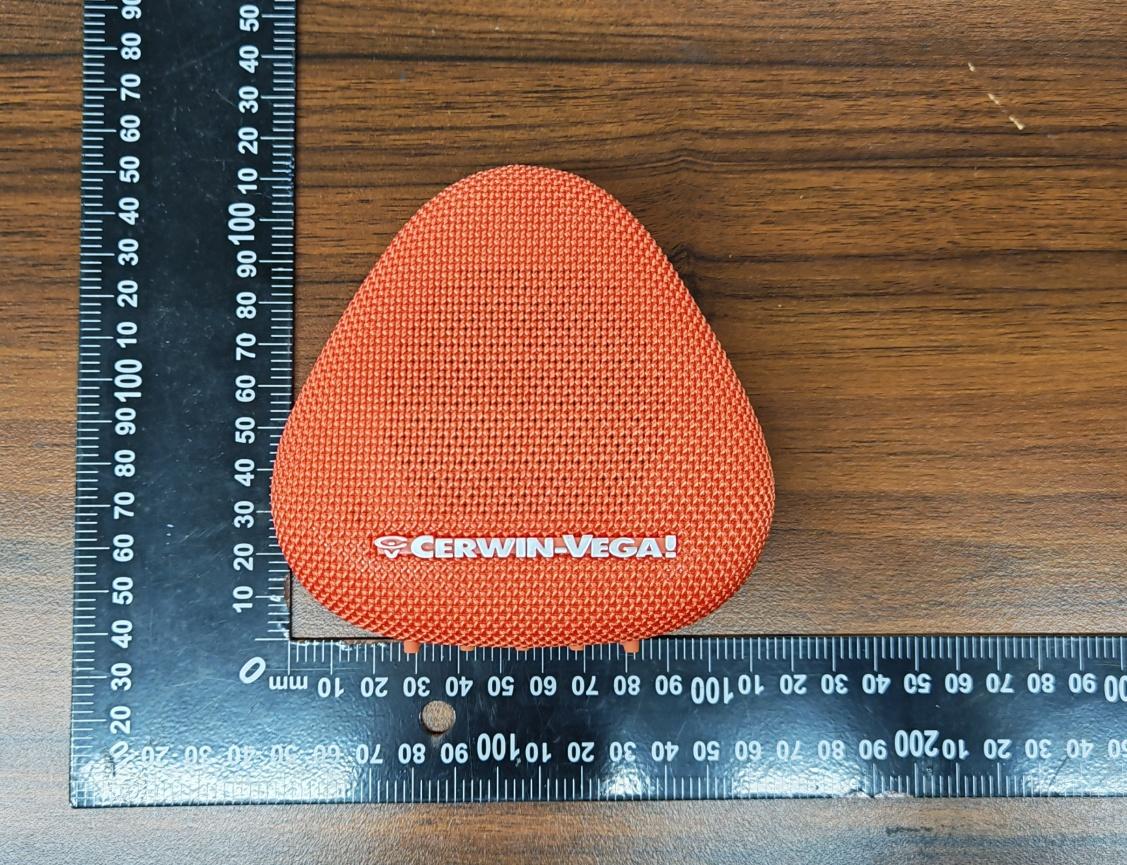

2BGEQ-VEGA163Portable Bluetooth Speaker

1 CONTENTS DESCRIPTION PAGE# INTRODUCTION 03 KEY FEATURES 03 IMPORTANT SAFETY INSTRUCTIONS 04-07 CONTROL PANEL 09-10 SPECIFICATIONS 11 TROUBLESHOOTING 12 USA WARRANTY INFORMATION 13 2 INTRODUCTION Welcome to the world of Cerwin-Vega! The VEGA163 is a compact powerhouse designed for a dynamic, on-the-move lifestyle, proving you don’t need a bulky system to get studio-worthy sound. Whether you are on a road trip, a weekend camping trip, or hosting a backyard cookout, this speaker is built to be the audio heartbeat of every moment. KEY FEATURES 1. Ultra-Portable Design: An ultra-compact and lightweight build that slips easily into backpacks or jacket pockets. 2. Rugged Durability: IP67-rated weatherproof and dustproof, making it ready for rain, sand, or dusty trails. 3. Advanced Connectivity: Equipped with Bluetooth 5.4+ for a stable connection. 4. Auracast Support: Supports Auracast, allowing friends to share music from multiple devices. 5. All-Day Performance: Delivers over 15 hours of playtime (at 50% volume with LEDs off and low bass audio). 6. Fast Charging: Features USB-C fast charging that reaches a full charge in 3 to 3.5 hours. 7. Intelligent Power Saving: Auto-standby mode activates after 15 minutes of no signal to save battery life. 8. Full App Control: Customize your experience via the dedicated app, available on Google Play and the App Store. 3 IMPORTANT SAFETY INSTRUCTIONS Read and keep these instructions. Heed all warnings and follow all directions. General Safety • Environment: This equipment is designed for use in moderate climates and in domestic locations. • Servicing: Refer all servicing to qualified service personnel. Servicing is required if the apparatus has been damaged in any way, such as damage to the charging port, exposure to rain or moisture, or if it has been dropped. • Obstructions: Take care that objects do not fall and liquids are not spilled into the enclosure through any openings. The equipment shall not be exposed to dripping or splashing. • Cleaning: Before cleaning, ensure the unit is disconnected from any power source. The case should only require a wipe with a lint-free cloth. Do not use chemical solvents for cleaning. Avoid using furniture cleaning sprays or polishes as they can cause permanent marks. Battery & Charging Safety • Compatibility: Use only the manufacturer-specified charger and power cord. • Temperature: Do not charge the product in extremely hot or humid environments. • Operational Safety: Stop charging immediately if the product or charger becomes excessively hot, smokes, or emits a strange odor. • Avoid Use During Charge: Avoid using the product while it is charging, unless specifically permitted by the manufacturer, as this may affect battery life and performance. • Emergency: If an abnormal smell or smoke is detected, turn the power off immediately and disconnect from the power source. Contact your dealer and do not attempt to reconnect. A warning that batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the light.  Replacement of a battery with an incorrect type that can defeat a safeguard;  Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion;  Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas;  A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas. Note: The product nameplate is located inside the upper mesh cover. 4 FCC NOTE (for U.S.A): FCC Supplier’s Declaration of Conformity Responsible Party - U.S. Contact Information: Cerwin Vega Inc. 3761 S. Hill St, Los Angeles CA 90007, USA Phone: 213 261 4161 FCC Compliance Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Caution:  Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment  This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections. Class B FCC Statement： This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. lf this equipment does cause harmful interference to radio or tel evision reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  Reorienting or relocating the receiving antenna.  Increasing the separation between the equipment and receiver.  Connecting the equipment to an outlet that is on a different circuit than the radio or TV.  Consulting the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: The FCC SAR limit is 1.6 W/kg, with a maximum SAR value of 0.127 W/kg when testing the device for use on the body. The device was tested at 0 mm and meets RF exposure requirements. ISED NOTE (for Canada): This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and…

Text truncated - open the document above for the full version.

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ26030092S01 Annex D Plots of Maximum SAR Test Results Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2026/3/11 Bluetooth_3DH5_Left Side_0mm_Ch39 Communication System: UID 0, Bluetooth (0); Frequency: 2441 MHz;Duty Cycle: 1:1.198 Medium: HSL_2450 Medium parameters used : f = 2441 MHz; σ = 1.753 S/m; ε r = 40.935; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: ES3DV3 - SN3295; ConvF(4.7, 4.7, 4.7) @ 2441 MHz; Calibrated: 2025/8/15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1324; Calibrated: 2025/8/15 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7501) Ch39/Area Scan (71x131x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.112 W/kg Ch39/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.016 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 0.192 W/kg SAR(1 g) = 0.088 W/kg; SAR(10 g) = 0.038 W/kg Smallest distance from peaks to all points 3 dB below = 8.1 mm Ratio of SAR at M2 to SAR at M1 = 52.5% Maximum value of SAR (measured) = 0.0978 W/kg 0 dB = 0.0978 W/kg = -10.10 dBW/kg MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ26030092S01

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ26030092S01 Annex B Test Setup Photos  EUT Antenna Location MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ26030092S01  Test Setup Photos Body Front Side (Test distance: 0mm) Back Side (Test distance: 0mm) MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ26030092S01 Left Side (Test distance: 0mm) Right Side (Test distance: 0mm) MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ26030092S01 Top Side (Test distance: 0mm) Bottom Side (Test distance: 0mm)

Conducted Test Radiated Test (30-1000 MHz) Radiated Test (Above 1GHz) Radio Spectrum Testing

深圳市飞敏科技有限公司 ShenZhen City FeiMin Technology CO.,LTD. 产品承认书 SPECIFICATION FOR APPROVED 客户 CUSTOMER: 产品名称 PRODUCTS: FPC天线 客户料号 PART NO: 产品型号 Spec.: FM-S1882-Vega 日期 Data: 2025.11.29 备注：承认盖章后请回复一份承认书（或复印件）给我司，其余由贵公司存档 REMARK:Please send us one(or copy)of this approval with stamp after accepting,other copies filed by the customer. 地址：深圳市宝安区西乡街道固兴社区盛辉路 4 号科运达电商基地 8 楼 801室 ADD: Room 801, 8th Floor, Keyunda E-commerce Base, No. 4 Shenghui Road, Guxing Community, Xixiang Subdistrict, Baoan District, Shenzhen. 电话Tel: 0755-23035723 传真Fax: 0755-23036702 邮箱E-mail: [email protected] 网址HTTP:www.fmant.cn 客户 CUSTOMER 承认 ACCEPTED BY 审核 CHECKED BY 批准 APPROVED BY 供应商 SUPPLIER 拟制 PREPARED BY 审核 CHECKED BY 批准 APPROVED BY ANTENNA SPECIFICATION 深圳市飞敏科技有限公司 Shenzhen Feimin Technology Co.,Ltd 2 目录 产品承认书 ..................................................................................................................... 1 1. 项目信息Project Information .................................................................................. 4 1.1. 外观尺寸Appearance and Dimensions .......................................................... 4 2. 电气性能 Electrical Characteristics ......................................................................... 5 2.1. 测试环境条件Test Environment Conditions ................................................. 5 2.2. 测示方法Measurement method ..................................................................... 5 2.2.1. 天线电压驻波比Antenna VSWR ............................................................... 5 2.2.2. 天线回波损耗Antenna Return loss ................................................... 6 2.3. 天线无源测试数据 Antenna passive test data ................................. 6 2.3.1. 测试系统Test system ............................................................................... 6 2.3.2天线效率及增益Antenna efficiency and gain .............................. 7 2.3.2. 天线辐射方向图Antenna Radiation Pattern ....................................... 7 3.备注Notes .................................................................................................................... 8 4.产品包装规范Product packaging specification ......................................................... 8 ANTENNA SPECIFICATION 深圳市飞敏科技有限公司 Shenzhen Feimin Technology Co.,Ltd 3 Revision history 版本 日期 状态 A1 2025-11-29 首版 ANTENNA SPECIFICATION 深圳市飞敏科技有限公司 Shenzhen Feimin Technology Co.,Ltd 4 1. 项目信息Project Information 1.1. 外观尺寸Appearance and Dimensions ANTENNA SPECIFICATION 深圳市飞敏科技有限公司 Shenzhen Feimin Technology Co.,Ltd 5 2. 电气性能 Electrical Characteristics 2.1. 测试环境条件Test Environment Conditions 温度Temperature Ordinary Temperature (5 to 35°C) 湿度Humidity Ordinary Humidity (25 to 85% RH) 2.2. 测示方法Measurement method 2.2.1. 天线电压驻波比Antenna VSWR ANTENNA SPECIFICATION 深圳市飞敏科技有限公司 Shenzhen Feimin Technology Co.,Ltd 6 2.2.2. 天线回波损耗Antenna Return loss 2.3. 天线无源测试数据 Antenna passive test data 2.3.1. 测试系统Test system 深圳市飞敏科技有限公司（24探头OTA 微波暗室） ANTENNA SPECIFICATION 深圳市飞敏科技有限公司 Shenzhen Feimin Technology Co.,Ltd 7 2.3.2天线效率及增益Antenna efficiency and gain 2.3.2. 天线辐射方向图Antenna Radiation Pattern ANTENNA SPECIFICATION 深圳市飞敏科技有限公司 Shenzhen Feimin Technology Co.,Ltd 8 3.备注Notes 1、安装时注意不能离金属部分太近，以避免影响天线性能。 2、此款天线只适用此机型，天线的位置不可以随意改动，若用于其它机器上导致效果变差，与我司无 关。 3、本承认书所使用数据（如：天线效率、增益等）均为本承认项目/天线在深圳市飞敏科技有限公司 实验室测试所得出数据 4.产品包装规范Product packaging specification 产品名称:FPC天线 一、标签要求 内标签长7CM，宽4CM左右 外标签长7CM，5CM左右 二、装箱流程 作业说明： 1.产品__PCS用PE开口袋装好，每小袋贴好内标签； 将__小袋装入大PE封口胶带袋中，尾数及备品除外。 2.每箱装__大袋产品，将箱子用胶纸以“工”字形封箱。 3.在箱子的右上角贴上外标签，不可有漏填、填错现象。 三、注意事项 装箱时要注意将天线平整放好，封胶后不可出现严重晃 动情况，未填满整箱的情况需塞入泡棉填充，避免运输 过程中造成产品不良的情况。 客户名称 供 应 商 深圳市飞敏科技有限公司 订单编号 ************* 物料编码 ************* 规格型号 ****** 产品名称 ******* 数 量 *****PCS 检验 备品 ***PCS 备注 供 应 商 深圳市飞敏科技有限公司 产品名称 ****** 物料编码 ************ 规格型号 ********** 数 量 ***PCS 产品

Page 1 of 25 Report No.ESTE-R2603351 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.684 2401.658 2402.342 0.5 PASS BLE_1M Ant1 2440 0.681 2439.664 2440.345 0.5 PASS BLE_1M Ant1 2480 0.678 2479.667 2480.345 0.5 PASS BLE_2M Ant1 2402 1.278 2401.346 2402.624 0.5 PASS BLE_2M Ant1 2440 1.260 2439.400 2440.660 0.5 PASS BLE_2M Ant1 2480 1.152 2479.442 2480.594 0.5 PASS Page 2 of 25 Report No.ESTE-R2603351 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS BLE_1M-Ant1-2480-PASS Page 3 of 25 Report No.ESTE-R2603351 BLE_2M-Ant1-2402-PASS BLE_2M-Ant1-2440-PASS Page 4 of 25 Report No.ESTE-R2603351 BLE_2M-Ant1-2480-PASS Page 5 of 25 Report No.ESTE-R2603351 Appendix B: Maximum conducted output power Test Result Peak TestMode Antenna Frequency [MHz] Conducted Peak Power[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 7.81 ≤30 PASS BLE_1M Ant1 2440 7.88 ≤30 PASS BLE_1M Ant1 2480 7.85 ≤30 PASS BLE_2M Ant1 2402 7.76 ≤30 PASS BLE_2M Ant1 2440 7.86 ≤30 PASS BLE_2M Ant1 2480 7.77 ≤30 PASS Test Graphs Peak BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS Page 6 of 25 Report No.ESTE-R2603351 BLE_1M-Ant1-2480-PASS BLE_2M-Ant1-2402-PASS Page 7 of 25 Report No.ESTE-R2603351 BLE_2M-Ant1-2440-PASS BLE_2M-Ant1-2480-PASS Page 8 of 25 Report No.ESTE-R2603351 Page 9 of 25 Report No.ESTE-R2603351 Appendix C: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -7.80 ≤8.00 PASS BLE_1M Ant1 2440 -7.80 ≤8.00 PASS BLE_1M Ant1 2480 -7.71 ≤8.00 PASS BLE_2M Ant1 2402 -10.96 ≤8.00 PASS BLE_2M Ant1 2440 -11.06 ≤8.00 PASS BLE_2M Ant1 2480 -10.91 ≤8.00 PASS Page 10 of 25 Report No.ESTE-R2603351 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS BLE_1M-Ant1-2480-PASS Page 11 of 25 Report No.ESTE-R2603351 BLE_2M-Ant1-2402-PASS BLE_2M-Ant1-2440-PASS Page 12 of 25 Report No.ESTE-R2603351 BLE_2M-Ant1-2480-PASS Page 13 of 25 Report No.ESTE-R2603351 Appendix D: Reference level measurement Test Result TestMode Antenna Freq(MHz) Max.Point[MHz] Result[dBm] BLE_1M Ant1 2402 2401.77 6.76 BLE_1M Ant1 2440 2439.75 6.83 BLE_1M Ant1 2480 2479.75 6.88 BLE_2M Ant1 2402 2401.51 5.62 BLE_2M Ant1 2440 2440.00 5.82 BLE_2M Ant1 2480 2479.99 5.75 Page 14 of 25 Report No.ESTE-R2603351 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS BLE_1M-Ant1-2480-PASS Page 15 of 25 Report No.ESTE-R2603351 BLE_2M-Ant1-2402-PASS BLE_2M-Ant1-2440-PASS Page 16 of 25 Report No.ESTE-R2603351 BLE_2M-Ant1-2480-PASS Page 17 of 25 Report No.ESTE-R2603351 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Frequency [MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 Low 2402 6.76 -40.47 ≤-13.24 PASS BLE_1M Ant1 High 2480 6.88 -40.83 ≤-13.12 PASS BLE_2M Ant1 Low 2402 5.62 -33.84 ≤-14.38 PASS BLE_2M Ant1 High 2480 5.75 -40.46 ≤-14.25 PASS Page 18 of 25 Report No.ESTE-R2603351 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2480-PASS BLE_2M-Ant1-2402-PASS Page 19 of 25 Report No.ESTE-R2603351 BLE_2M-Ant1-2480-PASS Page 20 of 25 Report No.ESTE-R2603351 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 30~26500 6.76 -42.82 ≤-13.24 PASS BLE_1M Ant1 2440 30~26500 6.83 -42.52 ≤-13.17 PASS BLE_1M Ant1 2480 30~26500 6.88 -43.15 ≤-13.12 PASS BLE_2M Ant1 2402 30~26500 5.62 -43.00 ≤-14.38 PASS BLE_2M Ant1 2440 30~26500 5.82 -43.34 ≤-14.18 PASS BLE_2M Ant1 2480 30~26500 5.75 -43.01 ≤-14.25 PASS Page 21 of 25 Report No.ESTE-R2603351 Test Graphs BLE_1M-Ant1-2402-30~26500-PASS BLE_1M-Ant1-2440-30~26500-PASS BLE_1M-Ant1-2480-30~26500-PASS Page 22 of 25 Report No.ESTE-R2603351 BLE_2M-Ant1-2402-30~26500-PASS BLE_2M-Ant1-2440-30~26500-PASS Page 23 of 25 Report No.ESTE-R2603351 BLE_2M-Ant1-2480-30~26500-PASS Page 24 of 25 Report No.ESTE-R2603351 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] ON Time [ms] Period [ms] Duty Cycle [%] Duty Cycle Factor[dB] BLE_1M Ant1 2440 2.12 2.24 94.64 0.24 BLE_2M Ant1 2440 1.07 1.18 90.68 0.42 Page 25 of 25 Report No.ESTE-R2603351 Test Graphs NTNV-BLE_1M-Ant1-2440 NTNV-BLE_2M-Ant1-2440

Page 1 of 42 Report No.ESTE-R2603351 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of CERWIN-VEGA, INC Portable Bluetooth Speaker Model Number: VEGA163 FCC ID: 2BGEQ-VEGA163 Applicant: CERWIN-VEGA, INC Address: 3761 S. Hill Street, Los Angeles, CA 90007, United States Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2603351 Date of Test: Jan. 22, 2026 to Mar. 17, 2026 Date of Report: Mar. 26, 2026 Page 2 of 42 Report No.ESTE-R2603351 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION .......................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................... 5 1.1. Description of Device (EUT) ............................................................................................................ 5 1.2. Antenna Information ......................................................................................................................... 5 1.3. Information of RF Cable ................................................................................................................... 5 2. SUMMARY OF TEST ........................................................................................................................... 6 2.1. Summary of test result ..................................................................................................................... 6 2.2. Test Facilities ..................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................ 8 2.4. Assistant equipment used for test .................................................................................................. 8 2.5. Block Diagram ................................................................................................................................... 8 2.6. Test Mode .......................................................................................................................................... 9 2.7. Power Setting of Test Software ...................................................................................................... 9 2.8. Duty Cycle .......................................................................................................................................... 9 2.9. Channel List ..................................................................................................................................... 10 2.10. Test Equipment List ...................................................................................................................... 11 3. 6DB BANDWIDTH ............................................................................................................................ 13 3.1. Limit ................................................................................................................................................... 13 3.2. Test Setup ........................................................................................................................................ 13 3.3. Spectrum Analyzer Setting ............................................................................................................ 13 3.4. Test Procedure ................................................................................................................................ 13 3.5. Test Result ....................................................................................................................................... 13 4. MAXIMUM PEAK OUTPUT POWER .................................................................................................. 14 4.1. Limit ................................................................................................................................................... 14 4.2. Test Setup ........................................................................................................................................ 14 4.3. Spectrum Analyzer Setting ............................................................................................................ 14 4.4. Test Procedure ................................................................................................................................ 14 4.5. Test Result ....................................................................................................................................... 14 5. POWER SPECTRAL DENSITY .......................................................................................................... 15 5.1. Limit ................................................................................................................................................... 15 5.2. Test Setup ........................................................................................................................................ 15 5.3. Spectrum Analyzer Setting ............................................................................................................ 15 5.4. Test Procedure ................................................................................................................................ 15 5.5. Test Result ....................................................................................................................................... 15 6. CONDUCTED BAND EDGE .............................................................................................................. 16 6.1. Limit ................................................................................................................................................... 16 6.2. Test Setup ........................…

Text truncated - open the document above for the full version.

Annual validation for test lab. Appendix Annual validation for Test Lab. General calibration information Date 2025.09.25 Test Laboratory ShenZhen Morlab Communications Technology Co., Ltd. Antenna serial No. D2450V2-SN: 805 Antenna Parameters with Head TSL Impedance, transformed to feed point 48.132Ω-0.197jΩ Return Loss -34.362dB General Antenna Parameters and Design Electrical Delay (one direction) 1.276 ns After long term use with 100W radiated power，only a slight warming of the dipole near the feed point can be measured The dipole is made of standard semirigid coaxial cable. The center conductor of the feeding line is directly connected to the second arm of the dipole. The antenna is therefore short-circuited for DC-signals. On some of the dipoles, small end caps are added to the dipole arms in order to improve matching when loaded according to the position as explained in the "Measurement Conditions" paragraph. The SAR data are not affected by this change. The overall dipole length is still according to the Standard No excessive force must be applied to the dipole arm， because they might bend or the soldered connections near the feed point may be damaged . Annual validation for test lab. Annual validation for test lab. Appendix Impedance Measurement Plot for Head TSL

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ26030092S01 Annex F DASY Calibration Certificate

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ26030092S01 Annex E Conducted Power Note: Conducted power unit: dBm The target power was recorded in the manufacturer's document. Average power (dBm) Tune-up Limit Average power (dBm) Tune-up Limit CH 0024027.388.007.088.00 CH 1924407.418.007.108.00 CH 3924807.278.006.978.00 Average power (dBm) Tune-up Limit Duty Cycle [%] Average power (dBm) Tune-up Limit Duty Cycle [%] Average power (dBm) Tune-up Limit Duty Cycle [%] CH 0024027.398.0095.359.5510.5089.1610.1411.0083.77 CH 3924417.418.0095.679.5810.5089.16 10.17 11.0083.48 CH 7824807.768.5095.679.4510.0089.4410.0411.0083.48 ModeChannel Frequency (MHz) LE 1Mbps2Mbps BR / EDR ModeChannel Frequency (MHz) Power Setting Duty Cycle [%]94.6490.68 88 Power Setting 1Mbps2Mbps3Mbps 8.008.008.00 MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ26030092S01

CERWIN-VEGA, INC * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 3/6/2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2BGEQ-VEGA163 FRN of applicant: 0035407048 Per section 2.911(d)(7) of the FCC rules, CERWIN-VEGA, INC (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: CERWIN-VEGA, INC FCC Registration Number (FRN): 0035407048 Physical U.S. Company Address: 3761 S. Hill Street, Los Angeles, CA 90007, United States Contact Person: Owen Cosby Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Agent Signed (if different from Applicant): Signed: Signed: Printed name: Owen Cosby Printed name: Click here to enter text. Company Name: CERWIN-VEGA, INC Company Name: Click here to enter text. Date: 3/6/2026 Date: Click here to enter a date.

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ26030092S01 Annex C Plots of System Performance Check Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2026/3/11 System Check_2450MHz Communication System: UID 0, CW (0); Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450 Medium parameters used : f = 2450 MHz; σ = 1.762 S/m; ε r = 40.38; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: ES3DV3 - SN3295; ConvF(4.7, 4.7, 4.7) @ 2450 MHz; Calibrated: 2025/8/15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1324; Calibrated: 2025/8/15 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7501) CW2450/Area Scan (101x101x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 16.5 W/kg CW2450/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 93.62 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 26.7 W/kg SAR(1 g) = 5.04 W/kg; SAR(10 g) = 2.38 W/kg Smallest distance from peaks to all points 3 dB below = 10.7 mm Ratio of SAR at M2 to SAR at M1 = 58.7% Maximum value of SAR (measured) = 15.1 W/kg 0 dB = 15.1 W/kg = 11.79 dBW/kg MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ26030092S01

NOTE: This document is issued by Shenzhen Morlab Communications Technology Co., the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sa…
