2BGKO-B300Portable label printer

GAINSCHA AUTO ID CO., LTD. Zone G, 2nd floor,Workshop No. 1, No. 15 Pingbei 2nd Road,Xiangzhou District,Zhuhai,Guangdong China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-5-24 To whom it may concern: We, GAINSCHA AUTO ID CO., LTD., hereby certify that the equipment for which authorization is sought (FCC ID: 2BGKO-B300) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Yuanjin Chen Manager GAINSCHA AUTO ID CO., LTD. 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

GAINSCHA AUTO ID CO., LTD. Add: Zone G, 2nd floor,Workshop No. 1, No. 15 Pingbei 2nd Road,Xiangzhou District,Zhuhai,Guangdong China Date: 2024-5-24 FCC ID: 2BGKO-B300 Dear Sir/Madam, We, GAINSCHA AUTO ID CO., LTD. Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Portable label printer Model no.: B300, B200, B210, B220, B230, B240, B250, B260, B270, B280, B290, B310, B320, B330, B340, B350, B360, B370, B380, B390, K200, K210, K220, K230, K240, K250, K260, K270, K280, K290, K300, K310, K320, K330, K340, K350, K360, K370, K380, K390, PT-200, PT-210, PT-220, PT- 230, PT-240, PT-250, PT-260, PT-270, PT-280, PT-290, PT-300, PT- 310, PT-320, PT-330, PT-340, PT-350, PT-360, PT-370, PT-380, PT- 390, ZH-200, ZH-210, ZH-220, ZH-230, ZH-240, ZH-250, ZH-260, ZH- 270, ZH-280, ZH-290, ZH-300, ZH-310, ZH-320, ZH-330, ZH-340, ZH- 350, ZH-360, ZH-370, ZH-380, ZH-390, GA-M200, GA-M210, GA-M220, GA-M230, GA-M240, GA-M250, GA-M260, GA-M270, GA-M280, GAM290, GA-M300, GA-M310, GA-M320, GA-M330, GA-M340, GA-M350, GA-M360, GA-M370, GA-M380, GA-M390, GP-M200, GP-M210, GPM220, GP-M230, GP-M240, GP-M250, GP-M260, GP-M270, GP-M280, GP-M290, GP-M300, GP-M310, GP-M320, GP-M330, GP-M340, GPM350, GP-M360, GP-M370, GP-M380, GP-M390 Sincerely, Name/Title： Yuanjin Chen/Manager GAINSCHA AUTO ID CO., LTD. Add: Zone G, 2nd floor,Workshop No. 1, No. 15 Pingbei 2nd Road,Xiangzhou District,Zhuhai,Guangdong China Company: GAINSCHA AUTO ID CO., LTD. Address: Zone G, 2nd floor,Workshop No. 1, No. 15 Pingbei 2nd Road,Xiangzhou District,Zhuhai,Guangdong China Phone: 18123689226 Fax: N/A E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-5-24> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2BGKO-B300 B300 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Yuanjin Chen/Manager Company: GAINSCHA AUTO ID CO., LTD. Address: Zone G, 2nd floor,Workshop No. 1, No. 15 Pingbei 2nd Road,Xiangzhou District,Zhuhai,Guangdong China Phone: 18123689226 Fax: N/A E-Mail: [email protected]

GAINSCHA AUTO ID CO., LTD. Zone G, 2nd floor,Workshop No. 1, No. 15 Pingbei 2nd Road,Xiangzhou District,Zhuhai,Guangdong China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-5-24 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2BGKO-B300 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Yuanjin Chen/Manager Company: GAINSCHA AUTO ID CO., LTD. Address: Zone G, 2nd floor,Workshop No. 1, No. 15 Pingbei 2nd Road,Xiangzhou District,Zhuhai,Guangdong China Phone: 18123689226 Fax: N/A E-Mail: [email protected]

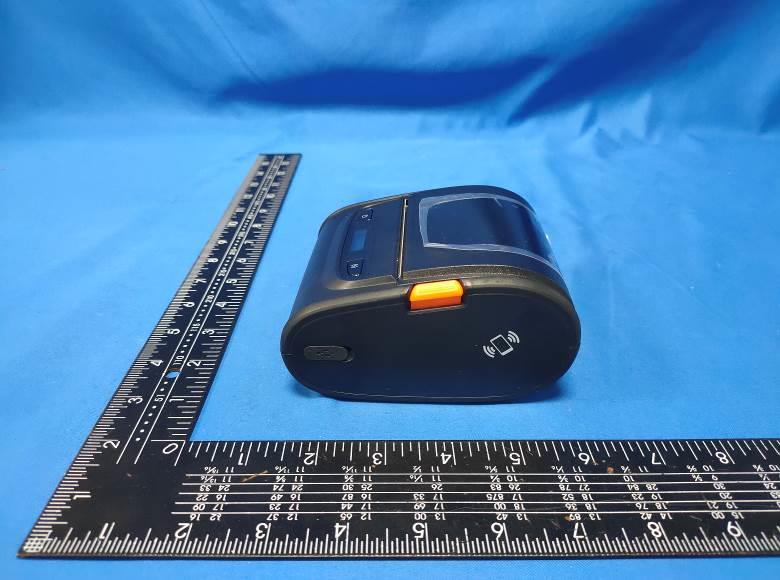

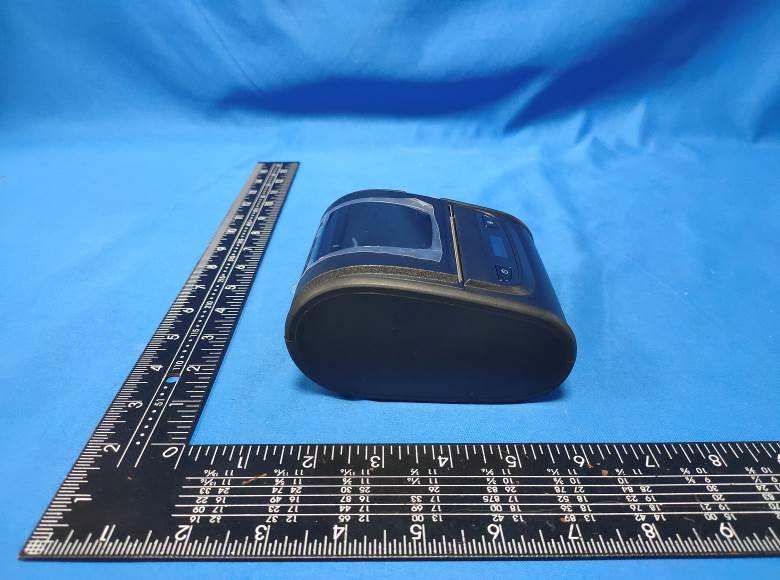

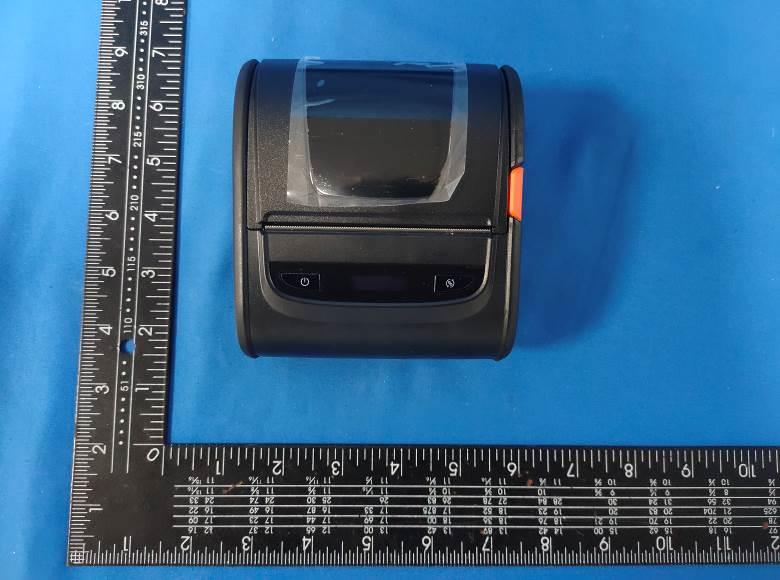

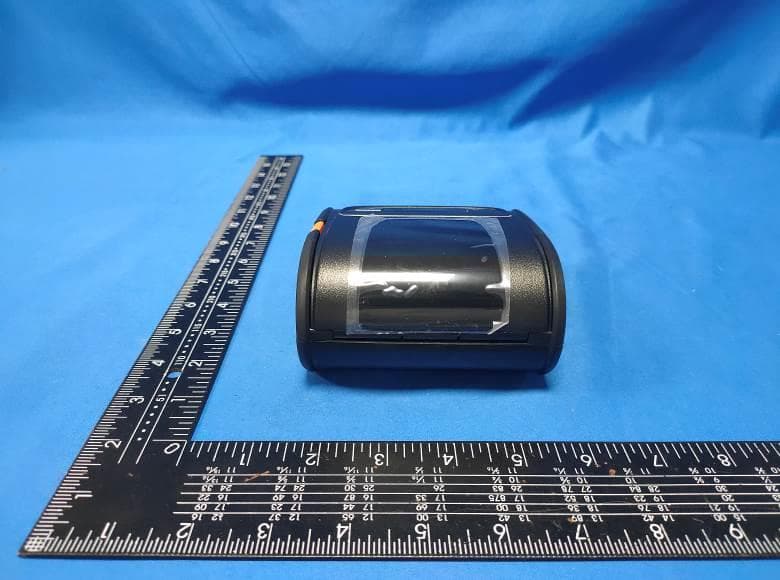

FCC ID: 2BGKO-B300 External Photos of the EUT FCC ID: 2BGKO-B300 FCC ID: 2BGKO-B300

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location FCC ID : 2BGKO-B300

FCC ID: 2BGKO-B300 Internal Photos of the EUT FCC ID: 2BGKO-B300 FCC ID: 2BGKO-B300 ANT FCC ID: 2BGKO-B300

RF Exposure evaluation FCC ID: 2BGKO-B300 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0.0 -2.0 -3.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0.0 -2.0 -2.0 Tolerance ±(dB) 1.0 1.0 1.0 8-DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0.0 -2.0 -2.0 Tolerance ±(dB) 1.0 1.0 1.0 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT 2.450 5 1.0 1.2589 0.3941<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

1. Antenna Description: Antenna type Portable label printer Model B300 Frequency range 2400-2500MHz Manufacturer GAINSCHA AUTO ID CO., LTD. ANT Peak Gain 0.42 dBi 2. Antenna Photo: Length: 9.49mm Width: 2.28mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : CTA24051000401 2BGKO-B300 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Amy Wen Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : May. 16, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : GAINSCHA AUTO ID CO., LTD. Address ............................................ : Zone G, 2nd floor, Workshop No. 1, No. 15 Pingbei 2nd Road, Xiangzhou District, Zhuhai, 519060, Guangdong, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Portable label printer Trade Mark ....................................... : Gainscha Manufacturer .................................... : GAINSCHA AUTO ID CO., LTD. Model/Type reference ...................... : B300 Listed Models .................................. : Refer to page 2 Modulation ....................................... : GFSK, Π/4DQPSK, 8DPSK Frequency ......................................... From 2402MHz to 2480MHz Rating ............................................... : DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA24051000401 Page 2 of 50 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Portable label printer Model /Type : B300 Listed Models : B200, B210, B220, B230, B240, B250, B260, B270, B280, B290, B310, B320, B330, B340, B350, B360, B370, B380, B390, K200, K210, K220, K230, K240, K250, K260, K270, K280, K290, K300, K310, K320, K330, K340, K350, K360, K370, K380, K390, PT-200, PT-210, PT-220, PT- 230, PT-240, PT-250, PT-260, PT-270, PT-280, PT-290, PT-300, PT- 310, PT-320, PT-330, PT-340, PT-350, PT-360, PT-370, PT-380, PT- 390, ZH-200, ZH-210, ZH-220, ZH-230, ZH-240, ZH-250, ZH-260, ZH- 270, ZH-280, ZH-290, ZH-300, ZH-310, ZH-320, ZH-330, ZH-340, ZH- 350, ZH-360, ZH-370, ZH-380, ZH-390, GA-M200, GA-M210, GA-M220, GA-M230, GA-M240, GA-M250, GA-M260, GA-M270, GA-M280, GA- M290, GA-M300, GA-M310, GA-M320, GA-M330, GA-M340, GA-M350, GA-M360, GA-M370, GA-M380, GA-M390, GP-M200, GP-M210, GP- M220, GP-M230, GP-M240, GP-M250, GP-M260, GP-M270, GP-M280, GP-M290, GP-M300, GP-M310, GP-M320, GP-M330, GP-M340, GP- M350, GP-M360, GP-M370, GP-M380, GP-M390 Applicant : GAINSCHA AUTO ID CO., LTD. Address : Zone G, 2nd floor, Workshop No. 1, No. 15 Pingbei 2nd Road, Xiangzhou District, Zhuhai, 519060, Guangdong, China Manufacturer : GAINSCHA AUTO ID CO., LTD. Address : Zone G, 2nd floor, Workshop No. 1, No. 15 Pingbei 2nd Road, Xiangzhou District, Zhuhai, 519060, Guangdong, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24051000401 Page 3 of 50 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N DA R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 5 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emission 14 4.3 Maximum Peak Output Power 20 4.4 20dB Bandwidth 21 4.5 Frequency Separation 25 4.6 Number of hopping frequency 27 4.7 Time of Occupancy (Dwell Time) 29 4.8 Out-of-band Emissions 33 4.9 Pseudorandom Frequency Hopping Sequence 42 4.10 Antenna Requirement 43 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 44 6 P H O T O S O F T H E E U T ...................................................…
