2BGNI-P30Smart POS Terminal

”ø ̈ªÆ∑ø¥Ê Ôπ ©Æ∑ ̈∑≤π ∞ø∞ªÆ ≠∞ªΩ∑∫∑Ωø ̈∑±≤ÊÍˈÔ≥≥ ⁄±¥º∑≤π ≠Ω∏ª≥ª æøΩμ Ω±™ªÆ Ω±™ªÆ PDF created with pdfFactory Pro trial version www.pdffactory.com FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. SAR Statement for Monitor Specific Absorption Rate (SAR) information: This POS Terminal meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. ISED RF Exposure Information and Statement the SAR limit of Canada(ISED) is 1.6 W/kg averaged over one gram of tissue. Device types: POS Terminal has also been tested against this SAR limit. This device was tested for typical body-worn operations with the back of the POS Terminal kept 0mm from the body. To maintain compliance with ISED RF exposure requirements, use accessories that maintain an 0mm separation distance between the user's body and the back of the POS Terminal. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with ISED RF exposure requirements, and should be avoided.

- EPE INATEL SPA - Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 7/18/2024 U.S. Agent Designation EPE INATEL SPA acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BGNI-P30): Name and company of U.S. agent: UUX GROUP INC Physical U.S. address of agent: 36 South 18th Avenue, Suite A Brighton, CO USA 80601 FRN of U.S. agent: 0033701590 Email address of U.S. agent: [email protected] UUX GROUP INC acknowledges their obligation to accept service of process on behalf of EPE INATEL SPA. EPE INATEL SPA with the FRN 0035474733 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature wangkunlun manage EPE INATEL SPA Signature Jack Fu Manager UUX GROUP INC 48_[model] US_Agent_2.911(d)(7) - U, V05

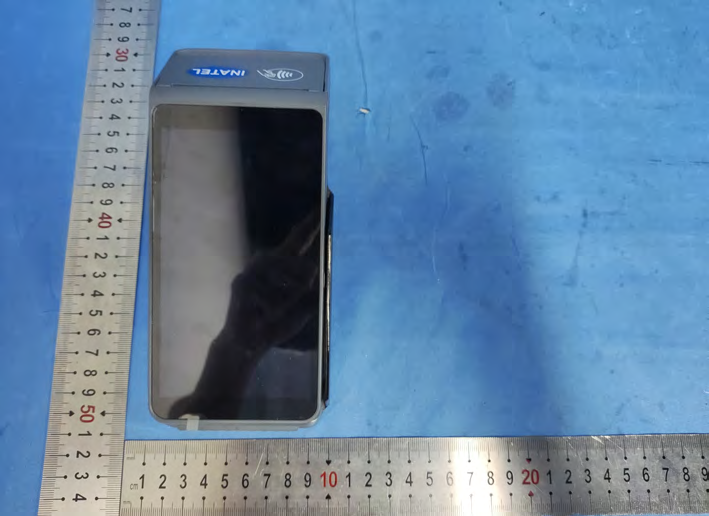

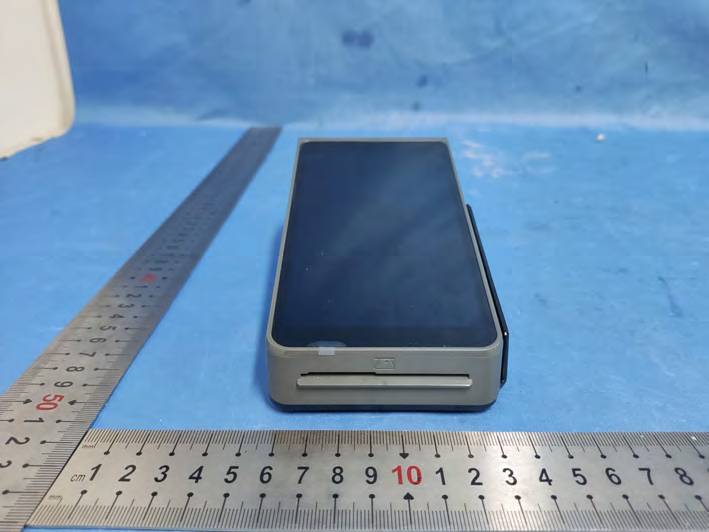

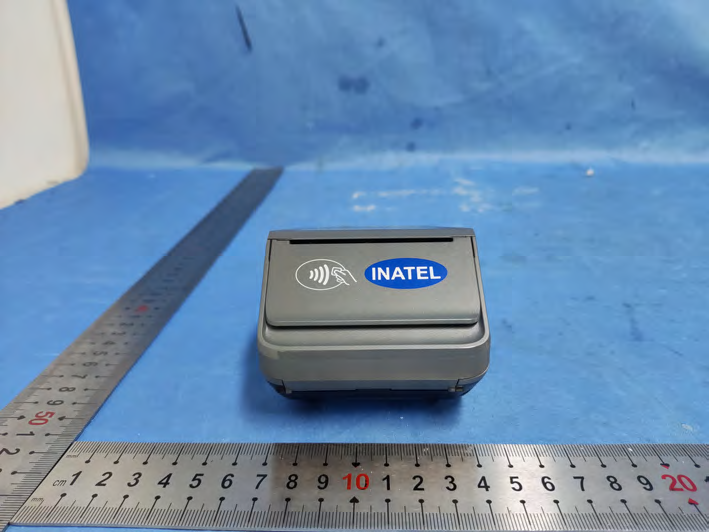

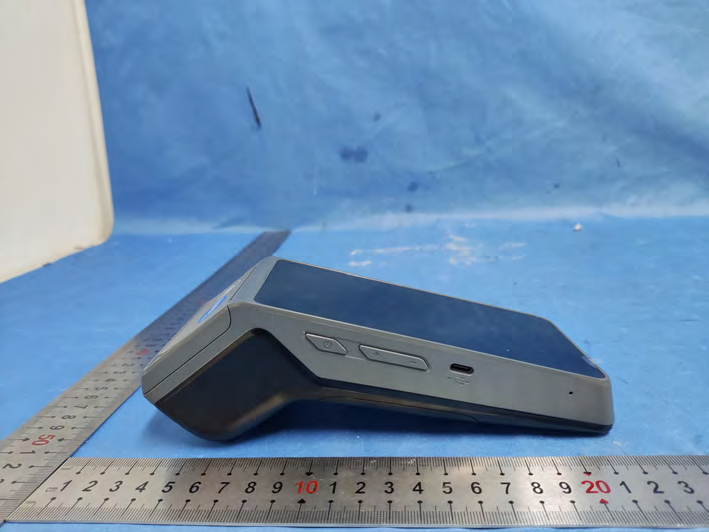

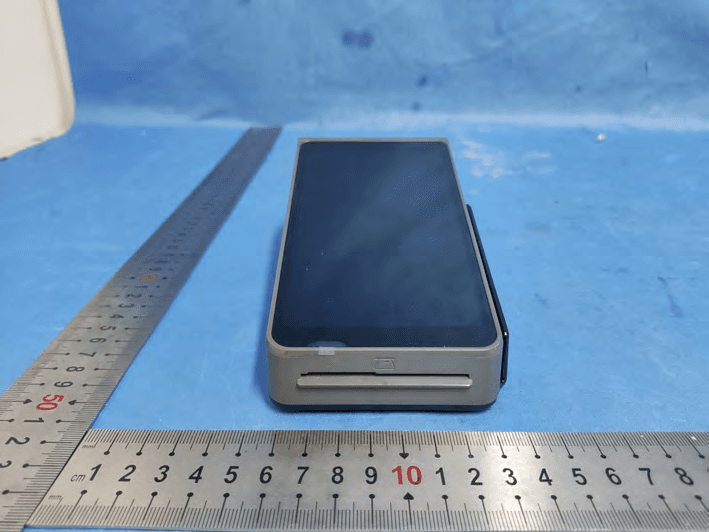

Page 1 of 6 FCC ID: 2BGNI-P30 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. PHOTO GRAPHS OF EUT Photo 1 Photo 2 Page 2 of 6 FCC ID: 2BGNI-P30 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 Page 3 of 6 FCC ID: 2BGNI-P30 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 5 Photo 6 Page 4 of 6 FCC ID: 2BGNI-P30 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 7 Photo 8 Page 5 of 6 FCC ID: 2BGNI-P30 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 9 Photo 10 Page 6 of 6 FCC ID: 2BGNI-P30 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 11 ---The End---

Label Size: L45mm * W35mm 1. The label is silk-screen on the sample Smart POS Terminal Model Name: P30 FCC ID: 2BGNI-P30 L W

Page 1 of 11 FCC ID: 2BGNI-P30 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. PHOTO GRAPHS OF EUT Photo 1 Photo 2 Page 2 of 11 FCC ID: 2BGNI-P30 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 Page 3 of 11 FCC ID: 2BGNI-P30 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 5 Photo 6 GPS Antenna Page 4 of 11 FCC ID: 2BGNI-P30 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 7 Photo 8 2/3/4G Antenna Page 5 of 11 FCC ID: 2BGNI-P30 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 9 Photo 10 Page 6 of 11 FCC ID: 2BGNI-P30 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 11 Photo 12 NFC Antenna Page 7 of 11 FCC ID: 2BGNI-P30 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 13 Photo 14 BT+WIFI Antenna Page 8 of 11 FCC ID: 2BGNI-P30 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 15 Photo 16 4G RX Antenna Page 9 of 11 FCC ID: 2BGNI-P30 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 17 Photo 18 Page 10 of 11 FCC ID: 2BGNI-P30 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 19 Photo 20 Page 11 of 11 FCC ID: 2BGNI-P30 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 21 Photo 22 ---The End---

Page 1 of 6 FCCID: 2BGNI-P30 Report No.: LCSA06054045E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Appendix A Detailed System Check Results 1. System Performance Check System Performance Check 835 MHz Head System Performance Check 1900 MHz Head System Performance Check 2300 MHz Head System Performance Check 2450 MHz Head System Performance Check 2600 MHz Head Page 2 of 6 FCCID: 2BGNI-P30 Report No.: LCSA06054045E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Date: 2024/6/6 Test Laboratory: LCS-SAR Lab System Check_835Mhz DUT: D835V2; Type: D835V2; Serial: 4d124 Communication System: UID 0, CW (0); Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.923 S/m; ε r = 42.751; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration:  Probe: EX3DV4 - SN3805; ConvF(9.26, 9.26, 9.26); Calibrated: 2023/11/23;  Sensor-Surface: 2mm (Mechanical Surface Detection)  Electronics: DAE3 Sn373; Calibrated: 2024/1/3  Phantom: SAM v5.0; Type: SAM; Serial: 1850  DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Unnamed procedure/Area Scan (5x18x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 3.33 W/kg Configuration/Unnamed procedure/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.11 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 3.38 W/kg SAR(1 g) = 2.42 W/kg; SAR(10 g) = 1.45 W/kg Maximum value of SAR (measured) = 3.24 W/kg 0 dB = 3.24 W/kg = 5.11 dBW/kg Page 3 of 6 FCCID: 2BGNI-P30 Report No.: LCSA06054045E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Date: 2024/6/7 Test Laboratory: LCS-SAR Lab System Check_1900Mhz DUT: D1900V2; Type: D1900V2; Serial: 5d055 Communication System: UID 0, CW (0); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.456 S/m; ε r = 38.198; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration:  Probe: EX3DV4 - SN3805; ConvF(7.85, 7.85, 7.85); Calibrated: 2023/11/23;  Sensor-Surface: 2mm (Mechanical Surface Detection)  Electronics: DAE3 Sn373; Calibrated: 2024/1/3  Phantom: SAM v5.0; Type: SAM; Serial: 1850  DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Unnamed procedure/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 15.1 W/kg Configuration/Unnamed procedure/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 90.63 V/m; Power Drift = -0.19 dB Peak SAR (extrapolated) = 18.7 W/kg SAR(1 g) = 10.68 W/kg; SAR(10 g) = 5.43 W/kg Maximum value of SAR (measured) = 14.5 W/kg 0 dB = 14.5 W/kg = 11.61 dBW/kg Page 4 of 6 FCCID: 2BGNI-P30 Report No.: LCSA06054045E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Date: 2024/6/8 Test Laboratory: LCS-SAR Lab System Check_2300Mhz DUT: D2300V2; Type: D2300V2; Serial: 1106 Communication System: UID 0, CW (0); Frequency: 2300 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2300 MHz; σ = 1.622 S/m; ε r =39.542; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration:  Probe: EX3DV4 - SN3805; ConvF(7.66, 7.66, 7.66); Calibrated: 2023/11/23;  Sensor-Surface: 2mm (Mechanical Surface Detection)  Electronics: DAE3 Sn373; Calibrated: 2024/1/3  Phantom: SAM v5.0; Type: SAM; Serial: 1850  DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Unnamed procedure/Area Scan (6x10x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 11.8 W/kg Configuration/Unnamed procedure/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 82.77 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 16.9 W/kg SAR(1 g) = 12.77 W/kg; SAR(10 g) = 5.98 W/kg Maximum value of SAR (measured) = 12.6 W/kg 0 dB = 12.6 W/kg = 11.00 dBW/kg Page 5 of 6 FCCID: 2BGNI-P30 Report No.: LCSA06054045E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Date: 2024/6/9 Test Laboratory: LCS-SAR Lab System Check_2450Mhz DUT: D2450V2; Type: D2450V2; Serial:808 Communication System: UID 0, CW (0); Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.832 S/m; ε r = 39.448; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration:  Probe: EX3DV4 - SN3805; ConvF(7.42, 7.42, 7.42); Calibrated: 2023/11/23;  Sensor-Surface: 2mm (Mechanical Surface Detection)  Electronics: DAE3 Sn373; Calibrated: 2024/1/3  Phantom: SAM v5.0; Type: SAM; Serial: 1850  DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Unnamed procedure/Area Scan (4x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 18.6 W/kg Configuration/Unnamed procedure/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 88.47 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 25.8 W/kg SAR(1 g) = 12.76 W/kg; SAR(10 g) = 5.77 W/kg Maximum value of SAR (…

Text truncated - open the document above for the full version.

Page 1 of 11 FCCID: 2BGNI-P30 Report No.: LCSA06054045E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Appendix B Detailed Test Results 1. GSM GSM850 for Body GSM1900 for Body 2. WCDMA WCDMA Band II for Body WCDMA Band V for Body 3. LTE LTE Band 5 for Body LTE Band 7 for Body LTE Band 38 for Body LTE Band 40 for Body LTE Band 41 for Body 4. WIFI WIFI 2.4GHz for Body Page 2 of 11 FCCID: XXXX-YYYY Report No.: LCSA06054045E Date: 2024/6/6 Test Laboratory: LCS-SAR Lab GSM 850 GPRS 4TX 251CH Rear side 0mm DUT: Smart POS Terminal; Type: P30; Serial: A240605088-1 Communication System: UID 0, GPRS (0); Frequency: 848.8 MHz;Duty Cycle: 1: 2.075 Medium parameters used: f = 848.8 MHz; σ = 0.945 S/m; ε r = 41.532; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration:  Probe: EX3DV4 - SN3805; ConvF(9.26, 9.26, 9.26); Calibrated: 2023/11/23;  Sensor-Surface: 2mm (Mechanical Surface Detection)  Electronics: DAE3 Sn373; Calibrated: 2024/1/3  Phantom: SAM v5.0; Type: SAM; Serial: 1850  DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Unnamed procedure/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.442 W/kg Configuration/Unnamed procedure/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.74 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 0.465 W/kg SAR(1 g) = 0.357 W/kg; SAR(10 g) = 0.255 W/kg Maximum value of SAR (measured) = 0.421 W/kg 0 dB = 0.421 W/kg = -3.76 dBW/kg Page 3 of 11 FCCID: 2BGNI-P30 Report No.: LCSA06054045E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Date: 2024/6/7 Test Laboratory: LCS-SAR Lab GSM 1900 GPRS 4TX 661CH Rear side 0mm DUT: Smart POS Terminal; Type: P30; Serial: A240605088-1 Communication System: UID 0, GPRS (0); Frequency: 1880 MHz;Duty Cycle: 1:2.075 Medium parameters used: f = 1880 MHz; σ = 1.425 S/m; ε r = 40.542; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration:  Probe: EX3DV4 - SN3805; ConvF(7.85, 7.85, 7.85); Calibrated: 2023/11/23;  Sensor-Surface: 2mm (Mechanical Surface Detection)  Electronics: DAE3 Sn373; Calibrated: 2024/1/3  Phantom: SAM v5.0; Type: SAM; Serial: 1850  DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Unnamed procedure/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.242 W/kg Configuration/Unnamed procedure/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.69 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 0.275 W/kg SAR(1 g) = 0.179 W/kg; SAR(10 g) = 0.106 W/kg Maximum value of SAR (measured) = 0.233 W/kg 0 dB = 0.233 W/kg = -6.33 dBW/kg Page 4 of 11 FCCID: XXXX-YYYY Report No.: LCSA06054045E Date: 2024/6/7 Test Laboratory: LCS-SAR Lab WCDMA Band II RMC 9262CH Rear side 0mm DUT: Smart POS Terminal; Type: P30; Serial: A240605088-1 Communication System: UID 0, WCDMA (0); Frequency: 1852.4 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1852.4 MHz; σ = 1.4324 S/m; ε r = 41.126; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration:  Probe: EX3DV4 - SN3805; ConvF(7.85, 7.85, 7.85); Calibrated: 2023/11/23;  Sensor-Surface: 2mm (Mechanical Surface Detection)  Electronics: DAE3 Sn373; Calibrated: 2024/1/3  Phantom: SAM v5.0; Type: SAM; Serial: 1850  DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Unnamed procedure/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.329 W/kg Configuration/Unnamed procedure/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.59 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 0.423 W/kg SAR(1 g) = 0.264 W/kg; SAR(10 g) = 0.152 W/kg Maximum value of SAR (measured) = 0.328 W/kg 0 dB = 0.328 W/kg = -4.84 dBW/kg Page 5 of 11 FCCID: 2BGNI-P30 Report No.: LCSA06054045E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Date: 2024/6/6 Test Laboratory: LCS-SAR Lab WCDMA Band V RCM 4233CH Rear side 0mm DUT: Smart POS Terminal; Type: P30; Serial: A240605088-1 Communication System: UID 0, WCDMA (0); Frequency: 846.6 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 846.6 MHz; σ = 0.915 S/m; ε r = 41.685; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration:  Probe: EX3DV4 - SN3805; ConvF(9.26, 9.26, 9.26); Calibrated: 2023/11/23;  Sensor-Surface: 2mm (Mechanical Surface Detection)  Electronics: DAE3 Sn373; Calibrated: 2024/1/3  Phantom: SAM v5.0; Type: SAM; Serial: 1850  DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Unnamed procedure/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.324 W/kg Configuration/Unnamed procedure/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.15 V/m; Power Drift = 0.17 dB Peak SAR (extrapolated) = 0.374 W/kg SAR(1 g) = 0.267 W/kg ; SAR(10 g) = 0.117 W/kg Maximum value of SAR (measured) = 0.344 W/kg 0 dB = 0.344 W/kg = -4.63 dBW/kg Page 6 of 11 FCCID: XXXX-YYYY Report No.: LCSA06054045E Date: 2024/6/6 Test Laboratory: LCS-SAR Lab LTE Band 5 10M QPSK 1RB25 20525CH Rear side 0mm DUT: Smart POS Terminal; Type: P30; Serial: A240605088-1 Communication System: UID 0, LTE-FDD (0); Frequency: 836.5 MHz;Duty Cycle: 1:1 Medium parameters used: f = 836.5…

Text truncated - open the document above for the full version.

Page 1 of 43 FCCID: 2BGNI-P30 Report No.: LCSA06054045E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Appendix C Calibration certificate 1. Dipole D835V2-SN 4d124(2023-10-24) D1900V2-SN 5d055 (2023-10-20) D2300V2-SN 1106(2023-6-20) D2450V2-SN 808(2023-10-23) D2600V2-SN 1071(2023-06-20) 2. DAE DAE3-SN 373(2024-1-3) 3. Probe EX3DV4-SN 3805(2023-11-23) Page 2 of 43 FCCID: 2BGNI-P30 Report No.: LCSA06054045E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 3 of 43 FCCID: 2BGNI-P30 Report No.: LCSA06054045E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 4 of 43 FCCID: 2BGNI-P30 Report No.: LCSA06054045E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 5 of 43 FCCID: 2BGNI-P30 Report No.: LCSA06054045E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 6 of 43 FCCID: 2BGNI-P30 Report No.: LCSA06054045E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 7 of 43 FCCID: 2BGNI-P30 Report No.: LCSA06054045E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 8 of 43 FCCID: 2BGNI-P30 Report No.: LCSA06054045E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 9 of 43 FCCID: 2BGNI-P30 Report No.: LCSA06054045E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 10 of 43 FCCID: 2BGNI-P30 Report No.: LCSA06054045E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 11 of 43 FCCID: 2BGNI-P30 Report No.: LCSA06054045E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 12 of 43 FCCID: 2BGNI-P30 Report No.: LCSA06054045E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 13 of 43 FCCID: 2BGNI-P30 Report No.: LCSA06054045E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 14 of 43 FCCID: 2BGNI-P30 Report No.: LCSA06054045E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 15 of 43 FCCID: 2BGNI-P30 Report No.: LCSA06054045E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 16 of 43 FCCID: 2BGNI-P30 Report No.: LCSA06054045E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 17 of 43 FCCID: 2BGNI-P30 Report No.: LCSA06054045E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District…

Text truncated - open the document above for the full version.

Page 1 of 5 FCCID: 2BGNI-P30 Report No.: LCSA06054045E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Appendix D Photographs 1. SAR measurement System 2. Photographs of Tissue Simulate Liquid 3. Photographs of EUT test position 4. EUT Constructional Details Page 2 of 5 FCCID: 2BGNI-P30 Report No.: LCSA06054045E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 1. SAR measurement System Page 3 of 5 FCCID: 2BGNI-P30 Report No.: LCSA06054045E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 2. Photographs of Tissue Simulate Liquid Photo 1: Tissue Simulant Liquid for Head 835 Photo 2: Tissue Simulant Liquid for Head 1900 Tissue Simulant Liquid for Head 2300 Tissue Simulant Liquid for Head 2450 Photo 3: Tissue Simulant Liquid for Head 2600 Page 4 of 5 FCCID: 2BGNI-P30 Report No.: LCSA06054045E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 3. Photographs of EUT test position Photo 4: Front side 0mm Photo 5: Back side 0mm Photo 6: Left side 0mm Photo 7: Right side 0mm Photo 8: Top side 10mm Page 5 of 5 FCCID: 2BGNI-P30 Report No.: LCSA06054045E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 4. EUT Constructional Details Photo 9: Front View Photo 10: Back View

Page 1 of 46 Report No.: AITSZ24050902W9 Appendix C RF Test Data for 2.4GHz WIFI Conducted Measurement FCC ID:2BGNI-P30 Product Name:Smart POS Terminal Test Model:P30 Environmental Conditions Temperature: 23.5°C Relative Humidity: 52.6% ATM Pressure: 101Kpa Test Engineer: Emiya Lin Supervised by: Simba Huang Page 2 of 46 Report No.: AITSZ24050902W9 Contents Page COVER PAGE 1 Duty Cycle ............................................................................................................................................................................................. 3 1.1 Test Result .................................................................................................................................................................................. 3 1.2 Test Graphs ................................................................................................................................................................................. 4 2 Maximum Conducted Output Power ...................................................................................................................................................... 9 2.1 Test Result .................................................................................................................................................................................. 9 3 -6dB Bandwidth ................................................................................................................................................................................... 10 3.1 Test Result ................................................................................................................................................................................ 10 3.2 Test Graphs ............................................................................................................................................................................... 11 4 Maximum Power Spectral Density Level .........................…

Text truncated - open the document above for the full version.
