2BGR5-RR-AFMC01Smart Tracker Card with Wireless Charging

.......FindmyProductInstruction 1.Productoverview 2.Quickinstructions 1、Turnonthedevice:pressandholdthebuttonfor5seconds,thedevicewillbeepandturn on.(Howtoconfirmwhetherthedevicehasbeenturnedon:double-clickthedevicebutton, thedevicewillsound,whichmeansthatthedevicehasbeenturnedon,andthereisnoneed torestartit) 2、OpentheAPPthatcomeswiththeApplemobilephonesystem:Findmy; 3、Choose：Items; 4、Choose：AddNewItem; 5、Choose：OtherSupportedItem; 6、DuringtheSearchingItemsprocess,adevicewiththeword“(LOGO)”willappear； 7、ClickonthedevicefoundintheAPPandnameit。 8、Afternaming,youcanusedevicefunctions:A.Ringthedevice,clickPlaySound,andthe devicewillemitmusic.B.Findmynetworkhelpstofind:Whenthedeviceleavesthe Bluetoothdistance,itcannotbeconnectedintheAPP.YoucanchooseLostMode,Enable. Enterthecontactmobilephonenumber,etc.IfthereisaniPhonenearthelostdevice,the owner’sFindmyAPPcanreceivenotificationsandthelatestlocation. 9.Deletedevice:TodeletethedeviceintheAPP,youcanselectRemoveitem. 10、Afterremovingthedevice,thedevicewillnotshutdownandisinthepairingstate.If thereisnore-pairingwithin10minutes,thedevicewillleavethepairingstate.Ifyouneedto pairadeviceatthistime,youneedtoclickthedevicebuttononce,thedevicewillsound, andthelightwillflashonce.Atthistime,thedeviceentersthepairingstateandcanbe pairedwiththeAPPagain. 3.Instructionsfordeviceoperation 1.Deviceentersturnedonmodefromshutdownsleepmode:Ifthedeviceisinshutdown sleepmode,pressandholdthebuttonforfiveseconds,thedeviceplaysasoundandthe LEDflashthreetimes,thedeviceisturnedon. 2.Devicestatusconfirmation: Double-clickthedevicebuttontwice.WhenthedevicehasnotbeenpairedwiththeFindmy app,thedevicewillplayasound;WhenthedeviceandtheFindmyapparepairedand connected,thedeviceemitsa"tick"toneonce,andtheledflashesthreetimes;Whenthe deviceandtheFindmyapparepairedbutnotconnected,thedevicewillplayalonger soundandtheLEDwillflashfor3times;Theabovesituationindicatesthatthedeviceisin thepoweronstate.Ifthedevicehasnosound,thedeviceisinshutdownsleepmode.Press andholdthebuttonfor5secondstoturnon. 3.Pairingmodetimeout,thedeviceentersthepairingmodeagain:Afterremovingthe deviceintheapp,thedevicewillplayasoundandtheLEDflashsixtimes,itwillnotshut downandisinthepairingmode.Afterturnonthedeviceorremovethedeviceintheapp,If thereisnopairingwithin10minutes,thedevicewillleavethepairingmode(thedevice cannotbepairedwiththeFindMyAPPatthistime).Ifyouneedtopairthedevice,youneed toclickthedevicebuttononce,thedevicewillplayasound,andtheLEDwillflashonce.At thistime,thedeviceentersthepairingmodeandcanbepairedwiththeFindMyAPPagain. 4.Howtoperformserialnumberlookup:Pressthedevicebutton6timesin2seconds,the devicewillsoundandtheLEDblinkssixtimes.andthedeviceentersintoaserialnumber readstate. 5.FactoryReset:Whenthedeviceisturnedon,double-clickthedevicebutton,thedevice playsasoundandtheLEDflashthreetimes,pressandholdthedevicebuttonassoonas youhearthedevice’ssound,after2seconds,thedevicewillemit"tick,tick,tick"soundand theLEDwillflash,don’trelease,continuetopressandholdthebuttonforabouteight seconds,untilthedevicepalyasoundagainandtheLEDflashthreetimes,releasethe button.Atthistime,factoryresetiscompleted. 6.Deviceentersshutdownsleepmodefromturnedonmode:Whendeviceisinturnedon mode,pressthedevicebutton5timesin2seconds,thedeviceplaysasoundandtheLED blinksthreetimes,thedeviceentersshutdownsleepmode. Note: 1、TCP005MaxConnectionis2。 2、ForTCB002,step7,whethertheaccessorywillrespondwithaninvalidstateerrorornot respondatalliftheFirmwareUpdatecharacteristiciswrittentowhiletheaccessoryis connectedtoanon-owner? “TheaccessorywillrespondwithanATTerror(BT_ATT_ERR_WRITE_NOT_PERMITTED)ifthe non-ownerwritestotheFirmwareUpdatecharacteristic.Essentially,itmeansthatonlythe ownercanperformtheDFU.” FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

RICH&RAYINC FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 6/13/24 U.S.AgentDesignation RICH&RAYINCacknowledgestheirconsentforthefollowingcontactlocatedintheUnitedStatestoactastheir agentforserviceofprocessfortheequipmentforwhichauthorizationissought(FCCID:2BGR5-RR-AFMC01): NameandcompanyofU.S.agent:RICH&RAYINC PhysicalU.S.addressofagent:2000MalloryLn,Suite290,Franklin,37067,TN,US FRNofU.S.agent:0035508357 EmailaddressofU.S.agent:[email protected] RICH&RAYINCacknowledgestheirobligationtoacceptserviceofprocessonbehalfofRICH&RAYINC. RICH&RAYINCwiththeFRN0035508357acceptsitsobligationtomaintainanagentforserviceofprocessin theUnitedStatesfornolessthanoneyearaftereitherthegranteehaspermanentlyterminatedallmarketingand importationoftheapplicableequipmentwithintheU.S.,ortheconclusionofanyCommission-related administrativeorjudicialproceedinginvolvingtheequipment,whicheverislater. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirementslistedunder§ 2.911(d)(7). TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB 986446D01. Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,thegranteeisobligatedtonotify theFCCwithin30daysviathegrantingTCB. Sincerely, Signature YingxueWang Manager RICH&RAYINC Signature YingxueWang Manager RICH&RAYINC 4 8 _ [ m o d e l ] U S _ A g e n t _ 2 . 9 1 1 ( d ) ( 7 ) - U , V 0 5

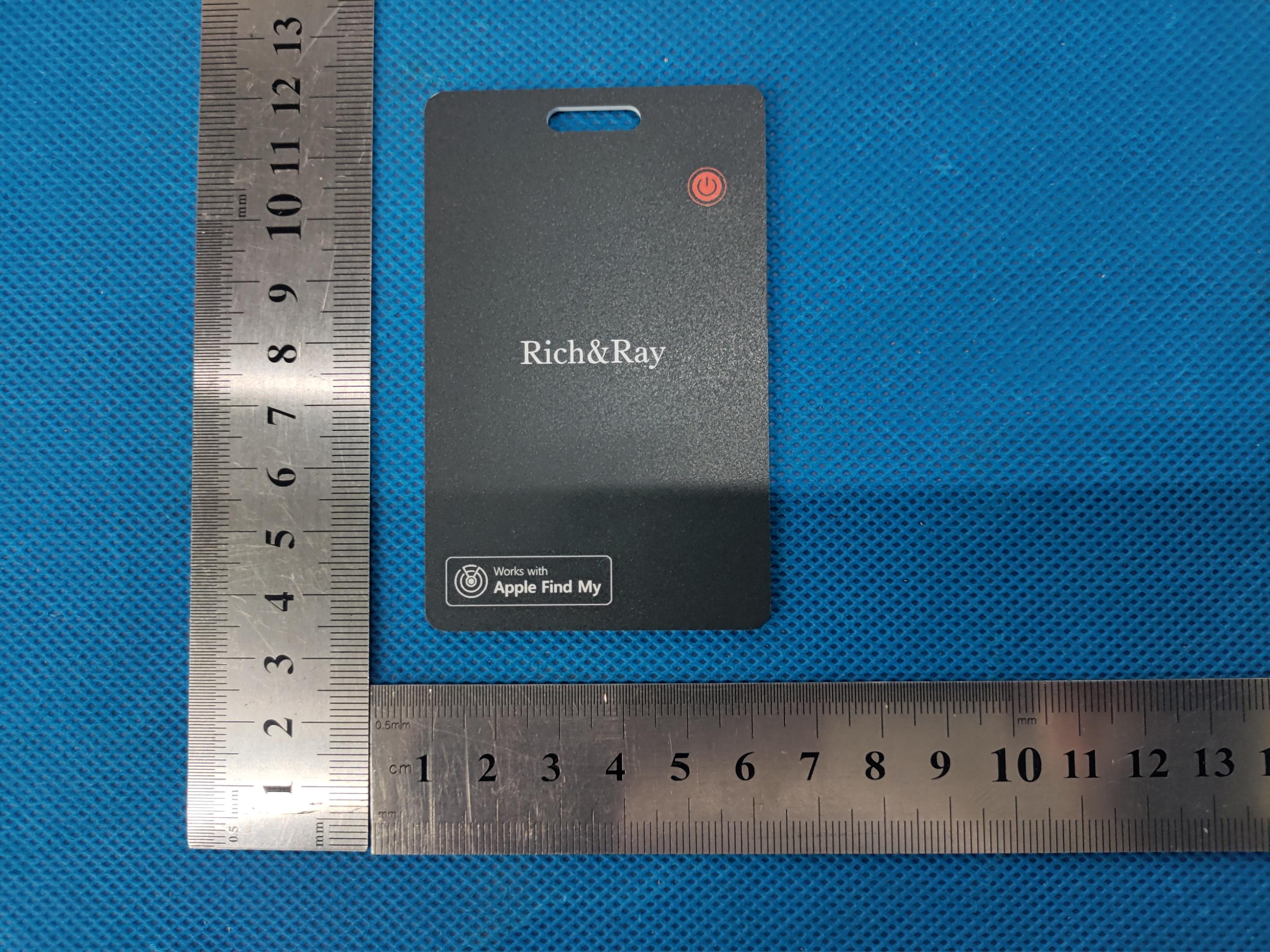

Page1of3FCCID: 2BGR5-RR-AFMC01 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. ExternalPhotos Photo1 Photo2 Page2of3FCCID: 2BGR5-RR-AFMC01 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo3 Photo4 Page3of3FCCID: 2BGR5-RR-AFMC01 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo5 Photo6 ------End------

Label FCCID:2BGR5-RR-AFMC01

Page1of1FCCID:2BGR5-RR-AFMC01 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. InternalPhotos Photo1 Photo2 ------End------ BLETXAntenna Wirelesscharging RXAntenna

RFExposureevaluation FCCID:2BGR5-RR-AFMC01 1.1.ApplicableStandard Accordingto§1.1307(b)(1),systemsoperatingundertheprovisionsofthissectionshallbeoperatedina mannerthatensuresthatthepublicisnotexposedtoradiofrequencyenergylevelinexcessofthe Commission’sguidelines. Accordingto§1.1310and§2.1093RFexposurerequirement KDB447498v06:MobileandPortableDevicesRFExposureProceduresandEquipmentAuthorization Policies 1.2.Requirement AccordingtoKDB447498D01GeneralRFExposureGuidancev06Section4.3.1StandaloneSARtest exclusionconsiderations:“UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures, standalone1-gheadorbodyand10-gextremitySARevaluationforgeneralpopulationexposureconditions, bymeasurementornumericalsimulation,isnotrequiredwhenthecorrespondingSARTestExclusion Thresholdcondition,listedbelow,issatisfied.Thesetestexclusionconditionsarebasedonsource-based time-averagedmaximumconductedoutputpoweroftheRFchannelrequiringevaluation,adjustedfortune-up tolerance,andtheminimumtestseparationdistancerequiredfortheexposureconditions.22Theminimum testseparationdistanceisdeterminedbythesmallestdistancefromtheantennaandradiatingstructuresor outersurfaceofthedevice,accordingtothehostformfactor,exposureconditionsandplatformrequirements, toanypartofthebodyorextremityofauserorbystander(see5)ofsection4.1).ToqualifyforSARtest exclusion,thetestseparationdistancesappliedmustbefullyexplainedandjustifiedbytheoperating configurationsandexposureconditionsofthetransmitterandapplicablehostplatformrequirements,typically intheSARmeasurementorSARanalysisreport,accordingtotherequiredpublishedRFexposureKDB procedures.WhennootherRFexposuretestingorreportingisrequired,astatementofjustificationand compliancemustbeincludedintheequipmentapproval,inlieuoftheSARreport,toqualifyfortheSARtest exclusion.Whenrequired,thedevicespecificconditionsdescribedintheotherpublishedRFexposureKDB proceduresmustbesatisfiedbeforeapplyingtheseSARtestexclusionprovisions;forexample,handheldPTT two-wayradios,handsets,laptops&tabletsetc.23“ [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance,mm)] · [√f(GHz)] ≤3.0for1-gSARand≤7.5for10-gextremitySAR,where: •f(GHz)istheRFchanneltransmitfrequencyinGHz • PoweranddistanceareroundedtothenearestmWandmmbeforecalculation •Theresultisroundedtoonedecimalplaceforcomparison •3.0and7.5arereferredtoasthenumericthresholdsinthestep2below Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis ≤ 50mmandfor transmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtestseparationdistanceis<5 mm,adistanceof5mmaccordingto5)insection4.1isappliedtodetermineSARtestexclusion. 1.3.Manufacturingtolerance BLE Frequency (MHz) GFSK(1M) 240224402480 Target(dBm)0.21.581.12 Tolerance ± (dB) 1.01.01.0 Frequency (MHz) GFSK(2M) 240224402480 Target(dBm)0.231.631.15 Tolerance±(dB)1.01.01.0 Page2of2 2.EvaluationResult EvaluationResults Band/Modef(GHz) Antenna Distance (mm) Max.RFoutputpower (includingtune-up tolerance) SARTest Exclusion Threshold SARTest Exclusion dBmmW BLE2.552.631.830.58<3Yes 3.Conclusion ThemeasurementresultscomplywiththeFCCLimitper47CFR2.1093fortheuncontrolledRFExposure andSARExclusionThresholdperKDB447498v06 .....................EndofReport.........................

Page1of35ReportNo.:AIT24052104FW1 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. TESTREPORT ClientInformation: Applicant:RICH&RAYINC Applicantadd.:2000MalloryLn,Suite290,Franklin,37067,TN,US Manufacturer:ShenzhenYoucaiIntelligentTechnologyCo,.LTD. Manufactureradd.: Room115,1/F,HeshengMansion,No.633BulongRoad,BantianStreet, LonggangDistrict,Shenzhen,China ProductInformation: ProductName:SmartTrackerCardwithWirelessCharging ModelNo.:RR-AFMC01 BrandName:RICH&RAY FCCID: 2BGR5-RR-AFMC01 Applicablestandards: FCCCFRTitle47Part15SubpartCSection15.247 PreparedBy: DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang,Huangjiang,Dongguan, Guangdong,China Tel.:+86-769-82020499Fax.:+86-769-82020495 DateofReceipt:May21,2024DateofTest:May21,2024~May22,2024 DateofIssue:May23,2024TestResult:Pass ThisdevicedescribedabovehasbeentestedbyDongguanYaxu(AiT)TechnologyLimitedandthe testresultsshowthattheequipmentundertest(EUT)isincompliancewiththeFCCrequirements. Anditisapplicableonlytothetestedsampleidentifiedinthereport. Note:Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofDongguan Yaxu(AiT)TechnologyLimited,thisdocumentmaybealteredorrevisedbyDongguanYaxu(AiT) TechnologyLimited,personalonly,andshallbenotedintherevisionofthedocument.Thistest reportmustnotbeusedbytheclienttoclaimproductendorsement. Reviewedby:Approvedby: EmiyaLinSimbaHuang Page2of35ReportNo.:AIT24052104FW1 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. 1Contents Page COVERPAGE 1CONTENTS......................................................................................................................................................................2 2TESTSUMMARY............................................................................................................................................................4 2.1StatementoftheMeasurementUncertainty................................................................................4 2.2MeasurementUncertainty............................................................................................................4 3TESTFACILITY..............................................................................................................................................................5 3.1Deviationfromstandard...............................................................................................................5 3.2Abnormalitiesfromstandardconditions.......................................................................................5 3.3TestLocation.................................................................................................................................5 4GENERALINFORMATION...........................................................................................................................................6 4.1Testfrequencies............................................................................................................................7 4.2EUTPeripheralList.......................................................................................................................7 4.3TestPeripheralList.......................................................................................................................7 4.4TESTMETHODOLOGY...............................................................................................................8 4.5DescriptionofTestModes............................................................................................................9 5EQUIPMENTUSEDDURINGTEST.........................................................................................................................10 6TESTRESULTSANDMEASUREMENTDATA.....................................................................................................12 6.1Antennarequirement..................................................................................................................12 6.2OnTimeandDutyCycle............................................................................................................13 6.3MaximumConductedOutputPeakPowerMeasurement.........................................................14 6.46dBSpectrumBandwidthMeasurement..................................................................................16 6.5PowerSpectralDensity..............................................................................................................17 6.6ConductedSpuriousEmissionsandBandEdgesTest.............................................................19 6.7Restrict-bandBand-edgeMeasurements..................................................................................21 6.8RadiatedEmissionsMeasurement............................................................................................24 6.9ConductedEmissions.................................................................................................................34 7TESTSETUPPHOTOGRAPHSOFEUT.................................................................................................................35 8EXTERNALPHOTOGRAPHSOFEUT....................................................................................................................35 9INTERNALPHOTOGRAPHSOFEUT.....................................................................................................................35 Page3of35ReportNo.:AIT24052104FW1 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. ReportReviseRecord Report Version ReviseTimeIssuedDateValidVersionNotes V1.0/May23,2024ValidInitialrelease Page4of35ReportNo.:AIT24052104FW1 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. 2TestSummary TestItemSectioninCFR47Result Antennarequirement§15.203Pass OnTimeandDutyCycle// MaximumConductedPeakOutput Power…

Text truncated - open the document above for the full version.

2.4 GHz MIFA Antenna specification 1. Type of antenna：On-board antenna MIFA 2. Frequence：2.4GHz 3. Design by：Zizai Technology Length 14mm and Width 5mm 4 . Radiation gain diagram 5 . S11 figure Frequency（MHz 6 . Gain and Efficiency ）Efficiency（%）Gain(dBi) 240032.32%2.18 241032.12%2.15 242032.86%2.2 243032.74%2.03 244032.63%2.05 245031.20%2.01 246030.76%2.04 247030.59%1.97 248031.02%1.93 249030.53%1.79 250030.62%1.28

DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT24052104FW1 FCCID:2BGR5-RR-AFMC01 Page 1 of 35 AppendixB RFTestDataforBT(BLE)(ConductedMeasurement) ProductName:SmartTrackerCardwithWirelessCharging TradeMark:RICH&RAY TestModel:RR-AFMC01 EnvironmentalConditions Temperature: 26.3  C RelativeHumidity:54.4% ATMPressure:100.0kPa TestEngineer:Emiyalin Supervisedby:SimbaHaung DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT24052104FW1 FCCID:2BGR5-RR-AFMC01 Page 2 of 35 Contents Page COVERPAGE 1DutyCycle........................................................................................................................................................................................3 1.1TestResult............................................................................................................................................................................3 1.2TestGraphs...........................................................................................................................................................................4 2MaximumConductedOutputPower.................................................................................................................................................7 2.1TestResult............................................................................................................................................................................7 2.2TestGraphs...........................................................................................................................................................................8 3-6dBBandwidth...............................................................................................................................................................................11 3.1TestResult..........................................................................................................................................................................11 3.2TestGraphs.........................................................................................................................................................................12 4MaximumPowerSpectralDensityLevel.........................................................................................................................................15 4.1TestResult..........................................................................................................................................................................15 4.2TestGraphs.........................................................................................................................................................................16 5BandEdge......................................................................................................................................................................................19 5.1TestResult..........................................................................................................................................................................19 5.2TestGraphs.........................................................................................................................................................................20 6ConductedRFSpuriousEmission..................................................................................................................................................24 6.1TestResult..........................................................................................................................................................................24 6.2TestGraphs.........................................................................................................................................................................25 7RestrictBand..................................................................................................................................................................................31 7.1TestResult..........................................................................................................................................................................31 7.2TestGraphs.........................................................................................................................................................................32 DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT24052104FW1 FCCID:2BGR5-RR-AFMC01 Page 3 of 35 1DutyCycle 1.1 TestResult ModeFrequency(MHz)DutyCycle(%)Correction Factor 1/T(kHz) BLE1M240264.461.912.56 BLE1M244064.781.892.56 BLE1M2480641.942.56 BLE2M240235.214.534.76 BLE2M244034.624.614.76 BLE2M248034.484.624.76 DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT24052104FW1 FCCID:2BGR5-RR-AFMC01 Page 4 of 35 1.2 TestGraphs TestGraphs BLE1M2402MHz BLE1M2440MHz DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT24052104FW1 FCCID:2BGR5-RR-AFMC01 Page 5 of 35 BLE1M2480MHz BLE2M2402MHz DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT24052104FW1 FCCID:2BGR5-RR-AFMC01 Page 6 of 35 BLE2M2440MHz BLE2M2480MHz DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT24052104FW1 FCCID:2BGR5-RR-AFMC01 Page 7 of 35 2MaximumConductedOutputPower 2.1 TestResult ModeFrequency(MHz)ConductedPower (dBm) Limit(dBm)Verdict BLE1M24020.230Pass BLE1M24401.5830Pass BLE1M24801.1230Pass BLE2M24020.2330Pass BLE2M24401.6330Pass BLE2M24801.1530Pass DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT24052104FW1 FCCID:2BGR5-RR-AFMC01 Page 8 of 35 2.2 TestGraphs TestGraphs BLE1M2402MHz BLE1M2440MHz DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT24052104FW1 FCCID:2BGR5-RR-AFMC01 Page 9 of 35 BLE1M2480MHz BLE2M2402MHz DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT24052104FW1 FCCID:2BGR5-RR-AFMC01 Page 10 of 35 BLE2M2440MHz BLE2M2480MHz DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT24052104FW1 FCCID:2BGR5-RR-AFMC01 Page 11 of 35 3-6dBBandwidth 3.1 TestResult ModeFrequency(MHz)-6dBBandwidth(MHz)Limit-6dBBandwidth(MHz)Verdict BLE1M24…

Text truncated - open the document above for the full version.

Page1of1FCCID:2BGR5-RR-AFMC01 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. estSetupPhoto RadiatedEmission ------End------
