2BGR8-WD-101carplay wireless adapter

FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: ЬReorient or relocate the receiving antenna. ЬIncrease the separation between the equipment and receiver. ЬConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Shenzhen Weideng IoT Technology Co., Ltd 312, Building B,Tea Tree Industrial Zone, Xiaweiyuan New Village,Gushu Community Xixiang Street, Bao'an District, Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-6-20 To whom it may concern: We, Shenzhen Weideng IoT Technology Co., Ltd, hereby certify that the equipment for which authorization is sought (FCC ID: 2BGR8-WD-101) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Mary Jiang Manager Shenzhen Weideng IoT Technology Co., Ltd 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

Shenzhen Weideng IoT Technology Co., Ltd Add: 312, Building B,Tea Tree Industrial Zone, Xiaweiyuan New Village,Gushu Community Xixiang Street, Bao'an District, Shenzhen China Date: 2024-6-20 FCC ID: 2BGR8-WD-101 Dear Sir/Madam, We, Shenzhen Weideng IoT Technology Co., Ltd Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, The model number, enclosure and components of the circuit are different for these model: Product name: carplay wireless adapter Model no.: WD-101, WD-100, WD-102, WD-103, WD-104, WD-105, WD-106, WD-107, WD- 108, WD-109, WD-110, WD-111, WD-112, WD-113, WD-114, WD-115, WD-116, WD-117, WD-118, WD-119, WD-120, A1-C Model: WD-101 Shenzhen Weideng IoT Technology Co., Ltd Add: 312, Building B,Tea Tree Industrial Zone, Xiaweiyuan New Village,Gushu Community Xixiang Street, Bao'an District, Shenzhen China WD-102 WD-104 Shenzhen Weideng IoT Technology Co., Ltd Add: 312, Building B,Tea Tree Industrial Zone, Xiaweiyuan New Village,Gushu Community Xixiang Street, Bao'an District, Shenzhen China A1-C Sincerely, Name/Title： Mary Jiang/Manager Company: Shenzhen Weideng IoT Technology Co., Ltd Address: 312, Building B,Tea Tree Industrial Zone, Xiaweiyuan New Village,Gushu Community Xixiang Street, Bao'an District, Shenzhen China Phone: 19168955231 Fax: N/A E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-6-20> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2BGR8-WD-101 WD-101 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Mary Jiang/Manager Company: Shenzhen Weideng IoT Technology Co., Ltd Address: 312, Building B,Tea Tree Industrial Zone, Xiaweiyuan New Village,Gushu Community Xixiang Street, Bao'an District, Shenzhen China Phone: 19168955231 Fax: N/A E-Mail: [email protected]

Shenzhen Weideng IoT Technology Co., Ltd 312, Building B,Tea Tree Industrial Zone, Xiaweiyuan New Village,Gushu Community Xixiang Street, Bao'an District, Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-6-20 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2BGR8-WD-101 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Mary Jiang/Manager Company: Shenzhen Weideng IoT Technology Co., Ltd Address: 312, Building B,Tea Tree Industrial Zone, Xiaweiyuan New Village,Gushu Community Xixiang Street, Bao'an District, Shenzhen China Phone: 19168955231 Fax: N/A E-Mail: [email protected]

Shenzhen Weideng IoT Technology Co., Ltd 312, Building B,Tea Tree Industrial Zone, Xiaweiyuan New Village,Gushu Community Xixiang Street, Bao'an District, Shenzhen China UNII Device Declaration Letter To whom it may concern: We have declared below featured for FCC equipment authorization, Device FCC ID: 2BGR8-WD-101 (1) DFS Device: Master Client with Radar detection capability N/A Client without radar detection capability, (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 5180-5240 Yes No Yes No Yes No Yes No 5190-5230 Yes No Yes No Yes No Yes No 5210-5210 Yes No Yes No Yes No Yes No 5745-5825 Yes No Yes No Yes No Yes No 5755-5795 Yes No Yes No Yes No Yes No 5775-5775 Yes No Yes No Yes No Yes No (3) Country code selection ability Yes No If yes, pls explain how it was implemented: (4) Meet 15.202 requirement Yes No pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes cannot be modified by end user or an installer. Apply Does not apply (If apply, pls help to provide explanation on it was implement, and how software was controlled) Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name/Title： Mary Jiang/Manager Company: Shenzhen Weideng IoT Technology Co., Ltd Address: 312, Building B,Tea Tree Industrial Zone, Xiaweiyuan New Village,Gushu Community Xixiang Street, Bao'an District, Shenzhen China Phone: 19168955231 Fax: N/A E-Mail: [email protected]

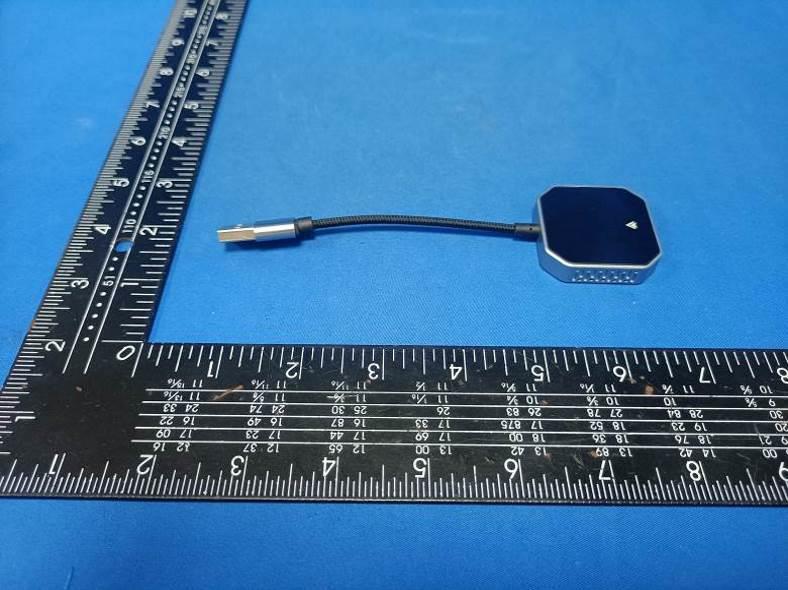

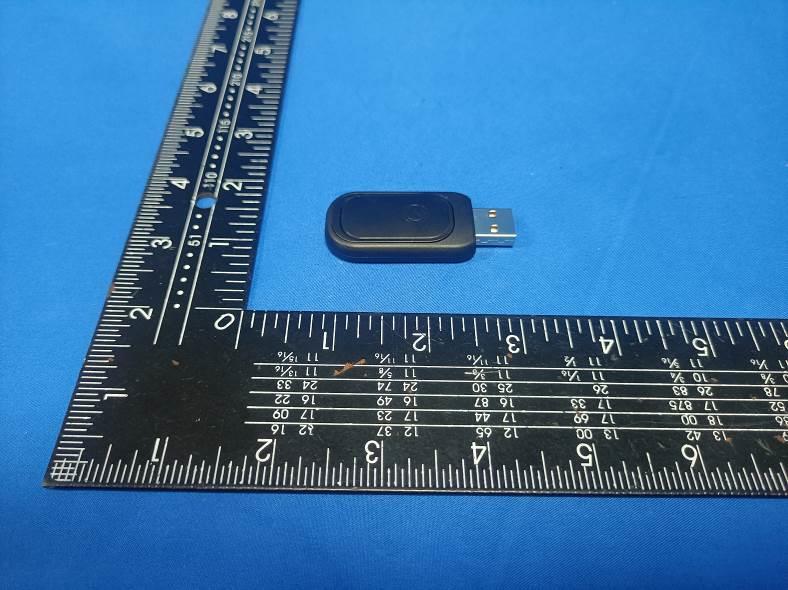

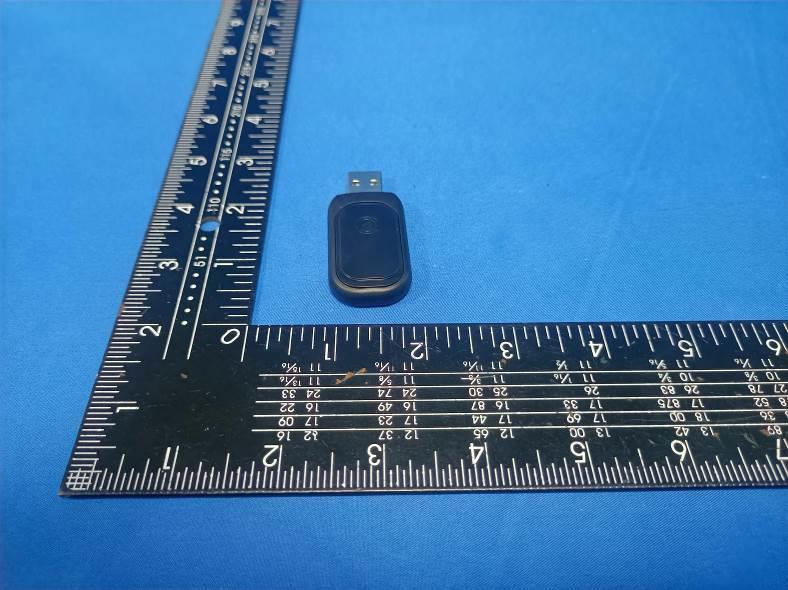

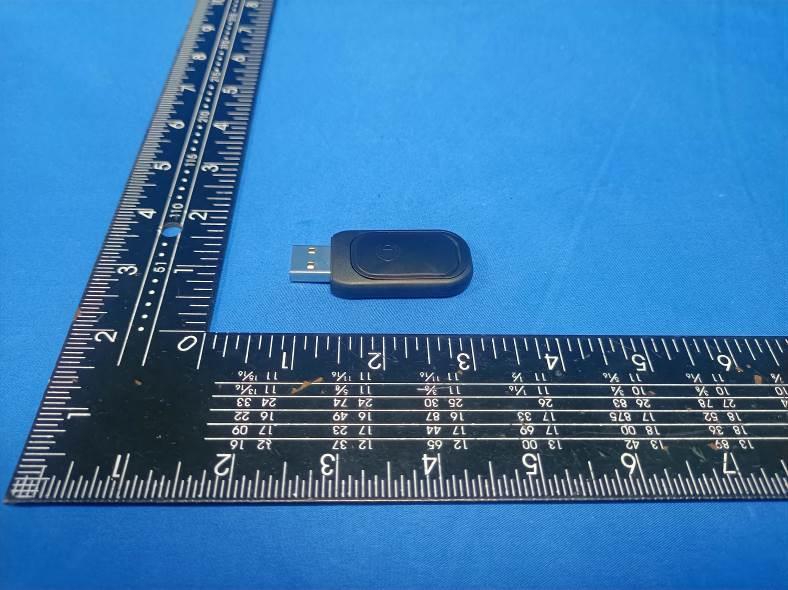

FCC ID: 2BGR8-WD-101 External Photos of the EUT WD-101 FCC ID: 2BGR8-WD-101 FCC ID: 2BGR8-WD-101 WD-102 FCC ID: 2BGR8-WD-101 FCC ID: 2BGR8-WD-101 WD-104 FCC ID: 2BGR8-WD-101 FCC ID: 2BGR8-WD-101 A1-C FCC ID: 2BGR8-WD-101 FCC ID: 2BGR8-WD-101

Label and Location Size: L: 2.0cm*W: 0.5cm Label and Location FCC ID : 2BGR8-WD-101

FCC ID: 2BGR8-WD-101 Internal Photos of the EUT WD-101 FCC ID: 2BGR8-WD-101 WD-102 5GWIFI antenna 2.4GWIFI antenna BT antenna FCC ID: 2BGR8-WD-101 FCC ID: 2BGR8-WD-101 WD-104 FCC ID: 2BGR8-WD-101 FCC ID: 2BGR8-WD-101 A1-C FCC ID: 2BGR8-WD-101

RF Exposure evaluation FCC ID: 2BGR8-WD-101 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information WD-101 can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: BT / PCB antenna 0.38dBi for 2400-2500MHz; 2.4GWIFI / PCB antenna 1.05dBi for 2400-2500MHz 5GWIFI / PCB antenna 0.88dBi for 5000-6000MHz 5. Manufacturing Tolerance Mode Max. Peak Conducted Output Power (dBm) Max. tune-up BT -1.05 -1.0±1 2.4GWIFI 15.37 15.0±1 Mode Max. Average Conducted Output Power (dBm) Max. tune-up 5.2GWIFI 15.54 15.0±1 5.8GWIFI 15.05 15.0±1 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is refer to section 4, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW BT 0.0 1.0000 0.38 1.0914 0.0002 1.0000 2.4GWIFI 16.0 39.8107 1.05 1.2735 0.0101 1.0000 5.2GWIFI 16.0 39.8107 0.88 1.2246 0.0097 1.0000 5.8GWIFI 16.0 39.8107 0.88 1.2246 0.0097 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. simultaneous MPE Result 2.4GWIFI MPE (Ratio) 5GWIFI MPE (Ratio) BT MPE (Ratio) simultaneous MPE (Ratio) MPE Limits (Ratio) 0.0101 0.0097 0.0002 0.02 1.0000 8. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

1. Antenna Description: Antenna type PCB antenna Model WD-101 Frequency range 5180-5240MHz, 5745-5825MHz Manufacturer Shenzhen Weideng IoT Technology Co., Ltd ANT Peak Gain 0.88 dBi 2. Antenna Photo: Length: 8.21mm Width: 1.46mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 5180MHz 5220MHz 5240MHz 5745MHz 5785MHz 5825MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15 SUBPART E 15.407 Report Reference No. .................... : FCC ID. ........................................... : CTA24052900903 2BGR8-WD-101 Compiled by ( position+printed name+signature) . : File administrators Jinghua Xiao Supervised by ( position+printed name+signature) . : Project Engineer Lushan Kong Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jun. 04, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ........................................... : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen Weideng IoT Technology Co., Ltd Address ............................................ : 312, Building B, Tea Tree Industrial Zone, Xiaweiyuan New Village, Gushu Community, Xixiang Street, Bao'an District, Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Part 15 Subpart E 15.407 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : carplay wireless adapter Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Weideng IoT Technology Co., Ltd Model/Type reference ...................... : WD-101 Listed Models .................................. : WD-100, WD-102, WD-103, WD-104, WD-105, WD-106, WD-107, WD-108, WD-109, WD-110, WD-111, WD-112, WD-113, WD-114, WD-115, WD-116, WD-117, WD-118, WD-119, WD-120, A1-C Modulation ....................................... : OFDM Frequency ......................................... From 5180MHz-5240MHz, 5745MHz-5825MHz Ratings ............................................. : DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA24052900903 Page 2 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : carplay wireless adapter Model /Type : WD-101 Serial Models : WD-100, WD-102, WD-103, WD-104, WD-105, WD-106, WD-107, WD- 108, WD-109, WD-110, WD-111, WD-112, WD-113, WD-114, WD-115, WD-116, WD-117, WD-118, WD-119, WD-120, A1-C Applicant : Shenzhen Weideng IoT Technology Co., Ltd Address : 312, Building B, Tea Tree Industrial Zone, Xiaweiyuan New Village, Gushu Community, Xixiang Street, Bao'an District, Shenzhen, China Manufacturer : Shenzhen Weideng IoT Technology Co., Ltd Address : 312, Building B, Tea Tree Industrial Zone, Xiaweiyuan New Village, Gushu Community, Xixiang Street, Bao'an District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24052900903 Page 3 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S .................................................................. 4 2 S U M M A R Y ............................................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T ............................................................... 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Test Description 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ............................................ 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emissions 14 4.3 Maximum Conducted Average Output Power 21 4.4 Power Spectral Density 24 4.5 Emission Bandwidth (26dB Bandwidth) 34 4.6 Minimum Emission Bandwidth (6dB Bandwidth) 39 4.7 Frequency Stability 44 5 T E S T S E T U P P H O T O S O F T H E E U T .......................................... 46 6 P H O T O S OF T H E E U T ............................................................. 47 Report No.: CTA24052900903 Page 4 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15 Subpart E—Unlicensed National Information Infrastr…

Text truncated - open the document above for the full version.

Report No.: CTA24052900903 Page 35 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11a 802.11n(HT20) CH36 CH36 CH40 CH40 CH48 CH48 Report No.: CTA24052900903 Page 36 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n(HT40) 802.11ac(HT20) CH38 CH36 CH46 CH40 CH48 Report No.: CTA24052900903 Page 37 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11ac(HT40) CH38 CH46 Report No.: CTA24052900903 Page 38 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11ax(HT20) 802.11ax(HT40) CH36 CH38 CH44 CH46 CH48 Report No.: CTA24052900903 Page 39 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.6 Minimum Emission Bandwidth (6dB Bandwidth) Limit Within the 5.725-5.85 GHz band, the minimum 6 dB bandwidth of U-NII devices shall be at least 500 kHz. Test Procedure 1. Set resolution bandwidth (RBW) = 100 kHz 2. Set the video bandwidth 3 x RBW. 3. Detector = Peak. 4. Trace mode = Max hold. 5. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 6 dB relative to the maximum level measured in the fundamental emission. Test Configuration EUT SPECTRUM ANALYZER Test Results Type Bands Channel 6dB Bandwidth (MHz) Limit (KHz) Result 802.11a U-NII 3 149 13.800 ≥500KHz Pass 157 15.000 165 14.200 802.11n(HT20) U-NII 3 149 15.080 157 13.800 165 15.000 802.11n(HT40) U-NII 3 151 33.920 159 35.120 802.11ac(HT20) U-NII 3 149 15.040 157 15.120 165 15.560 802.11ac(HT40) U-NII 3 151 35.040 159 34.960 802.11ax(HT20) U-NII 3 149 15.320 157 14.680 165 14.200 802.11ax(HT40) U-NII 3 151 35.040 159 35.040 Test plot as follows: Report No.: CTA24052900903 Page 40 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11a 802.11n(HT20) CH149 CH149 CH157 CH157 CH165 CH165 Report No.: CTA24052900903 Page 41 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n(HT40) 802.11ac(HT20) CH151 CH149 CH159 CH157 CH165 Report No.: CTA24052900903 Page 42 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11ac(HT40) 802.11ax(HT20) CH151 CH149 CH159 CH157 CH156 Report No.: CTA24052900903 Page 43 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11ax(HT40) CH151 CH159 Report No.: CTA24052900903 Page 44 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.7 Frequency Stability LIMIT Manufacturers of U-NII devices are responsible for ensuring frequency stability such that an emission is maintained within the band of operation under all conditions of normal operation as specified in the users manual. TEST CONFIGURATION TEST PROCEDURE Frequency Stability under Temperature Variations: The equipment under test was connected to an external AC or DC power supply and input rated voltage. RF output was connected to a frequency counter or spectrum analyzer via feed through attenuators. The EUT was placed inside the temperature chamber. Set the spectrum analyzer RBW low enough to obtain the desired frequency resolution and measure EUT 20°C operating frequency as reference frequency. Turn EUT off and set the chamber temperature to -30°C. After the temperature stabilized for approximately 30 minutes recorded the frequency. Repeat step measure with 10°C increased per stage until the highest temperature of +50°C reached. Frequency Stability under Voltage Variations: Set chamber temperature to 20°C. Use a variable AC power supply / DC power source to power the EUT and set the voltage to rated voltage. Set the spectrum analyzer RBW low enough to obtain the desired frequency resolution and recorded the frequency. Reduce the input voltage to specify extreme voltage variation (±15%) and endpoint, record the maximum frequency change. TEST RESULTS Record worst case as below: Report No.: CTA24052900903 Page 45 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Reference Frequency: 802.11ac channel=36 frequency=5180MHz Voltage ( V ) Temperature (°C) Frequency error Limit (ppm) Result Hz ppm AC 120 -30 110.98 0.021425 Within th…

Text truncated - open the document above for the full version.

FCC ID: 2BGR8-WD-101 Test Setup Photos of the EUT FCC ID: 2BGR8-WD-101
