2BGSV-F21YAOKONG

Shanghai YaoKong Electronic Technology Co. Remote Control Manual Matching handle method: Step 1: Prepare a small card with the same SN and channel number as the receiver or take the small card out of the receiver. Step 2: Turn off the handle, open the battery cover, take out the battery, plug in the channel number small card with the same as the receiver in the correct direction, install the battery, after powering on the handle indicator flash several times quickly, finish reading the card, and install the battery cover. Step 3: Power on the receiver, press the handle on button to test whether the pairing is completed or not, the normal remote control proves that the pairing is completed. Pairing method of receiver: Step 1: Get the small card with the same SN and channel number as the handle, or remove the handle small card. Step 2: Power off the receiver, open the face cover, insert the small card with the same channel number as the handle in the correct direction, and install the face cover. Power on the receiver, the indicator light flashes quickly for a few times, and the card reading is complete. Step 3: Press the power button on the handle to test whether the pairing is complete, and the normal remote control can prove that the pairing is complete. Shanghai Yaokong Electronics Inst ruction Manual IMPORTANT NOTE The battery can be used for 1 year under normal circumstances, please do not open the screw of the housing at will to avoid affecting the sealing performance! Remote Control User's Manual Remote Control User’s Manual Shanghai YaoKong Electronic Technology Co. Quality assurance Yaokong Electronics guarantee that this product is in full compliance with its published specifications when leaving the factory, as long as the proper installation, can be used normally, but YaoKong Electronics does not guarantee that the operation of this product is without interruption or zero error. Warranty period time This product has a one-year warranty period from the date of delivery, to ensure that customers will not have any product problems within a year, if within the warranty period, as long as the product quality is proved to be defective, Yaokong Electronics is willing to repair. Any product that needs to be maintained must be sent to the service office designated by Yaokong Electronics. The customer must bear the one-way freight of the product to the service office, and the service office of Yaokong Electronics will bear the return cost and return the product during the warranty period. Not included item * The above warranties have no other warranty, expressed or implied. ** The repair provided by the warranty is the only compensation for the customer, and Yaokong Electronics is not responsible for any direct, indirect, special, accidental or causal liability. General precautions ⚫ The installation position of the receiver should be selected to avoid contact sparks, such as away from the motor, relays, cables, avoid close to high-voltage wiring or facilities, and also need to consider that it will not conflict with the prominent part of the building. ⚫ When installing the receiver, it must be locked to avoid loosening and dropping the receiver. ⚫ The power distribution and remote control function setting of the crane should be really understood (including relay output) to avoid incorrect wiring. ⚫ The receiver can not be installed in the electric control box. The correct installation method is to fix the receiver on the top (or outside) of the electric control box at an appropriate position, and then the receiver output cable is inserted into the electric control box for appropriate wiring. ⚫ This series of remote control has 4 billion sets of security code and 400 registration code channels, the factory security code Settings are not the same, in the installation must confirm whether there is the same registration code of the remote control in the same working area, in order to avoid mutual influence and wrong action. Handling of Emergency Situation When an emergency occurs, please follow the following steps and notify the dealer immediately ⚫ Press the transmitter emergency stop button (or emergency stop button) ⚫ turn off the main power supply to the crane. ⚫ Notify the dealer to find out the cause. wiring diagram ◼ This machine should not be disassembled by personnel without professional training, otherwise it may be damaged and cause casualties. ◼ This manual is for the reference of the user. For detailed technical questions, please consult the agent. ◼ This machine has been strictly tested before leaving the factory, but it should not be used if it is dangerous and may cause loss. ◼ After use, the main power supply of the vehicle should be turned off and the power supply of the receiver should be cut off. ◼ The transmitter should be placed in a safe place, and personnel should not press it randomly to avoid accidents. ◼ The crane should have a main power relay, limit switch, and other safety facilities. ◼ The crane should be stopped in case of lightning strike or interference. ◼ Ensure that the transmitter battery is sufficient and the receiver power supply is normal. ◼ The main power supply to the crane and the power in the receiver should be turned off during installation or maintenance to avoid electric shock. ◼ If necessary, the manufacturer will make appropriate changes to this machine. Therefore, the contents may be modified from time to time without prior notice, in accordance with the new machine. Operator's Precautions ◼ Users must receive complete training from Shanghai Yaokong Electronics to be familiar with the operation. ◼ The operator must be in good health, good spirit, and can identify and judge the safety of the operation, and have the operation qualification. ◼ Shanghai Yaokong solid transmitter, can resist considerable impact and weather resistance, but excessive or deliberate collision, extrusion, may still be damaged. ◼ The operator should pay attention to t…

Text truncated - open the document above for the full version.

Shanghai Yaokong Electronic Technology Co., LTD No. 629 Changzhong Road,Fengxian District Shanghai China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-6-21 To whom it may concern: We, Shanghai Yaokong Electronic Technology Co., LTD, hereby certify that the equipment for which authorization is sought (FCC ID: 2BGSV-F21) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Haoliang Zhou Manager Shanghai Yaokong Electronic Technology Co., LTD 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

Shanghai Yaokong Electronic Technology Co., LTD Add: No. 629 Changzhong Road,Fengxian District Shanghai China Date: 2024-6-21 FCC ID: 2BGSV-F21 Dear Sir/Madam, We, Shanghai Yaokong Electronic Technology Co., LTD Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: YAOKONG Model no.: F21-2S+, F21-4S+, F21-2D+, F21-4D+, F21-E1B+, F23-a+,F24-16S+, F24-12S+, FORMTEXT Sincerely, Name/Title： Haoliang Zhou/Manager Company: Shanghai Yaokong Electronic Technology Co., LTD Address: No. 629 Changzhong Road,Fengxian District Shanghai China Phone: 13603034005 Fax: N/A E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-6-21> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2BGSV-F21 F21-2S+ For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Haoliang Zhou/Manager Company: Shanghai Yaokong Electronic Technology Co., LTD Address: No. 629 Changzhong Road,Fengxian District Shanghai China Phone: 13603034005 Fax: N/A E-Mail: [email protected]

Shanghai Yaokong Electronic Technology Co., LTD No. 629 Changzhong Road,Fengxian District Shanghai China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-6-21 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2BGSV-F21 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Haoliang Zhou/Manager Company: Shanghai Yaokong Electronic Technology Co., LTD Address: No. 629 Changzhong Road,Fengxian District Shanghai China Phone: 13603034005 Fax: N/A E-Mail: [email protected]

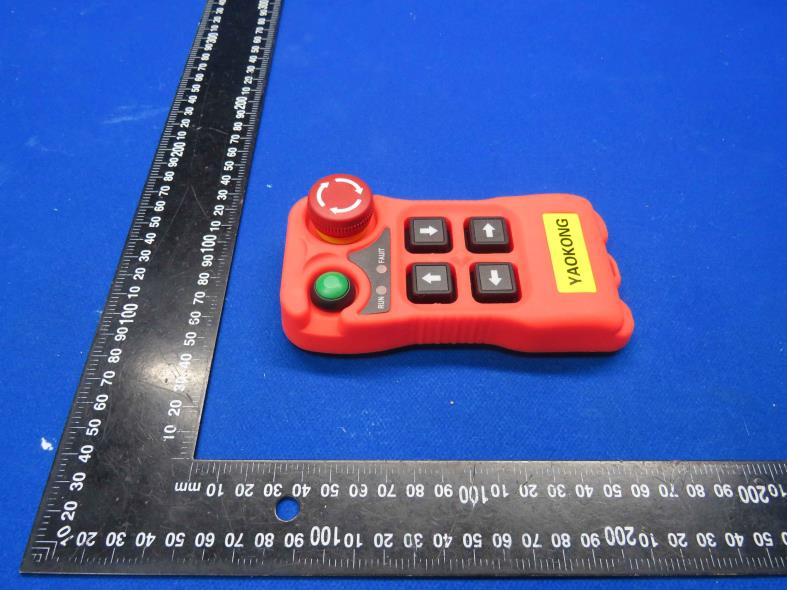

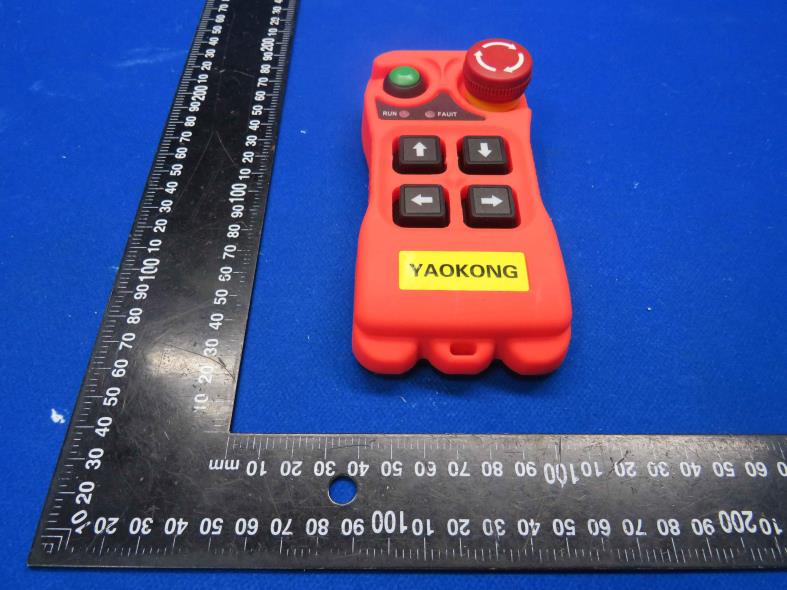

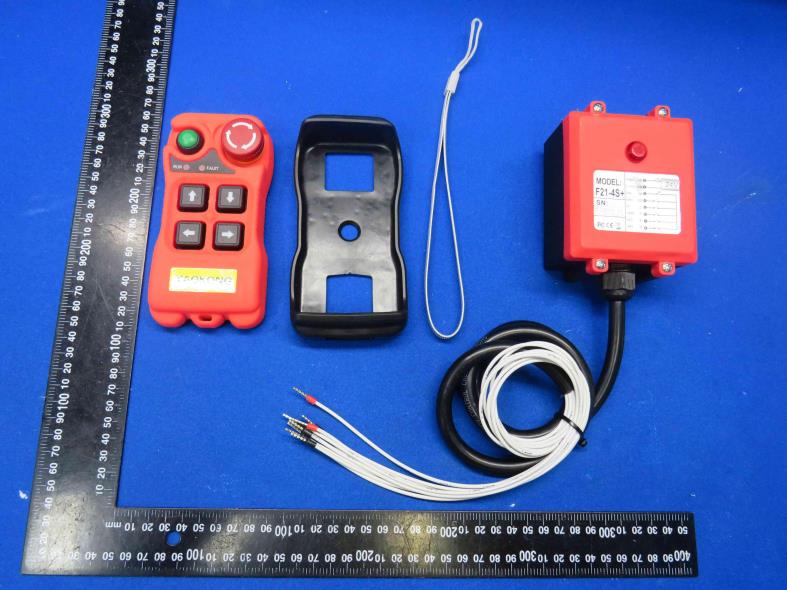

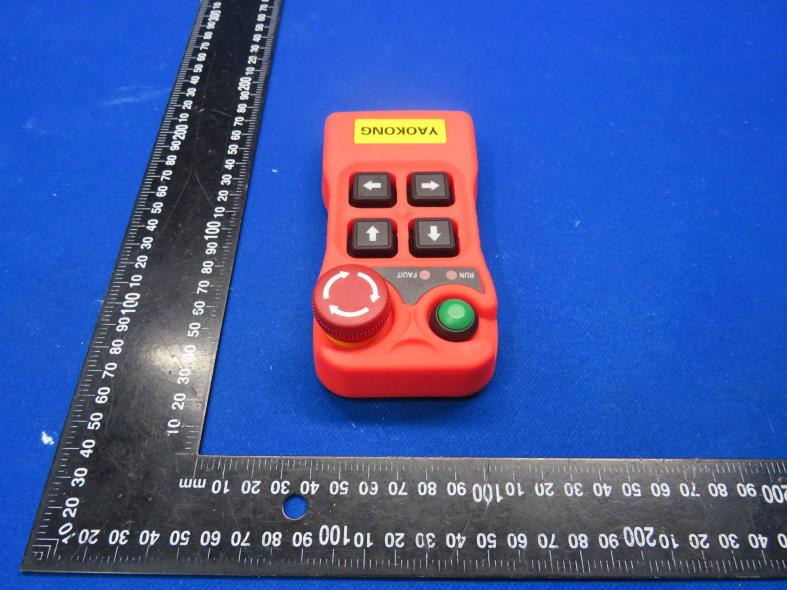

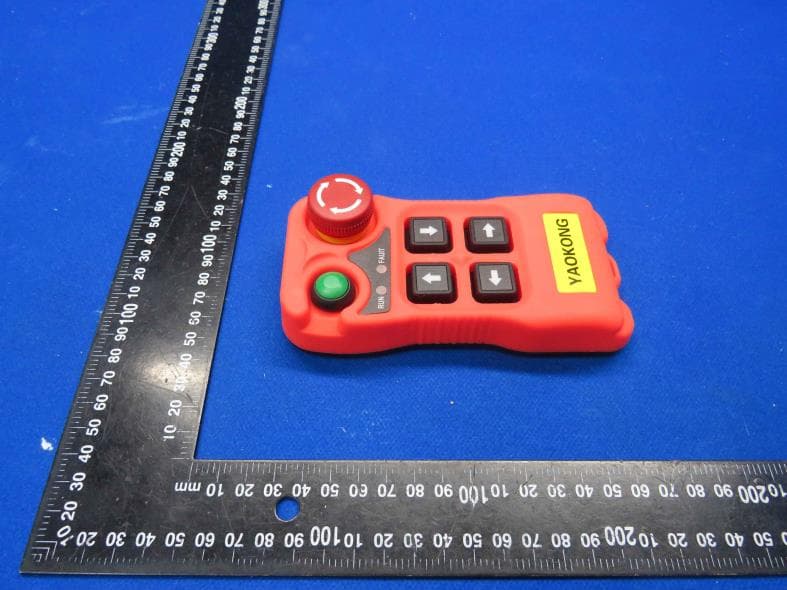

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202405556 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 4 Product Name: YAOKONG Model No.: F21-2S+ EUT Constructional Details External Photo Report No.: HTT202405556 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 4 Report No.: HTT202405556 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 4 Report No.: HTT202405556 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 4 of 4 ------End------

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location FCC ID : 2BGSV-F21

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202405556 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 2 Product Name: YAOKONG Model No.: F21-2S+ EUT Constructional Details Internal Photo Report No.: HTT202405556 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 2 ------End------

RF Exposure evaluation FCC ID: 2BGSV-F21 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance Freq. (MHz) Field strength(max)(dBuV/m) EIRP (max) (dBm) Turn-up Power (dB) Max tune up power (dBm) [P] 496.308MHz 89.25 -6.01 -6.0±1 -5.0 Note: EIRP=E-104.8+20logD, D=3 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW SRD 0.433 5 -5.0 0.3162 0.0416<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

Antenna gain: 2.00 dBi

Shenzhen HTT Technology Co., Ltd. FCC PART 15 SUBPART C TEST REPORT FCC PART 15.231 Report Reference No. ..................... : FCC ID. ........................................... : HTT202405556F01 2BGSV-F21 Compiled by ( position+printed name+signature) .. : File administrators Supervised by ( position+printed name+signature) .. : Project Engineer Approved by ( position+printed name+signature) .. : RF Manager Date of issue ..................................... : Jun. 21, 2024 Testing Laboratory Name .............: Shenzhen HTT Technology Co.,Ltd. Address ............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ............................ : Shanghai Yaokong Electronic Technology Co.,LTD Address ............................................ : No. 629 Changzhong Road,Fengxian District,Shanghai Test specification ...........................: Standard ........................................... : FCC Part 15.231 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : YAOKONG Trade Mark ....................................... : 尧控 Manufacturer .................................... : Shanghai Yaokong Electronic Technology Co.,LTD Model/Type reference....................... : F21-2S+ Listed Models .................................. : F21-4S+, F21-2D+, F21-4D+, F21-E1B+, F23-a+, F24-16S+, F24-12S+, FORMTEXT Ratings ............................................. : DC 3.0V From Battery Modulation ....................................... : ASK Frequency .......................................... 496.308MHz Result................................................ : PASS Report No.: HTT202405556F01 Page 2 of 17 T E S T R E P O R T Equipment under Test : YAOKONG Model /Type : F21-2S+ Listed Models : F21-4S+, F21-2D+, F21-4D+, F21-E1B+, F23-a+, F24-16S+, F24-12S+, FORMTEXT Model Declaration : PCB board, structure and internal of these model(s) are the same, So no additional models were tested. Applicant : Shanghai Yaokong Electronic Technology Co.,LTD Address : No. 629 Changzhong Road,Fengxian District,Shanghai Manufacturer : Shanghai Yaokong Electronic Technology Co.,LTD Address : No. 629 Changzhong Road,Fengxian District,Shanghai Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT202405556F01 Page 3 of 17 Contents 1 T E S T S T A N D A R D S .................................................................. 4 2 S U M M A R Y ............................................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 Block Diagram of Test Setup 5 2.6 Special Accessories 5 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T ............................................................... 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ............................................ 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emission 11 4.3 20dB Bandwidth 14 4.4 Deactivation Time 15 4.5 Antenna Requirement 16 5 T E S T S E T U P P H O T O S O F T H E E U T .......................................... 17 6 P H O T O S O F T H E E U T ............................................................. 17 Report No.: HTT202405556F01 Page 4 of 17 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.231:Periodic operation in the band 40.66-40.70 MHz and above 70 MHz. ANSI C63.10:2013 : American National Standard for Testing Unlicensed Wireless Devices Report No.: HTT202405556F01 Page 5 of 17 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : May. 24, 2024 Testing commenced on : May. 24, 2024 Testing concluded on : Jun. 21, 2024 2.2 Product Description Product Name: YAOKONG Model/Type reference: F21-2S+ Testing sample ID： HTT202405556-1# (Engineer sample), HTT202405556-2#(Normal sample) Power supply: DC 3.0V From Battery Modulation: ASK Operation frequency: 496.308MHz Channel number: 1 Antenna type: Internal antenna Antenna gain: 2.00 dBi 2.3 Equipment Under Test Power supply system utilised Power supply voltage : ○ 230V / 50 Hz ○ 120V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC 3.0V From Battery 2.4 Short description of the Equipment under Test (EUT) This is a YAOKONG. For more details, refer to the user’s manual of the EUT. 2.5 Block Diagram of Test Setup 2.6 Special Accessories Follow auxiliary equipment(s) test with EUT that provided by the manufacturer or laboratory is listed as follow: Description Manufacturer Model Technical Parameters Certificate Provided by / / / / / / / / / / / / EUT Report No.: HTT202405556F01 Page 6 of 17 2.7 Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for the device filing to comply with Section 15.231 of the FCC Part 15, Subpart C Rules. 2.8 Modifications No modifications were implemented to meet testing criteria. Report No.: HTT202405556F01 Page 7 of 17 3 T E S T E N V I R O N M E N T 3.1 Address of the test laboratory Shenzhen HTT Technology Co.,L…

Text truncated - open the document above for the full version.

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202405556 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 1 Product Name: YAOKONG Model No.: F21-2S+ Test Setup Photo Radiated Emission ------End------
