2BGTK-BH21024BLUETOOTH HEADPHONE

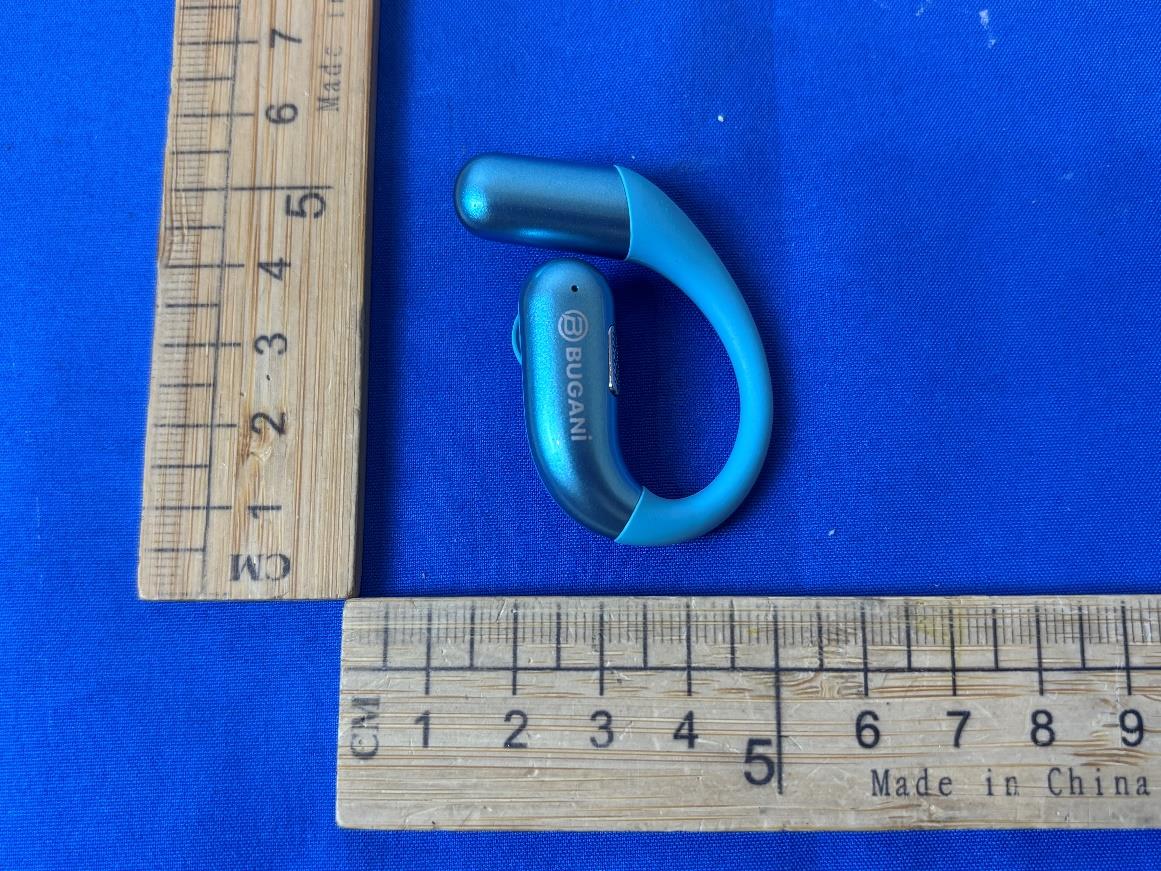

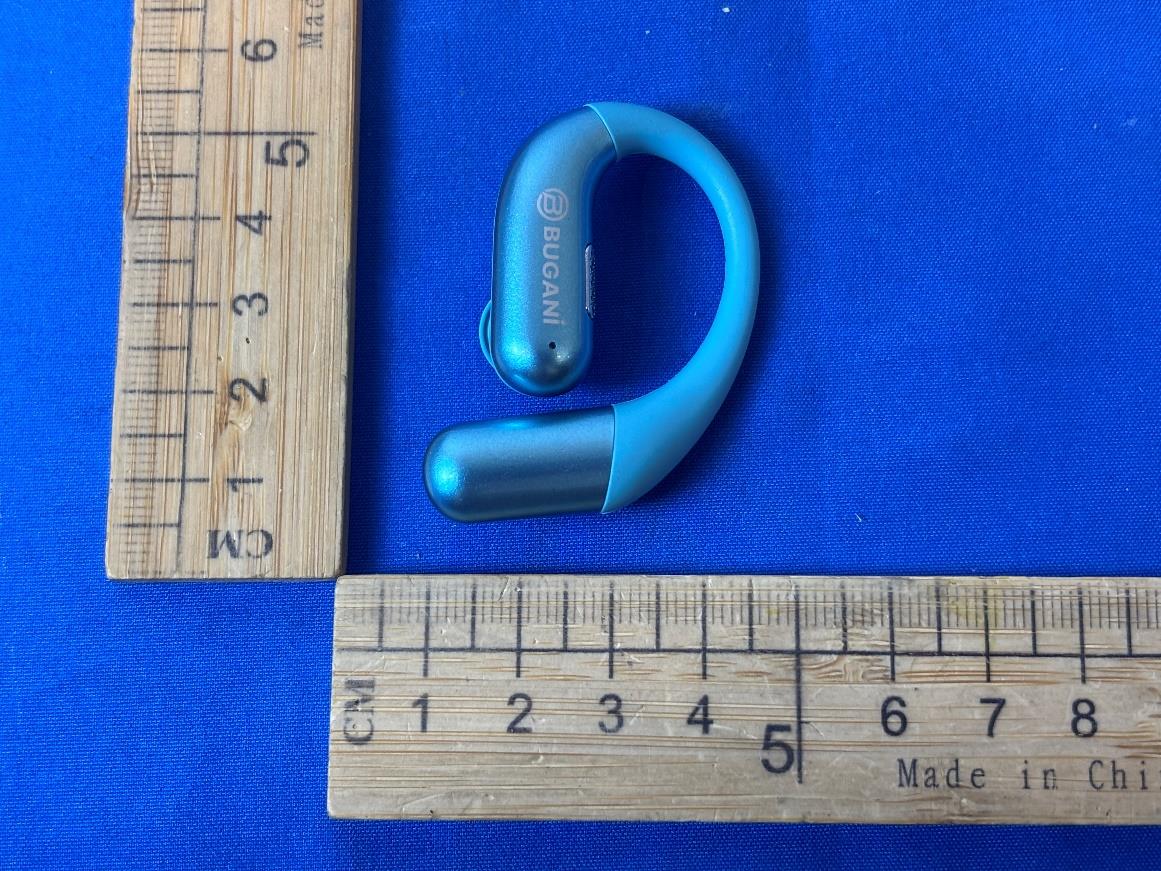

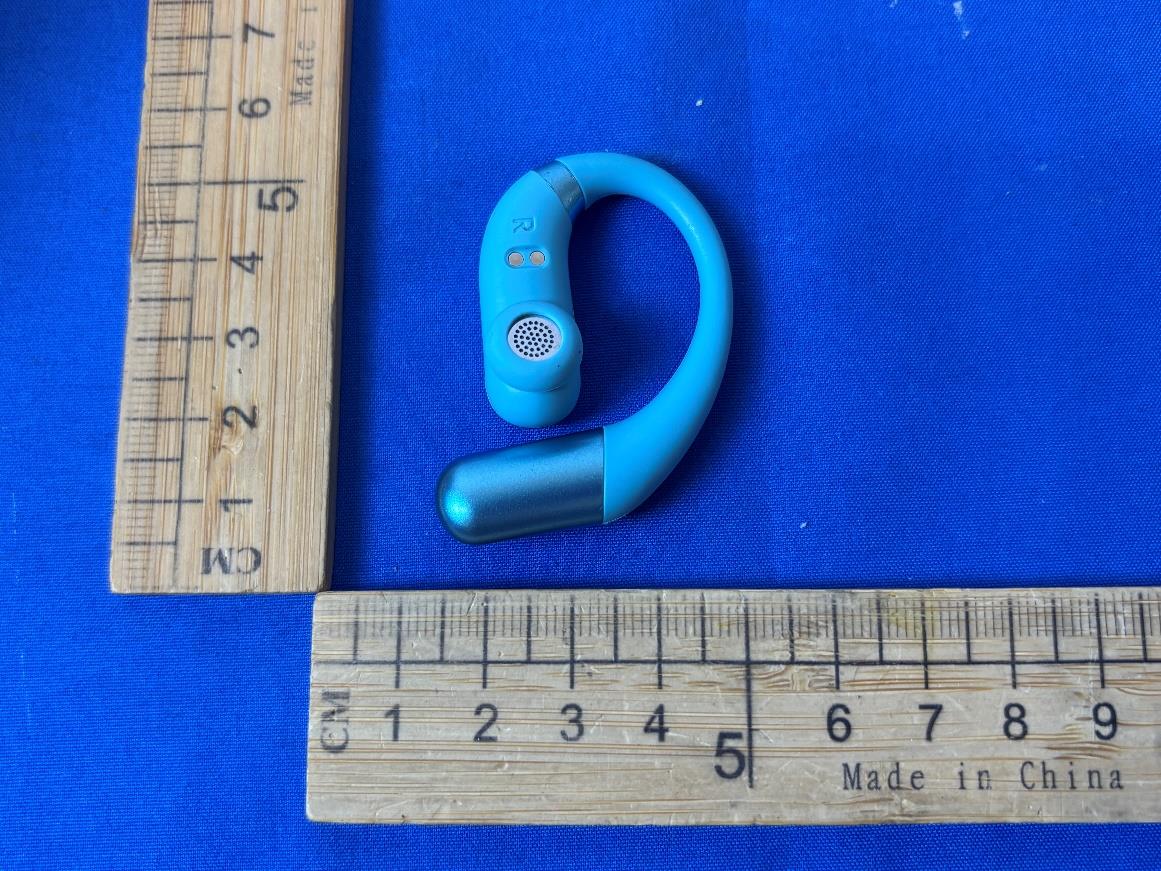

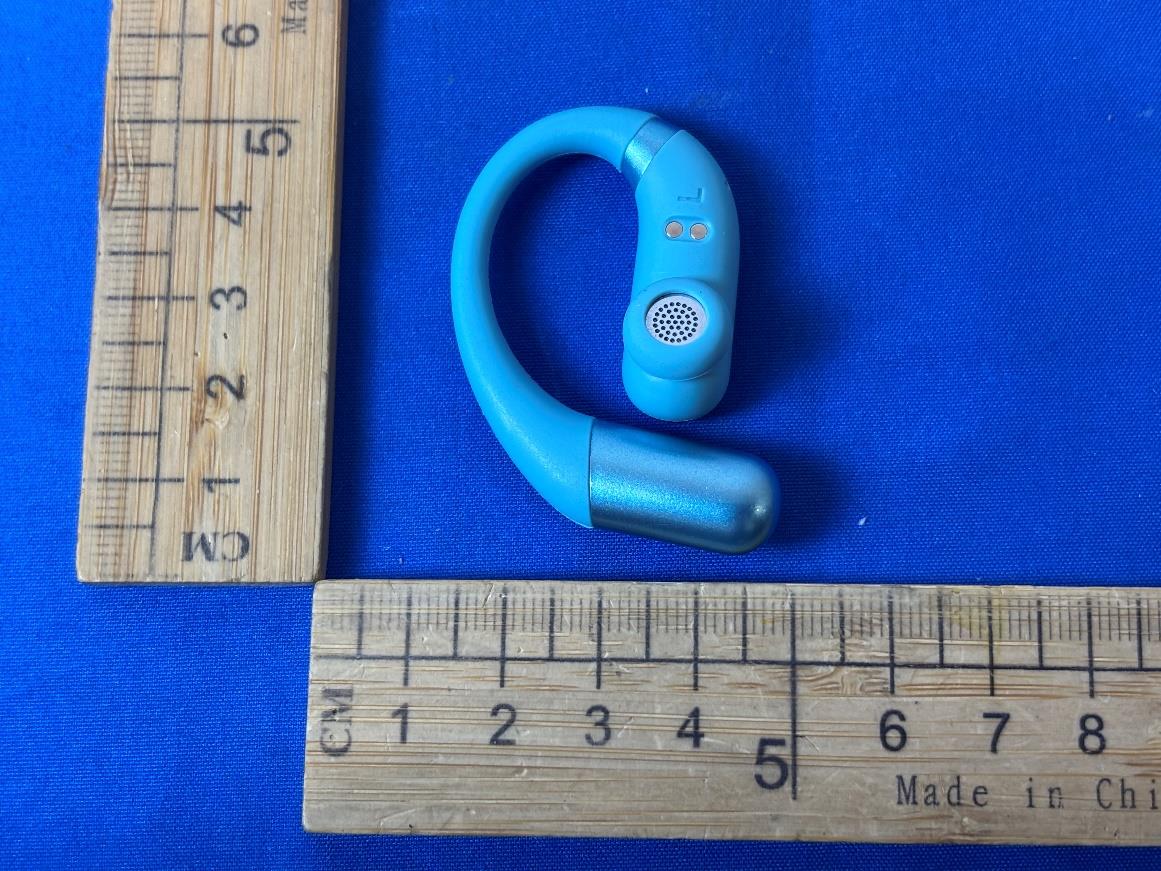

Internal Photographs L: Internal View of EUT-1 Internal View of EUT-2 Page 2 of 6 Internal View of EUT-3 Internal View of EUT-4 Page 3 of 6 Internal View of EUT-5 Internal View of EUT-6 Antenna Page 4 of 6 R: Internal View of EUT-7 Internal View of EUT-8 Page 5 of 6 Internal View of EUT-9 Internal View of EUT-10 Antenna Page 6 of 6 Internal View of EUT-11

Setup Photographs AC Power Line Conducted Emission Page 2 of 6 RF Conducted L: R: Page 3 of 6 Radiated Spurious Emission R: Page 4 of 6 Page 5 of 6 L: Page 6 of 6

REPORT NO.: E04A25120637F00601 Page 151 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Dwell NVNT 2-DH5 2441MHz Ant1 One Burst Dwell NVNT 2-DH5 2441MHz Ant1 Accumulated REPORT NO.: E04A25120637F00601 Page 152 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Dwell NVNT 2-DH5 2480MHz Ant1 One Burst Dwell NVNT 2-DH5 2480MHz Ant1 Accumulated REPORT NO.: E04A25120637F00601 Page 153 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Dwell NVNT 3-DH5 2402MHz Ant1 One Burst Dwell NVNT 3-DH5 2402MHz Ant1 Accumulated REPORT NO.: E04A25120637F00601 Page 154 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Dwell NVNT 3-DH5 2441MHz Ant1 One Burst Dwell NVNT 3-DH5 2441MHz Ant1 Accumulated REPORT NO.: E04A25120637F00601 Page 155 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Dwell NVNT 3-DH5 2480MHz Ant1 One Burst Dwell NVNT 3-DH5 2480MHz Ant1 Accumulated REPORT NO.: E04A25120637F00601 Page 156 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge Condition Mode Frequency (MHz) Antenna Hopping Mode Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant1 No-Hopping -52.3 -20 Pass NVNT 1-DH5 2480 Ant1 No-Hopping -52 -20 Pass NVNT 2-DH5 2402 Ant1 No-Hopping -49.57 -20 Pass NVNT 2-DH5 2480 Ant1 No-Hopping -51.56 -20 Pass NVNT 3-DH5 2402 Ant1 No-Hopping -51.84 -20 Pass NVNT 3-DH5 2480 Ant1 No-Hopping -52.67 -20 Pass REPORT NO.: E04A25120637F00601 Page 157 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Test Graphs Band Edge NVNT 1-DH5 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 1-DH5 2402MHz Ant1 No-Hopping Emission REPORT NO.: E04A25120637F00601 Page 158 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge NVNT 1-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 1-DH5 2480MHz Ant1 No-Hopping Emission REPORT NO.: E04A25120637F00601 Page 159 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge NVNT 2-DH5 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 2-DH5 2402MHz Ant1 No-Hopping Emission REPORT NO.: E04A25120637F00601 Page 160 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge NVNT 2-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 2-DH5 2480MHz Ant1 No-Hopping Emission REPORT NO.: E04A25120637F00601 Page 161 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge NVNT 3-DH5 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 3-DH5 2402MHz Ant1 No-Hopping Emission REPORT NO.: E04A25120637F00601 Page 162 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge NVNT 3-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 3-DH5 2480MHz Ant1 No-Hopping Emission REPORT NO.: E04A25120637F00601 Page 163 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge (Hopping) Condition Mode Frequency (MHz) Antenna Hopping Mode Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant1 Hopping -51.39 -20 Pass NVNT 1-DH5 2480 Ant1 Hopping -51.78 -20 Pass NVNT 2-DH5 2402 Ant1 Hopping -50.33 -20 Pass NVNT 2-DH5 2480 Ant1 Hopping -49.33 -20 Pass NVNT 3-DH5 2402 Ant1 Hopping -51.36 -20 Pass NVNT 3-DH5 2480 Ant1 Hopping -51.31 -20 Pass REPORT NO.: E04A25120637F00601 Page 164 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Test Graphs Band Edge(Hopping) NVNT 1-DH5 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 1-DH5 2402MHz Ant1 Hopping Emission REPORT NO.: E04A25120637F00601 Page 165 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge(Hopping) NVNT 1-DH5 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 1-DH5 2480MHz Ant1 Hopping Emission REPORT NO.: E04A25120637F00601 Page 166 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge(Hopping) NVNT 2-DH5 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 2-DH5 2402MHz Ant1 Hopping Emission REPORT NO.: E04A25120637F00601 Page 167 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge(Hopping) NVNT 2-DH5 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 2-DH5 2480MHz Ant1 Hopping Emission REPORT NO.: E04A25120637F00601 Page 168 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge(Hopping) NVNT 3-DH5 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 3-DH5 2402MHz Ant1 Hopping Emission REPORT NO.: E04A25120637F00601 Page 169 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge(Hopping) NVNT 3-DH5 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 3-DH5 2480MHz Ant1 Hopping Emission REPORT NO.: E04A25120637F00601 Page 170 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant1 -34.01 -20 Pass NVNT 1-DH5 2441 Ant1 -34.75 -20 Pass NVNT 1-DH5 2480 Ant1 -33.66 -20 Pass NVNT 2-DH5 2402 Ant1 -36.93 -20 Pass NVNT 2-DH5 2441 Ant1 -38.32 -20 Pass NVNT 2-DH5 2480 Ant1 -35.88 -20 Pass NVNT 3-DH5 2402 Ant1 -38.85 -20 Pass NVNT 3-DH5 2441 Ant1 -39.82 -20 Pass NVNT 3-DH5 2480 Ant1 -37.11 -20 Pass REPORT NO.: E04A25120637F00601 Page 171 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Test Graphs Tx. Spurious NVNT 1-DH5 2402MHz Ant1 Ref Tx. Spurious NVNT 1-DH5 2402MHz Ant1 Emission REPORT NO.: E04A25120637F00601 Page 172 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Tx. Spurious NVNT 1-DH5 2441MHz Ant1 Ref Tx. Spurious NVNT 1-DH5 2441MHz Ant1 Emission REPORT NO.: E04A25120637F00601 Page 173 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Tx. Spurious NVNT 1-DH5 2480MHz Ant1 Ref Tx. Spurious NVNT 1-DH5 2480MHz Ant1 Emission REPORT NO.: E04A25120637F00601 Page 174 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Tx. Spurious NVNT 2-DH5 2402MHz Ant1 Ref Tx. Spurious NVNT 2-DH5 2402MHz Ant1 Emission REPORT NO.: E04A25120637F00601 Page 175 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Tx. Spurious NVNT 2-DH5 2441MHz Ant1 Ref Tx. Spurious NVNT 2-DH5 2441MHz Ant1 Emission REPORT NO.: E04A25120637F00601 Page 176 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Tx. Spurious NVNT 2-DH5 2480MHz Ant1 R…

Text truncated - open the document above for the full version.

REPORT NO.: E04A25120637F00601 Page 101 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge NVNT 3-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 3-DH5 2480MHz Ant1 No-Hopping Emission REPORT NO.: E04A25120637F00601 Page 102 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge (Hopping) Condition Mode Frequency (MHz) Antenna Hopping Mode Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant1 Hopping -51.14 -20 Pass NVNT 1-DH5 2480 Ant1 Hopping -52.35 -20 Pass NVNT 2-DH5 2402 Ant1 Hopping -50.66 -20 Pass NVNT 2-DH5 2480 Ant1 Hopping -52.35 -20 Pass NVNT 3-DH5 2402 Ant1 Hopping -49.87 -20 Pass NVNT 3-DH5 2480 Ant1 Hopping -52.54 -20 Pass REPORT NO.: E04A25120637F00601 Page 103 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Test Graphs Band Edge(Hopping) NVNT 1-DH5 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 1-DH5 2402MHz Ant1 Hopping Emission REPORT NO.: E04A25120637F00601 Page 104 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge(Hopping) NVNT 1-DH5 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 1-DH5 2480MHz Ant1 Hopping Emission REPORT NO.: E04A25120637F00601 Page 105 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge(Hopping) NVNT 2-DH5 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 2-DH5 2402MHz Ant1 Hopping Emission REPORT NO.: E04A25120637F00601 Page 106 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge(Hopping) NVNT 2-DH5 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 2-DH5 2480MHz Ant1 Hopping Emission REPORT NO.: E04A25120637F00601 Page 107 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge(Hopping) NVNT 3-DH5 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 3-DH5 2402MHz Ant1 Hopping Emission REPORT NO.: E04A25120637F00601 Page 108 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge(Hopping) NVNT 3-DH5 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 3-DH5 2480MHz Ant1 Hopping Emission REPORT NO.: E04A25120637F00601 Page 109 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant1 -32.5 -20 Pass NVNT 1-DH5 2441 Ant1 -31.48 -20 Pass NVNT 1-DH5 2480 Ant1 -33.43 -20 Pass NVNT 2-DH5 2402 Ant1 -35.31 -20 Pass NVNT 2-DH5 2441 Ant1 -37.95 -20 Pass NVNT 2-DH5 2480 Ant1 -34.83 -20 Pass NVNT 3-DH5 2402 Ant1 -39.08 -20 Pass NVNT 3-DH5 2441 Ant1 -36.24 -20 Pass NVNT 3-DH5 2480 Ant1 -38.85 -20 Pass REPORT NO.: E04A25120637F00601 Page 110 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Test Graphs Tx. Spurious NVNT 1-DH5 2402MHz Ant1 Ref Tx. Spurious NVNT 1-DH5 2402MHz Ant1 Emission REPORT NO.: E04A25120637F00601 Page 111 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Tx. Spurious NVNT 1-DH5 2441MHz Ant1 Ref Tx. Spurious NVNT 1-DH5 2441MHz Ant1 Emission REPORT NO.: E04A25120637F00601 Page 112 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Tx. Spurious NVNT 1-DH5 2480MHz Ant1 Ref Tx. Spurious NVNT 1-DH5 2480MHz Ant1 Emission REPORT NO.: E04A25120637F00601 Page 113 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Tx. Spurious NVNT 2-DH5 2402MHz Ant1 Ref Tx. Spurious NVNT 2-DH5 2402MHz Ant1 Emission REPORT NO.: E04A25120637F00601 Page 114 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Tx. Spurious NVNT 2-DH5 2441MHz Ant1 Ref Tx. Spurious NVNT 2-DH5 2441MHz Ant1 Emission REPORT NO.: E04A25120637F00601 Page 115 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Tx. Spurious NVNT 2-DH5 2480MHz Ant1 Ref Tx. Spurious NVNT 2-DH5 2480MHz Ant1 Emission REPORT NO.: E04A25120637F00601 Page 116 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Tx. Spurious NVNT 3-DH5 2402MHz Ant1 Ref Tx. Spurious NVNT 3-DH5 2402MHz Ant1 Emission REPORT NO.: E04A25120637F00601 Page 117 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Tx. Spurious NVNT 3-DH5 2441MHz Ant1 Ref Tx. Spurious NVNT 3-DH5 2441MHz Ant1 Emission REPORT NO.: E04A25120637F00601 Page 118 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Tx. Spurious NVNT 3-DH5 2480MHz Ant1 Ref Tx. Spurious NVNT 3-DH5 2480MHz Ant1 Emission REPORT NO.: E04A25120637F00601 Page 119 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. L: Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT 1-DH5 2402 Ant1 -2.49 21 Pass NVNT 1-DH5 2441 Ant1 -2.66 21 Pass NVNT 1-DH5 2480 Ant1 -2.25 21 Pass NVNT 2-DH5 2402 Ant1 -1.81 21 Pass NVNT 2-DH5 2441 Ant1 -1.94 21 Pass NVNT 2-DH5 2480 Ant1 -1.6 21 Pass NVNT 3-DH5 2402 Ant1 -1.33 21 Pass NVNT 3-DH5 2441 Ant1 -1.44 21 Pass NVNT 3-DH5 2480 Ant1 -1.07 21 Pass REPORT NO.: E04A25120637F00601 Page 120 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Test Graphs Power NVNT 1-DH5 2402MHz Ant1 Power NVNT 1-DH5 2441MHz Ant1 REPORT NO.: E04A25120637F00601 Page 121 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Power NVNT 1-DH5 2480MHz Ant1 Power NVNT 2-DH5 2402MHz Ant1 REPORT NO.: E04A25120637F00601 Page 122 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Power NVNT 2-DH5 2441MHz Ant1 Power NVNT 2-DH5 2480MHz Ant1 REPORT NO.: E04A25120637F00601 Page 123 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Power NVNT 3-DH5 2402MHz Ant1 Power NVNT 3-DH5 2441MHz Ant1 REPORT NO.: E04A25120637F00601 Page 124 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Power NVNT 3-DH5 2480MHz Ant1 REPORT NO.: E04A25120637F00601 Page 125 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. -20dB Bandwidth Condition Mode Frequency (MHz) Antenna -20 dB Bandwidth (MHz) Limit -20 dB Bandwidth (MHz) Verdict NVNT 1-DH5 2402 Ant1 0.93 N/A N/A NVNT 1-DH5 2441 Ant1 0.95 N/A N/A NVNT 1-DH5 2480 Ant1 0.93 N/A N/A NVNT 2-DH5 2402 Ant1 1.23 N/A N/A NVNT 2-DH5 2441 Ant1 1.24 N/A N/A NVNT 2-DH5 2480 Ant1 1.29 N/A N/A NVNT 3-DH5 2402 Ant1 1.33 N/A N/A NVNT 3-DH5 2441 Ant1 1.25 N/A N/A NVNT 3-DH5 …

Text truncated - open the document above for the full version.

REPORT NO.: E04A25120637F00601 Page 51 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Mode: 3-DH5-2402 Power: DC 3.7V TE: Berny Date 2026/1/8 T/A/P 20.1°C/52%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 2325.080 28.63 22.5 51.13 74.00 22.87 PK+ V 2 2390.000 27.01 22.72 49.73 74.00 24.27 PK+ V Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] REPORT NO.: E04A25120637F00601 Page 52 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Mode: 3-DH5-2480 Power: DC 3.7V TE: Berny Date 2026/1/8 T/A/P 20.1°C/52%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 2483.500 27.75 23.15 50.90 74.00 23.10 PK+ H 2 2509.280 29.08 23.11 52.19 74.00 21.81 PK+ H Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] REPORT NO.: E04A25120637F00601 Page 53 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Mode: 3-DH5-2480 Power: DC 3.7V TE: Berny Date 2026/1/8 T/A/P 20.1°C/52%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 2483.500 27.98 23.15 51.13 74.00 22.87 PK+ V 2 2499.360 28.50 23.11 51.61 74.00 22.39 PK+ V Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] REPORT NO.: E04A25120637F00601 Page 54 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. 9. ANTENNA REQUIREMENT REQUIREMENT Please refer to FCC §15.203 An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the provisions of this section. The manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited. Please refer to FCC §15.247(b)(4) The conducted output power limit specified in paragraph (b) of this section is based on the use of antennas with directional gains that do not exceed 6 dBi. Except as shown in paragraph (c) of this section, if transmitting antennas of directional gain greater than 6 dBi are used, the conducted output power from the intentional radiator shall be reduced below the stated values in paragraphs (b)(1), (b)(2), and (b)(3) of this section, as appropriate, by the amount in dB that the directional gain of the antenna exceeds 6 dBi. DESCRIPTION Pass REPORT NO.: E04A25120637F00601 Page 55 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. 10. AC POWER LINE CONDUCTED EMISSION LIMITS Please refer to CFR 47 FCC §15.207 (a) FREQUENCY (MHz) Quasi-peak Average 0.15 -0.5 66 - 56 * 56 - 46 * 0.50 -5.0 56.00 46.00 5.0 -30.0 60.00 50.00 TEST PROCEDURE Refer to ANSI C63.10-2020 clause 6.2. The EUT is put on a table of non-conducting material that is 80 cm high. The vertical conducting wall of shielding is located 40 cm to the rear of the EUT. The power line of the EUT is connected to the AC mains through a Artificial Mains Network (A.M.N.). A EMI Measurement Receiver is used to test the emissions from the AC line. According to the requirements in Section 6.2 of ANSI C63.10-2020.Conducted emissions from the EUT measured in the frequency range between 0.15 MHz and 30 MHz using CISPR Quasi-Peak and average detector mode. The bandwidth of EMI test receiver is set at 9 kHz. The arrangement of the equipment is installed to meet the standards and operating in a manner, which tends to maximize its emission characteristics in a normal application. TEST SETUP TEST ENVIRONMENT Temperature 20.4°C Relative Humidity 51% Atmosphere Pressure 101kPa Voltage AC 120V, 60Hz TEST RESULTS REPORT NO.: E04A25120637F00601 Page 56 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Phase: L1 Mode: BT No. Frequency Reading Correct Result Limit Margin Remark (MHz) (dBuV) (dB) (dBuV) (dBuV) (dB) 1 0.2085 30.60 9.53 40.13 63.26 -23.13 QP 2 0.2085 4.72 9.53 14.25 53.26 -39.01 AVG 3 0.2580 26.39 9.59 35.98 61.50 -25.52 QP 4 0.2580 2.84 9.59 12.43 51.50 -39.07 AVG 5 0.4020 18.71 9.47 28.18 57.81 -29.63 QP 6 0.4020 -1.04 9.47 8.43 47.81 -39.38 AVG 7 3.9525 13.41 9.68 23.09 56.00 -32.91 QP 8 3.9525 -2.09 9.68 7.59 46.00 -38.41 AVG 9 5.6265 14.87 9.66 24.53 60.00 -35.47 QP 10 5.6265 -1.24 9.66 8.42 50.00 -41.58 AVG 11 9.3480 14.63 9.69 24.32 60.00 -35.68 QP 12 9.3480 -1.48 9.69 8.21 50.00 -41.79 AVG REPORT NO.: E04A25120637F00601 Page 57 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Phase: N Mode: BT No. Frequency Reading Correct Result Limit Margin Remark (MHz) (dBuV) (dB) (dBuV) (dBuV) (dB) 1 0.1770 31.75 9.60 41.35 64.63 -23.28 QP 2 0.1770 5.53 9.60 15.13 54.63 -39.50 AVG 3 0.2265 28.59 9.56 38.15 62.58 -24.43 QP 4 0.2265 3.93 9.56 13.49 52.58 -39.09 AVG 5 0.2940 20.42 9.53 29.95 60.41 -30.46 QP 6 0.2940 0.61 9.53 10.14 50.41 -40.27 AVG 7 0.4290 15.70 9.55 25.25 57.27 -32.02 QP 8 0.4290 -1.11 9.55 8.44 47.27 -38.83 AVG 9 5.7164 11.38 9.67 21.05 60.00 -38.95 QP 10 5.7164 -3.17 9.67 6.50 50.00 -43.50 AVG 11 10.3155 13.06 9.82 22.88 60.00 -37.12 QP 12 10.3155 -2.56 9.82 7.26 50.00 -42.74 AVG Note: 1. Result = Reading + Correct Factor. 2. If QP Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 200 Hz (9 kHz ~ 150 kHz), 9 kHz (150 kHz ~ 30 MHz). 4. Step size: 80 Hz (0.009 MHz ~ 0.15 MHz), 4 kHz (0.15 MHz ~ 30 MHz), Scan time: auto. REPORT NO.: E04A25120637F00601 Page 58 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. 11. TEST DATA - Appendix A R: Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT 1-DH5 2402 Ant1 -1.74 21 Pass NVNT 1-DH5 2441 Ant1 -2.03 21 Pass NVNT 1-DH5 2480 Ant1 -1.26 21 Pass NVNT 2-DH5 2402 Ant1 -0.84 21 Pass NVNT 2-DH5 2441 Ant1 -1.24 21 Pass NVNT 2-DH5 2480 Ant1 -0.48 21 Pass NVNT 3-DH5 2402 Ant1 -0.39 21 Pass NVNT 3…

Text truncated - open the document above for the full version.

PengBanXingYeShenZhenTechnologyCo.,Ltd Address：Room608,Building4,1970ScienceandTechnologyTown,MinzhiStreet,LonghuaDistrict,Shenzhen. UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± PengBanXingYeShenZhenTechnologyCo.,Ltd SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 1 SPECIFICATIONS CUSTOMER: DESCRIPTION: GeomagneticAntenna CUSTOMERPARTNO: OURMODELNO: PBX1608MA06 DATE: PLEASERETURNTOUSONECOPYOF“SPECIFICATIONFORAPPROVAL” WITHYOURAPPROVEDSIGNATURES ApprovedLiuFeiAuditLiuFeiMakingLiuXiaoMei CustomerAcknowledgesSignature Date PengBanXingYeShenZhenTechnologyCo.,Ltd Address：Room608,Building4,1970ScienceandTechnologyTown,MinzhiStreet,LonghuaDistrict,Shenzhen. UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± PengBanXingYeShenZhenTechnologyCo.,Ltd SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 2 PBX1608MA06Specification OperatingTemp.:-40°C~+85°C 1.FEATURES: ●Lightweight,compact ●Widebandwidth,lowcost ●Built-inantennawithhighgain 2.APPLICATIONS: ●Bluetooth,WirelessLAN,MobileTV ●HomeRFSystem,etc 3.PRODUCTIDENTIFICATION (1)(2)(3) (1)Producttype:MultilayerchipAntenna (2)CenterFrequency:2450MHz (3)ExternalDimensions(L×W)(mm):1.6*0.8 4.SHAPEANDDIMENSIONS: LWHA 1.60 ± 0.200.80 ± 0.20 0.80±0.200.30±0.10 CH IP45 016 2 08 PengBanXingYeShenZhenTechnologyCo.,Ltd Address：Room608,Building4,1970ScienceandTechnologyTown,MinzhiStreet,LonghuaDistrict,Shenzhen. UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± PengBanXingYeShenZhenTechnologyCo.,Ltd SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 3 ●AntennaislocatedinthePCBboardorthemiddleposition(long-barheadphones):(units:mm) Theantennaisoptimallyplacedinthemiddlearea,andatleastonerowofthroughholes aroundtheclearanceareaisoptimallyrequired. ●WhentheantennaislocatedattheedgeofthePCBboard(in-earheadphonesandsome long-barheadphones): Theantennaisoptimallyplaced ontheedgeofthePCBA;theantennaand itsalignmentaresetonasinglelayer. Designcriteria:： 1.Thedimensionsinthediagramareforreferenceonly;theactualdimensionsareoptimizedfor differentversions. 2.Theoptimumclearanceareaaroundtheneedforatleastarowofholes,aperture0.3mm,and otherPCBAcircuitormaterialisolation. PengBanXingYeShenZhenTechnologyCo.,Ltd Address：Room608,Building4,1970ScienceandTechnologyTown,MinzhiStreet,LonghuaDistrict,Shenzhen. UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± PengBanXingYeShenZhenTechnologyCo.,Ltd SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 4 AntennaPackageScheme1（3.5mm×7.5mm） PengBanXingYeShenZhenTechnologyCo.,Ltd Address：Room608,Building4,1970ScienceandTechnologyTown,MinzhiStreet,LonghuaDistrict,Shenzhen. UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± PengBanXingYeShenZhenTechnologyCo.,Ltd SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 5 AntennaPackageSchemeII（4.5mm×6mm） PengBanXingYeShenZhenTechnologyCo.,Ltd Address：Room608,Building4,1970ScienceandTechnologyTown,MinzhiStreet,LonghuaDistrict,Shenzhen. UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± PengBanXingYeShenZhenTechnologyCo.,Ltd SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 6 AntennaPackageSchemeIII（1.5mm×10mm） PengBanXingYeShenZhenTechnologyCo.,Ltd Address：Room608,Building4,1970ScienceandTechnologyTown,MinzhiStreet,LonghuaDistrict,Shenzhen. UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± PengBanXingYeShenZhenTechnologyCo.,Ltd SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 7 ElectricalCharacteristics CharacteristicCurves PengBanXingYeShenZhenTechnologyCo.,Ltd Address：Room608,Building4,1970ScienceandTechnologyTown,MinzhiStreet,LonghuaDistrict,Shenzhen. UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± PengBanXingYeShenZhenTechnologyCo.,Ltd SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 8 RadiationPattern PengBanXingYeShenZhenTechnologyCo.,Ltd Address：Room608,Building4,1970ScienceandTechnologyTown,MinzhiStreet,LonghuaDistrict,Shenzhen. UNLESSOTHERSPECIFIE…

Text truncated - open the document above for the full version.

TRF No.: 04-E001-0B TRF Originator: GTG TRF Date: 2023-12-13 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 CFR 47 FCC PART 15 SUBPART C(DSS) TEST REPORT For BLUETOOTH HEADPHONE MODEL NUMBER: BH21024, B16, BH21029, BH21030, BH21031 REPORT NUMBER: E04A25120637F00601 ISSUE DATE: January 12, 2026 FCC ID:2BGTK-BH21024 Prepared for Bugani Acoustics Co., Limited FLAT 1506 15/F CHEUNG FUNG COMMERCIAL BLDG 21-25 CHEUNG SHA WAN ROAD SHAM SHUI PO KL, China, Kowloon, China Prepared by Guangdong Global Testing Technology Co., Ltd. Room 101-105, 203-210, Building 1, No.2, Keji 8 Road, Songshan Lake Park, Dongguan city, Guangdong, People’s Republic of China, 523808 This report is based on a single evaluation of the submitted sample(s) of the above mentioned product, it does not imply an assessment of the production of the products. This report shall not be reproduced, except in full, without the written approval of Guangdong Global Testing Technology Co., Ltd. REPORT NO.: E04A25120637F00601 Page 2 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Revision History Rev. Issue Date Revisions Revised By V0 January 12, 2026 Initial Issue REPORT NO.: E04A25120637F00601 Page 3 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. Summary of Test Results Test Item Clause Limit/Requirement Result Antenna Requirement N/A FCC Part 15.203/15.247 (c) Pass AC Power Line Conducted Emission ANSI C63.10-2020 Clause 6.2 FCC Part 15.207 Pass Conducted Output Power ANSI C63.10-2020 Clause 7.8.5 FCC Part 15.247 (b)(1) Pass 20 dB Bandwidth and 99% Occupied Bandwidth ANSI C63.10-2020 Clause 6.9.2 FCC Part 15.247 (a)(1) Pass Carrier Hopping Channel Separation ANSI C63.10-2020 Clause 7.8.2 FCC Part 15.247 (a)(1) Pass Number of Hopping Frequency ANSI C63.10-2020 Clause 7.8.3 FCC Part 15.247 (b)(1) Pass Time of Occupancy (Dwell Time) ANSI C63.10-2020 Clause 7.8.4 FCC Part 15.247 (a)(1) Pass Conducted Bandedge and Spurious Emission ANSI C63.10-2020 Clause 6.10.4 & Clause 7.8.8 FCC Part 15.247(d) Pass Radiated Band edge and Spurious Emission ANSI C63.10-2020 Clause 6.3 & 6.5 & 6.6 FCC Part 15.205/15.209 Pass Duty Cycle ANSI C63.10-2020, Clause 11.6 None; for reporting purposes only. Pass *This test report is only published to and used by the applicant, and it is not for evidence purpose in China. *The measurement result for the sample received is <Pass> according to <CFR 47 FCC PART 15 SUBPART C(DSS)> when <Accuracy Method> decision rule is applied. REPORT NO.: E04A25120637F00601 Page 4 of 179 TRF No.: 04-E001-0B Global Testing , Great Quality. CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................... 5 2. TEST METHODOLOGY ......................................................................................................... 6 3. FACILITIES AND ACCREDITATION ..................................................................................... 6 4. CALIBRATION AND UNCERTAINTY ................................................................................... 7 4.1. MEASURING INSTRUMENT CALIBRATION ........................................................... 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................ 7 5. EQUIPMENT UNDER TEST .................................................................................................. 8 5.1. DESCRIPTION OF EUT ........................................................................................... 8 5.2. CHANNEL LIST ........................................................................................................ 8 5.3. Maximum Peak Output Power ................................................................................... 9 5.4. TEST CHANNEL CONFIGURATION ........................................................................ 9 5.5. THE WORSE CASE POWER SETTING PARAMETER .......................................... 10 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ......................................................... 10 5.7. SUPPORT UNITS FOR SYSTEM TEST ................................................................. 11 5.8. SETUP DIAGRAM .................................................................................................. 11 6. MEASURING EQUIPMENT AND SOFTWARE USED......................................................... 12 7. ANTENNA PORT TEST RESULTS ..................................................................................... 14 7.1. Conducted Output Power ........................................................................................ 14 7.2. 20 dB Bandwidth ..................................................................................................... 15 7.3. Carrier Hopping Channel Separation ...................................................................... 16 7.4. Number of Hopping Frequency ............................................................................... 18 7.5. Time of Occupancy (Dwell Time) ............................................................................ 19 7.6. Conducted Bandedge and Spurious Emission ........................................................ 21 7.7. Duty Cycle .............................................................................................................. 23 8. RADIATED TEST RESULTS ............................................................................................... 24 8.1. Radiated Ban…
