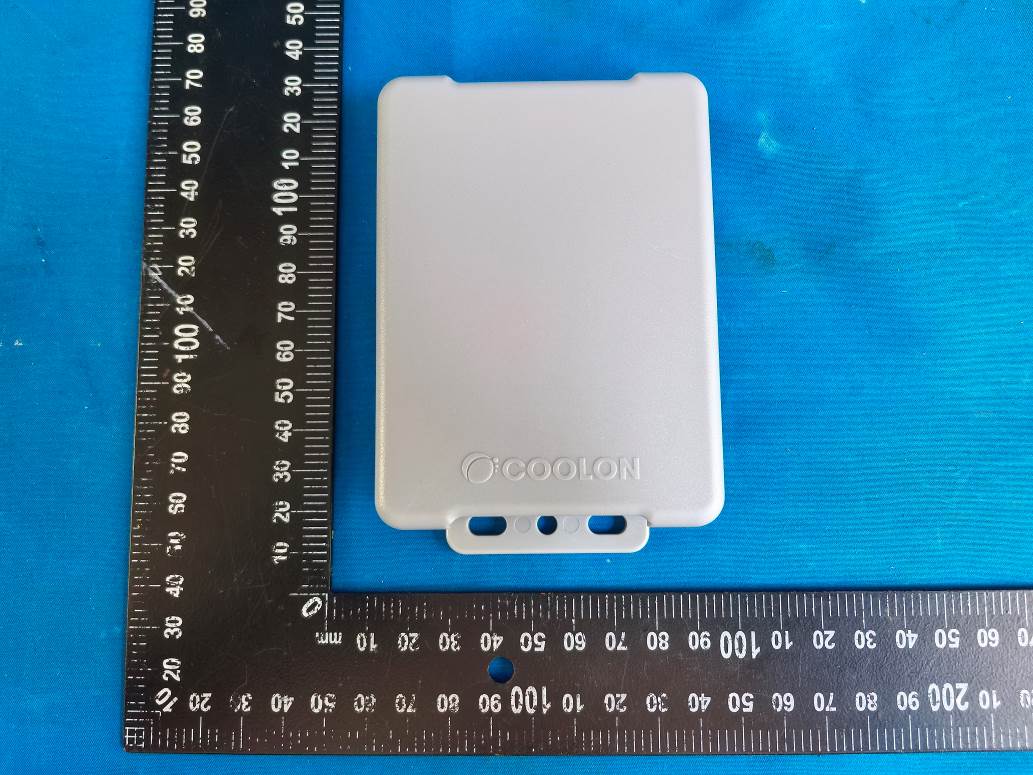

2BGU8-SC1NEDSMART CONTROLLER

TECHNICAL SPECIFICATIONS BENEFITS AND FEATURES INTRODUCTION • Wireless Control: Enables remote monitoring, control, and automation. • Mesh Networking: Self-healing, scalable network with automatic rerouting. • Dimming Support: Integrated PWM converter for precise brightness control. • RGBW Driver Capability: Direct interface with RGBW LED strips. • Flexible Antenna Options: Supports multiple antenna types, up to 5 dBi peak gain. • Internal Integration: Designed specifically for internal use in Coolon LED Lighting luminaires only. This Smart Controller is designed for integration into Coolon Led Lighting’s LED luminaires, providing wireless communication, dimming control, and advanced networking capabilities. It incorporates Wirepas Mesh 2.4 GHz technology for robust, low-latency wireless connectivity. ParameterSpecification Wireless TechnologyWirepas Mesh, 2.4 GHz ISM band Input VoltageMain Input: 17 - 60 Vdc, 5A Max Auxiliary Input: 10.8 - 13.2 Vdc, 250mA Max Output ControlMain LED, RGBW indicator, motion sensor Output Voltage(Main LED): 17 - 60 Vdc, 5A Max (Motion sensor): 3.135 - 3.465 Vdc, 0.128A Max (Indicators): 2 - 17.5 Vdc, 440mA max Antenna GainUp to 5 dBi (varies by antenna type) Operating Temperature-40°C to +65°C ComplianceFCC Part 15, ISED RSS-247, RSS-Gen, RSS-102 DIMENSIONS 113.3mm 26mm 120.2mm 50.2mm 78.3mm WIRING DIAGRAM SENSOR NTC ANTENN A PO WE R SUPPL Y MAIN LE D INDI CA TO R SMART CONTROLLER INDICATOR LED PANEL MAIN LED PANEL MOTION SENSOR THERMISTOR LED DRIVER L N E HVINPart NumberDescription SC1NED00644-A1-101Non-Emergency Smart Controller, Dimmable •web. www.coolon.com.au •Aus tel. 1300 287 533•intl. +613 8681 3633•[email protected] •web. www.coolonusa.com•US tel. (888) 6COOLON•int. +1 262 977 6566•Coolon USA, Inc. 410 Main St, Racine, WI 53403, USA As a matter of continual improvement, the requirements and recommendations in our manuals evolve to reflect new industry requirements and the latest feedback from the field. The Coolon team is working hard to ensure optimal product operation and the safety of all users, please check our website periodically to ensure you are up to date with the latest information. Product must be installed by a suitably qualified person. All documentation is subject to change without notice. Page 1 / 2 Page 1 / 2 SMART CONTROLLER FOR LUMINAIRES MANUAL EDITION 0.1 ind-manual-gecko-controller-0.1 OEM/INTEGRATORS INSTALLATIONS USER MANUAL The smart controller module is limited to OEM installation only. This smart controller module is mounted inside of the end product only by professional OEM installers. This smart controller module is used in conjunction with the end product’s software, where power and control signal settings may be adjusted only by the OEM within the scope of this application. End users are not permitted to modify or change these settings. This device is intended solely for OEM integrators and must comply with the following conditions: 1) The antenna must be installed such that a minimum separation distance of 20 cm is maintained between the antenna and the user. The pre-approved antenna specifications are listed below: 2) The transmitter module must not be co-located with any other transmitter or antenna. When both conditions are met, no additional transmitter testing is required. However, the OEM integrator remains responsible for ensuring that the final end product continues to comply with all applicable regulatory requirements once the smart controller is integrated. If the integration differs from the two conditions above, or if a non-certified antenna is used, a Class I Permissive Change must be issued. CLASS I PERMISSIVE CHANGE A Class I Permissive Change applies when the OEM’s design review identifies minor deviations that do not affect the module’s RF performance or compliance characteristics. In such cases, the OEM integrator may continue to use the existing FCC and ISED ID authorization grant without additional testing, provided that the design changes are properly documented internally. Typical minor deviations include the use of a non-qualified antenna that is of the same type as an approved antenna, with equal or lower gain and similar in-band and out-of-band characteristics. Generally, no PCB layout modifications are considered minor deviations. If the antenna datasheet does not include sufficient technical parameters to demonstrate equivalency, limited antenna testing may be required to provide supporting data. The OEM integrator must not provide instructions in the end product’s user manual on how to install or remove this RF module. The end user manual for products integrating this module must include all required regulatory information and warnings as shown in this document. If the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: 2BGU8-SC1NED” When the module is installed inside another device, the user manual of this device must contain below warning statement: Federal Communication Commission Interference Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, th…

Text truncated - open the document above for the full version.

EVERY CONNECTION COUNTSEVERY CONNECTION COUNTS 2118909-2 COTS Simulation/Measurement Presented by: Date: 18-Jul.-2025 Revision: 1.0 (1.1,1.2...2.0,2.1....) Project Number: WXXX-XXX © 2024 TE Connectivity.Confidential & Proprietary. Do not reproduce or distribute externally including non-authorized representatives and distributors. Create a sustainable future by limiting print copies, and recycling paper. Coordinate & Picture 2 © 2024 TE Connectivity. Confidential & Proprietary. Do not reproduce or distribute externally including non-authorized representatives and distributors. Create a sustainable future by limiting print copies, and recycling paper. VSWR 3 © 2024 TE Connectivity. Confidential & Proprietary. Do not reproduce or distribute externally including non-authorized representatives and distributors. Create a sustainable future by limiting print copies, and recycling paper. Return Loss 4 © 2024 TE Connectivity. Confidential & Proprietary. Do not reproduce or distribute externally including non-authorized representatives and distributors. Create a sustainable future by limiting print copies, and recycling paper. 2D Radiation _ 2450MHz 5 © 2024 TE Connectivity. Confidential & Proprietary. Do not reproduce or distribute externally including non-authorized representatives and distributors. Create a sustainable future by limiting print copies, and recycling paper. 2D Radiation _ 5513MHz 6 © 2024 TE Connectivity. Confidential & Proprietary. Do not reproduce or distribute externally including non-authorized representatives and distributors. Create a sustainable future by limiting print copies, and recycling paper. 2D Radiation _ 6525MHz 7 © 2024 TE Connectivity. Confidential & Proprietary. Do not reproduce or distribute externally including non-authorized representatives and distributors. Create a sustainable future by limiting print copies, and recycling paper. 3D Radiation 8 © 2024 TE Connectivity. Confidential & Proprietary. Do not reproduce or distribute externally including non-authorized representatives and distributors. Create a sustainable future by limiting print copies, and recycling paper. Efficiency 9 1234567891011121314151617181920 Frequency [MHz]24002413242524382450246324752488250051505241533154225513560356945784587559256075 Efficiency [dB]-1.43 -1.36 -1.39 -1.53 -1.77 -1.42 -1.68 -1.53 -1.71 -1.79 -2.06 -1.56 -1.67 -2.51 -2.43 -1.90 -4.08 -2.98 -2.63 -1.51 Efficiency [%]71.9 73.2 72.5 70.4 66.6 72.2 67.9 70.4 67.4 66.3 62.2 69.8 68.1 56.1 57.1 64.5 39.1 50.4 54.5 70.7 TRG θ [dB]-6.76 -6.70 -6.74 -6.84 -6.96 -6.57 -6.78 -6.53 -6.71 -6.07 -6.54 -5.87 -5.72 -6.83 -6.85 -6.06 -8.55 -7.85 -7.29 -5.80 Gain θ Peak [dBi]1.86 1.89 1.78 1.49 1.36 2.05 1.74 2.20 2.04 1.45 1.94 3.12 2.80 1.69 0.91 3.76 1.98 2.54 1.76 2.61 Gain θ Min [dBi]-31.14 -33.75 -38.15 -37.94 -43.93 -43.68 -45.59 -33.91 -35.51 -31.96 -36.07 -40.77 -30.22 -34.97 -28.34 -36.10 -31.17 -30.78 -32.17 -37.04 TRG φ [dB]-2.94 -2.86 -2.89 -3.04 -3.33 -3.00 -3.29 -3.18 -3.37 -3.81 -3.98 -3.57 -3.84 -4.52 -4.38 -4.00 -5.99 -4.69 -4.45 -3.53 Gain φ Peak [dBi]1.89 2.03 2.02 1.95 1.67 2.14 1.88 1.90 1.94 2.14 2.09 2.84 2.52 2.18 2.33 4.07 2.19 2.61 2.56 3.93 Gain φ Min [dBi]-29.21 -29.82 -30.47 -34.05 -37.76 -36.90 -33.49 -31.44 -30.87 -26.86 -29.44 -31.37 -30.28 -40.93 -28.42 -24.16 -35.86 -30.31 -32.52 -36.57 UHRG [dB]-4.01 -3.95 -4.00 -4.17 -4.47 -4.14 -4.46 -4.32 -4.49 -4.13 -4.46 -4.03 -4.12 -4.94 -4.78 -4.01 -6.08 -5.03 -4.58 -3.25 UHRG/TRG [%]55.2 55.1 54.8 54.4 53.7 53.4 52.8 52.6 52.8 58.3 57.5 56.6 56.9 57.2 58.3 61.5 63.0 62.4 63.9 66.9 H-Plane-2.61 -2.53 -2.54 -2.67 -2.95 -2.52 -2.83 -2.68 -2.85 -2.78 -3.70 -2.68 -3.33 -4.43 -4.89 -5.07 -6.41 -4.47 -3.92 -2.99 E1-Plane, AVG [dB]0.36 0.45 0.45 0.34 0.09 0.45 0.17 0.28 0.15 -0.12 -0.26 0.09 -0.20 -0.99 -0.47 0.15 -2.01 -1.00 -0.79 0.57 E2-Plane, AVG [dB]-2.38 -2.32 -2.38 -2.51 -2.62 -2.25 -2.54 -2.33 -2.54 -2.08 -2.37 -1.35 -1.23 -2.73 -2.79 -1.76 -4.06 -3.44 -3.23 -2.11 Peak Gain [dBi]1.83 2.02 2.17 1.95 1.86 2.36 2.37 2.75 2.72 2.72 2.74 2.98 3.11 2.32 2.43 3.64 1.83 2.78 2.71 4.39 Directivity [dB]3.27 3.37 3.57 3.48 3.63 3.77 4.05 4.27 4.43 4.51 4.80 4.54 4.78 4.83 4.87 5.55 5.91 5.76 5.35 5.89 Minimum Gain [dBi]-17.66 -17.66 -17.51 -17.81 -18.12 -17.85 -17.72 -17.01 -16.59 -14.85 -18.01 -13.39 -12.84 -13.06 -13.37 -12.97 -15.22 -18.71 -25.31 -22.54 21222324252627 Frequency [MHz]6225637565256675682569757125 Efficiency [dB]-1.94 -1.84 -2.21 -3.24 -3.89 -5.38 -6.56 Efficiency [%]64.0 65.5 60.1 47.4 40.8 29.0 22.1 TRG θ [dB]-6.10 -5.58 -5.42 -6.00 -5.91 -7.11 -8.28 Gain θ Peak [dBi]4.05 3.02 2.20 1.71 2.95 1.26 -0.21 Gain θ Min [dBi]-37.49 -30.31 -23.53 -30.02 -34.87 -27.13 -32.73 TRG φ [dB]-4.04 -4.22 -5.03 -6.51 -8.19 -10.22 -11.43 Gain φ Peak [dBi]3.98 3.37 2.74 0.76 -2.29 -4.33 -5.38 Gain φ Min [dBi]-35.14 -29.41 -36.29 -34.11 -32.77 -32.86 -36.41 UHRG [dB]-3.69 -3.83 -4.36 -5.93 -7.33 -9.04 -10.17 UHRG/TRG [%]66.8 63.3 60.9 53.8 45.4 43.1 43.6 H-Plane-3.22 -2.64 -2.73 -4.14 -4.71 -5.84 -6.70 E1-Plane, AVG [dB]0.47 0.28 -0.62 -2.29 -5.02 -7.81 -10.31 E2-Plane, AVG [dB]-2.02 -1.97 -1.84 -2.86 -2.86 -4.09 -4.73 Peak Gain [dBi]3.82 3.81 3.92 2.04 3.15 1.38 0.48 Directivity [dB]5.76 5.64 6.13 5.28 7.04 6.76 7.05 Minimum Gain [dBi]-18.07 -19.27 -19.40 -14.96 -21.31 -19.53 -28.29 © 2024 TE Connectivity. Confidential & Proprietary. Do not reproduce or distribute externally including non-authorized representatives and distributors. Create a sustainable future by limiting print copies, and recycling paper. Efficiency 10 ANY CONNECTION CAN CHANGE THE WORLD EVERY CONNECTION COUNTS

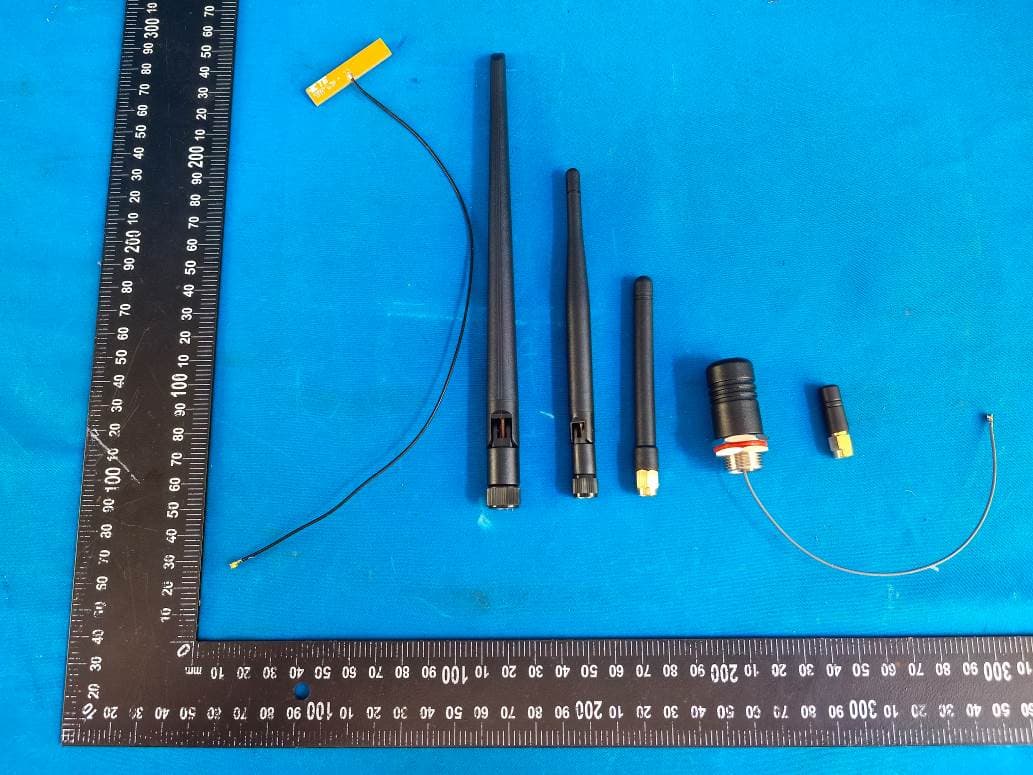

Appendix-00644-A1-101-Photos FCC ID: 2BGU8-SC1NED Page 1 of 15 1. Test Setup photos 1.1 Photograph – Radiated Emissions Ant. Model: 2118909-2 For 9kHz-30MHz Test Site 2# For 30MHz-1000MHz Test Site 2# Appendix-00644-A1-101-Photos FCC ID: 2BGU8-SC1NED Page 2 of 15 For Above 1GHz Test Site 1# Ant. Model: GW.34.5153 For 9kHz-30MHz Test Site 2# Appendix-00644-A1-101-Photos FCC ID: 2BGU8-SC1NED Page 3 of 15 For 30MHz-1000MHz Test Site 2# For Above 1GHz Test Site 1# Appendix-00644-A1-101-Photos FCC ID: 2BGU8-SC1NED Page 4 of 15 Ant. Model: GW.48.A151 For 9kHz-30MHz Test Site 2# For 30MHz-1000MHz Test Site 2# Appendix-00644-A1-101-Photos FCC ID: 2BGU8-SC1NED Page 5 of 15 For Above 1GHz Test Site 1# Ant. Model: RN-SMA-S-RP For 9kHz-30MHz Test Site 2# Appendix-00644-A1-101-Photos FCC ID: 2BGU8-SC1NED Page 6 of 15 For 30MHz-1000MHz Test Site 2# For Above 1GHz Test Site 1# Appendix-00644-A1-101-Photos FCC ID: 2BGU8-SC1NED Page 7 of 15 Ant. Model: RY-2.4G-364 For 9kHz-30MHz Test Site 2# For 30MHz-1000MHz Test Site 2# Appendix-00644-A1-101-Photos FCC ID: 2BGU8-SC1NED Page 8 of 15 For Above 1GHz Test Site 1# Ant. Model: W1027 For 9kHz-30MHz Test Site 2# Appendix-00644-A1-101-Photos FCC ID: 2BGU8-SC1NED Page 9 of 15 For 30MHz-1000MHz Test Site 2# For Above 1GHz Test Site 1#

Description: 2.4-2.5GHz Dipole swivel stick antenna PART NUMBER: W1027 Series: Stick Antenna Issue: 2047 In the effort to improve our products, we reserve the right to make changes judged to be necessary. CONFIDENTIAL AND PROPRIETARY INFORMATION This document contains confidential and proprietary information ofPulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws. Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific written authorization of Pulse is strictly forbidden. For more information: Pulse Worldwide HeadquartersPulse/Larsen AntennasEurope HeadquartersPulse (Suzhou) Wireless Products Co, Inc. 15255 Innovation Drive #100Pulse GmbH & Do, KG99 HuoJuRoad(#29 Bldg,4 th Phase San Diego, CA 92128Vancouver, WA 98683Zeppelinstrasse15Suzhou New District USAUSAHerrenberg, Germany Jiangsu Province, Suzhou 215009 PR China Tel:1-858-674-8100Tel: 1-360-944-7551 - Tel: 49 7032 7806 0 Tel: 86 512 6807 9998 18110 SE 34 th St Bldg2 Suite 250 Features: Applications: All dimensions are in mm / inches •2.4GHz ISM band radios •Bluetooth, BLE, Zigbee •WLAN, WiFi802.11x for 2.4GHz •Indoor use 1 •Frequency 2400-2500MHz •Gain 2.0 dBi •Return Loss -10dB •Length 108mm Straight position •Connector: •RP SMA Male as default •SMA Male available by request Issue: 2047 In the effort to improve our products, we reserve the right to make changes judged to be necessary. CONFIDENTIAL AND PROPRIETARY INFORMATION This document contains confidential and proprietary information ofPulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws. Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific written authorization of Pulse is strictly forbidden. Description: 2.4-2.5GHz Dipole swivel stick antenna PART NUMBER: W1027 Series: Stick Antenna 2 Antenna Type 1/2 λSwivel Type Dipole Antenna Frequency2400-2500MHz NominalImpedance50 Return Loss -10dB Radiation PatternOmni Gain2.0dBi Efficiency80% PolarizationVertical Overall Length136.8 mm Weight13 g Antenna Color / MaterialBlack，TPE Connector type RP-SMA Male Operating Temperature-40 ~ +85 °C Storage Temperature-40 ~ +85 °C Ingress ProtectionIP42 RoHS CompliantYes MECHANICALSPECIFICATIONS ENVIRONMENTAL SPECIFICATIONS ELECTRICAL SPECIFICATIONS Issue: 2047 In the effort to improve our products, we reserve the right to make changes judged to be necessary. CONFIDENTIAL AND PROPRIETARY INFORMATION This document contains confidential and proprietary information ofPulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws. Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific written authorization of Pulse is strictly forbidden. Description: 2.4-2.5GHz Dipole swivel stick antenna PART NUMBER: W1027 Series: Stick Antenna 3 MECHANICALDRAWING Issue: 2047 In the effort to improve our products, we reserve the right to make changes judged to be necessary. CONFIDENTIAL AND PROPRIETARY INFORMATION This document contains confidential and proprietary information ofPulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws. Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific written authorization of Pulse is strictly forbidden. Description: 2.4-2.5GHz Dipole swivel stick antenna PART NUMBER: W1027 Series: Stick Antenna CHARTS 4 Return Loss Issue: 2047 In the effort to improve our products, we reserve the right to make changes judged to be necessary. CONFIDENTIAL AND PROPRIETARY INFORMATION This document contains confidential and proprietary information ofPulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws. Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific written authorization of Pulse is strictly forbidden. Description: 2.4-2.5GHz Dipole swivel stick antenna PART NUMBER: W1027 Series: Stick Antenna CHARTS 5 Gain and efficiency Issue: 2047 In the effort to improve our products, we reserve the right to make changes judged to be necessary. CONFIDENTIAL AND PROPRIETARY INFORMATION This document contains confidential and proprietary information ofPulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws. Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific written authorization of Pulse is strictly forbidden. Description: 2.4-2.5GHz Dipole swivel stick antenna PART NUMBER: W1027 Series: Stick Antenna CHARTS 6 Radiation pattern Issue: 2047 In the effort to improve our products, we reserve the right to make changes judged to be necessary. CONFIDENTIAL AND PROPRIETARY INFORMATION This document contains confidential and proprietary information ofPulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws. Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific written authorization of Pulse is strictly forbidden. Description: 2.4-2.5GHz Dipole swivel stick antenna PART NUM…

Text truncated - open the document above for the full version.

1 (Model:RY-2.4G-364 2.4G Antenna Specification ) ( I ) Product Overview Frequency（MHz）：2400-2500 VSWR ≤2.5 Gain（dBi）： 4.7 Max Input power（W）：60 Input Impedance（Ω）：50 Polarization：Vertical Antenna Size（mm）：18*30 Cable Length（mm）：1,2,3,5 etc. Cable Type：RG174 Connector：SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc. Company: Zhangjiagang RY Electronic CO.,LTD F5,Building8, changshunchuanggu, jinfeng,Zhangjiagang 215625,China Mob:0086-18001564891 Email:[email protected] RY-M1530-001 2 Mounting：Screw Housing：Black Storage Temperature：-45°Cto+75°C Operating Temperature：-45°Cto+75°C Company: Zhangjiagang RY Electronic CO.,LTD F5,Building8, changshunchuanggu, jinfeng,Zhangjiagang 215625,China Mob:0086-18001564891 Email:[email protected] RY-M1530-001 RY-M1530-001 Installation Requirements The installation method of this antenna is threaded installation, using M15 specification threaded structure. By processing matching M15 threaded holes on the equipment, the antenna is screwed in and fixed. At the same time, combined with the sealing structure (such as the attached seal), it can achieve waterproof and dustproof installation effect. It is suitable for devices that require 2.4G frequency band signal transmission. RY-M1530-001

йк www.taoglas.com SPE-18-8-120-B 4.5 GW.48.A151 Patterns at 5000 MHz XZ Plane YZ Plane XY Plane йл www.taoglas.com SPE-18-8-120-B 4.6 GW.48.A151 Patterns at 5500 MHz XZ Plane YZ Plane XY Plane йм www.taoglas.com SPE-18-8-120-B 4.7 GW.48.A151 Patterns at 6000 MHz XZ Plane YZ Plane XY Plane йн www.taoglas.com SPE-18-8-120-B 4.8 GW.48.A151 Patterns at 6500 MHz XZ Plane YZ Plane XY Plane йо www.taoglas.com SPE-18-8-120-B 4.9 GW.48.A151 Patterns at 7000 MHz XZ Plane YZ Plane XY Plane йп www.taoglas.com SPE-18-8-120-B 5. Mechanical Drawing йр www.taoglas.com SPE-18-8-120-B 6. Packaging йс www.taoglas.com SPE-18-8-120-B Changelog for the datasheet SPE-18-8-120 – GW.48.A151 Revision: B (Current Version) Date: 2023-03-20 Changes: Full datasheet update Changes Made by: Gary West Previous Revisions Revision: A (Original First Release) Date: 2018-11-30 Notes: Author: Unknown ки www.taoglas.com SPE-18-8-120-B

SPE-18-8-120-B Part No: GW.48.A151 Description Black 2.4 / 5.8 / 7.125GHz Rubber Duck Dipole Antenna with RP-SMA(M) Features: 2.4/5.8/7.125GHz Band Operation UV Resistant, Robust TPEE Housing IP65 Waterproof Enclosure IK05 Impact Rated Enclosure Connector Mount: RP-SMA(M) Dimensions: 89.5mm x 7.5mm Diameter RoHS & REACH compliant й www.taoglas.com SPE-18-8-120-B 1. Introduction 2 2. Specification 3 3. Antenna Characteristics 4 4. Radiation Patterns 8 5. Mechanical Drawing 17 6. Packaging 18 Changelog 19 Taoglas makes no warranties based on the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and product descriptions at any time without notice. Taoglas reserves all rights to this document and the information contained herein. Reproduction, use or disclosure to third parties without express permission is strictly prohibited. к www.taoglas.com SPE-18-8-120-B 1. Introduction The GW.48 dual-band 2.4/5.8/7.25GHz RP-SMA(M) mount dipole antenna is designed for superior performance and reliability. With an omnidirectional radiation pattern and excellent efficiency and gain on both 2.4 GHz, 5.8 & 7.125GHz bands. At just 89.5mm in height, the GW.48 is a great smaller form factor solution for Bluetooth® and Wireless LAN networks. The IP67 rated enclosure makes it suitable for both indoor and outdoor applications. The flexible IK05 rated TPEE enclosure is impact resistant and durable and has the added benefit of UV resistance, allowing it to meet the needs of demanding outdoor applications. Upon testing of any of our antennas with your device and a selection of appropriate layout, integration technique, or cable, Taoglas can make sure any of our antennas’ peak gain will be below the peak gain limits. Taoglas can then issue a specification and/or report for the selected antenna in your device that will clearly show it complying with the peak gain limits, so you can be assured you are meeting regulatory requirements for that module. Choosing a Taoglas antenna with a higher peak gain than what is specified by the module manufacturer and enlisting our help will ensure you are getting the best performance possible without exceeding the peak gain limits. Contact your regional Taoglas customer support team for further information. л www.taoglas.com SPE-18-8-120-B 2. Specification Wi-Fi Electrical Band Frequency (MHz) Efficiency (%) Average Gain (dB) Peak Gain (dBi) Impedance Polarization Radiation Pattern Max. input power Wi-Fi - 2GHz 2400-2500 80.6 -0.93 1.82 50 Ω Linear Omni 2W Wi-Fi - 5GHz 5150-5850 70.9 -1.49 3.28 Wi-Fi - 6GHz 5925-7125 62.1 -2.07 4.23 Mechanical Antenna Length 89.5 mm Antenna Diameter 7.5 mm Weight 9.5g Antenna Body Material TPEE Connector RP-SMA(M) Waterproof IP65 Pendulum Hammer Test [IEC62262] IK05 Environmental Temperature Range -40°C to 85°C Humidity Non-condensing 65°C 95% RH м www.taoglas.com SPE-18-8-120-B 3. Antenna Characteristics 3.1 Test Setup н www.taoglas.com SPE-18-8-120-B 3.2 Return Loss 3.3 VSWR о www.taoglas.com SPE-18-8-120-B 3.4 Efficiency 3.5 Average Gain п www.taoglas.com SPE-18-8-120-B 3.6 Peak Gain р www.taoglas.com SPE-18-8-120-B 4. Radiation Patterns 4.1 Test Setup X Y Z с www.taoglas.com SPE-18-8-120-B 4.2 GW.48.A151 Patterns at 2400 MHz XZ Plane YZ Plane XY Plane йи www.taoglas.com SPE-18-8-120-B 4.3 GW.48.A151 Patterns at 2450 MHz XZ Plane YZ Plane XY Plane йй www.taoglas.com SPE-18-8-120-B 4.4 GW.48.A151 Patterns at 2500 MHz XZ Plane YZ Plane XY Plane

SPE-19-8-086-A 2.4GHz 5dBi Terminal Mount Dipole Antenna Part No: GW.34.5153 Description: Wi-Fi® 2.4GHz 5dBi Dipole Terminal Mount Antenna RP-SMA(M) Hinged Features: 2.4GHz Band Operation 5dBi Gain High Efficiency up to 80% Hinged RP-SMA (M) Connector Height: 198mm Diameter: 13mm RoHS & Reach Compliant 2 SPE-19-8-086-A www.taoglas.com Taoglas makes no warranties based on the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and product descriptions at any time without notice. Taoglas reserves all rights to this document and the information contained herein. Reproduction, use or disclosure to third parties without express permission is strictly prohibited. 1. Introduction 3 2. Specifications 4 3. Antenna Characteristics 6 4. Radiation Patterns 8 5. Mechanical Drawing 11 6. Packaging 12 Changelog 13 3 SPE-19-8-086-A www.taoglas.com The Taoglas GW.34 is a 2.4 & 5.8GHz Wi-Fi ® terminal mount dipole antenna. At just 198mm in height and 13mm in diameter, the robust TPEE enclosure can be mounted straight or at right angle to the device with its hinged RP- SMA(M) connector. It is ideal for applications such as Bluetooth®, BLE, ZigBee® and Wireless LAN. The GW.82, designed for superior performance and reliability, has an omnidirectional radiation pattern and extremely high efficiency and gain on both the 2.4 & 5.8GHz bands. Typical applications include: - Smart Home - Gateways/Routers - Connected Agriculture The GW.34 has up to 5dBi Peak making it a cost-effective, high-performing choice for any indoor or outdoor application. Many module manufacturers specify peak gain limits for any antennas that are to be connected to that module. Those peak gain limits are based on free-space conditions. In practice, the peak gain of an antenna tested in free-space can degrade by at least 1 or 2dBi when installed. So ideally you should go for a slightly higher peak gain antenna than mentioned on the module specification to compensate for this effect. This provides you with improved performance. Upon testing of any of our antennas with your device and appropriate layout, integration technique, or cable, we can work with you to make any of our antennas’ perform below the peak gain limits. Taoglas can then issue a specification and/or report for the selected antenna in your device that will clearly show it complying with the peak gain limits. You can be assured that you are meeting the regulatory requirements for that module whilst getting the best performance possible, without exceeding the peak gain limits. For further information, or support to test and integrate this product please contact your regional Taoglas customer support team. 1. Introduction 4 SPE-19-8-086-A www.taoglas.com Electrical Frequency (MHz) 2400~2500 Efficiency (%) Straight 78.56 Bent 83.20 Average Gain (dB) Straight -1.05 Bent -0.80 Peak Gain (dBi) Straight 4.22 Bent 5.89 Impedance 50Ω Polarization Linear Radiation Pattern Omni Max. input power 1W Mechanical Height 198 ±3.3 mm Planner Dimension 198*Ø13 mm Casing TPEE Connector RP-SMA(M) Weight 22.5 g E nvironmental Temperature Range -40°C to 85°C Humidity Non-condensing 65°C 95% RH 2. Specifications 5 SPE-19-8-086-A www.taoglas.com 3.1 Return Loss 3.2 Efficiency 3. Antenna Characteristics 6 SPE-19-8-086-A www.taoglas.com 3.3 Average Gain 3.4 Peak Gain 7 SPE-19-8-086-A www.taoglas.com 4. 4.1 Test Setup Free space - Straight Free space - Bent 4. Radiation Patterns X Y Z X Y Z 8 SPE-19-8-086-A www.taoglas.com 4.2 2450MHz 3D and 2D Radiation Patterns - Straight XY Plane XZ Plane YZ Plane Y X Y Z Z X 9 SPE-19-8-086-A www.taoglas.com 4.3 2450MHz 3D and 2D Radiation Patterns - Bent XY Plane XZ Plane YZ Plane Y X Y Z Z X 10 SPE-19-8-086-A www.taoglas.com 5. Mechanical Drawing (Units: mm) 11 SPE-19-8-086-A www.taoglas.com 400pcs GW.34.5153 per Carton Dimensions: 320*250*230mm Weight: 10Kg Pallet Dimensions: 1200*1000*1350mm 60 Cartons Per Pallet 12 Cartons Per Layer, 5 Layers 1pc GW.34.5153 per PE Bag Bag Dimension: 245*30mm Weight: 22.5g 40pcs GW.34.5153 per Large PE Bag Bag Dimensions: 320*205mm Weight: 0.9Kg 6. Packaging 1350mm 1000mm 1200mm 250mm 320mm 230mm 245mm 30 mm 320mm 205 mm 12 SPE-19-8-086-A www.taoglas.com Changelog for the datasheet SPE-17-8-042 - OMB.868.B12F21 Revision: A (Original First Release) Date: 2019-06-24 Notes: Author: Jack Conroy Previous Revisions 13 SPE-19-8-086-A www.taoglas.com www.taoglas.com © Taoglas

March 1 st 2010 RN-SMA-S-RP 1” short antenna with SMA connector Frequency: 2.4 GHz Connector: SMA-Male-RP March 1 st 2010 Frequency (MHz): 2450.00 Pattern Field: E Plane Average Gain: -3.5 dB Maximun Gain: 0.56 dB Maximum Gain (degree): -74.29 Minimum Gain: -24.44 dB Minimum Gain (degree): 5.71 March 1 st 2010 Frequency (MHz): 2450.00 Pattern Field: H Plane Average Gain: 0.22dB Maximum Gain: 0.56 dB Maximum Gain (degree): 92.81 Minimum Gain: -0.10 dB Minimum Gain (degree): 289.69 March 1 st 2010 S11 VSWR

Rev 1/26/2023 Coolon USA, Inc. 410 Main St, Ste 2 Racine, WI 53403 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 10-23-2025 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID: 2BGU8-SC1NED Coolon USA, Inc. (“the applicant”) certifies that, as of the date of the filing of the application, we designate ourselves as the U.S. agent for service of process. Designated U.S. Agent Information: FRN: 003…
