Operation, full functionality: -40° to +140 °F (-40° to +60 °C) . Operation, without V2X functionality: +140° to 185 °F (+60° to +85 °C) Storage: -40° to +185 °F (-40° to +85 °C) 8....32 V DC Power mode ’Suspend’: 40 mW at 24 V DC Power mode ‘Run’: 8 W at 24 V DC (typical) Current consumption: 3A GNSS/GPS receiver module with internal antenna & optional external antenna 4G module with internal antenna & optional external antenna OBU2X-US V2X Modul with internal antenna IP54 acc. IEC 60529 260 g (with battery) 145 x 93 x 36 mm Frequency bands: LTE (4G) = B2, B4, B5, B8US, B12, B13, B25, B26, B66, B85 V2X= LTE Band 47, 5915 Mhz, BW 20 Mhz Max. transmitting power LTE & V2X: 25 dBm BT & BT LE: 10dBm Display Status indication Four direction navigation button Rear: battery compartment Technical Data OBU2X-US  T (glass, holder) >68 °F „click“ Box Inlay Quick start guide OBU2X-US with cable Cleaning cloth Holder with adhesive pads Please check if the package content is complete and undamaged. General information on connecting the OBU2X-US cables • Work on the electrics, such as contacting the on-board net work for permanent power connection,- connecting RS485, CAN etc., may only be carried out by trained specialist personnel! • For work on the vehicle‘s electrical system, always follow the vehicle manufacturer‘s instructions and recommendations. • The T30 and T15 connections must be fused with 3 amps! Connection assignment for 10-core cable pin no.pinoutwire colour 1T30red 2T30red 3GNDbrown 4GNDbrown 5T 15black 6RS485Agreen 7RS485Byellow 8GPIOgrey 9CAN_Hpink-black 10CAN_Lpink-white © 01.2023 A24708-E100-A50-04 Connection assignment for 10-core cable pin no.pinoutwire colour T30red T30red GND brown GNDbrown T 15 black RS485Agreen RS485Byellow GPIOgrey CAN_Hpink-black CAN_Lpink-white 8 – 32V * Fuses not included! Caution: Don’t use without 3 ampere fuse protection! Usage with permanent power connection a b c f g h Constant Voltage (+) Ignition Ground (-) Vehicle electric system 3 ampere* 3 ampere* Usage with permanent power connection As soon as you start the vehicle, the OBU is switched on automatically. Yunex, LLC Registered office 9225 Bee Cave Rd. Building B Suite 201 Austin, TX 78733 OBU2X-US Initial set-up is carried out automatically. If you have any queries about your OBU, please get in touch with your sales partner. The usage of OBU in potential explosive atmosphere in generel is not per- mitted. For usage in potential explosive atmosphere please comply with pro- cedure described in detailed instruction manual. Protect battery from mechanical strain (shock, drop, vibration) as well as tem- peratures >+185 °F (+85 °C!) Fire hazard! For further safety precautions and directives please follow detailed instruction manual. - red! If in doubt, please contact Customer Service. Handling of the OBU while driving is not permitted! The navigation button is locked to prevent any operation during vehicle movement. For cleaning use only a damp cloth, no solvents or abrasive cleaners. Replace or oil. Mounting the holder to the windscreen has to be done at temperature above +68 °F (+20 °C). If necessary, please bring windscreen and holder to appropriate temperature. At temperature > +68 °F(+20 °C), the glue of the Front: display, status-indication, four direction navigation button Rear: battery compartment box, inlay, quick start guide, OBU2X-US with cable, cleaning cloth, holder with adhesive pads temperature, voltage, current consumption, internal GNSS, internal GSM, internal V2X, battery, protection class, weight (without holder), dimensions (without holder), frequency bands 4G (LTE), transmitting power 4G (LTE) Technical data made available by: Yunex GmbH Otto-Hahn-Ring 6 81739 Munich Germany The OBU2X-US with part number L24708-E1000-B500 comply with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference. FCC CAUTION - Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20cm between the radiator & your body. FCC Statement: adhesive pads reaches its final strength 72h after application. -US OBU2X-US -US FCC-ID: 2BGULOBU2X Contains FCC-ID: RI7ME910G1W3 Caution: A minimum distance of 40cm between the OBU and the external antenna is necessary to comply with all requirements during simultaneous transmission.

Yunex LLC, 2023 Managing Directors Rodney Mathis and Dirk Rauber 9225 Bee Cave Rd. Building B suite 201 Austin, TX 78733 Attention: Application Examiner Applicant: Yunex Traffic FCC ID: 2BGULOBU2X To whom it may concern, Yunex, LLC certifies that the equipment for which authorization is sought is an equipment manufacturer named in a grant of waiver permitting C-V2X equipment deployment in the upper 30 MHz of the 5.9 GHz band as stated in DA 23-1048. Iouri Nemirovski Field Device Product Manager Yunex Traffic 9225 Bee Cave Road ____________________________ Austin, TX 78733

Yunex LLC, 2023 Managing Directors Rodney Mathis and Dirk Rauber 9225 Bee Cave Rd. Building B suite 201 Austin, TX 78733 Attention: Application Examiner Applicant: Yunex Traffic FCC ID: 2BGULOBU2X To whom it may concern, Yunex, LLC certifies that the OBU2X for which authorization is sought will operate with C-V2X technology in compliance with the terms of the relevant waiver grant. Iouri Nemirovski Field Device Product Manager Yunex Traffic 9225 Bee Cave Road ____________________________ Austin, TX 78733

Yunex LLC, 2023 Managing Directors Rodney Mathis and Dirk Rauber 9225 Bee Cave Rd. Building B suite 201 Austin, TX 78733 Attention: Application Examiner Applicant: Yunex Traffic FCC ID: 2BGULOBU2X To whom it may concern, Yunex, LLC certifies that the applicant will modify or adjust OBU2X as necessary under the Commission’s rules in a timely manner as may be required when the Commission’s final rules applicable to C-V2X operations become effective. Iouri Nemirovski Field Device Product Manager Yunex Traffic 9225 Bee Cave Road ____________________________ Austin, TX 78733

Yunex LLC, 2024 Managing Directors Rodney Mathis and Dirk Rauber 9225 Bee Cave Rd. Building B suite 201 Austin, TX 78733 Covered List, § 2.911(d)(5) Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 06/07/2024 To whom it may concern, Regarding the FCC 22-84 Report and Order and the Commission’s Covered List https://www.fcc.gov/supplychain/coveredlist. 1 Yunex LLC certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Yunex LLC (“the applicant”) certifies that, as of the date of the filing of the application, the applicant not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, Iouri Nemirovski Field Device Product Manager Yunex Traffic 9225 Bee Cave Road ____________________________ Austin, TX 78733 1 The inclusion of producers or providers of equipment or services identified on this list should be read to include the subsidiaries and affiliates of such entities.

Yunex LLC, 2024 Managing Directors Rodney Mathis and Dirk Rauber 9225 Bee Cave Rd. Building B suite 201 Austin, TX 78733 U.S. Agent for Service of Process, § 2.911(d)(7) Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 06/07/2024 To whom it may concern, As required by section US Code Title 47 § 2.911(d)(7), the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. We, Yunex, LLC (FRN: 0034393090) accept the obligation to act as U.S. agent for service of process. Address: 9925 Bee Cave Rd. Building B Suite 201 Austin, TX 78733 Email: [email protected] FCC registration number (FRN): 0034393090 The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Sincerely, Iouri Nemirovski Field Device Product Manager Yunex Traffic 9225 Bee Cave Road ____________________________ Austin, TX 78733

Brief vom an Unser Zeichen Yunex LLC, 2023 Managing Directors Rodney Mathis and Dirk Rauber 9225 Bee Cave Rd. Building B suite 201 Austin, TX 78733 Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 06.07.2024 To whom it may concern, We, Yunex,LLC FRN: 0034393090, hereby authorize TÜV AUSTRIA GmbH, FRN: 0004968947 to act on our behalf in all matters relating to applications for equipment authorization of OBU2X-US FCC ID: 2BGULOBU2X, including the signing of all documents relating to these matters. Any and all acts carried out by TÜV AUSTRIA GmbH on our behalf shall have the same effect as acts of our own. All statements we make in our request for equipment authorization are true and correct to the best of our knowledge and belief. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Yours sincerely Iouri Nemirovski Field Device Product Manager Yunex Traffic 9225 Bee Cave Road ____________________________ Austin, TX 78733

Coverletter: Yunex LLC wants to get FCC-Certification for C-V2X on-board unit “OBU2X US”. The device has a part 15 (Bluetooth and BLE) transmitter, a licensed module with FCC ID RI7ME910G1W3 and a C-V2X transmitter, which shall be authorized under waiver DA-23-1048. There is also a related KDB inquiry, details are given in the operational description PAG support letter. The unit will get the following FCC-ID: 2BGULOBU2X List of documents: Exhibit Thema File Exhibit 01 Label and placement Label_and_placement.pdf Exhibit 02 Waiver, upper 30 MHz Waiver, compliance Waiver, final rules Applicant Authorization Covered List US Agent for Service of Process 240607_Yunex OBU2X 15. 511808 D01 C-V2X Waiver v01r01.pdf 240607_Yunex OBU2X 16. 511808 D01 C-V2X Waiver v01r01.pdf 240607_Yunex OBU2X 17. 511808 D01 C-V2X Waiver v01r01.pdf Yunex LLC Authorization Letter-OBU2X.pdf Covered List - includes KDB 986446 v02.pdf US_Agent_for _Service_of_process-OBU2X-US.pdf Exhibit 03 External Photos photos_external.pdf * Exhibit 04 Block Diagrams OBU81_DOC9004_Block-diagram_OBU2X-US.pdf * Exhibit 05 Schematic Diagrams C97043-C3081-L120-04-7411 Mainboard.pdf V2X_schematic_S24708-E100-B600-2-7411 V2X Module.pdf Exhibit 06 Testreport Part 15 Testreport C-V2X Testreport simul. TX Part 15 antenna information 2023-IN-AT-TICL-E-EX-0-000131-FG-001- Rev1_signed.pdf 2023-IN-AT-TICL-E-EX-0-000131-FG-002- Rev2_signed.pdf 2023-IN-AT-TICL-E-EX-0-000131-FG-003- Rev1_signed.pdf Part 15 Antenna Information.pdf Exhibit 07 Test Set-up Photos photos_setup.pdf Exhibit 08 User Manual QSG_OBU2X-US_A24708-E100-A50-07.pdf Exhibit 09 Internal Photos photos_internal.pdf * Exhibit 10 BOM BOM.pdf Exhibit 11 RF exposure 2024-AT-TC-EEE-1-EX-0-000099-FG- 001_signed.pdf * Exhibit 12 PAG Support Letter Operational Description Additional Antenna Info Additional Antenna Info Calibration Procedure TX Power Tolerances PAG support letter.pdf Yutraffic_OBU2X-US-Datasheet_v0_2.pdf BT-Ant dimensions.pdf OBU2X-US_AUT-Report_v2.0-valid.pdf CRATON2_SECTON_cut3.0_V2X_RF_System_Ca libration_Application_Note_v3.3_w.pdf OBU2X-US_RF_Power_Tolerances.pdf Exhibit 13 Cover letter Request for confidentiality Waiver This file Confidentiality_Request-OBU2X-US.pdf DA-23-1048A1.pdf For the Exhibits marked with ‘*’ Yunex LLC requested Long-Term Confidentiality according to 47 CFR 0.457 and 0.459 of the FCC rules because these are sensitive parts owned by this company and include much of know-how or sensitive data, it will not be provided to the public. The labelling on some photos may be not the actual status. The correct labelling is shown on the label photo in Exhibit 1.

Yunex LLC, 2024 Managing Directors Rodney Mathis and Dirk Rauber 9225 Bee Cave Rd. Building B suite 201 Austin, TX 78733 Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 06.26.2024 To whom it may concern, Pursuant to Paragraphs 50.457 and 0.459 of fine Commission’s Rules (47 CFR.) and Section §552(b)(4) of the Freedom of Information Act Yunex LCC formally requests confidentiality for the following products: FCC ID 2BGULOBU2X For the product stated above, we request that the following information be held confidential: • Circuit diagrams (schematics), block diagram, operational description, bill of materials (BOM), and PCB design data submitted as Equipment Authorization Electronic Filing attachment: “OBU2X_US_Electronics.zip” The above exhibits contain Company trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our Roadside Unit. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Yours sincerely Iouri Nemirovski Field Device Product Manager Yunex Traffic 9225 Bee Cave Road ____________________________ Austin, TX 78733

Federal Communications Commission Washington, D.C. 20554 November 3, 2023 DA 23-1048 Matthew T. Carlisle, PEMohamed Talas State ITS & Signals Management EngineerDirector Systems Engineering NC Department of TransportationNYC Department of Transportation Transportation Mobility & Safety DivisionDivision of Traffic Operations 1561 Mail Service Center34-02 Queens Blvd., 2 nd Floor Raleigh, NC 27699-1561Long Island City, NY 11101 Kenneth A. DoyleRobert B. Kelly Interim Director of Smart CitiesKahina I. Scheige 1100 Market Street, Suite 300Squire Patton Boggs (US) LLP Chattanooga, TN 374022250 M. Street NW Washington, DC 20037 Counsel to P3Mobility Robert TownsendJarrett Wendt Vice President, Government AffairsCEO & Co-Founder DENSO International America, Inc.Spoke Safety, Inc. 24777 Denso Drive1459 South Steele Street Southfield, MI 48033Denver, CO 80210 Eva ZhengRodney Mathis Certification EngineerManaging Director Rolling Wireless S.àr.l.Yunex LLC 15, rue Edward Steichen9225 Bee Cave Rd. 2450 LuxembourgBuilding B, Suite 201 Austin, CA 78733 Re:Requests for Waiver of 5.9 GHz Band Rules to Permit Initial Deployment of Cellular Vehicle-to-Everything Technology, ET Docket No. 19-138 Dear Petitioners: We, the Public Safety and Homeland Security Bureau, the Office of Engineering and Technology, and the Wireless Telecommunications Bureau (collectively, the Bureaus) have before us eight individual waiver requests submitted by certain state, local, and municipal transportation authorities including the North Carolina Department of Transportation, the New York City Department of Transportation, and the City of Chattanooga, Tennessee, a private automated vehicle technology company, Sonamore, Inc. d/b/a P3Mobility, and four equipment manufacturers, DENSO International America, Inc, Rolling Wireless S.àr.l. RX113A, Spoke Safety LLC, and Yunex LLC (collectively, the “Waiver Applicants” or October 31, 2023 Page 2DA 23-1048 “Applicants”). 1 For the reasons stated below, and subject to the technical parameters and conditions set forth herein, the Bureaus grant each of the Applicants’ waiver requests to deploy Cellular Vehicle-to- Everything (C-V2X) technology within the 5.895–5.925 GHz band. I.Background Each Waiver Applicant 2 seeks a waiver of certain Commission rules applicable to intelligent transportation systems (ITS) operations to allow C-V2X technology to be used in the upper 30-megahertz portion (5.895–5.925 GHz) of the 5.9 GHz (5.850–5.925 GHz) band prior to adoption of final C-V2X- based rules. 3 The C-V2X equipment subject to the Waiver Requests would operate in the 5905–5925 MHz portion of the 5.9 GHz band using a 20-megahertz channel. Waiver Requests. Several Applicants seek a waiver of 47 CFR § 2.106(d)(160) 4 to allow the 5.905–5.925 GHz band to be used for C-V2X safety systems operating in the Intelligent Transportation System radio service. 5 Each Applicant also seeks a waiver of certain part 90 and part 95 rules 6 (47 CFR 1 See Appendix A: List of Waiver Petitions/Applicants, attached hereto. Note that Sonamore, Inc. d/b/a P3Mobility (hereafter, P3Mobility) previously received a waiver as an equipment manufacturer to provide them eligibility to obtain the necessary equipment certifications for their C-V2X enabled roadside units (RSUs) and on-board units (OBUs). See Requests for Waiver of 5.9 GHz Band Rules to Permit Initial Deployment of Cellular Vehicle-to- Everything Technology, Order at 6–7 (Rel. Aug. 16, 2023). In this Order, we address the additional request in P3Mobility’s waiver petition to operate a system of C-V2X enabled RSUs and OBUs as an ITS licensee in a specified geographic area. 2 Hereafter, individual waiver requests and supplemental requests, as referenced in Appendix A, will be referred to as follows: (1) state, local, and municipal transportation authorities for North Carolina (NCDOT Waiver Request), New York City (NYCDOT Waiver Request or NCYDOT Waiver Supplement), the City of Chattanooga, Tennessee (Chattanooga Waiver Request or Chattanooga Waiver Supplement); (2) automated vehicle technology company, Sonamore, Inc. d/b/a P3Mobility (P3Mobility Waiver Request or P3Mobility Waiver Supplement); and (3) equipment manufacturers, DENSO International America, Inc. (DENSO Waiver Request), Rolling Wireless S.à.r.l., RX113A (RX113A Waiver Request or RX113A Waiver Supplement), Spoke Safety, LLC (Spoke Safety Waiver Request or Spoke Safety Waiver Supplement), and Yunex LLC (Yunex Waiver Request or Yunex Waiver Supplement). 3 See, e.g., NCDOT Waiver Request at 1; NYCDOT Waiver Request at 1; Chattanooga Waiver Request at 1; P3Mobility Waiver Request at 1; DENSO Waiver Request at 1; RX113A Waiver Request at 1; Spoke Safety Waiver Request at 1; Yunex Waiver Request at 1. 4 “In the band 5895–5925 MHz, the use of the non-federal mobile service is limited to operations in the Intelligent Transportation Systems radio service.” 47 CFR § 2.106(d)(160). As the Bureaus previously noted in the Joint Waiver Order, section 2.106 merely limits operations in the upper 30 megahertz of the 5.9 GHz band to ITS services, so such a waiver is unnecessary. See Joint Waiver Order at 5. None of the Waiver Applicants contemplates deploying non-ITS operations in the upper 30 megahertz of the 5.9 GHz band. Therefore, the requests for a waiver of this provision are dismissed as moot. 5 See, e.g., NCDOT Waiver Request at 1; NYCDOT Waiver Request at 1; P3Mobility Waiver Request at 1; RX113A Waiver Request at 1; Spoke Safety Waiver Request at 1; Yunex Waiver Request at 1. 6 See, e.g., NCDOT Waiver Request at 1, footnote 2; NYCDOT Waiver Request at 1, fn. 2; Chattanooga Waiver Request at 1, fn. 3; P3Mobility Waiver Request at 1, fn. 2; DENSO Waiver Request at 1, fn. 3; RX113A Waiver Request at 1, fn. 2; Spoke Safety Waiver Request at 1, fn. 2; Yunex Waiver Request at 1. October 31, 2023 Page 3DA 23-1048 §§ 90.375, 90.377, 90.379, 95.3159, 7 95.3163, 95.3167, and 95.3189) 8 governing the operation of Dedicated …

Text truncated - open the document above for the full version.

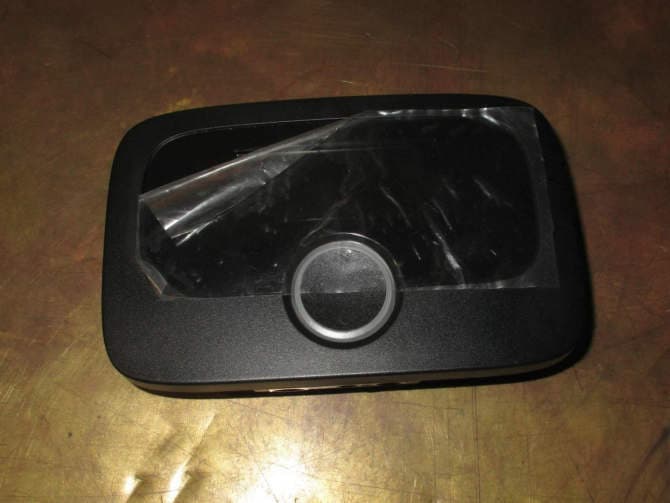

www.tuv.at | [email protected] | T‹V Æ DN- FM-INE-EMV-ALL-Anl2_en Rev00 Appendix 2 Photodocumentation Description: Front view Division: Industry & Energy Test report reference: 2023-IN-AT-TICL-E-EX-0- 000131-FG-001-Rev1 Page: 1 of 15 Date: 28.06.2024 www.tuv.at | [email protected] | T‹V Æ DN- FM-INE-EMV-ALL-Anl2_en Rev00 Appendix 2 Photodocumentation Description: Rear view Division: Industry & Energy Test report reference: 2023-IN-AT-TICL-E-EX-0- 000131-FG-001-Rev1 Page: 2 of 15 Date: 28.06.2024 www.tuv.at | [email protected] | T‹V Æ DN- FM-INE-EMV-ALL-Anl2_en Rev00 Appendix 2 Photodocumentation Description: Battery compartment opened Division: Industry & Energy Test report reference: 2023-IN-AT-TICL-E-EX-0- 000131-FG-001-Rev1 Page: 3 of 15 Date: 28.06.2024

1 2 34 A B C D E DIN A4 PROPRIETARY DATA ALL RIGHTS RESERVED Intern © YUNEX TRAFFIC GmbH 2021 3 03 Yunex, LLC 9225 Bee Cave Rd. Building B Suite 201 Austin, TX 78733 OBU2X US SAP P/N: L24708-E100-B551 R02 S/N: 07901046211810050000002000 Prod.-Date: YY/WW 12/24 V 3 A Made in EU OBU2X US SAP P/N: L24708-E100-B551 R02 S/N: 07901046211810050000002000 Prod.-Date: YY/WW 12/24 V 3 A Made in EU Yunex, LLC 9225 Bee Cave Rd. Building B Suite 201 Austin, TX 78733 2:1 2) 3) 4) 5)9)10)11) 12) 1) Compliant to RoHS directive 2011/65/EU. No substances for which the REACH regulation EU 1907/2006 requires notification Standard: Scale: 1:1 Weight: - ISO 2768-mK Material: Polyester (Polynacre), colour: white Surface: satin aspect Date 24-Apr-2023 Name Biedermann Appr. OBU2X US unit label (CUT3.0) 04 Address changed 12.06.2024KitSystem Creo 4.0 03revision no. R02 05.10.2023Bie C97158-C3081-C125-*-06 Sheet 1 02data matrix corr. 12.07.2023Bie 01initial24.04.2023Bie1 Revision Change numberDate of issue Name 6) Created with Creo 4.0 stored as C97158-C3081-C125.drw 7)8) Information: Lettering above executed in outline style (for practical reasons). All printed lettering has to be filled ! Printed on self adhesive, tamper indicating plastic film, UV resistant suitable for temperature range -40∞ to +90∞C Colour of labelling: deep black, matt, RAL 9005 Font (unless otherwise stated): Arial regular 1) YUNEX logo: Font acc. Yunex template, height 3 mm, ratio 1 2) Product name: Height 2.0, ratio 1 3) SAP part number: Height 2.0, ratio 1 4) Plain writing serial number: Height 2.0, ratio 0.9 (generated by system, 26 digits) 5) Data Matrix serial number: IEC 16022:2000 / ECC200, min. 8x8 mm 6) Date of production (year/week): Height 2.0, ratio 0.8 7) Country of origin: Height 2.0, ratio 1.0 8) Area for additional information, Height 2.0, ratio 0.8 (tbd) 9) Range of use: Height 2.0, ratio 0.8 10) Revision no.: Height 1.5, ratio 1.0 11) WEEE symbol 12) Name & address of vendor: Height 1.2, ratio 0.80 1 2 34 A B C D E DIN A4 PROPRIETARY DATA ALL RIGHTS RESERVED Intern © YUNEX TRAFFIC GmbH 2021 80 85 (4.5) OBU2X US OBU P/N: L24708-E100-B551 R02 S/N: 07901046211810050000002000 SAP P/N: L24708-E1000-B500 R02 Prod.-Date: YY/WW 12/24 V 3 A Made in EU Yunex, LLC 9225 Bee Cave Rd. Building B Suite 201 Austin, TX 78733 Yunex, LLC 9225 Bee Cave Rd. Building B Suite 201 Austin, TX 78733 FCC-ID: 2BGULOBU2X S/N: 07901046211810050000002000 03 12) Compliant to RoHS directive 2011/65/EU. No substances for which the REACH regulation EU 1907/2006 requires notification Standard: Scale: 1:1 Weight: - ISO 2768-mK Material: ADEMKOTE, colour: white, thickness: 0.05 Surface: satin aspect Date 25-Apr-2023 Name Biedermann Appr. OBU2X US Box label (CUT3.0) 04 new FCC & address 12.06.2024KitSystem Creo 4.0 03 revision no. R02 05.10.2023Bie C97158-C3081-C126-*-06 Sheet 1 02 data matrix, rev.no. 11.07.2023Bie 01initial25.04.2023Bie1 Revision Change numberDate of issue Name area for WEEE-symbol (crossed dust bin) self adhesive liner on protective paper 11) 10) 1) 6) 5) 9) 3) 7) 4) 8) 2) 14) Information: Printed on self adhesive, tamper indicating plastic film, UV resistant suitable for temperature range -40∞ to +90∞C Material: ADEMKOTE, colour: white, thickness: 0.05 mm Colour of labelling: deep black, matt, RAL 9005 Fonts (unless otherwise stated): Arial regular 1) YUNEX logo: Height 4.5 mm 2) Product name: Height 2.5, ratio 0.9 3) Part number OBU unit: Height 2.0, ratio 1 4) Name & address of manufacturer: Height 1.2, ratio 1 5) Data Matrix serial number: IEC 16022:2000 / ECC200, 8x8 mm 6) Plain writing serial number: Height 2.5, ratio 1 (generated by system, 26 digits) 7) Date of production (year/week): Height 2.0, ratio 1 8) FCC-ID: Height 2.0 9) Range of use: Height 2.0, ratio 1 10) Data Matrix serial number: IEC 16022:2000 / ECC200, 10x10 mm 11) Plain writing serial number (26 digits): Height 3.0, ratio 1 12) Revision no. OBU unit: Height 1.5, ratio 1.0 13) SAP part number: Height 2.0, ratio 1 14) Country of origin: Height 2.0, ratio 1 13) Created with Creo 4.0 stored as C97158-C3081-C126.drw A A 2:1 1 2 34 A B C D E DIN A4 PROPRIETARY DATA ALL RIGHTS RESERVED Intern © YUNEX TRAFFIC GmbH 2021 (72) (21.3) 2 16 FCC ID: 2BGULOBU2X This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Contains FCC ID: RI7ME910G1W3 2:1 1) 2) 02 Compliant to RoHS directive 2011/65/EU. No substances for which the REACH regulation EU 1907/2006 requires notification Standard: Scale: 2:1 Weight: - ISO 2768-mK Material: Polyester (Polynacre), colour: white Surface: satin aspect Date 24-Apr-2023 Name Biedermann Appr. OBU2X US FCC-addon label System Creo 4.0 03 new FCC ID 12.06.2024 Kit C97158-C3081-C127-*-06 Sheet 1 02 Telit FCC ID added 03.11.2023Bie 01initial24.04.2023Bie1 Revision Change numberDate of issue Name Created with Creo 4.0 stored as C97158-C3081-C127.drw Information: Lettering above executed in outline style (for practical reasons). All printed lettering has to be filled ! Printed on self adhesive, tamper indicating plastic film, UV resistant suitable for temperature range -40∞ to +90∞C Colour of labelling: deep black, matt, RAL 9005 Font (unless otherwise stated): Arial WGL regular 1) FCC-ID of OBU unit: Height 3 mm, ratio 1 2) FCC text: Height 2.1, ratio 1 1 2 34 A B C D E DIN A4 PROPRIETARY DATA ALL RIGHTS RESERVED Intern © YUNEX TRAFFIC GmbH 2021 (92.05) (144.81) Compliant to RoHS directive 2011/65/EU. No substances for which the REACH regulation EU 1907/2006 requires notification Standard: Scale: 1:1 Weight: - ISO 2768-mK Material: Surface: Date 27-Sep-21 Name Biedermann Appr. Sitraffic OBU2X (rear view) System Pro/ENGINEER L24708-E100-B550-*-06 Sheet 2 01initial27.09.2021Bie3 Revision Change numberDate of issueName

www.tuv.at | [email protected] | T‹V Æ DN- FM-INE-EMV-ALL-Anl2_en Rev00 Appendix 2 Photodocumentation Description: Case opened Division: Industry & Energy Test report reference: 2023-IN-AT-TICL-E-EX-0- 000131-FG-001-Rev1 Page: 4 of 15 Date: 28.06.2024 www.tuv.at | [email protected] | T‹V Æ DN- FM-INE-EMV-ALL-Anl2_en Rev00 Appendix 2 Photodocumentation Description: Main PCB view #1 Division: Industry & Energy Test report reference: 2023-IN-AT-TICL-E-EX-0- 000131-FG-001-Rev1 Page: 5 of 15 Date: 28.06.2024 www.tuv.at | [email protected] | T‹V Æ DN- FM-INE-EMV-ALL-Anl2_en Rev00 Appendix 2 Photodocumentation Description: Main PCB view #2 Division: Industry & Energy Test report reference: 2023-IN-AT-TICL-E-EX-0- 000131-FG-001-Rev1 Page: 6 of 15 Date: 28.06.2024 www.tuv.at | [email protected] | T‹V Æ DN- FM-INE-EMV-ALL-Anl2_en Rev00 Appendix 2 Photodocumentation Description: C-V2X PCB view #1 Division: Industry & Energy Test report reference: 2023-IN-AT-TICL-E-EX-0- 000131-FG-001-Rev1 Page: 7 of 15 Date: 28.06.2024 www.tuv.at | [email protected] | T‹V Æ DN- FM-INE-EMV-ALL-Anl2_en Rev00 Appendix 2 Photodocumentation Description: C-V2X PCB view #2 Division: Industry & Energy Test report reference: 2023-IN-AT-TICL-E-EX-0- 000131-FG-001-Rev1 Page: 8 of 15 Date: 28.06.2024 www.tuv.at | [email protected] | T‹V Æ DN- FM-INE-EMV-ALL-Anl2_en Rev00 Appendix 2 Photodocumentation Description: RF Part with GNSS and LTE Antenna Division: Industry & Energy Test report reference: 2023-IN-AT-TICL-E-EX-0- 000131-FG-001-Rev1 Page: 9 of 15 Date: 28.06.2024 www.tuv.at | [email protected] | T‹V Æ DN- FM-INE-EMV-ALL-Anl2_en Rev00 Appendix 2 Photodocumentation Description: LTE Antenna detail view Division: Industry & Energy Test report reference: 2023-IN-AT-TICL-E-EX-0- 000131-FG-001-Rev1 Page: 10 of 15 Date: 28.06.2024 www.tuv.at | [email protected] | T‹V Æ DN- FM-INE-EMV-ALL-Anl2_en Rev00 Appendix 2 Photodocumentation Description: C-V2X Antenna detail view Division: Industry & Energy Test report reference: 2023-IN-AT-TICL-E-EX-0- 000131-FG-001-Rev1 Page: 11 of 15 Date: 28.06.2024

Part Lister output for 97040-C3081-P100 C97043-C3081-L122-XX-7411_1: each component in a row with function code Part Number EMS-PartNr Value Tolerance Voltage Description Hersteller Bestelltext critical 2nd Source 2nd Source 2 2nd Source 3 2nd Source 4 2nd Source 5 Footprint Commodity QTY Ref Designator --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- A5E00723298 6n8 0.05 IND 6n8 700mA Q25 0402 Murata LQW15AN6N8J0ZD Ind_1.0x0.5x0.6mm (0402) 1L503 A5F00077978 0R 0.01 WID 0R 1/10W 0603 VishayDale CRCW06030000Z0EBC 603 1R156 A5F00077978 0R 0.01 WID 0R 1/10W 0603 VishayDale CRCW06030000Z0EBC 603 1R361 A5F00077978 0R 0.01 WID 0R 1/10W 0603 VishayDale CRCW06030000Z0EBC 603 1R55 A5F00077978 0R 0.01 WID 0R 1/10W 0603 VishayDale CRCW06030000Z0EBC 603 1R704 A5F00077978 0R 0.01 WID 0R 1/10W 0603 VishayDale CRCW06030000Z0EBC 603 1R710 A5F00077978 0R 0.01 WID 0R 1/10W 0603 VishayDale CRCW06030000Z0EBC 603 1R711 A5F00077978 0R 0.01 WID 0R 1/10W 0603 VishayDale CRCW06030000Z0EBC 603 1R804 A5F00077978 0R 0.01 WID 0R 1/10W 0603 VishayDale CRCW06030000Z0EBC 603 1R850 A5F00078097 10R 0.01 WID 10R0 1% 1/10W 0603 VishayDale CRCW060310R0FKEB RC0603FR-0710RL, Yageo ERJ-3EKF10R0V, Panasonic (nicht bevorzugt) 603 1R519 A5F00078097 10R 0.01 WID 10R0 1% 1/10W 0603 VishayDale CRCW060310R0FKEB RC0603FR-0710RL, Yageo ERJ-3EKF10R0V, …
