2BGYK-LKS059XBluetooth speaker

LKS059X Instruction manual Pleasereadthe productmanualbeforeuse to ensurethatyou can use thisproductcorrectly. In orderto betterservecustomers,productperformancespecificationsmay change,so the contentof thismanualmay alsobe updatedwithoutnotice.In orderto maintaingoodperformance, do not use it in an environmentthatis too cold,too hot,dusty,or humid.The recommended operatingtemperatureis -10°Cto +40°C。 1 ：Productfeatures,functiondescription 1，Bluetooth: Afterthe poweris turnedon, the Bluetoothmodeis enabledby default,and the "dingdong" startupprompttoneis played.Whenthe Bluetoothconnectionis successful,a "beep"prompt toneis playedwhenthe Bluetoothconnectionis disconnected. 2，Thisproductfeaturesa one-to-Ninterconnectionfunction,whichis enabledby default whenturnedon. Whenmultiplesimilarproductsare withinthe samespaceand withina straight-linedistanceof no morethan5 meters,a mobilephonecan connectto any one of the devicesas the host.Oncethe phonesuccessfullyconnectsto one of the devices,the otherdevices willdefaultto beingsecondarydevices. 2：Specification parameter Power input: Power cord<3M, Power input: Only DC Frequency response: 20HZ-20KHZ SNR: ≥60db Maximum distortion degree: ≤10% Maximum output power: 10W Horn impedance: 4 OhMs Bluetooth distance: open distance ≥10 meters Bluetooth transmission frequency: 2.4G Bluetooth name: eMoTion Sterling CY115 & LKS059X The followingis the productwiringdiagramand productlist 1 Bluetoothboxhost,cablelength1M 1PCS4123MMhornmeshcover(3pieces)2PCS 2 Speakerextensioncable,length1M 2PCS5Screw/M3*12white18 PCS 3 3-inchfull-frequencyspeaker4Ω10W 2PCS FCCSTATEMENT 1.ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothe followingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference,and (2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethat maycauseundesiredoperation. 2.Changesormodificationsnotexpresslyapprovedbythepartyresponsiblefor compliancecouldvoidtheuser'sauthoritytooperatetheequipment. NOTE:Thisequipmenthasbeentestedandfoundtocomplywiththelimitsfora ClassBdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesigned toprovidereasonableprotectionagainstharmfulinterferenceinaresidential installation. Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnot installedandusedinaccordancewiththeinstructions,maycauseharmful interferencetoradiocommunications.However,thereisnoguaranteethat interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescause harmfulinterferencetoradioortelevisionreception,whichcanbedeterminedby turningtheequipmentoffandon,theuserisencouragedtotrytocorrectthe interferencebyoneormoreofthefollowingmeasures: Reorientorrelocatethereceivingantenna. Increasetheseparationbetweentheequipmentandreceiver. Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhich thereceiverisconnected. Consultthedealeroranexperiencedradio/TVtechnicianforhelp. RFwarningstatement: ThedevicehasbeenevaluatedtomeetgeneralRFexposurerequirement.Thedevicecanbeused inportableexposureconditionwithoutrestriction.

DongGuanCityLuckkingElectronicsCo.,Ltd CoveredEquipmentCertificationAttestationLetter 12/25/2025 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA ATTN.:ReviewingEngineer FCCID:2BGYK-LKS059X DongGuanCityLuckkingElectronicsCo.,Ltd(“theapplicant”)certifiesthatthe equipmentforwhichauthorizationissoughtisnot“covered”equipmentprohibitedfrom receivinganequipmentauthorizationpursuanttosection2.903oftheFCCrules. Note:Iftheequipmentforwhichtheapplicantseeksauthorizationisproducedby anyoftheentitiesidentifiedonthecurrentCoveredList,theapplicantshould includeanexplanationonwhytheequipmentisnot“covered”equipment. DongGuanCityLuckkingElectronicsCo.,Ltd(“theapplicant”)certifiesthat,asofthe dateofthefilingoftheapplication,theapplicantisnotidentifiedontheCoveredList(as aspecificallynamedentityoranyofitssubsidiariesoraffiliates)asanentityproducing “covered”equipment. DongGuanCityLuckkingElectronicsCo.,Ltd(“theapplicant”)certifiesthatthe equipmentforwhichauthorizationissoughtdoesnotincludecybersecurityoranti-virus softwareproducedorprovidedbyKasperskyLab,Inc.oranyofitssuccessorsand assignees,includingequipmentwithintegratedKasperskyLab,Inc.(oranyofits successorsandassignees)cybersecurityoranti-virussoftwarepursuanttoDA-24-886 andKDB986446D01CoveredEquipmentGuidancesectionB(2a). Signed: Printedname:SONNYGUAN Title:Manager CompanyName:DongGuanCityLuckkingElectronicsCo.,Ltd Date:12/25/2025

DongGuanCityLuckkingElectronicsCo.,Ltd * theapplicantmustdesignateacontactlocatedintheUnitedStatesforpurposesofactingasthe applicant’sagentforserviceofprocess,regardlessofwhethertheapplicantisadomesticorforeign entity.AnapplicantlocatedintheUnitedStatesmaydesignateitselfastheagentforserviceofprocess. SC6015903 U.S.AgentDesignationforServiceofProcess- CertificationAttestationLetter 12/25/2025 TO:FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 ATTN.:ReviewingEngineer FCCID:2BGYK-LKS059X FRNofapplicant:0035553072 Persection2.911(d)(7)oftheFCCrules,[DongGuanCityLuckkingElectronicsCo.,Ltd FRN:0035553072](“theapplicant”)certifiesthattheequipmentforwhichauthorizationissought isdesignatedtothefollowingU.S.agent*forserviceofprocess: CompanyName:GlobalProductServicesandConsultationLLC FCCRegistrationNumber(FRN):0033406703 PhysicalU.S.CompanyAddress:328WPalmAve.Monrovia,CA91016 ContactPerson:MichaelChan Tel:+16263664358 AgentEmailAddress:[email protected] Theabovecontactpersonacceptstheobligationforserviceofprocess. Theapplicantacceptstomaintainanagentfornolessthanoneyearafterthegranteehas terminatedallmarketingandimportationortheconclusionofanyCommission-related proceedinginvolvingtheequipment. ApplicantSigned:AgentSigned(ifdifferentfromApplicant): Signed: Printedname:SONNYGUAN Title:Manager CompanyName: DongGuanCityLuckking ElectronicsCo.,Ltd Date:12/25/2025 Signed: Printedname:MichaelChan Title:TechnicalDirector CompanyName:GlobalProductServicesand ConsultationLLC Date:1/23/2026

DongGuanCityLuckkingElectronicsCo.,Ltd DATE:December25,2025 FederalCommunicationsCommission Authorization&EvaluationDivision 7345OaklandMillsRoad Columbia,Maryland21046 AuthoritytoActasAgent Onourbehalf,IappointCTSLTesting(Dongguan)Co.,Ltd.(Building1,HoujieRoad, HoujieTown,GuangdongProvinceDongguanCity,China)toactasouragentinthe preparationofthisapplicationforequipmentcertification.Icertifythatsubmitted documentsproperlydescribethedeviceorsystemforwhichequipmentcertificationis sought.Ialsocertifythateachunitmanufactured,importedormarketed,asdefinedinthe FederalCommunicationsCommission’sregulationswillhaveaffixedtoitalabelidentical tothatsubmittedforapprovalwiththisapplication. Forinstanceswhereourauthorizedagentsignstheapplicationforcertificationonour behalf,Iacknowledgethatallresponsibilityforcomplyingwiththetermsandconditions forcertification,stillresideswithDongGuanCityLuckkingElectronicsCo.,Ltd (Building1,No.3,QinghutouInnovationRoadTangxiaTown,DongguanCity, GuangdongChina) <Signature> Name:SONNYGUAN Title:Manager ApplicantCompany:DongGuanCityLuckkingElectronicsCo.,Ltd

Date:December25,2026 FederalCommunicationsCommission Authorization&EvaluationDivision 7345OaklandMillsRoad Columbia,Maryland21046 RE:LETTEROFAGENTAUTHORIZATION ToWhomItMayConcern: We,theundersigned,herebyauthorizeComplianceTesting,LLCtoactonourbehalfinallmatters relatingtoapplicationforequipmentauthorization,includingthesigningofalldocumentsrelatingto thesematters. Wealsoherebycertifythatnopartytotheapplicationauthorizedhereunderissubjecttothedenialof benefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseActof1988,21 U.S.C.853(a). Sincerely, <Signature> Name:SONNYGUAN Title:Manager Company:DongGuanCityLuckkingElectronicsCo.,Ltd

DATE:December25,2025 EquipmentAutorisationDivision FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 FCCID:2BGYK-LKS059X ProductName:Bluetoothspeaker RequestforConfidentiality PursuanttoSections0.457and0.459ofthecommission’srules,weherebyrequestthat thefollowingdocumentsbeheldconfidential: (Listherethedocumentsforwhichyouareseekingconfidentiality–forexample...)  Schematics Blockdiagram Operationdescription Thesematerialscontaintradesecretsandproprietaryinformationandarenot customarilyreleasedtothepublic.Thepublicdisclosureofthisinformationmightbe harmfultothecompanyandprovideunjustifiedbenefitstoourcompetitors. <Signature> Name:SONNYGUAN Title:Manager Company:DongGuanCityLuckkingElectronicsCo.,Ltd

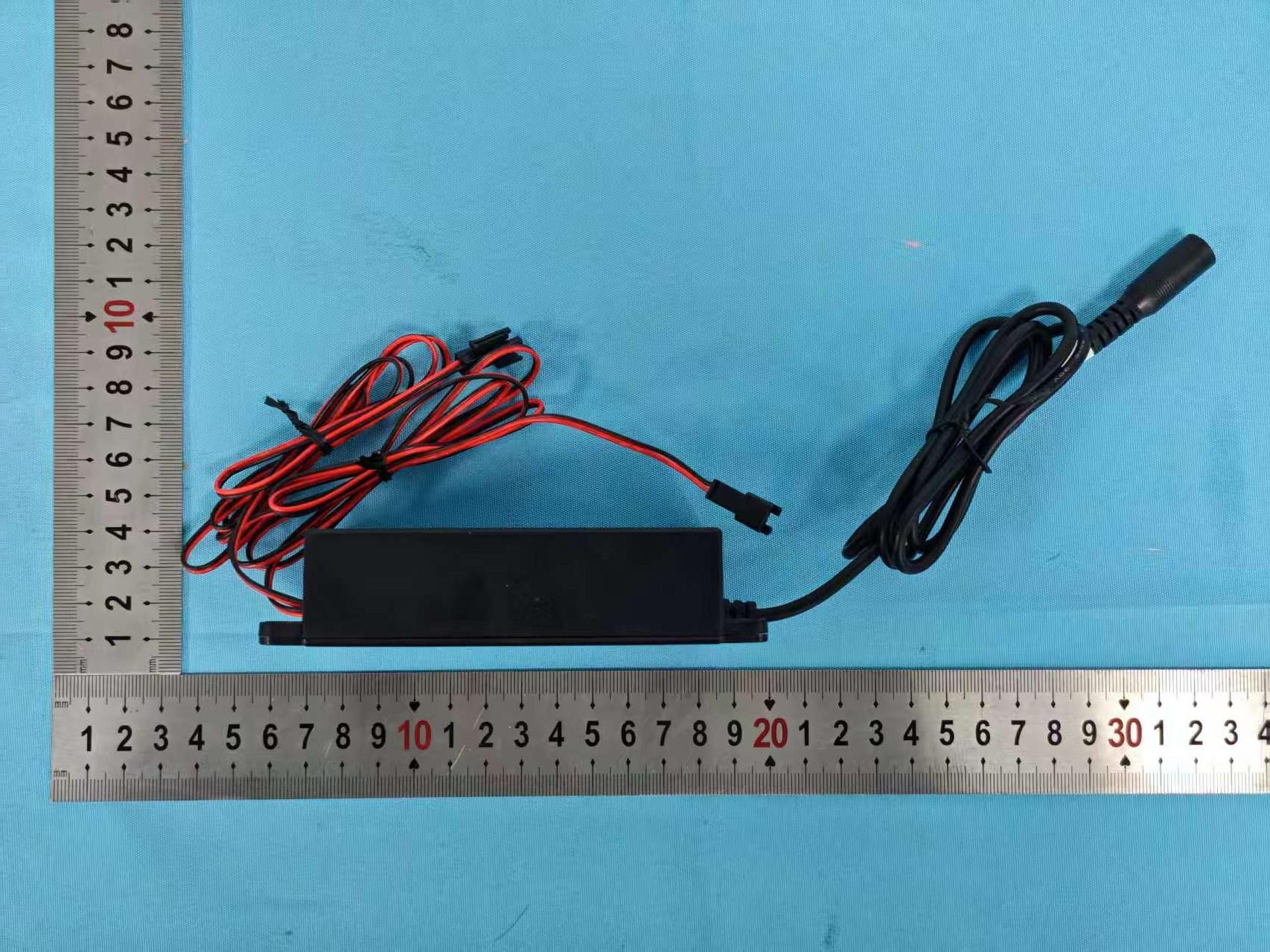

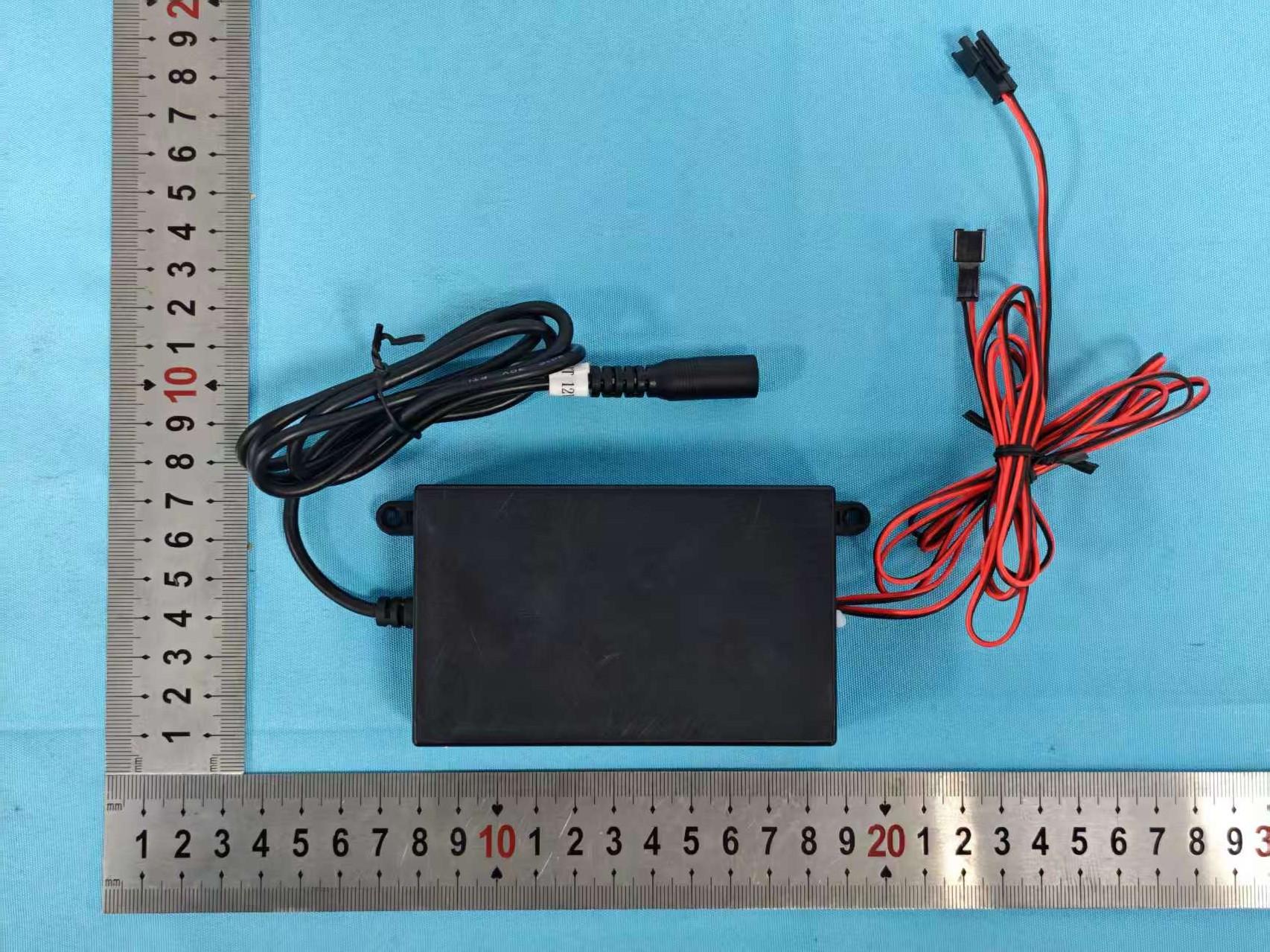

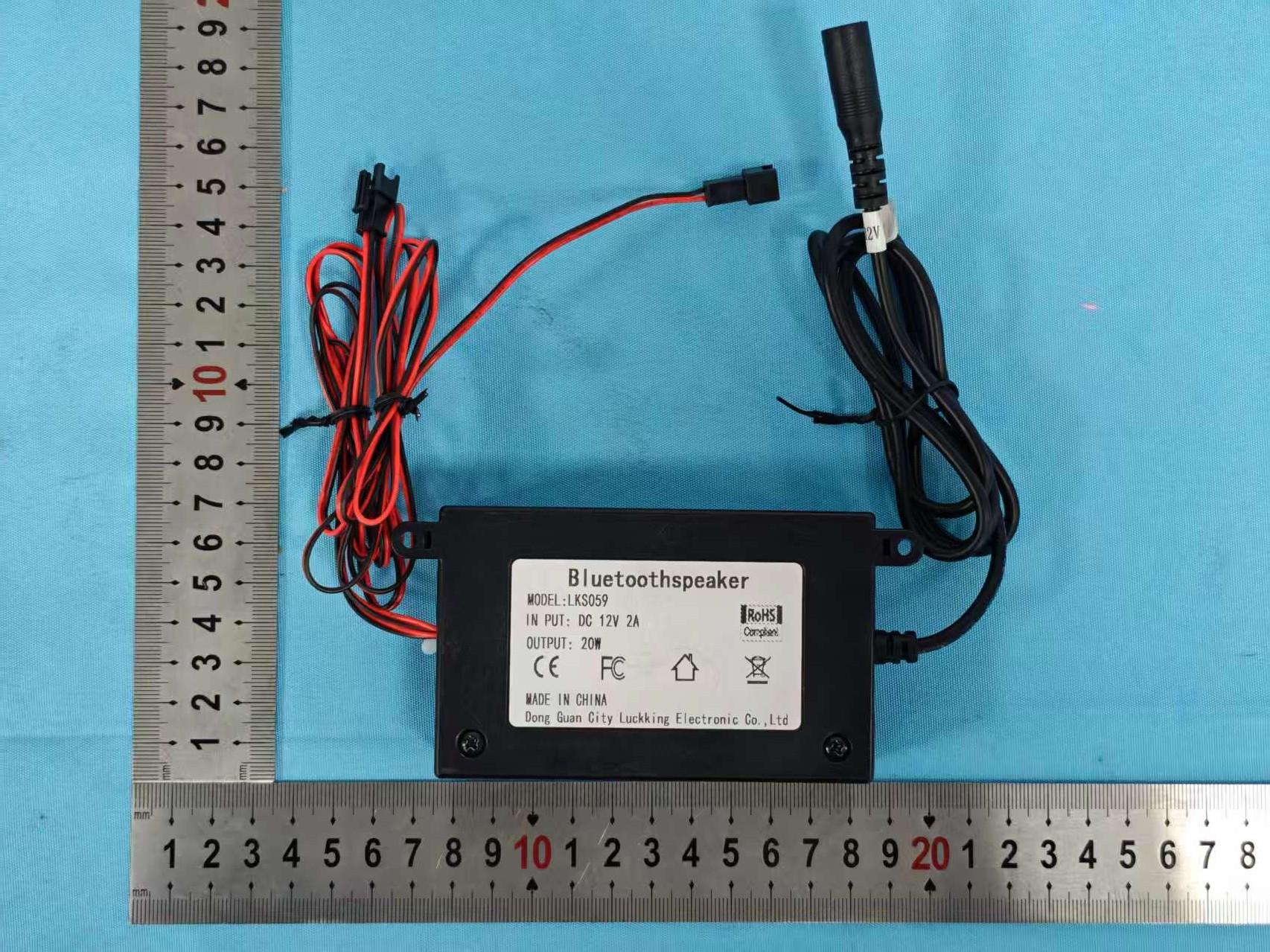

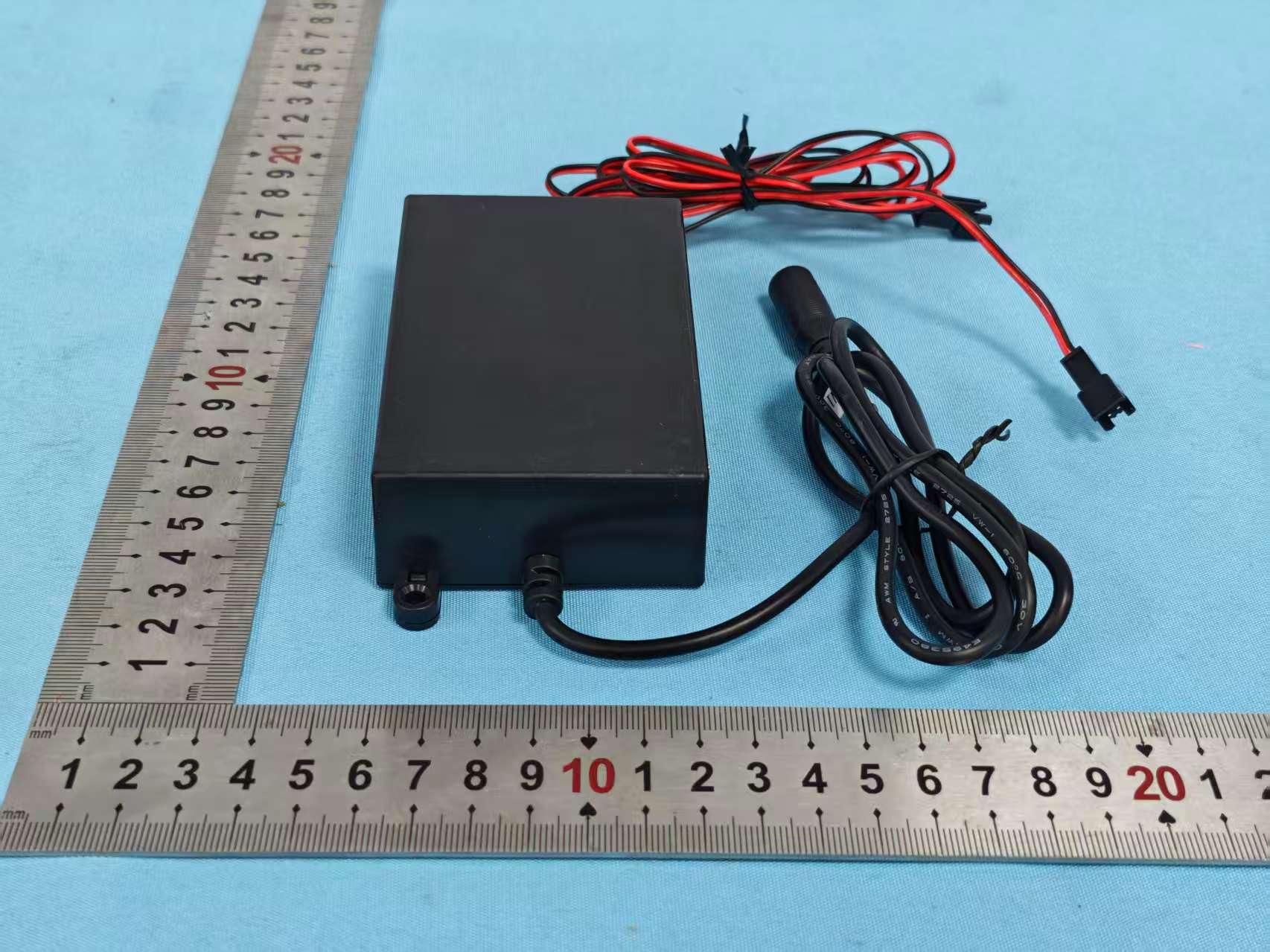

Page1of3 CTSLTesting(Dongguan)Co.,Ltd. ReportNo.:CTSL2521220046ER AnnexA. EUTExternalPhotos FCCID:2BGYK-LKS059X Room112,Building1,No.15,Jiaoyuansongshan,HetianVilltage,HoujieTown,DongguanCity,Guangdong,China. Tel:0769-86009597E-mail:[email protected]://www.ctsl-lab.com AnnexA. EUTExternalPhotos Photo1ExternalphotosofEUT Model:Model:LKS059X Photo2ExternalphotosofEUT Model:LKS059X Page2of3 CTSLTesting(Dongguan)Co.,Ltd. ReportNo.:CTSL2521220046ER AnnexA. EUTExternalPhotos FCCID:2BGYK-LKS059X Room112,Building1,No.15,Jiaoyuansongshan,HetianVilltage,HoujieTown,DongguanCity,Guangdong,China. Tel:0769-86009597E-mail:[email protected]://www.ctsl-lab.com Photo3ExternalphotosofEUT Model:LKS059X Photo4ExternalphotosofEUT Model:LKS059X Page3of3 CTSLTesting(Dongguan)Co.,Ltd. ReportNo.:CTSL2521220046ER AnnexA. EUTExternalPhotos FCCID:2BGYK-LKS059X Room112,Building1,No.15,Jiaoyuansongshan,HetianVilltage,HoujieTown,DongguanCity,Guangdong,China. Tel:0769-86009597E-mail:[email protected]://www.ctsl-lab.com Photo5ExternalphotosofEUT Model:LKS059X Photo6ExternalphotosofEUT Model:LKS059X ------------------------------------------EndofEUTExternalPhotos------------------------------------------

FCCIDLabelingandLocation Thelabelshownshallbepermanentlyaffixedataconspicuouslocationonthedeviceandbe readilyvisibletotheuseratthetimepurchase(Labelingrequirementsper2.925) FCCIDLabel Size:70mm*40mm

Page1of2 CTSLTesting(Dongguan)Co.,Ltd. ReportNo.:CTSL2521220046ER AnnexB. EUTInternalPhotos FCCID:2BGYK-LKS059X Room112,Building1,No.15,Jiaoyuansongshan,HetianVilltage,HoujieTown,DongguanCity,Guangdong,China. Tel:0769-86009597E-mail:[email protected]://www.ctsl-lab.com AnnexB. EUTInternalPhotos Photo1InternalphotosofEUT Model:LKS059X Photo2InternalphotosofEUT Model:LKS059X Antennaposition Page2of2 CTSLTesting(Dongguan)Co.,Ltd. ReportNo.:CTSL2521220046ER AnnexB. EUTInternalPhotos FCCID:2BGYK-LKS059X Room112,Building1,No.15,Jiaoyuansongshan,HetianVilltage,HoujieTown,DongguanCity,Guangdong,China. Tel:0769-86009597E-mail:[email protected]://www.ctsl-lab.com Photo3InternalphotosofEUT Model:LKS059X Photo4InternalphotosofEUT Model:LKS059X ------------------------------------------EndofEUTInternalPhotos------------------------------------------

Page1of4 CTSLTesting(Dongguan)Co.,Ltd. ReportNo.:CTSL2521220046ER RFExposure Evaluation FCCID:2BGYK-LKS059X Room112,Building1,No.15,Jiaoyuansongshan,HetianVilltage,HoujieTown,DongguanCity,Guangdong,China. Tel:0769-86009597E-mail:[email protected]://www.ctsl-lab.com RFExposureEvaluation 1.RFEXPOSUREEVALUATIONMETHOD AccordingtoKDB447498D01GeneralRFExposureGuidancev06,unlessspecifically requiredbythepublishedRFexposureKDBprocedures,standalone1-gheadorbodyand 10-gextremitySARevaluationforgeneralpopulationexposureconditions,bymeasurementor numericalsimulation,isnotrequiredwhenthecorrespondingSARTestExclusionThreshold condition(s),listedbelow,is(are)satisfied. For100MHzto6GHzandtestseparationdistances≤50mm,the1-gand10-gSARtest exclusionthresholdsaredeterminedbythefollowing: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f(GHz)] ≤3.0for1-gSAR,and≤7.5for10-gextremitySAR,where f(GHz)istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison AccordingtoFCC1.1310:Thecriterialistedinthefollowingtableshallbeusedto evaluatetheenvironmentimpactofhumanexposuretoradiofrequency(RF)Radiation asspecifiedin§1.1307(b) EUTSpecification EUTBluetoothspeaker Frequencyband (Operating) WLAN:2.412GHz~2.462GHz WLAN:5.150GHz~5.250GHz WLAN:5.725GHz~5.850GHz OthersBT:2402-2480MHz DevicecategoryPortable(<20cmseparation) Mobile(>20cmseparation) Others ExposureclassificationOccupational/Controlledexposure(S=5mW/cm2) GeneralPopulation/Uncontrolledexposure(S=1mW/cm2) AntennadiversitySingleantenna Multipleantennas Txdiversity Rxdiversity Tx/Rxdiversity Max.outputpower0.75dBm(0.001189W) Antennagain(Max)1.9dBi EvaluationappliedMPEEvaluation SAREvaluation Page2of4 CTSLTesting(Dongguan)Co.,Ltd. ReportNo.:CTSL2521220046ER RFExposure Evaluation FCCID:2BGYK-LKS059X Room112,Building1,No.15,Jiaoyuansongshan,HetianVilltage,HoujieTown,DongguanCity,Guangdong,China. Tel:0769-86009597E-mail:[email protected]://www.ctsl-lab.com 2.SARTestExclusionThresholdsfor100MHz–6GHzand≤50 mm ApproximateSARTestExclusionPowerThresholdsatSelectedFrequenciesandTest SeparationDistancesareillustratedinthefollowingTable. The1-gand10-gSARtestexclusionthresholdsfor100MHzto6GHzattestseparation distances≤50mmaredeterminedby: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f(GHz)]≤3.0for1-gSARand≤7.5for10-gextremitySAR,where f(GHz)istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50 mmandfortransmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtest separationdistanceis<5mm,adistanceof5mmisappliedtodetermineSARtest exclusion. Page3of4 CTSLTesting(Dongguan)Co.,Ltd. ReportNo.:CTSL2521220046ER RFExposure Evaluation FCCID:2BGYK-LKS059X Room112,Building1,No.15,Jiaoyuansongshan,HetianVilltage,HoujieTown,DongguanCity,Guangdong,China. Tel:0769-86009597E-mail:[email protected]://www.ctsl-lab.com 3.ConductedPowerResult Maximummeasuredtransmitterpower: BT(BR+EDR) Mode Frequency Measured Peakoutput power Measured Peakoutput power Target power Antennagain (MHz)(dBm)(mW)(dBm)(dBi)(Linear) GFSK 2402-0.600.870±11.91.5488 2441-0.490.890±11.91.5488 2480-0.890.810±11.91.5488 π/4-DQPSK 24020.301.070±11.91.5488 24410.401.100±11.91.5488 24800.021.000±11.91.5488 8-DPSK 24020.641.160±11.91.5488 24410.751.190±11.91.5488 24800.381.090±11.91.5488 Page4of4 CTSLTesting(Dongguan)Co.,Ltd. ReportNo.:CTSL2521220046ER RFExposure Evaluation FCCID:2BGYK-LKS059X Room112,Building1,No.15,Jiaoyuansongshan,HetianVilltage,HoujieTown,DongguanCity,Guangdong,China. Tel:0769-86009597E-mail:[email protected]://www.ctsl-lab.com 4.CalculatedResultandLimit BT(BR+EDR) Frequency Max Tune-up Power Max Tune-up Power min.test separation distance [√f(GHz)]ResultLimit (MHz)(dBm)(mW)(mm) 240211.258951.5500.39023 244111.258951.5620.39343 248011.258951.5750.39653 Remark: The1-gand10-gSARtestexclusionthresholdsfor100MHzto6GHzattest separationdistances≤50mmaredeterminedby: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparation distance,mm)]x[√f(GHz)] ThetestResultislessthan3.0for1-gSARand≤7.5for10-gextremitySAR. Conclusion:So,SARtestisnotrequired --------------------------------------EndofRFExposureEvaluation--------------------------------------

Page1of69 FCCPART15SUBPARTC FCCPART15.247 TESTREPORT FCCID:2BGYK-LKS059X ReportNo:CTSL2521220046ER ProductName:Bluetoothspeaker MainTestModel:LKS059X SeriesModels:- Applicant:DongGuanCityLuckkingElectronicsCo.,Ltd EXECUTIVESUMMARY Asampleofthisproductwastestedandfoundtobeincompliancewith FCCPART15C,FCCPART15SUBPARTC(15.247). Anyreproductionofthisdocumentmustbedoneinfull.Nosinglepartofthisdocumentmay bereproducedwithoutpermissionfromCTSL.AllTestDataPresentedinthisreportisonly applicabletopresentedTestsample. CTSLTesting(Dongguan)Co.,Ltd. Maincompanyaddress:Building1,HoujieRoad,HoujieTown,GuangdongProvince DongguanCity,China Page2of69 CTSLTesting(Dongguan)Co.,Ltd. ReportNo.:CTSL2521220046ER Room112,Building1,No.15,Jiaoyuansongshan,HetianVilltage,HoujieTown,DongguanCity,Guangdong,China. Tel:0769-86009597E-mail:[email protected]://www.ctsl-lab.com TestReport FCCID:2BGYK-LKS059X Applicant Name DongGuanCityLuckkingElectronicsCo.,Ltd Applicant Address Building1,No.3,QinghutouInnovationRoadTangxiaTown,DongguanCity, GuangdongChina Manufacturer Name DongGuanCityLuckkingElectronicsCo.,Ltd Manufacturer Address Building1,No.3,QinghutouInnovationRoadTangxiaTown,DongguanCity, GuangdongChina TradeMarkLUCKKING ProductnameBluetoothspeaker MainTest Model LKS059X SeriesModels- Standard FCCPart15SubpartC(15.247) ANSIC63.10:2020 FCCKDB558074D0115.247MeasGuidancev05r02 TestLocation ISO/IEC17025byILAC-MRAisA2LA7556.01 CTSLTesting(Dongguan)Co.,Ltd. Room112,Building1,No.15,JiaoyuansongshanHetianVillage,HoujieTown DongguanCity,Guangdong,People’sRepublicofChina ReceiptDate2025.12.25Testperiod2025.12.25-2026.01.18IssueDate2026.01.21 Conclusion Theequipmentundertestwasfoundtobecompliancewiththe requirementsofthestandardsapplied. Performs Testing: EthanZhao (Specialseal) TestReport Reviewer: SteveQin TestReport Authorizer: AlanLi Page3of69 CTSLTesting(Dongguan)Co.,Ltd. ReportNo.:CTSL2521220046ER Room112,Building1,No.15,Jiaoyuansongshan,HetianVilltage,HoujieTown,DongguanCity,Guangdong,China. Tel:0769-86009597E-mail:[email protected]://www.ctsl-lab.com TABLEOFCONTENTS DescriptionPage TABLEOFCONTENTS...........................................................................................................................3 1.GENERALINFORMATION..................................................................................................................5 1.1.GeneralDescriptionofEUT(EquipmentUnderTest).................................................................5 1.2.AntennaInformation.........................................................................................................................6 1.3.InformationofRFCable...................................................................................................................6 2.SUMMARYOFTEST..........................................................................................................................7 2.1.TestStandards..................................................................................................................................7 2.2.Summaryoftestresult.....................................................................................................................7 2.3.TestFacilities.....................................................................................................................................8 2.4.Measurementuncertainty................................................................................................................8 2.5.BlockDiagram...................................................................................................................................9 2.6.Assistantequipmentusedfortest..................................................................................................9 2.7.Testmode........................................................................................................................................10 2.8.ChannelList.....................................................................................................................................11 2.9.PowerSettingofTestSoftware....................................................................................................11 2.10.TestEquipment.............................................................................................................................12 3.MAXIMUMPEAKOUTPUTPOWER.................................................................................................14 3.1.Limit...................................................................................................................................................14 3.2.TestSetup........................................................................................................................................14 3.3.SpectrumAnalyzerSetting............................................................................................................14 3.4.TestProcedure................................................................................................................................14 3.5.TestResult.......................................................................................................................................15 3.6.OriginalTestRecord.......................................................................................................................16 4.20DBBANDWIDTH.........................................................................................................................18 4.1.Limit...................................................................................................................................................18 4.2.TestSetup........................................................................................................................................18 4.3.SpectrumAnalyzerSetting............................................................................................................18 4.4.TestProcedure....................…

Text truncated - open the document above for the full version.

Product specification Quick Reference Date Antenna module on the system board Frequenc Range 2400 ~ 2500MHz Ant. Port Input Pwr. (dBm) 0 (Typ. BT class 2 output power) Tot. Rad. Pwr. (dBm) -1.2 (Input pwr – loss pwr) Peak EIRP(dBm) 1.2 Directivity (dBi) 1 (all direction antenna) Efficiency (dB) 6 0.2 % Gain (dBi) 1.9dBi (Max) Maximum Power (dBm) 1.7 (XY-plane) Minimum Power (dBm) -4(XY-plane) Avg. Power (dBm) -0.5(XY-plane) Input Impendence(ohm) 50 Polarization Type V ertical & Horizontal V . S .W . R < 1.4 All the technical data and information contained herein are subject to ch ange without prior notice Antenna Layout & module on the system board Antenna Gain Gain Table Unit in dBi @2.44GHz XY-plane XZ-plane YZ-plane Efficiency Peak Avg. Peak Avg. Peak Avg. Module Board 1.2 -0.51.9 -3.61.1 -3.06 0.2 % Retum Loss The Environment of Antenna Radiation Pattem 3D radiation pattern diagram XY-plane XZ-plane YZ-plane

Page1of2 CTSLTesting(Dongguan)Co.,Ltd. ReportNo.:CTSL2521220046ER AnnexC. TestSetupPhotos FCCID:2BGYK-LKS059X Room112,Building1,No.15,Jiaoyuansongshan,HetianVilltage,HoujieTown,DongguanCity,Guangdong,China. Tel:0769-86009597E-mail:[email protected]://www.ctsl-lab.com AnnexC. TestSetupPhotos Photo1TestSetupPhotosofRadiatedEmissionTest(30-1000MHz) Photo2TestSetupPhotosofRadiatedEmissionTest(Above1GHz) Page2of2 CTSLTesting(Dongguan)Co.,Ltd. ReportNo.:CTSL2521220046ER AnnexC. TestSetupPhotos FCCID:2BGYK-LKS059X Room112,Building1,No.15,Jiaoyuansongshan,HetianVilltage,HoujieTown,DongguanCity,Guangdong,China. Tel:0769-86009597E-mail:[email protected]://www.ctsl-lab.com Photo3TestSetupPhotosofConnectEUTAntennaTerminalTest ------------------------------------------EndofTestSetupPhotos------------------------------------------
