2BGZW-XLRBluetooth Audio Receiver

Bluetooth Audio Receiver for Mixers & Active PA/DJ Systems Features: XLR output Bluetooth audio receiver for mixers and active PA speakers Connects smartphones & laptop to audio broadcast systems via Bluetooth to amplify music or other audio One blafili XLR Bluetooth audio receiver for mono audio Two blafili XLR units can be linked in order to receive a stereo signal Internal rechargeable battery provides 10 hours of operation USB Type-C port for charging via any 5V USB power source Stable connectivity over a 32.8 ft range (line-of-sight without obstacles). Gives you ample coverage for parties, events and weddings Note: blafili XLR may not be fully charged upon purchase. While it is safe to use it right away, charging for 2 hours before initial use will ensure a full charge and the best performance. Specifications: Bluetooth profiles: 5.1, A2DP, AVRCP Supported Bluetooth Codecs: SBC, AAC, aptX, aptX LL, aptX HD Balanced Audio Output: XLR male Audio Inputs: Bluetooth and USB-C XLR Output level: 1.23V RMS Bluetooth range: Up to 32.8 feet (10 m) Frequency band: 2402 to 2480MHz USB charging: Type-C 5V, 500mA USB-C Charging Port PAIR LED Status: Flash blue and red alternately: in pairing mode Cyan = aptX Green = aptX HD Blue = SBC Pink = AAC TWS LED Status: Solid blue: successful TWS connection Flashing blue: TWS connecting Turn ON / OFF TWS: Hold the “TWS” button for about 3s to force the device to enter / exit the TWS pairing mode (Turn ON blafili XLR First) Reconnect: short press “TWS” when out of connection CHG LED Status: Solid red: charging Off: fully charged Red LED flashes 5 times every minute: battery low needs to recharged again PAIR LED PAIR, Power ON/OFF button TWS LED TWS button Battery Status LED XLR Output Rechargeable battery: Built-in lithium-ion 320mAh Battery life: Up to 10 hours Recharging time: Up to 2 hours A2DP frequency response: 20 Hz - 20 kHz (ref 1 kHz, ± 3 dB) USB DAC resolution: 16-bit / 48 kHz Dimensions: 117 x 30 x 25 mm Weight: 0.09 lbs / 40 g Controls: Turn blafili XLR ON / OFF: Hold the “PAIR” button for about 3s to Turn ON / OFF the device Play / Pause: short press “PAIR” when playing music Reconnect: short press “PAIR” when out of connection White = aptX LL Bluetooth Pairing a Single blafili XLR: 1. Power on your Bluetooth device. 2. Press and hold the PAIR button for 3 seconds on blafili XLR. The PAIR LED will flash blue and red alternately while blafili XLR is in pairing mode (Time out: 2 minutes). Stereo-Linking TWO blafili XLR Units: 1. Follow steps 1-5 in the Bluetooth Pairing a Single blafili XLR section to connect the 1st unit of blafili XLR, and follow step 2 to turn on the 2nd blafili XLR. 2. Press and hold the TWS button for 3 seconds on the first blafili XLR. Then press and hold the TWS button for 3 seconds on the secondary blafili XLR. 3. Both blue TWS LEDs will blink while each blafili XLR searches for the other (Time out: 2 minutes). 4. When they are successfully linked, the blue TWS LEDs on both units will be lit solid. 3. Navigate to your Bluetooth device’s setup screen, find “blafili XLR” and click/connect. 4. When paired successfully, the PAIR LED will illuminate solid color: Note: Double press PAIR button to enter pairing mode again. Note: Before pairing, turn off Wi-Fi on your device and stop any audio playback. Note: If your Bluetooth device prompts for a pairing code, enter “0000”. 5. Adjust the volume on your Bluetooth device or connected mixer/powered speaker. To erase previous pairing settings, first turn on blafili XLR, then hold the “PAIR” and “TWS” buttons until all the THREE lights(PAIR: White & TWS: Blue & CHG: Red) are lit indicating that pairing settings have been erased. You can now pair to a new device. Note: When two units are stereo-linked and connected to Bluetooth, the primary unit will send the left channel audio, and the secondary unit will send the right channel audio. If it is wrong, just exchange the position of the two blafili XLR units on your mixer. Front ViewSide ViewBack View Cyan = aptX Green = aptX HD White = aptX LLBlue = SBC Pink = AAC When TWO blafili XLR devices are paired successfully, the PAIR LED of the primary blafili XLR will illuminate solid color: Cyan = aptXBlue = SBC FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Xiamen Lanse Tianchen Technology Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2024-06-28 FCC ID: 2BGZW-XLR Ref. #1: Attestation Statements Part 2.911(d)(5)(i) Filing Xiamen Lanse Tianchen Technology Co., Ltd. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Ref. #2: Attestation Statements Part 2.911(d)(5)(ii) Filing Xiamen Lanse Tianchen Technology Co., Ltd. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Applicant: Xiamen Lanse Tianchen Technology Co., Ltd. Address: Room 201, No. 149 Qianpu, Qianpu Community, Siming District, Xiamen,Fujian, China Contact Person: Jianguang Wang Tel.: 18123653842 Email: [email protected] Sincerely, Signature:

AttestationStatements Date:2024-08-30 TO:FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046,USA RE:AttestationStatementsPart2.911(d)(7)requestfor(FCCID:2BGZW-XLR) XiamenLanseTianchenTechnologyCo.,Ltd.,theundersigned,herebyauthorize BLAFILIINC.toactasourdesignatedU.S.agentforserviceofprocess,XiamenLanse TianchenTechnologyCo.,Ltd.acceptstomaintainanagentfornolessthanoneyear afterthegranteehasterminatedallmarketingandimportationortheconclusionofany Commission-relatedproceedinginvolvingtheequipment. BLAFILIINC.acceptstheresponsibilitytoactasdesignatedU.S.agentforserviceof process. ApplicantInformation： Companyname:XiamenLanseTianchenTechnologyCo.,Ltd. ContactName:JianguangWang Address:Room201,No.149Qianpu,QianpuCommunity,SimingDistrict,Xiamen,Fujian, China TelephoneNo:18123653842 Email:[email protected] FRN:0035558444 Signature: JianguangWang U.S.AgentInformation: CompanyName:BLAFILIINC. Address:157LorraineLoop,StatenIsland,NY10309,UnitedStates FRN:0035553080 ContactName:WenzaoLi TelephoneNo:347-517-7092 Email:[email protected] Signature: WenzaoLi

Effective Date: April 2, 2020 QSF 7.6.4-8 – Agent Authorization Letter Template Page 1 of 1 Revision Date: Revision: 0 Xiamen Lanse Tianchen Technology Co., Ltd. Date：2024-06-28 Product Model Number: XLR ; FCC ID：2BGZW-XLR To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following: • Testing • Approval applications and procedures We declare that QAI Laboratories Ltd. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by QAI Laboratories Ltd. on our behalf shall have the same effect as acts of our own. Signature: By: Jianguang Wang Contact Listed on FCC Wesbite Title: PM Email: [email protected] On behalf of: Xiamen Lanse Tianchen Technology Co., Ltd.

Xiamen Lanse Tianchen Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: September 2, 2024 Subject; Request for Confidentiality FCC ID: 2BGZW-XLR To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jianguang Wang Title: PM

1.Electrical Characteristics ItemSpecification ModelBlafili XLR Manufacturer Shenzhen Tai Yilinan Scienc e & Technology Co.,Ltd TypePCB Meander Line Antenna Central frequency2.441 GHz Bandwidth78 MHz (Typical value) Gain1dBi PolarizationLinear VSWR2 max. Azimuth BandwithOmni-directional Impedance50Ω Rated Power (max.)4dBm Maximum Input Power10dBm Operation Temperature-40 C ~ +85 C 2.The suggestion of matching circuit 3. The Measurement of S-Parameter and VSWR Manufacturer: Xiamen Lanse Tianchen Technology Co., Ltd. Address: Room 201, No. 149 Qianpu, Qianpu Community, Siming District, Xiamen,Fujian, China Frequency(GHz)S11(dB) 2.402-10.24 2.441-24.02 2.480-10.74 Frequency(GHz)VSWR 2.4021.88 2.4411.13 2.4801.81 The reference: Return Loss -6.02dB -7.36dB -10dB -13dB -20dB VSWR 32.5 1.92 1.576 1.22 Return Power Ratio 25% 18.37% 10% 5% 0.98%

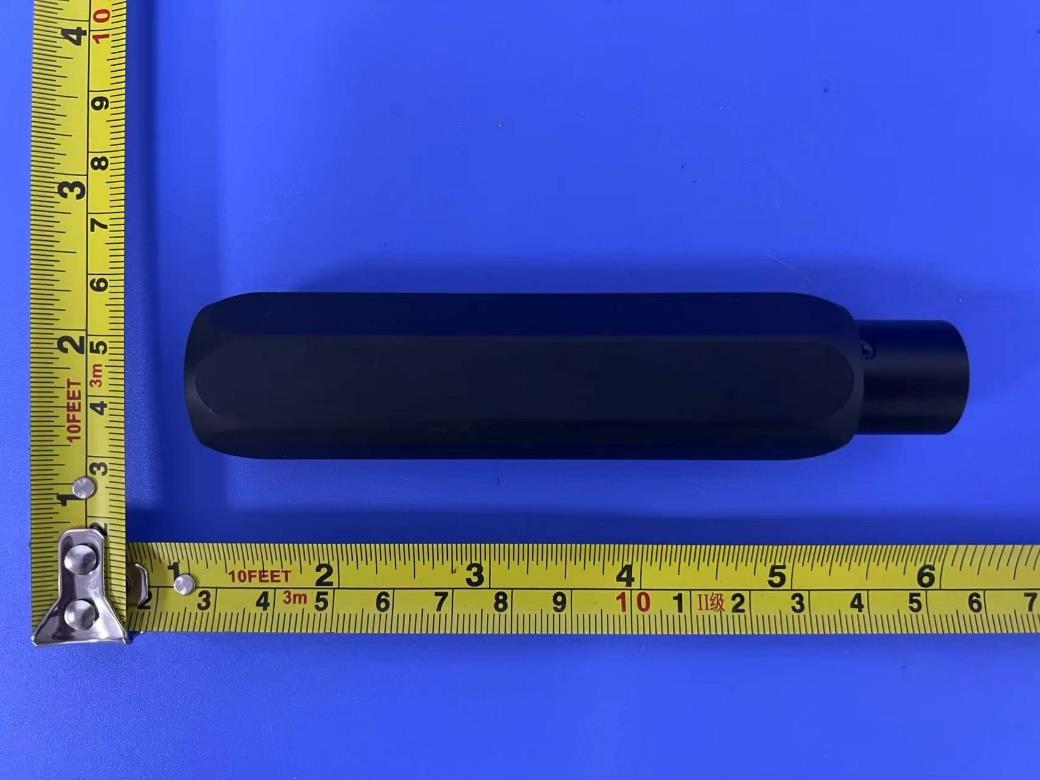

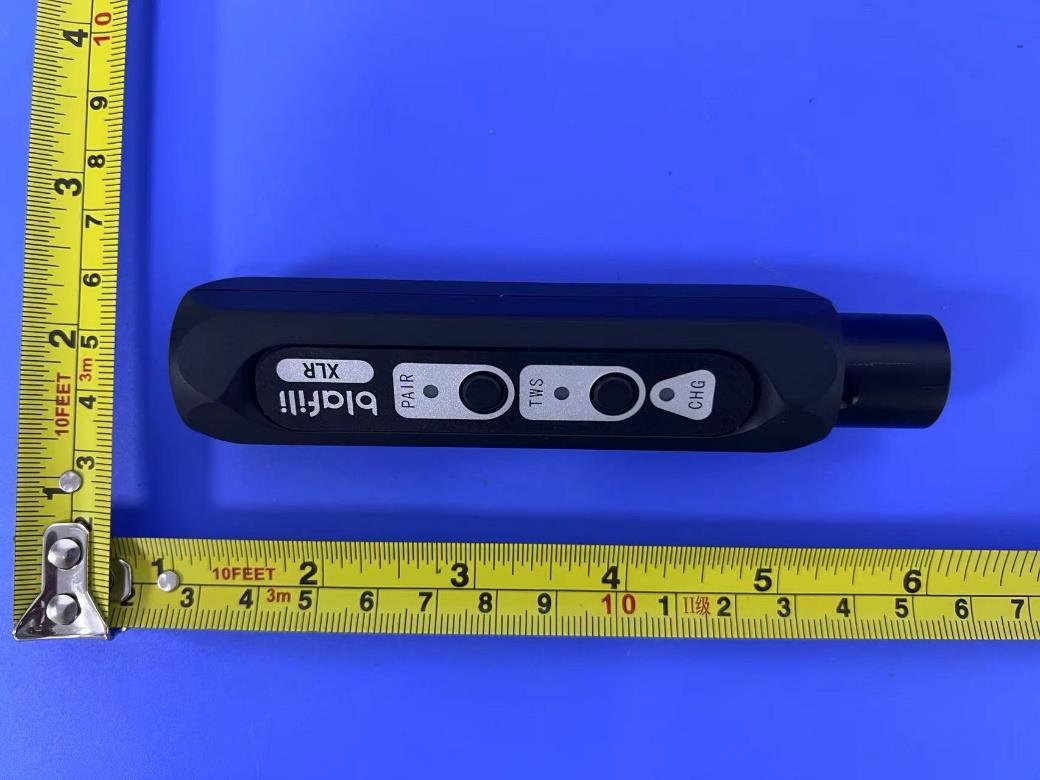

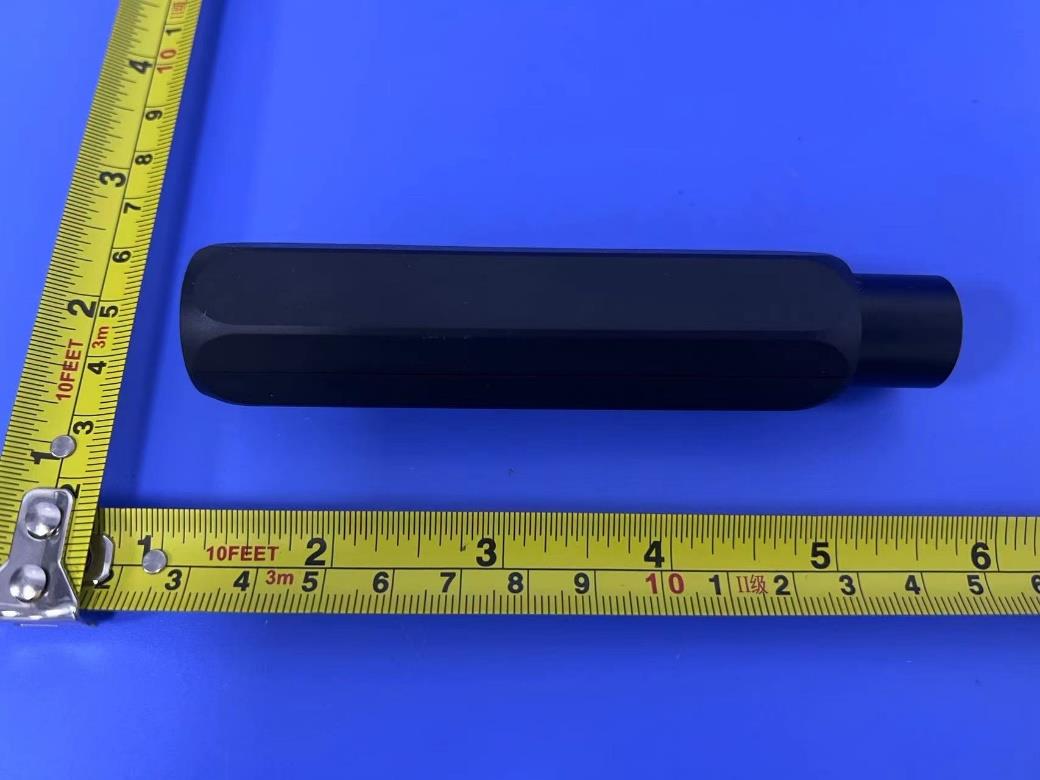

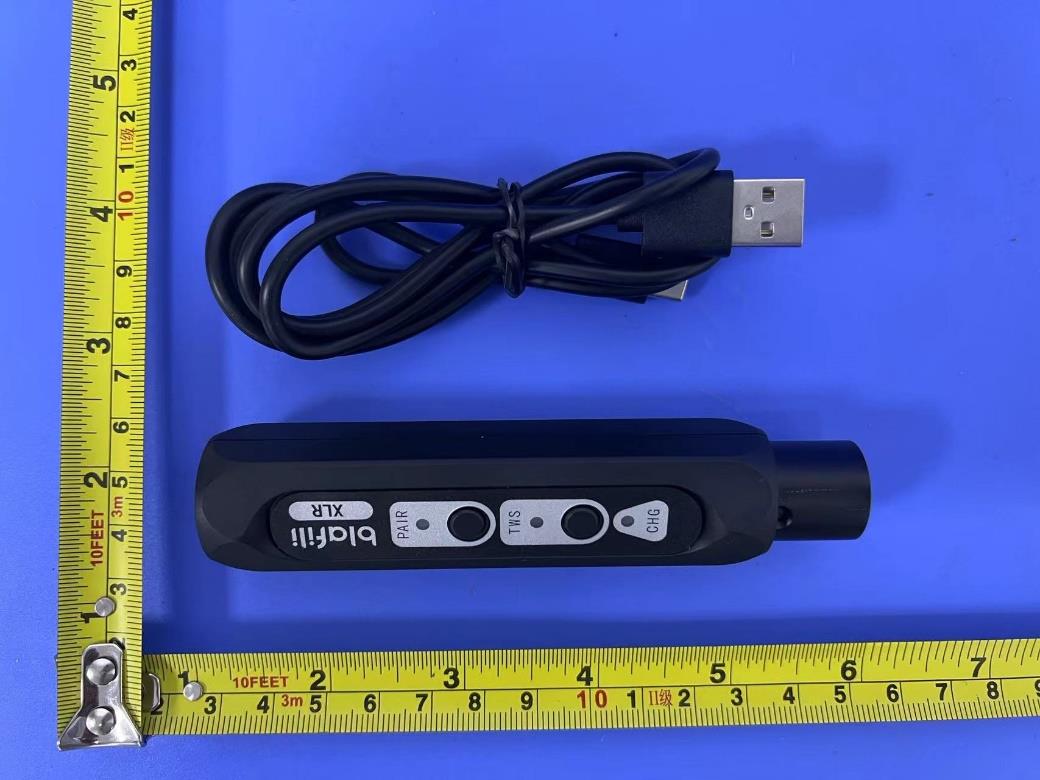

Page 1 of 5 Report No.: LGT24H123 Appendix - External Photographs of EUT Constructional Details Model: XLR Photo 1 Photo 2 Page 2 of 5 Report No.: LGT24H123 Photo 3 Photo 4 Page 3 of 5 Report No.: LGT24H123 Photo 5 Photo 6 Page 4 of 5 Report No.: LGT24H123 Photo 7 Photo 8 Page 5 of 5 Report No.: LGT24H123 Photo 9 Photo 10

Label FCC ID: 2BGZW-XLR

Page 1 of 4 Report No.: LGT24H123 Appendix - Internal Photographs of EUT Constructional Details Model: XLR Photo 1 Photo 2 Page 2 of 4 Report No.: LGT24H123 Photo 3 Photo 4 Page 3 of 4 Report No.: LGT24H123 Photo 5 Photo 6 ANT Page 4 of 4 Report No.: LGT24H123 Photo 7

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China RF TEST REPORT Product Name: Bluetooth Audio Receiver Model Name: XLR FCC ID: 2BGZW-XLR Issued For : Xiamen Lanse Tianchen Technology Co., Ltd. Room 201, No. 149 Qianpu, Qianpu Community, Siming District, Xiamen,Fujian, China Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT24H123HA01 Sample Received Date: Aug. 23, 2024 Date of Test: Aug. 23, 2024 – Aug. 30, 2024 Date of Issue: Aug. 30, 2024 Report No.: LGT24H123HA01 Page 2 of 9 TEST REPORT CERTIFICATION Applicant: Xiamen Lanse Tianchen Technology Co., Ltd. Address: Room 201, No. 149 Qianpu, Qianpu Community, Siming District, Xiamen,Fujian, China Manufacture: Xiamen Lanse Tianchen Technology Co., Ltd. Address: Room 201, No. 149 Qianpu, Qianpu Community, Siming District, Xiamen,Fujian, China Product Name: Bluetooth Audio Receiver Trademark: blafili Model Name: XLR Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47CFR §2.1093 KDB 447498 D01 General RF Exposure Guidance v06 PASS Prepared by: Approved by: Zane Shan Vita Li Engineer Technical Director Report No.: LGT24H123HA01 Page 3 of 9 TABLE OF CONTENTS 1 . GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST LABORATORY 5 2 . FCC 47CFR §2.1093 REQUIREMENT 6 2.1 TEST STANDARDS 6 2.2 LIMIT 6 2.3 TEST RESULT 8 APPENDIX I - PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS 9 Report No.: LGT24H123HA01 Page 4 of 9 Revision History Rev. Issue Date Revisions 00 Aug. 30, 2024 Initial Issue Report No.: LGT24H123HA01 Page 5 of 9 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name: Bluetooth Audio Receiver Trademark: blafili Model Name: XLR Series Model: N/A Model Difference: N/A Frequency Bands: Bluetooth 2402-2480MHz Rating: Input: DC 5V 500mA Battery: Capacity: 300mAh Rated Voltage: 3.7V Hardware Version: N/A Software Version: N/A 1.2 TEST LABORATORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate A2LA Certificate No.: 6727.01 FCC Registration No.: 746540 CAB ID: CN0136 Report No.: LGT24H123HA01 Page 6 of 9 2. FCC 47CFR §2.1093 REQUIREMENT 2.1 TEST STANDARDS The limit for Maximum Permissible Exposure (MPE) specified in KDB 447498 D01 General RF Exposure Guidance v06 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. 2.2 LIMIT Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. Report No.: LGT24H123HA01 Page 7 of 9 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] • [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz. Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Report No.: LGT24H123HA01 Page 8 of 9 2.3 TEST RESULT Turn up Result Mode Turn up Power BT-GFSK 3.5±1dBm BT-π/4-DQPSK 2.5±1dBm BT-8DPSK 2.5±1dBm The MPE result of worst mode: RF Function Frequency (MHz) Max Turn up Power (dBm) Max Turn up Power (mW) Estimated SAR Limit Ratio Result BT 2441 4.50 2.82 0.881 3 0.294 Pass Note: 1. The estimated SAR≤ 3.0 for 1-g SAR, Separation distance ≤ 5mm, complies with the exemption requirements. Report No.: LGT24H123HA01 Page 9 of 9 APPENDIX I - PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Note: Please see the attached XLR_External Photos and XLR_Internal Photos. ※※※※※END OF THE REPORT※※※※※

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China RF TEST REPORT Product Name: Bluetooth Audio Receiver Model Name: XLR FCC ID: 2BGZW-XLR Issued For : Xiamen Lanse Tianchen Technology Co., Ltd. Room 201, No. 149 Qianpu, Qianpu Community, Siming District, Xiamen,Fujian, China Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT24H123RF01 Sample Received Date: Aug. 23, 2024 Date of Test: Aug. 23, 2024 – Aug. 30, 2024 Date of Issue: Aug. 30, 2024 Report No.: LGT24H123RF01 Page 2 of 78 TEST REPORT CERTIFICATION Applicant: Xiamen Lanse Tianchen Technology Co., Ltd. Address: Room 201, No. 149 Qianpu, Qianpu Community, Siming District, Xiamen,Fujian, China Manufacturer: Xiamen Lanse Tianchen Technology Co., Ltd. Address: Room 201, No. 149 Qianpu, Qianpu Community, Siming District, Xiamen,Fujian, China Product Name: Bluetooth Audio Receiver Trademark: blafili Model Name: XLR Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 15.247, Subpart C ANSI C63.10-2013 PASS Prepared by: Approved by: Zane Shan Vita Li Engineer Technical Director Report No.: LGT24H123RF01 Page 3 of 78 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 FREQUENCY HOPPING SYSTEM REQUIREMENTS 10 2.4 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 12 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 12 2.6 EQUIPMENTS LIST 13 3. EMC EMISSION TEST 14 3.1 CONDUCTED EMISSION MEASUREMENT 14 3.2 RADIATED EMISSION MEASUREMENT 18 4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 30 4.1 LIMIT 30 4.2 TEST PROCEDURE 30 4.3 TEST SETUP 31 4.4 EUT OPERATION CONDITIONS 31 4.5 TEST RESULTS 31 5. NUMBER OF HOPPING CHANNEL 32 5.1 LIMIT 32 5.2 TEST PROCEDURE 32 5.3 TEST SETUP 32 5.4 EUT OPERATION CONDITIONS 32 5.5 TEST RESULTS 32 6. AVERAGE TIME OF OCCUPANCY 33 6.1 LIMIT 33 6.2 TEST PROCEDURE 33 6.3 TEST SETUP 33 6.4 EUT OPERATION CONDITIONS 33 6.5 TEST RESULTS 33 7. HOPPING CHANNEL SEPARATION MEASUREMEN 34 7.1 LIMIT 34 7.2 TEST PROCEDURE 34 Report No.: LGT24H123RF01 Page 4 of 78 7.3 TEST SETUP 34 7.4 EUT OPERATION CONDITIONS 34 7.5 TEST RESULTS 34 8. BANDWIDTH TEST 35 8.1 LIMIT 35 8.2 TEST PROCEDURE 35 8.3 TEST SETUP 35 8.4 EUT OPERATION CONDITIONS 35 8.5 TEST RESULTS 35 9. OUTPUT POWER TEST 36 9.1 LIMIT 36 9.2 TEST PROCEDURE 36 9.3 TEST SETUP 36 9.4 EUT OPERATION CONDITIONS 36 9.5 TEST RESULTS 36 10. ANTENNA REQUIREMENT 37 10.1 STANDARD REQUIREMENT 37 10.2 EUT ANTENNA 37 APPENDIX I - TEST RESULTS 38 DUTY CYCLE 38 MAXIMUM PEAK CONDUCTED OUTPUT POWER 42 -20DB BANDWIDTH 43 OCCUPIED CHANNEL BANDWIDTH 47 CARRIER FREQUENCIES SEPARATION 51 BAND EDGE 55 BAND EDGE(HOPPING) 60 CONDUCTED RF SPURIOUS EMISSION 65 NUMBER OF HOPPING CHANNEL 72 DWELL TIME 74 APPENDIX II - MEASUREMENT PHOTOS 77 APPENDIX III - PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS 78 Report No.: LGT24H123RF01 Page 5 of 78 Revision History Rev. Issue Date Revisions 00 Aug. 30, 2024 Initial Issue Report No.: LGT24H123RF01 Page 6 of 78 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247, Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247(a)(1) Hopping Channel Separation PASS -- 15.247(a)(1)&(b)(1) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247(d) Conducted Spurious & Band Edge Emission PASS -- 15.247(a)(1)(iii) Number of Hopping Frequency PASS -- 15.247(a)(1)(iii) Dwell Time PASS -- 15.247(a)(1) Bandwidth PASS -- 15.205 Restricted bands of operation PASS -- Part 15.247(d)/part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Report No.: LGT24H123RF01 Page 7 of 78 1.1 TEST FACTORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate A2LA Certificate No.: 6727.01 FCC Registration No.: 746540 CAB ID: CN0136 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radiated 9K-30MHz ±2.84dB 4 All emissions, radiated 30M-1GHz ±4.39dB 5 All emissions, radiated 1G-6GHz ±5.10dB 6 All emissions, radiated>6G ±5.48dB 7 Conducted Emission (9KHz-150KHz) ±2.79dB 8 Conducted Emission (150KHz-30MHz) ±2.80dB Note: The measurement uncertainty is not included in the test result. Report No.: LGT24H123RF01 Page 8 of 78 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name: Bluetooth Audio Receiver Trademark: blafili Model Name: XLR Series Model: N/A Model Difference: N/A Channel List: Please refer to the Note 3. Bluetooth: Frequency:2402 – 2480 MHz Modulation: GFSK(1Mbps), π/4-DQPSK(2Mbps), 8DPSK(3Mbps) Antenna Type: PCB Antenna Antenna Gain: 1dBi Rating: Input: DC 5V 500mA Battery: Capacity: 300mAh Rated Voltage: 3.7V Hardware Version: N/A Software Version: N/A Connecting I/…

Text truncated - open the document above for the full version.

Page 1 of 2 Report No.: LGT24H123 Appendix - Test Setup photos Set-up for Radiated Spurious Emission, Below 1GHz Set-up for Radiated Spurious Emission, Above 1GHz Page 2 of 2 Report No.: LGT24H123 Set-up for Conducted Emission
