2BH23-B2Carplay System

User Manual Full Android System Note:Please do not insert the TF card in the wrong direction, as this may cause damage to the card slot of the product. Function Introduction Compatible cars and mobile phones By connecting to the USB interface in your car, this product enhances the functionality of the open Android system platform, allowing you to download applications at any time and providing additional options for audio-visual entertainment and navigation. Furthermore, it supports Bluetooth, WiFi, phone, and mobile connections, enabling wireless use of CarPlay and Android Auto. You can also install additional applications like TikTok, YouTube, Netflix, Waze, and Spotify to make your journey even more enjoyable. For the initial connection, the AI BOX will need to adapt to the car's central control device and resolution. As a result, the AI BOX will restart automatically, which is a normal occurrence. Applicable Models: This product is designed for original cars equipped with wired CarPlay/Android Auto. iPhone: This product supports iPhone models 6 and above running iOS 10 and above. Android Phone: This product supports Android devices running version 10.0 and above, with some devices requiring version 11.0 and above. TF Card Slot Instruction Connection Instruction To access the product's Android system interface, first click on “CarPlay" on the original car system interface (please note that the specific interface may vary depending on the car model), and then you will be redirected to the Android system interface of the product. (ICON 1) To change the language or customize wallpapers, click on the “Settings" icon. From there, you can access various settings and make adjustments according to your preferenc- es. (ICON 2) To return to the original car system interface, click on the “Home" icon. (ICON 3) TF Card Slot: The product has an expandable TF card slot that supports storage capacity of up to 256GB. * When inserting the TF card, please ensure that the metal face is facing downwards. CarPlayHomeSettings ICON 1ICON 2ICON 3 Here's a possible revision: Assuming there are existing pairing records of your phone's Bluetooth and your car's Bluetooth, please delete them before use. This will allow the AI BOX to connect and operate more efficiently. The next time the car is started, it will remember the state it was in when the engine was turned off by default. If the car was turned off while in Carplay/Android Auto mode, it will automatically return to that mode when the car is started again. Likewise, if the car was turned off while in hotspot mode, it will automatically return to the hotspot mode. To switch between modes, simply disconnect the hotspot and reconnect the Bluetooth. Wireless CarPlay/Android Auto Connection Instructions 1.Click on the “SpeedPlay" icon to enter the connection interface. 2.Please turn on the Bluetooth and WiFi of your iPhone/Android phone. 3.Next, search for the Bluetooth name displayed on the car screen in the Bluetooth list of your mobile phone, and click on it to pair the two devices. 4.Wait for the connection to establish successfully, and the wireless CarPlay/Android Auto functionality will be activated. SpeedPlayWiFiBluetoothAndroid AutoCarPlay Downloading Apps To download various applications, click on the “Play Store" icon. This will give you access to a wide range of apps that you can install on the product. The product supports third-party map navigation, online music, awesome videos, and online games, making your driving experience even more enjoyable. Friendly reminder: Due to limited memory in the product, please avoid downloading a large number of applications/ games/videos all at once, we recommend downloading only 3-5 applications to avoid overloading the system memory and causing the product to slow down. Play Store More+ NavigationMusicVideo APP FAQ Q：Can't find the Bluetooth or WiFi of the dongle? A：If convenient, you can test it with another iPhone. If only a specific iPhone cannot find the Bluetooth or WiFi of the dongle, please try to reset the network and Bluetooth settings of this iPhone and then restart the phone once; if the same problem happens on other iPhones, the unit may be defective. In this case, please let us know and we will solve it for you. Q: How should I handle the message indicating that the Netflix display needs to be updated? A: When the message appears, please click on the “Cancel" button. Do not update or delete any preloaded software on the product. Q：Persistent disconnection? A:The dongle relies on a WiFi connection to your phone to work. Dropped connections are usually caused by wifi interference. Do you have other wifi devices in your car, such as a car camera with WiFi function? If so, you may need to ignore other wifi networks when using the dongle. You can also improve this problem by resetting your mobile WLAN network. Other cases: 1. Please make sure that the Bluetooth and WiFi functions of your mobile phone are turned on and the Bluetooth is not occupied when you get in the car; 2. Clear the pairing record, restart the phone and re-pair the dongle. Product Specification Ai Box Type-C*2 Android 11 2GB(RAM)+16GB(ROM) 802.11a/b/g/n/ac, 2.4G+5G 4.2BLE+5.0BLE 5V/1A -20°C-75°C Operating System System Storage Wireless Network Bluetooth Power Input Temperature Version:H3 Qualcomm® QCM2290 ARM® Cortex™-A53 Quad-Core 64-bit CPU Up to 2.0GHz 11nm process Version CPU After-sales Service Dear customer,Thank you for choosing our product. We take pride in providing our customers with high-quality products and services, and we are committed to ensuring your satisfaction. To protect your rights and interests, we are pleased to offer you excellent after-sales service. You can enjoy a one-year warranty from the date of purchase, and we will do our best to provide you with the support you need. Please note that the company reserves the right to interpret the terms and conditions of our after-sales service. Thank you for your tru…

Text truncated - open the document above for the full version.

Shenzhen Huaben Technology Co., Ltd. Building E, 401, Juxin Technology Industrial Park, Nanchang Community, Xixiang Street,Bao'an District, Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-8-5 To whom it may concern: We, Shenzhen Huaben Technology Co., Ltd., hereby certify that the equipment for which authorization is sought (FCC ID: 2BH23-B2) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Zhu Song Manager Shenzhen Huaben Technology Co., Ltd. 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

Shenzhen Huaben Technology Co., Ltd. Building E, 401, Juxin Technology Industrial Park, Nanchang Community, Xixiang Street,Bao'an District,Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-8-5 U.S. Agent Designation Shenzhen Huaben Technology Co., Ltd.acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BH23-B2): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of Shenzhen Huaben Technology Co., Ltd. Shenzhen Huaben Technology Co., Ltd. with the FRN [0035757335] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Zhu Song General Manager Shenzhen Huaben Technology Co., Ltd. Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Shenzhen Huaben Technology Co., Ltd. Add: Building E, 401, Juxin Technology Industrial Park, Nanchang Community, Xixiang Street,Bao'an District, Shenzhen China Date: 2024-8-5 FCC ID: 2BH23-B2 Dear Sir/Madam, We, Shenzhen Huaben Technology Co., Ltd. Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Carplay System Model no.: B2, B1, B3, B4, B5, B6, B7, B8, BA01, BB01, BC01, BC02, BF01, BP01, BR01, BT01, BV01, BX01, BY01, BZ01, BZ02, BZ03 Sincerely, Name/Title： Zhu Song/Manager Company: Shenzhen Huaben Technology Co., Ltd. Address: Building E, 401, Juxin Technology Industrial Park, Nanchang Community, Xixiang Street,Bao'an District, Shenzhen China Phone: +8615397968808 Fax: N/A E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-8-5> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2BH23-B2 B2 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Zhu Song/Manager Company: Shenzhen Huaben Technology Co., Ltd. Address: Building E, 401, Juxin Technology Industrial Park, Nanchang Community, Xixiang Street,Bao'an District, Shenzhen China Phone: +8615397968808 Fax: N/A E-Mail: [email protected]

Shenzhen Huaben Technology Co., Ltd. Building E, 401, Juxin Technology Industrial Park, Nanchang Community, Xixiang Street,Bao'an District, Shenzhen China Date: 2024-8-5 FCC ID: 2BH23-B2 Model Number: B2 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Shenzhen Huaben Technology Co., Ltd., declare that this EUT (FCC ID: 2BH23-B2) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name/Title： Zhu Song/Manager Company: Shenzhen Huaben Technology Co., Ltd. Address: Building E, 401, Juxin Technology Industrial Park, Nanchang Community, Xixiang Street,Bao'an District, Shenzhen China Phone: +8615397968808 Fax: N/A E-Mail: [email protected]

Shenzhen Huaben Technology Co., Ltd. Building E, 401, Juxin Technology Industrial Park, Nanchang Community, Xixiang Street,Bao'an District, Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-8-5 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2BH23-B2 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Zhu Song/Manager Company: Shenzhen Huaben Technology Co., Ltd. Address: Building E, 401, Juxin Technology Industrial Park, Nanchang Community, Xixiang Street,Bao'an District, Shenzhen China Phone: +8615397968808 Fax: N/A E-Mail: [email protected]

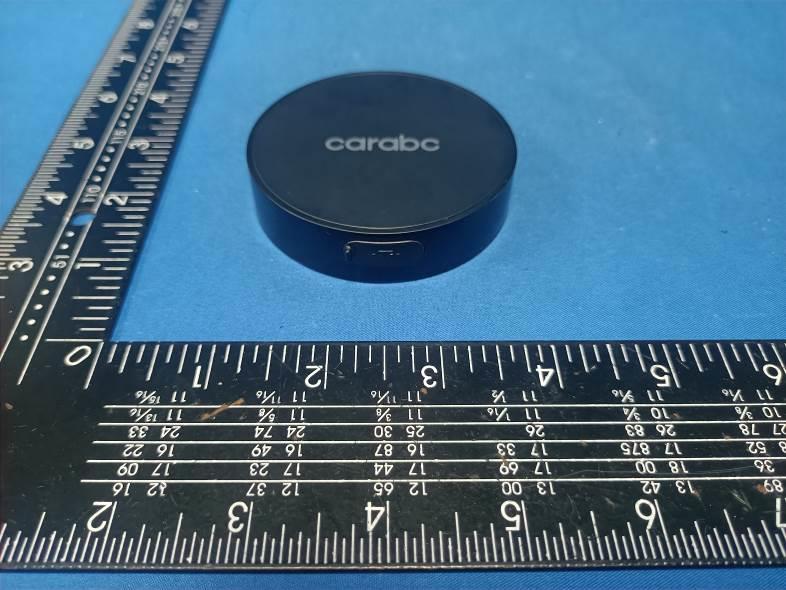

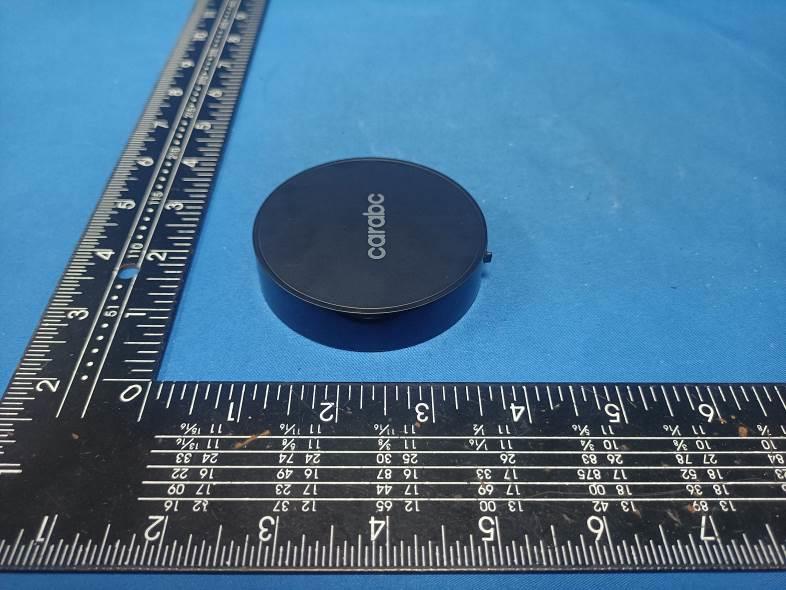

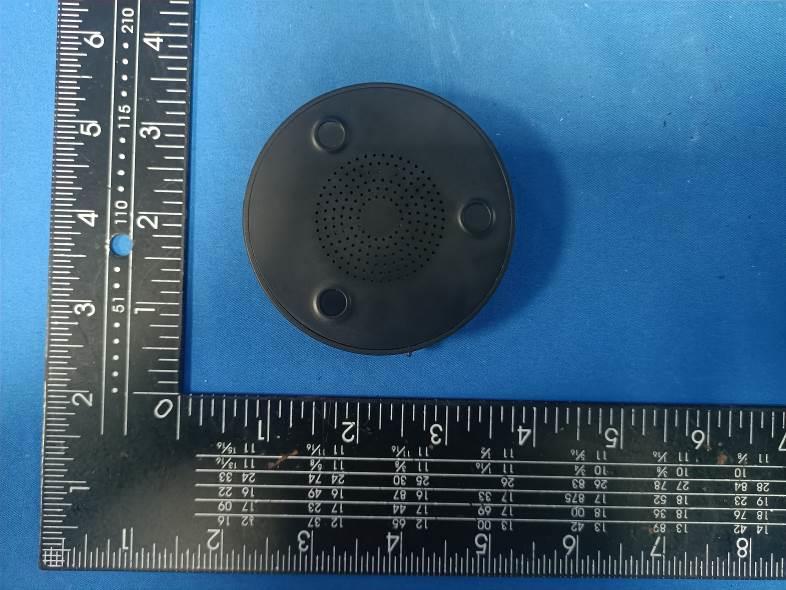

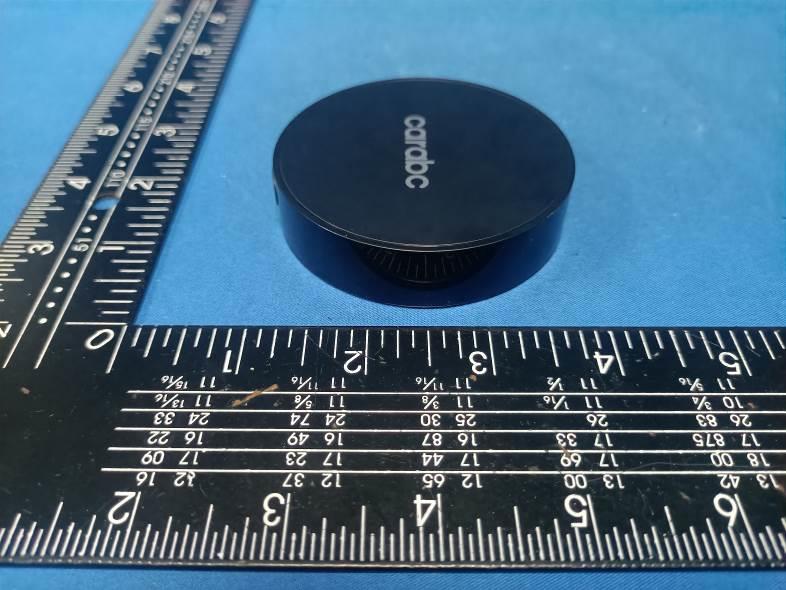

FCC ID: 2BH23-B2 External Photos of the EUT FCC ID: 2BH23-B2 FCC ID: 2BH23-B2

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID: 2BH23-B2

FCC ID: 2BH23-B2 Internal Photos of the EUT FCC ID: 2BH23-B2 ANT FCC ID: 2BH23-B2

RF Exposure evaluation FCC ID: 2BH23-B2 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information B2 can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: 2.4GWIFI / PCB antenna 2.00dBi for 2400-2500MHz 5. Manufacturing Tolerance WIFI(Peak) Frequency (MHz) 11b 2412 2437 2462 Target (dBm) 14.0 11.0 11.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11g 2412 2437 2462 Target (dBm) 12.0 11.0 10.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11n(HT20) 2412 2437 2462 Target (dBm) 12.0 10.0 10.0 Tolerance ± (dB) 1.0 1.0 1.0 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 2.0dBi, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW 2.4GWIFI 15.0 31.6228 2.0 1.5849 0.0100 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

1. Antenna Description: Antenna type PCB antenna Model B2 Frequency range 2400-2500MHz Manufacturer Shenzhen Huawei Electronics Co., Ltd ANT Peak Gain 2.00 dBi 2. Antenna Photo: Length :28.47mm Width:4.83mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz
