2BH5A-CK68CK68

132.00 mm 90.00 mm Manufacturer: Dieyun Innovation Technology Co., LTD., No. 20, Sanjiang Industrial Zone, Hengli Town, Dongguan city 内容清单: 机械键盘 ×1 航插弹簧数据线 x 1 说明书 x 1 CK 68机械键盘 双头拔键器×1 军火箱 x 1 CK 68规格 按键数：69 连接端口：USB Type-C 模式：三模 PCB：支持热插拔 产品名称：CK 68 产品重量：980g 产品尺寸：350*120*43mm 灯光：RGB灯效 静音棉：两张硅胶静音棉+轴下垫 1.连接蓝牙 先短按FN+Q/W/E后长按FN+Q/W/E 使键盘进入配对模式 键盘的配对名为：CK 68 5.0/CK 68 3.0 长按后Q/W/E键灯光快闪， 配对成功后Q/W/E键常亮2秒，恢复背光 (默认界面下屏幕右下角为蓝牙标识） 2.连接有线 长按后T键白灯快闪， 配对成功后T键常亮2秒，恢复背光 默认界面下屏幕右下角为 4.变换灯效 FN+INS 使键盘调节灯光模式 FN+DEL 切换单色颜色 FN+END 关闭/打开背光 5.充电 充电状态 默认界面下右上角出现充电指示动画 *1,灯亮工作电流220MA 可持续时间15小时左右(一直工作) *2,灯灭工作电流40MA 可持续时间80小时左右(一直工作） *3,待机电流0.5MA 待机时间180天左右 *4,键盘无动作2分钟进入待机模式 按任何键启动键盘进入工作模式. 6.回连 1.键盘开机默认上次连接的设备 2.FN+Q（FN+W，NFN+E)白灯慢闪回连 *键盘必须曾经配对过该装置才可实现此功能 7.储存、使用环境 1.储存温度：-20°C~+70°C 2.工作温度：-20°C~+60°C 3.储存湿度：非凝结状态下相对湿度30%RH~95%RH 8.兼容系统: 支持操作系统：ANDROID/ISO/Win XP/Win7/Win8/Win10/MAC FN组合功能键(WIN系统） 先短按FN+T后长按FN+T 使键盘进入有线模式 长按3s,恢复出厂设置 多媒体 音量减 音量加 静音 上一曲 5 6 下一曲 暂停播放 7 Email（邮件） 9 0 Ie（网页） MyComputer（电脑） - Calculator（计算器） + Q 短按切换蓝牙1，长按蓝牙1配对 W 短按切换蓝牙2，长按蓝牙2配对 142 567 9 9.自定义驱动 扫码下载驱动程序或： www.coolkiller.cn 温馨提示：驱动程序仅支持有线模式下自定义 INSTAGRAM: https://www.instagram.com/coolkiller_keyboard/ TWITTER: https://twitter.com/coolkillerkb 10.故障排除 1.确保将产品的USB无线接收器正确插入到电脑的USB端口. 2.确保电脑满足系统要求. 3.产品和无线接收器超出有效连接距离，请减少和接收器之间的距离。 d YouTube: https://www.youtube.com/@coolkillerkeyboard Email: [email protected] Website: www.coolkiller2023.com Aliexpress Store: https://www.aliexpress.com/store/1102642321 1 2 3 4 E 短按切换蓝牙3，长按蓝牙3配对 FN组合功能键(WIN系统） 锁WIN键 查询电量（无线模式下电池供电有效） 主背光灯效切换 主背光颜色切换 键盘灯光开关 屏显查询(循环) ` END PG UP I PRTSC O SCRLK P [ PAUSE HOME ] 主背光亮度+ ↑ ↓ 主背光亮度- ← 主背光速度- 10 Win Back INS DEL → 主背光速度+ CD Stop（停止） 8 TAB 屏主界面与自定义界面切换 T 切换有线模式 FN组合功能键(MAC系统） 长按3s,恢复出厂设置 显示器亮度减 显示器亮度加 平铺展开当前活动的多个窗口 直接进入应用程序主界面 键盘背光亮度减 5 6 键盘背光亮度加 上一曲 7 下一曲 9 0 静音 音量减 - 音量加 + Q 短按切换蓝牙1，长按蓝牙1配对 W 短按切换蓝牙2，长按蓝牙2配对 11 1 2 3 4 E 短按切换蓝牙3，长按蓝牙3配对 FN组合功能键(MAC系统） 锁WIN键 查询电量（无线模式下电池供电有效） 主背光灯效切换 主背光颜色切换 键盘灯光开关 屏显查询(循环) ` END PG UP I PRTSC O SCRLK P [ PAUSE HOME ] 主背光亮度+ ↑ ↓ 主背光亮度- ← 主背光速度- 12 Win Back INS DEL → 主背光速度+ 暂停播放 8 TAB 屏主界面与自定义界面切换 T 切换有线模式 快速上手指南 如果你是MAC用户，请拨动系统转换开关换成MAC系统 （转换成功后默认界面下屏幕左下角为MAC） 如果你是WIN用户，请拨动系统转换开关换成WIN系统 （转换成功后默认界面下屏幕左下角为WIN） WIN MAC 1 2 1 电源开关（内置锂电池） 2 系统转换开关 3 8 List of contents: Mechanical keyboard ×1 Air spring data cable x 1 specification x 1 CK 68Mechanical keyboard Double head key extractor×1 Ammunition box x 1 CK 68specification Key count：69 Connection port：USB Type-C Mode: Three modes PCB：Support for hot swap Product name：CK 68 Product weight：980g Product size：350*120*43mm Light: RGB light effect Mute cotton: Two sheets of silicone mute cotton + shaft underpad 1.Bluetooth connection Short press FN+Q/W/E and long press FN+Q/W/E Put the keyboard into pairing mode The keyboard pairing name：CK 68 5.0/CK 68 3.0 Long press Q/W/E and the light will flash. After the pairing is successful, the Q/W/E key is on for 2 seconds and the backlight is restored (The Bluetooth logo is in the lower right corner of the screen in the default interface) 2.Connecting wire Long press T button after the white light flash,After the pairing is successful, T key is on for 2 seconds and the backlight is restored By default, the lower right corner of the screen is 4.Switching effect FN+INS Enable keyboard to adjust light mode FN+DEL Switch monochromatic colors FN+END Turn off/on the backlight 5.charge Charging status The charging indicator animation appears in the upper right corner of the default screen *1,Lamp working current 220MA sustainable time about 15 hours (working all the time) *2,Lamp off working current 40MA sustainable time about 80 hours (always working) *3,Standby current 0.5MA Standby time about 180 days *4,Enter standby mode. Press any key to start the keyboard and enter working mode. 6.Back connection 1.Keyboard startup defaults to the last connected device 2.FN+Q (FN+W, NFN+E) White slowly blinking connection *The keyboard must have been paired with the device for this function 7.Storage and use environment 1.Storage temperature：-20°C~+70°C 2.Operating temperature：-20°C~+60°C 3.Storage humidity: The relative humidity in the non-condensing state is 30%-95% RH 8.Compatible system: Support operating system：ANDROID/ISO/Win XP/Win7/Win8/Win10/MAC FN Combination key (WIN system) Short press FN+T and long press FN+T Set the keyboard to wired mode Press and hold for 3s to restore factory Settings multimedia Volume reduction Volume plus mute Previous song 5 6 Next song Pause play 7 Email 9 0 Ie MyComputer - Calculator + Q Short press to switch Bluetooth 1 and long press Bluetooth 1 to pair W 131614 171819 21 9.Custom driver Scan code to download the driver or : www.coolkiller.cn Warm tip: The driver only suppor ts wired mode customization 10.troubleshooting 1.Make sure your product's USB wireless receiver is properly plugged into the USB por t on your computer. 2.Ensure that the computer meets system requirements. 3.The product and the wireless receiver are beyond the effective connection distance, please reduce the distance between the product and the receiver. 1 2 3 4 E FN Combination key (WIN system) Lock WIN key Quer y power (batter y powered in wireless mode) Main backlight effect switch Main backlight color switch Keyboard light switch Screen quer y (loop) ` END PG UP I PRTSC O SCRLK P [ PAUSE HOME ] Main backlight brightness+ ↑ ↓ Main backlight brightness- ← Main backlight speed- 22 Win Back INS DEL → Main backlight speed+ CD Stop 8 TAB Switch between the home screen and the custom screen T Switch wire mode FN Combination Key (MAC) Display dimming Display brightness plus Tile expands the currently active multiple Windows Go directly to the main screen of the application Keyboard backlight brightness decreased 5 6 The keyboard is brightly backlit Previous song 7 Next song 9 0 mute Volume reduction - Volume plus + Q W 23 1 2 3 4 E FN Combination Key (MAC) ` END PG UP I PRTSC O SCRLK P [ PAUSE HOME ] ↑ ↓ ← 24 Win Back INS DEL → Pause play 8 …

Text truncated - open the document above for the full version.

Shenzhenshidieyunzhinengyouxiangongsi No.309-10,Building 512,Bagualing Industrial Zone, No. 33,Bagua Road,Hualin Community,Yuanling Street,Futian District,Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-8-3 To whom it may concern: We, Shenzhenshidieyunzhinengyouxiangongsi, hereby certify that the equipment for which authorization is sought (FCC ID: 2BH5A-CK68) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Emma Yang Manager Shenzhenshidieyunzhinengyouxiangongsi 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

shenzhenshidieyunzhinengyouxiangongsi No.309-10, Building 512, Bagualing Industrial Zone, No. 33, Bagua Road, Hualin Community, Yuanling Street, Futian District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024/08/02 U.S. Agent Designation shenzhenshidieyunzhinengyouxiangongsi acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BH5A-CK68): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of shenzhenshidieyunzhinengyouxiangongsi shenzhenshidieyunzhinengyouxiangongsi with the FRN [0035767797] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Emma Yang Manager shenzhenshidieyunzhinengyouxiangongsi Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Shenzhenshidieyunzhinengyouxiangongsi No.309-10,Building 512,Bagualing Industrial Zone, No. 33,Bagua Road,Hualin Community,Yuanling Street,Futian District,Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-8-3 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2BH5A-CK68 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Emma Yang/Manager Company: Shenzhenshidieyunzhinengyouxiangongsi Address: No.309-10,Building 512,Bagualing Industrial Zone, No. 33,Bagua Road,Hualin Community,Yuanling Street,Futian District,Shenzhen China Phone: 15384295081 Fax: N/A E-Mail: [email protected]

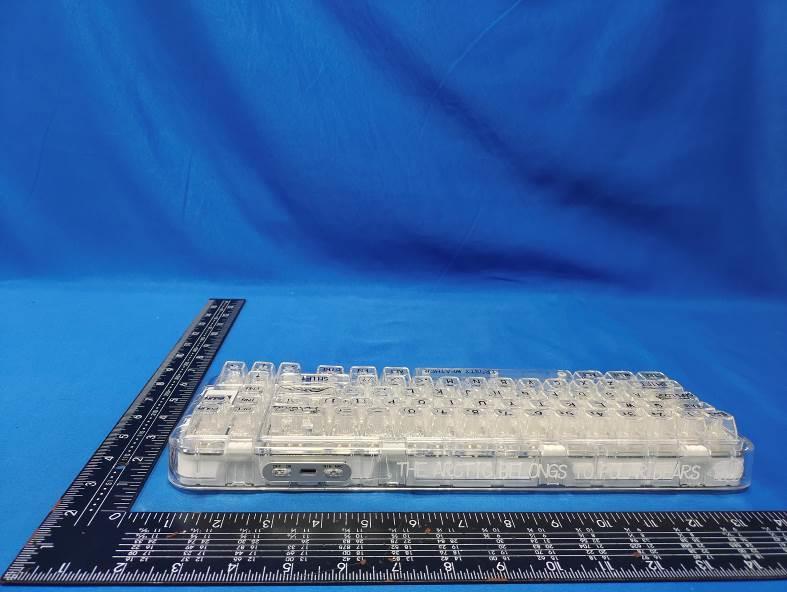

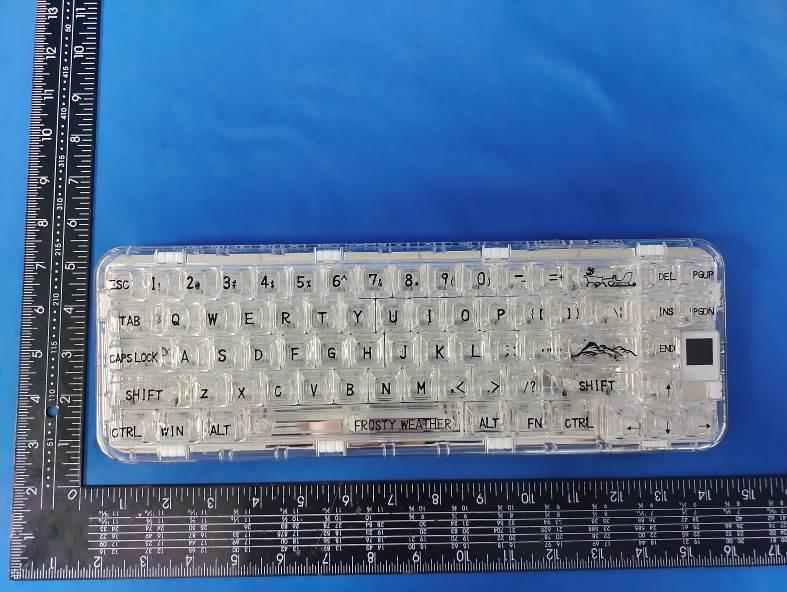

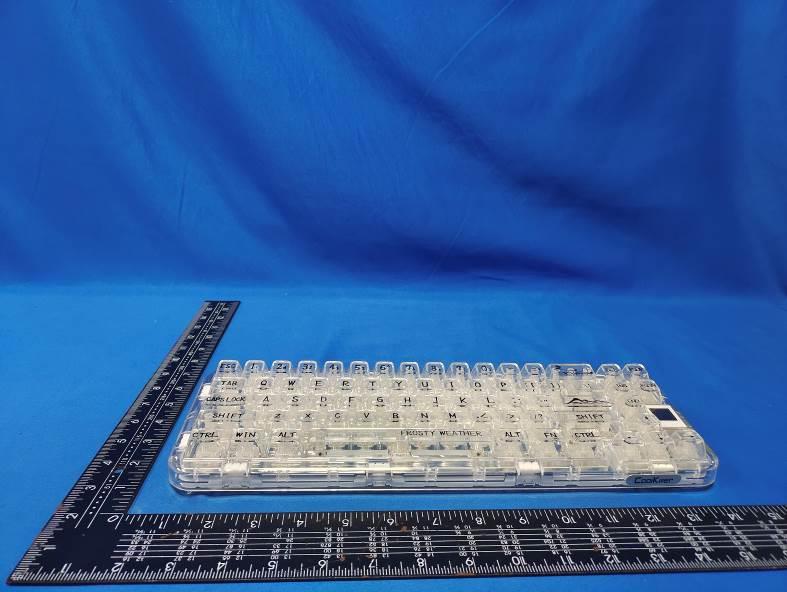

FCC ID: 2BH5A-CK68 External Photos of the EUT FCC ID: 2BH5A-CK68 FCC ID: 2BH5A-CK68

Label and Location Size: L: 3.0cm*W: 1.0cm Label and Location FCC ID : 2BH5A-CK68

FCC ID: 2BH5A-CK68 Internal Photos of the EUT FCC ID: 2BH5A-CK68 FCC ID: 2BH5A-CK68 ANT FCC ID: 2BH5A-CK68 FCC ID: 2BH5A-CK68 FCC ID: 2BH5A-CK68

RF Exposure evaluation FCC ID: 2BH5A-CK68 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) -2.0 -2.0 -1.0 Tolerance ±(dB) 1.0 1.0 1.0 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BLE 2.450 5 0.0 1.000 0.3130<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

1. Antenna Description: Antenna type PCB antenna Model CK68 Frequency range 2400-2500MHz Manufacturer Dongguan dieyun Innovation Technology Co., Ltd ANT Peak Gain 0.68 dBi 2. Antenna Photo: Length :16.62mm Width:3.31mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ............................................ : CTA24072201301 2BH5A-CK68 Compiled by ( position+printed name+signature) .. : File administrators Jinghua Xiao Supervised by ( position+printed name+signature) .. : Project Engineer Xudong Zhang Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Jul. 25, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : shenzhenshidieyunzhinengyouxiangongsi Address ............................................ : No.309-10, Building 512, Bagualing Industrial Zone, No. 33, Bagua Road, Hualin Community, Yuanling Street, Futian District, Shenzhen, China Test specification ...........................: Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description...................: CK68 Trade Mark ....................................... : Cool killer Manufacturer .................................... : Dongguan dieyun Innovation Technology Co., Ltd Model/Type reference....................... : CK68 Listed Models .................................. : N/A Modulation ....................................... : GFSK Frequency .......................................... From 2402MHz to 2480MHz Ratings ............................................. : DC 3.7V From battery and DC 5.0V From external circuit Result................................................ : PASS Report No.: CTA24072201301 Page 2 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : CK68 Model /Type : CK68 Listed Models : N/A Applicant : shenzhenshidieyunzhinengyouxiangongsi Address : No.309-10, Building 512, Bagualing Industrial Zone, No. 33, Bagua Road, Hualin Community, Yuanling Street, Futian District, Shenzhen, China Manufacturer : Dongguan dieyun Innovation Technology Co., Ltd Address : No. 22, Xiyuan 1st Road, Shapingba District, Chongqing, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24072201301 Page 3 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description* 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emissions and Band Edge 14 4.3 Maximum Peak Output Power 21 4.4 Power Spectral Density 22 4.5 6dB Bandwidth 24 4.6 Out-of-band Emissions 26 4.7 Antenna Requirement 30 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 31 6 P H O T O S O F T H E EUT ........................................................... 32 Report No.: CTA24072201301 Page 4 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 V05r02: Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247 Report No.: CTA24072201301 Page 5 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:c…
