2BH5W-IVSP2235WHSpeaker

USER MANUAL PRINTED IN CHINA/ 2026 IVSP2235WH 4-IN-1 SOUND MACHINE WITH BUILT-IN SPEAKER WARRANTY INFORMATION 90-DAY LIMITED WARRANTY TERRITORY: UNITED STATES/CANADA LIMITED WARRANTY TO ORIGINAL CONSUMER This product (including any accessories included in the original packaging) as supplied and distributed new by an authorized retailer is warranted by MCG Innovations Inc.. to the original consumer purchaser against defects in materials and workmanship (“Warranty”) as follows: To obtain warranty service: Call 848-412-0910 or email [email protected]. Clearly explain the issue that you are having, including the product’s name, brand, and model number. Your product will be repaired or replaced, at our option, for the same or similar model of equal value if examination by the service center determines this product is defective. Products received damaged as a result of shipping will require you to file a claim with the carrier. WARRANTY SERVICE NOT PROVIDED This warranty does not cover damage resulting from accident, misuse, abuse, improper installation or operation, lack of reasonable care, unauthorized modification including software modifications such as the installation of custom firmware. This warranty is voided in the event any unauthorized person opens, alters or repairs this product. All products being returned to the authorized service center for repair must be suitably packaged. NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OTHER THAN THOSE EXPRESSLY DESCRIBED ABOVE SHALL APPLY. DISTRIBUTOR FURTHER DISCLAIMS ALL WARRANTIES AFTER THE EXPRESS WARRANTY PERIOD STATED ABOVE. NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR ENTITY WITH RESPECT TO THE PRODUCT SHALL BE BINDING ON DISTRIBUTOR. REPAIR, REPLACEMENT, OR REFUND OF THE ORIGINAL PURCHASE PRICE – AT DISTRIBUTOR’S SOLE DISCRETION – ARE THE EXCLUSIVE REMEDIES OF THE CONSUMER. IN NO EVENT WILL DISTRIBUTOR OR ITS MANUFACTURERS BE LIABLE FOR ANY INCIDENTAL, DIRECT, INDIRECT, SPECIAL, PUNITIVE OR CONSEQUENTIAL DAMAGES (SUCH AS, BUT NOT LIMITED TO, DAMAGES FOR LOSS OF PROFITS, BUSINESS, SAVINGS, DATA OR RECORDS) CAUSED BY THE USE, MISUSE OR INABILITY TO USE THE PRODUCT. EXCEPT AS STATED HEREIN, NO OTHER WARRANTIES SHALL APPLY. NOT WITHSTANDING THE FOREGOING, CONSUMER’S RECOVERY AGAINST DISTRIBUTOR SHALL NOT EXCEED THE PURCHASE PRICE OF THE PRODUCT SOLD BY DISTRIBUTOR. THIS WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL CONSUMER WHO PURCHASED THE PRODUCT AND IS NOT TRANSFERABLE. Some countries, states or provinces do not allow the exclusion or limitation of incidental or consequential damages or allow limitations on warranties, so limitation or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights that vary from state to state or province to province. Contact your authorized retailer to determine if another warranty applies. All product names, trademarks, and registered trademarks are property of their respective owners. All company, product, and service names used in this document are for identification purposes only. Use of these names, trademarks, and brands does not imply endorsement. COMPLIANCE INFORMATION FCC INFORMATION FCC ID: 2BH5W-IVSP2235WH CAUTION: Any changes or modifications not expressly approved could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: · · · · Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RADIATION EXPOSURE INFORMATION: This device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction. RATING LABEL DEFINITIONS Direct current symbol. This symbol represents FCC Declaration of Conformity and compliance This symbol signifies that the product must not be discarded as household waste and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and environment. INSTRUCTIONS UNSUCCESSFUL CONNECTION AND PAIRING LOW OR DISTORTED SOUND Click for next song; long press to increase volume. Click for previous song; long press to decrease volume. Power button: Long press to turn on/off. Light button: Click to switch between Bluetooth and white noise; long press to PRODUCT SPECIFICIATION Bluetooth Pairing Name: IVSP2180 Speaker Output: 5W Version: 5.0EDR Battery Capacity: 500mAh USB Power Input: 5V Charging Port: TYPE-C Product Size: 3.54 × 3.54 × 4.65 inches WARNING We continuously work to improve the quality and functionality of our products. Product design and specifications may be updated…

Text truncated - open the document above for the full version.

AttestationStatement. OldCode:C526609124NewCode:00015544Ed.3 Changereason:FRNisaddedtotheApplicantinformationsection. 1/1 TO: OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 TheCommissionadoptedrulesthatprohibitequipmentauthorizationfor“covered” telecommunicationsequipmentandvideosurveillanceequipmentproducedbyentitiesidentified ontheCommission’sCoveredList 1 ,whichisperiodicallyupdated.SeetheCoveredListformore details.ThisAttestationStatementistoconfirmthatwefollowtheSection2.911(d)(5)(i)-(ii) Applicant Companyname:ShenzhenXinvoTechnologyCo.,LTD Granteecode:2BH5W FRN:0035779016 FCCID:2BH5W-IVSP2235WH ContactName:SummerHuang Address:501,5thFloor,Building10,LongbiIndustrialPark,Dafaroad,BantianStreet, LonggangDistrict,Shenzhen,China TelephoneNo.:0755-27765813 Email:[email protected] i.ShenzhenXinvoTechnologyCo.,LTD(“theapplicant”)certifiesthatthe equipmentforwhichauthorizationissoughtisnot“covered”equipment prohibitedfromreceivinganequipmentauthorizationpursuanttosection 2.903oftheFCCrules.Theapplicantmustsignthiscertification. ii.ShenzhenXinvoTechnologyCo.,LTD(“theapplicant”)certifiesthat,asof thedateofthefilingoftheapplication,theapplicant[isnot](asaspecifically namedentityoranyofitssubsidiariesoraffiliates)identifiedontheCovered Listasanentityproducing“covered”equipment.Theapplicantmustsign thiscertification. [ShenzhenXinvoTechnologyCo.,LTD](“theapplicant”)certifiesthat,asofthedate ofthefilingofthe application,theapplicant[isnot]identifiedontheCoveredList asanentityproducing“covered” equipment. Date:2026.4.29 Applicant’sName:SummerHuang Title:Manager Signature 1 TheCommission’sCoveredListispublishedbythePublicSafetyandHomelandSecurityBureauandpostedonthe Commission’swebsite.ThisCoveredList,whichisperiodicallyupdated,identifiesparticularequipment,producedby particularentities,thatconstitutes“covered”equipment.https://www.fcc.gov/supplychain/coveredlist

ShenzhenXinvoTechnologyCo., LTD Code00018768Ed. 2 Item 1.The deviceis able to install software/programinstallation? ☐ Yes, go to Item 2. ☒ No. In this case, the rest of the items do not apply.The devicecannotsupportinstallationof Kaspersky cybersecurityor anti-virussoftware. Item 2.TechnicalRequirementsfor KasperskyCybersecuritySoftware: #GeneralRequirements(For all Devices)Yes / No or N/AComments 1Internetconnectionfor activationand updates(For all Operating Systems) N/A #GeneralRequirements(For WindowsDevices)Yes / No or N/AComments DeviceSpeaker CompanynameShenzhenXinvoTechnologyCo., LTD Granteecode2BH5W FCC ID2BH5W-IVSP2235WH FRN0035779016 ContactnameSummerHuang Address501, 5th Floor,Building10, LongbiIndustrial Park,Dafaroad,BantianStreet,Longgang District,Shenzhen,China Telephonenumber0755-27765813 [email protected] Chipset/moduleinformationAC6965E(AC26FP02034) OperatingSystem(if applicable)N/A StorageCapacity(hard drive or other permanentmemorystorage,if applicable) N/A 2 1Storage:1500MBfreespaceontheharddriveN/A 2OperatingSystem: MicrosoftWindows8,8.1,10&11Home/Pro/Enterprise Microsoft Windows7Starter/HomeBasic&Premium/Professional/ UltimateSP1orhigher N/A 3Processor:1GHzorhigher(x86orx64)N/A 4Memory(RAM)1GB(32-bit)or2GB(64-bit)N/A 5ScreenResolution:Minimumresolutionof1024x768N/A #GeneralRequirements(FormacOSdevices)Yes/NoorN/AComments 1OperatingSystemmacOS®13–14N/A 2Memory(RAM)4GBN/A 3Storage:3455MBfreespaceontheharddriveN/A #GeneralRequirements(ForAndroidDevices)Yes/NoorN/AComments 1Storage:150MBfreespaceN/A 2OperatingSystem:Android™10–14N/A 3ScreenResolution:Minimumresolutionof320x480N/A #GeneralRequirements(foriOSdevices)Yes/NoorN/AComments 1Storage:150MBfreespaceN/A 2OperatingSystem:iOS®17N/A #GeneralRequirements(ForLinuxsystem)Yes/NoorN/AComments 1Harddrive:1GBoffreespaceN/A 3 2CPU:IntelPentium1GHzorhigherN/A 3RAM:1GBN/A 4Minimumsoftwarerequirements: AlmaLinuxOS8orlater; AlterOS7.5orlater; AstraLinuxCommonEdition2.12orlater; CentOS6.7orlater; DebianGNU/Linux10.0orlater; EulerOS2.0orlater; OracleLinux7.3orlater; RedHatEnterpriseLinux6.7orlater; RockyLinux8.5orlater; SUSELinuxEnterpriseServer12.5orlater; Ubuntu12.04orlater; UncomOSHome/Business/Education/Enterprise2.2orlater; ALTLinuxWorkstaton/WorkstationK/Server/Education8or later; ROSALinuxWorkstation/Server12orlater; REDOS7.3andlater; N/A Afterreviewedthetechnicalrequirements,isthedevicecapableofsupportingtheinstallationof Kasperskysoftware? ☐Yes,gotoItem3. ☒ No.Inthiscase,therestoftheitemsdonotapply.ThedevicecannotsupportinstallationofKaspersky software Item3.ConnectivityCapabilities: 4 #PhysicalInterfacePurposeJustification 1 1 #WirelessInterfacePurposeJustification 1 1 Afterthereviewofthisitems,thedevice: ☒Cannotsupportinstallationofanycybersecurityoranti-virussoftwareonthecoveredlist. ☐ Potentiallycanoperatewithanycybersecurityoranti-virussoftwareonthecoveredlist–additionalthird- partyproofisprovidedtodemonstratecompliancewithrequirementsasof2.911(d)5(i),(ii)–“Proofof CompliancewithCoveredListSoftwareRequirements”ofthisdocumentapplies Signature:Name:SummerHuang Date:2026.4.29 Oncethedocumentisfilledin,pleaseproceedtoprintaPDFofthisWord 1 Thejustificationfieldisusedtojustifywhythesoftwarecannotbereceivedthroughthatinterface.Checktheannexformore indications.

TCB CALL página 1 File FCC ID: 2BH5W-IVSP2235WH Please upload an exhibit that explains how does the TCB verify the new agent information: 1- Is the address of the agent a valid physical US mailing address (not a US post office box, not a virtual mailbox, not P.O. Boxes, not a vacant lot, not a public building, etc.) ○ We have checked if the address exists in a real and potential building (Google maps) + official US register, after this verification and the evidence below we can guarantee the following: not a US post office box not a virtual mailbox not P.O. Boxes not a vacant lot not a public building(note) ► We checked the FCC FRN Search based on the information provided by the grantee. On the official register from : https://opencorporates.com/companies/us_co/20248329243 In google: TCB CALL página 2 TCB CALL página 3 TCB CALL página 4 TCB CALL página 5 TCB CALL página 6 TCB CALL página 7 TCB CALL página 8 TCB CALL página 9 ► CONCLUSION by TCB: The ASOP defined and provided by grantee is VALID and confirmed. Therefore the exhibit "C5266091_X23_Ed1_US_Agent_Letter" included in the file is ok. 2- Is the agent physically located at that valid US address such that the agent can be legally served at that address? Yes , check above 3- Has the listed agent clearly agreed in writing to serve as the agent for the grantee at that address? Yes, it is included in the exhibit "C5266091_X23_Ed1_US_Agent_Letter" >

C5266091_X10_Ed.2 1/1 ShenzhenXinvoTechnologyCo.,LTD OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 Date:2026.4.29 Subject:RequestforConfidentiality FCCID:2BH5W-IVSP2235WH ToWhomItMayConcern, PursuanttotheprovisionsofSections0.457and0.459ofCommission'srules (47CFR0.457,0.459),wearerequestingtheCommissiontowithholdthefollowing attachment(s)asconfidentialdocumentfrompublicdisclosure. ExhibitsLong-Term Confidentiality Short-Term Confidentiality NOTE2 IDLabel/LocationNoNo AttestationStatementNoNo ExternalPhotosNo ☐ BlockDiagram ☒☐ Schematics ☒☐ TestReportNoNo TestSetupPhotosNo ☐ User’sManual ☐ NOTE 1 ☐ InternalPhotos ☐ NOTE 1 ☐ PartsList/TuneUp ☐☐ RFExposureInfoNoNo OperationalDescription ☒☐ CoverLetter(s)NoNo SDRSoftware/SecurityInfo ☐ No NOTE1:Long-TermConfidentialitymaybepermittedunderspecialconditions(SeeII.LONG-TERMCONFIDENTIALITY,Section3of KDB726920,uselastinforce) NOTE2:Short-TermConfidentialitycanberequestedforamaximumof180daysfromthedateofthegrant. Abovementioneddocumentcontainsdetailedsystemandequipmentdescriptionare consideredasproprietaryinformationinoperationoftheequipment.Thepublic disclosureofabovedocumentsmightbeharmfultoourcompanyandwouldgive competitoranunfairadvantageinthemarket. Incaseofshort-termConfidentiality,theapplicantrequeststheexhibitsselected abovearewithheldfrompublicviewforaperiodof______daysfromthedateofthe GrantofEquipmentAuthorizationandpriortomarketing. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondentduringcertificationreviewprocesscannotbegrantedasconfidential documentsandthoseinformationwillbeavailableforpublicreviewoncethegrantof equipmentauthorizationisissued. C5266091_X10_Ed.2 1/1 Sincerely, Signature: Name:SummerHuang Title:Manager

C5266091_X8_Ed.1 1/1 LetterofAuthorization ShenzhenXinvoTechnologyCo.,LTD Company:ShenzhenXinvoTechnologyCo.,LTD Address:501,5thFloor,Building10,LongbiIndustrialPark,Dafaroad, BantianStreet,LonggangDistrict,Shenzhen,China ProductName:Speaker ModelNumber:IVSP2235WH FCCIdentifier:2BH5W-IVSP2235WH WeauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdelCarme,s/n, 08193Bellaterra,Spain,toactonourbehalfonallmattersconcerningthe abovenamedequipment. AnyindividualwithinLGAITechnologicalCenterS.A.isauthorizedtoactonour behalfandtakeactionontheapplication. WedeclarethatauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdel Carme,s/n,08193Bellaterra,Spain,isallowedtoforwardallinformation relatedtotheapprovalprojecttotheFederalCommunicationCommissionand todiscussanyissuesconcerningtheapprovalapplication.Anyandallacts carriedoutbyLGAITechnologicalCenterS.A.onourbehalfshallhavethe sameeffectasactsofourown. Name:SummerHuangDate:2026.4.29 Title:Manager Signatureofapplicant:

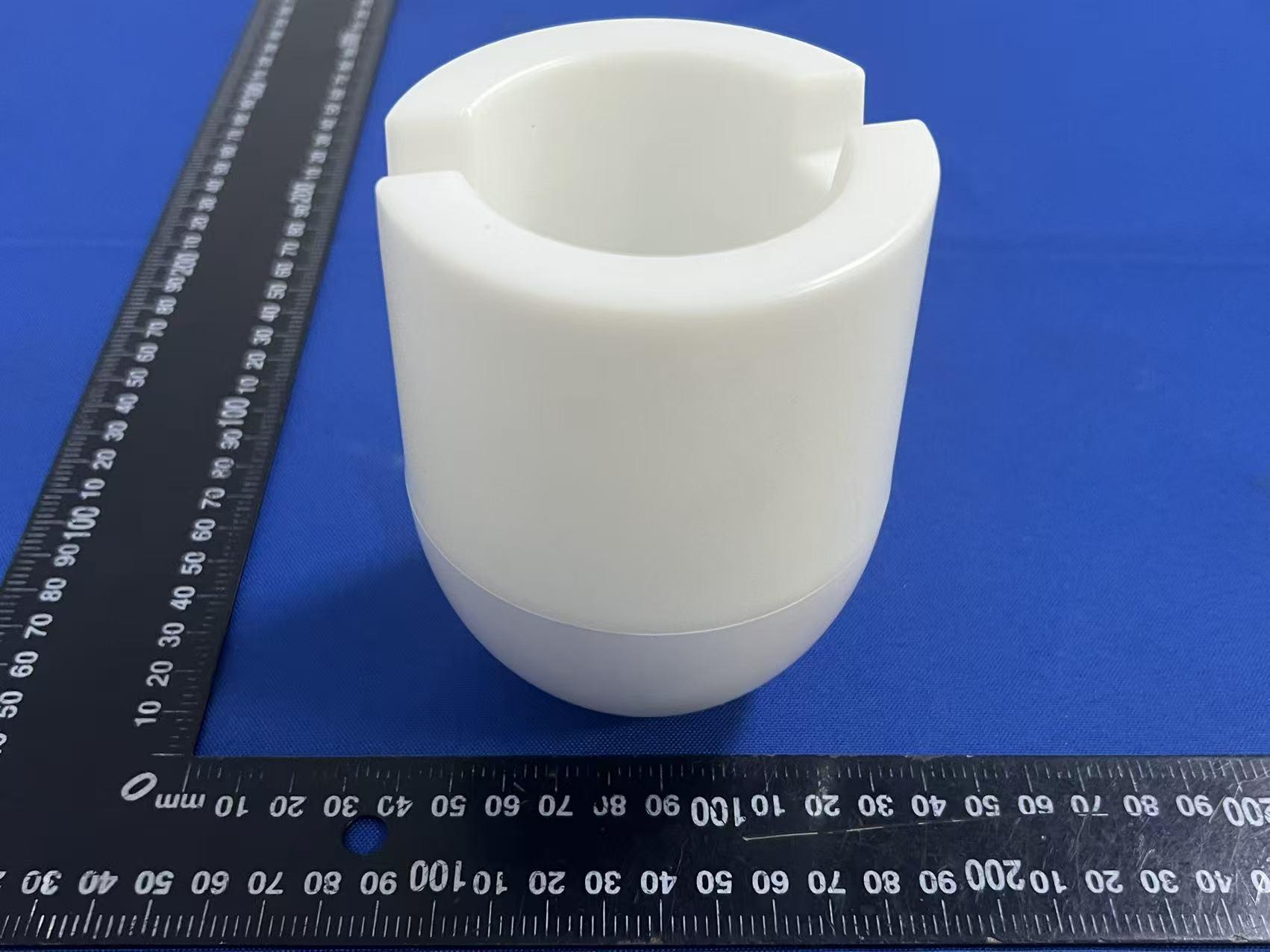

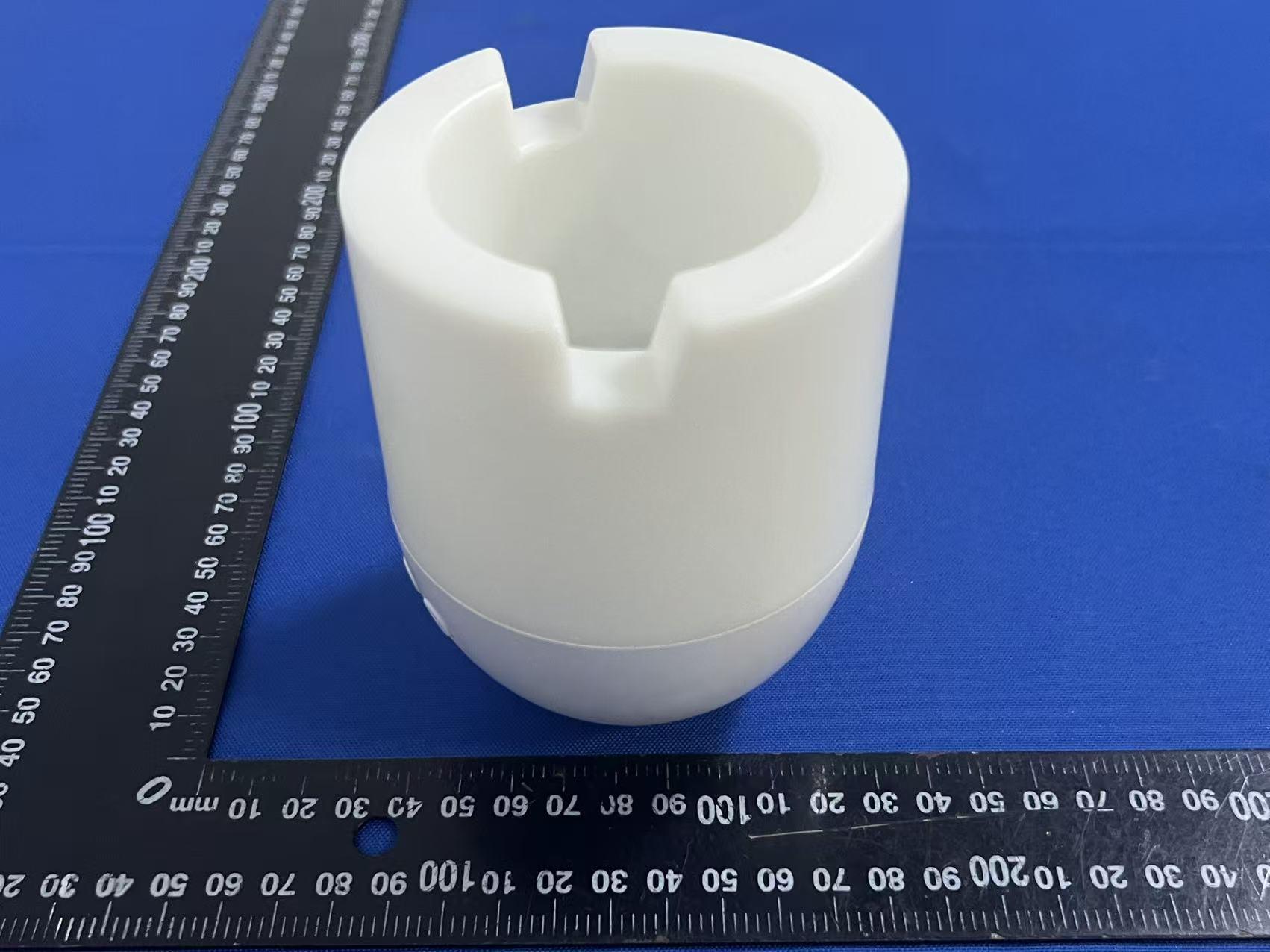

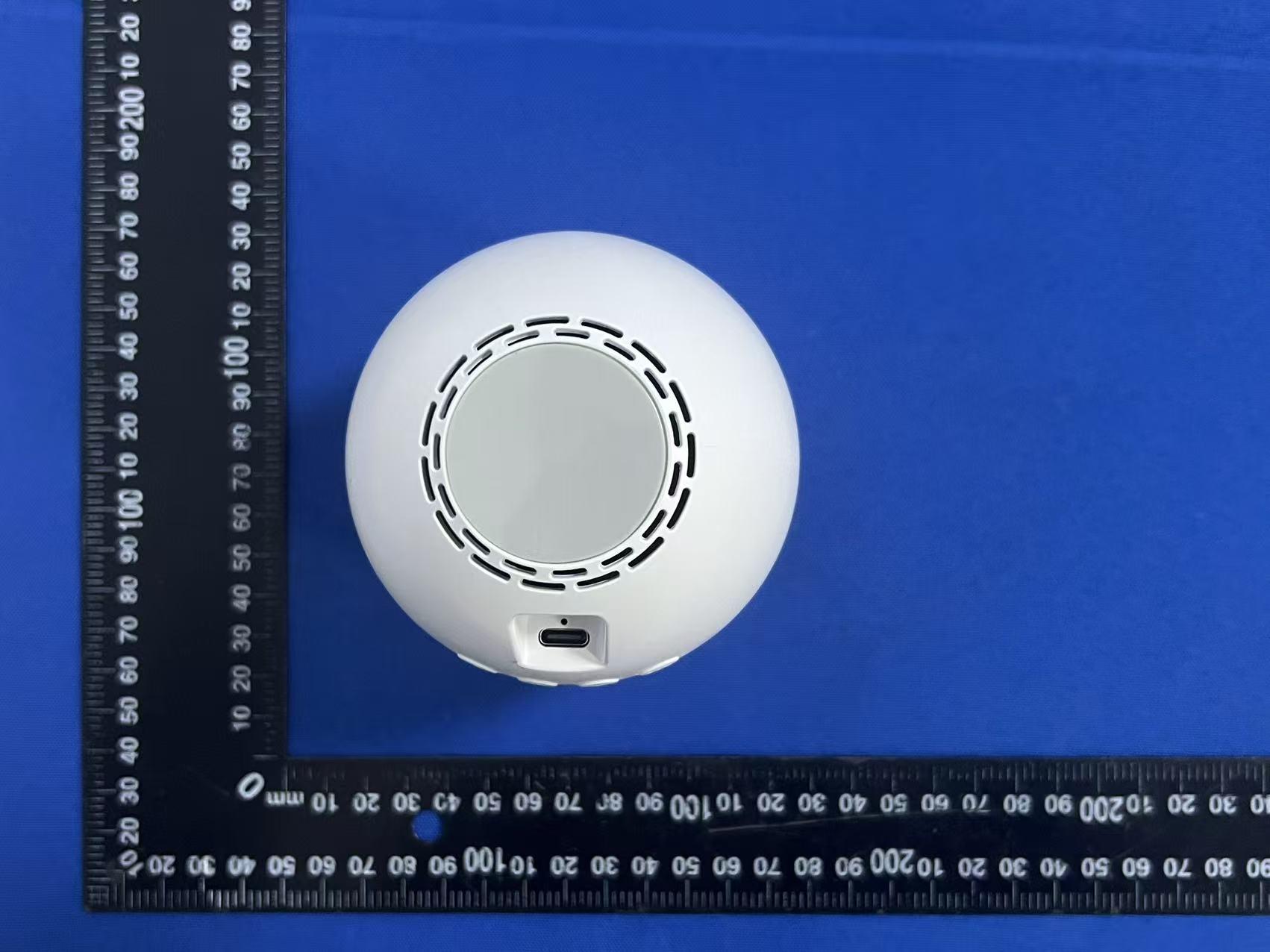

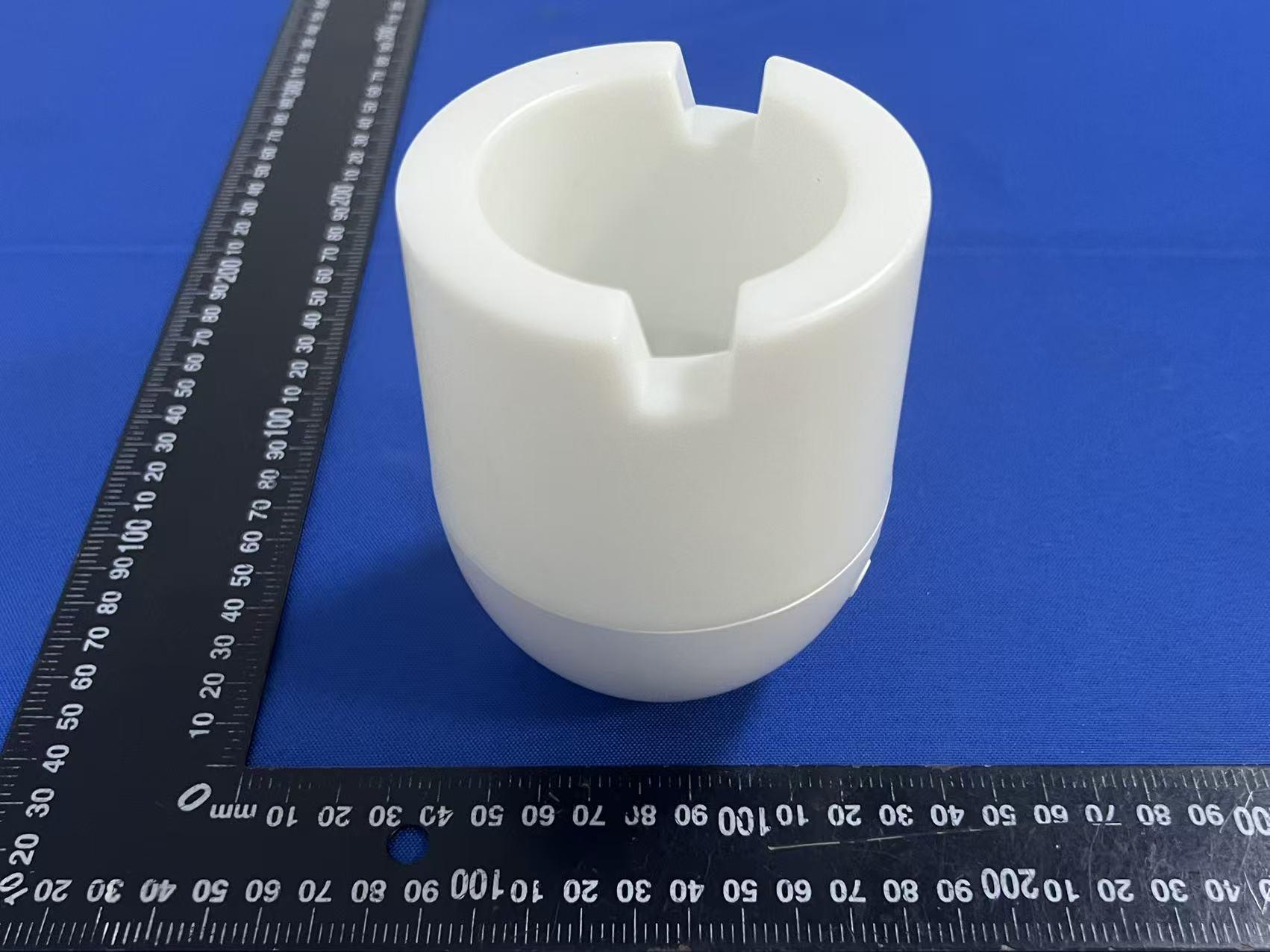

EUTPHOTO(ExternalPhotos) TestModel:IVSP2235WH ※※※※※ENDOFREPORT※※※※※

Labelandlabellocation FCCIDLABEL: High:1cm Wide:2cm LabelLocation: Model:IVSP2235WH FCCID:2BH5W-IVSP2235WH

EUTPHOTO(InternalPhotos) TestModel:IVSP2235WH ※※※※※ENDOFREPORT※※※※※ BTANT

FCCID:2BH5W-IVSP2235WH RFEXPOSUREEVALUATION AccordingtoKDB447498D01GeneralRFExposureGuidancev06andpart2.1093, UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures,standalone 1-gheadorbodyand10-gextremitySARevaluationforgeneralpopulationexposure conditions,bymeasurementornumericalsimulation,isnotrequiredwhenthe correspondingSARTestExclusionThresholdcondition(s),listedbelow,is(are)satisfied. For100MHzto6GHzandtestseparationdistances≤50mm,the1-gand10-gSARtest exclusionthresholdsaredeterminedbythefollowing: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]*[√f (GHz) ]≤3.0for1-gSAR,and≤7.5for10-gextremitySAR,where f (GHz) istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison Here, ForBR/EDR Mode Frequency Output power Tune-up power Maxtune-up power Maxtune-up power Min. Distance Calc. thresholds limit (MHz)(dBm)(dBm)(dBm)(mW)(mm) GFSK2441-2.292 -3±1 -20.6350.19693.0 π/4-DQPSK2441-1.582 -2±1 -10.7950.24693.0 8-DPSK2441-1.027 -2±1 -10.7950.24693.0 Conclusion: 1.[(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparation distance,mm)]*[√f(GHz)]<3.0. 2.SARTestExclusionThresholdsis3.0forseparationdistance5mm.Therefore,SAR testisnotrequired.

ReportNO.:ZKT-2604171123E Page 1 of 64 FCCTESTREPORT FCCID:2BH5W-IVSP2235WH ReportNumber. .................................. :ZKT-2604171123E DateofTest..........................................:Apr.21,2026toApr.27,2026 Dateofissue.........................................:Apr.27,2026 Totalnumberofpages........................:64 TestResult..........................................: PASS TestingLaboratory...........................: ShenzhenZKTTechnologyCo.,Ltd. Address ............................................... : 1/F,No.101,BuildingB,No.6,TangweiCommunityIndustrial Avenue,FuhaiStreet,Bao'anDistrict,Shenzhen,China Applicant'sname.............................: SHENZHENXINVODIGITALCOMPANYLIMITED Address...............................................: 5thFloor,Building10,LongbiIndustrialPark,DafaRoad,Bantian, Longgang,Shenzhen,Guangdong,China Manufacturer'sname......................: SHENZHENXINVODIGITALCOMPANYLIMITED Address...............................................: 5thFloor,Building10,LongbiIndustrialPark,DafaRoad,Bantian, Longgang,Shenzhen,Guangdong,China Testspecification: Standard ................................................ : FCCCFRTitle47Part15SubpartCSection15.247 ANSIC63.10-2020+Cor1-2023 Testprocedure ..................................... : / Non-standardtestmethod ................ :N/A TestReportFormNo. ....................... : TRF-EL-112_V0 TestReportForm(s)Originator ..... : ZKTTesting MasterTRF........................................: Dated:2020-01-06 ThisdevicedescribedabovehasbeentestedbyZKT,andthetestresultsshowthattheequipmentunder test(EUT)isincompliancewiththeFCCrequirements.Anditisapplicableonlytothetestedsample identifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofZKT,thisdocumentmay bealteredorrevisedbyZKT,personalonly,andshallbenotedintherevisionofthedocument. Productname ..................................... : Speaker Trademark...........................................:N/A Model/Typereference ......................... :IVSP2235WH Ratings..................................................: Input:5V1A Battery:DC3.7V,500mAh,1.85Wh ReportNO.:ZKT-2604171123E Page 2 of 64 Testingprocedureandtestinglocation: TestingLaboratory..........................................:ShenzhenZKTTechnologyCo.,Ltd. Address............................................................:1/F,No.101,BuildingB,No.6,TangweiCommunity IndustrialAvenue,FuhaiStreet,Bao'anDistrict, Shenzhen,China JimLiu Testedby(name+signature).......................: JacksonFang Reviewer(name+signature).......................: LakeXie Approved(name+signature) ....................... : ReportNO.:ZKT-2604171123E Page 3 of 64 TableofContents Page 1.VERSION.............................................................................................................................5 2.TESTSUMMARY................................................................................................................6 2.1TESTFACILITY..................................................................................................................7 2.2MEASUREMENTUNCERTAINTY....................................................................................7 3.GENERALINFORMATION.................................................................................................8 3.1GENERALDESCRIPTIONOFEUT..................................................................................8 3.2TESTSETUPCONFIGURATION...................................................................................10 3.3SUPPORTEQUIPMENT.................................................................................................10 3.4TESTMODE....................................................................................................................10 4.EMCEMISSIONTEST......................................................................................................13 4.1CONDUCTEDEMISSIONS.............................................................................................13 4.1.1POWERLINECONDUCTEDEMISSIONLIMITS...................................................13 4.1.2TESTPROCEDURE.................................................................................................13 4.1.3DEVIATIONFROMTESTSTANDARD...................................................................13 4.1.4TESTSETUP............................................................................................................14 4.1.5EUTOPERATINGCONDITIONS............................................................................14 4.1.6TESTRESULT..........................................................................................................15 4.2RADIATEDEMISSIONS..................................................................................................17 4.2.1RADIATEDEMISSIONLIMITS................................................................................17 4.2.2TESTPROCEDURE.................................................................................................17 4.2.3DEVIATIONFROMTESTSTANDARD...................................................................18 4.2.4TESTSETUP............................................................................................................18 4.2.5EUTOPERATINGCONDITIONS............................................................................19 4.2.6TESTRESULTS.......................................................................................................19 5.RADIATEDBANDEMISSIONMEASUREMENT............................................................28 5.1TESTREQUIREMENT....................................................................................................28 5.2TESTPROCEDURE........................................................................................................28 5.3DEVIATIONFROMTESTSTANDARD...........................................................................29 5.4TESTSETUP...............................…

Text truncated - open the document above for the full version.

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2450MHz2500MHz2400MHz2450MHz 2500MHz Center Frequency -1.26dBi-0. 76dBi -0. 58dBi -5. 25dBi -2. 46dBi -1.86dBi MAX. Gain -0.58dBi PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Manufacturer address: No. 333, Kexing Road, Xiangzhou District, Zhuhai City Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dBi) Frequency (MHz) MaxMinAvg 2400 -1.26-30.08-7 .18 2450 -0.76-36.56-7.48 2500 -0.58-22.03-6.59 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dBi) Frequency (MHz) MaxMinAvg 2400 -5.25-22.14-12.42 2450 -2.46-24.58-10.47 2500 -1.86-29 .52 -9.20 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

EUTTESTPHOTO TestModel:IVSP2235WH Remark:RFlineimpedanceis50Ohm
