2BH65-GMJ-19Remote Control

USER MANUAL 1. The main controller of the remote control is NS-021-RF01, responsible for detecting button control data transmission, and the maximum power output of the remote control is 0dBm; 2. Press the button to send the data code once and keep sending it for a long time; 3. The wireless 433 transmission chip uses a 13.560MHz crystal oscillator, which is sent out through an antenna after matching with the network; 4. Wireless data transmission uses a customer defined protocol with a bitrate of 0.6K. 5. The remote control is powered by two Dry cell. FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

Guangzhou Guanmingjie Intelligent Photoelectric Technology co., ltd Floor 3, Building A1, Chuangshengxin Industrial Park, Xizhou Village, Xintang Town Zengcheng District, Guangzhou China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-8-18 To whom it may concern: We, Guangzhou Guanmingjie Intelligent Photoelectric Technology co., ltd, hereby certify that the equipment for which authorization is sought (FCC ID: 2BH65-GMJ-19) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Boqi Liu Manager Guangzhou Guanmingjie Intelligent Photoelectric Technology co., ltd 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

Guangzhou Guanmingjie Intelligent Photoelectric Technology co.,ltd Floor 3, Building A1, Chuangshengxin Industrial Park, Xizhou Village, Xintang Town, Zengcheng District, Guangzhou City, Guangdong Province, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024/08/13 U.S. Agent Designation Guangzhou Guanmingjie Intelligent Photoelectric Technology co.,ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BH65-GMJ-19): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of Guangzhou Guanmingjie Intelligent Photoelectric Technology co.,ltd Guangzhou Guanmingjie Intelligent Photoelectric Technology co.,ltd with the FRN [0035783950] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Bogi Liu Manager Guangzhou Guanmingjie Intelligent Photoelectric Technology co.,ltd Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Guangzhou Guanmingjie Intelligent Photoelectric Technology co., ltd Add: Floor 3, Building A1, Chuangshengxin Industrial Park, Xizhou Village, Xintang Town Zengcheng District, Guangzhou China Date: 2024-8-18 FCC ID: 2BH65-GMJ-19 Dear Sir/Madam, We, Guangzhou Guanmingjie Intelligent Photoelectric Technology co., ltd Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Remote Control Model no.: GMJ-19, GMJ-20, GMJ-8, GMJ-8-1, GMJ-8-2, GMJ-8-4, GMJ-8-6, GMJ-8-8, GMJ-8-10, GMJ-8-12, GMJ-8-20, GMJ-5, GMJ-5-1, GMJ-5-2, GMJ-5-4 Sincerely, Name/Title： Boqi Liu/Manager Company: Guangzhou Guanmingjie Intelligent Photoelectric Technology co., ltd Address: Floor 3, Building A1, Chuangshengxin Industrial Park, Xizhou Village, Xintang Town Zengcheng District, Guangzhou China Phone: 19179655376 Fax: N/A E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-8-18> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2BH65-GMJ-19 GMJ-19 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Boqi Liu/Manager Company: Guangzhou Guanmingjie Intelligent Photoelectric Technology co., ltd Address: Floor 3, Building A1, Chuangshengxin Industrial Park, Xizhou Village, Xintang Town Zengcheng District, Guangzhou China Phone: 19179655376 Fax: N/A E-Mail: [email protected]

Guangzhou Guanmingjie Intelligent Photoelectric Technology co., ltd Floor 3, Building A1, Chuangshengxin Industrial Park, Xizhou Village, Xintang Town Zengcheng District, Guangzhou China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-8-18 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2BH65-GMJ-19 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Boqi Liu/Manager Company: Guangzhou Guanmingjie Intelligent Photoelectric Technology co., ltd Address: Floor 3, Building A1, Chuangshengxin Industrial Park, Xizhou Village, Xintang Town Zengcheng District, Guangzhou China Phone: 19179655376 Fax: N/A E-Mail: [email protected]

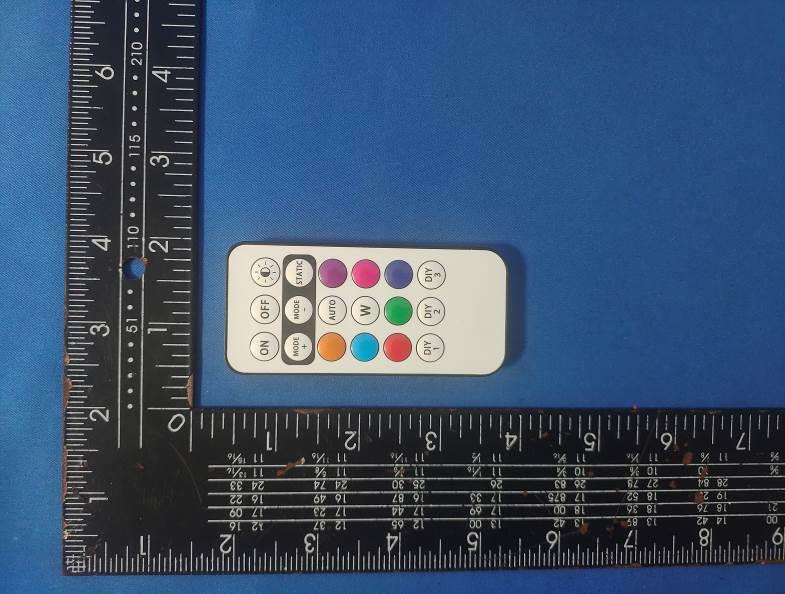

FCC ID: 2BH65-GMJ-19 External Photos of the EUT FCC ID: 2BH65-GMJ-19

Label and Location Size: L: 1.0cm*W: 0.2cm Label and Location FCC ID : 2BH65-GMJ-19

FCC ID: 2BH65-GMJ-19 Internal Photos of the EUT FCC ID: 2BH65-GMJ-19 ANT FCC ID: 2BH65-GMJ-19

RF Exposure evaluation FCC ID : 2BH65-GMJ-19 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance Freq. (MHz) Field strength(max)(dBuV/m) EIRP (max) (dBm) Turn-up Power (dB) Max tune up power (dBm) [P] 433.92MHz 94.55 -0.71 0.0±1.0 1.0 Note: EIRP=E-104.8+20logD, D=3 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW SRD 0.433 5 1.0 1.2589 0.1657<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

1. Antenna Description: Antenna type PCB antenna Model GMJ-19 Frequency range 400MHz-500 MHz Manufacturer Guangzhou Guanmingjie Intelligent Photoelectric Technology co.,ltd Gain 0.55 dBi 2. Antenna Photo: Length:29.09mm Length:29.41mm Length:27.96mm Width:1.15mm
