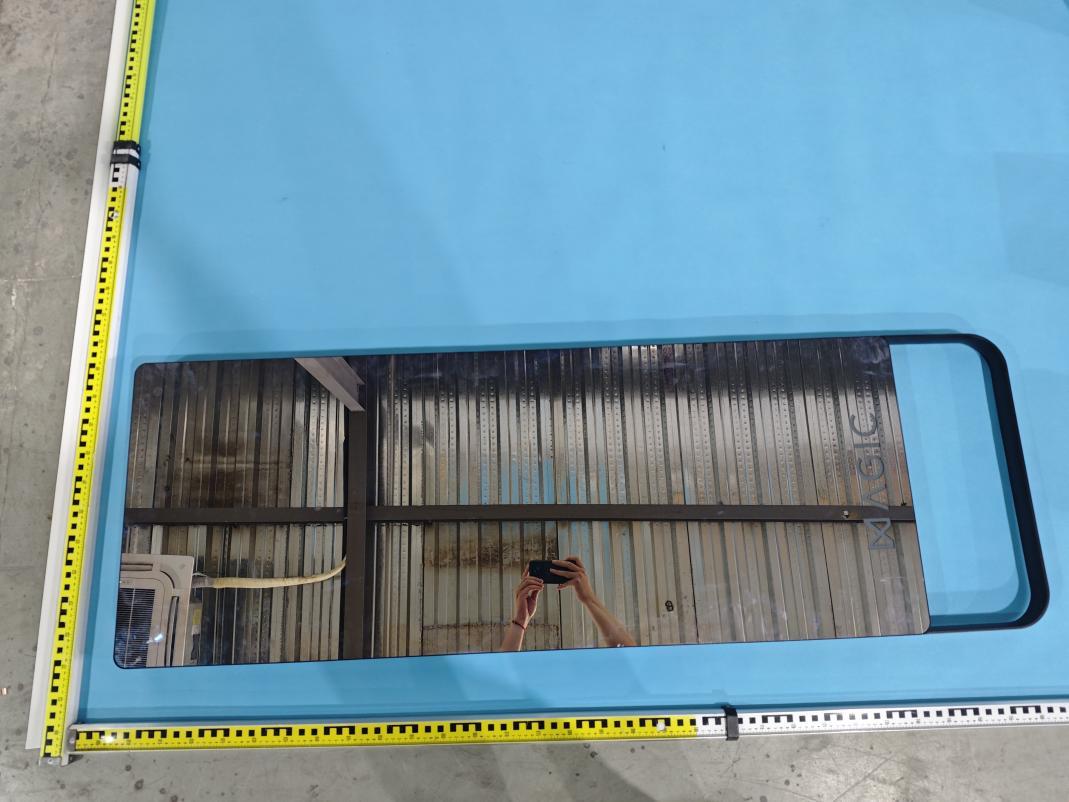

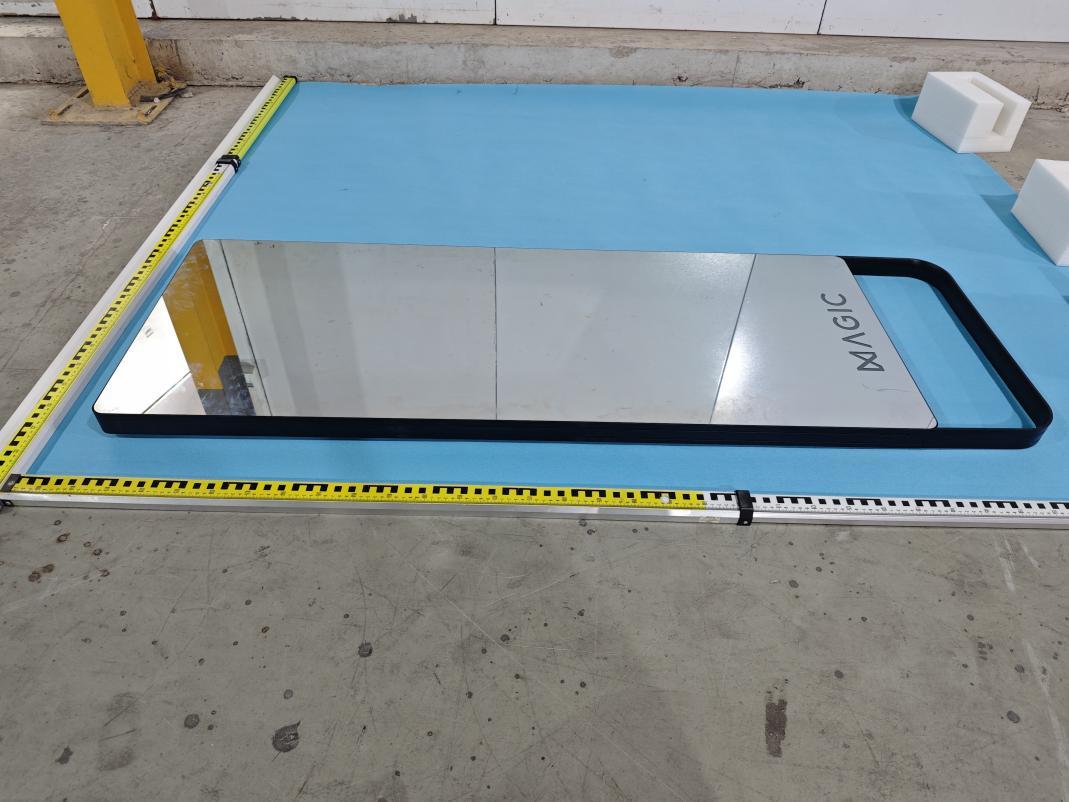

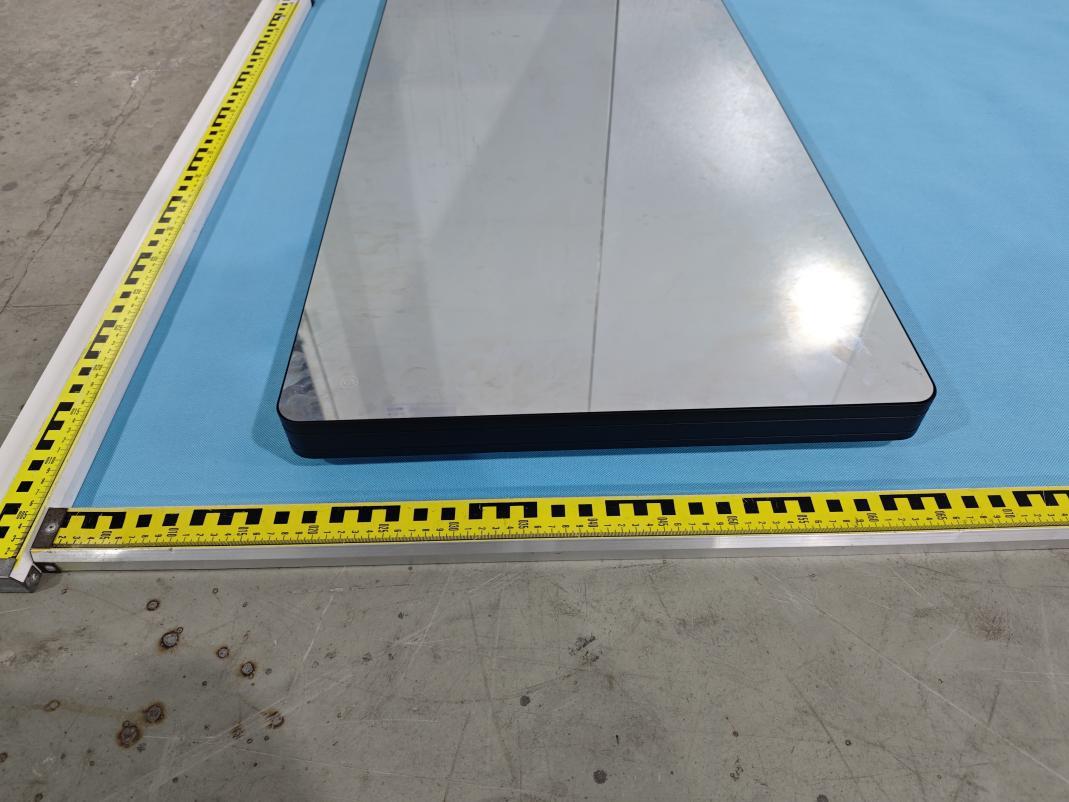

2BH6O-MFM-004Smart Fitness Mirror

Installation Instructions For MAGIC Fitness Mirror www.magic.fit Instruction Booklet.indd 1Instruction Booklet.indd 102/12/2024 09:1802/12/2024 09:18 Notice • Only to be used by persons over 18 years of age. • If approved in advance by a physician, teenagers over the age of 13 may use the product under adult supervision. • In case of palpitation, dizziness, wheezing, nausea and vomiting during use, stop exercising and rest immediately. If this continues, seek medical attention. • Metrics on the screen may be inaccurate. Values should be used for reference only. • Do not disassemble. Taking apart the MAGIC Mirror could create a risk of injury or electric shock. Advice • It is suggested that you do some warm-up preparation before using the product. • It is suggested that you wear sportswear to avoid sports injuries caused by uncomfortable clothing. • It is suggested that you wear sportswear and not loose clothes during use to avoid affecting posture tracking. Please read the installation instructions carefully before usage. Warning • Both Wall and Floor installation requires two people. • Do not install near water. • Do not install near a fire source. • Before using the wall installation method to install the product please make sure that the wall can be drilled into and loaded. • Please check for any damage before installation, contact MAGIC if any issues BEFORE installation. • People with severe hypertension, coronary heart disease, cor pulmonale, asthma and vertigo should not use the product without consulting a doctor. • Ensure that the mirror will not be in a position where strong light or sunlight will be focused on the mirror. Instruction Booklet.indd 2-3Instruction Booklet.indd 2-302/12/2024 09:1802/12/2024 09:18 MAGIC Mirror (1pc) UK Plug (1pc) Wall Screw (12pcs) Wall Plug (4pcs) Wall Bracket (1pc) Tether (2pc) PARTS LIST • Please ensure all parts are present before installation. • Please note - your Mounting Bolts and Wall Bracket will be attached to the rear of the mirror. • Remove mirror from box, and place face down on a clean blanket to avoid scratching. • Be careful of sharp implements around mirror, always hold by edges. Setting up MAGIC in the best possible area will let you get the most out of your mirror and your workouts. Lighting The ReflectAI® tracking works best if you’re well lit and easily identifiable. For optimal performance, ensure the camera has a clear view of you and your workout space, with minimal background distractions. Keep light sources, such as lamps and windows, from shining directly at the mirror. Wear light-coloured workout clothes that contrast with your background, as blending in will make it harder for MAGIC to track your movements accurately. Space Make sure you have plenty of space to work out. We recommend an area of at least 2m x 2m to allow yourself to do all exercises comfortably. Ensure that your area is free of obstructions that you could bump into as you exercise. Wi-Fi The mirror requires an internet connection to work. We recommend a location where you get a speed of at least 10 Mbps. WHERE TO PUT YOUR MIRROR Instruction Booklet.indd 4-5Instruction Booklet.indd 4-502/12/2024 09:1802/12/2024 09:18 WALL LEANING Choose a location for where your mirror will stand. Please ensure it’s within 80cm of a power outlet and you have strong Wi-Fi signal of at least 10 Mbps. STEP 1 Wall MountedWall Leaning MOUNTING OPTIONS Unwrap Mirror and lay flat on a blanket (mirror side down). Do not use any sharp tools to open the mirror. STEP 2 Instruction Booklet.indd 6-7Instruction Booklet.indd 6-702/12/2024 09:1802/12/2024 09:18 Tools Required Ensure that you have the correct wall plug for your wall construction. Only brick wall plugs are provided. WALL MOUNTING STEP 1 Using two people, lift the mirror and lean the Mirror against the wall. Once leaning, adjust so that the distance from the bottom of the mirror to the wall is 25 cm. Ensure that the mirror is stable Plug in your Mirror Turn on the mirror by pressing the power button on the top right of the mirror Follow the on screen instructions and get sweating! STEP 3 STEP 4 Instruction Booklet.indd 8-9Instruction Booklet.indd 8-902/12/2024 09:1802/12/2024 09:18 Mount the top of the bracket to a height of 163 cm on the wall, using a tape measure and spirit level. Mark the drill holes with a pencil, then securely attach the bracket to the wall using the appropriate drill bit and wall plugs. Carefully lift the mirror and line up the mounting bolts with the bracket. Insert the mounting bolts into all 4 holes on the bracket then slide down to affix. Ensure all 4 bolts are inserted and secure. Plug In your Mirror Turn on the mirror by holding down the button on the top right of the mirror Follow the on screen instructions and get sweating! STEP 6 STEP 5 STEP 7 Choose a location for where your mirror will stand. Please ensure it’s within 80cm of a power outlet and you have strong Wi-Fi signal of at least 10 Mbps. Unwrap mirror, lay it flat (mirror side down) on a blanket, and use a Phillips head screwdriver to remove the 8 screws connecting the stand to the back of the mirror. STEP 2 STEP 3 Unscrew wall mounting bracket from back of mirror. Once removed replace the mounting bolts into the back of the mirror. STEP 4 Instruction Booklet.indd 10-11Instruction Booklet.indd 10-1102/12/2024 09:1802/12/2024 09:18 TURNING MIRROR ON FOR FIRST TIME When you first plug your mirror in it should automatically turn on. The first thing you will see is the logo as the mirror loads. It will then take you to the “Connect to Wi-Fi Screen”. Please press the “Connect” button. This will take you to the settings screen where you can select your Wi-Fi and log in. Once you connect to the Wi-Fi, the mirror will download the latest version of . Next, on the “Sign Up” screen, enter your details to create your account. You will then receive a verification code via email. After onboarding, you can add more accounts on the mirror. STEP 1STEP…

Text truncated - open the document above for the full version.

ShenzhenGlobalTestServiceCo.,Ltd. RoomNo.101,Building1,andRoomNo.101,Building3,No.88JinkangRoad,JinshaCommunity, KengziSub-district,PingshanDistrict,ShenzhenCity,Guangdong,China,China RFExposureevaluation ReportReferenceNo.....................: FCCID................................................: GTS20260525017-1-05 2BH6O-MFM-004 Compiledby (position+printedname+signature):Fileadministrators JinghuaXiao Supervisedby (position+printedname+signature):TestEngineerEvanOuyang Approvedby (position+printedname+signature) .. : ManagerJasonHu Dateofissue.........................................:Jun.05,2026 RepresentativeLaboratoryName .............................................................: ShenzhenGlobalTestServiceCo.,Ltd. Address...............................................: RoomNo.101,Building1,andRoomNo.101,Building3,No.88 JinkangRoad,JinshaCommunity,KengziSub-district,Pingshan District,ShenzhenCity,Guangdong,China,China Applicant’sname............................: BozzTechnology(Shenzhen)Co.,Ltd Address...............................................: 201,No.16,JiayiIndustrialPark,GuixiangCommunity,Guanlan Street,LonghuaDistrict,ShenzhenCity Testspecification...........................: Standard.............................................: 47CFR§1.1310Basisandpurpose 47CFR§2.1091Radiofrequencyradiationexposureevaluation: mobiledevices TRFOriginator...................................:ShenzhenGlobalTestServiceCo.,Ltd. MasterTRF........................................:Dated2014-12 ShenzhenGlobalTestServiceCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenGlobalTestServiceCo.,Ltd.isacknowledgedascopyrightownerandsourceofthematerial. ShenzhenGlobalTestServiceCo.,Ltd.takesnoresponsibilityforandwillnotassumeliabilityfordamages resultingfromthereader'sinterpretationofthereproducedmaterialduetoitsplacementandcontext. Testitemdescription.....................: SmartFitnessMirror TradeMark.........................................: N/A Manufacturer......................................: BozzTechnology(Shenzhen)Co.,Ltd Model/Typereference.........................:MFM-004 ListedModels...................................: DM32,DM27,MFM-005 HardwareVersion...........................: N/A SoftwareVersion...............................: N/A Rating..................................................: AC120.0V Result..................................................:PASS ReportNo.:GTS20260525017-1-05Page2of15 TESTREPORT TestReportNo.: GTS20260525017-1-05 Jun.05,2026 ______________________________________________________________________________________________ Dateofissue EquipmentunderTest: SmartFitnessMirror Model/Type : MFM-004 Listedmodel: DM32,DM27,MFM-005 Applicant : BozzTechnology(Shenzhen)Co.,Ltd Address : 201,No.16,JiayiIndustrialPark,GuixiangCommunity,GuanlanStreet, LonghuaDistrict,ShenzhenCity Manufacturer : BozzTechnology(Shenzhen)Co.,Ltd Address : 201,No.16,JiayiIndustrialPark,GuixiangCommunity,GuanlanStreet, LonghuaDistrict,ShenzhenCity TestResult:PASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetest laboratory. ReportNo.:GTS20260525017-1-05Page3of15 Contents 1.SUMMARY...................................................................................................................................................................4 1.1.EUTCONFIGURATION.......................................................................................................................................................4 1.2.PRODUCTDESCRIPTION.....................................................................................................................................................4 2.TESTENVIRONMENT....................................................................................................................................................6 2.1ADDRESSOFTHETESTLABORATORY.....................................................................................................................................6 2.2TESTFACILITY...................................................................................................................................................................6 2.3ENVIRONMENTALCONDITIONS.............................................................................................................................................6 2.4STATEMENTOFTHEMEASUREMENTUNCERTAINTY..................................................................................................................6 3.METHODOFMEASUREMENT......................................................................................................................................7 3.1APPLICABLESTANDARD......................................................................................................................................................7 3.2REQUIREMENT..................................................................................................................................................................7 3.3LIMIT..............................................................................................................................................................................7 3.4MPECALCULATIONMETHOD.............................................................................................................................................8 3.5ANTENNAINFORMATION....................................................................................................................................................8 4.CONDUCTEDPOWERRESULTS.....................................................................................................................................9 5.MANUFACTURINGTOLERANCE.................................................................................................................................11 6.MEASUREMENTRESULTS......................…

Text truncated - open the document above for the full version.

FCCID:2BH6O-MFM-004 _______________________________________________________________________________________________ Page1of2 1.TESTSETUPPHOTOGRAPHS 1.1.PhotoofRadiatedEmissionsMeasurement Fig.1 Fig.2 FCCID:2BH6O-MFM-004 _______________________________________________________________________________________________ Page2of2 PhotoofConductedEmissionMeasurement Fig.3 Fig.4

ShenzhenGlobalTestServiceCo.,Ltd. RoomNo.101,Building1,andRoomNo.101,Building3,No.88JinkangRoad,JinshaCommunity, KengziSub-district,PingshanDistrict,ShenzhenCity,Guangdong,China,China,China FCCPART15SUBPARTCTESTREPORT FCCPART15.407 ReportReferenceNo........................: FCCID.................................................: GTS20260525017-1-04 2BH6O-MFM-004 Compiledby (position+printedname+signature)..:FileadministratorsJinghuaXiao Supervisedby (position+printedname+signature) .. : TestEngineerEvanOuyang Approvedby (position+printedname+signature)..: ManagerJasonHu Dateofissue.........................................: Jun.05,2026 RepresentativeLaboratoryName.:ShenzhenGlobalTestServiceCo.,Ltd. Address ................................................. : RoomNo.101,Building1,andRoomNo.101,Building3,No.88 JinkangRoad,JinshaCommunity,KengziSub-district,Pingshan District,ShenzhenCity,Guangdong,China,China,China Applicant’sname...............................:BozzTechnology(Shenzhen)Co.,Ltd Address ................................................. : 201,No.16,JiayiIndustrialPark,GuixiangCommunity,Guanlan Street,LonghuaDistrict,ShenzhenCity Testspecification..............................: Standard ................................................ :FCCPart15.407:Generaltechnicalrequirements TRFOriginator......................................:ShenzhenGlobalTestServiceCo.,Ltd. MasterTRF...........................................:Dated2014-12 ShenzhenGlobalTestServiceCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongastheShenzhen GlobalTestServiceCo.,Ltd.isacknowledgedascopyrightownerandsourceofthematerial.Shenzhen GlobalTestServiceCo.,Ltd.takesnoresponsibilityforandwillnotassumeliabilityfordamagesresultingfrom thereader'sinterpretationofthereproducedmaterialduetoitsplacementandcontext. Testitemdescription........................:SmartFitnessMirror TradeMark............................................:N/A Manufacturer.........................................:BozzTechnology(Shenzhen)Co.,Ltd Model/Typereference ......................... :MFM-004 ListedModels ...................................... :DM32,DM27,MFM-005 OperationFrequency .......................... :From5180MHzto5240MHz/5745MHzto5825MHz HardwareVersion...............................:N/A SoftwareVersion..................................:N/A Rating.....................................................:AC120.0V Result ..................................................... :PASS ReportNo.:GTS20260525017-1-04Page 2 of 30 TESTREPORT TestReportNo.:GTS20260525017-1-04 Jun.05,2026 ____________________________________________________________________________________ Dateofissue EquipmentunderTest:SmartFitnessMirror Model/Type:MFM-004 Listedmodel:DM32,DM27,MFM-005 Applicant :BozzTechnology(Shenzhen)Co.,Ltd Address: 201,No.16,JiayiIndustrialPark,GuixiangCommunity,GuanlanStreet, LonghuaDistrict,ShenzhenCity Manufacturer :BozzTechnology(Shenzhen)Co.,Ltd Address: 201,No.16,JiayiIndustrialPark,GuixiangCommunity,GuanlanStreet, LonghuaDistrict,ShenzhenCity TestResult:PASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetest laboratory. ReportNo.:GTS20260525017-1-04Page 3 of 30 Contents 1.TESTSTANDARDS.......................................................................................................................................4 2.SUMMARY.......................................................................................................................................................5 2.1.GeneralRemarks...................................................................................................................................5 2.2.ProductDescription................................................................................................................................5 2.3.EquipmentUnderTest............................................................................................................................7 2.4.ShortdescriptionoftheEquipmentunderTest(EUT)...........................................................................7 2.5.EUToperationmode..............................................................................................................................7 2.6.BlockDiagramofTestSetup..................................................................................................................8 2.7.RelatedSubmittal(s)/Grant(s)..............................................................................................................8 2.8.EUTExerciseSoftware..........................................................................................................................8 2.9.SpecialAccessories...............................................................................................................................8 2.10.ExternalI/OCable................................................................................................................................8 2.11.Modifications.........................................................................................................................................8 3.TESTENVIRONMENT.....................................................................................................................................9 3.1.Addressofthetestlaboratory................................................................................................................9 3.2.TestFacility.............................................................................................................................................9 3.3.Environmentalconditions.......................................................................................................................9 3.4.Statementofthemeasurementuncertainty...........................................................................................9 3.5.TestDescription.........…

Text truncated - open the document above for the full version.

FCCID:2BH6O-MFM-004 30 Appendix E.6:Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) FreqRange [MHz] Result [dBm] Limit [dBm] Verdict 11A Ant1 Low 5745 5650~5700 -38.8 ≤-26.02 PASS 5700~5720 -36.89 ≤13.28 PASS 5720~5725 -34.85 ≤17.91 PASS 5760~5650 -40.26 ≤-27 PASS High 5825 5850~5855 -39.68 ≤15.73 PASS 5855~5875 -39.53 ≤10.06 PASS 5875~5925 -38.98 ≤-26.91 PASS 5925~5935 -37.35 ≤-27 PASS 11N20SI SO Ant1 Low 5745 5650~5700 -40.17 ≤-26.96 PASS 5700~5720 -38.93 ≤10.64 PASS 5720~5725 -35.69 ≤16.34 PASS 5760~5650 -39.03 ≤-27 PASS High 5825 5850~5855 -39.5 ≤16.03 PASS 5855~5875 -38.18 ≤10.63 PASS 5875~5925 -39.52 ≤-26.91 PASS 5925~5935 -38.32 ≤-27 PASS 11N40SI SO Ant1 Low 5755 5650~5700 -40.37 ≤-26.80 PASS 5700~5720 -29.62 ≤13.92 PASS 5720~5725 -29.89 ≤16.97 PASS 5780~5650 -39.8 ≤-27 PASS High 5795 5850~5855 -37.88 ≤16.03 PASS 5855~5875 -38.9 ≤10.25 PASS 5875~5925 -38.8 ≤-26.46 PASS 5925~5935 -38.46 ≤-27 PASS 11AC20S ISO Ant1 Low 5745 5650~5700 -39.06 ≤-25.93 PASS 5700~5720 -39.17 ≤10.22 PASS 5720~5725 -34.35 ≤19.75 PASS 5760~5650 -39.82 ≤-27 PASS High 5825 5850~5855 -38.7 ≤16.34 PASS 5855~5875 -38.64 ≤10.59 PASS 5875~5925 -37.8 ≤-26.51 PASS 5925~5935 -38.46 ≤-27 PASS 11AC40S ISO Ant1 Low 5755 5650~5700 -41.13 ≤-26.50 PASS 5700~5720 -30.25 ≤15.58 PASS 5720~5725 -28.02 ≤18.51 PASS FCCID:2BH6O-MFM-004 31 5780~5650 -39.47 ≤-27 PASS High 5795 5850~5855 -39.62 ≤16.41 PASS 5855~5875 -38.14 ≤10.43 PASS 5875~5925 -38.9 ≤-26.46 PASS 5925~5935 -38.09 ≤-27 PASS 11AC80S ISO Ant1 Low 5775 5650~5700 -39.29 ≤-26.80 PASS 5700~5720 -36.37 ≤10.01 PASS 5720~5725 -36.54 ≤15.65 PASS 5800~5650 -39.89 ≤-27 PASS High 5775 5850~5855 -39.33 ≤16.68 PASS 5855~5875 -39.17 ≤10.24 PASS 5875~5925 -40.49 ≤-26.87 PASS 5925~5935 -38.66 ≤-27 PASS FCCID:2BH6O-MFM-004 32 Test Graphs 11A_Ant1_Low_5745 11A_Ant1_High_5825 11N20SISO_Ant1_Low_5745 FCCID:2BH6O-MFM-004 33 11N20SISO_Ant1_High_5825 11N40SISO_Ant1_Low_5755 FCCID:2BH6O-MFM-004 34 11N40SISO_Ant1_High_5795 11AC20SISO_Ant1_Low_5745 11AC20SISO_Ant1_High_5825 FCCID:2BH6O-MFM-004 35 11AC40SISO_Ant1_Low_5755 11AC40SISO_Ant1_High_5795 FCCID:2BH6O-MFM-004 36 11AC80SISO_Ant1_Low_5775 11AC80SISO_Ant1_High_5775 FCCID:2BH6O-MFM-004 37 Appendix E.7:Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] Max. Fre [MHz] Max. Level [dBm] Limit [dBm] Verdict 11A Ant1 5745 30~5650 2422.06 -40.15 ≤-27 PASS 5925~27000 26548.29 -30.28 ≤-27 PASS 5785 30~5650 5437.94 -40.26 ≤-27 PASS 5925~27000 25146.1 -30.81 ≤-27 PASS 5825 30~5650 2420.75 -40.29 ≤-27 PASS 5925~27000 24278.52 -31.65 ≤-27 PASS 11N20SISO Ant1 5745 30~5650 2675.33 -40.74 ≤-27 PASS 5925~27000 24168.93 -31.72 ≤-27 PASS 5785 30~5650 3165.96 -39.56 ≤-27 PASS 5925~27000 24208.27 -31.73 ≤-27 PASS 5825 30~5650 5423.33 -38.99 ≤-27 PASS 5925~27000 26447.84 -31.47 ≤-27 PASS 11N40SISO Ant1 5755 30~5650 5426.14 -40.34 ≤-27 PASS 5925~27000 23458 -31.54 ≤-27 PASS 5795 30~5650 5474.47 -39.29 ≤-27 PASS 5925~27000 24265.17 -31.13 ≤-27 PASS 11AC20SISO Ant1 5745 30~5650 2803.1 -40.6 ≤-27 PASS 5925~27000 24239.88 -30.72 ≤-27 PASS 5785 30~5650 4919.21 -39.81 ≤-27 PASS 5925~27000 26956.45 -31.28 ≤-27 PASS 5825 30~5650 2689.38 -40.01 ≤-27 PASS 5925~27000 24163.31 -31.03 ≤-27 PASS 11AC40SISO Ant1 5755 30~5650 5461.17 -40.27 ≤-27 PASS 5925~27000 24813.82 -31.8 ≤-27 PASS 5795 30~5650 5466.6 -39.66 ≤-27 PASS 5925~27000 26773.8 -31.45 ≤-27 PASS 11AC80SISO Ant1 5775 30~5650 4927.08 -40.66 ≤-27 PASS 5925~27000 25641.37 -31.5 ≤-27 PASS FCCID:2BH6O-MFM-004 38 Test Graphs 11A_Ant1_5745_30~5650 11A_Ant1_5745_5925~27000 11A_Ant1_5785_30~5650 FCCID:2BH6O-MFM-004 39 11A_Ant1_5785_5925~27000 11A_Ant1_5825_30~5650 FCCID:2BH6O-MFM-004 40 11A_Ant1_5825_5925~27000 11N20SISO_Ant1_5745_30~5650 11N20SISO_Ant1_5745_5925~27000 FCCID:2BH6O-MFM-004 41 11N20SISO_Ant1_5785_30~5650 11N20SISO_Ant1_5785_5925~27000 FCCID:2BH6O-MFM-004 42 11N20SISO_Ant1_5825_30~5650 11N20SISO_Ant1_5825_5925~27000 11N40SISO_Ant1_5755_30~5650 FCCID:2BH6O-MFM-004 43 11N40SISO_Ant1_5755_5925~27000 11N40SISO_Ant1_5795_30~5650 FCCID:2BH6O-MFM-004 44 11N40SISO_Ant1_5795_5925~27000 11AC20SISO_Ant1_5745_30~5650 11AC20SISO_Ant1_5745_5925~27000 FCCID:2BH6O-MFM-004 45 11AC20SISO_Ant1_5785_30~5650 11AC20SISO_Ant1_5785_5925~27000 FCCID:2BH6O-MFM-004 46 11AC20SISO_Ant1_5825_30~5650 11AC20SISO_Ant1_5825_5925~27000 11AC40SISO_Ant1_5755_30~5650 FCCID:2BH6O-MFM-004 47 11AC40SISO_Ant1_5755_5925~27000 11AC40SISO_Ant1_5795_30~5650 FCCID:2BH6O-MFM-004 48 11AC40SISO_Ant1_5795_5925~27000 11AC80SISO_Ant1_5775_30~5650 11AC80SISO_Ant1_5775_5925~27000 FCCID:2BH6O-MFM-004 49 FCCID:2BH6O-MFM-004 50 Appendix E.8:Emissions in Restricted Bands Test Result TestMode Antenna ChName Freq(MHz ) Detector Freq [MHz] Result [dBm] Limit [dBm] Result [dBuV/m] Limit [dBuV/m] Verdict 11A Ant1 Low 5745 Peak 5650.000 -41.48 5 ≤-27.00 --- --- PASS Peak 5700.000 -40.11 ≤10.00 --- --- PASS Peak 5720.000 -36.34 ≤15.60 --- --- PASS Peak 5725.000 -28.21 ≤27.00 - -- - -- PASS High 5825 Peak 5850.000 -36.25 ≤27.00 --- --- PASS Peak 5855.000 -37.97 ≤15.60 --- --- PASS Peak 5875.000 -37.3 ≤10.00 --- --- PASS Peak 5925.000 -37.66 ≤-27.00 - -- - -- PASS 11N20SIS O Ant1 Low 5745 Peak 5650.000 -40.02 6 ≤-27.00 --- --- PASS Peak 5700.000 -38.81 ≤10.00 --- --- PASS Peak 5720.000 -36.11 ≤15.60 --- --- PASS Peak 5725.000 -28.97 ≤27.00 - -- - -- PASS High 5825 Peak 5850.000 -35.57 4 ≤27.00 --- --- PASS Peak 5855.000 -36.75 ≤15.60 --- --- PASS Peak 5875.000 -36.88 ≤10.00 --- --- PASS Peak 5925.000 -35.42 ≤-27.00 - -- - -- PASS 11N40SIS O Ant1 Low 5755 Peak 5650.000 -39.011 ≤-27.00 --- --- PASS Peak 5700.000 -38.37 ≤10.00 --- --- PASS Peak 5720.000 -28.63 ≤15.60 --- --- PASS Peak 5725.000 -31.49 ≤27.00 - -- - -- PASS High 5795 Peak 5850.000 -36.67 7 ≤27.00 --- --- PASS Peak 5855.000 -36.91 ≤15.60 --- --- PASS Peak 5875.000 -36.75 ≤10.00 --- --- PASS Peak 5925.000 -36.34 ≤-27.00 - -- - -- PASS 11AC20SI SO Ant1 Low 5745 Peak 5650.000 -40.20 9 ≤-27.00 --- --- PASS Peak 5700.000 -39.65 ≤10.00 --- --- PASS Peak 5720.000 -35.29 ≤15.6…

Text truncated - open the document above for the full version.

FCCID:2BH6O-MFM-004 1 Case No. : GTS20260525017-1-04 Ambient Condition: 24 °C, 63 %RH According Standard: ■Part15E Test Date: 2026.6.2 Test Engineer: Evan ouyang Appendix E.1: Occupied channel bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 17.127 5736.4158 5753.5428 --- --- 5785 17.150 5776.4678 5793.6178 --- --- 5825 17.203 5816.3946 5833.5976 --- --- 11N20SISO Ant1 5745 18.027 5736.0191 5754.0461 --- --- 5785 18.018 5775.9770 5793.9950 --- --- 5825 18.074 5815.9438 5834.0178 --- --- 11N40SISO Ant1 5755 36.584 5736.8132 5773.3972 --- --- 5795 36.534 5776.6606 5813.1946 --- --- 11AC20SISO Ant1 5745 18.015 5736.0064 5754.0214 --- --- 5785 17.947 5776.0575 5794.0045 --- --- 5825 17.964 5815.9625 5833.9265 --- --- 11AC40SISO Ant1 5755 36.499 5736.7755 5773.2745 --- --- 5795 36.417 5776.7434 5813.1604 --- --- 11AC80SISO Ant1 5775 75.297 5737.3102 5812.6072 --- --- FCCID:2BH6O-MFM-004 2 Test Graphs 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 FCCID:2BH6O-MFM-004 3 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 FCCID:2BH6O-MFM-004 4 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 FCCID:2BH6O-MFM-004 5 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 FCCID:2BH6O-MFM-004 6 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 FCCID:2BH6O-MFM-004 7 11AC80SISO_Ant1_5775 FCCID:2BH6O-MFM-004 8 Appendix E.2: Min emission bandwidth TestMode Antenna Freq(MHz) 6db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 16.320 5736.840 5753.160 0.5 PASS 5785 16.280 5776.840 5793.120 0.5 PASS 5825 16.280 5816.840 5833.120 0.5 PASS 11N20SISO Ant1 5745 17.040 5736.440 5753.480 0.5 PASS 5785 17.240 5776.240 5793.480 0.5 PASS 5825 16.880 5816.600 5833.480 0.5 PASS 11N40SISO Ant1 5755 35.200 5737.400 5772.600 0.5 PASS 5795 35.520 5777.080 5812.600 0.5 PASS 11AC20SISO Ant1 5745 16.800 5736.600 5753.400 0.5 PASS 5785 16.920 5776.480 5793.400 0.5 PASS 5825 17.240 5816.240 5833.480 0.5 PASS 11AC40SISO Ant1 5755 35.360 5737.240 5772.600 0.5 PASS 5795 35.440 5777.400 5812.840 0.5 PASS 11AC80SISO Ant1 5775 75.200 5737.400 5812.600 0.5 PASS FCCID:2BH6O-MFM-004 9 Test Graphs 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 FCCID:2BH6O-MFM-004 10 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 FCCID:2BH6O-MFM-004 11 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 FCCID:2BH6O-MFM-004 12 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 FCCID:2BH6O-MFM-004 13 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 FCCID:2BH6O-MFM-004 14 11AC80SISO_Ant1_5775 FCCID:2BH6O-MFM-004 15 AppendixE.3: Duty Cycle Test Result TestMode Antenna Freq(MHz) Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Duty Cycle Factor[dB] 1/T Factor[KHz] 11A Ant1 5745 2.06 2.22 92.79 0.32 0.49 5785 2.06 2.24 91.96 0.36 0.49 5825 2.07 2.24 92.41 0.34 0.48 11N20SISO Ant1 5745 1.91 2.09 91.39 0.39 0.52 5785 1.92 2.08 92.31 0.35 0.52 5825 1.91 2.08 91.83 0.37 0.52 11N40SISO Ant1 5755 0.94 1.11 84.68 0.72 1.06 5795 0.94 1.11 84.68 0.72 1.06 11AC20SISO Ant1 5745 1.93 2.11 91.47 0.39 0.52 5785 1.93 2.08 92.79 0.32 0.52 5825 1.93 2.10 91.90 0.37 0.52 11AC40SISO Ant1 5755 0.96 1.13 84.96 0.71 1.04 5795 0.95 1.12 84.82 0.72 1.05 11AC80SISO Ant1 5775 0.46 0.63 73.02 1.37 2.17 FCCID:2BH6O-MFM-004 16 Test Graphs 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 FCCID:2BH6O-MFM-004 17 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 FCCID:2BH6O-MFM-004 18 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 FCCID:2BH6O-MFM-004 19 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 FCCID:2BH6O-MFM-004 20 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 FCCID:2BH6O-MFM-004 21 11AC80SISO_Ant1_5775 FCCID:2BH6O-MFM-004 22 Appendix E.4: Maximum conducted output power Test Result Channel Power Test Mode Antenna Freq(MHz) Channel Powert [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant1 5745 7.60 92.79 0.32 7.92 ≤30.00 PASS 5785 8.91 91.96 0.36 9.27 ≤30.00 PASS 5825 7.91 92.41 0.34 8.25 ≤30.00 PASS 11N20SISO Ant1 5745 7.80 91.39 0.39 8.19 ≤30.00 PASS 5785 8.76 92.31 0.35 9.11 ≤30.00 PASS 5825 7.91 91.83 0.37 8.28 ≤30.00 PASS 11N40SISO Ant1 5755 6.98 84.68 0.72 7.70 ≤30.00 PASS 5795 7.59 84.68 0.72 8.31 ≤30.00 PASS 11AC20SISO Ant1 5745 6.79 91.47 0.39 7.18 ≤30.00 PASS 5785 7.83 92.79 0.32 8.15 ≤30.00 PASS 5825 7.19 91.90 0.37 7.56 ≤30.00 PASS 11AC40SISO Ant1 5755 7.06 84.96 0.71 7.77 ≤30.00 PASS 5795 7.69 84.82 0.72 8.41 ≤30.00 PASS 11AC80SISO Ant1 5775 4.67 73.02 1.37 6.04 ≤30.00 PASS Note： 1. The Duty Cycle Factoriscompensatedinthegraph. 2. The Duty Cycle Factor and RBW Factor is compensated in the data. FCCID:2BH6O-MFM-004 23 Appendix E.5: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result [dBm/MHz] Limit[dBm/MHz] Verdict 11A Ant1 5745 -6.28 ≤30.00 PASS 5785 -5.16 ≤30.00 PASS 5825 -5.99 ≤30.00 PASS 11N20SISO Ant1 5745 -6.39 ≤30.00 PASS 5785 -5.46 ≤30.00 PASS 5825 -5.96 ≤30.00 PASS 11N40SISO Ant1 5755 -9.47 ≤30.00 PASS 5795 -8.87 ≤30.00 PASS 11AC20SISO Ant1 5745 -7.22 ≤30.00 PASS 5785 -5.96 ≤30.00 PASS 5825 -6.94 ≤30.00 PASS 11AC40SISO Ant1 5755 -9.39 ≤30.00 PASS 5795 -8.74 ≤30.00 PASS 11AC80SISO Ant1 5775 -12.59 ≤30.00 PASS Note：1.The Result and Limit Unit is dBm/500 kHz in the band 5.7255.85 GHz. 2.The Duty Cycle Factorand RBW Factoriscompensatedinthegraph. FCCID:2BH6O-MFM-004 24 Test Graphs 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 FCCID:2BH6O-MFM-004 25 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 FCCID:2BH6O-MFM-004 26 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 FCCID:2BH6O-MFM-004 27 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 FCCID:2BH6O-MFM-004 28 11AC20SISO_A…

Text truncated - open the document above for the full version.
