2BH6R-2690-PBClip On Earbuds

                                                                                             !                    "                                           # $      %&'()*+,*-.*,*/+)+-01'2*-3**'-.**450/6*'-+'7)*(*08*)9 %:1''*(--.**450/6*'-0'-1+'15-;*-1'+(0)(50-70<<*)*'-<)16-.+--13.0(.-.*)*(*08*)0, (1''*(-*79 %:1',5;--.*7*+;*)1)+'*=/*)0*'(*7)+701>?@-*(.'0(0+'<1).*;/9 :+5-01'AB'C(.+'D*,1)6170E(+-01',-1-.0,7*80(*'1-*=/;0(0-;C+//)18*72C6+'5<+(-5)*)(15;7 8107C15)+5-.1)0-C-11/*)+-*-.0,*450/6*'-9 ?.0,7*80(*(16/;0*,30-./+)-FG1<-.*H::I5;*,9J/*)+-01'0,,52K*(--1-.*<1;;130'D-31 (1'70-01',ALFM?.0,7*80(*6+C'1-(+5,*.+)6<5;0'-*)<*)*'(*N+'7LOM-.0,7*80(*65,-+((*/-+'C 0'-*)<*)*'(*)*(*08*7N0'(;570'D0'-*)<*)*'(*-.+-6+C(+5,*5'7*,0)*71/*)+-01'9 IHP=/1,5)*&'<1)6+-01' ?.*7*80(*.+,2**'*8+;5+-*7-16**-D*'*)+;IH*=/1,5)*)*450)*6*'-9?.*7*80(*(+'2*5,*70' /1)-+2;**=/1,5)*(1'70-01'30-.15-)*,-)0(-01'9  H::Q-+-*6*'-

shenzhenshijianyoupinshangkejiyouxiangongsi Add: Room 601-618-1, Building C4, Zhonghao Industrial City, Xiangjiaotang Community, Bantian Subdistrict, Longgang District Shenzhen Guangdong Province, China Date: 2026-6-26 FCC ID: 2BH6R-2690-PB Dear Sir/Madam, We, shenzhenshijianyoupinshangkejiyouxiangongsi Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these models are same, Only model number is different for these models: Product name: Clip On Earbuds Model no.: 102690-purple,102690-black Additionally, for each model above, the left&right earphones are identical. Sincerely, Name/Title： Wu Qilong/CEO Company: shenzhenshijianyoupinshangkejiyouxiangongsi Address: Room 601-618-1, Building C4, Zhonghao Industrial City, Xiangjiaotang Community, Bantian Subdistrict, Longgang District Shenzhen Guangdong Province, China Phone: 13027941006 Fax: +86 75523221967 E-Mail: [email protected]

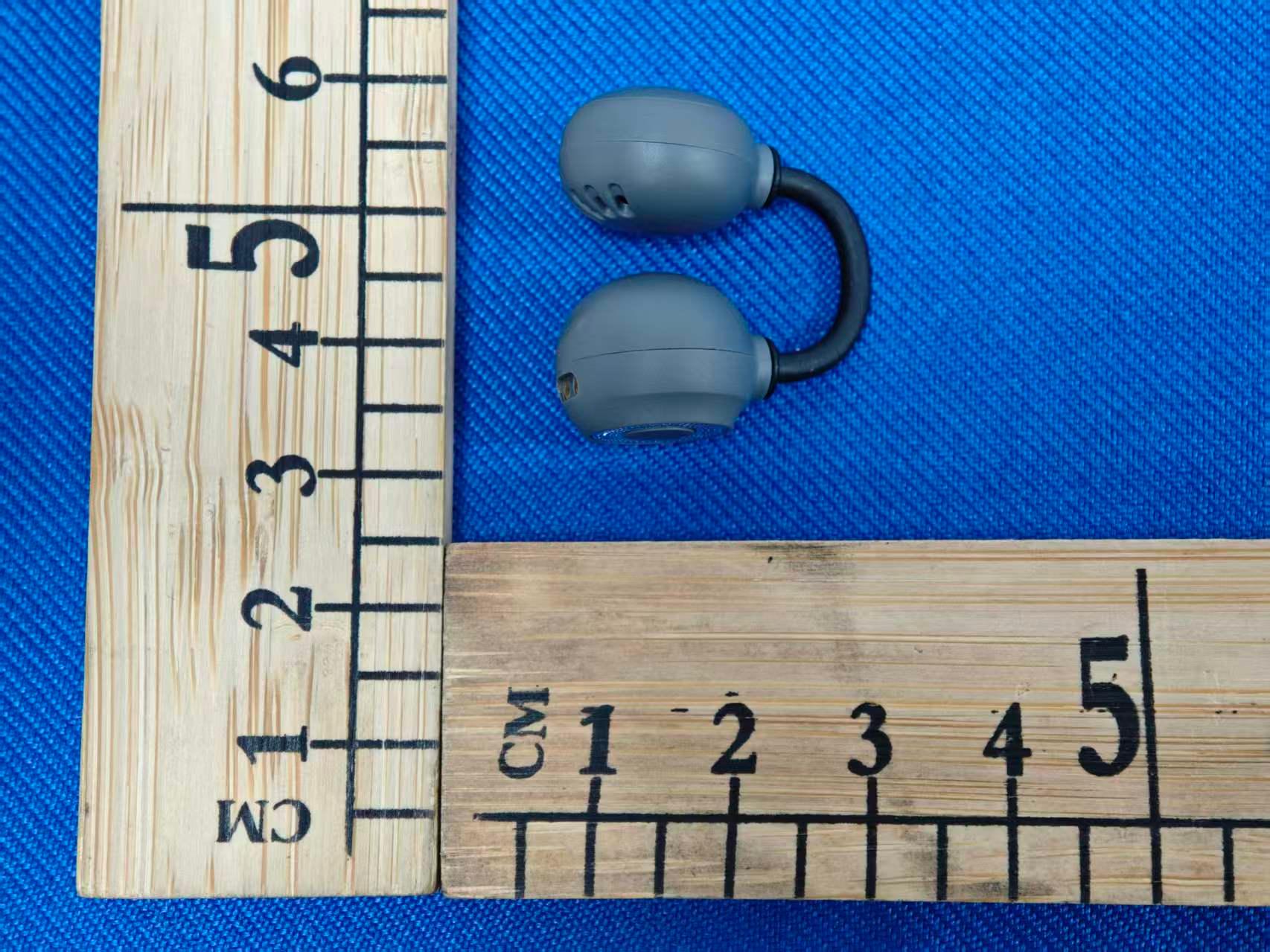

DNT2606103641R07071-P01Page: 1 of 7 PHOTOGRAPHSOFEUT FCCID:2BH6R-2690-PB ExternalPhotos ExternalPhotos(Leftearphone) DNT2606103641R07071-P01Page: 2 of 7 ExternalPhotos(Leftearphone) ExternalPhotos(Leftearphone) DNT2606103641R07071-P01Page: 3 of 7 ExternalPhotos(Leftearphone) ExternalPhotos(Leftearphone) DNT2606103641R07071-P01Page: 4 of 7 ExternalPhotos(Leftearphone) ExternalPhotos(Rightearphone) DNT2606103641R07071-P01Page: 5 of 7 ExternalPhotos(Rightearphone) ExternalPhotos(Rightearphone) DNT2606103641R07071-P01Page: 6 of 7 ExternalPhotos(Rightearphone) ExternalPhotos(Rightearphone) DNT2606103641R07071-P01Page: 7 of 7 ExternalPhotos(Rightearphone) --END--

FCCID:2BH6R-2690-PB

DNT2606103641R07071-P01Page: 1 of 4 PHOTOGRAPHSOFEUT FCCID:2BH6R-2690-PB InternalPhotos(Leftearphone) InternalPhotos(Leftearphone) DNT2606103641R07071-P01Page: 2 of 4 InternalPhotos(Leftearphone) InternalPhotos(Rightearphone) DNT2606103641R07071-P01Page: 3 of 4 InternalPhotos(Rightearphone) InternalPhotos(Rightearphone) DNT2606103641R07071-P01Page: 4 of 4 InternalPhotos InternalPhotos --END--

GuangdongDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] RFExposureEvaluationReport ApplicationNo.: DNT2606103641R07071-09226 Applicant: shenzhenshijianyoupinshangkejiyouxiangongsi AddressofApplicant: Room601-618-1,BuildingC4,ZhonghaoIndustrialCity,Xiangjiaotang Community,BantianSubdistrict,LonggangDistrictShenzhenGuangdong Province,China EUTDescription: ClipOnEarbuds ModelNo.: 102690-purple AdditionalModel(s): 102690-black FCCID: 2BH6R-2690-PB PowerSupply (ChargingBox): Input:DC5V;DC3.7Vfromrechargeablelithium-ionbattery PowerSupply (Earphone): DC3.7Vfromrechargeablelithium-ionbattery TradeMark: N/A Standards: 47CFRPart2.1093 FCCKDB447498D04v01 DateofReceipt: 2026/06/10 DateofTest: 2026/06/11to2026/06/25 DateofIssue: 2026/06/25 TestResult:PASS PreparedBy:(TestingEngineer) ReviewedBy:(ProjectEngineer) ApprovedBy:(Manager) Note:Ifthereisanyobjectiontotheresultsinthisreport,pleasesubmitawritteninquirytothecompanywithin15daysfromthedateof receivingthereport.Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,andisissuedbythecompanyinaccordance withtherequirementsofthe"ConditionsofIssuanceofTestReports"printedintheattachedpage.Unlessotherwisestated,theresults presentedinthisreportonlyapplytothesamplestestedthistime.Partialreproductionofthisreportisnotallowedunlessapprovedbythe ReportNo.:DNT2606103641R07071-09226Date：June25,2026Page： 2 / 8 GuangdongDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] companyinwriting. ReportReviseRecord ReportVersionReviseTimeIssuedDateValidVersionNotes V1.0/ June25,2026 ValidOriginalReport ReportNo.:DNT2606103641R07071-09226Date：June25,2026Page： 3 / 8 GuangdongDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] Contents RFEXPOSUREEVALUATIONREPORT.............................................................................................................................................1 1GENERALINFORMATION..................................................................................................................................................................4 1.1TESTLOCATION.................................................................................................................................................................................4 1.2GENERALDESCRIPTIONOFEUT.....................................................................................................................................................4 1.3TESTFACILITY...................................................................................................................................................................................5 1.4MEASUREMENTUNCERTAINTY(95%CONFIDENCELEVELS,K=2)....................................................................................................5 2RFEXPOSUREEVALUATION............................................................................................................................................................6 2.1RFEXPOSURECOMPLIANCEREQUIREMENT..................................................................................................................................6 ReportNo.:DNT2606103641R07071-09226Date：June25,2026Page： 4 / 8 GuangdongDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 1GeneralInformation 1.1TestLocation Company:GuangdongDNTestingCo.,Ltd Address: No.1,WestFourthStreet,SouthXinfaRoad,WushaLiwu,Chang＇anTown, DongguanCity,GuangdongP.R.China Testengineer:GaliLin 1.2GeneralDescriptionofEUT Manufacturer: shenzhenshijianyoupinshangkejiyouxiangongsi AddressofManufacturer: Room601-618-1,BuildingC4,ZhonghaoIndustrialCity,XiangjiaotangCommunity, BantianSubdistrict,LonggangDistrictShenzhenGuangdongProvince,China EUTDescription: ClipOnEarbuds ModelNo.: 102690-purple AdditionalModel(s): 102690-black PowerSupply (ChargingBox): Input:DC5V;DC3.7Vfromrechargeablelithium-ionbattery PowerSupply (Earphone): DC3.7Vfromrechargeablelithium-ionbattery TradeMark:N/A HardwareVersion:V1.0 SoftwareVersion:V1.0 Serialnumber:PR2606103641R07071 ChipType:B167CC SampleType:PortableDevice,Module,MobileDevice AntennaType: External,Integrated AntennaPorts: Ant1,Ant2,Ant3 AntennaGain: Providedbyapplicant 1.7dBi Note: *Sincetheabovedataand/orinformationisprovidedbytheclientrelevantresultsorconclusionsofthisreport areonlymadeforthesedataand/orinformation,DNTisnotresponsiblefortheauthenticity,integrityandresults ofthedataandinformationand/orthevalidityoftheconclusion. *Allmodelsarejustnameandcolordifferences,motherboard,PCBcircuitboard,chip,electroniccomponents isallthesame. ReportNo.:DNT2606103641R07071-09226Date：June25,2026Page： 5 / 8 GuangdongDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 1.3TestFacility Thetestfacilityisrecognized,certified,oraccreditedbythefollowingorganizations: LabA: •FCC,USA DesignationNumber:CN1348 •A2LA(CertificateNo.7050.01) GUANGDONGDNTESTINGCO.,LTD.isaccreditedbytheAmericanAssociationforLaboratory Accreditation(A2LA).CertificateNo.7050.01. •Innovation,ScienceandEconomicDevelopmentCanada GUANGDONGDNTESTINGCO.,LTD.EMCLaboratoryhasbeenrecognizedbyISEDasanaccreditedtesting laboratory.CABidentifierisCN0149. IC#:30755. . 1.4MeasurementUncertainty(95%confidencelevels,k=2) No.ItemMeasurementUncertainty 1 20dBEmissionBandwidth±0.0196% 2 CarrierFrequencySeparation±1.9% 3 NumberofHoppingChannel±1.9% 4 TimeofOccu…

Text truncated - open the document above for the full version.

Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] FCC Test Report Application No.: DNT2606103641R07071-09228 Applicant: shenzhenshijianyoupinshangkejiyouxiangongsi Address of Applicant: Room 601-618-1, Building C4, Zhonghao Industrial City, Xiangjiaotang Community, Bantian Subdistrict, Longgang District Shenzhen Guangdong Province, China EUT Description: Clip On Earbuds Model No.: 102690-purple Additional Model(s): 102690-black FCC ID: 2BH6R-2690-PB Power Supply (Charging Box): Input:DC 5V;DC 3.7V from rechargeable lithium-ion battery Power Supply (Earphone ): DC 3.7V from rechargeable lithium-ion battery Trade Mark: N/A Standards: 47 CFR Part 2, Subpart J 47 CFR Part 15, Subpart C ANSI C63.10: 2020 Date of Receipt: 2026/06/10 Date of Test: 2026/06/11 to 2026/06/25 Date of Issue: 2026/06/25 Test Result:PASS Prepared By:(Testing Engineer) Reviewed By:(Project Engineer) Approved By:(Manager) Note: If there is any objection to the results in this report, please submit a written inquiry to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp, and is issued by the company in accordance with the requirements of the "Conditions of Issuance of Test Reports" printed in the attached page. Unless otherwise stated, the results presented in this report only apply to the samples tested this time. Partial reproduction of this report is not allowed unless approved by the Report No.: DNT2606103641R07071-09228Date：June 25, 2026Page： 2 / 64 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] company in writing. Report Revise Record Report VersionRevise TimeIssued DateValid VersionNotes V1.0/ June 25, 2026 ValidOriginal Report Report No.: DNT2606103641R07071-09228Date：June 25, 2026Page： 3 / 64 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 1 Test Summary Test ItemTest RequirementTest MethodTest ResultResult Antenna Requirement15.203/247(b/c)--Clause 3.1PASS 20dB Emission Bandwidth15.247 (a)(1)ANSI C63.10: 2020Clause 3.2PASS Conducted Peak Output Power 15.247 (b)(1)ANSI C63.10: 2020Clause 3.3PASS Carrier Frequencies Separation 15.247 (a)(1)ANSI C63.10: 2020Clause 3.4PASS Dwell Time15.247 (a)(1)ANSI C63.10: 2020Clause 3.5PASS Hopping Channel Number15.247 (a)(1)ANSI C63.10: 2020Clause 3.6PASS Band-edge for RF Conducted Emissions 15.247(d)ANSI C63.10: 2020Clause 3.7PASS RF Conducted Spurious Emissions 15.247(d)ANSI C63.10: 2020Clause 3.8PASS Radiated Spurious emissions 15.247(d); 15.205/15.209 ANSI C63.10: 2020Clause 3.9PASS Restricted bands around fundamental frequency (Radiated Emission) 15.247(d); 15.205/15.209 ANSI C63.10: 2020Clause 3.10PASS AC Power Line Conducted Emission 15.207ANSI C63.10: 2020Clause 3.11PASS Note: 1. “N/A” denotes test is not applicable in this test report. Report No.: DNT2606103641R07071-09228Date：June 25, 2026Page： 4 / 64 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Contents 1 Test Summary..................................................................................................................................................................3 2 General Information..........................................................................................................................................................5 2.1 Test Location..........................................................................................................................................................5 2.2 General Description of EUT...................................................................................................................................5 2.3 Test Environment...................................................................................................................................................6 2.4 Channel List........................................................................................................................................................... 6 2.5 Power Setting of Test Software............................................................................................................................. 7 2.6 Assistant equipment used for test..........................................................................................................................7 2.7 Description of Support Units.................................................................................................................................. 7 2.8 Test Facility............................................................................................................................................................7 2.9 Equipment List....................................................................................................................................................... 8 2.10 Measurement Uncertainty (95% confidence levels, k=2).................................................................................. 10 3 Test results and Measurement Data..............................................................................................................................11 3.1 Antenna Requirement..........................................................................................................................................11 3.2 20dB Emission Bandwidth............…

Text truncated - open the document above for the full version.

Report No.: DNT2606103641R07071-09228Date：June 25, 2026Page： 49 / 64 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop Report No.: DNT2606103641R07071-09228Date：June 25, 2026Page： 50 / 64 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Appendix F: Band edge measurements Test Result TestModeAntennaChNameFreq(MHz) RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant1 Low2402-5.24-52.56≤-25.24PASS High2480-3.98-51.89≤-23.98PASS LowHop_2402-6.01-51.92≤-26.01PASS HighHop_2480-2.11-51.19≤-22.11PASS 2DH5Ant1 Low2402-11.54-52.23≤-31.54PASS High2480-4.43-51.92≤-24.43PASS LowHop_2402-11.14-51.97≤-31.14PASS HighHop_2480-2.27-50.95≤-22.27PASS 3DH5Ant1 Low2402-4.05-52.57≤-24.05PASS High2480-1.39-51.74≤-21.39PASS LowHop_2402-4.90-52.08≤-24.9PASS HighHop_2480-2.38-51.08≤-22.38PASS Report No.: DNT2606103641R07071-09228Date：June 25, 2026Page： 51 / 64 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 Report No.: DNT2606103641R07071-09228Date：June 25, 2026Page： 52 / 64 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 Report No.: DNT2606103641R07071-09228Date：June 25, 2026Page： 53 / 64 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 3DH5_Ant1_Low_2402 Report No.: DNT2606103641R07071-09228Date：June 25, 2026Page： 54 / 64 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 3DH5_Ant1_High_2480 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 Report No.: DNT2606103641R07071-09228Date：June 25, 2026Page： 55 / 64 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Appendix G: Conducted Spurious Emission Test Result TestModeAntennaFreq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant1 2402 Reference-3.27-3.27---PASS 30~1000-3.27-60.31≤-23.27PASS 1000~26500-3.27-25.32≤-23.27PASS 2441 Reference-2.02-2.02---PASS 30~1000-2.02-61.15≤-22.02PASS 1000~26500-2.02-22.24≤-22.02PASS 2480 Reference-1.25-1.25---PASS 30~1000-1.25-61.11≤-21.25PASS 1000~26500-1.25-26.17≤-21.25PASS 2DH5Ant1 2402 Reference-3.72-3.72---PASS 30~1000-3.72-61.17≤-23.72PASS 1000~26500-3.72-28.38≤-23.72PASS 2441 Reference-1.89-1.89---PASS 30~1000-1.89-60.47≤-21.89PASS 1000~26500-1.89-27.03≤-21.89PASS 2480 Reference-0.62-0.62---PASS 30~1000-0.62-60.07≤-20.62PASS 1000~26500-0.62-22.45≤-20.62PASS 3DH5Ant1 2402 Reference-3.29-3.29---PASS 30~1000-3.29-61.75≤-23.29PASS 1000~26500-3.29-26.81≤-23.29PASS 2441 Reference-1.86-1.86---PASS 30~1000-1.86-61.02≤-21.86PASS 1000~26500-1.86-26.86≤-21.86PASS 2480 Reference-0.58-0.58---PASS 30~1000-0.58-60.76≤-20.58PASS 1000~26500-0.58-25.85≤-20.58PASS Report No.: DNT2606103641R07071-09228Date：June 25, 2026Page： 56 / 64 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 Report No.: DNT2606103641R07071-09228Date：June 25, 2026Page： 57 / 64 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 DH5_Ant1_2441_1000~26500 Report No.: DNT2606103641R07071-09228Date：June 25, 2026Page： 58 / 64 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 DH5_Ant1_2480_1000~26500 Report No.: DNT2606103641R07071-09228Date：June 25, 2026Page： 59 / 64 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 2DH5_Ant1_2402_0~Reference 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 Report No.: DNT2606103641R07071-09228Date：June 25, 2026Page： 60 / 64 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 2DH5_Ant1_2441_0~Reference 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 Report No.: DNT2606103641R07071-09228Date：June 25, 2026Page： 61 / 64 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.Chin…

Text truncated - open the document above for the full version.

2.4GHz2012ChipAntenna:RANT2012F245X5 Dimension(mm) L2.05+-0.15 W1.20+-0.15 T0.65+-0.10 No.TerminalName 1Feeding/GNG 2GND Application: WLAN,802.11b/g,Bluetooth,WLAN,etc... Features SMD,highreliability,ultraImpact,Omni-directional... PartnumberInformation RANT2012F245X5 (A)(B)(C)(D)(E)(F) (A)ProductTypeChipAntenna (B)SizeCode2.0x1.2mm(+-0.2mm) (C)MaterialHighKmaterial (D)Frequency2.4~2.5GHz (E)FeedingmodePIFA&SingleFeeding (F)AntennatypeType=5 ElectricalSpecification WorkingFrequencyRange2400~2484MHz Bandwidth84(Min.) PeakGain1.7dBi(Typ.) Impedance50Ohm Returnloss10dB(Min) PolarizationLinear AzimuthBeamwidthOmni-directional OperationTemperature( °C )-40~85 °C ResistancetoSolderingHeats 10sec.(@280°C) TerminationNi/Au(Leadless) ThespecificationisdefinedonEVB. DimensionandTerminalConfiguration 咏成國際科技有限公司電話:13530576606 RAINInternationalTechnologyCo.,Ltd. 2.4GHz2012ChipAntenna:RANT2012F245X5 EvaluationBoardReference PCBDimensionAntennaLayoutReference Unit:mm ElectricalCharacteristics ReturnLoss ReturnLoss&Radiation 1 Frequency(MHz) S11(dB) 2400-10.77 2450-24.81 2484-10.243 Radiation Z Y X 2400MHz2450MHz Efficiency70.56%75.25% 2.4GHz2012ChipAntenna:RANT2012F245X5 TapingSpecifications ReelandTapingSpecification ReelSpecification TYPESIZEABCD 20127”5K/Reel 9.0±0.5 60±213.5±0.5178±2 TappingSpecification PackagingTypeABWEFGHTDP PaperType2012 1.50±0.202.30±0.208.0±0.201.75±0.103.5±0.054.0±0.102.0±0.050.75±0.101.57±0.104.0±0.1 2.4GHz2012ChipAntenna:RANT2012F245X5 ReliabilityTable TestItemProcedure Requirements CeramicType Remark (Reference) Electrical Characterization Fulfilltheelectrical specification UserSpec. Thermal Shock 1.Preconditioning: 50±10°C/1hr,thenkeepfor24±1hrsatroomtemp. 2.Initialmeasure:Spec:referInitialspec. 3.Rapidchangeoftemperaturetest: -30°Cto+85°C;100cycles; 15minutesatLowercategorytemperature; 15minutesatUppercategorytemperature. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 107 Temperature Cycling 1.Initialmeasure:Spec:referInitialspec. 2.100Cycles(-30°Cto+85°C),SoakMode=1(2Cycle/hours). 3.Measurementat24±2Hoursaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. JESD22 JA104 HighTemperature Exposure 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered;500hours@T=+85°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 LowTemperature Storage 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered:500hours@T=-30°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 Solderability (SMDBottomSide) Dippingmethod: a.Temperature:235±5°C b.Dippingtime:3±0.5s Thesoldershouldcover over95%ofthecritical areaofbottomside. IEC60384-21/22 4.10 SolderingHeat Resistance (RSH) Preheatingtemperature:150±10°C. Preheatingtime:1~2min. Soldertemperature:260±5°C. Dippingtime:5±0.5s NoVisibleDamage.IEC60384-21/22 4.10 Vibration5g'sfor20min.,12cycleseachof3orientations Note:Use8"X5"PCB.031"thick7securepointson,onelong sideand2securepointsatcornersofoppositesides.Parts mountedwithin2"fromanysecurepoint.Testfrom10-2000 Hz. NoVisibleDamage.MIL-STD-202 Method204 Mechanical Shock Threeshocksineachdirectionshallbeappliedalongthethree mutuallyperpendicularaxesofthetestspecimen(18shocks) Peakvalue:1,500g’s Duration:0.5ms Velocitychange:15.4ft/s Waveform:Half-sine NoVisibleDamage.MIL-STD-202 Method213 Humidity Bias 1.Humidity:85%R.H.,Temperature:85±2°C. 2.Time:500±24hours. 3.Measurementat24±2hrsaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 Method106 2.4GHz2012ChipAntenna:RANT2012F245X5 2.4GHz2012ChipAntenna:RANT2012F245X5 _ Board Flex (SMD) 1.Mountingmethod: IR-Reflow.PCBSize(L:100×W:40×T:1.6mm) 2.Applytheloadindirectionofthearrowuntilbendingreaches 2mm. NoVisibleDamage.AEC-Q200 005 AdhesionForceof1.8Kgfor60seconds. NoVisibleDamage Magnificationof20Xor greatermaybeemployed forinspectionofthe mechanicalintegrityofthe devicebodyterminalsand body/terminaljunction. AEC-Q200 006 Physical Dimension Anyapplicablemethodusingx10magnification,micrometers, calipers,gauges,contourprojectors,orothermeasuring equipment,capableofdeterminingtheactualspecimen dimensions. Inaccordancewith specification. JESD22 JB100 RevisionHistory RevisionDateContent 12020/10/15NewDatasheet Guowu 2nd Road, Baian District, Shenzhen, Tong'an Intelligent Innovation Park Manufacturer Manufacturer of Address: RAIN International Technology Co., Ltd.

DNT2606103641R07071-P01Page: 1 of 3 PHOTOGRAPHSOFEUT FCCID:2BH6R-2690-PB AntennaTerminalTestView DNT2606103641R07071-P01Page: 2 of 3 ConductedEmissionTestView RadiatedEmissionTestView|(Below1G) DNT2606103641R07071-P01Page: 3 of 3 RadiatedEmissionTestView|(Above1G) RadiatedEmissionTestView|(Above1G) --END--
