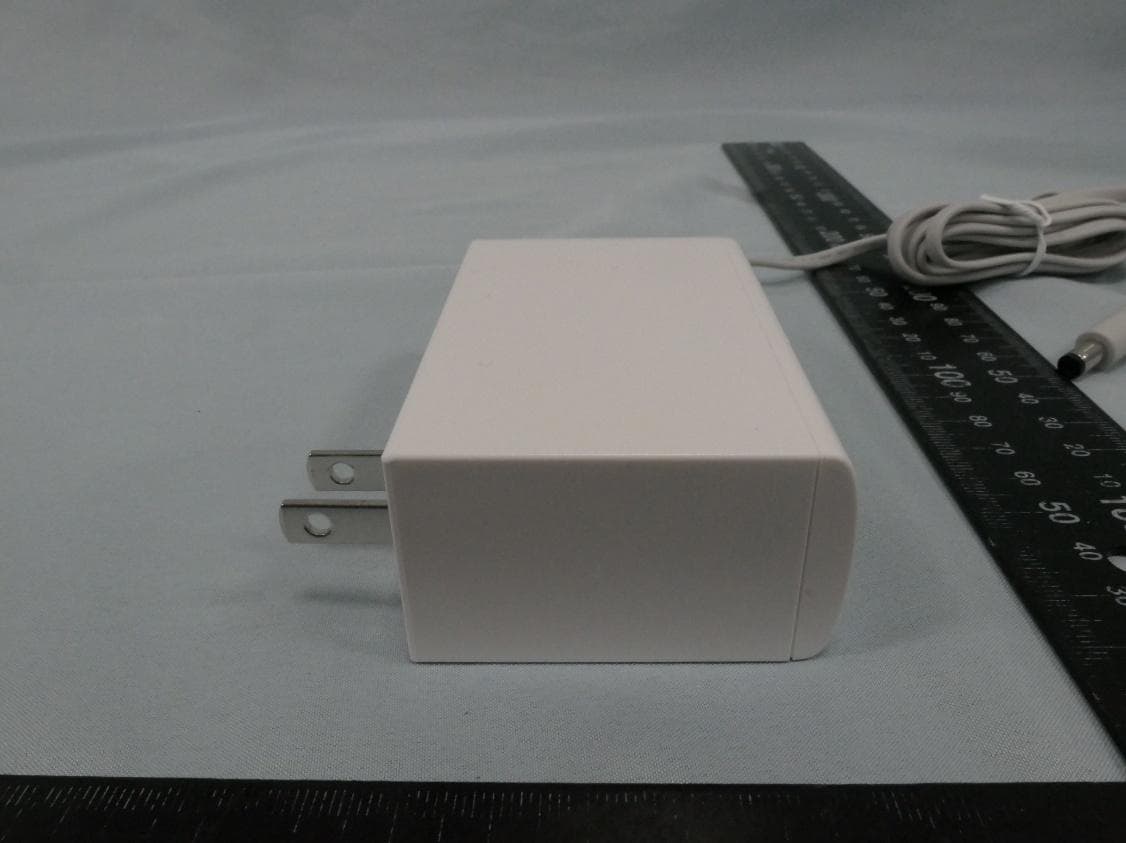

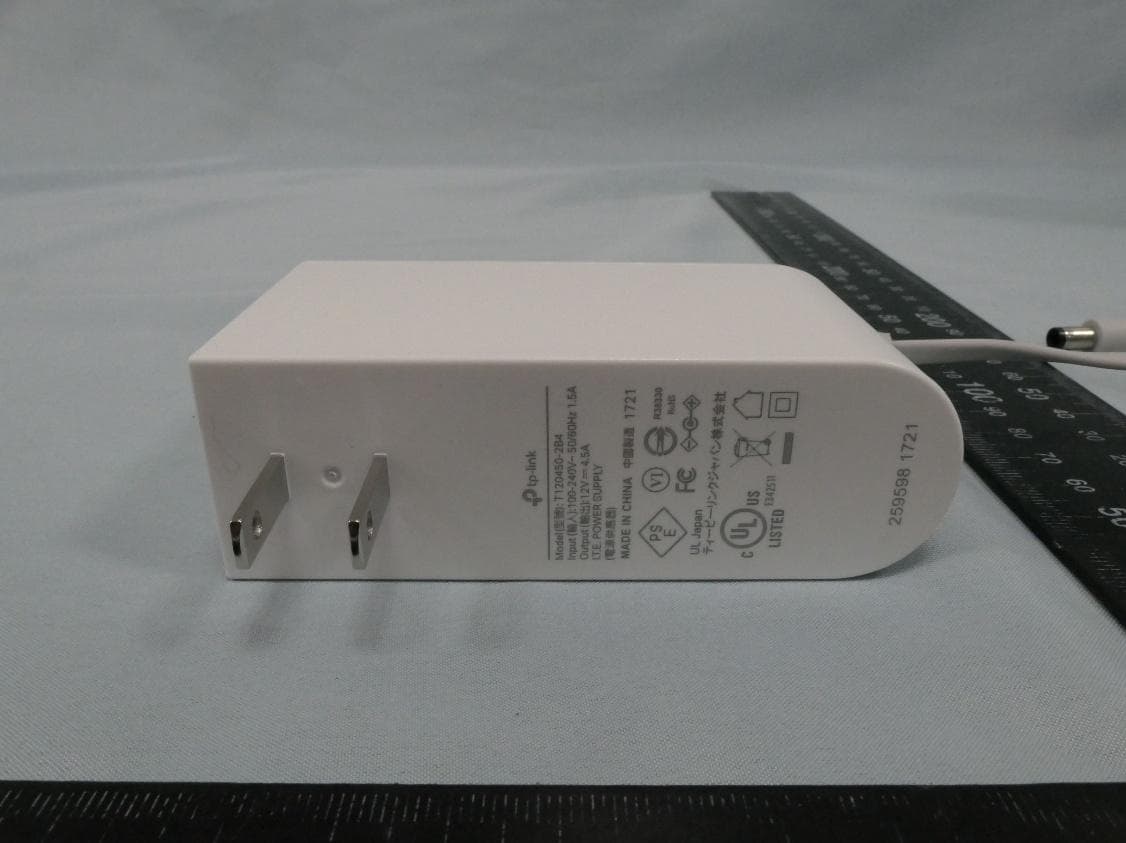

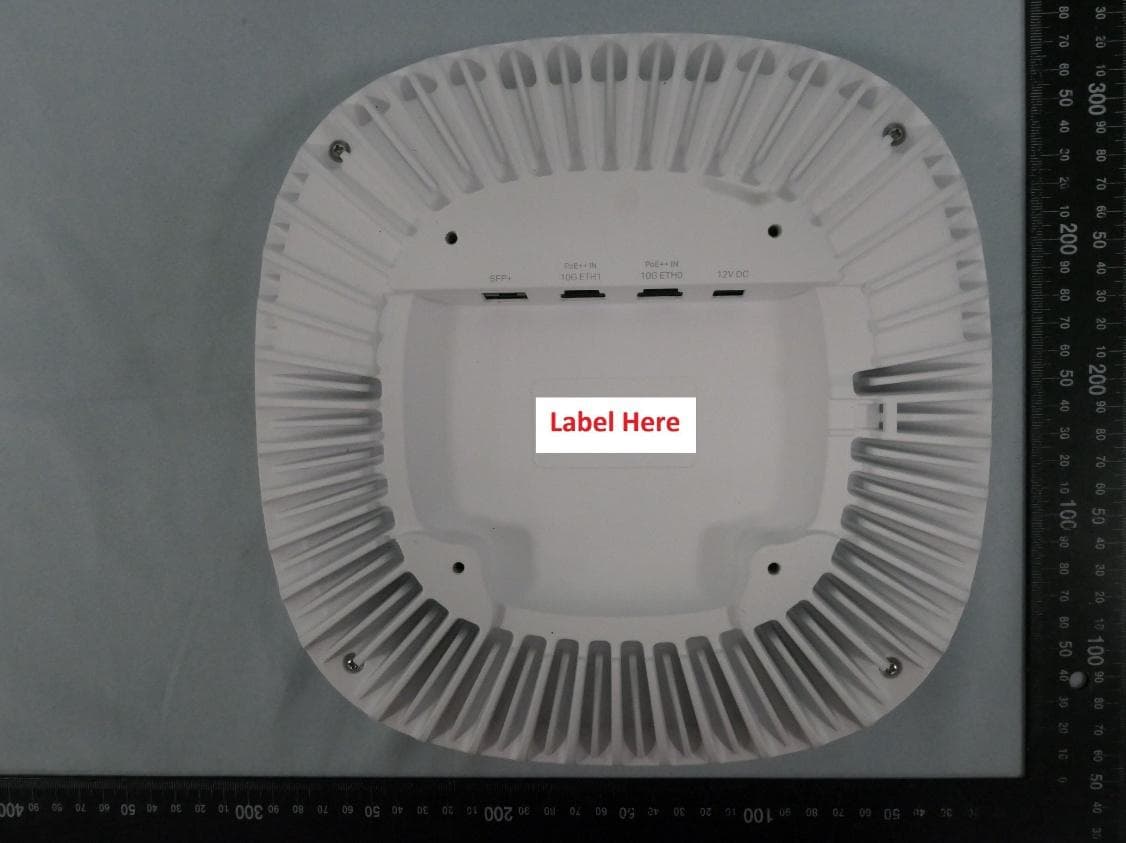

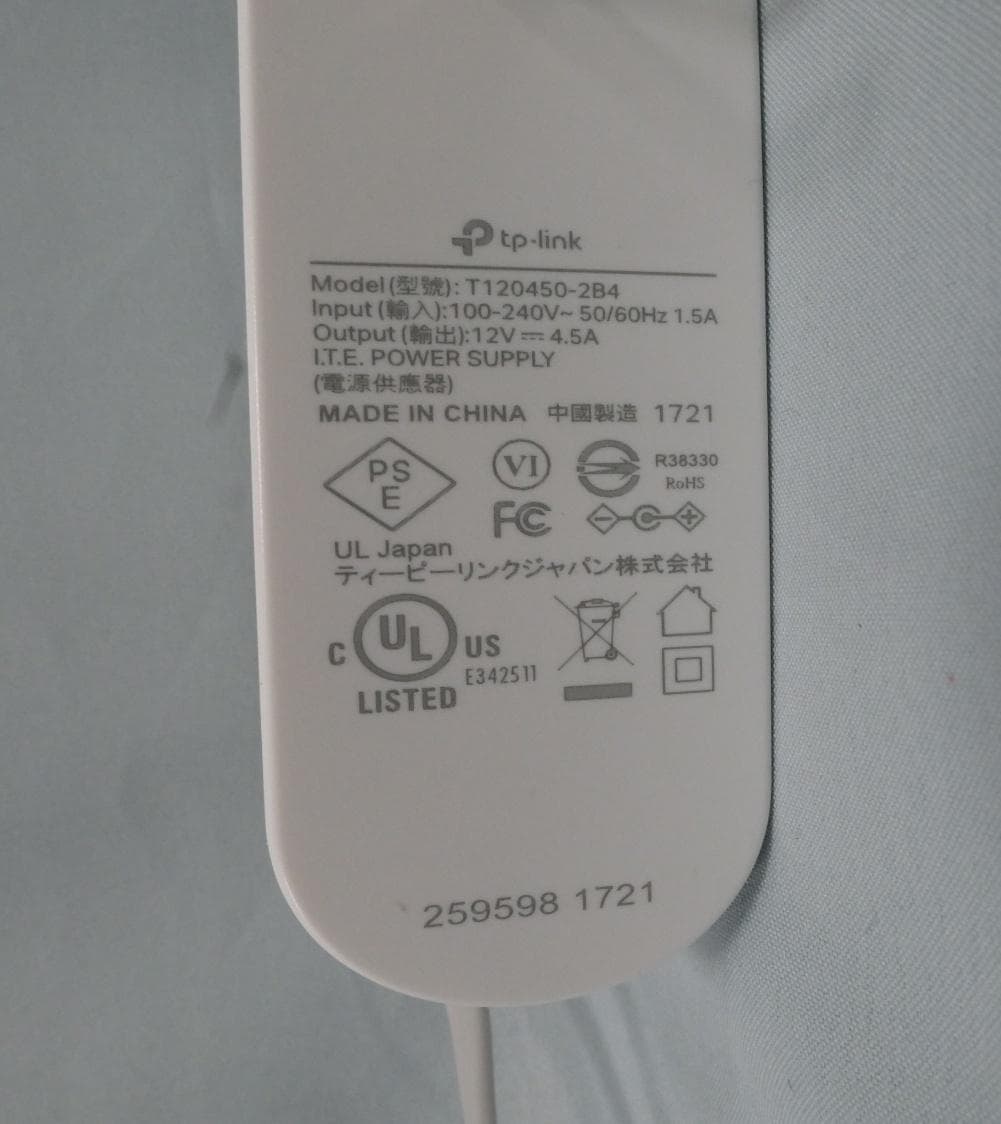

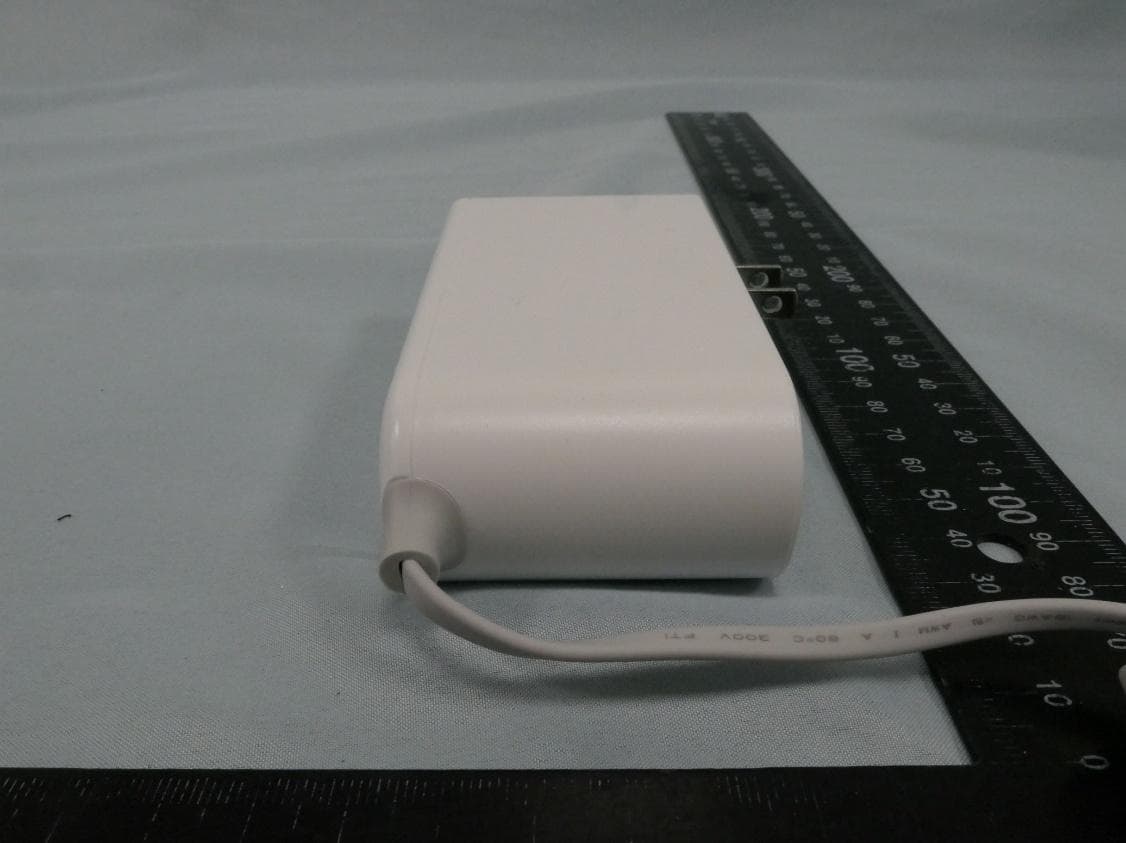

2BH7FAP9788BE22000 Ceiling Mount Wi-Fi 7 Access Point

Regulatory Compliance AP9788 Ceiling Mount Access Point © 2025 TP-Link 1910013332 REV2.0.0 FCC Compliance Information Statement Pro duct Name: BE22000 Ceiling Mount Wi-Fi 7 Access Point Model Number:AP9788 Responsible party: TP-Link Systems Inc. Address: 10 Mauchly, Irvine, CA 92618 Website: https://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: [email protected] This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only M obile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be colocated or operating in conjunction with any other antenna or transmitter.” For AP9788: •FCC regulations restrict the operation of this device to indoor use only. •The operation of this device is prohibited on oil platforms, cars, trains, boats, and aircraft, except that operation of this device is permitted in large aircraft while flying above 10,000 feet in the 5.925-6.425 GHz band. •Operation of transmitters in the 5.925-7.125 GHz band is prohibited for control of or communications with unmanned aircraft systems. We, TP-Link Systems Inc., has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated. Issue Date: 2025-08-29 CE Mark Warning OPERATING FREQUENCY (the maximum transmitted power) 2402 MHz-2480 MHz (10dBm) 2412 MHz -2472 MHz (20dBm) 5150 MHz -5250 MHz (23dBm) 5250 MHz -5350 MHz (23dBm) 5470 MHz -5725 MHz (30dBm) 6105 MHz -6425 MHz (23dBm) EU Declaration of Conformity TP-Link hereby declares that the Access Point is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and ( EU)2015/863. The original EU Declaration of Conformity may be found at https://www.tp-link.com/en/support/ce/. RF Exposure Information This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way of health protection. The device complies with RF specifications when the device used at 20cm from your body. National Restrictions Frequency band: 5150 - 5250 MHz: Indoor use: Inside buildings only. Installations and use inside road vehicles and train carriages are not permitted. Limited outdoor use: If used outdoors, equipment shall not be attached to a fixed installation or to the external body of road vehicles, a fixed infrastructure or a fixed outdoor antenna. Use by unmanned aircraft systems (UAS) is limited to within the 5170 - 5250 MHz band. Frequency band: 5250 - 5350 MHz: Indoor use: Inside buildings only. Installations and use in road vehicles, trains and aircraft are not permitted. Outdoor use is not permitted. Frequency band: 5470 - 5725 MHz: Installations and use in road vehicles, trains and aircraft and use for unmanned aircraft systems (UAS) are not permitted. Frequency band 5945 -6425MHz: Restricted to indoor use, including in trains with metal-coated windows and aircraft. Outdoor use, including in road vehicles, is not permitted. UKCA Mark UK Declaration of Conformity TP-Link hereby declares that the Access Point is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017. The original UK Declaration of Conformity may be found at https://www.tp-link.com/support/ukca National Restrictions Attention: This device may only be used indoors in Great Britain. UK Canadian Compliance Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) his device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’…

Text truncated - open the document above for the full version.

Quick Installation Guide Ceiling Mount Access Point Note: AP9788 is used as an example throughout the guide. Images may differ from your actual product. ©2026 TP-Link 7100002951 REV1.0.0 Scan for Campus AP Start Guide 1. Install Option 1 Ceiling Mounting (on a Tile) 1 2 3 4 5 Package Contents Option 2 Ceiling Mounting (on a T-Bar) 1 2 3 4 5 6 Note: Accessories may vary by region and model. Option 3 Wall Mounting Option 4 Junction Box Mounting Option 1 4×4×4×1× Option 2 1× 1× 1× Guide 1× 4×4×4×4×4× 2×2×2× Or 1× 1× Φ 63/64 in (1× Φ 25 mm) 4× Φ 5/32 in (4× Φ 4 mm) 1 2 A/F 1 Refer to 2. Connect on the back page to connect cables. 2 Φ ≤ 5/32 in (Φ ≤ 8 mm) 1× Notes: 1. Ensure the ceiling, wall, or junction box can support at least four times the combined weight of the AP and mounting kit. 2. The AP locks in place once installed. To remove it, refer to Uninstalling on the back page. A+E 1× Loosen (×6) Unscrew (×4) Refer to 2. Connect on the back page to connect cables. Φ ≤ 5/32 in (Φ ≤ 8 mm) 1 2 1 2 1 2 For details on the warranty period, policy, and procedures, visit https://support.omadanetworks.com/warranty-services/. Warranty Support For technical support, user guides, and other information, visit https://support.omadanetworks.com/, or simply scan the QR code. More Resources Main Sitehttps://www.omadanetworks.com/ https://support.omadanetworks.com/video/ https://support.omadanetworks.com/document/ https://support.omadanetworks.com/product/ https://support.omadanetworks.com/contact-support/ Video Center Product Support Documents Technical Support 1 2 3 4 5 Refer to 2. Connect to connect cables. Φ ≤ 5/32 in (Φ ≤ 8 mm) Option 3 4× Φ 19/64 in (4× Φ 7.6 mm) 1 2 A/F 2. Connect 1. Connect to Internet Option 1: Single/Dual PoE InConnect to internet via Ethernet or fiber network. 2. Connect to Power More Configurations For more configurations, refer to the User Guides of the Access Point and Controllers at: https://support.omadanetworks.com/document/ Omada App With the TP-Link Omada app, access and manage your devices at a local site or remotely with a tap of your phone. Scan for Omada App 3. Configure Switch Gateway/Router APAPAP Configure and manage each AP on its standalone page. Option 1: Standalone Mode Scan for Standalone Start Guide Default SSIDs: Omada_XGHz_XXXXXX (e.g., Omada_2.4GHz_1A2B3C) Default Access: https://omadaeap.net Switch Gateway/Router On-Premises Controller Omada Central (Cloud-Based) Or APAPAP Configure and manage APs centrally with an Omada Controller. Option 2: Controller Mode Scan for Controller Start Guide 1 2 3 Compatible wall junctions: Screws and mounting holes vary with junction boxes. For simplicity, a single-gang outlet box (US) is used as an example. Option 4 2×2×2× OrOr Safety Information • Keep the device away from water, fire, humidity, or hot environments. • Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us. • Do not use the device where wireless devices are not allowed. • (For IN version) The AP can be powered only by a power adapter or a PSE device (such as a PoE switch) which complies with Limited Power Source (LPS) defined in the standard of IEC 60950-1. (For other versions) The AP can be powered only by a power adapter or a PSE device (such as a PoE switch) which complies with Power Source Class 2 (PS2) or Limited Power Source (LPS) defined in the standard of IEC 62368-1. • Use only power supplies listed in the user instructions. Refer to the User Manual on the product support page. • Plug the product into wall outlets with earthing connections through the plug. TP-Link hereby declares that the Access Point is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011 /65/EU, and (EU) 2015/863. The original EU Declaration of Conformity may be found at https://www.tp-link.com/en/support/ce/ TP-Link hereby declares that the Access Point is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017. The original UK Declaration of Conformity may be found at https://www.tp-link.com/support/ukca/ 4×4× 1 2 1 2 C 1× 1× The AP locks in place once installed. To uninstall, unlock with the provided L-Key. Uninstalling Switch/OLT ETH0/ETH1 Port Gateway/Router PoE Switch ETH0/ETH1 Port Option 2: DC Input Power Port Power Adapter Cable through wallCable along wall Or Refer to 2. Connect to connect cables. Φ ≤ 5/32 in (Φ ≤ 8 mm) 1 2 SFP+ Port * If SFP modules are used, ensure they are compatible with your uplink device. Fiber-Optic Cable Ethernet Cable Or SFP Module*

MRT Technology (Taiwan) Co., Ltd. Report No.: 2606TW0101-U7 Phone: +886-3-3288388 Report Version: V1.0 Web: www.mrt-cert.com Issue Date: 2026-08-05 Template Version: 2.1 1 of 12 RF Exposure Evaluation Declaration FCC ID: 2BH7FAP9788 Applicant: TP-Link Systems Inc. Product: BE22000 Ceiling Mount Wi-Fi 7 Access Point Model No.: AP9788 FCC Rule Part(s): FCC Part 2.1091 Result: Complies Received Date: 2026-06-01 Reviewed By: Paddy Chen Approved By: Chenz Ker The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report. Testing was performed in accordance with the applicable measurement procedures. The test results reported herein apply only to the specific item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2606TW0101-U7 2 of 12 Revision History Report No. Version Description Issue Date Note 2606TW0101-U7 V1.0 Original Report 2026-08-05 Valid Report No.: 2606TW0101-U7 3 of 12 CONTENTS Description Page 1. General Information ............................................................................................................................... 4 1.1. Applicant ........................................................................................................................................4 1.2. Manufacturer .................................................................................................................................4 1.3. Testing Facility ...............................................................................................................................4 1.4. Product Information .......................................................................................................................5 1.5. Antenna Details .............................................................................................................................6 1.6. Device Classification .....................................................................................................................7 1.7. Applied Standards .........................................................................................................................7 2. RF Exposure Evaluation ........................................................................................................................ 8 2.1. Limits .............................................................................................................................................8 2.2. MPE Exemptions ...........................................................................................................................9 2.3. Calculated Result ....................................................................................................................... 12 Report No.: 2606TW0101-U7 4 of 12 1. General Information 1.1. Applicant TP-Link Systems Inc. 10 Mauchly, Irvine, CA 92618 1.2. Manufacturer TP-Link Systems Inc. 10 Mauchly, Irvine, CA 92618 1.3. Testing Facility Test Site 1 - MRT Taiwan Laboratory Laboratory Location No. 38, Fuxing 2nd Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Laboratory Accreditations TAF: 3261 FCC: 291082, TW3261 ISED: TW3261 Test Site 2 - MRT Taiwan Laboratory Laboratory Location No. 64, Wenming Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Laboratory Accreditations TAF: 3261 FCC: 291082, TW3261 ISED: TW3261 Report No.: 2606TW0101-U7 5 of 12 1.4. Product Information Product Name BE22000 Ceiling Mount Wi-Fi 7 Access Point Model No. AP9788 Specification WLAN: 802.11a/b/g/n/ac/ax/be WPAN: Bluetooth single mode Antenna Information Refer to section 1.5 Operating Temperature -30 ~ 50 °C Operating Environment Indoor Use Power Type AC/DC Adapter or PoE Injector Input Accessory Adapter Model No.: T120450-2B4 Input Power: 100-240V~50/60Hz, Max. 1.5A Output Power: 12VDC 4.5A Note: The information of the EUT (Equipment Under Test) was provided by the manufacturer. The accuracy, completeness, and validity of the information are solely the responsibility of the manufacturer. Report No.: 2606TW0101-U7 6 of 12 1.5. Antenna Details 1. Antenna Type Frequency Band (MHz) T X Paths Antenna Gain (dBi) CDD Directional Gain (dBi) Ant 9 Ant 10 Ant 11 Ant 12 Ant 17 For Power For PSD Wi-Fi 2.4G Antenna PIFA 2412 ~ 2462 4 5.66 4.81 4.29 6.29 -- 0.53 6.5 BLE Antenna PIFA 2402 ~ 2480 1 -- -- -- -- 6.52 -- -- Antenna Type Frequency Band (MHz) T X Paths Antenna Gain (dBi) CDD Directional Gain (dBi) Ant 1 Ant 2 Ant 3 Ant 4 For Power For PSD Wi-Fi 5G Antenna PIFA 5150-5250 4 4.92 5.19 4.42 4.73 1.25 7.2 5250-5350 4 4.97 5.43 4.80 5.17 1.54 7.5 5470-5725 4 6.32 5.53 5.21 7.02 1.70 7.7 5725-5925 4 6.32 5.10 5.54 5.64 1.40 7.4 Antenna Type Frequency Band (MHz) T X Paths Ant 5 Ant 6 Ant 7 Ant 8 For Power For PSD Monopole 5150-5250 4 6.01 6.94 6.68 6.57 1.25 7.2 5250-5350 4 6.33 7.23 6.58 7.15 1.54 7.5 5470-5725 4 7.04 7.42 6.33 6.99 1.70 7.7 5725-5925 4 7.04 6.68 6.13 6.30 1.40 7.4 Note: 1. The device supports CDD Mode and Beamforming mode, details refer to the table as below. 2. CDD signals are correlated, the directional gain as follows, When N SS =1, for power measurements: the max directional gain (each angle) = 10 log[(10 G1 /10 + 10 G2 /10 + ... + 10 GN /10 ) /N ANT ] For power spectral density (PSD) measurements: the max directional gain (each angle) = 10 log[(10 G1 /20 + 10 G2 /20 + ... + 10 GN /20 ) 2 /N ANT ] When N SS =2, the max directional gain (each angle) = 10 log[(10 G1 /10 + 10 G2 /10 + ... + 10 GN /10 ) /N ANT ] 3. Beamforming signals are correlated, the directional gain as follows, the max directional gain (each angle) = 10 log[(10 G1 /20 + 10 G2 /20 + ... + 10 GN /20 ) 2 /N ANT ] 4. The information as above is from the antenna report. Report No.: 2606TW0101-U7 7 of 12 2. Antenna Type Frequency Band (MHz) T X Paths Antenna Gain (dBi) CDD Directional G…

Text truncated - open the document above for the full version.

Report No.: 2606TW0101-UT 1 of 7 RF Test Photograph Description: Front View of Conducted Emission Test Setup Description: Side View of Conducted Emission Test Setup Report No.: 2606TW0101-UT 2 of 7 Description: Radiated Emission Test Setup for below 1GHz_For Ant1+2+3+4 Description: Radiated Emission Test Setup for above 1GHz_For Ant1+2+3+4 Report No.: 2606TW0101-UT 3 of 7 Description: Radiated Emission Test Setup for 18GHz~40GHz_For Ant1+2+3+4 Description: Radiated Emission Test Setup for 9kHz~30MHz_For Ant1+2+3+4 Report No.: 2606TW0101-UT 4 of 7 Description: Radiated Emission Test Setup for below 1GHz_For Ant5+6+7+8 Description: Radiated Emission Test Setup for above 1GHz_For Ant5+6+7+8 Report No.: 2606TW0101-UT 5 of 7 Description: Radiated Emission Test Setup for 18GHz~40GHz_For Ant5+6+7+8 Description: Radiated Emission Test Setup for 9kHz~30MHz_For Ant5+6+7+8 Report No.: 2606TW0101-UT 6 of 7 Description: Conducted Measurement Test Setup - BLE Description: Conducted Measurement Test Setup - WiFi Report No.: 2606TW0101-UT 7 of 7 Description: DFS Test Setup Description: CBP Test Setup

Copyright © 2024 TP-Link Systems Inc. All rights reserved FCC Composite Gain Test Report TP-Link Systems Inc. 10 Mauchly, Irvine, CA 926187 Copyright © 2024 TP-Link Systems Inc. All rights reserved Copyright © 2024 By TP-Link Systems Inc. All rights reserved. The drawings, specifications and the data contained in this document are exclusively the property of TP-Link Systems Inc. The information is intended for internal use only and is subject to change without any notice. With no written permission from TP-Link Systems Inc. this document, in parts or as a whole, shall not be reproduced, copied, or used in any form or by any means to make any derivatives such as translation, transformation, or adaptation, for any purpose whatever. is a registered trademark of TP-Link Systems Inc. Other brands and product names mentioned herein are trademarks or registered trademarks of their respective holders. Warning This document is intended for internal use only. A Non-Disclosure Agreement (NDA) approved by Chief Technology Officer (CTO) is required to release this document under any circumstances. Basic Information EUT Description： BE22000 Ceiling Mount Wi-Fi 7 Access Point Brand Name： tp-link Model Name： AP9788 Tested By： Shao Jinwei Date： 2026/05/11 Copyright © 2024 TP-Link Systems Inc. All rights reserved CONTENTS 1 Operation Mode and Antenna Information ........................................................................................ 5 1.1 EUT Operation Mode ...................................................................................................................... 5 1.2 Antenna Information ....................................................................................................................... 5 1.3 Test Frequency ................................................................................................................................ 6 2 Test System ............................................................................................................................................. 6 2.1 Test Equipment ................................................................................................................................ 6 2.2 Test Software ................................................................................................................................... 7 3 Test Summary ........................................................................................................................................ 8 3.1 Measurement Environment ............................................................................................................. 8 3.2 Measurement Quantity .................................................................................................................. 10 3.3 Test Method ................................................................................................................................... 10 3.4 Directional Gain (Nss=1) Calculations ......................................................................................... 11 3.5 Directional Gain (Nss=N ant ) Calculations ..................................................................................... 11 3.6 Test Procedure ............................................................................................................................... 12 4 Measured Value and Maximum Gain Positions ................................................................................ 14 4.1 Antenna Number ........................................................................................................................... 14 4.2 2G .................................................................................................................................................. 14 4.2.1 DG_1SS Max Value Position ................................................................................................ 14 4.2.2 DG_1SS Max Value Position Calculation ............................................................................. 14 4.2.3 DG_NSSmax Max Value Position ......................................................................................... 15 4.2.4 DG_NSSmax Max Value Position Calculation ..................................................................... 15 4.3 5G .................................................................................................................................................. 16 4.3.1 DG_1SS Max Value Position ................................................................................................ 16 4.3.2 DG_1SS Max Value Position Calculation ............................................................................. 16 4.3.3 DG_NSSmax Max Value Position ......................................................................................... 17 4.3.4 DG_NSSmax Max Value Position Calculation ..................................................................... 17 4.4 6G .................................................................................................................................................. 18 4.4.1 DG_1SS Max Value Position ................................................................................................ 18 4.4.2 DG_1SS Max Value Position Calculation ............................................................................. 18 4.4.3 DG_NSSmax Max Value Position ......................................................................................... 19 4.4.4 DG_NSSmax Max Value Position Calculation ..................................................................... 19 5 Test and Calculate Result ................................................................................................................... 19 5.1 Peak Antenna Gain（Single） ...................................................................................................... 19 Copyright © 2024 TP-Link Systems Inc. All rights reserved 5.2 DG_1SS Calculate Result ....…

Text truncated - open the document above for the full version.

Report No.: 2606TW0101-U3 73 of 220 802.11g Out-of-Band Emissions - Ant 12 802.11 g CH01 (2412MHz) 802.11 g CH01 (2412MHz) 802.11 g CH06 (2437MHz) 802.11 g CH06 (2437MHz) 802.11 g CH11 (2462MHz) 802.11 g CH11 (2462MHz) Report No.: 2606TW0101-U3 74 of 220 802.11n-HT20 Out-of-Band Emissions - Ant 12 802.11 n20 CH01 (2412MHz) 802.11 n20 CH01 (2412MHz) 802.11 n20 CH06 (2437MHz) 802.11 n20 CH06 (2437MHz) 802.11 n20 CH11 (2462MHz) 802.11 n20 CH11 (2462MHz) Report No.: 2606TW0101-U3 75 of 220 802.11n-HT40 Out-of-Band Emissions - Ant 12 802.11 n40 CH03 (2422MHz) 802.11 n40 CH03 (2422MHz) 802.11 n40 CH06 (2437MHz) 802.11 n40 CH06 (2437MHz) 802.11 n40 CH09 (2452MHz) 802.11 n40 CH09 (2452MHz) Report No.: 2606TW0101-U3 76 of 220 802.11be-EHT20 Out-of-Band Emissions - Ant 12 802.11 be20 CH01 (2412MHz) 802.11 be20 CH01 (2412MHz) 802.11 be20 CH06 (2437MHz) 802.11 be20 CH06 (2437MHz) 802.11 be20 CH11 (2462MHz) 802.11 be20 CH11 (2462MHz) Report No.: 2606TW0101-U3 77 of 220 802.11be-EHT40 Out-of-Band Emissions - Ant 12 802.11 be40 CH03 (2422MHz) 802.11 be40 CH03 (2422MHz) 802.11 be40 CH06 (2437MHz) 802.11 be40 CH06 (2437MHz) 802.11 be40 CH09 (2452MHz) 802.11 be40 CH09 (2452MHz) Report No.: 2606TW0101-U3 78 of 220 A.6 Radiated Spurious Emissions Test Result EUT BE22000 Ceiling Mount Wi-Fi 7 Access Point Date of Test 2026-07-09 Factor FMZB 1519B Temp. / Humidity 23C /64% Polarity -- Site / Test Engineer AC2 / Stanley Test Mode 802.11g_TX_CH 6_ANT 9+10+11+12 Test Voltage AC 120V/60Hz Limit FCC Part15C_9KHz-30MHz No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 0.020 27.14 17.90 45.04 -76.58 121.62 100 360 Peak 2 0.047 22.63 19.13 41.76 -72.37 114.13 100 360 Peak 3 0.050 25.28 19.21 44.49 -69.09 113.58 100 360 Peak 4 0.070 21.79 18.58 40.36 -70.31 110.67 100 360 Peak 5 * 0.075 23.77 18.42 42.19 -67.89 110.09 100 360 Peak 6 0.081 22.68 18.25 40.92 -68.55 109.47 100 360 Peak Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB/m) + Cable Loss (dB). 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2606TW0101-U3 79 of 220 EUT BE22000 Ceiling Mount Wi-Fi 7 Access Point Date of Test 2026-07-09 Factor FMZB 1519B Temp. / Humidity 23C /64% Polarity -- Site / Test Engineer AC2 / Stanley Test Mode 802.11g_TX_CH 6_ANT 9+10+11+12 Test Voltage AC 120V/60Hz Limit FCC Part15C_9KHz-30MHz No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 0.399 33.97 17.95 51.91 -43.66 95.58 100 0 Peak 2 0.464 29.25 17.95 47.20 -47.07 94.27 100 0 Peak 3 * 0.793 27.37 17.97 45.34 -24.29 69.63 100 0 Peak 4 0.861 25.48 17.97 43.45 -25.46 68.92 100 0 Peak 5 2.454 17.06 18.00 35.06 -34.44 69.50 100 0 Peak 6 8.278 16.26 19.67 35.93 -33.57 69.50 100 0 Peak Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB/m) + Cable Loss (dB). 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2606TW0101-U3 80 of 220 EUT BE22000 Ceiling Mount Wi-Fi 7 Access Point Date of Test 2026-07-06 Factor VULB 9162 Temp. / Humidity 23C /64% Polarity Horizontal Site / Test Engineer AC2 / Eddie Test Mode 802.11g_TX_CH 6_ANT 9+10+11+12 Test Voltage AC 120V/60Hz Limit FCC Part15C_30MHz-1GHz No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 48.430 7.38 20.51 27.89 -12.11 40.00 155 0 QP 2 * 81.410 17.41 13.98 31.39 -8.61 40.00 200 284 QP 3 161.920 14.84 15.45 30.29 -13.21 43.50 100 318 QP 4 220.120 15.96 18.17 34.13 -11.87 46.00 150 228 QP 5 250.190 16.14 19.63 35.77 -10.23 46.00 100 199 QP 6 948.590 1.30 31.10 32.40 -13.60 46.00 150 271 QP Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB/m) + Cable Loss (dB) – Preamplifier(dB). 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2606TW0101-U3 81 of 220 EUT BE22000 Ceiling Mount Wi-Fi 7 Access Point Date of Test 2026-07-06 Factor VULB 9162 Temp. / Humidity 23C /64% Polarity Vertical Site / Test Engineer AC2 / Eddie Test Mode 802.11g_TX_CH 6_ANT 9+10+11+12 Test Voltage AC 120V/60Hz Limit FCC Part15C_30MHz-1GHz No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 57.160 10.30 19.79 30.09 -9.91 40.00 100 141 QP 2 * 63.950 12.50 17.95 30.45 -9.55 40.00 100 203 QP 3 137.670 14.62 14.80 29.42 -14.08 43.50 100 338 QP 4 224.970 10.54 18.51 29.05 -16.95 46.00 100 268 QP 5 586.780 5.48 26.41 31.89 -14.11 46.00 100 186 QP 6 982.540 0.23 31.41 31.64 -22.36 54.00 100 209 QP Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB/m) + Cable Loss (dB) – Preamplifier(dB). 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2606TW0101-U3 82 of 220 EUT BE22000 Ceiling Mount Wi-Fi 7 Access Point Date of Test 2026-06-03 Factor DRH18-E Temp. / Humidity 23C /64% Polarity Horizontal Site / Test Engineer AC2 / Stanley Test Mode 802.11b_TX_CH 1_ANT 9+10+11+12 Test Voltage AC 120V/60Hz Limit FCC Part15C_1GHz-40GHz No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 4824.000 46.09 1.19 47.28 -26.72 74.00 300 197 Peak 2 7236.000 41.73 6.65 48.37 -25.63 74.00 200 94 Peak 3 * 9648.000 43.03 6.92 49.95 -2…

Text truncated - open the document above for the full version.

Report No.: 2606TW0101-U3 61 of 220 802.11g Out-of-Band Emissions - Ant 10 802.11 g CH01 (2412MHz) 802.11 g CH01 (2412MHz) 802.11 g CH06 (2437MHz) 802.11 g CH06 (2437MHz) 802.11 g CH11 (2462MHz) 802.11 g CH11 (2462MHz) Report No.: 2606TW0101-U3 62 of 220 802.11n-HT2…
