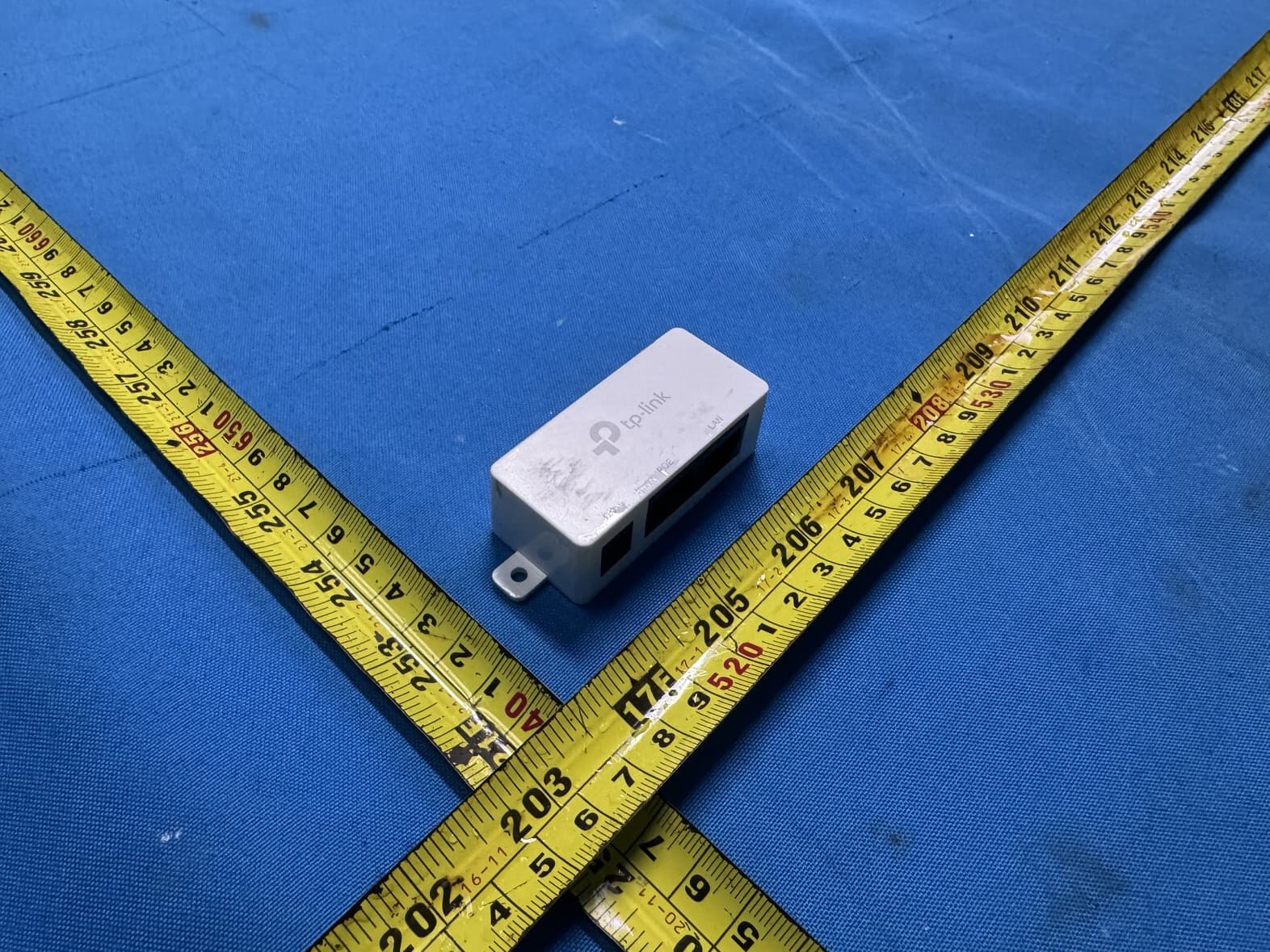

2BH7FEAP100BRG2.4GHz 300Mbps Indoor/Outdoor Wireless Bridge

Option 1: Via Power Adapter Option 2: Via PoE Switch Indoor/Outdoor Wireless Bridge © 2025 TP-Link 7106511983 REV3.0.0 Note: EAP211-Bridge KIT is used for demonstration. Images may differ from your actual product. Proper grounding is extremely important for outdoor devices. To reduce the damage of potential lightning and ESD attacks, connect the AP’s grounding terminal to grounding facilities using a proper grounding wire, which should meet local installation requirements. Grounding Terminal Earth Ground Grounding Cable Lightning and ESD Protection 3 • Mounting Height Site Consideration 2 Ensure a clear line of sight between the wireless devices for an optimum performance. An elevated location is recommended as obstacles like trees, buildings and large steel structures will weaken the wireless signal. Line of Sight Side View • Orientation Install the APs with the front facing the intended signal receiving devices. You can orient the APs with the assistance of Google Maps, GPS and some landmarks according to the horizontal beamwidth listed below. A B Line of Sight Horizontal Beamwidth ModelEAP215-Bridge 40°60° EAP211-Bridge Horizontal Beamwidth • LED Explanation * When the Locate feature is activated in the Omada Controller, the AP’s SYSTEM LED will flash quickly for 10 minutes to help you locate and identify the device. You can disable this feature manually to stop the device from flashing. Signal LEDs LAN LEDs SYSTEM LED Work as Main AP: All LEDs remain solid on. Work as Client AP: More lit LEDs indicates better wireless signal strength. On: The port is connected, but not active. Flash: The port is connected and active. Off: The port is not connected. On: Working normally/Initializing Off: Working abnormally/Power off/LED is turned off. Flash: • Flash twice: Initialization is completed. • Flash quickly: The AP is resetting, or the Omada Controller is locating the device*. • Flash once per second: The AP is upgrading. • Sustained Flash: The AP is in the isolated state. Signal LEDs LEDIndication LAN LEDs SYSTEM LED Hardware Overview 1 Package Contents The KIT product contains two sets of accessories and one Installation Guide. APAP Cover* Pole Mounting Strap Installation Guide Indoor/Outdoor Access Point/Wireless Bridge Quick Installation Guide Power Adapter Power On 4 The AP can be powered only by a power adapter, a PSE device (such as a PoE switch), or a passive PoE adapter. Power Port Option 3: Via Passive PoE Adapter LAN1(PoE IN) Passive PoE Adapter LAN1(PoE IN) PoE Switch Quick Installation Guide • Panel Layout Main APClient AP RESET Button Grounding Terminal LAN1(PoE IN)LAN2LAN3 Power Port Role Switch (Main AP/Client AP) RESET Button ItemDescription Grounding Terminal LAN1 (PoE IN) Port LAN2/LAN3 Port Power Port Role Switch (Main AP/Client AP) Press and hold for about 5 seconds to reset the AP to its factory settings. Connect to a client device for data transmission. Connect to a wall outlet for DC power input. Toggle left or right to change the AP’s role if needed. Connect to a PSE (Power Sourcing Equipment), such as a PoE switch, for both data transmission and power supply. Connect to grounding facilities for lightning and ESD protection. At the selected site, approximately align the AP to the direction that you have oriented. Mounting 6 After power-on, Bridge APs in the same KIT will automatically form a bridge network. The Signal LEDs on the APs will turn on. Note: If you have other Bridge APs, refer to the Network Management section to add them manually. Auto Pairing 5 • Typical Application 2: Wi-Fi Extension Gateway/Router Clients AP Main APClient AP Auto Pairing • Typical Application 1: Remote Camera Monitoring Main APNVRClient APCameras Auto Pairing 1. The default SSID on the product is only for device access and management. If you need an SSID to access the internet and service networks, refer to the Network Management section to set up the AP. 2. In a network without a DHCP Server, Bridge APs will use the following DHCP fallback IP addresses: Main AP: 192.168.0.254 Client AP: 192.168.0.253 If you want to change AP settings, manage the network, or add other APs to the network, choose a method below: • Method 1: Standalone Mode Configure and manage APs through the Main AP (Convenient for a small network with only a few devices) • Method 2: Controller Mode Configure and manage APs in batches on a central platform, namely the Omada Controller. Via Web Browser 1. Connect your management device to the Main AP by using the default SSID printed on the product. Note: Under factory settings, the AP’s management SSID will disable after two hours upon powering on. If you need to connect to the SSID, re-power the AP. 2. Launch a web browser and enter https://omadaeap.net in the address bar. If your network doesn’t have a DHCP server, ensure your management device is using IP address 192.168.0.X, then enter https://192.168.0.254 instead to access the AP’s web page. 3. Set up a Username and Password for secure management purpose. Then you can configure the Main AP. 4. Add the Client AP(s). • For the Client AP in the same KIT as the Main AP, the system will automatically scan for it and add it to the network. • For other Bridge APs, go to Bridge Network, then click Add Client AP and follow web instructions to manually add them to the network. Notes: 1. For security, we recommend changing the default login username and password of the APs. The Main AP’s Bridge AP list provides quick access to each AP’s web page. 2. If you want to change the roles of Bridge APs, use the hardware role switch on the products or refer to the User Guide at: https://support.omadanetworks.com/product 1. Download and install the TP-Link Omada App from App Store or Google Play. 2. Connect your mobile device to the Main AP by using the default SSID printed on the product. Note: Under factory settings, the AP’s management SSID will disable after two hours upon powering on. If you need to connect to the SSID, re-power…

Text truncated - open the document above for the full version.

Regulatory Compliance Indoor/Outdoor EAP © 2025 TP-Link 1910013244 REV2.1.0 For Class B EAP with adapter: FCC Compliance Information Statement Product Name: Omada Indoor/Outdoor Access Point Model Number: EAP100-Bridge / EAP211-Bridge V3 / EAP215-Bridge V3 / EAP220-Bridge / EAP603-Outdoor Component NameModel I.T.E. Power SupplyPOE4824G (for EAP603-Outdoor) Responsible party: TP-Link Systems Inc. Address: 10 Mauchly, Irvine, CA 92618 Website: https://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: [email protected] This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 25cm (for EAP603-Outdoor / EAP100-Bridge) / 20cm (for other models) from all persons and must not be colocated or operating in conjunction with any other antenna or transmitter.” Product Name: I.T.E. Power Supply Model Number: POE4824G Responsible party: TP-Link Systems Inc. Address: 10 Mauchly, Irvine, CA 92618 Website: https://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: [email protected] This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. We, TP-Link Systems Inc., has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated. Issue Date: 2025-05-07 CE Mark Warning OPERATING FREQUENCY (the maximum transmitted power) For EAP100-Bridge: 2412MHz—2472MHz (20dBm) For EAP211-Bridge V3 / EAP215-Bridge V3 / EAP220-Bridge: 5150MHz—5250MHz (23dBm) 5250MHz—5350MHz (23dBm) 5470MHz—5725MHz (30dBm) For EAP603-Outdoor: 2412MHz—2472MHz (20dBm) 5150MHz—5250MHz (23dBm) 5250MHz—5350MHz (23dBm) 5470MHz—5725MHz (30dBm) EU Declaration of Conformity For EAP100-Bridge / EAP211-Bridge V3 / EAP215-Bridge V3 / EAP220-Bridge / EAP603- Outdoor: TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863. RF Exposure Information This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way of health protection. The device complies with RF specifications when the device used at 20cm from your body. National Restrictions For EAP211-Bridge V3 / EAP215-Bridge V3 / EAP220-Bridge / EAP603-Outdoor: Frequency band: 5150 - 5250 MHz: Indoo…

Text truncated - open the document above for the full version.

庄剧慈 工艺： 镭雕 尺寸： 32*12.0 mm 颜色： PANTONE Cool Gray 6C EAP100-Bridge(EU&US) 1.20_壳体镭雕 A1 深圳市联洲国际技术有限公司 菲林图 菲林图 2025-06-30 1.20新增12V PoE，不跟1.0共用 224.3 27.3±0.8 居中对齐 23.5 ±0.8 工艺： 镭雕 尺寸： 14.0*2.5 mm 颜色： PANTONE Cool Gray 6C 工艺： 镭雕 尺寸： 64.0*19.5 mm 颜色： PANTONE Cool Gray 6C 2.6±0.3 18.0±0.5 2.4GHz 300Mbps Indoor/Outdoor Wireless Bridge FCC ID: 2BH7FEAP100BRG IC: 32876-EAP100BRG Model: EAP100-Bridge Power: 12V 0.5A 802.3af PoE: 36-57V 0.36A Passive PoE: 48V/24V 0.25A, 12V 0.5A Default Access: https://omadaeap.net This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Rainproof TP-Link Systems Inc. 10 Mauchly, Irvine, CA 92618 MADE IN CHINA 201-250346 IEEE802.11b/g/n EAP100-Bridge 1.20 2.5±0.3 注： 定位角处粘贴38*14设备Key标贴，工厂自行打印S/N码、设备Key、设备Key二维码。 字体：TP-Link Aktiv Bold 6pt/4.5pt。字号大小可根据实际打印效果调整 设备Key由“XXXXXXXXXXXXXXXXXXXX”生成，文本按 “XXXX-XXXX-XXXX-XXXX-XXXX”格式打印。 图示仅为示意，具体以机型实际/软件生成工具为准 二维码： 尺寸：11.5*11.5±1mm, 码制QR Code； 扫描显示内容（二维码内容为设备Key）：XXXXXXXXXXXXXXXXXXXX Device Key: XXXX-XXXX-XXXX-XXXX-XXXX S/N: XXXXXXXXXXXXX Scan for Device Key

Report No.: BTL-ISEDR-1-2503G015 Report Version: R00 Page 31 of 114 11. EUT TEST PHOTO AC Power Line Conducted Emissions Test Photos Report No.: BTL-ISEDR-1-2503G015 Report Version: R00 Page 32 of 114 Radiated Emissions Test Photos 9 kHz to 30 MHz Report No.: BTL-ISEDR-1-2503G015 Report Version: R00 Page 33 of 114 Radiated Emissions Test Photos 30 MHz to 1 GHz Report No.: BTL-ISEDR-1-2503G015 Report Version: R00 Page 34 of 114 Radiated Emissions Test Photos Band edge & Harmonic(1 GHz to 18 GHz) Report No.: BTL-ISEDR-1-2503G015 Report Version: R00 Page 35 of 114 Radiated Emissions Test Photos Harmonic(18 GHz to 26.5 GHz) Report No.: BTL-ISEDR-1-2503G015 Report Version: R00 Page 36 of 114 Conducted Test Photos

Product Model： EAP100-Bridge Manufacturer： TP-Link Systems Inc. Date： 2025.1.20 Checked By： Yang Junyu TP-Link Systems Inc. 10 Mauchly, Irvine, CA 92618 Index 1. Antenna Distribution ........................................................................................ 3 2. Electrical Characteristics ................................................................................ 3 3. S Parameter Test Data ..................................................................................... 4 4. Antenna Peak Gain .......................................................................................... 5 5. Antenna Radiation Pattern .............................................................................. 5 Page 3 1. Antenna Distribution EAP100-Bridge 2. Electrical Characteristics Notes: Ant1 and Ant2 are Orthogonal Dual-polarization Ant1 Frequency 2400~2500 Impedance 50Ohm Antenna Type Microstrip Antenna Gain 7.5dBi@2400~2500MHz Radiation pattern Directional P/N Ant2 Frequency 2400~2500 Impedance 50Ohm Antenna Type Microstrip Antenna Gain 7.06 dBi@2400~2500MHz Radiation pattern Directional P/N Page 4 3. S Parameter Test Data Ant1 Ant2 Page 5 4. Antenna Gain 4.1 Peak Gain Frequency 2.45GHz 2400~2500MHz Ant1 MaxGain(dBi) 7.50 Ant2 MaxGain(dBi) 7.06 Ant1 Polarization/Φ (°)/θ(°) Theta/0/0 Ant2 Polarization/Φ (°)/θ(°) Phi/0/0 Max Gain(dBi) 7.50 4.2 Horizontal plane Gain 5. Antenna Radiation Pattern Ant1 Ant2 Page 6

Report No.: BTL-FCCP-1-2503G015 Report Version: R03 Page 105 of 117 Test Mode TX B Mode_Ant. 1 Reference Level-CH01 Reference Level-CH06 Reference Level-CH11 Bandedge-CH01 Bandedge-CH11 Harmonic-CH01 Harmonic-CH06 Harmonic-CH011 Report No.: BTL-FCCP-1-2503G015 Report Version: R03 Page 106 of 117 Test Mode TX B Mode_Ant. 2 Reference Level-CH01 Reference Level-CH06 Reference Level-CH11 Bandedge-CH01 Bandedge-CH11 Harmonic-CH01 Harmonic-CH06 Harmonic-CH011 Report No.: BTL-FCCP-1-2503G015 Report Version: R03 Page 107 of 117 Test Mode TX G Mode_Ant. 1 Reference Level-CH01 Reference Level-CH06 Reference Level-CH11 Bandedge-CH01 Bandedge-CH11 Harmonic-CH01 Harmonic-CH06 Harmonic-CH011 Report No.: BTL-FCCP-1-2503G015 Report Version: R03 Page 108 of 117 Test Mode TX G Mode_Ant. 2 Reference Level-CH01 Reference Level-CH06 Reference Level-CH11 Bandedge-CH01 Bandedge-CH11 Harmonic-CH01 Harmonic-CH06 Harmonic-CH011 Report No.: BTL-FCCP-1-2503G015 Report Version: R03 Page 109 of 117 Test Mode TX N(HT20) Mode_Ant. 1 Reference Level-CH01 Reference Level-CH06 Reference Level-CH11 Bandedge-CH01 Bandedge-CH11 Harmonic-CH01 Harmonic-CH06 Harmonic-CH11 Report No.: BTL-FCCP-1-2503G015 Report Version: R03 Page 110 of 117 Test Mode TX N(HT20) Mode_Ant. 2 Reference Level-CH01 Reference Level-CH06 Reference Level-CH11 Bandedge-CH01 Bandedge-CH11 Harmonic-CH01 Harmonic-CH06 Harmonic-CH11 Report No.: BTL-FCCP-1-2503G015 Report Version: R03 Page 111 of 117 Test Mode TX N(HT40) Mode_Ant. 1 Reference Level-CH03 Reference Level-CH06 Reference Level-CH09 Bandedge-CH03 Bandedge-CH09 Harmonic-CH03 Harmonic-CH06 Harmonic-CH09 Report No.: BTL-FCCP-1-2503G015 Report Version: R03 Page 112 of 117 Test Mode TX N(HT40) Mode_Ant. 2 Reference Level-CH03 Reference Level-CH06 Reference Level-CH09 Bandedge-CH03 Bandedge-CH09 Harmonic-CH03 Harmonic-CH06 Harmonic-CH09 Report No.: BTL-FCCP-1-2503G015 Report Version: R03 Page 113 of 117 APPENDIX H - POWER SPECTRAL DENSITY Report No.: BTL-FCCP-1-2503G015 Report Version: R03 Page 114 of 117 Test Mode TX B Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -4.09 3.49 Complies 06 2437 -1.61 3.49 Complies 11 2462 -3.95 3.49 Complies CH01 CH06 CH11 Test Mode TX B Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -3.38 3.49 Complies 06 2437 -1.68 3.49 Complies 11 2462 -3.42 3.49 Complies CH01 CH06 CH11 Test Mode TX B Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -0.71 3.49 Complies 06 2437 1.36 3.49 Complies 11 2462 -0.66 3.49 Complies Report No.: BTL-FCCP-1-2503G015 Report Version: R03 Page 115 of 117 Test Mode TX G Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -6.49 3.49 Complies 06 2437 -3.41 3.49 Complies 11 2462 -6.76 3.49 Complies CH01 CH06 CH11 Te s t Mode TX G Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -6.62 3.49 Complies 06 2437 -4.63 3.49 Complies 11 2462 -7.59 3.49 Complies CH01 CH06 CH11 Test Mode TX G Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -3.54 3.49 Complies 06 2437 -0.96 3.49 Complies 11 2462 -4.15 3.49 Complies Report No.: BTL-FCCP-1-2503G015 Report Version: R03 Page 116 of 117 Test Mode TX N(HT20) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -6.54 3.49 Complies 06 2437 -2.99 3.49 Complies 11 2462 -7.79 3.49 Complies CH01 CH06 CH11 Test Mode TX N(HT20) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -7.60 3.49 Complies 06 2437 -3.72 3.49 Complies 11 2462 -6.97 3.49 Complies CH01 CH06 CH11 Test Mode TX N(HT20) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -4.03 3.49 Complies 06 2437 -0.33 3.49 Complies 11 2462 -4.35 3.49 Complies Report No.: BTL-FCCP-1-2503G015 Report Version: R03 Page 117 of 117 Test Mode TX N(HT40) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -13.00 3.49 Complies 06 2437 -8.43 3.49 Complies 09 2452 -12.97 3.49 Complies CH03 CH06 CH09 Test Mode TX N(HT40) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -12.24 3.49 Complies 06 2437 -8.48 3.49 Complies 09 2452 -11.95 3.49 Complies CH03 CH06 CH09 Test Mode TX N(HT40) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -9.59 3.49 Complies 06 2437 -5.44 3.49 Complies 09 2452 -9.42 3.49 Complies End of Test Report

Report No.: BTL-FCCP-1-2503G015 Report Version: R03 Page 1 of 117 FCC Radio Test Report FCC ID: 2BH7FEAP100BRG This report concerns: Original Grant Project No. : 2503G015 Equipment : 2.4GHz 300Mbps Indoor/Outdoor Wireless Bridge Brand Name : Omada Test Model : EAP100-Bridge Series Model : N/A Applicant : TP-Link Systems Inc. Address : 10 Mauchly, Irvine, CA 92618 Manufacturer : TP-Link Systems Inc. Address : 10 Mauchly, Irvine, CA 92618 Date of Receipt : Mar. 26, 2025 Date of Test : Mar. 31, 2025 ~ Aug. 13, 2025 Jan. 07, 2026 Issued Date : Jan. 12, 2026 Test Sample : Engineering Sample No.: DG2025081111, DG20250327180 for Radiatedand and AC Power Line Conducted Emissions, for Radiated, DG202503262 for Others. Standard(s) : FCC CFR Title 47, Part 15, Subpart C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc.(Dongguan). Prepared by : Chella Zheng Approved by : Chay Cai No.3, Jinshagang 1st Road, Dalang, Dongguan, Guangdong People’s Republic of China. Te l : + 8 6-769-8318-3000 Web: www.newbtl.com Service mail: [email protected] Report No.: BTL-FCCP-1-2503G015 Report Version: R03 Page 2 of 117 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL assumes no responsibility for the data provided by the customer, any statements, inferences or generalizations drawn by the customer or others from the reports issued by BTL. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025: 2017 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2503G015 Report Version: R03 Page 3 of 117 Table of Contents Page REPORT ISSUED HISTORY 6 1 . APPLICABLE STANDARDS 7 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 2.3 TEST ENVIRONMENT CONDITIONS 9 3 . GENERAL INFORMATION 10 3.1 GENERAL DESCRIPTION OF EUT 10 3.2 DESCRIPTION OF TEST MODES 12 3.3 PARAMETERS OF TEST SOFTWARE 13 3.4 DUTY CYCLE 14 3.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 16 3.6 SUPPORT UNITS 16 3.7 CUSTOMER INFORMATION DESCRIPTION 16 4 . AC POWER LINE CONDUCTED EMISSIONS 17 4.1 LIMIT 17 4.2 TEST PROCEDURE 17 4.3 DEVIATION FROM TEST STANDARD 17 4.4 TEST SETUP 18 4.5 EUT OPERATION CONDITIONS 18 4.6 TEST RESULTS 18 5 . RADIATED EMISSIONS 19 5.1 LIMIT 19 5.2 TEST PROCEDURE 20 5.3 DEVIATION FROM TEST STANDARD 21 5.4 TEST SETUP 21 5.5 EUT OPERATION CONDITIONS 23 5.6 TEST RESULTS - 9 KHZ TO 30 MHZ 23 5.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 23 5.8 TEST RESULTS - ABOVE 1000 MHZ 23 6 . BANDWIDTH 24 6.1 LIMIT 24 Report No.: BTL-FCCP-1-2503G015 Report Version: R03 Page 4 of 117 Table of Contents Page 6.2 TEST PROCEDURE 24 6.3 DEVIATION FROM STANDARD 24 6.4 TEST SETUP 24 6.5 EUT OPERATION CONDITIONS 24 6.6 TEST RESULTS 24 7 . MAXIMUM OUTPUT POWER 25 7.1 LIMIT 25 7.2 TEST PROCEDURE 25 7.3 DEVIATION FROM STANDARD 25 7.4 TEST SETUP 25 7.5 EUT OPERATION CONDITIONS 25 7.6 TEST RESULTS 25 8 . CONDUCTED SPURIOUS EMISSIONS 26 8.1 LIMIT 26 8.2 TEST PROCEDURE 26 8.3 DEVIATION FROM STANDARD 26 8.4 TEST SETUP 27 8.5 EUT OPERATION CONDITIONS 27 8.6 TEST RESULTS 27 9 . POWER SPECTRAL DENSITY 28 9.1 LIMIT 28 9.2 TEST PROCEDURE 28 9.3 DEVIATION FROM STANDARD 28 9.4 TEST SETUP 28 9.5 EUT OPERATION CONDITIONS 28 9.6 TEST RESULTS 28 10 . MEASUREMENT INSTRUMENTS LIST 29 11 . EUT TEST PHOTO 32 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 38 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 41 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 46 APPENDIX D - RADIATED EMISSION- ABOVE 1000 MHZ 49 Report No.: BTL-FCCP-1-2503G015 Report Version: R03 Page 5 of 117 Table of Contents Page APPENDIX E - BANDWIDTH 94 APPENDIX F - MAXIMUM OUTPUT POWER 99 APPENDIX G - CONDUCTED SPURIOUS EMISSIONS 104 APPENDIX H - POWER SPECTRAL DENSITY 113 Report No.: BTL-FCCP-1-2503G015 Report Version: R03 Page 6 of 117 REPORT ISSUED HISTORY Report No. Version Description Issued Date Note BTL-FCCP-1-2503G015 R00 Original Report. Oct. 16, 2025 Invalid BTL-FCCP-1-2503G015 R01 This report updated the test data of Bandedge in APPENDIX G. It is a revision of the report BTL-FCCP-1-2503G015 R00. This is a newly released report, replacing the BTL-FCCP-1-2503G015 R00 report. Jan. 04, 2026 Invalid BTL-FCCP-1-2503G015 R02 This report added the test data in page 92-93. It is a revision of the report BTL-FCCP-1-2503G015 R01. This is a newly released report, replacing the BTL-FCCP-1-250…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-2503G015 Report Version: R01 Page 1 of 3 FCC RF EXPOSURE REPORT FCC ID: 2BH7FEAP100BRG Project No. : 2503G015 Equipment : 2.4GHz 300Mbps Indoor/Outdoor Wireless Bridge Brand Name : Omada Test Model : EAP100-Bridge Series Model : N/A Software Version : V1 Hardware Version : V1 Applicant : TP-Link Systems Inc. Address : 10 Mauchly, Irvine, CA 92618 Manufacturer : TP-Link Systems Inc. Address : 10 Mauchly, Irvine, CA 92618 Date of Receipt : Mar. 26, 2025 Date of Test : Mar. 31, 2025 ~ Aug. 13, 2025 Issued Date : Jan. 04, 2026 Test Sample : Engineering Sample No.: DG202503262 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091 & KDB 447498 D01 v06 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc.(Dongguan). Prepared by : Chella Zheng Approved by : Chay Cai No.3, Jinshagang 1st Road, Dalang, Dongguan, Guangdong People’s Republic of China. Te l : + 8 6-769-8318-3000 Web: www.newbtl.com Service mail: [email protected] Report No.: BTL-FCCP-2-2503G015 Report Version: R01 Page 2 of 3 REPORT ISSUED HISTORY Report No. Version Description Issued Date Note BTL-FCCP-2-2503G015 R00 Original Report. Oct. 16, 2025 Invalid BTL-FCCP-2-2503G015 R01 This report added the turn up for max. output power in page 3. It is a revision of the report BTL-FCCP-2-2503G015 R00. This is a newly released report, replacing the BTL-FCCP-2-2503G015 R00 report. Jan. 04, 2026 Valid Report No.: BTL-FCCP-2-2503G015 Report Version: R01 Page 3 of 3 1. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 2. ANTENNA SPECIFICATION Ant. Manufacturer Model Name Antenna Type Connector Gain (dBi) 1 TP-Link Systems Inc. N/A Microstrip N/A 7.50 2 TP-Link Systems Inc. N/A Microstrip N/A 7.06 Note: 1) This EUT supports CDD, and all antenna gains are not equal, Directional gain = G ANT +Array Gain. For power measurements, Array Gain=0dB (N ANT ≤4), so the Directional gain=7.50. 2) The antenna gain is provided by the manufacturer. 3. CALCULATED RESULT Antenna gain (dBi) Antenna gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 7.50 5.6234 27.67 584.7901 0.6546 1 Complies Note: (1) The calculated distance is 25 cm. (2) Output power including tune up tolerance. End of Test Report
