2BH7FEAP650V3AX3000 Ceiling Mount Wi-Fi 6 Access Point

Or Quick Installation Guide Ceiling Mount Access Point Note: EAP727 is used as an example throughout the guide. Images may differ from your actual product. ©2025 TP-Link 7100002183 REV1.0.0 Scan for EAP Start Guide Installation Option 1 Ceiling Mounting (on a Tile) 1 2 3 4 5 Package Contents 1× Φ 25 mm (63/64 in) 4× Φ 4 mm (5/32 in) 1 2 A Option 2 Ceiling Mounting (on a T-bar) 1 2 3 4 5 6 A 1-pack product contains the following contents, while a 5-pack provides five sets of accessories and one installation guide. Note: Accessories may vary by region and model. 2 1 60 mm 83 mm Option 3 Wall Mounting Option 4 Junction Box Mounting Option 1 1×4×4×4× Option 2 1× 2×2×4× 2 1 1×1× Quick Installation Guide 1× 4×4×4× 4×4×2× 2×2× OR 2×2×4× 1× (Only for some models) 1× Note: The AP will be locked after installed. To uninstall, see the Appendix on the back page. 2 1 EAP650/EAP653 For details on the warranty period, policy, and procedures, visit https://support.omadanetworks.com/warranty-services/. Warranty Support For technical support, user guides, and other information, please visit https://support.omadanetworks.com/, or simply scan the QR code. More Resources Main Sitehttps://www.omadanetworks.com/ https://support.omadanetworks.com/video/ https://support.omadanetworks.com/document/ https://support.omadanetworks.com/product/ https://support.omadanetworks.com/contact-support/ Video Center Product Support Documents Technical Support 1 2 3 4 5 4× Φ 7.6 mm (19/64 in) 2 1 A 1 2 Option 3 1× 4×4× Power On Option 1: Via PoE Switch Option 2: Via Power Adapter Power Port Power Adapter PoE SwitchETH PoE Port More Configurations For more configurations, refer to the User Guides of the Omada Controller and Omada Access Points at: https://support.omadanetworks.com/document/ Omada App With the TP-Link Omada app, you can access and manage your Omada devices at a local site or remotely with a tap of your phone. Scan for Omada App Switch Gateway/Router On-Premises Controller Omada Central (Cloud-Based) Or EAPEAPEAP Configure and manage EAPs (and other Omada devices) centrally with an Omada Controller. Option 2: Controller Mode Scan for Controller Start Guide Configuration Switch Gateway/Router EAPEAPEAP Configure and manage each EAP on its standalone page. Option 1: Standalone Mode Scan for Standalone Start Guide 1 2 3 Choose the accessory screws that fit your junction box. Compatible wall junctions are as follows: For simplicity, an 86 mm wall junction box is used as an example. Option 4 1× 2×2×2× OROR 1 2 3 Uninstalling the AP Appendix 1× Safety Information • Keep the device away from water, fire, humidity or hot environments. • Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us. • Do not use the device where wireless devices are not allowed. • (For IN version) The EAP can be powered only by a power adapter or a PSE device (such as a PoE switch) which complies with Limited Power Source (LPS) of IEC 60950-1. (For other versions) The EAP can be powered only by a power adapter or a PSE device (such as a PoE switch) which complies with Power Source Class 2 (PS2) or Limited Power Source (LPS) defined in the standard of IEC 62368-1. • Use only power supplies listed in the user instructions. Refer to the User Manual on the product support page. For models with adapters: • Do not use damaged charger or USB cable to charge the device. • Do not use any other chargers than those recommended. • Adapter shall be installed near the equipment and shall be easily accessible. TP-Link hereby declares that the Access Point is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011 /65/EU, and (EU) 2015/863. The original EU Declaration of Conformity may be found at https://www.tp-link.com/en/support/ce/ TP-Link hereby declares that the Access Point is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017. The original UK Declaration of Conformity may be found at https://www.tp-link.com/support/ukca/ Cable through wallCable along wall Or 1 2

Regulatory Compliance EAP653 © 2025 TP-Link 1900001964 REV3.0.0 FCC Compliance Information Statement Product Name: AX3000 Ceiling Mount Wi-Fi 6 Access Point Model Number: EAP653 Responsible party: TP-Link Systems Inc. Address: 10 Mauchly, Irvine, CA 92618 Website: https://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: [email protected] This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be colocated or operating in conjunction with any other antenna or transmitter.” We, TP-Link Systems Inc., has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated. Issue Date: 2025-12-26 CE Mark Warning OPERATING FREQUENCY (the maximum transmitted power) 2402 MHz - 2480 MHz (10dBm) 2412 MHz - 2472 MHz (20dBm) 5150 MHz - 5250 MHz (23dBm) 5250 MHz - 5350 MHz (23dBm) 5470 MHz - 5725 MHz (30dBm) EU Declaration of Conformity TP-Link hereby declares that the access point is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863. The original EU Declaration of Conformity may be found at https://www.tp-link.com/en/support/ce/. RF Exposure Information This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way of health protection. The device complies with RF specifications when the device used at 20cm from your body. National Restrictions Frequency band: 5150 - 5250 MHz: Indoor use: Inside buildings only. Installations and use inside road vehicles and train carriages are not permitted. Limited outdoor use: If used outdoors, equipment shall not be attached to a fixed installation or to the external body of road vehicles, a fixed infrastructure or a fixed outdoor antenna. Use by unmanned aircraft systems (UAS) is limited to within the 5170 - 5250 MHz band. Frequency band: 5250 - 5350 MHz: Indoor use: Inside buildings only. Installations and use in road vehicles, trains and aircraft are not permitted. Outdoor use is not permitted. Frequency band: 5470 - 5725 MHz: Installations and use in road vehicles, trains and aircraft and use for unmanned aircraft systems (UAS) are not permitted. UKCA Mark UK Declaration of Conformity TP-Link hereby declares that the access point is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017. The original UK Declaration of Conformity may be found at https://www.tp-link.com/support/ukca National Restrictions Attention: This device may only be used indoors in Great Britain. UK Canadian Compliance Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) L’appareil ne doit pas produire de brouillage; 2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Caution 1) The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; 5150 MHz to 5350 MHz is restricted to indoor…

Text truncated - open the document above for the full version.

Regulatory Compliance EAP650 © 2025 TP-Link 1900001710 REV3.0.0 FCC Compliance Information Statement Product Name: AX3000 Ceiling Mount Wi-Fi 6 Access Point Model Number: EAP650 Component NameModel I.T.E. Power SupplyT12 015 0 -2B1 Responsible party: TP-Link Systems Inc. Address: 10 Mauchly, Irvine, CA 92618 Website: https://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: [email protected] This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be colocated or operating in conjunction with any other antenna or transmitter.” Product Name: I.T.E. Power Supply Model Number: T120150-2B1 Responsible party: TP-Link Systems Inc. Address: 10 Mauchly, Irvine, CA 92618 Website: https://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: [email protected] This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. We, TP-Link Systems Inc., has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated. Issue Date: 2025-12-26 CE Mark Warning OPERATING FREQUENCY (the maximum transmitted power) 2402 MHz - 2480 MHz (10dBm) 2412 MHz - 2472 MHz (20dBm) 5150 MHz - 5250 MHz (23dBm) 5250 MHz - 5350 MHz (23dBm) 5470 MHz - 5725 MHz (30dBm) EU Declaration of Conformity TP-Link hereby declares that the access point is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863. The original EU Declaration of Conformity may be found at https://www.tp-link.com/en/support/ce/. RF Exposure Information This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way of health protection. The device complies with RF specifications when the device used at 20cm from your body. National Restrictions Frequency band: 5150 - 5250 MHz: Indoor use: Inside buildings only. Installations and use inside road vehicles and train carriages are not permitted. Limited outdoor use: If used outdoors, equipment shall not be attached to a fixed installation or to the external body of road vehicles, a fixed infrastructure or a fixed outdoor antenna. Use by unmanned aircraft systems (UAS) is limited to within the 5170 - 5250 MHz band. Frequency …

Text truncated - open the document above for the full version.

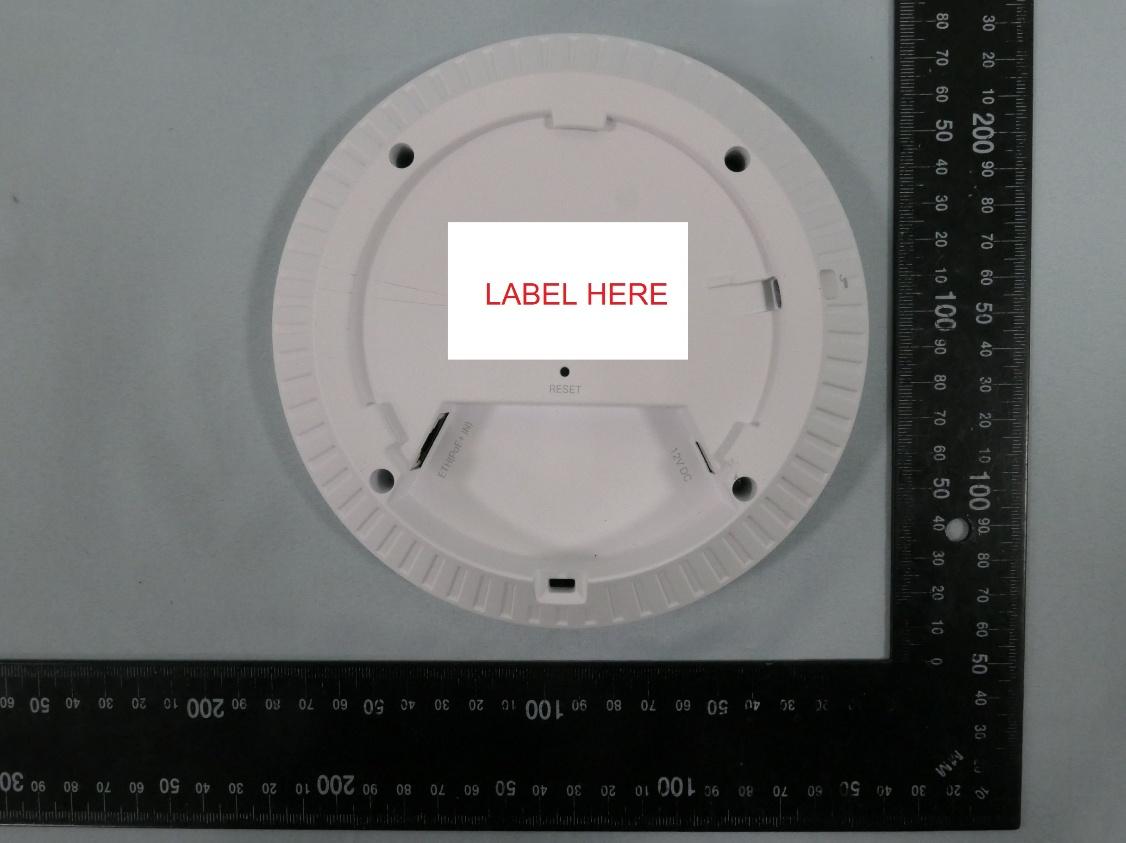

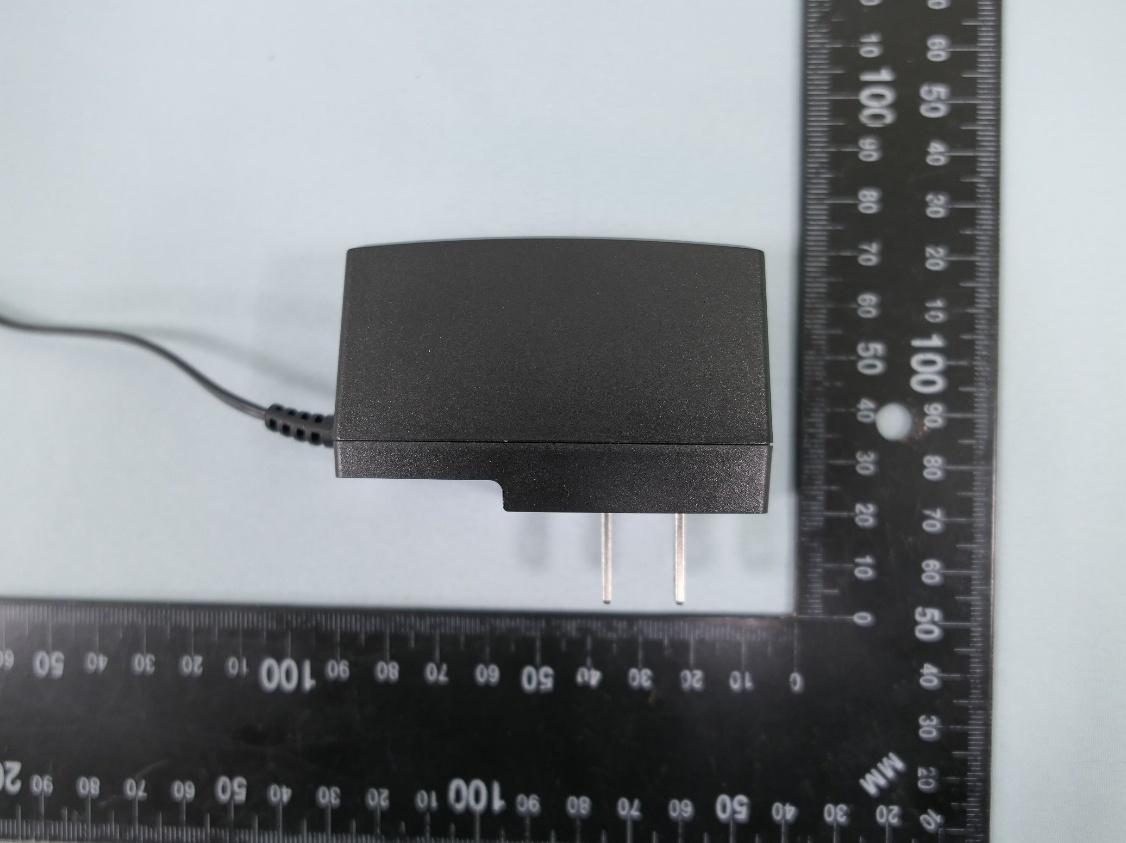

Report No.: 2512TW0101-UI 1 of 5 Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2512TW0101-UI 2 of 5 (3) EUT Photo (4) EUT Photo Report No.: 2512TW0101-UI 3 of 5 (5) EUT Photo (6) EUT Photo Report No.: 2512TW0101-UI 4 of 5 (7) EUT Photo (8) EUT Photo Report No.: 2512TW0101-UI 5 of 5 (9) EUT Photo

Report No.: 2512TW0101-UT 1 of 4 RF Test Photograph Description: Front View of Conducted Emission Test Setup Description: Back View of Conducted Emission Test Setup Report No.: 2512TW0101-UT 2 of 4 Description: Radiated Emission Test Setup for below 1GHz Description: Radiated Emission Test Setup for above 1GHz Report No.: 2512TW0101-UT 3 of 4 Description: Radiated Emission Test Setup for 18GHz~40GHz Description: Radiated Emission Test Setup for 9kHz~30MHz Report No.: 2512TW0101-UT 4 of 4 Description: Conducted Measurement Test Setup Description: DFS Test Setup

Copyright © 2024 TP-Link Systems Inc. All rights reserved FCC Composite Gain Test Report TP-Link Systems Inc. 10 Mauchly, Irvine, CA 926187 Copyright © 2024 TP-Link Systems Inc. All rights reserved Copyright © 2024 By TP-Link Systems Inc. All rights reserved. The drawings, specifications and the data contained in this document are exclusively the property of TP-Link Systems Inc. The information is intended for internal use only and is subject to change without any notice. With no written permission from TP-Link Systems Inc. this document, in parts or as a whole, shall not be reproduced, copied, or used in any form or by any means to make any derivatives such as translation, transformation, or adaptation, for any purpose whatever. is a registered trademark of TP-Link Systems Inc. Other brands and product names mentioned herein are trademarks or registered trademarks of their respective holders. Warning This document is intended for internal use only. A Non-Disclosure Agreement (NDA) approved by Chief Technology Officer (CTO) is required to release this document under any circumstances. Basic Information EUT Description： AX3000 Ceiling Mount Wi-Fi 6 Access Point Brand Name： tp-link Model Name： EAP650 Tested By： Cui Jiafu Date： 2025/10/23 Copyright © 2024 TP-Link Systems Inc. All rights reserved CONTENTS 1 Operation Mode and Antenna Information ........................................................................................ 4 1.1 EUT Operation Mode ...................................................................................................................... 4 1.2 Antenna Information ....................................................................................................................... 4 1.3 Test Frequency ................................................................................................................................ 4 2 Test System ............................................................................................................................................. 5 2.1 Test Equipment ................................................................................................................................ 5 2.2 Test Software ................................................................................................................................... 5 3 Test Summary ........................................................................................................................................ 6 3.1 Measurement Environment ............................................................................................................. 6 3.2 Measurement Quantity .................................................................................................................... 8 3.3 Test Method ..................................................................................................................................... 8 3.4 Directional Gain Calculations ......................................................................................................... 9 3.5 Test Procedure ............................................................................................................................... 10 4 Measured Value and Maximum Gain Positions ................................................................................ 11 4.1 Antenna Number ........................................................................................................................... 11 4.2 2G .................................................................................................................................................. 11 4.2.1 DG_1SS Max Value Position ................................................................................................ 11 4.2.2 DG_1SS Max Value Position Calculation ............................................................................. 11 4.3 5G .................................................................................................................................................. 12 4.3.1 DG_1SS Max Value Position ................................................................................................ 12 4.3.2 DG_1SS Max Value Position Calculation ............................................................................. 12 5 Test and Calculate Result ................................................................................................................... 12 5.1 Peak Antenna Gain（Single） ...................................................................................................... 12 5.2 Directional Gain Calculate Result ................................................................................................. 13 6 Test Pattern .......................................................................................................................................... 14 6.1 Antenna Pattern ............................................................................................................................. 14 7 Test Pattern .......................................................................................................................................... 15 Copyright © 2024 TP-Link Systems Inc. All rights reserved 1 Operation Mode and Antenna Information 1.1 EUT Operation Mode The EAP650 is the Two-band Desktop Wi-Fi 6 Access Point of 3 internal antennas 1.2 Antenna Information The Antennas are internal , the Locations of Antennas are shown below: Figure 1-1 Locations of Antennas The Antenna Information was shown below: Table 1-1 Antenna Information 1.3 Test Frequency Test frequency bands are shown in Table 1-2. Antenna Position Antenna Type Connector Mode of operation ANT1 Pifa Microstrip line 2.4G&5G ANT2 Pifa Microstrip line 2.4G&5G ANT3 Pifa Microstrip line ble Copyright © 2024 TP-Link Systems Inc. All rights reserved Table 1-2 Test Frequency Frequency Band(MHz) 2400-2500 5150-5250 5250-5350 5470-5725 5725-5925 2 T…

Text truncated - open the document above for the full version.

Product Model： EAP650 Manufacturer： TP-Link Systems Inc. Test Date： 2026.04.15 Tested By： Cui Jiafu TP-Link Systems Inc. 10 Mauchly, Irvine, CA 92618 Index 1.Antenna Distribution............................................................................................3 2.Electrical Characteristics.....................................................................................3 3.Gain and Radiation Pattern.................................................................................5 3.1Measurement Procedure...........................................................................................5 3.2Test Setup.................................................................................................................6 3.3S Parameter Test Data..............................................................................................7 3.4Antenna Peak Gain....................................................................................................8 3.5Antenna Radiation Pattern.........................................................................................9 1. Antenna Distribution EAP650 2.Electrical Characteristics Ant1（wifi） Frequency2400~2500 &5150~5895MHz Impedance50Ohm Antenna TypePifa Antenna Gain4.65dBi@2400~2500MHz 6.01dBi@5150~5250MHz 5.74dBi@5250~5350MHz 6.22dBi@5470~5725MHz 6.41dBi@5725~5895MHz Radiation patternOmni-Directional P/NEAP650-ant1 Ant2（wifi） Frequency2400~2500 &5150~5895MHz Impedance50Ohm Antenna TypePifa Antenna Gain3.80dBi@2400~2500MHz 6.39dBi@5150~5250MHz 6.72dBi@5250~5350MHz 6.67dBi@5470~5725MHz 6.70dBi@5725~5895MHz Radiation patternOmni-Directional P/N EAP650-ant2 Ant3（ble） Frequency2400~2500MHz Impedance50Ohm Page 3 Antenna TypePifa Antenna Gain3.00dBi@2400~2500MHz Radiation patternOmni-Directional P/N EAP650-ant3 Page 4 3.Gain and Radiation Pattern 3.1Measurement Procedure This measurement experiment adopted an antenna near-field measurement system, and the diagram of the measurement system was shown in Figure 3-1. The excitation signal was generated by the Keysight E5071C (300kHz-20GHz). Under the control of the central computer, the probe rotated in the θ direction, and the EUT rotated in the φ direction with the turntable. The probe sampling frame received and collected signals in the near-field range of the EUT. The software system which was controlled by the central computer completed the processing, output and display of the test data. Figure 3-1 The test site was a full anechoic chamber with a size of 3.0m×3.1m×2.97m, which was built by GTS Rayzone2800. All six surfaces of the anechoic chamber were pasted with absorbing materials. And the chamber was calibrated by the authoritative third-party lab every year. The antenna anechoic chamber measurement system adopted a 13-probe multi-probe system. The probe antennas were evenly distributed on the spherical surface surrounding the EUT, and theirs operating frequency was 600MHz~8.5GHz. During the measurement, the probe antennas were rotated in the θ direction under the control of the probe holder to sample the near-field data at the θ angle. At the same time, the EUT rotated with the turntable in the φ direction to sample the near field data at the φ angle. The sampling accuracy was 15°. The system diagram was shown in Figure 3-2. From the sampling results, the EUT's near-field test data of θ component, φ component and total component could be obtained. Page 5 Figure 3-2 Before the measurement, calibrated the vector network analyzer, and then connected the input end of each antenna to the output end of the vector network analyzer, and evenly the antennas to be measured. Test Equipment listed below: EquipmentsModelManufacturerS/N Cali. Interval Cali. Due Date ChamberRayzone2800 GTS(General Test System) MY5347043 5 12months2026/04/15 Vector Network Analyzer E5071CKeysightMY4631523824months2026/05/27 GTS MaxSign100 Software V2.1 GTS(General Test System) /// 3.2Test Setup The test setup was shown in Figure 3-3, 3-4: Figure 3-3 Page 6 Figure 3-4 3.3S Parameter Test Data Ant1 Ant2 Page 7 Ant3 3.4Antenna Peak Gain *按照发证机构的要求，提供每个频段对应最大增益对应的θ角 and φ 角的角度。 *对应的具体频点作为一个展示的频点，并非填写该频点对应的Gain值。 Frequency 2.45GHz 2400~2500MHz 5.2GHz 5150~5250MHz 5.3GHz 5250~5350MHz 5.6GHz 5470~5725MHz Ant1 MaxGain(dBi)4.656.015.746.22 Ant2 MaxGain(dBi)3.806.396.726.67 Page 8 Ant3 MaxGain(dBi)3.10\\\ Ant1 Polarization/(Φ°)/(θ°) Theta/30/45Theta/30/45Theta/30/30Theta/45/60 Ant2 Polarization/(Φ°)/(θ°) Theta/30/120Theta/60/285Theta/60/285Theta/45/195 Ant3 Polarization/(Φ°)/(θ°) Theta/30/45\\\ Max Gain(dBi)4.656.396.726.67 Frequency 5.8GHz 5725~5895MHz Ant1 MaxGain(dBi)6.41 Ant2 MaxGain(dBi)6.70 Ant3 MaxGain(dBi)\ Ant1 Polarization/(Φ°)/(θ°) Theta/45/60 Ant2 Polarization/(Φ°)/(θ°) Theta/45/195 Ant3 Polarization/(Φ°)/(θ°) \ Max Gain(dBi)6.70 3.5Antenna Radiation Pattern Ant1（wifi） Ant2（wifi） Page 9 Ant3（ble） Page 10

Report No.: 2512TW0101-U3 Page Number: 62 of 181 EUT AX3000 Ceiling Mount Wi-Fi 6 Access Point Date of Test 2025-12-09 Factor DRH18-E Temp. / Humidity 20C /67% Polarity Horizontal Site / Test Engineer AC2 / Stanley Test Mode 802.11b_TX_CH 11_ANT 0+1 Test Voltage AC 120V/60Hz No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 * 4924.000 46.26 1.62 47.87 -26.13 74.00 300 228 Peak 2 7386.000 38.69 8.23 46.92 -27.08 74.00 300 76 Peak 3 9848.000 39.36 7.18 46.54 -27.46 74.00 300 339 Peak Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB/m) + Cable Loss (dB) – Preamplifier(dB). 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2512TW0101-U3 Page Number: 63 of 181 EUT AX3000 Ceiling Mount Wi-Fi 6 Access Point Date of Test 2025-12-09 Factor DRH18-E Temp. / Humidity 20C /67% Polarity Vertical Site / Test Engineer AC2 / Stanley Test Mode 802.11b_TX_CH 11_ANT 0+1 Test Voltage AC 120V/60Hz No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 4924.000 42.27 1.62 43.89 -30.11 74.00 300 205 Peak 2 * 7386.000 39.27 8.23 47.49 -26.51 74.00 300 128 Peak 3 9848.000 39.72 7.18 46.90 -27.10 74.00 300 187 Peak Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB/m) + Cable Loss (dB) – Preamplifier(dB). 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2512TW0101-U3 Page Number: 64 of 181 EUT AX3000 Ceiling Mount Wi-Fi 6 Access Point Date of Test 2025-12-09 Factor DRH18-E Temp. / Humidity 20C /67% Polarity Horizontal Site / Test Engineer AC2 / Stanley Test Mode 802.11g_TX_CH 1_ANT 0+1 Test Voltage AC 120V/60Hz No Frequency (MHz) Reading (dBuV) C.F…
