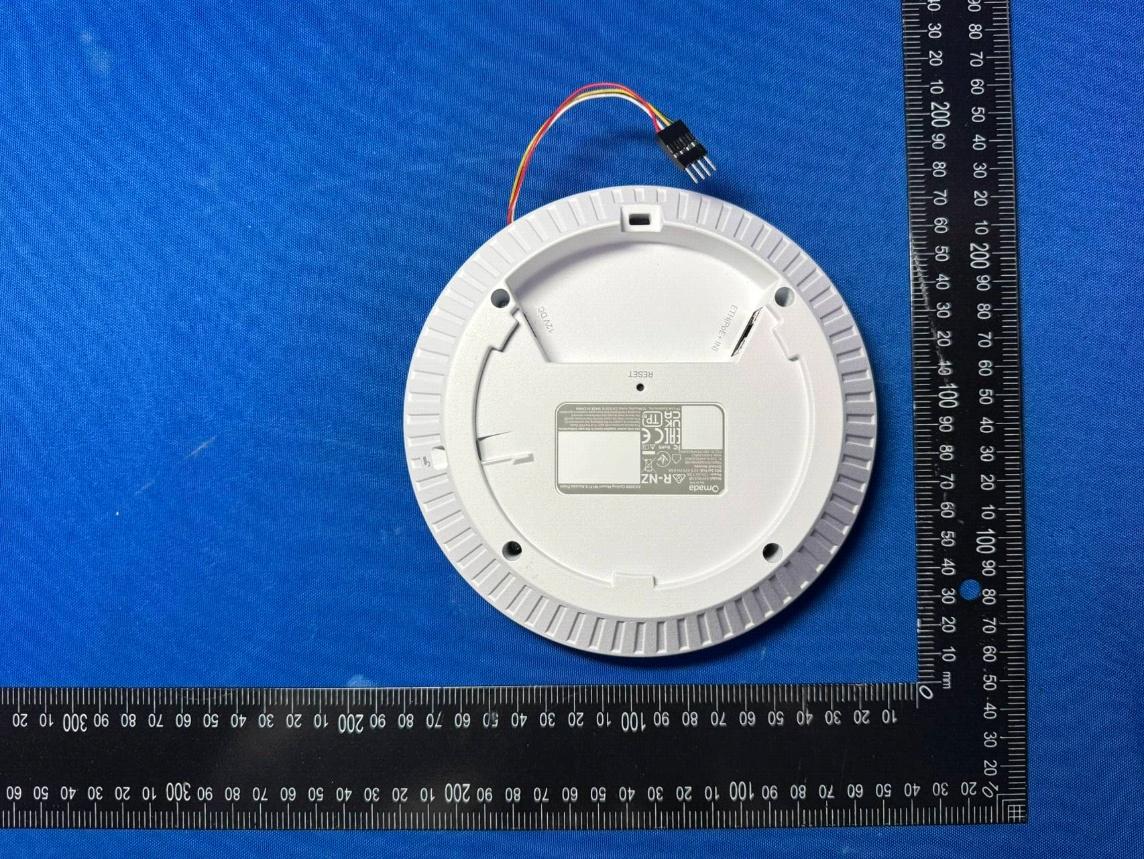

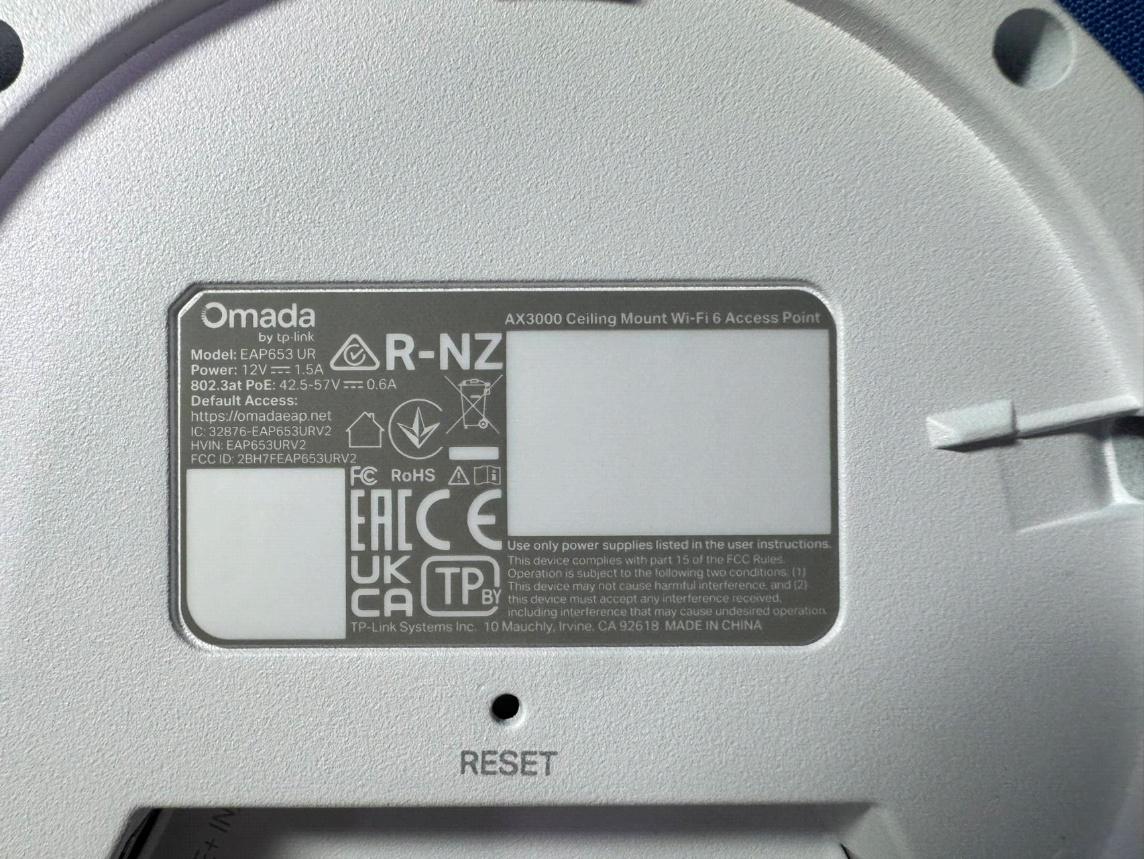

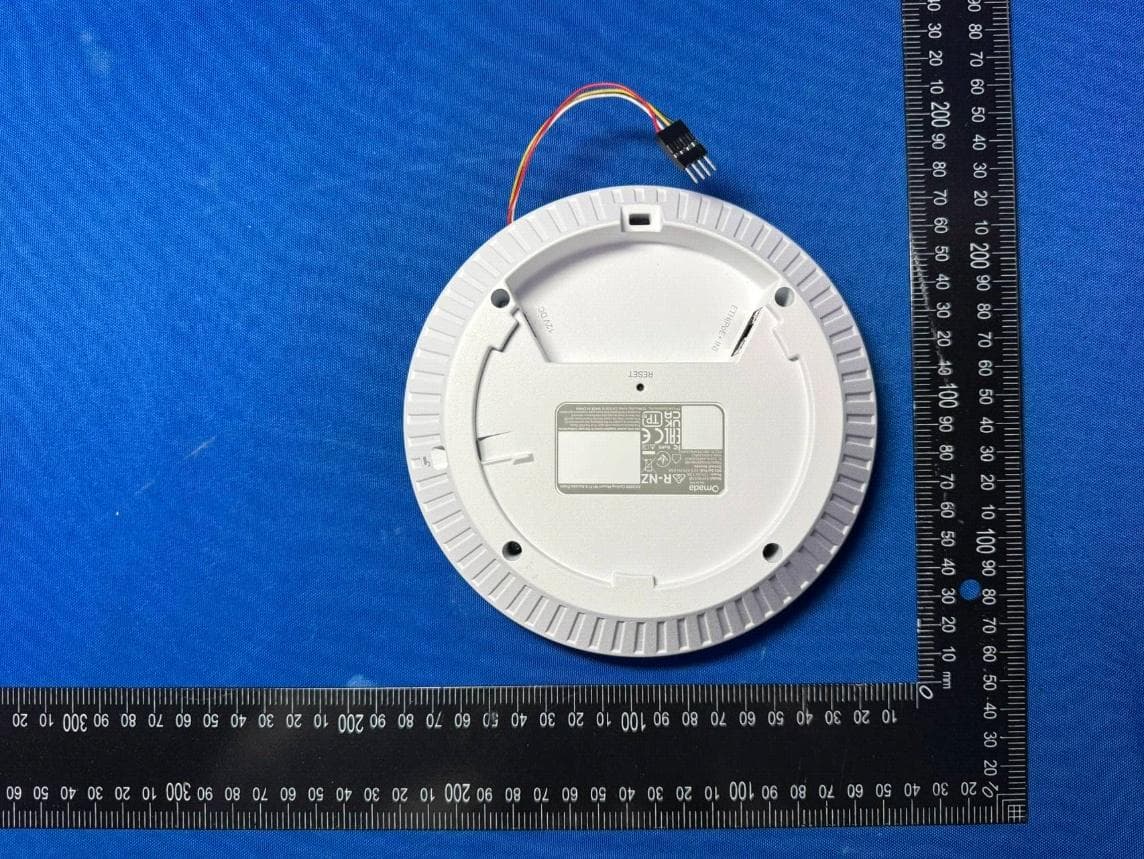

Regulatory Compliance EAP653 UR © 2026 TP-Link 1900002278 REV2.0.0 FCC Compliance Information Statement Product Name: AX3000 Ceiling Mount Wi-Fi 6 Access Point Model Number: EAP653 UR Responsible party: TP-Link Systems Inc. Address: 10 Mauchly, Irvine, CA 92618 Website: https://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: [email protected] This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be colocated or operating in conjunction with any other antenna or transmitter.” We, TP-Link Systems Inc., has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated. Issue Date: 2026-02-10 CE Mark Warning OPERATING FREQUENCY (the maximum transmitted power) 2402 MHz - 2480 MHz (10dBm) 2412 MHz - 2472 MHz (20dBm) 5150 MHz - 5250 MHz (23dBm) 5250 MHz - 5350 MHz (23dBm) 5470 MHz - 5725 MHz (30dBm) EU Declaration of Conformity TP-Link hereby declares that the access point is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863. The original EU Declaration of Conformity may be found at https://www.tp-link.com/en/support/ce/. RF Exposure Information This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way of health protection. The device complies with RF specifications when the device used at 20cm from your body. National Restrictions Frequency band: 5150 - 5250 MHz: Indoor use: Inside buildings only. Installations and use inside road vehicles and train carriages are not permitted. Limited outdoor use: If used outdoors, equipment shall not be attached to a fixed installation or to the external body of road vehicles, a fixed infrastructure or a fixed outdoor antenna. Use by unmanned aircraft systems (UAS) is limited to within the 5170 - 5250 MHz band. Frequency band: 5250 - 5350 MHz: Indoor use: Inside buildings only. Installations and use in road vehicles, trains and aircraft are not permitted. Outdoor use is not permitted. Frequency band: 5470 - 5725 MHz: Installations and use in road vehicles, trains and aircraft and use for unmanned aircraft systems (UAS) are not permitted. UKCA Mark UK Declaration of Conformity TP-Link hereby declares that the access point is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017. The original UK Declaration of Conformity may be found at https://www.tp-link.com/support/ukca National Restrictions Attention: This device may only be used indoors in Great Britain. UK Canadian Compliance Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) L’appareil ne doit pas produire de brouillage; 2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Caution 1) The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; 5150 MHz to 5350 MHz is restricted to …

Text truncated - open the document above for the full version.

Or Quick Installation Guide Ceiling Mount Access Point Note: EAP727 is used as an example throughout the guide. Images may differ from your actual product. ©2025 TP-Link 7100002183 REV1.0.0 Scan for EAP Start Guide Installation Option 1 Ceiling Mounting (on a Tile) 1 2 3 4 5 Package Contents 1× Φ 25 mm (63/64 in) 4× Φ 4 mm (5/32 in) 1 2 A Option 2 Ceiling Mounting (on a T-bar) 1 2 3 4 5 6 A 1-pack product contains the following contents, while a 5-pack provides five sets of accessories and one installation guide. Note: Accessories may vary by region and model. 2 1 60 mm 83 mm Option 3 Wall Mounting Option 4 Junction Box Mounting Option 1 1×4×4×4× Option 2 1× 2×2×4× 2 1 1×1× Quick Installation Guide 1× 4×4×4× 4×4×2×2×2× OR 2×2×4× 1× (Only for some models) 1× Note: The AP will be locked after installed. To uninstall, see the Appendix on the back page. 2 1 For details on the warranty period, policy, and procedures, visit https://support.omadanetworks.com/warranty-services/. Warranty Support For technical support, user guides, and other information, please visit https://support.omadanetworks.com/, or simply scan the QR code. More Resources Main Sitehttps://www.omadanetworks.com/ https://support.omadanetworks.com/video/ https://support.omadanetworks.com/document/ https://support.omadanetworks.com/product/ https://support.omadanetworks.com/contact-support/ Video Center Product Support Documents Technical Support 1 2 3 4 5 4× Φ 7.6 mm (19/64 in) 2 1 A 1 2 Option 3 1× 4×4× Power On Option 1: Via PoE Switch Option 2: Via Power Adapter Power Port Power Adapter PoE SwitchETH PoE Port More Configurations For more configurations, refer to the User Guides of the Omada Controller and Omada Access Points at: https://support.omadanetworks.com/document/ Omada App With the TP-Link Omada app, you can access and manage your Omada devices at a local site or remotely with a tap of your phone. Scan for Omada App Switch Gateway/Router On-Premises Controller Omada Central (Cloud-Based) Or EAPEAPEAP Configure and manage EAPs (and other Omada devices) centrally with an Omada Controller. Option 2: Controller Mode Scan for Controller Start Guide Configuration Switch Gateway/Router EAPEAPEAP Configure and manage each EAP on its standalone page. Option 1: Standalone Mode Scan for Standalone Start Guide 1 2 3 Choose the accessory screws that fit your junction box. Compatible wall junctions are as follows: For simplicity, an 86 mm wall junction box is used as an example. Option 4 1× 2×2×2× OROR 1 2 3 Uninstalling the AP Appendix 1× Safety Information • Keep the device away from water, fire, humidity or hot environments. • Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us. • Do not use the device where wireless devices are not allowed. • (For IN version) The EAP can be powered only by a power adapter or a PSE device (such as a PoE switch) which complies with Limited Power Source (LPS) of IEC 60950-1. (For other versions) The EAP can be powered only by a power adapter or a PSE device (such as a PoE switch) which complies with Power Source Class 2 (PS2) or Limited Power Source (LPS) defined in the standard of IEC 62368-1. • Use only power supplies listed in the user instructions. Refer to the User Manual on the product support page. For models with adapters: • Do not use damaged charger or USB cable to charge the device. • Do not use any other chargers than those recommended. • Adapter shall be installed near the equipment and shall be easily accessible. TP-Link hereby declares that the Access Point is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011 /65/EU, and (EU) 2015/863. The original EU Declaration of Conformity may be found at https://www.tp-link.com/en/support/ce/ TP-Link hereby declares that the Access Point is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017. The original UK Declaration of Conformity may be found at https://www.tp-link.com/support/ukca/ Cable through wallCable along wall Or 1 2

Copyright © 2024 TP-Link Systems Inc. All rights reserved FCC Composite Gain Test Report TP-Link Systems Inc. 10 Mauchly, Irvine, CA 926187 Copyright © 2024 TP-Link Systems Inc. All rights reserved Copyright © 2024 By TP-Link Systems Inc. All rights reserved. The drawings, specifications and the data contained in this document are exclusively the property of TP-Link Systems Inc. The information is intended for internal use only and is subject to change without any notice. With no written permission from TP-Link Systems Inc. this document, in parts or as a whole, shall not be reproduced, copied, or used in any form or by any means to make any derivatives such as translation, transformation, or adaptation, for any purpose whatever. is a registered trademark of TP-Link Systems Inc. Other brands and product names mentioned herein are trademarks or registered trademarks of their respective holders. Warning This document is intended for internal use only. A Non-Disclosure Agreement (NDA) approved by Chief Technology Officer (CTO) is required to release this document under any circumstances. Basic Information EUT Description： AX3000 Ceiling Mount Wi-Fi 6 Access Point Brand Name： tp-link Model Name： EAP653UR Tested By： Cui Jiafu Date： 2025/11/24 Copyright © 2024 TP-Link Systems Inc. All rights reserved CONTENTS 1 Operation Mode and Antenna Information ........................................................................................ 4 1.1 EUT Operation Mode ...................................................................................................................... 4 1.2 Antenna Information ....................................................................................................................... 4 1.3 Test Frequency ................................................................................................................................ 4 2 Test System ............................................................................................................................................. 5 2.1 Test Equipment ................................................................................................................................ 5 2.2 Test Software ................................................................................................................................... 5 3 Test Summary ........................................................................................................................................ 6 3.1 Measurement Environment ............................................................................................................. 6 3.2 Measurement Quantity .................................................................................................................... 8 3.3 Test Method ..................................................................................................................................... 8 3.4 Directional Gain Calculations ......................................................................................................... 9 3.5 Test Procedure ............................................................................................................................... 10 4 Measured Value and Maximum Gain Positions ................................................................................ 11 4.1 Antenna Number ........................................................................................................................... 11 4.2 2G .................................................................................................................................................. 11 4.2.1 DG_1SS Max Value Position ................................................................................................ 11 4.2.2 DG_1SS Max Value Position Calculation ............................................................................. 11 4.3 5G .................................................................................................................................................. 12 4.3.1 DG_1SS Max Value Position ................................................................................................ 12 4.3.2 DG_1SS Max Value Position Calculation ............................................................................. 12 5 Test and Calculate Result ................................................................................................................... 12 5.1 Peak Antenna Gain（Single） ...................................................................................................... 12 5.2 Directional Gain Calculate Result ................................................................................................. 13 6 Test Pattern .......................................................................................................................................... 14 6.1 Antenna Pattern ............................................................................................................................. 14 7 Test Pattern .......................................................................................................................................... 15 Copyright © 2024 TP-Link Systems Inc. All rights reserved 1 Operation Mode and Antenna Information 1.1 EUT Operation Mode The EAP653UR is the Two-band Desktop Wi-Fi 6 Access Point of 3 internal antennas 1.2 Antenna Information The Antennas are internal , the Locations of Antennas are shown below: Figure 1-1 Locations of Antennas The Antenna Information was shown below: Table 1-1 Antenna Information 1.3 Test Frequency Test frequency bands are shown in Table 1-2. Antenna Position Antenna Type Connector Mode of operation Dual1 Pifa Microstrip line 2.4G&5G Dual2 Pifa Microstrip line 2.4G&5G 5G&ble Pifa Microstrip line Ble&5G Copyright © 2024 TP-Link Systems Inc. All rights reserved Table 1-2 Test Frequency Frequency Band(MHz) 2400-2500 5150-5250 5250-5350 5470-5725 57…

Text truncated - open the document above for the full version.

Report No.: R25S1037125-UT 1 of 3 RF Test Setup Photograph Description: Radiated Spurious Emissions Test Setup for 9 kHz ~ 30 MHz Description: Radiated Spurious Emissions Test Setup for 30 MHz ~ 1000 MHz Report No.: R25S1037125-UT 2 of 3 Description: Radiated Spurious Emissions Test Setup for 1 GHz ~ 18 GHz Description: Radiated Spurious Emissions Test Setup for above 18 GHz Report No.: R25S1037125-UT 3 of 3 Description: Conducted Test Setup Description: Dynamic Frequency Selection Test Setup

Report No.: R25S1037125-U204 139 of 190 Type 5 Radar Waveform_18 Type 5 Radar Waveform_19 Type 5 Radar Waveform_20 Report No.: R25S1037125-U204 140 of 190 Type 5 Radar Waveform_21 Type 5 Radar Waveform_22 Type 5 Radar Waveform_23 Report No.: R25S1037125-U204 141 of 190 Type 5 Radar Waveform_24 Type 5 Radar Waveform_25 Type 5 Radar Waveform_26 Report No.: R25S1037125-U204 142 of 190 Type 5 Radar Waveform_27 Type 5 Radar Waveform_28 Type 5 Radar Waveform_29 Report No.: R25S1037125-U204 143 of 190 Radar Type 6 - Radar Statistical Performance Trail # 1=Detection 0=No Detection Trail # 1=Detection 0=No Detection 0 1 15 1 1 1 16 1 2 1 17 1 3 1 18 1 4 1 19 1 5 1 20 1 6 1 21 1 7 1 22 1 8 1 23 1 9 1 24 1 10 1 25 1 11 1 26 1 12 1 27 1 13 1 28 1 14 1 29 1 Detection Percentage (%) 100% Report No.: R25S1037125-U204 144 of 190 Type 6 Radar Waveform_0 Type 6 Radar Waveform_1 Report No.: R25S1037125-U204 145 of 190 Type 6 Radar Waveform_2 Type 6 Radar Waveform_3 Report No.: R25S1037125-U204 146 of 190 Type 6 Radar Waveform_4 Type 6 Radar Waveform_5 Report No.: R25S1037125-U204 147 of 190 Type 6 Radar Waveform_6 Type 6 Radar Waveform_7 Report No.: R25S1037125-U204 148 of 190 Type 6 Radar Waveform_8 Type 6 Radar Waveform_9 Report No.: R25S1037125-U204 149 of 190 Type 6 Radar Waveform_10 Type 6 Radar Waveform_11 Report No.: R25S1037125-U204 150 of 190 Type 6 Radar Waveform_12 Type 6 Radar Waveform_13 Report No.: R25S1037125-U204 151 of 190 Type 6 Radar Waveform_14 Type 6 Radar Waveform_15 Report No.: R25S1037125-U204 152 of 190 Type 6 Radar Waveform_16 Type 6 Radar Waveform_17 Report No.: R25S1037125-U204 153 of 190 Type 6 Radar Waveform_18 Type 6 Radar Waveform_19 Report No.: R25S1037125-U204 154 of 190 Type 6 Radar Waveform_20 Type 6 Radar Waveform_21 Report No.: R25S1037125-U204 155 of 190 Type 6 Radar Waveform_22 Type 6 Radar Waveform_23 Report No.: R25S1037125-U204 156 of 190 Type 6 Radar Waveform_24 Type 6 Radar Waveform_25 Report No.: R25S1037125-U204 157 of 190 Type 6 Radar Waveform_26 Type 6 Radar Waveform_27 Report No.: R25S1037125-U204 158 of 190 Type 6 Radar Waveform_28 Type 6 Radar Waveform_29 Report No.: R25S1037125-U204 159 of 190 Test Site SIP-TR1 Test Engineer Tom Chen Test Date 2026-02-13 Test Item Radar Statistical Performance Check (802.11ax-HE160 - 5570 MHz) Radar Type 1-4 - Radar Statistical Performance Trial Radar Type 1 Radar Type 2 Radar Type 3 Radar Type 4 Frequency (MHz) 1=detect 0=no detect Frequency (MHz) 1=detect 0=no detect Frequency (MHz) 1=detect 0=no detect Frequency (MHz) 1=detect 0=no detect 0 5645 1 5532 1 5556 1 5490 1 1 5546 1 5616 1 5555 1 5560 1 2 5507 1 5603 1 5491 1 5575 1 3 5555 1 5531 1 5554 1 5530 1 4 5490 1 5548 1 5576 0 5625 1 5 5596 1 5490 1 5636 1 5580 1 6 5525 1 5537 1 5551 1 5560 1 7 5629 1 5636 1 5490 1 5514 0 8 5538 1 5570 1 5590 1 5518 1 9 5585 1 5535 1 5491 1 5590 1 10 5570 1 5628 1 5614 1 5498 1 11 5648 1 5595 1 5504 1 5630 1 12 5496 1 5559 1 5536 1 5569 1 13 5576 1 5583 1 5642 1 5504 1 14 5591 1 5588 1 5494 1 5502 0 15 5639 1 5542 1 5546 1 5570 1 16 5504 1 5544 1 5497 1 5581 1 17 5639 1 5650 1 5641 1 5591 1 18 5603 1 5585 0 5570 1 5626 1 19 5519 1 5632 1 5512 1 5650 1 20 5561 1 5560 1 5507 1 5523 1 21 5515 1 5561 1 5636 1 5542 1 22 5650 1 5618 1 5534 1 5617 1 23 5496 1 5590 1 5650 1 5616 1 24 5626 1 5510 1 5521 1 5544 1 25 5561 1 5511 1 5599 1 5606 1 26 5638 1 5497 1 5505 1 5607 1 27 5573 1 5550 1 5585 1 5566 1 Report No.: R25S1037125-U204 160 of 190 Trial Radar Type 1 Radar Type 2 Radar Type 3 Radar Type 4 Frequency (MHz) 1=detect 0=no detect Frequency (MHz) 1=detect 0=no detect Frequency (MHz) 1=detect 0=no detect Frequency (MHz) 1=detect 0=no detect 28 5563 1 5515 1 5599 1 5507 1 29 5618 1 5613 1 5535 1 5527 1 Probability: 100% 96.7% 96.7% 93.3% Aggregate: 96.67% (>80%) Radar Type 1 - Radar Waveform Radar Type 2 - Radar Waveform Report No.: R25S1037125-U204 161 of 190 Radar Type 3 - Radar Waveform Radar Type 4 - Radar Waveform Report No.: R25S1037125-U204 162 of 190 Radar Type 5 - Radar Statistical Performance Trail # Test Freq. (MHz) 1=Detection 0=No Detection Trail # Test Freq. (MHz) 1=Detection 0=No Detection 0 5570 1 15 5500 1 1 5570 1 16 5495 1 2 5570 1 17 5499 1 3 5570 1 18 5500 1 4 5570 1 19 5498 1 5 5570 1 20 5642 1 6 5570 1 21 5642 1 7 5570 1 22 5642 1 8 5570 1 23 5644 1 9 5570 1 24 5644 1 10 5498 1 25 5641 1 11 5500 1 26 5642 1 12 5500 1 27 5643 1 13 5496 1 28 5642 1 14 5496 1 29 5642 1 Detection Percentage (%) 100.0% Report No.: R25S1037125-U204 163 of 190 Type 5 Radar Waveform_0 Type 5 Radar Waveform_1 Type 5 Radar Waveform_2 Report No.: R25S1037125-U204 164 of 190 Type 5 Radar Waveform_3 Type 5 Radar Waveform_4 Type 5 Radar Waveform_5 Report No.: R25S1037125-U204 165 of 190 Type 5 Radar Waveform_6 Type 5 Radar Waveform_7 Type 5 Radar Waveform_8 Report No.: R25S1037125-U204 166 of 190 Type 5 Radar Waveform_9 Type 5 Radar Waveform_10 Type 5 Radar Waveform_11 Report No.: R25S1037125-U204 167 of 190 Type 5 Radar Waveform_12 Type 5 Radar Waveform_13 Type 5 Radar Waveform_14 Report No.: R25S1037125-U204 168 of 190 Type 5 Radar Waveform_15 Type 5 Radar Waveform_16 Type 5 Radar Waveform_17 Report No.: R25S1037125-U204 169 of 190 Type 5 Radar Waveform_18 Type 5 Radar Waveform_19 Type 5 Radar Waveform_20 Report No.: R25S1037125-U204 170 of 190 Type 5 Radar Waveform_21 Type 5 Radar Waveform_22 Type 5 Radar Waveform_23 Report No.: R25S1037125-U204 171 of 190 Type 5 Radar Waveform_24 Type 5 Radar Waveform_25 Type 5 Radar Waveform_26 Report No.: R25S1037125-U204 172 of 190 Type 5 Radar Waveform_27 Type 5 Radar Waveform_28 Type 5 Radar Waveform_29 Report No.: R25S1037125-U204 173 of 190 Radar Type 6 - Radar Statistical Performance Trail # 1=Detection 0=No Detection Trail # 1=Detection 0=No Detection 0 1 16 1 1 1 17 1 2 1 18 1 3 1 19 1 4 1 20 1 5 1 21 1 6 1 22 1 7 1 23 1 8 1 24 1 9 1 25 1 10 1 26 1 11 1 27 1 12 1 28 1 13 1 29 1 14 1 30 1 Detection Percentage (%) 100% Report No.: R25S1037125-U204 174 of 190 Type 6 Radar Waveform_0 Type 6 Radar Wavefo…

Text truncated - open the document above for the full version.

MRT Technology (Suzhou) Co., Ltd. Report No.: R25S1037125-U204 Phone: +86-512-66308358 Report Version: V02 Web: www.mrt-cert.com Issue Date: 2026-06-08 Template Version: 2.1 1 of 190 DFS MEASUREMENT REPORT FCC ID: 2BH7FEAP653URV2 Applicant: TP-Link Systems Inc. Product: AX3000 Ceiling Mount Wi-Fi 6 Access Point Model No.: EAP653 UR Brand Name: tp-link FCC Classification: Unlicensed National Information Infrastructure (NII) FCC Rule Part(s): Part 15 Subpart E (Section 15.407) Type of Device: Master Result: Complies Received Date: 2025-12-17 Test Date: 2026-02-05 ~ 2026-02-13 Reviewed By: Yuri Li Approved By: Robin Wu The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report. Testing was performed in accordance with the applicable measurement procedures. The test results reported herein apply only to the specific item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: R25S1037125-U204 2 of 190 Revision History Report No. Version Description Issue Date Note R25S1037125-U204 V01 Initial Report 2026-05-29 Invalid R25S1037125-U204 V02 Correct test date range. 2026-06-08 Valid Report No.: R25S1037125-U204 3 of 190 CONTENTS Description Page 1. General Information ................................................................................................................................ 5 1.1. Applicant ...................................................................................................................................... 5 1.2. Manufacturer ................................................................................................................................ 5 1.3. Testing Facility ............................................................................................................................. 5 1.4. Product Information ...................................................................................................................... 6 1.5. Radio Specification under Test .................................................................................................... 6 1.6. Working Frequencies ................................................................................................................... 7 1.7. Antenna Details ............................................................................................................................ 8 2. Test Configuration ................................................................................................................................... 9 2.1. Test Mode ..................................................................................................................................... 9 2.2. Test Channel ................................................................................................................................ 9 2.3. Applied Standards ........................................................................................................................ 9 2.4. Test Environment Condition ......................................................................................................... 9 3. DFS Detection Thresholds and Radar Test Waveforms .................................................................... 10 3.1. Applicability ................................................................................................................................ 10 3.2. DFS Devices Requirements........................................................................................................ 11 3.3. DFS Detection Threshold Values ............................................................................................... 13 3.4. Parameters of DFS Test Signals ................................................................................................ 14 3.5. Conducted Test Setup ................................................................................................................ 17 4. Measuring Instrument ........................................................................................................................... 18 5. Test Result .............................................................................................................................................. 19 5.1. Summary .................................................................................................................................... 19 5.2. Radar Waveform Calibration Measurement............................................................................... 20 5.2.1. Calibration Setup ....................................................................................................................... 20 5.2.2. Calibration Procedure ................................................................................................................ 20 5.2.3. Calibration & Channel Loading Result ....................................................................................... 20 5.3. NII Detection Bandwidth Measurement ..................................................................................... 21 5.3.1. Test Limit .................................................................................................................................... 21 5.3.2. Test Procedure ........................................................................................................................... 21 5.3.3. Test Result ................................................................................................................................. 22 5.4. Initial Channel Availability Check Time Measurement ............................................................... 23 5.4.1. Test Limit .................................................................................................................................... 2…

Text truncated - open the document above for the full version.

Report No.: R25S1037125-U203 255 of 345 Site SIP-AC3 Test Date 2025-12-19 Temperature 18.1 °C Humidity 50.1% Limit FCC_Part 15.407_Band Edge(3 m) Test Engineer Yuuki Qiu Test Voltage AC 120 V/60 Hz Polarity Vertical Test Mode Transmit by 802.11ac-VHT40 at 5755 MHz No Mark Frequency (MHz) Reading (dBμV) C.F (dB/m) Measurement (dBμV/m) Margin (dB) Limit (dBμV/m) Detector 1 * 5633.250 70.82 -3.51 67.31 -0.89 68.20 Peak 2 5650.000 66.78 -3.65 63.14 -5.06 68.20 Peak 3 5700.000 66.76 -3.47 63.29 -41.91 105.20 Peak 4 5720.000 68.81 -3.45 65.36 -45.44 110.80 Peak 5 5725.000 71.19 -3.47 67.72 -62.28 130.00 Peak 6 5752.757 117.27 -3.65 113.61 N/A N/A Peak Notes: 1. " *" indicates the worst-case emission level observed during the measurement. 2. C.F (dB/m) = Antenna Factor (dB/m) + Cable Loss (dB) + Attenuation (dB) - AMP (dB). 3. Measurement (dBμV/m) = Reading (dBμV) + C.F (dB/m). Report No.: R25S1037125-U203 256 of 345 Site SIP-AC3 Test Date 2025-12-19 Temperature 18.1 °C Humidity 50.1% Limit FCC_Part 15.407_Band Edge(3 m) Test Engineer Yuuki Qiu Test Voltage AC 120 V/60 Hz Polarity Horizontal Test Mode Transmit by 802.11ac-VHT40 at 5795 MHz No Mark Frequency (MHz) Reading (dBμV) C.F (dB/m) Measurement (dBμV/m) Margin (dB) Limit (dBμV/m) Detector 1 5792.775 121.10 -3.69 117.41 N/A N/A Peak 2 5850.000 67.83 -3.75 64.08 -65.92 130.00 Peak 3 5855.000 66.20 -3.75 62…
