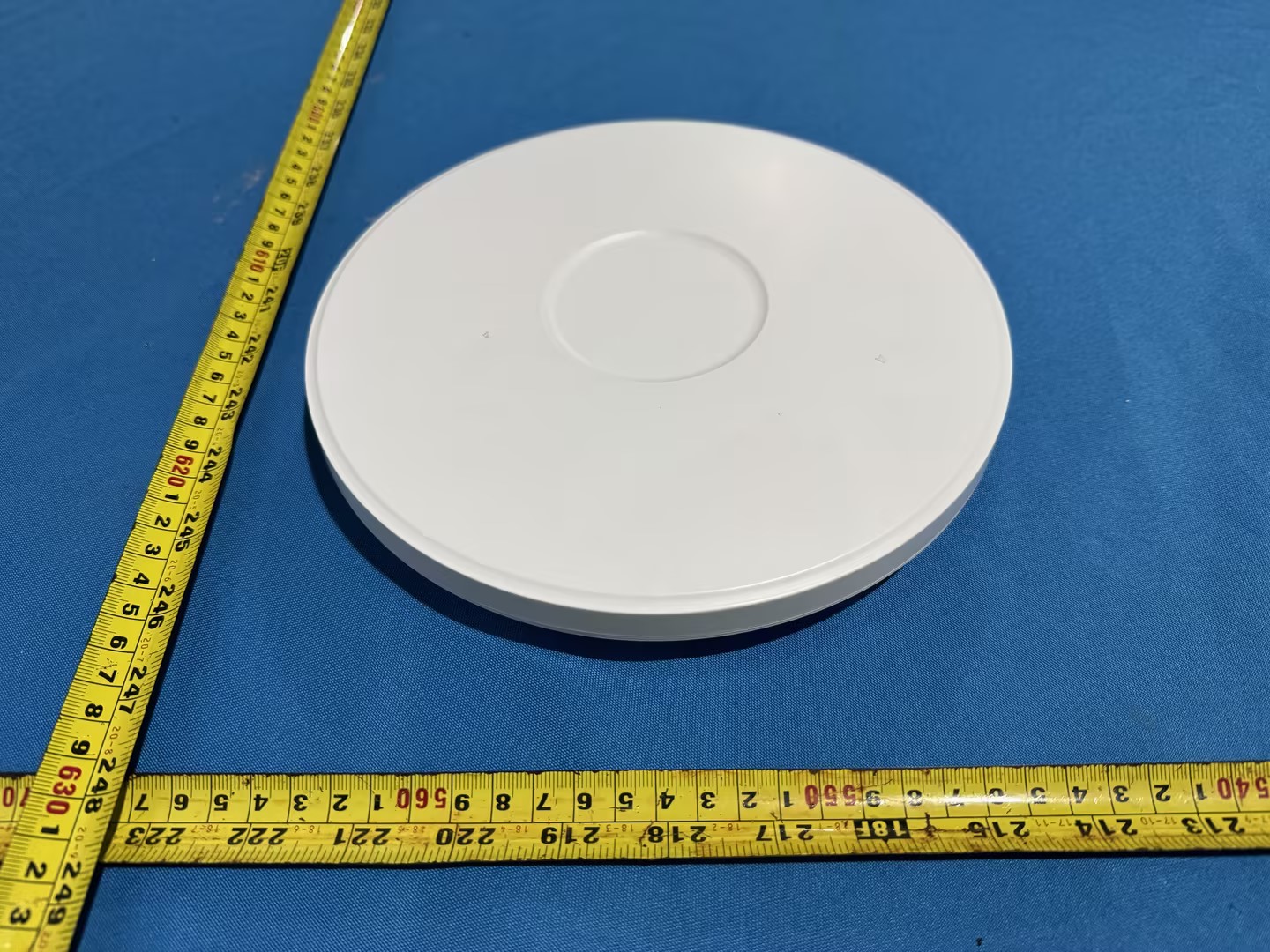

2BH7FEAP670V3AX5400 Ceiling Mount Wi-Fi 6 Access Point

Regulatory Compliance EAP673 © 2025 TP-Link 1900001993 REV2.0.0 FCC Compliance Information Statement Product Name: AX5400 Ceiling Mount Wi-Fi 6 Access Point Model Number: EAP673 Responsible party: TP-Link Systems Inc. Address: 10 Mauchly, Irvine, CA 92618 Website: https://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: [email protected] This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set fo rth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 27cm from all persons and must not be colocated or operating in conjunction with any other antenna or transmitter.” We, TP-Link Systems Inc., has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated. Issue Date: 2025-12-26 CE Mark Warning OPERATING FREQUENCY (the maximum transmitted power) 2402 MHz - 2480 MHz (10dBm) 2412 MHz - 2472 MHz (20dBm) 5150 MHz - 5250 MHz (23dBm) 5250 MHz - 5350 MHz (23dBm) 5470 MHz - 5725 MHz (30dBm) EU Declaration of Conformity TP-Link hereby declares that the access point is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863. The original EU Declaration of Conformity may be found at https://www.tp-link.com/en/support/ce/. RF Exposure Information This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way of health protection. The device complies with RF specifications when the device used at 20cm from your body. National Restrictions Frequency band: 5150 - 5250 MHz: Indoor use: Inside buildings only. Installations and use inside road vehicles and train carriages are not permitted. Limited outdoor use: If used outdoors, equipment shall not be attached to a fixed installation or to the external body of road vehicles, a fixed infrastructure or a fixed outdoor antenna. Use by unmanned aircraft systems (UAS) is limited to within the 5170 - 5250 MHz band. Frequency band: 5250 - 5350 MHz: Indoor use: Inside buildings only. Installations and use in road vehicles, trains and aircraft are not permitted. Outdoor use is not permitted. Frequency band: 5470 - 5725 MHz: Installations and use in road vehicles, trains and aircraft and use for unmanned aircraft systems (UAS) are not permitted. UKCA Mark UK Declaration of Conformity TP-Link hereby declares that the access point is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017. The original UK Declaration of Conformity may be found at https://www.tp-link.com/support/ukca National Restrictions Attention: This device may only be used indoors in Great Britain. UK Canadian Compliance Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) L’appareil ne doit pas produire de brouillage; 2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Caution 1) The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; 5150 MHz to 5350 MHz is restricted to indoo…

Text truncated - open the document above for the full version.

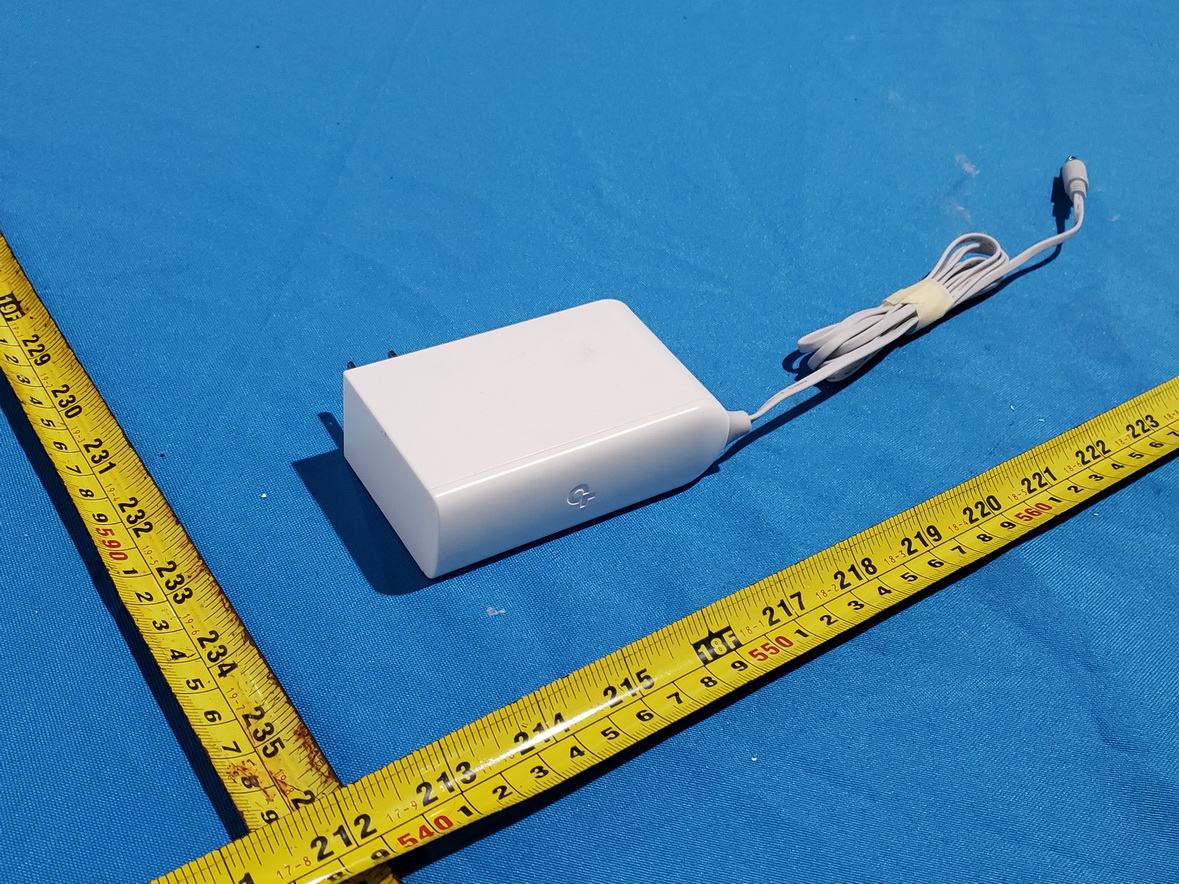

Regulatory Compliance EAP670 © 2025 TP-Link 1900001992 REV3.0.0 FCC Compliance Information Statement Product Name: AX5400 Ceiling Mount Wi-Fi 6 Access Point Model Number: EAP670 Component NameModel I.T.E. Power SupplyT120200-2B4 Responsible party: TP-Link Systems Inc. Address: 10 Mauchly, Irvine, CA 92618 Website: https://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: [email protected] This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipm ent. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set fo rth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 27cm from all persons and must not be colocated or operating in conjunction with any other antenna or transmitter.” Product Name: I. T.E. Power Supply Model Number: T120200-2B4 Responsible party: TP-Link Systems Inc. Address: 10 Mauchly, Irvine, CA 92618 Website: https://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: [email protected] This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that i nterference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. We, TP-Link Systems Inc., has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated. Issue Date: 2025-12-26 CE Mark Warning OPERATING FREQUENCY (the maximum transmitted power) 2402 MHz - 2480 MHz (10dBm) 2412 MHz - 2472 MHz (20dBm) 5150 MHz - 5250 MHz (23dBm) 5250 MHz - 5350 MHz (23dBm) 5470 MHz - 5725 MHz (30dBm) EU Declaration of Conformity TP-Link hereby declares that the access point is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863. The original EU Declaration of Conformity may be found at https://www.tp-link.com/en/support/ce/. RF Exposure Information This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way of health protection. The device complies with RF specifications when the device used at 20cm from your body. National Restrictions Frequency band: 5150 - 5250 MHz: Indoor use: Inside buildings only. Installations and use inside road vehicles and train carriages are not permitted. Limited outdoor use: If used outdoors, equipment shall not be attached to a fixed installation or to the external body of road vehicles, a fixed infrastructure or a fixed outdoor antenna. Use by unmanned aircraft systems (UAS) is limited to within the 5170 - 5250 MHz band. Frequency…

Text truncated - open the document above for the full version.

Or Quick Installation Guide Ceiling Mount Access Point Note: EAP727 is used as an example throughout the guide. Images may differ from your actual product. ©2025 TP-Link 7100002183 REV1.0.0 Scan for EAP Start Guide Installation Option 1 Ceiling Mounting (on a Tile) 1 2 3 4 5 Package Contents 1× Φ 25 mm (63/64 in) 4× Φ 4 mm (5/32 in) 1 2 A Option 2 Ceiling Mounting (on a T-bar) 1 2 3 4 5 6 A 1-pack product contains the following contents, while a 5-pack provides five sets of accessories and one installation guide. Note: Accessories may vary by region and model. 2 1 60 mm 83 mm Option 3 Wall Mounting Option 4 Junction Box Mounting Option 1 1×4×4×4× Option 2 1× 2×2×4× 2 1 1×1× Quick Installation Guide 1× 4×4×4× 4×4×2×2×2× OR 2×2×4× 1× (Only for some models) 1× Note: The AP will be locked after installed. To uninstall, see the Appendix on the back page. 2 1 For details on the warranty period, policy, and procedures, visit https://support.omadanetworks.com/warranty-services/. Warranty Support For technical support, user guides, and other information, please visit https://support.omadanetworks.com/, or simply scan the QR code. More Resources Main Sitehttps://www.omadanetworks.com/ https://support.omadanetworks.com/video/ https://support.omadanetworks.com/document/ https://support.omadanetworks.com/product/ https://support.omadanetworks.com/contact-support/ Video Center Product Support Documents Technical Support 1 2 3 4 5 4× Φ 7.6 mm (19/64 in) 2 1 A 1 2 Option 3 1× 4×4× Power On Option 1: Via PoE Switch Option 2: Via Power Adapter Power Port Power Adapter PoE SwitchETH PoE Port More Configurations For more configurations, refer to the User Guides of the Omada Controller and Omada Access Points at: https://support.omadanetworks.com/document/ Omada App With the TP-Link Omada app, you can access and manage your Omada devices at a local site or remotely with a tap of your phone. Scan for Omada App Switch Gateway/Router On-Premises Controller Omada Central (Cloud-Based) Or EAPEAPEAP Configure and manage EAPs (and other Omada devices) centrally with an Omada Controller. Option 2: Controller Mode Scan for Controller Start Guide Configuration Switch Gateway/Router EAPEAPEAP Configure and manage each EAP on its standalone page. Option 1: Standalone Mode Scan for Standalone Start Guide 1 2 3 Choose the accessory screws that fit your junction box. Compatible wall junctions are as follows: For simplicity, an 86 mm wall junction box is used as an example. Option 4 1× 2×2×2× OROR 1 2 3 Uninstalling the AP Appendix 1× Safety Information • Keep the device away from water, fire, humidity or hot environments. • Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us. • Do not use the device where wireless devices are not allowed. • (For IN version) The EAP can be powered only by a power adapter or a PSE device (such as a PoE switch) which complies with Limited Power Source (LPS) of IEC 60950-1. (For other versions) The EAP can be powered only by a power adapter or a PSE device (such as a PoE switch) which complies with Power Source Class 2 (PS2) or Limited Power Source (LPS) defined in the standard of IEC 62368-1. • Use only power supplies listed in the user instructions. Refer to the User Manual on the product support page. For models with adapters: • Do not use damaged charger or USB cable to charge the device. • Do not use any other chargers than those recommended. • Adapter shall be installed near the equipment and shall be easily accessible. TP-Link hereby declares that the Access Point is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011 /65/EU, and (EU) 2015/863. The original EU Declaration of Conformity may be found at https://www.tp-link.com/en/support/ce/ TP-Link hereby declares that the Access Point is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017. The original UK Declaration of Conformity may be found at https://www.tp-link.com/support/ukca/ Cable through wallCable along wall Or 1 2

Project No.: 2512C175 Page 8 of 11 Project No.: 2512C175 Page 9 of 11 LE & WLAN 5G Ant4 WLAN 2.4G&5G Ant2 WLAN 2.4G&5G Ant1 WLAN 5G Ant3 Project No.: 2512C175 Page 10 of 11 Project No.: 2512C175 Page 11 of 11

Report No.: BTL-FCCP-2-2512C175 Report Version: R00 Page 32 of 117 11. EUT TEST PHOTO AC Power Line Conducted Emissions Test Photos Report No.: BTL-FCCP-2-2512C175 Report Version: R00 Page 33 of 117 Radiated Emissions Test Photos 9 kHz to 30 MHz Report No.: BTL-FCCP-2-2512C175 Report Version: R00 Page 34 of 117 Radiated Emissions Test Photos 30 MHz to 1 GHz Report No.: BTL-FCCP-2-2512C175 Report Version: R00 Page 35 of 117 Radiated Emissions Test Photos Band edge & Harmonic(1 GHz to 18 GHz) Report No.: BTL-FCCP-2-2512C175 Report Version: R00 Page 36 of 117 Radiated Emissions Test Photos Harmonic(18 GHz to 26.5 GHz) Report No.: BTL-FCCP-2-2512C175 Report Version: R00 Page 37 of 117 Conducted Test Photos

Copyright © 2024 TP-Link Systems Inc. All rights reserved FCC Composite Gain Test Report TP-Link Systems Inc. 10 Mauchly, Irvine, CA 926187 Copyright © 2024 TP-Link Systems Inc. All rights reserved Copyright © 2024 By TP-Link Systems Inc. All rights reserved. The drawings, specifications and the data contained in this document are exclusively the property of TP-Link Systems Inc. The information is intended for internal use only and is subject to change without any notice. With no written permission from TP-Link Systems Inc. this document, in parts or as a whole, shall not be reproduced, copied, or used in any form or by any means to make any derivatives such as translation, transformation, or adaptation, for any purpose whatever. is a registered trademark of TP-Link Systems Inc. Other brands and product names mentioned herein are trademarks or registered trademarks of their respective holders. Wa r n in g This document is intended for internal use only. A Non-Disclosure Agreement (NDA) approved by Chief Technology Officer (CTO) is required to release this document under any circumstances. Basic Information EUT Description： AX5400 Ceiling Mount Wi-Fi 6 Access Point Brand Name： tp-link Model Name： EAP670 Tested By： Yangjunyu Date： 2025/11/24 Copyright © 2024 TP-Link Systems Inc. All rights reserved CONTENTS 1 Operation Mode and Antenna Information ........................................................................................ 5 1.1 EUT Operation Mode ...................................................................................................................... 5 1.2 Antenna Information ....................................................................................................................... 5 1.3 Test Frequency ................................................................................................................................ 6 2 Test System ............................................................................................................................................. 6 2.1 Test Equipment ................................................................................................................................ 6 2.2 Test Software ................................................................................................................................... 6 3 Test Summary ........................................................................................................................................ 7 3.1 Measurement Environment ............................................................................................................. 7 3.2 Measurement Quantity .................................................................................................................... 9 3.3 Test Method ..................................................................................................................................... 9 3.4 Directional Gain Calculations ....................................................................................................... 10 3.5 Directional Gain (Nss=N ant ) Calculations ..................................................................................... 11 3.6 Test Procedure ............................................................................................................................... 11 4 Measured Value and Maximum Gain Positions ................................................................................ 13 4.1 Antenna Number ........................................................................................................................... 13 4.2 2G .................................................................................................................................................. 13 4.2.1 DG_1SS Max Value Position ................................................................................................ 13 4.2.2 DG_1SS Max Value Position Calculation ............................................................................. 13 4.2.3 DG_NSSmax Max Value Position ......................................................................................... 14 4.2.4 DG_NSSmax Max Value Position Calculation ..................................................................... 14 4.3 5G .................................................................................................................................................. 14 4.3.1 DG_1SS Max Value Position ................................................................................................ 14 4.3.2 DG_1SS Max Value Position Calculation ............................................................................. 14 4.3.3 DG_NSSmax Max Value Position ......................................................................................... 15 4.3.4 DG_NSSmax Max Value Position Calculation ..................................................................... 15 5 Test and Calculate Result ................................................................................................................... 16 5.1 Peak Antenna Gain（Single） ...................................................................................................... 16 5.2 DG_1SS Calculate Result ............................................................................................................. 16 5.3 DG_NSSmax Calculate Result ...................................................................................................... 16 6 Test Pattern .......................................................................................................................................... 17 6.1 Antenna Pattern ............................................................................................................................. 17 Copyright © 2024 TP-Link Systems Inc. All rights reserved 7 Test Pattern ......................................................................................…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-2512C175 Report Version: R00 Page 1 of 63 FCC Radio Test Report FCC ID: 2BH7FEAP670V3 This report concerns: Original Grant Project No. : 2512C175 Equipment : AX5400 Ceiling Mount Wi-Fi 6 Access Point Brand Name : tp-link Model Name : EAP670, EAP673 Applicant : TP-Link Systems Inc. Address : 10 Mauchly, Irvine, CA 92618 Manufacturer : TP-Link Systems Inc. Address : 10 Mauchly, Irvine, CA 92618 Date of Receipt : Dec. 15, 2025 Date of Test : Dec. 15, 2025 ~ Jan. 28, 2026 Issued Date : May 15, 2026 Test Sample : Engineering Sample No.: DG92025121588 for AC Power Line Conducted Emissions and Radiated Emissions, DG920251216148 for power, DG92025121587 for other. Standard(s) : FCC CFR Title 47, Part 15, Subpart C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. (Dongguan) Prepared by : Terry Deng Approved by : Chay Cai No.3, Jinshagang 1st Road, Dalang, Dongguan, Guangdong People’s Republic of China. Te l : + 8 6-769-8318-3000 Web: www.newbtl.com Service mail: [email protected] Report No.: BTL-FCCP-1-2512C175 Report Version: R00 Page 2 of 63 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacturer's responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL assumes no responsibility for the data provided by the customer, any statements, inferences or generalizations drawn by the customer or others from the reports issued by BTL. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025: 2017 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2512C175 Report Version: R00 Page 3 of 63 Table of Contents Page REVISION HISTORY 6 1 . APPLICABLE STANDARDS 7 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 2.3 TEST ENVIRONMENT CONDITIONS 9 3 . GENERAL INFORMATION 10 3.1 GENERAL DESCRIPTION OF EUT 10 3.2 DESCRIPTION OF TEST MODES 12 3.3 PARAMETERS OF TEST SOFTWARE 13 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 14 3.5 SUPPORT UNITS 14 3.6 CUSTOMER INFORMATION DESCRIPTION 14 4 . AC POWER LINE CONDUCTED EMISSIONS 15 4.1 LIMIT 15 4.2 TEST PROCEDURE 15 4.3 DEVIATION FROM TEST STANDARD 15 4.4 TEST SETUP 16 4.5 EUT OPERATING CONDITIONS 16 4.6 TEST RESULTS 16 5 . RADIATED EMISSIONS 17 5.1 LIMIT 17 5.2 TEST PROCEDURE 18 5.3 DEVIATION FROM TEST STANDARD 19 5.4 TEST SETUP 19 5.5 EUT OPERATING CONDITIONS 21 5.6 TEST RESULT - 9 KHZ TO 30 MHZ 21 5.7 TEST RESULT - 30 MHZ TO 1000 MHZ 21 5.8 TEST RESULT - ABOVE 1000 MHZ 21 6 . BANDWIDTH 22 6.1 LIMIT 22 Report No.: BTL-FCCP-1-2512C175 Report Version: R00 Page 4 of 63 Table of Contents Page 6.2 TEST PROCEDURE 22 6.3 DEVIATION FROM STANDARD 22 6.4 TEST SETUP 22 6.5 EUT OPERATION CONDITIONS 22 6.6 TEST RESULTS 22 7 . MAXIMUM OUTPUT POWER 23 7.1 LIMIT 23 7.2 TEST PROCEDURE 23 7.3 DEVIATION FROM STANDARD 23 7.4 TEST SETUP 23 7.5 EUT OPERATION CONDITIONS 23 7.6 TEST RESULTS 23 8 . CONDUCTED SPURIOUS EMISSION 24 8.1 LIMIT 24 8.2 TEST PROCEDURE 24 8.3 DEVIATION FROM STANDARD 25 8.4 TEST SETUP 25 8.5 EUT OPERATION CONDITIONS 25 8.6 TEST RESULTS 25 9 . POWER SPECTRAL DENSITY 26 9.1 LIMIT 26 9.2 TEST PROCEDURE 26 9.3 DEVIATION FROM STANDARD 26 9.4 TEST SETUP 26 9.5 EUT OPERATION CONDITIONS 26 9.6 TEST RESULTS 26 10 . MEASUREMENT INSTRUMENTS LIST 27 11 . EUT TEST PHOTO 29 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 35 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 38 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 43 APPENDIX D - RADIATED EMISSION - ABOVE 1000 MHZ 46 Report No.: BTL-FCCP-1-2512C175 Report Version: R00 Page 5 of 63 Table of Contents Page APPENDIX E - BANDWIDTH 56 APPENDIX F - MAXIMUM OUTPUT POWER 58 APPENDIX G - CONDUCTED SPURIOUS EMISSION 60 APPENDIX H - POWER SPECTRAL DENSITY 62 Report No.: BTL-FCCP-1-2512C175 Report Version: R00 Page 6 of 63 REVISION HISTORY Report No. Version Description Issued Date Note BTL-FCCP-1-2512C175 R00 Original Report. May 15, 2026 Valid Report No.: BTL-FCCP-1-2512C175 Report Version: R00 Page 7 of 63 1. APPLICABLE STANDARDS According to the specifications of the manufacturer, the EUT must comply with the requirements of the following standard: ANSI C63.10-2020 The following reference test guidance is not within the scope of accreditation of A2LA: KDB 558074 D01 15.247 Meas Guidance v05r02 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC CFR Title 47, Part 15, Subpart C Standard(s) Section Test …

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-2512C175 Report Version: R00 Page 98 of 117 Test Mode TX AX(HE40) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 03 2422 37.600 38.370 0.5 Pass 06 2437 37.680 38.484 0.5 Pass 09 2452 37.680 38.422 0.5 Pass CH03 CH06 CH09 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2512C175 Report Version: R00 Page 99 of 117 APPENDIX F - MAXIMUM OUTPUT POWER Report No.: BTL-FCCP-2-2512C175 Report Version: R00 Page 100 of 117 Test Mode TX B Mode_Ant 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor (dB) Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 22.28 0.20 22.48 30.00 1.0000 Pass 06 2437 22.47 0.20 22.67 30.00 1.0000 Pass 11 2462 22.42 0.20 22.62 30.00 1.0000 Pass Test Mode TX B Mode_Ant 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor (dB) Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. L…

Text truncated - open the document above for the full version.
