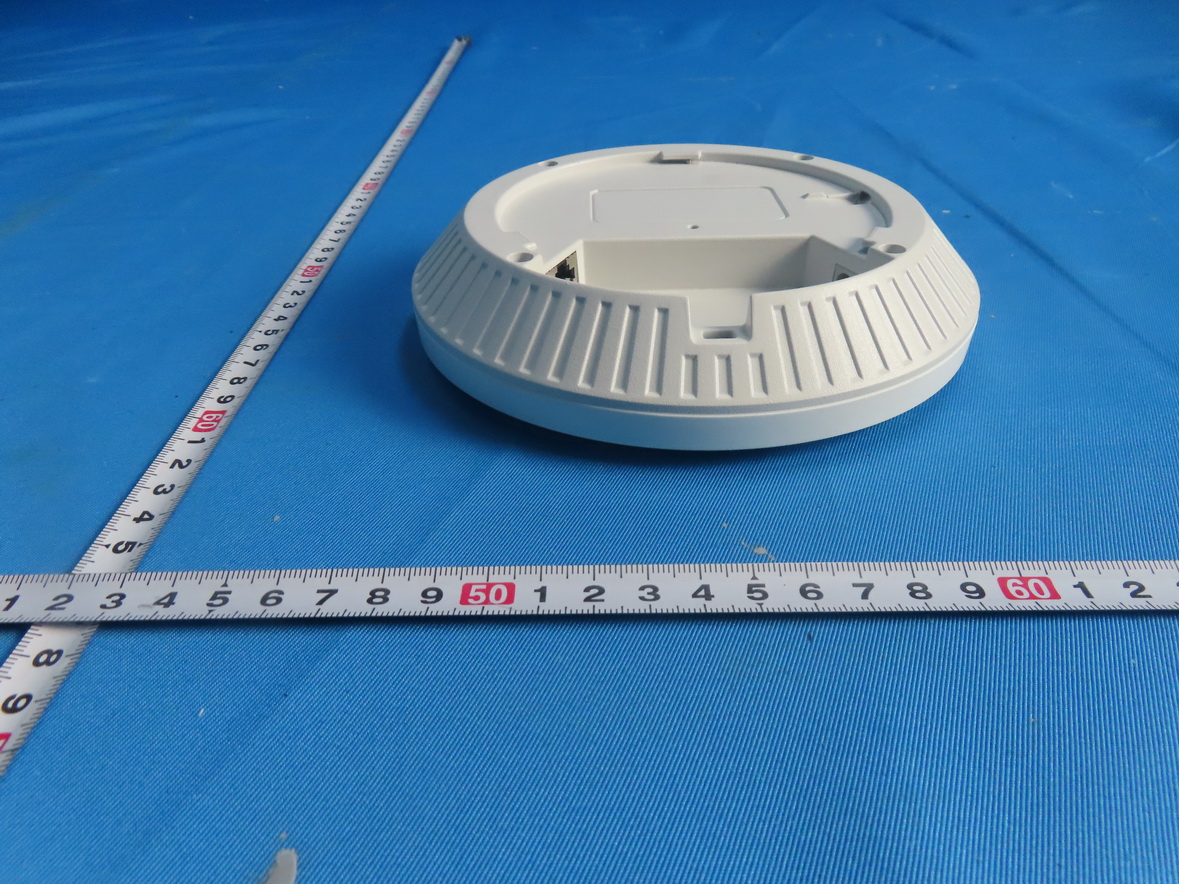

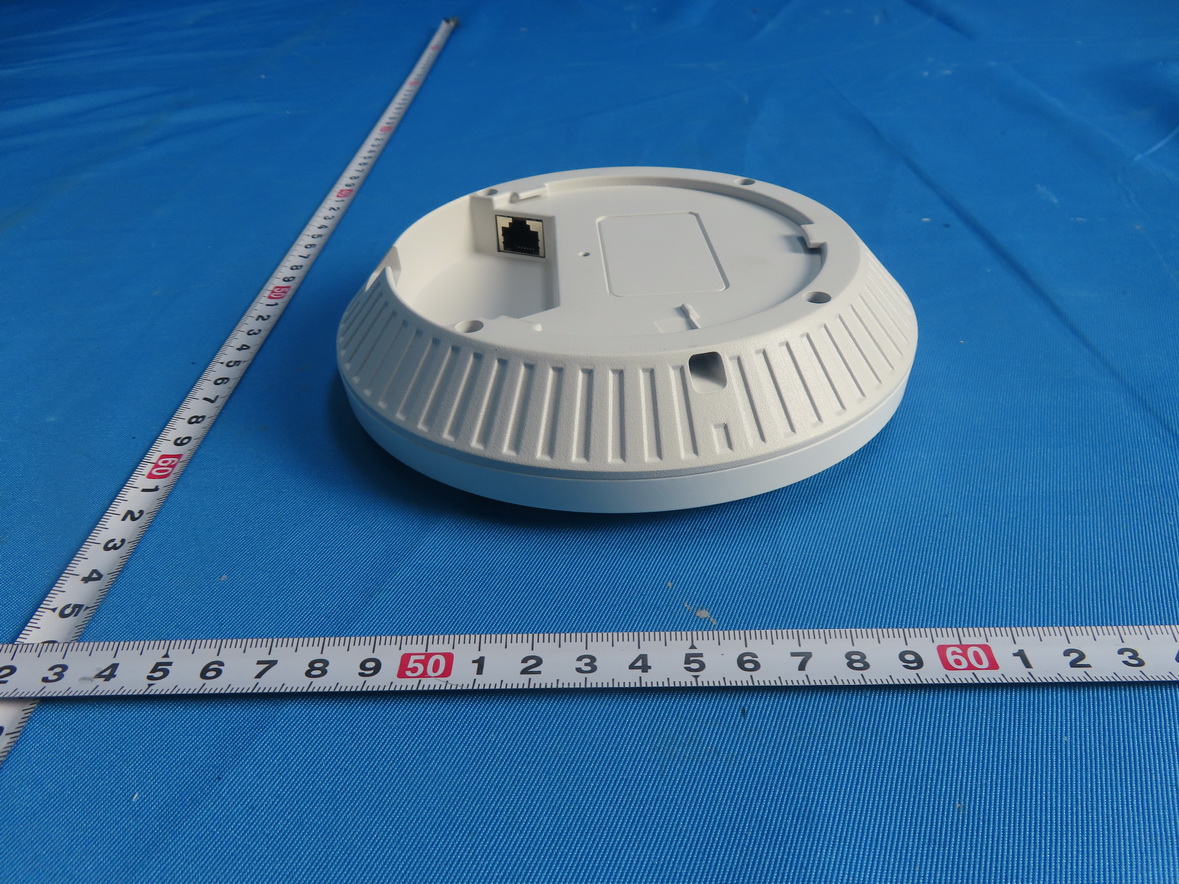

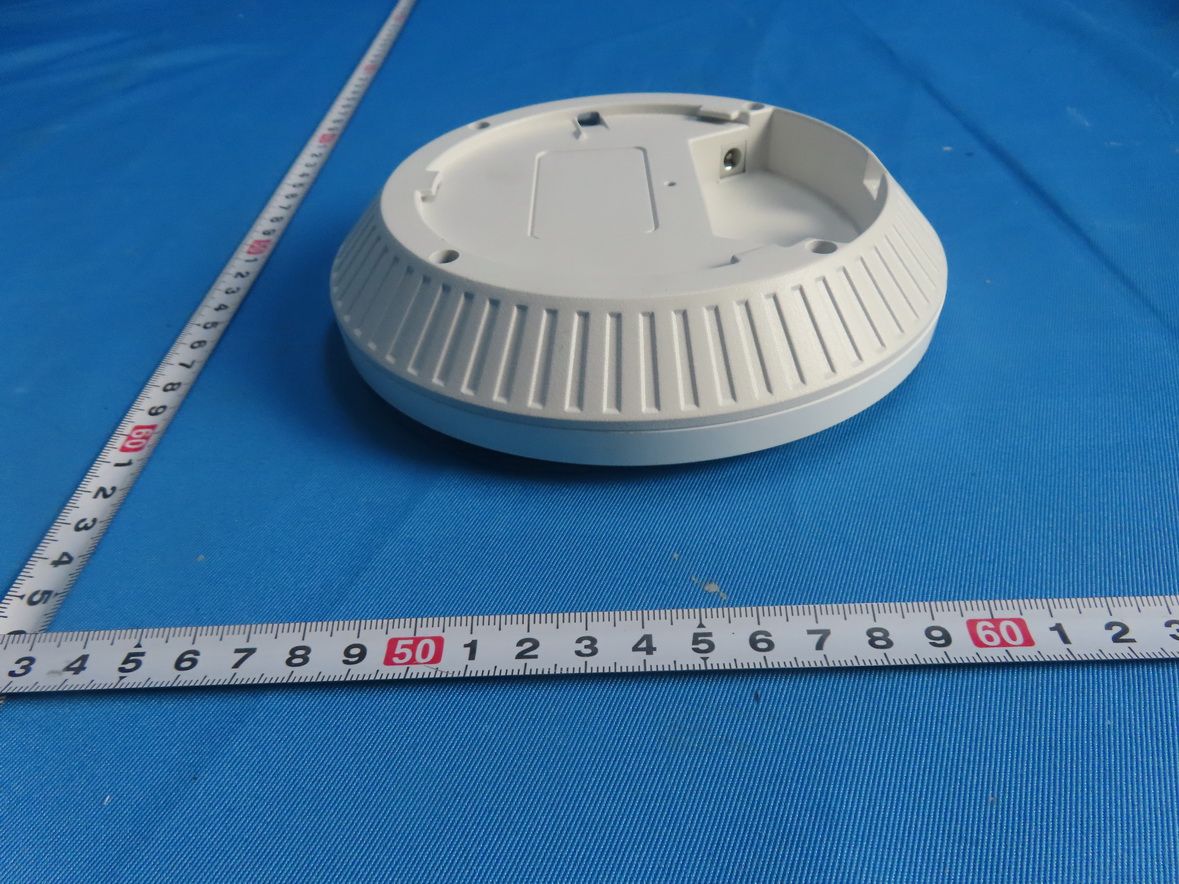

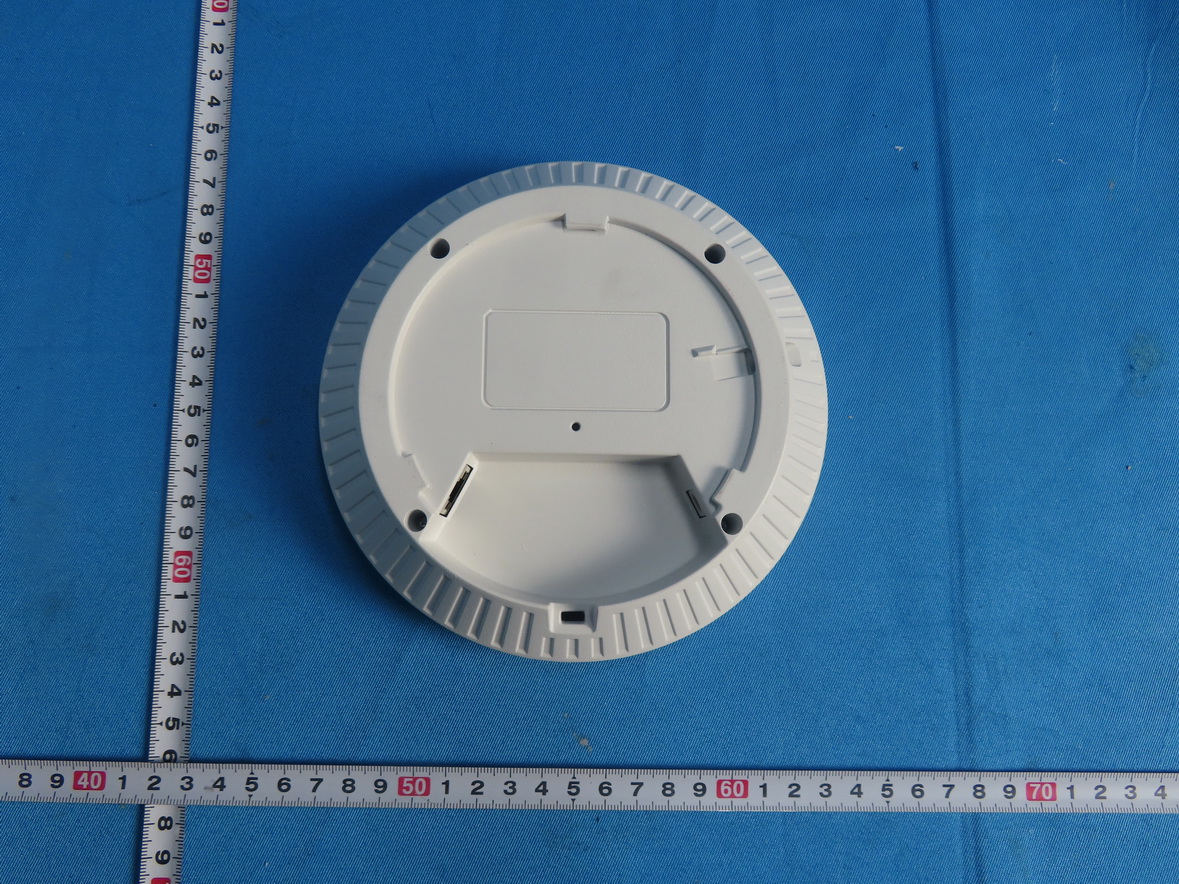

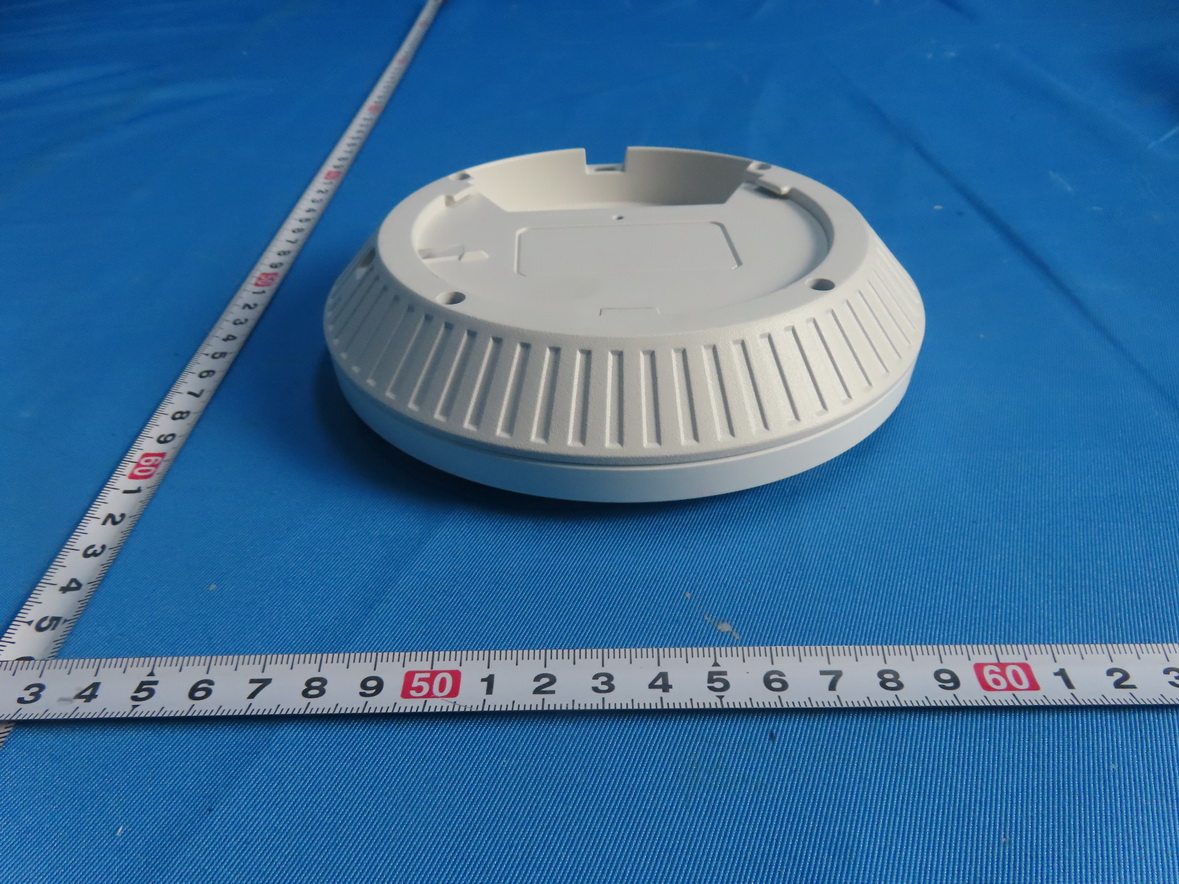

2BH7FEAP727BE5000 Ceiling Mount Wi-Fi 7 Access Point

Or Quick Installation Guide Ceiling Mount Access Point Note: EAP727 is used as an example throughout the guide. Images may differ from your actual product. ©2025 TP-Link 7100002183 REV1.0.0 Scan for EAP Start Guide Installation Option 1 Ceiling Mounting (on a Tile) 1 2 3 4 5 Package Contents 1× Φ 25 mm (63/64 in) 4× Φ 4 mm (5/32 in) 1 2 A Option 2 Ceiling Mounting (on a T-bar) 1 2 3 4 5 6 A 1-pack product contains the following contents, while a 5-pack provides five sets of accessories and one installation guide. Note: Accessories may vary by region and model. 2 1 60 mm 83 mm Option 3 Wall Mounting Option 4 Junction Box Mounting Option 1 1×4×4×4× Option 2 1× 2×2×4× 2 1 1×1× Quick Installation Guide 1× 4×4×4× 4×4×2×2×2× OR 2×2×4× 1× (Only for some models) 1× Note: The AP will be locked after installed. To uninstall, see the Appendix on the back page. 2 1 For details on the warranty period, policy, and procedures, visit https://support.omadanetworks.com/warranty-services/. Warranty Support For technical support, user guides, and other information, please visit https://support.omadanetworks.com/, or simply scan the QR code. More Resources Main Sitehttps://www.omadanetworks.com/ https://support.omadanetworks.com/video/ https://support.omadanetworks.com/document/ https://support.omadanetworks.com/product/ https://support.omadanetworks.com/contact-support/ Video Center Product Support Documents Technical Support 1 2 3 4 5 4× Φ 7.6 mm (19/64 in) 2 1 A 1 2 Option 3 1× 4×4× Power On Option 1: Via PoE Switch Option 2: Via Power Adapter Power Port Power Adapter PoE SwitchETH PoE Port More Configurations For more configurations, refer to the User Guides of the Omada Controller and Omada Access Points at: https://support.omadanetworks.com/document/ Omada App With the TP-Link Omada app, you can access and manage your Omada devices at a local site or remotely with a tap of your phone. Scan for Omada App Switch Gateway/Router On-Premises Controller Omada Central (Cloud-Based) Or EAPEAPEAP Configure and manage EAPs (and other Omada devices) centrally with an Omada Controller. Option 2: Controller Mode Scan for Controller Start Guide Configuration Switch Gateway/Router EAPEAPEAP Configure and manage each EAP on its standalone page. Option 1: Standalone Mode Scan for Standalone Start Guide 1 2 3 Choose the accessory screws that fit your junction box. Compatible wall junctions are as follows: For simplicity, an 86 mm wall junction box is used as an example. Option 4 1× 2×2×2× OROR 1 2 3 Uninstalling the AP Appendix 1× Safety Information • Keep the device away from water, fire, humidity or hot environments. • Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us. • Do not use the device where wireless devices are not allowed. • (For IN version) The EAP can be powered only by a power adapter or a PSE device (such as a PoE switch) which complies with Limited Power Source (LPS) of IEC 60950-1. (For other versions) The EAP can be powered only by a power adapter or a PSE device (such as a PoE switch) which complies with Power Source Class 2 (PS2) or Limited Power Source (LPS) defined in the standard of IEC 62368-1. • Use only power supplies listed in the user instructions. Refer to the User Manual on the product support page. For models with adapters: • Do not use damaged charger or USB cable to charge the device. • Do not use any other chargers than those recommended. • Adapter shall be installed near the equipment and shall be easily accessible. TP-Link hereby declares that the Access Point is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011 /65/EU, and (EU) 2015/863. The original EU Declaration of Conformity may be found at https://www.tp-link.com/en/support/ce/ TP-Link hereby declares that the Access Point is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017. The original UK Declaration of Conformity may be found at https://www.tp-link.com/support/ukca/ Cable through wallCable along wall Or 1 2

Regulatory Compliance EAP727 © 2025 TP-Link 1900001965 REV1.0.0 For Class B Ceiling Mount/Desktop EAP: FCC Compliance Information Statement Product Name: BE5000 Ceiling Mount Wi-Fi 7 Access Point Model Number: EAP727 Responsible party: TP-Link Systems Inc. Address: 10 Mauchly, Irvine, CA 92618 Website: https://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: [email protected] This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be colocated or operating in conjunction with any other antenna or transmitter.” We, TP-Link Systems Inc., has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated. Issue Date: 2025-12-26 CE Mark Warning OPERATING FREQUENCY (the maximum transmitted power) 2402 MHz - 2480 MHz (10dBm) 2412 MHz - 2472 MHz (20dBm) 5150 MHz - 5250 MHz (23dBm) 5250 MHz - 5350 MHz (23dBm) 5470 MHz - 5725 MHz (30dBm) EU Declaration of Conformity TP-Link hereby declares that the access point is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863. The original EU Declaration of Conformity may be found at https://www.tp-link.com/en/support/ce/. RF Exposure Information This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way of health protection. The device complies with RF specifications when the device used at 20cm from your body. National Restrictions Frequency band: 5150 - 5250 MHz: Indoor use: Inside buildings only. Installations and use inside road vehicles and train carriages are not permitted. Limited outdoor use: If used outdoors, equipment shall not be attached to a fixed installation or to the external body of road vehicles, a fixed infrastructure or a fixed outdoor antenna. Use by unmanned aircraft systems (UAS) is limited to within the 5170 - 5250 MHz band. Frequency band: 5250 - 5350 MHz: Indoor use: Inside buildings only. Installations and use in road vehicles, trains and aircraft are not permitted. Outdoor use is not permitted. Frequency band: 5470 - 5725 MHz: Installations and use in road vehicles, trains and aircraft and use for unmanned aircraft systems (UAS) are not permitted. UKCA Mark UK Declaration of Conformity TP-Link hereby declares that the access point is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017. The original UK Declaration of Conformity may be found at https://www.tp-link.com/support/ukca National Restrictions Attention: This device may only be used indoors in Great Britain. UK Canadian Compliance Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) L’appareil ne doit pas produire de brouillage; 2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Caution 1) The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; 5150 …

Text truncated - open the document above for the full version.

Project No.: 2511C431 Page 10 of 11 Project No.: 2511C431 Page 11 of 11

Report No.: BTL-FCCP-1-2511C431 Report Version: R00 Page 27 of 59 11. EUT TEST PHOTO AC Power Line Conducted Emissions Test Photos Report No.: BTL-FCCP-1-2511C431 Report Version: R00 Page 28 of 59 Radiated Emissions Test Photos 9 kHz to 30 MHz Report No.: BTL-FCCP-1-2511C431 Report Version: R00 Page 29 of 59 Radiated Emissions Test Photos 30 MHz to 1000 MHz Report No.: BTL-FCCP-1-2511C431 Report Version: R00 Page 30 of 59 Radiated Emissions Test Photos Band edge & Harmonic(1 GHz to 18 GHz) Report No.: BTL-FCCP-1-2511C431 Report Version: R00 Page 31 of 59 Radiated Emissions Test Photos Harmonic(18 GHz to 26.5 GHz) Report No.: BTL-FCCP-1-2511C431 Report Version: R00 Page 32 of 59 Conducted Test Photos

Report No.: BTL-FCCP-2-2511C431 Report Version: R00 Page 137 of 151 Test Mode TX BE(EHT40) Mode_Ant. 1 Reference Level-CH03 Reference Level-CH06 Reference Level-CH09 Bandedge-CH03 Bandedge-CH09 Harmonic-CH03 Harmonic-CH06 Harmonic-CH09 Report No.: BTL-FCCP-2-2511C431 Report Version: R00 Page 138 of 151 Test Mode TX BE(EHT40) Mode_Ant. 2 Reference Level-CH03 Reference Level-CH06 Reference Level-CH09 Bandedge-CH03 Bandedge-CH09 Harmonic-CH03 Harmonic-CH06 Harmonic-CH09 Report No.: BTL-FCCP-2-2511C431 Report Version: R00 Page 139 of 151 APPENDIX H - POWER SPECTRAL DENSITY Report No.: BTL-FCCP-2-2511C431 Report Version: R00 Page 140 of 151 Test Mode TX B Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 2.77 8.00 Pass 06 2437 2.66 8.00 Pass 11 2462 2.74 8.00 Pass CH01 CH06 CH11 Test Mode TX B Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 3.89 8.00 Pass 06 2437 2.79 8.00 Pass 11 2462 2.87 8.00 Pass CH01 CH06 CH11 Report No.: BTL-FCCP-2-2511C431 Report Version: R00 Page 141 of 151 Test Mode TX B Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 6.38 8.00 Pass 06 2437 5.74 8.00 Pass 11 2462 5.82 8.00 Pass Report No.: BTL-FCCP-2-2511C431 Report Version: R00 Page 142 of 151 Test Mode TX G Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -0.11 8.00 Pass 06 2437 0.55 8.00 Pass 11 2462 0.39 8.00 Pass CH01 CH06 CH11 Test Mode TX G Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -0.41 8.00 Pass 06 2437 0.88 8.00 Pass 11 2462 0.47 8.00 Pass CH01 CH06 CH11 Report No.: BTL-FCCP-2-2511C431 Report Version: R00 Page 143 of 151 Te s t M o de TX G Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 2.75 8.00 Pass 06 2437 3.73 8.00 Pass 11 2462 3.44 8.00 Pass Report No.: BTL-FCCP-2-2511C431 Report Version: R00 Page 144 of 151 Test Mode TX N(HT20) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 0.31 8.00 Pass 06 2437 -0.45 8.00 Pass 11 2462 0.18 8.00 Pass CH01 CH06 CH11 Test Mode TX N(HT20) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 1.37 8.00 Pass 06 2437 1.39 8.00 Pass 11 2462 0.97 8.00 Pass CH01 CH06 CH11 Report No.: BTL-FCCP-2-2511C431 Report Version: R00 Page 145 of 151 Test Mode TX N(HT20) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 3.88 8.00 Pass 06 2437 3.58 8.00 Pass 11 2462 3.60 8.00 Pass Report No.: BTL-FCCP-2-2511C431 Report Version: R00 Page 146 of 151 Test Mode TX N(HT40) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -2.09 8.00 Pass 06 2437 -1.03 8.00 Pass 09 2452 -1.57 8.00 Pass CH03 CH06 CH09 Test Mode TX N(HT40) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -2.07 8.00 Pass 06 2437 -1.90 8.00 Pass 09 2452 -0.94 8.00 Pass CH03 CH06 CH09 Report No.: BTL-FCCP-2-2511C431 Report Version: R00 Page 147 of 151 Test Mode TX N(HT40) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 0.93 8.00 Pass 06 2437 1.57 8.00 Pass 09 2452 1.76 8.00 Pass Report No.: BTL-FCCP-2-2511C431 Report Version: R00 Page 148 of 151 Test Mode TX BE(EHT20) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -0.86 8.00 Pass 06 2437 1.15 8.00 Pass 11 2462 -0.94 8.00 Pass CH01 CH06 CH11 Test Mode TX BE(EHT20) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -1.60 8.00 Pass 06 2437 0.50 8.00 Pass 11 2462 -0.33 8.00 Pass CH01 CH06 CH11 Report No.: BTL-FCCP-2-2511C431 Report Version: R00 Page 149 of 151 Test Mode TX BE(EHT20) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 1.80 8.00 Pass 06 2437 3.85 8.00 Pass 11 2462 2.39 8.00 Pass Report No.: BTL-FCCP-2-2511C431 Report Version: R00 Page 150 of 151 Test Mode TX BE(EHT40) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -2.96 8.00 Pass 06 2437 -2.79 8.00 Pass 09 2452 -2.61 8.00 Pass CH03 CH06 CH09 Test Mode TX BE(EHT40) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -2.66 8.00 Pass 06 2437 -1.26 8.00 Pass 09 2452 -1.31 8.00 Pass CH03 CH06 CH09 Report No.: BTL-FCCP-2-2511C431 Report Version: R00 Page 151 of 151 Test Mode TX BE(EHT40) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 0.20 8.00 Pass 06 2437 1.05 8.00 Pass 09 2452 1.10 8.00 Pass End of Test Report

Report No.: BTL-FCCP-2-2511C431 Report Version: R00 Page 114 of 151 Test Mode TX G Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 01 2412 16.000 16.800 0.5 Pass 06 2437 16.320 19.040 0.5 Pass 11 2462 16.160 18.240 0.5 Pass CH01 CH06 CH11 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2511C431 Report Version: R00 Page 115 of 151 Test Mode TX N(HT20) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 01 2412 16.800 18.240 0.5 Pass 06 2437 17.200 19.280 0.5 Pass 11 2462 16.880 18.720 0.5 Pass CH01 CH06 CH11 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2511C431 Report Version: R00 Page 116 of 151 Test Mode TX N(HT40) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 03 2422 35.040 36.640 0.5 Pass 06 2437 35.520 37.600 0.5 Pass 09 2452 35.040 37.760 0.5 Pass CH03 CH06 CH09 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2511C431 Report Version: R00 Page 117 of 151 Test Mode TX BE(EHT20) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 01 2412 18.560 18.960 0.5 Pass 06 2437 18.560 19.280 0.5 Pass 11 2462 17.520 19.120 0.5 Pass CH01 CH06 CH11 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2511C431 Report Version: R00 Page 118 of 151 Test Mode TX BE(EHT40) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 03 2422 35.680 38.240 0.5 Pass 06 2437 32.800 38.880 0.5 Pass 09 2452 34.880 38.560 0.5 Pass CH03 CH06 CH09 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2511C431 Report Version: R00 Page 119 of 151 FAPPENDIX F - MAXIMUM OUTPUT POWER Report No.: BTL-FCCP-2-2511C431 Report Version: R00 Page 120 of 151 Test Mode TX B Mode_Ant 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor (dB) Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 26.44 0.00 26.44 30.00 1.0000 Pass 06 2437 26.36 0.00 26.36 30.00 1.0000 Pass 11 2462 26.38 0.00 26.38 30.00 1.0000 Pass Test Mode TX B Mode_Ant 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor (dB) Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 26.48 0.00 26.48 30.00 1.0000 Pass 06 2437 26.58 0.00 26.58 30.00 1.0000 Pass 11 2462 26.42 0.00 26.42 30.00 1.0000 Pass Test Mode TX B Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 29.47 30.00 1.0000 Pass 06 2437 29.48 30.00 1.0000 Pass 11 2462 29.41 30.00 1.0000 Pass Report No.: BTL-FCCP-2-2511C431 Report Version: R00 Page 121 of 151 Test Mode TX G Mode_Ant 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor (dB) Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 24.41 0.17 24.58 30.00 1.0000 Pass 06 2437 26.36 0.17 26.53 30.00 1.0000 Pass 11 2462 24.22 0.17 24.39 30.00 1.0000 Pass Test Mode TX G Mode_Ant 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor (dB) Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 24.49 0.17 24.66 30.00 1.0000 Pass 06 2437 26.62 0.17 26.79 30.00 1.0000 Pass 11 2462 24.17 0.17 24.34 30.00 1.0000 Pass Test Mode TX G Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 27.63 30.00 1.0000 Pass 06 2437 29.67 30.00 1.0000 Pass 11 2462 27.37 30.00 1.0000 Pass Report No.: BTL-FCCP-2-2511C431 Report Version: R00 Page 122 of 151 Test Mode TX N(HT20) Mode_Ant 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor (dB) Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 23.38 0.18 23.56 30.00 1.0000 Pass 06 2437 26.15 0.18 26.33 30.00 1.0000 Pass 11 2462 24.02 0.18 24.20 30.00 1.0000 Pass Test Mode TX N(HT20) Mode_Ant 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor (dB) Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 23.24 0.18 23.42 30.00 1.0000 Pass 06 2437 26.46 0.18 26.64 30.00 1.0000 Pass 11 2462 23.92 0.18 24.10 30.00 1.0000 Pass Test Mode TX N(HT20) Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 26.50 30.00 1.0000 Pass 06 2437 29.50 30.00 1.0000 Pass 11 2462 27.16 30.00 1.0000 Pass Report No.: BTL-FCCP-2-2511C431 Report Version: R00 Page 123 of 151 Test Mode TX N(HT40) Mode_Ant 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor (dB) Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 03 2422 21.29 0.18 21.47 30.00 1.0000 Pass 06 2437 24.53 0.18 24.71 30.00 1.0000 Pass 09 2452 21.67 0.18 21.85 30.00 1.0000 Pass Test Mode TX N(HT40) Mode_Ant 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor (dB) Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 03 2422 21.14 0.18 21.32 30.00 1.0000 Pass 06 2437 24.87 0.18 25.05 30.00 1.0000 Pass 09 2452 22.21 0.18 22.39 30.00 1.0000 Pass Test Mode TX N(HT40) Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 03 2422 24.41 30.00 1.0000 Pass 06 2437 27.89 30.00 1.0000 Pass 09 2452 25.14 30.00 1.0000 Pass Report No.: BTL-FCCP-2-2511C431 Report Version: R00 Page 124 of 151 Test Mode TX BE(EHT20) Mode_Ant 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor (dB) Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 23.34 0.22 23.56 30.00 1.0000 Pass 06 2437 26.21 0.22 26.43 30.00 1.0000 Pass 11 2462 23.74 0.22 23.96 30.00 1.0000 Pass Test Mode TX BE(EHT20) Mode_Ant 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor (dB) Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 23.46 0.22 23.68 30.00 1.0000 Pass 06 2437 26.43 0.22 26.65 30.00 1.0000 Pass 11 2462 23.56 0.22 23.78 30.00 1.0000 Pass Test Mode TX BE(EHT20) Mode_Total Channel Freq…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-2511C431 Report Version: R00 Page 1 of 151 FCC Radio Test Report FCC ID: 2BH7FEAP727 This report concerns: Original Grant Project No. : 2511C431 Equipment : BE5000 Ceiling Mount Wi-Fi 7 Access Point Brand Name : Omada Model Name : EAP727 Applicant : TP-Link Systems Inc. Address : 10 Mauchly, Irvine, CA 92618 Manufacturer : TP-Link Systems Inc. Address : 10 Mauchly, Irvine, CA 92618 Date of Receipt : Nov. 24, 2025 Date of Test : Nov. 24, 2025 ~ Jan. 06, 2026 Issued Date : Mar. 26, 2026 Test Sample : Engineering Sample No.: DG920251124513 for Radiated and AC Power Line Conducted, DG920251124512 for others. Standard(s) : FCC CFR Title 47, Part 15, Subpart C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. (Dongguan) Prepared by : Sheldon Ou Approved by : Chay Cai No.3, Jinshagang 1st Road, Dalang, Dongguan, Guangdong People’s Republic of China. Te l : + 8 6-769-8318-3000 Web: www.newbtl.com Service mail: [email protected] Report No.: BTL-FCCP-2-2511C431 Report Version: R00 Page 2 of 151 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL assumes no responsibility for the data provided by the customer, any statements, inferences or generalizations drawn by the customer or others from the reports issued by BTL. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025: 2017 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-2-2511C431 Report Version: R00 Page 3 of 151 Table of Contents Page REVISION HISTORY 6 1 . APPLICABLE STANDARDS 7 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 2.3 TEST ENVIRONMENT CONDITIONS 9 3 . GENERAL INFORMATION 10 3.1 GENERAL DESCRIPTION OF EUT 10 3.2 DESCRIPTION OF TEST MODES 12 3.3 PARAMETERS OF TEST SOFTWARE 14 3.4 DUTY CYCLE 15 3.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 17 3.6 SUPPORT UNITS 17 3.7 CUSTOMER INFORMATION DESCRIPTION 17 4 . AC POWER LINE CONDUCTED EMISSIONS 18 4.1 LIMIT 18 4.2 TEST PROCEDURE 18 4.3 DEVIATION FROM TEST STANDARD 18 4.4 TEST SETUP 19 4.5 EUT OPERATION CONDITIONS 19 4.6 TEST RESULTS 19 5 . RADIATED EMISSIONS 20 5.1 LIMIT 20 5.2 TEST PROCEDURE 21 5.3 DEVIATION FROM TEST STANDARD 22 5.4 TEST SETUP 22 5.5 EUT OPERATION CONDITIONS 24 5.6 TEST RESULTS - 9 KHZ TO 30 MHZ 24 5.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 24 5.8 TEST RESULTS - ABOVE 1000 MHZ 24 6 . BANDWIDTH 25 6.1 LIMIT 25 Report No.: BTL-FCCP-2-2511C431 Report Version: R00 Page 4 of 151 Table of Contents Page 6.2 TEST PROCEDURE 25 6.3 DEVIATION FROM STANDARD 25 6.4 TEST SETUP 25 6.5 EUT OPERATION CONDITIONS 25 6.6 TEST RESULTS 25 7 . MAXIMUM OUTPUT POWER 26 7.1 LIMIT 26 7.2 TEST PROCEDURE 26 7.3 DEVIATION FROM STANDARD 26 7.4 TEST SETUP 26 7.5 EUT OPERATION CONDITIONS 26 7.6 TEST RESULTS 26 8 . CONDUCTED SPURIOUS EMISSIONS 27 8.1 LIMIT 27 8.2 TEST PROCEDURE 27 8.3 DEVIATION FROM STANDARD 28 8.4 TEST SETUP 28 8.5 EUT OPERATION CONDITIONS 28 8.6 TEST RESULTS 28 9 . POWER SPECTRAL DENSITY 29 9.1 LIMIT 29 9.2 TEST PROCEDURE 29 9.3 DEVIATION FROM STANDARD 29 9.4 TEST SETUP 29 9.5 EUT OPERATION CONDITIONS 29 9.6 TEST RESULTS 29 10 . MEASUREMENT INSTRUMENTS LIST 30 11 . EUT TEST PHOTO 32 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 38 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 41 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 46 APPENDIX D - RADIATED EMISSION- ABOVE 1000 MHZ 49 Report No.: BTL-FCCP-2-2511C431 Report Version: R00 Page 5 of 151 Table of Contents Page APPENDIX E - BANDWIDTH 112 FAPPENDIX F - MAXIMUM OUTPUT POWER 119 APPENDIX G - CONDUCTED SPURIOUS EMISSIONS 126 APPENDIX H - POWER SPECTRAL DENSITY 139 Report No.: BTL-FCCP-2-2511C431 Report Version: R00 Page 6 of 151 REVISION HISTORY Report No. Version Description Issued Date Note BTL-FCCP-2-2511C431 R00 Original Report. Mar. 26, 2026 Valid Report No.: BTL-FCCP-2-2511C431 Report Version: R00 Page 7 of 151 1. APPLICABLE STANDARDS According to the specifications of the manufacturer, the EUT must comply with the requirements of the following standard: ANSI C63.10-2020 The following reference test guidance is not within the scope of accreditation of A2LA: KDB 558074 D01 15.247 Meas Guidance v05r02 KDB 662911 D01 Multiple Transmitter Output v02r01 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC CFR Title 47, Part 15, Subpa…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-2511C431 Report Version: R00 Page 1 of 59 FCC Radio Test Report FCC ID: 2BH7FEAP727 This report concerns: Original Grant Project No. : 2511C431 Equipment : BE5000 Ceiling Mount Wi-Fi 7 Access Point Brand Name : Omada Model Name : EAP727 Applicant : TP-Link Systems Inc. Address : 10 Mauchly, Irvine, CA 92618 Manufacturer : TP-Link Systems Inc. Address : 10 Mauchly, Irvine, CA 92618 Date of Receipt : Nov. 24, 2025 Date of Test : Nov. 24, 2025 ~ Jan. 06, 2026 Issued Date : Mar. 26, 2026 Test Sample : Engineering Sample No.: DG920251124513 for Radiated and AC Power Line Conducted, DG920251124512 for others. Standard(s) : FCC CFR Title 47, Part 15, Subpart C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. (Dongguan) Prepared by : Sheldon Ou Approved by : Chay Cai No.3, Jinshagang 1st Road, Dalang, Dongguan, Guangdong People’s Republic of China. Te l : + 8 6-769-8318-3000 Web: www.newbtl.com Service mail: [email protected] Report No.: BTL-FCCP-1-2511C431 Report Version: R00 Page 2 of 59 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL assumes no responsibility for the data provided by the customer, any statements, inferences or generalizations drawn by the customer or others from the reports issued by BTL. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. …
