2BH7FRE235BEV2BE3600 Wi-Fi 7 Range Extender

RE235BE 1.0 User Guide Table of Contents About This Guide This guide provides a brief introduction to BE3600 Wi-Fi 7 Range Extender and regulatory information. Note: Features available in this range extender may vary by model and software version. Range extender availability may also vary by region or ISP. All images, steps, and descriptions in this guide are only examples and may not reflect your actual range extender experience. Conventions In this guide the following conventions are used: ConventionDescription Underline Underlined words or phrases are hyperlinks. You can click to redirect to a website or a specific section. Bold Contents to be emphasized and texts on the web page are in bold, including the menus, items, buttons and so on. > The menu structures to show the path to load the corresponding page. For example, Settings > System Tools > Firmware Upgrade means the Firmware Upgrade page is under the System Tools menu that is located in the Settings tab. Note: Ignoring this type of note might result in a malfunction or damage to the device. Tip: Indicates important information that helps you make better use of your device. Get to Know About Your Extender This chapter introduces what the extender can do and its appearance. It contains the following sections: 2025/12/8 16:36RE235BE 1.0 User Guide https://www.tp-link.com/en/document/46540/1/17 Product Overview Appearance Product Overview Eliminate Wi-Fi Dead Zones with Unrivaled Wi-Fi 7 WiFi 7 offers accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency. Lightning-Fast 3.6 Gbps Dual-Band Wi-Fi 7: 2882 Mbps (5 GHz) + 688 Mbps (2.4 GHz). † Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications. △ 2.5G Multi-Gigabit Ethernet Port: 1× 2.5 Gbps port ensures max flexibility and boosted throughput. Easy Installation & Quick Position The extender works with any standard wireless router. Instantly connect the extender to a router by pressing the router’s WPS button (if available) followed by the extender’s WPS button. Alternatively, follow the Quick Setup instructions on the extender’s web management page. Once the extender is connected to a router, you can relocate it to your preferred location with no further configuration required. The intelligent signal light can help to find the best location. Control at Your Fingertips Set up and manage your WiFi, including TP-Link routers and range extenders, from your Android or iOS phone with the TP-Link Tether app. Appearance 2025/12/8 16:36RE235BE 1.0 User Guide https://www.tp-link.com/en/document/46540/2/17 Button Description ButtonDescription (WPS) Press the WPS button on your host router, and immediately press this button on the extender for 1 second. This LED of the extender should change from blinking to solid on, indicating successful WPS connection. ResetUse a pin to press the button for 1 second to reset the extender. LED Explanation for Range Extender Mode You can check the extender’s working status by following the LED Explanation table. NameStatusIndication (Power) On/OffThe extender is on or off. BlinkingThe system is starting up or firmware is being upgraded. 2025/12/8 16:36RE235BE 1.0 User Guide https://www.tp-link.com/en/document/46540/3/17 NameStatusIndication (Signal) Solid blueThe extender is connected to your router’s wireless network and is in a suitable location. Solid redThe extender is receiving a weak signal. Try relocating it closer to your host router. BlinkingWPS connection is in progress. OffNo wireless connection is established. 2.4GOn/OffThe extender is connected or not connected to the 2.4GHz wireless network of your host router. 5GOn/OffThe extender is connected or not connected to the 5GHz wireless network of your host router. LED Explanation for the Access Point Mode When the extender works in the Access Point mode, you can check its working status by following the LED Explanation table below. NameStatusIndication (Power) On/Off The extender is on or off. BlinkingThe system is starting up or firmware is being upgraded. (Signal) On A WPS connection is established. BlinkingWPS connection is in progress. This may take up to 2 minutes. OffA WPS connection has been established for more than 5 minutes or WPS connection failed. 2.4G On/OffThe 2.4 GHz wireless band is enabled or disabled. 5GOn/Off The 5 GHz wireless band is enabled or disabled. Set Up Your Range Extender This chapter introduces how to boost your host wireless coverage. Please follow the step-by-step instructions to place your range extender and apply power. It contains the following sections: Power On the Extender Set Up the Extender Power On the Extender 1. Position your extender next to your Wi-Fi router. 2. Plug the extender into a nearby electrical outlet. 2025/12/8 16:36RE235BE 1.0 User Guide https://www.tp-link.com/en/document/46540/4/17 3. Wait until the Power LED is solid. Note: For safety, only plug the extender in upright direction as shown below. Set Up the Extender There are three ways to set up the extender: Via the WPS button Via the TP-Link Tether app Via a web browser Method 1. Set Up via the WPS Button Use this way if your router has a WPS button. The button might look like one of these: . 1. Activate the WPS function on your router by pressing the WPS button. Note: If you don’t know how to do it, refer to your router’s user manual, or try other methods to set it up. 2. Within 2 minutes, press the WPS button on the extender for 1 second, and the LED starts blinking. Wait for the LED, 2.4GHz, 5GHz LEDs to turn solid blue, indicating a successful connection. Note: If the LED does not turn solid on, try again or try setting up via the TP-Link Tether app or a Web Browser. 2025/12/8 16:36RE235BE 1.0 User Guide https://www.tp-link.com/en/document/46540/5/17 3. If the extender connects to a dual band router, repeat steps 1 and 2 above to connect to the other band. Wait until the Signal LED turns solid …

Text truncated - open the document above for the full version.

TP-Link Systems Inc. U.S. Agent Designation for Service of Process TO: American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information This letter is to confirm that the Applicant will also serve as the U.S. Agent for Service of Process as required by 47 CFR 2.911(d)(7). The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The Applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information changes. Applicant Company name: TP-Link Systems Inc. FRN #: 0035788017 Grantee Code: 2BH7F Contact Name: Sarah Wang Street Address: 10 Mauchly, Irvine, CA 92618 Zip Code: 92618 Telephone No: (626) 333-0234 Email: [email protected] Applicant Signature: Date: 2025-06-19 Signed by (Printed Name/Title): Sarah Wang/ Product Compliance Manager

TP-Link Systems Inc. 092723-17 rev 10 Certification Application Attestation Statements Date: December 26, 2025 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: FCC ID: 2BH7FRE235BEV2 Statement for 47 CFR section 2.911(d)(5)(i) ______TP-Link Systems Inc.______ certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) _____TP-Link Systems Inc.______ (“the applicant”) certifies that, as of the date of the filing of this application, the applicant ☐ - is / - is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates – see KDB 986446 Question 5) as an entity producing “covered” equipment. The applicant also certifies that the device does not have cybersecurity and/or anti-virus software produced by Kaspersky Lab, Inc or any of its successors and assignees identified on the covered list installed on the device, nor will it be installed by the applicant ay time after certification. Thank you, By: __________________________ ___________Sarah Wang_____________ (Signature 2 ) (Print name) Title: _________Regulatory Compliance Manager_________________ Company: ___TP-Link Systems Inc. ___ Telephone: +86 755 21534921 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . 2 - Letters must be placed on appropriate letterhead.

TP-Link Systems Inc. 030122-15 Authority to Act as Agent Date: December 26, 2025 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: BTL Inc./Rose Liu is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. Thank you, Agency Agreement Expiration Date: 2026-12-24 By: _____________________ Sarah Wang (Signature 1 ) (Print name) Title: Regulatory Compliance Manager On behalf of: TP-Link Systems Inc. (Company Name) Telephone: 00852-37585503 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-Link Systems Inc. 030122-15 Request for Confidentiality Date: December 26, 2025 Subject: Confidentiality Request for: 2BH7FRE235BEV2 Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term ☒ Permanent Block Diagrams ☐ Short Term External Photos ☐ Short Term ☐ Permanent * 1 Internal Photos ☐ Short Term ☒ Permanent Operation Description/Theory of Operation ☐ Short Term ☐ Permanent Parts List & Placement/BOM ☐ Short Term ☐ Permanent Tune-Up Procedure ☐ Short Term ☒ Permanent Schematics ☐ Short Term Test Setup Photos ☐ Short Term ☐ Permanent * 3 User’s Manual TP-Link Systems Inc. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ______(specify number of days not to exceed 180)______ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: Regulatory Compliance Manager Sarah Wang (Signature/Title 2 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-Link Systems Inc. Declaration of Conformity We Name: TP-Link Systems Inc. Address: 10 Mauchly, Irvine, CA 92618 United States Declare that: Product: BE3600 Wi-Fi 7 Range Extender FCC ID: 2BH7FRE235BEV2 Model: RE235BE Brand: tp-link Product which bears the above FCC ID is also compliant with the FCC requirements for sDOC. And the sDOC procedure shall be carried out prior to marketing the device in the US. Sincerely, Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2025-12-24

TP-Link Systems Inc. Wi-Fi Channel 12 and 13 Declaration Letter Date: 2025-12-24 We, the undersigned company Company Name: TP-Link Systems Inc. Address: 10 Mauchly, Irvine, CA 92618 United States Declare that: Product description: BE3600 Wi-Fi 7 Range Extender Type designation: RE235BE Brand: tp-link FCC ID: 2BH7FRE235BEV2 Only channels 1~11 will be used in USA. Country code selection is disabled. If you have any questions regarding the authorization, please do not hesitate to contact us, thank you~ Sincerely, Signature: ________________________ Name: Sarah Wang Tel: 00852-37585503 Email: [email protected]

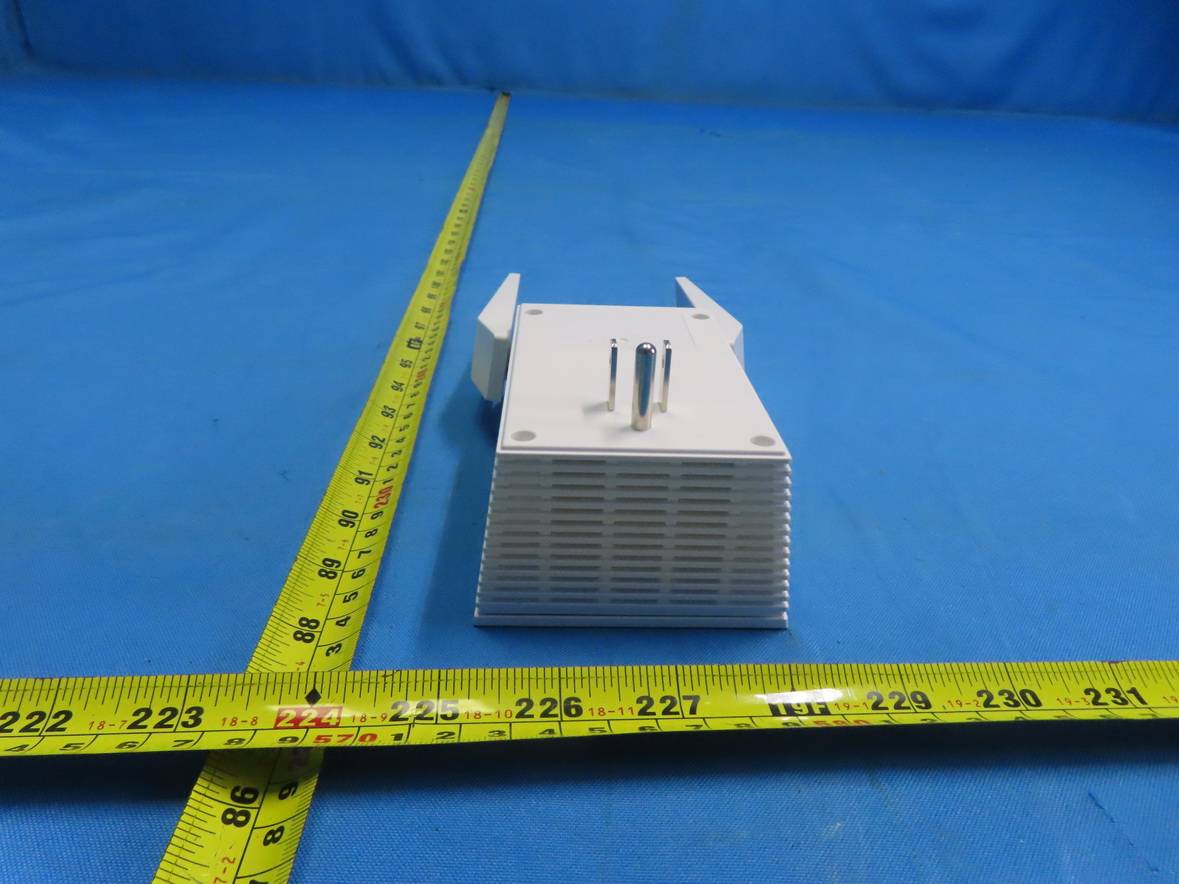

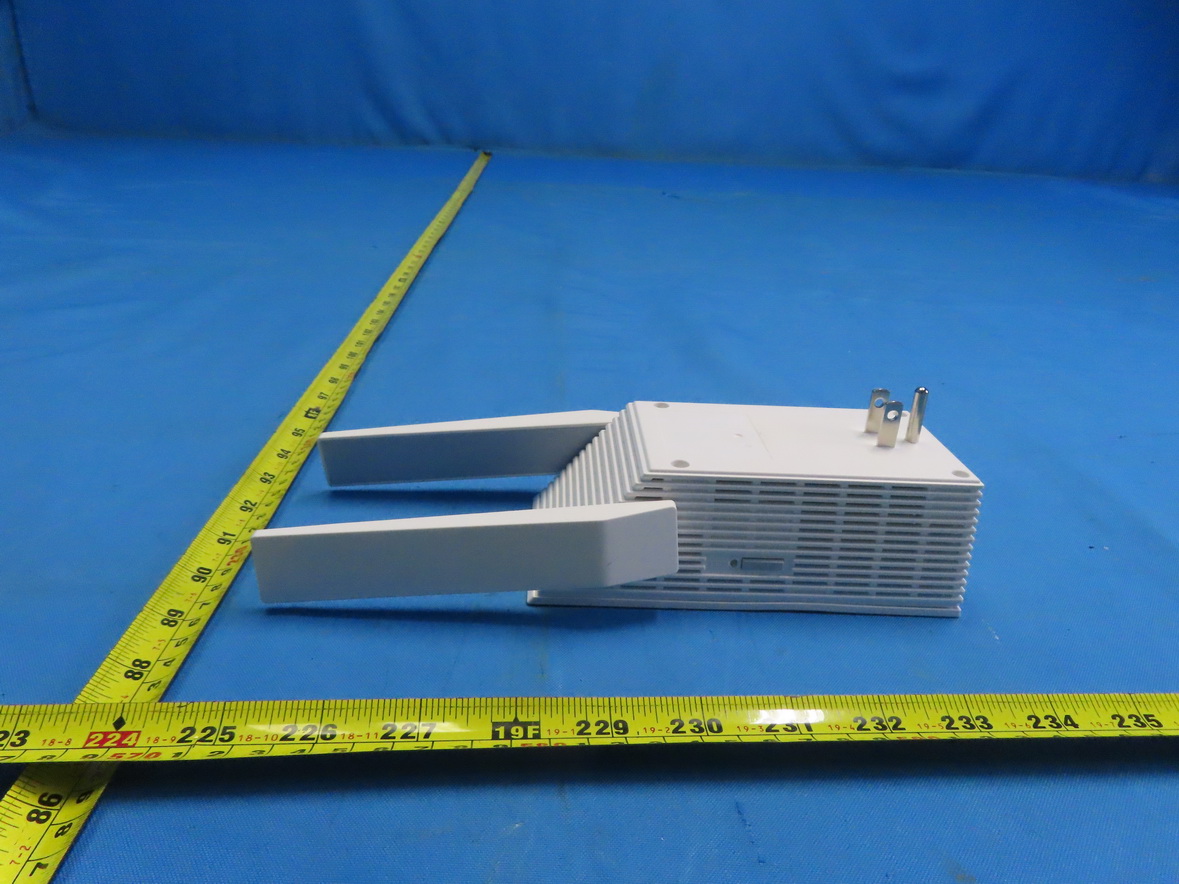

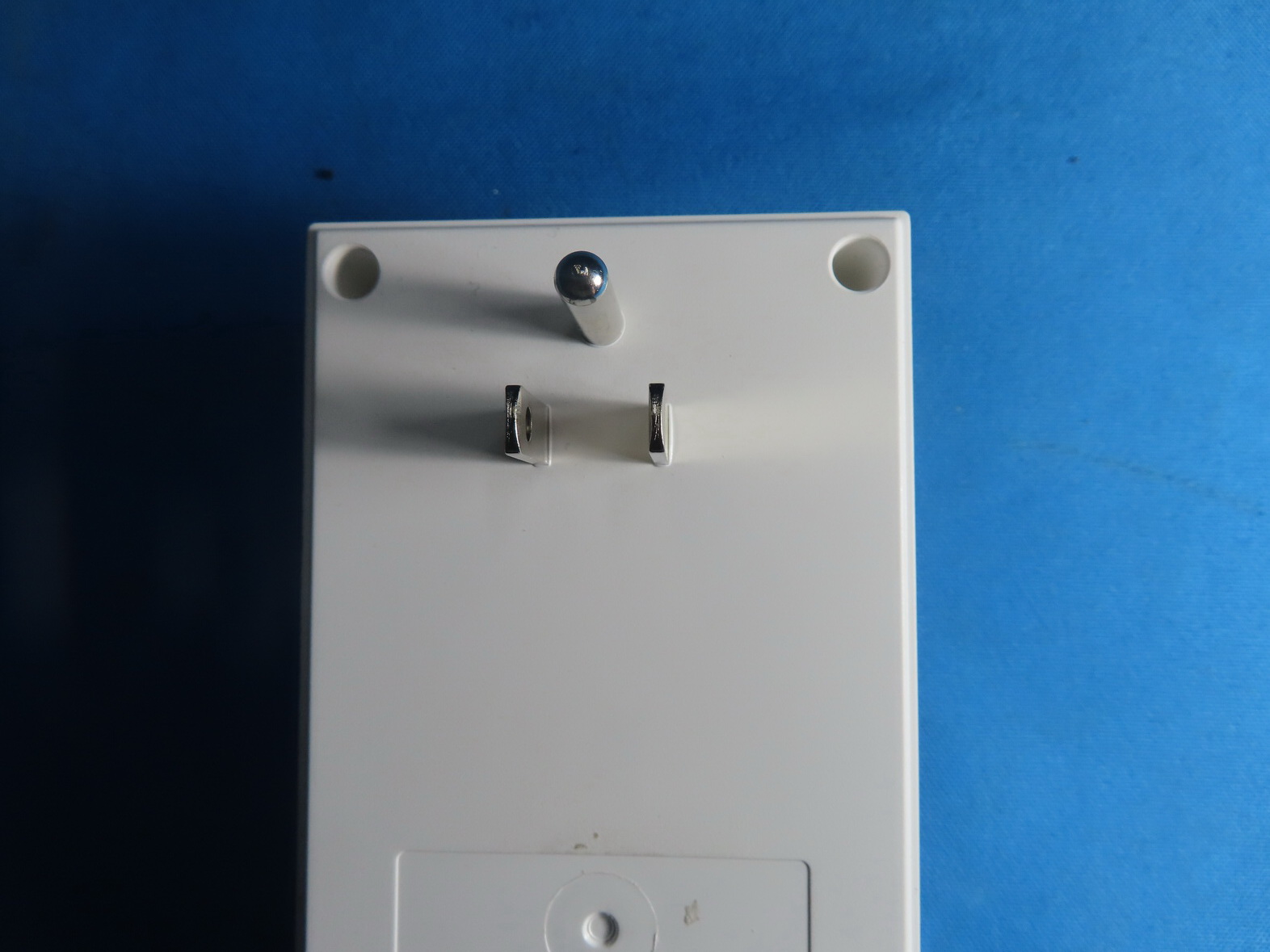

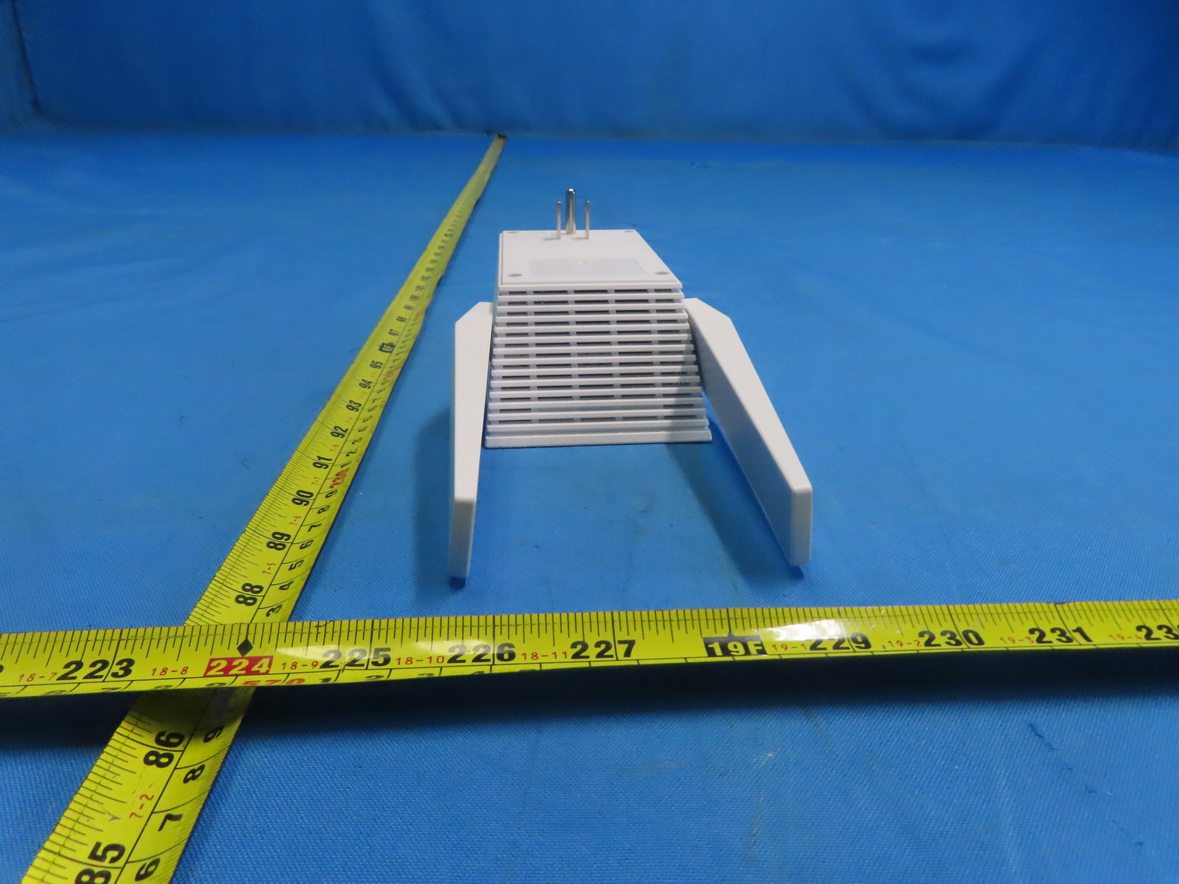

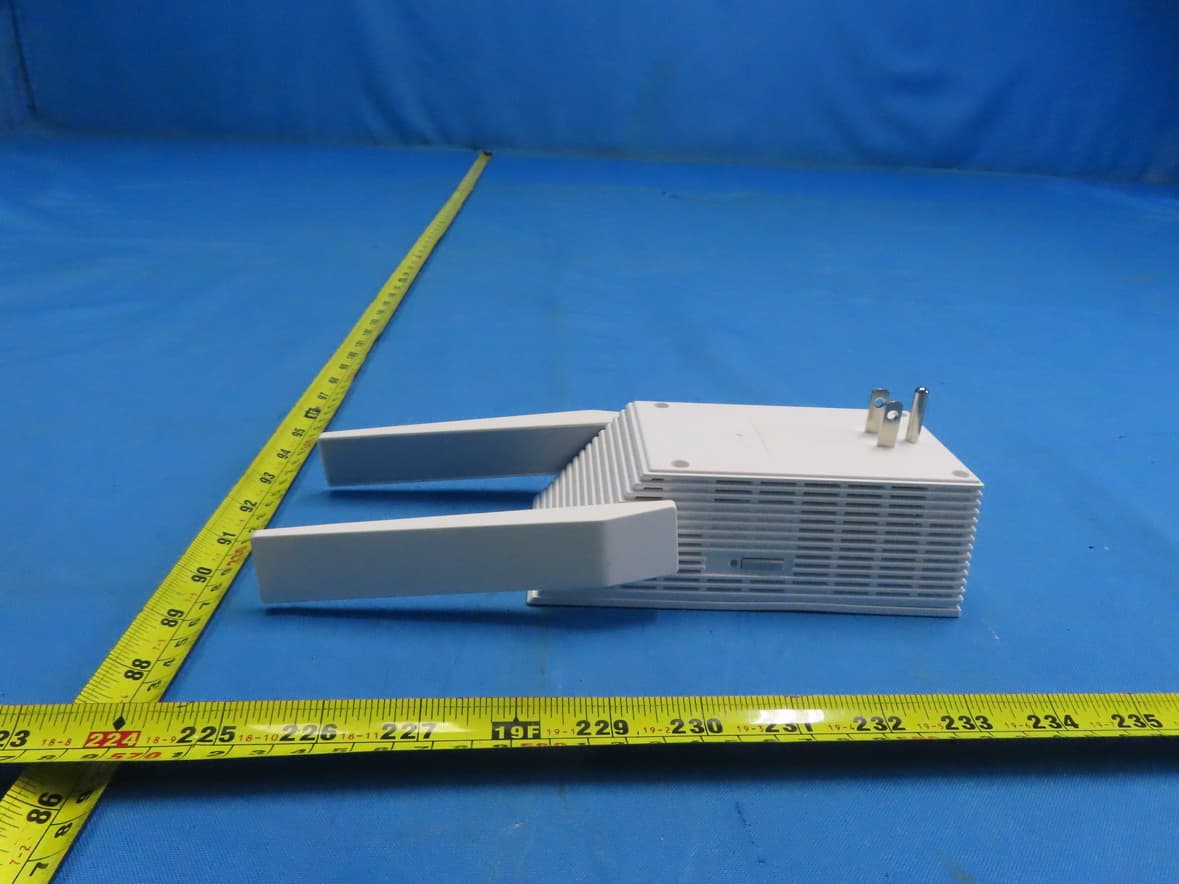

Project No.: 2507C391 Page 2 of 12 Project No.: 2507C391 Page 3 of 12 Project No.: 2507C391 Page 4 of 12 Project No.: 2507C391 Page 5 of 12 Project No.: 2507C391 Page 6 of 12

C B A 2 C 345678 B E D D A 9 1 7200001291 12345 E 6789 Model: RE235BE Rating: 100-240V~50/60Hz 0.4A Default SSID: TP-Link_Extender Default Access: http://www.tplinkrepeater.net MAC:XX-XX-XX-XX-XX-XX S/N:XXXXXXXXXXXXX US/2.0 BE3600 Wi-Fi 7 Range Extender FCC ID: 2BH7FRE235BEV2 IC: 32876-RE235BEV2 HVIN: RE235BEV2 MADE IN CHINA Indoor use only This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. E544876 label location

Project No.: 2507C391 Page 7 of 12 Ant. 1 Ant. 2 Project No.: 2507C391 Page 8 of 12 Project No.: 2507C391 Page 9 of 12 Project No.: 2507C391 Page 10 of 12 Project No.: 2507C391 Page 11 of 12 Project No.: 2507C391 Page 12 of 12

Report No.: BTL-FCCP-5-2507C391 Report Version: R00 Page 1 of 4 FCC RF EXPOSURE REPORT FCC ID: 2BH7FRE235BEV2 Project No. : 2507C391 Equipment : BE3600 Wi-Fi 7 Range Extender Brand Name : tp-link Test Model : RE235BE Model Name : RE235BE Hardware Version : V2.0 Software Version : V2.0 Applicant : TP-Link Systems Inc. Address : 10 Mauchly, Irvine, CA 92618 Manufacturer : TP-Link Systems Inc. Address : 10 Mauchly, Irvine, CA 92618 Date of Receipt : Jul. 31, 2025 Date of Test : Aug. 01, 2025 ~ Dec. 11, 2025 Issued Date : Dec. 24, 2025 Test Sample : Engineering Sample No.: DG2025073146 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091 & KDB 447498 D01 v06 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. (Dongguan) Prepared by : Te r r y Deng Approved by : Chay Cai No.3, Jinshagang 1st Road, Dalang, Dongguan, Guangdong People’s Republic of China. Te l : + 8 6-769-8318-3000 Web: www.newbtl.com Service mail: [email protected] Report No.: BTL-FCCP-5-2507C391 Report Version: R00 Page 2 of 4 REVISION HISTORY Report No. Version Description Issued Date Note BTL-FCCP-5-2507C391 R00 Original Report. Dec. 24, 2025 Valid Report No.: BTL-FCCP-5-2507C391 Report Version: R00 Page 3 of 4 1. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 2. ANTENNA SPECIFICATION For 2.4GHz: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 RE235BE Dipole ipex 5.57 2 RE235BE Dipole ipex 5.19 Note: 1) This EUT supports CDD, and all antennas are not equal, Directional gain = G ANT +Array Gain. For power measurements, Array Gain=0dB (N ANT ≤4), so the Directional gain=5.57. For power spectral density measurements, Directional gain=10log[(10 G1/20 +10 G2/20 +...10 GN/20 ) 2 /N]dBi, that is Directional gain(each angle)=10log[(10 2.80/20 +10 3.00/20 ) 2 /2]dBi=5.91. 2) Beamforming Gain = 3dB. 3) The antenna gain and beamforming gain are provided by the manufacturer. For 5GHz Band 1-4: Ant. Brand Model Name Antenna Type Connector Gain (dBi) Note 1 RE235BE Dipole ipex 5.62 UNII-1 5.60 UNII-2A 6.00 UNII-2C 6.03 UNII-3 2 RE235BE Dipole ipex 6.04 UNII-1 5.68 UNII-2A 5.54 UNII-2C 5.45 UNII-3 Note: 1) This EUT supports CDD, and all antennas are not equal, Directional gain = G ANT +Array Gain. For power measurements, Array Gain=0dB (N ANT ≤4), the UNII-1 Directional gain=6.04, the UNII-2A Directional gain=5.68, the UNII-2C Directional gain=6.00, the UNII-3 Directional gain=6.03, For power spectral density measurements, the Directional gain(each angle) =10log[(10 G1/20 +10 G2/20 +...10 GN/20 ) 2 /N]dBi, the UNII-1 Directional gain(each angle)=10log[(10 2.90/20 +10 3.00/20 ) 2 /2]dBi=5.96, the UNII-2A Directional gain(each angle)=10log[(10 2.95/20 +10 2.92/20 ) 2 /2]dBi=5.95, the UNII-2C Directional gain(each angle)=10log[(10 2.99/20 +10 2.98/20 ) 2 /2]dBi=6.00, the UNII-3 Directional gain(each angle)=10log[(10 2.99/20 +10 2.95/20 ) 2 /2]dBi=5.98. 2) Beamforming Gain = 3dB. 3) The antenna gain and beamforming gain are provided by the manufacturer. Report No.: BTL-FCCP-5-2507C391 Report Version: R00 Page 4 of 4 For 5.9GHz: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 RE235BE Dipole ipex 6.03 2 RE235BE Dipole ipex 5.45 Note: 1) This EUT supports CDD, and all antennas are not equal, Directional gain = G ANT +Array Gain. For power measurements, Array Gain=0dB (N ANT ≤4), so the Directional gain=6.03. For power spectral density measurements, the Directional gain(each angle) =10log[(10 G1/20 +10 G2/20 +...10 GN/20 ) 2 /N]dBi, so the Directional gain(each angle)=10log[(10 2.99/20 +10 2.95/20 ) 2 /2]dBi=5.98. 2) Beamforming Gain = 3dB. 3) The antenna gain and beamforming gain are provided by the manufacturer. 3. CALCULATED RESULT For 2.4GHz: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 5.57 3.6058 24.28 267.9168 0.1922 1 Pass For 5GHz Band 1-4: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 6.03 4.0087 27.73 592.9253 0.4729 1 Pass For 5.9GHz: Max. e.i.r.p. (dBm) Max. e.i.r.p. (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 33.65 2317.3946 0.4610 1 Pass For the max simultaneous transmission MPE: Ratio Total Limit of Ratio Test Result 2.4GHz 5GHz Band 1-4 0.1922 0.4729 0.6651 1 Pass Note: (1) The calculated distance is 20 cm. (2) Ratio=Power Density (S) (mW/cm 2 )/Limit of Power Density (S) (mW/cm 2 ) End of Test Report

Copyright © 2024 TP-Link Systems Inc. All rights reserved FCC Composite Gain Test Report TP-Link Systems Inc. 10 Mauchly, Irvine, CA 926187 Copyright © 2024 TP-Link Systems Inc. All rights reserved Copyright © 2024 By TP-Link Systems Inc. All rights reserved. The drawings, specifications and the data contained in this document are exclusively the property of TP-Link Systems Inc. The information is intended for internal use only and is subject to change without any notice. With no written permission from TP-Link Systems Inc. this document, in parts or as a whole, shall not be reproduced, copied, or used in any form or by any means to make any derivatives such as translation, transformation, or adaptation, for any purpose whatever. is a registered trademark of TP-Link Systems Inc. Other brands and product names mentioned herein are trademarks or registered trademarks of their respective holders. Wa r n in g This document is intended for internal use only. A Non-Disclosure Agreement (NDA) approved by Chief Technology Officer (CTO) is required to release this document under any circumstances. Basic Information EUT Description： BE24000 Quad-Band Wi-Fi 7 Router Brand Name： tp-link Model Name： RE235BE Tested By： Xuan Shan Date： 2025/06/03 Copyright © 2024 TP-Link Systems Inc. All rights reserved CONTENTS 1 Operation Mode and Antenna Information ........................................................................................ 5 1.1 EUT Operation Mode ...................................................................................................................... 5 1.2 Antenna Information ....................................................................................................................... 5 1.3 Test Frequency ................................................................................................................................ 6 2 Test System ............................................................................................................................................. 6 2.1 Test Equipment ................................................................................................................................ 6 2.2 Test Software ................................................................................................................................... 6 3 Test Summary ........................................................................................................................................ 7 3.1 Measurement Environment ............................................................................................................. 7 3.2 Measurement Quantity .................................................................................................................... 9 3.3 Test Method ..................................................................................................................................... 9 3.4 Directional Gain Calculations ....................................................................................................... 10 3.5 Directional Gain (Nss=N ant ) Calculations ..................................................................................... 11 3.6 Test Procedure ............................................................................................................................... 11 4 Measured Value and Maximum Gain Positions ................................................................................ 13 4.1 Antenna Number ........................................................................................................................... 13 4.2 2G .................................................................................................................................................. 13 4.2.1 DG_1SS Max Value Position ................................................................................................ 13 4.2.2 DG_1SS Max Value Position Calculation ............................................................................. 13 4.2.3 DG_NSS2 Max Value Position ............................................................................................. 13 4.2.4 DG_NSS2 Max Value Position Calculation .......................................................................... 14 4.3 5G .................................................................................................................................................. 14 4.3.1 DG_1SS Max Value Position ................................................................................................ 14 4.3.2 DG_1SS Max Value Position Calculation ............................................................................. 14 4.3.3 DG_NSS2 Max Value Position ............................................................................................. 15 4.3.4 DG_NSS2 Max Value Position Calculation .......................................................................... 15 5 Test and Calculate Result ................................................................................................................... 15 5.1 Peak Antenna Gain（Single） ...................................................................................................... 15 5.2 DG_1SS Calculate Result ............................................................................................................. 15 5.3 DG_NSS2 Calculate Result ........................................................................................................... 16 6 Test Pattern .......................................................................................................................................... 17 6.1 Antenna Pattern ............................................................................................................................. 17 Copyright © 2024 TP-Link Systems Inc. All rights reserved 7 Test Pattern .................................................................................…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-2507C391 Report Version: R00 Page 1 of 127 FCC Radio Test Report FCC ID: 2BH7FRE235BEV2 This report concerns: Original Grant Project No. : 2507C391 Equipment : BE3600 Wi-Fi 7 Range Extender Brand Name : tp-link Model Name : RE235BE Applicant : TP-Link Systems Inc. Address : 10 Mauchly, Irvine, CA 92618 Manufacturer : TP-Link Systems Inc. Address : 10 Mauchly, Irvine, CA 92618 Date of Receipt : Jul. 31, 2025 Date of Test : Aug. 01, 2025 ~ Nov. 25, 2025 Issued Date : Dec. 24, 2025 Test Sample : Engineering Sample No.: DG2025073145 & DG202510111 for AC power line conducted emissions and radiated emissions, DG2025073146 for others. Standard(s) : FCC CFR Title 47, Part 15, Subpart C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. (Dongguan) Prepared by : Te r r y Deng Approved by : Chay Cai No.3, Jinshagang 1st Road, Dalang, Dongguan, Guangdong People’s Republic of China. Te l : + 8 6-769-8318-3000 Web: www.newbtl.com Service mail: [email protected] Report No.: BTL-FCCP-1-2507C391 Report Version: R00 Page 2 of 127 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL assumes no responsibility for the data provided by the customer, any statements, inferences or generalizations drawn by the customer or others from the reports issued by BTL. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025: 2017 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2507C391 Report Version: R00 Page 3 of 127 Table of Contents Page REVISION HISTORY 6 1 . APPLICABLE STANDARDS 7 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 2.3 TEST ENVIRONMENT CONDITIONS 9 3 . GENERAL INFORMATION 10 3.1 GENERAL DESCRIPTION OF EUT 10 3.2 DESCRIPTION OF TEST MODES 12 3.3 PARAMETERS OF TEST SOFTWARE 14 3.4 DUTY CYCLE 15 3…

Text truncated - open the document above for the full version.
