2BH7FTX50UAX3000 Dual Band Wi-Fi 6 Wireless USB Adapter

Authentication FCC compliance information statement Product Name: AX3000 Dual Band Wi-Fi 6 Wireless USB Adapter Model Number: Archer TX50U Responsible Party: TP-Link Systems Inc. Address: 10 Mauchly, Irvine, CA 92618 Website: http://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: [email protected] This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure StatementThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment has been SAR-evaluated for use in hand. SAR measurements are based on a 5mm spacing from the body and that compliance is achieved at that distance. We, TP-Link Systems Inc., has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated. Issue Date: 2025-09-15 CE Mark Warning OPERATING FREQUENCY (the maximum transmitted power) 2400 MHz -2483.5 MHz (20dBm) 5150 MHz -5250 MHz (23dBm) 5250 MHz -5350 MHz (23dBm) 5470 MHz -5725 MHz (23dBm) EU Declaration of Conformity TP-Link hereby declares that the AX3000 Dual Band Wi-Fi 6 Wireless USB Adapter is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863. The original EU Declaration of Conformity may be found at https://www.tp-link.com/en/support/ce/. RF Exposure Information This device has been tested and meets the ICNIRP exposure guidelines and the European Standard EN 62209-2. SAR is measured with this device at a separation of 0.5 cm to the body, while transmitting at the highest certified output power level in all frequency bands of this device. Carry this device at least 0.5 cm away from your body to ensure exposure levels remain at or below the as-tested levels. National Restrictions Frequency band: 5150 - 5250 MHz: Indoor use: Inside buildings only. Installations and use inside road vehicles and train carriages are not permitted. Limited outdoor use: If used outdoors, equipment shall not be attached to a fixed installation or to the external body of road vehicles, a fixed infrastructure or a fixed outdoor antenna. Use by unmanned aircraft systems (UAS) is limited to within the 5170 - 5250 MHz band. Frequency band: 5250 - 5350 MHz: Indoor use: Inside buildings only. Installations and use in road vehicles, trains and aircraft are not permitted. Outdoor use is not permitted. Frequency band: 5470 - 5725 MHz: Installations and use in road vehicles, trains and aircraft and use for unmanned aircraft systems (UAS) are not permitted. UKCA Mark UK Declaration of Conformity TP-Link hereby declares that the AX3000 Dual Band Wi-Fi 6 Wireless USB Adapter is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017. The original UK Declaration of Conformity may be found at https://www.tp-link.com/support/ukca/. Attention: This device may only be used indoors in Great Britain. Canadian Compliance Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: This device may not cause interference. This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: l’appareil ne doit pas produire de brouillage; l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, meme si le brouillage est susceptible d’en compromettre le fonctionnement. Caution: The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; DFS (Dynamic Frequency Selection) products that operate in the bands …

Text truncated - open the document above for the full version.

Note: It is recommended to use a USB 3.0 ( ) port if the adapter is compatible with the USB 3.0 standard. Wireless USB Adapter Quick Installation Guide Images are for demonstration only. 7100001329 REV1.5.0©2025 TP-Link 1 Connect to a Computer Option 1: DirectlyOption 2: Via the USB Cradle (if provided) Option 3: Via the USB Extension Cable (if provided) * Images may differ from your actual product. Safety Information For technical support, replacement services, user guides, and other information, please visit https://www.tp-link.com/support, or simply scan the QR code. Support · Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us. · Do not use the device where wireless devices are not allowed. · Keep the device away from water, fire, humidity or hot environments. · This equipment can be powered only by equipments that comply with Power Source Class 2 (PS2) or Limited Power Source (LPS) defined in the standard of IEC 62368-1. · Operation of transmitters in the 5.925-7.125 GHz band is prohibited for control of or communications with unmanned aircraft systems (For Wi-Fi 6E adapters). TP-Link hereby declares that the Wireless USB Adapter is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2011 /65/EU and (EU) 2015/863. The original EU Declaration of Conformity may be found at https://www.tp-link.com/en/support/ce TP-Link hereby declares that the Wireless USB Adapter is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017. The original UK Declaration of Conformity may be found at https://www.tp-link.com/support/ukca a. Click the network icon on the taskbar (the icon might look like one of these: , , , or ). 3 Join a Wireless Network Troubleshooting If you have problems during the installation, please refer to the following online FAQs. T1. Can’t find the hardware version of the adapter: https://www.tp-link.com/faq-46.html T2. Can’t find or connect to the wireless networks: https://www.tp-link.com/faq-2253.html T3. Can’t install the driver: https://www.tp-link.com/faq-2252.html T4. How to fix Windows 7 Security issues (if supported): https://www.tp-link.com/faq-2760.html b. Select your Wi-Fi network, click Connect and enter the password when prompted. Network 6 Connected Network settings Connect automatically Connect √ TP-Link_XXXX 2 Install Driver For models with a CD a. Insert the CD and run the Autorun.exe to install driver. b. Once finished, restart your computer. For models without a CD a. Go to My Computer or This PC. b. Double click the TP-Link disk/TP-Link CD Drive then run SetupInstall.exe to install driver. c. Once finished, restart your computer. Note: • If you cannot find the setup program, please download the driver at www.tp-link.com/support. • If an unknown publisher message pops up, select Ye s to continue. • If Windows User Account Control requires admin credentials, type user name and password of your Windows administrator account.

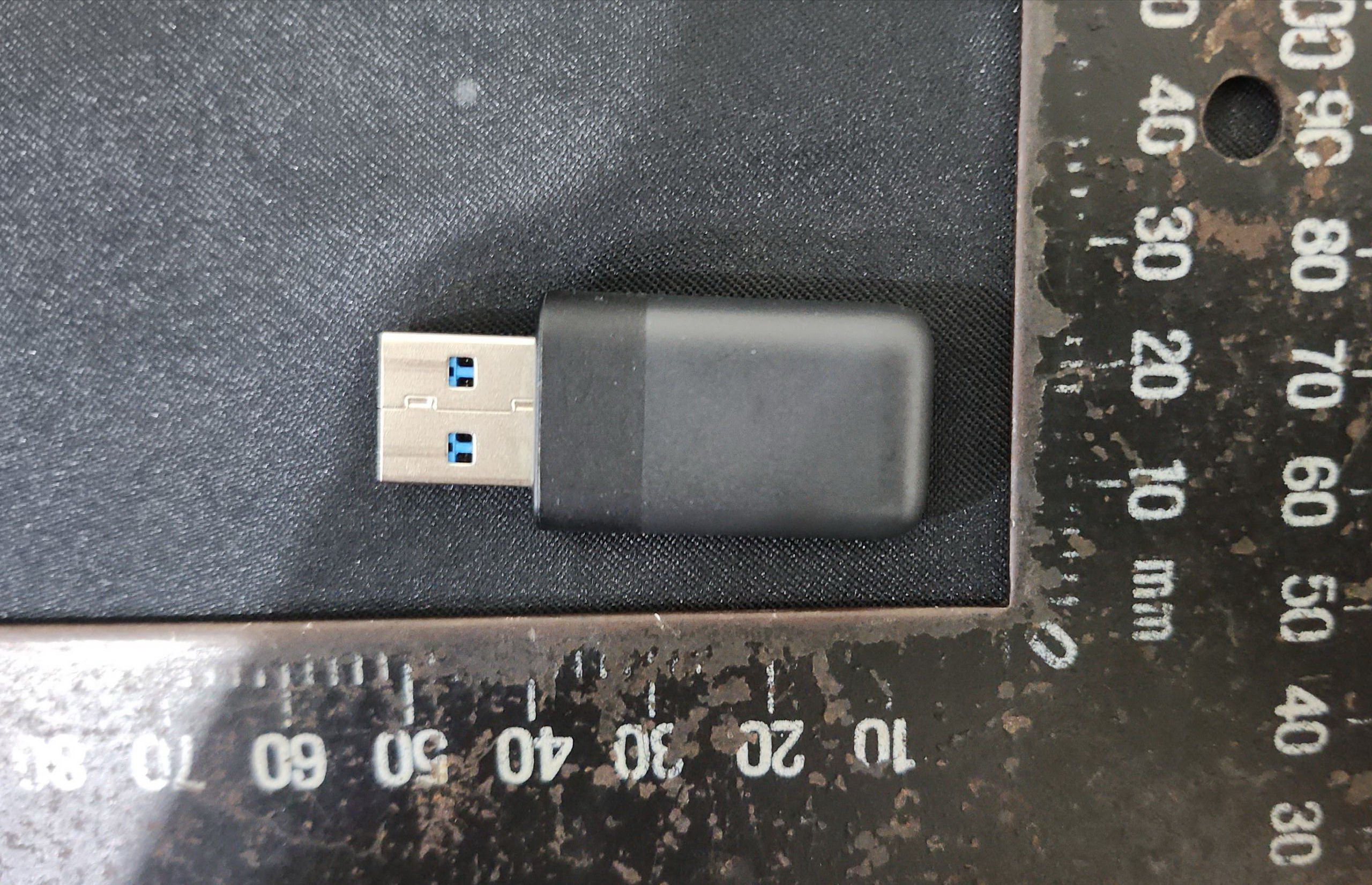

Report No.: BTL-FCC SAR-1-2506C116_Appendix D. Page 1 of 2 Appendix D. Photographs of the Test Set-Up Photo 1: Vertical Front_5mm Photo 2: Vertical Back_5mm Photo 3: Horizontal Up_5mm Photo 4: Horizontal Down_5mm Photo 5: Tip Side_5mm Photo 6: EUT Photo Front Face Report No.: BTL-FCC SAR-1-2506C116_Appendix D. Page 2 of 2 Photo 7: EUT Photo_Rear Face - -

Appendix No.: TP-2506C116-1 APPENDIX-TEST PHOTOS Project No.: 2506C116 Page 1 of 5 AC Power Line Conducted Emissions test photos Appendix No.: TP-2506C116-1 APPENDIX-TEST PHOTOS Project No.: 2506C116 Page 2 of 5 Radiated emissions test photos 30 MHz to 1 GHz Appendix No.: TP-2506C116-1 APPENDIX-TEST PHOTOS Project No.: 2506C116 Page 3 of 5 Radiated emissions test photos 1 GHz to 18 GHz Appendix No.: TP-2506C116-1 APPENDIX-TEST PHOTOS Project No.: 2506C116 Page 4 of 5 Radiated emissions test photos Above 18 GHz Appendix No.: TP-2506C116-1 APPENDIX-TEST PHOTOS Project No.: 2506C116 Page 5 of 5 DFS

Product Model： Archer TX50U Manufacturer： TP-Link Systems Inc. Test Date： 2025.01.03 Tested By： Yu Sunli TP-Link Systems Inc. 10 Mauchly, Irvine, CA 92618 Index 1. Antenna Distribution ........................................................................................ 3 2. Electrical Characteristics ................................................................................ 3 3. S Parameter Test Data ..................................................................................... 4 4. Antenna Peak Gain........................................................................................... 4 5. Antenna Radiation Pattern .............................................................................. 5 Page 3 1. Antenna Distribution Archer TX50U 2. Electrical Characteristics Ant1 Frequency 2400~2500 &5150~5895MHz Impedance 50Ohm Antenna Type PIFA Antenna Gain 0.45dBi@2400~2500MHz -1.64dBi@5150~5250MHz -0.23dBi@5250~5350MHz 2.00dBi@5470~5725MHz 1.30dBi@5725~5895MHz Radiation pattern Omni-Directional P/N 6035500227 Ant2 Frequency 2400~2500 &5150~5895MHz Impedance 50Ohm Antenna Type PIFA Antenna Gain 0.08dBi@2400~2500MHz -0.35dBi@5150~5250MHz 0.97dBi@5250~5350MHz 1.57dBi@5470~5725MHz -0.47dBi@5725~5895MHz Radiation pattern Omni-Directional P/N 6035500227 Page 4 3. S Parameter Test Data Ant1 Ant2 4. Antenna Peak Gain Frequency 2.45GHz 2400~2500MHz 5.2GHz 5150~5250MHz 5.3GHz 5250~5350MHz Ant1 MaxGain(dBi) 0.45 -1.64 -0.23 Ant2 MaxGain(dBi) 0.08 -0.35 0.97 Max Gain(dBi) 0.45 -0.35 0.97 Frequency 5.6GHz 5470~5725MHz 5.8GHz 5725~5895MHz Ant1 MaxGain(dBi) 2.00 1.30 Ant2 MaxGain(dBi) 1.57 -0.47 Max Gain(dBi) 2.00 1.30 Page 5 5. Antenna Radiation Pattern Ant1 Ant2 Page 6

Report No.: BTL-FCCP-3-2506C116 Page 1 of 22 FCC Radio Test Report FCC ID: 2BH7FTX50U Report No. : BTL-FCCP-3-2403T068 Equipment : AX3000 Dual Band Wi-Fi 6 Wireless USB Adapter Model Name : Archer TX50U Brand Name : tp-link Applicant : TP-Link Systems Inc. Address : 10 Mauchly, Irvine, CA 92618 Manufacturer : TP-Link Systems Inc. Address : 10 Mauchly, Irvine, CA 92618 Radio Function : RLAN 5 GHz (U-NII 2A, U-NII 2C) FCC Rule Part(s) : FCC CFR Title 47, Part 15, Subpart E (15.407) (Only DFS) Date of Receipt : 2025/7/15 Date of Test : 2025/7/17 ~ 2025/8/12 Issued Date : 2025/11/20 The above equipment has been tested and found in compliance with the requirement of the above standards by BTL Inc. Prepared by : Poken Huang, Engineer Approved by : Peter Chen, Manager BTL Inc. No.18, Ln. 171, Sec. 2, Jiuzong Rd., Neihu Dist., Taipei City 114, Taiwan Tel: +886-2-2657-3299 Fax: +886-2-2657-3331 Web: www.newbtl.com Service mail: [email protected] Report No.: BTL-FCCP-3-2506C116 Page 2 of 22 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL assumes no responsibility for the data provided by the Customer, any statements, inferences or generalizations drawn by the customer or others from the reports issued by BTL. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-3-2506C116 Page 3 of 22 CONTENTS REVISION HISTORY 4 1 SUMMARY OF TEST RESULTS 5 1.1 REFERENCE TEST GUIDANCE 5 1.2 TEST FACILITY 5 1.3 TEST ENVIRONMENT CONDITIONS 5 2 EUT INFORMATION 6 2.1 EUT SPECIFICATION TABLE 6 2.2 EIRP POWER 8 3 U-NII DFS RULE REQUIREMENTS 9 3.1 WORKING MODES AND REQUIRED TEST ITEMS 9 3.2 TEST LIMITS AND RADAR SIGNAL PARAMETERS 10 4 DYNAMIC FREQUENCY SELECTION (DFS) TEST 13 4.1 DFS MEASUREMENT SYSTEM 13 4.2 CALIBRATION OF DFS DETECTION THRESHOLD LEVEL 15 4.3 DEVIATION FROM TEST STANDARD 15 5 LIST OF MEASURING EQUIPMENTS 16 6 EUT TEST PHOTO 17 7 EUT PHOTOS 17 8 TEST RESULTS 18 8.1 SUMMARY OF TEST RESULT 18 8.2 EST MODE: DEVICE OPERATING IN MASTER MODE. 18 8.3 DFS DETECTION THRESHOLD 19 8.4 CHANNEL CLOSING TRANSMISSION AND CHANNEL MOVE TIME WLAN TRAFFIC 20 8.5 NON-OCCUPANCY PERIOD 22 Report No.: BTL-FCCP-3-2506C116 Page 4 of 22 REVISION HISTORY Report No. Version Description Issued Date Note BTL-FCCP-3-2506C116 R00 Original Report. 2025/9/28 In valid BTL-FCCP-3-2506C116 R01 This report added note (2) in chapter 2.2. It is a revision of the report BTL-FCCP-3-2506C116 R00. This is a newly released report, replacing the BTL-FCCP-3-2506C116 R00 report. 2025/11/20 Valid Report No.: BTL-FCCP-3-2506C116 Page 5 of 22 1 SUMMARY OF TEST RESULTS Test procedures according to the technical standards. Standard(s) Section Description Test Result Judgement Remark 15.407(h) Dynamic Frequency Selection (DFS) ------ Pass ------ 1.1 REFERENCE TEST GUIDANCE FCC KDB 789033 D02 General UNII Test Procedures New Rules v02r01 FCC KDB 905462 D02 UNII DFS Compliance Procedures New Rules v02 1.2 TEST FACILITY The test locations stated below are under the TAF Accreditation Number 0659. The test location(s) used to collect the test data in this report are: 1.3 TEST ENVIRONMENT CONDITIONS Test Item Environment Condition Test Voltage Tested by Dynamic Frequency Selection (DFS) 25°C, 50% DC 5V Cheng Tsai No. 68-1, Ln. 169, Sec. 2, Datong Rd., Xizhi Dist., New Taipei City 221, Taiwan (FCC DN: TW0659) ☒ SR06 Report No.: BTL-FCCP-3-2506C116 Page 6 of 22 2 EUT INFORMATION 2.1 EUT SPECIFICATION TABLE Equipment AX3000 Dual Band Wi-Fi 6 Wireless USB Adapter Brand Name tp -link Test Model Archer TX50U Model Name Archer TX50U Model Difference N/A Software Version 5001.19.113.2 Hardware Version 1.0 Power Source Supplied from Notebook USB port. Power Rating DC 5V Operational Mode Master Slave with radar detection Slave without radar detection Operation Band UNII-2A: 5250 MHz to 5350 MHz UNII-2C: 5470 MHz to 5725 MHz Operating Frequency UNII-2A: 5260 MHz to 5320 MHz UNII-2C: 5500 MHz to 5700 MHz NOTE: 1. The above EUT information is declared by manufacturer and for more detailed features description, please refers to the manufacturer's specifications or user's manual. 2. Channel List: IEEE 802.11a IEEE 802.11n(HT20) IEEE 802.11ac(VHT20) IEEE 802.11ax(HE20) IEEE 802.11n(HT40) IEEE 802.11ac(VHT40) IEEE 802.11ax(HE40) IEEE 802.11ac(VHT80) IEEE 802.11ax(HE80) UNII-2A UNII-2A UNII-2A Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 52 5260 54 5270 58 5290 56 5280 62 5310 60 5300 64 5320 Report No.: BTL-FCCP-3-…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-2506C116 Page 276 of 281 Test Mode UNII-3_TX AC(VHT20) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/500 kHz) Duty Factor Power Spectral Density + Duty Factor (dBm/500 kHz) Max. Limit (dBm/500 kHz) Result 149 5745 -0.73 0.14 -0.59 30.00 Complies 157 5785 -1.23 0.14 -1.09 30.00 Complies 165 5825 -1.20 0.14 -1.06 30.00 Complies CH149 CH157 CH165 Test Mode UNII-3_TX AC(VHT20) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/500 kHz) Duty Factor Power Spectral Density + Duty Factor (dBm/500 kHz) Max. Limit (dBm/500 kHz) Result 149 5745 -1.13 0.14 -0.99 30.00 Complies 157 5785 -1.65 0.14 -1.51 30.00 Complies 165 5825 -1.39 0.14 -1.25 30.00 Complies CH149 CH157 CH165 Test Mode UNII-3_TX AC(VHT20) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/500 kHz) Max. Limit (dBm/500 kHz) Result 149 5745 2.22 30.00 Complies 157 5785 1.71 30.00 Complies 165 5825 1.86 30.00 Complies Report No.: BTL-FCCP-2-2506C116 Page 277 of 281 Test Mode UNII-3_TX AC(VHT40) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/500 kHz) Duty Factor Power Spectral Density + Duty Factor (dBm/500 kHz) Max. Limit (dBm/500 kHz) Result 151 5755 -4.72 0.33 -4.39 30.00 Complies 159 5795 -5.34 0.33 -5.01 30.00 Complies CH151 CH159 Test Mode UNII-3_TX AC(VHT40) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/500 kHz) Duty Factor Power Spectral Density + Duty Factor (dBm/500 kHz) Max. Limit (dBm/500 kHz) Result 151 5755 -4.25 0.33 -3.92 30.00 Complies 159 5795 -5.08 0.33 -4.75 30.00 Complies CH151 CH159 Test Mode UNII-3_TX AC(VHT40) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/500 kHz) Max. Limit (dBm/500 kHz) Result 151 5755 -1.14 30.00 Complies 159 5795 -1.87 30.00 Complies Report No.: BTL-FCCP-2-2506C116 Page 278 of 281 Test Mode UNII-3_TX AC(VHT80) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/500 kHz) Duty Factor Power Spectral Density + Duty Factor (dBm/500 kHz) Max. Limit (dBm/500 kHz) Result 155 5775 -9.35 0.72 -8.63 30.00 Complies CH155 Test Mode UNII-3_TX AC(VHT80) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/500 kHz) Duty Factor Power Spectral Density + Duty Factor (dBm/500 kHz) Max. Limit (dBm/500 kHz) Result 155 5775 -8.55 0.72 -7.83 30.00 Complies CH155 Test Mode UNII-3_TX AC(VHT80) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/500 kHz) Max. Limit (dBm/500 kHz) Result 155 5775 -5.20 30.00 Complies Report No.: BTL-FCCP-2-2506C116 Page 279 of 281 Test Mode UNII-3_TX AX(HE20) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/500 kHz) Duty Factor Power Spectral Density + Duty Factor (dBm/500 kHz) Max. Limit (dBm/500 kHz) Result 149 5745 -0.75 0.20 -0.55 30.00 Complies 157 5785 -1.22 0.20 -1.02 30.00 Complies 165 5825 -1.37 0.20 -1.17 30.00 Complies CH149 CH157 CH165 Test Mode UNII-3_TX AX(HE20) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/500 kHz) Duty Factor Power Spectral Density + Duty Factor (dBm/500 kHz) Max. Limit (dBm/500 kHz) Result 149 5745 -1.63 0.20 -1.43 30.00 Complies 157 5785 -2.42 0.20 -2.22 30.00 Complies 165 5825 -1.95 0.20 -1.75 30.00 Complies CH149 CH157 CH165 Test Mode UNII-3_TX AX(HE20) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/500 kHz) Max. Limit (dBm/500 kHz) Result 149 5745 2.04 30.00 Complies 157 5785 1.43 30.00 Complies 165 5825 1.56 30.00 Complies Report No.: BTL-FCCP-2-2506C116 Page 280 of 281 Test Mode UNII-3_TX AX(HE40) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/500 kHz) Duty Factor Power Spectral Density + Duty Factor (dBm/500 kHz) Max. Limit (dBm/500 kHz) Result 151 5755 -4.83 0.37 -4.46 30.00 Complies 159 5795 -5.58 0.37 -5.21 30.00 Complies CH151 CH159 Test Mode UNII-3_TX AX(HE40) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/500 kHz) Duty Factor Power Spectral Density + Duty Factor (dBm/500 kHz) Max. Limit (dBm/500 kHz) Result 151 5755 -4.43 0.37 -4.06 30.00 Complies 159 5795 -5.70 0.37 -5.33 30.00 Complies CH151 CH159 Test Mode UNII-3_TX AX(HE40) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/500 kHz) Max. Limit (dBm/500 kHz) Result 151 5755 -1.25 30.00 Complies 159 5795 -2.26 30.00 Complies Report No.: BTL-FCCP-2-2506C116 Page 281 of 281 Test Mode UNII-3_TX AX(HE80) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/500 kHz) Duty Factor Power Spectral Density + Duty Factor (dBm/500 kHz) Max. Limit (dBm/500 kHz) Result 155 5775 -8.78 0.67 -8.11 30.00 Complies CH155 Test Mode UNII-3_TX AX(HE80) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/500 kHz) Duty Factor Power Spectral Density + Duty Factor (dBm/500 kHz) Max. Limit (dBm/500 kHz) Result 155 5775 -7.94 0.67 -7.27 30.00 Complies CH155 Test Mode UNII-3_TX AX(HE80) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/500 kHz) Max. Limit (dBm/500 kHz) Result 155 5775 -4.66 30.00 Complies End of Test Report

Report No.: BTL-FCCP-2-2506C116 Page 208 of 281 Test Mode UNII-3_TX AX(HE20) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 149 5745 15.150 18.700 0.5 Complies 157 5785 15.050 18.700 0.5 Complies 165 5825 15.200 18.700 0.5 Complies CH149 CH157 CH165 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2506C116 Page 209 of 281 Test Mode UNII-3_TX AX(HE40) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 151 5755 30.400 37.400 0.5 Complies 159 5795 30.390 37.400 0.5 Complies CH151 CH159 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2506C116 Page 210 of 281 Test Mode UNII-3_TX AX(HE80) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 155 5775 71.400 75.600 0.5 Complies CH155 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2506C116 Page 211 of 281 APPENDIX E OUTPUT POWER Report No.: BTL-FCCP-2-2506C116 Page 212 of 281 Test Mode UNII-1_TX A Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 13.74 0.16 13.90 23.98 0.2500 Complies 40 5200 15.77 0.16 15.93 23.98 0.2500 Complies 48 5240 15.82 0.16 15.98 23.98 0.2500 Complies Test Mode UNII-1_TX A Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 13.63 0.16 13.79 23.98 0.2500 Complies 40 5200 15.55 0.16 15.71 23.98 0.2500 Complies 48 5240 15.64 0.16 15.80 23.98 0.2500 Complies Test Mode UNII-1_TX A Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 16.85 23.98 0.2500 Complies 40 5200 18.83 23.98 0.2500 Complies 48 5240 18.90 23.98 0.2500 Complies Report No.: BTL-FCCP-2-2506C116 Page 213 of 281 Test Mode UNII-1_TX AC(VHT20) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 13.68 0.14 13.82 23.98 0.2500 Complies 40 5200 15.98 0.14 16.12 23.98 0.2500 Complies 48 5240 15.66 0.14 15.80 23.98 0.2500 Complies Test Mode UNII-1_TX AC(VHT20) Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 13.33 0.14 13.47 23.98 0.2500 Complies 40 5200 15.79 0.14 15.93 23.98 0.2500 Complies 48 5240 15.41 0.14 15.55 23.98 0.2500 Complies Test Mode UNII-1_TX AC(VHT20) Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 16.66 23.98 0.2500 Complies 40 5200 19.04 23.98 0.2500 Complies 48 5240 18.69 23.98 0.2500 Complies Report No.: BTL-FCCP-2-2506C116 Page 214 of 281 Test Mode UNII-1_TX AC(VHT40) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 38 5190 13.73 0.33 14.06 23.98 0.2500 Complies 46 5230 15.69 0.33 16.02 23.98 0.2500 Complies Test Mode UNII-1_TX AC(VHT40) Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 38 5190 13.58 0.33 13.91 23.98 0.2500 Complies 46 5230 15.67 0.33 16.00 23.98 0.2500 Complies Test Mode UNII-1_TX AC(VHT40) Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 38 5190 17.00 23.98 0.2500 Complies 46 5230 19.02 23.98 0.2500 Complies Report No.: BTL-FCCP-2-2506C116 Page 215 of 281 Test Mode UNII-1_TX AC(VHT80) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 42 5210 12.99 0.72 13.71 23.98 0.2500 Complies Test Mode UNII-1_TX AC(VHT80) Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 42 5210 12.87 0.72 13.59 23.98 0.2500 Complies Test Mode UNII-1_TX AC(VHT80) Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 42 5210 16.66 23.98 0.2500 Complies Report No.: BTL-FCCP-2-2506C116 Page 216 of 281 Test Mode UNII-1_TX AX(HE20) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 13.58 0.20 13.78 23.98 0.2500 Complies 40 5200 15.71 0.20 15.91 23.98 0.2500 Complies 48 5240 15.57 0.20 15.77 23.98 0.2500 Complies Test Mode UNII-1_TX AX(HE20) Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 13.48 0.20 13.68 23.98 0.2500 Complies 40 5200 15.45 0.20 15.65 23.98 0.2500 Complies 48 5240 15.56 0.20 15.76 23.98 0.2500 Complies Test Mode UNII-1_TX AX(HE20) Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 16.74 23.98 0.2500 Complies 40 5200 18.79 23.98 0.2500 Complies 48 5240 18.78 23.98 0.2500 Complies Report No.: BTL-FCCP-2-2506C116 Page 217 of 281 Test Mode UNII-1_TX AX(HE40) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 38 5190 13.87 0.37 14.24 23.98 0.2500 Complies 46 5230 15.78 0.37 16.15 23.98 0.2500 Complies Test Mode UNII-1_TX AX(HE40) Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 38 5190 13.65 0.37 14.02 23.98 0.2500 Complies 46 5230 15.85 0.37 16.22 23.98 0.2500 Complies Test Mode UNII-1_TX AX(HE40) Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 38 5190 17.14 23.98 0.2500 Complies 46 5230 19.20 23.98 0.2500 Complies Report No.: BTL-FCCP-2-2506C116 Page 218 of 281 Test Mode UNII-1_TX AX(HE80) Mode_Ant. 1 Channel Frequency (MHz) Output Power (…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-2506C116 Page 183 of 281 Test Mode UNII-1_TX AX(HE20) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 36 5180 20.750 19.100 40 5200 20.400 18.700 48 5240 20.350 18.700 CH36 CH40 CH48 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2506C116 Page 184 of 281 Test Mode UNII-1_TX AX(HE40) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 38 5190 39.500 37.200 46 5230 39.600 37.400 CH38 CH46 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2506C116 Page 185 of 281 Test Mode UNII-1_TX AX(HE80) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 42 5210 83.600 76.000 CH42 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2506C116 Page 186 of 281 Test Mode UNII-2A_TX A Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 52 5260 18.450 16.200 60 5300 18.400 16.200 64 5320 18.400 16.200 CH52 CH60 CH64 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2506C116 Page 187 of 281 Test Mode UNII-2A_TX AC(VHT20) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 52 5260 19.390 17.300 60 5300 19.350 17.300 64 5320 19.350 17.300 CH52 CH60 CH64 26 dB Bandwidth 99 % Occupied Bandwidth Report No.:…

Text truncated - open the document above for the full version.
