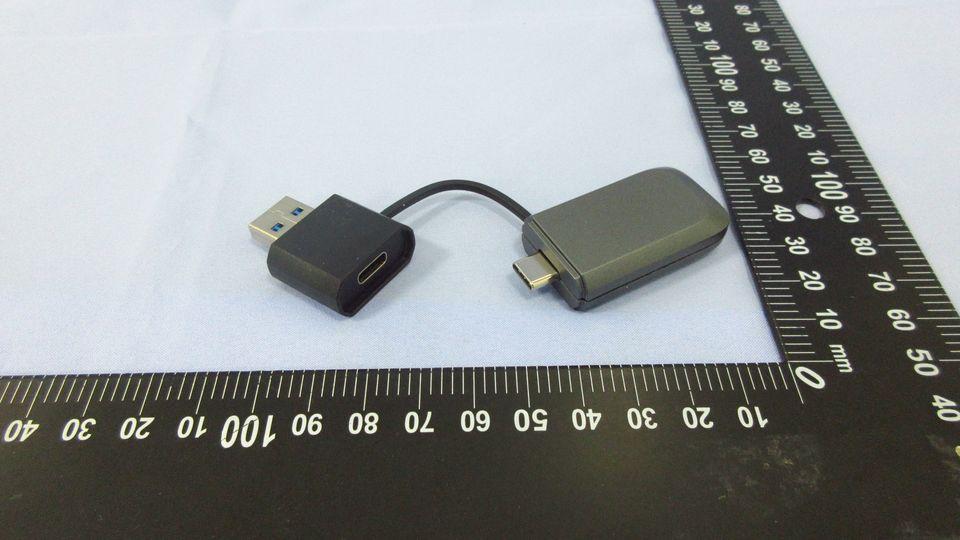

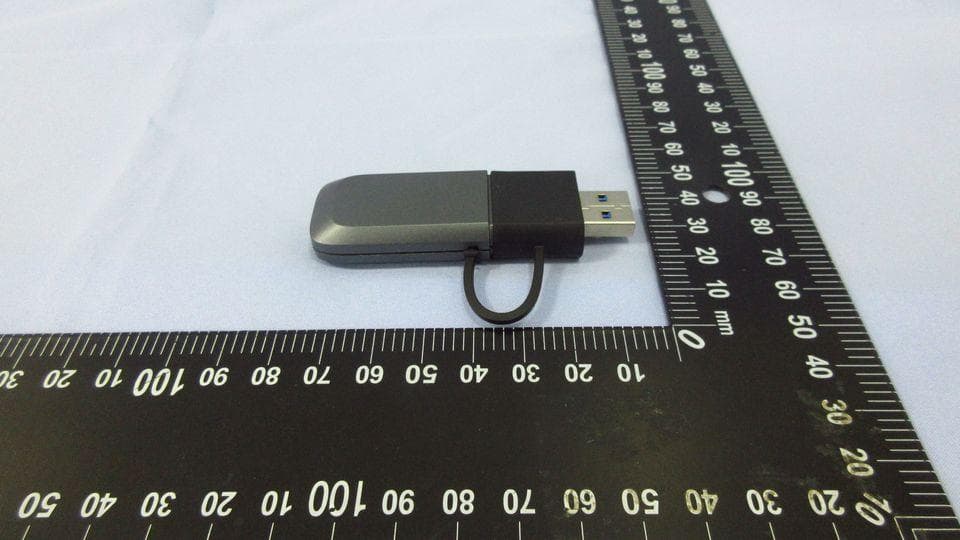

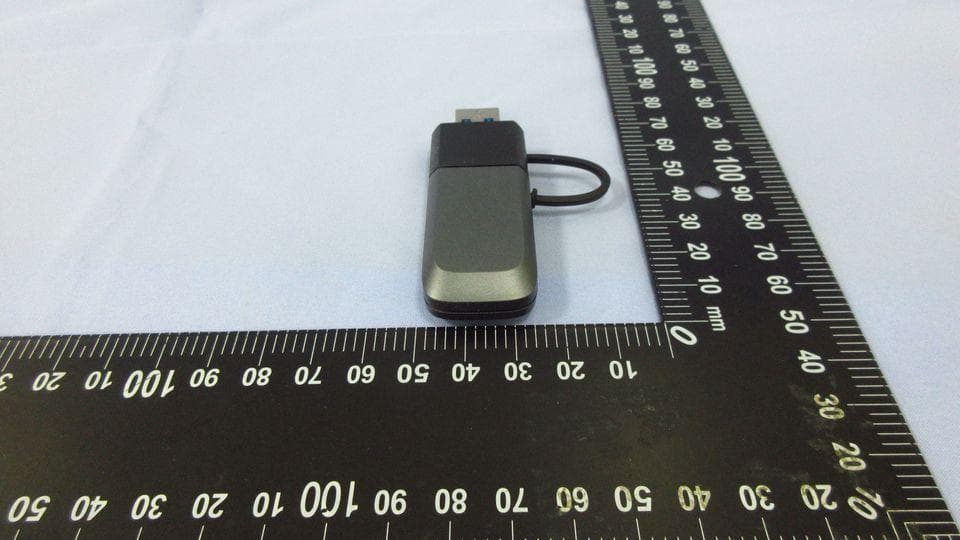

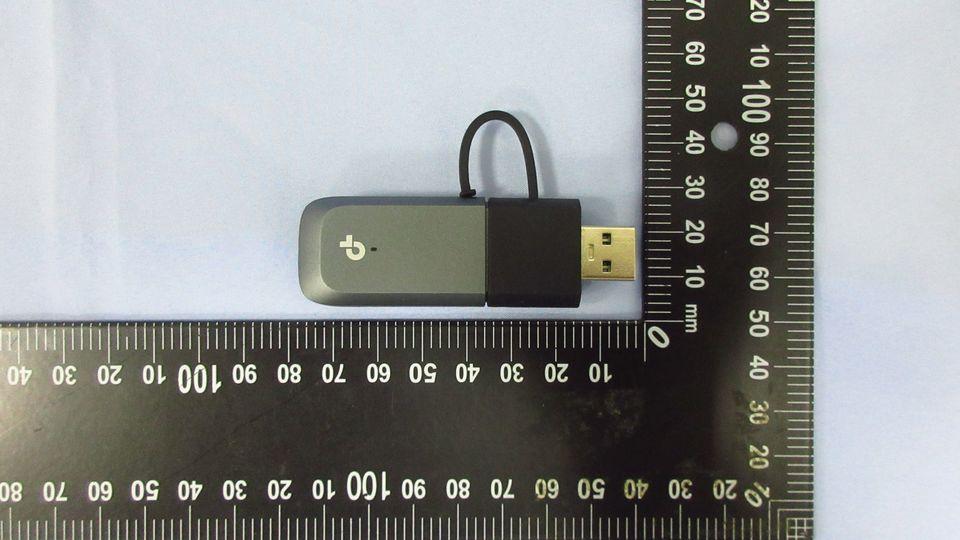

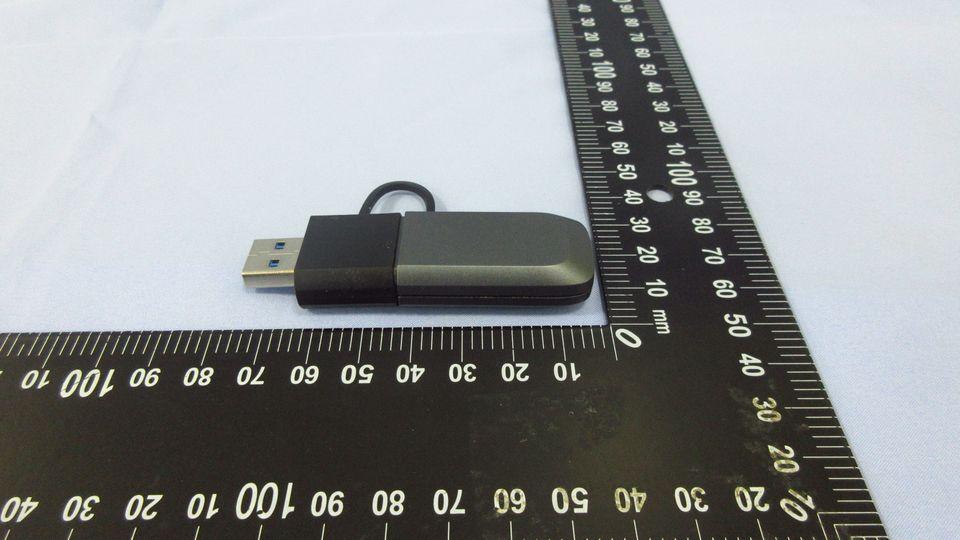

2BH7FTXE70UAXE5400 Tri-Band Wi-Fi 6E Mini Wireless USB Adapter

Authentication FCC compliance information statement Product Name: AXE5400 Tri-Band Wi-Fi 6E Mini Wireless USB Adapter Model Number: Archer TXE70U Responsible Party: TP-Link Systems Inc. Address: 10 Mauchly, Irvine, CA 92618 Website: http://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: [email protected] This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure StatementThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment has been SAR-evaluated for use in hand. SAR measurements are based on a 5mm spacing from the body and that compliance is achieved at that distance. We, TP-Link Systems Inc., has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated. Transmitters in the 5.925-7.125 GHz band are prohibited from operating to control or communicate with unmanned aircraft systems. Issue Date: 2026-05-25 CE Mark Warning OPERATING FREQUENCY (the maximum transmitted power) 2400 MHz -2483.5 MHz (20dBm) 5150 MHz -5250 MHz (23dBm) 5250 MHz -5350 MHz (23dBm) 5470 MHz -5725 MHz (23dBm) EU Declaration of Conformity TP-Link hereby declares that the AX3000 Dual Band Wi-Fi 6 Wireless USB Adapter is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863. The original EU Declaration of Conformity may be found at https://www.tp- link.com/en/support/ce/. RF Exposure Information This device has been tested and meets the ICNIRP exposure guidelines and the European Standard EN 62209-2. SAR is measured with this device at a separation of 0.5 cm to the body, while transmitting at the highest certified output power level in all frequency bands of this device. Carry this device at least 0.5 cm away from your body to ensure exposure levels remain at or below the as-tested levels. National Restrictions Frequency band: 5150 - 5250 MHz: Indoor use: Inside buildings only. Installations and use inside road vehicles and train carriages are not permitted. Limited outdoor use: If used outdoors, equipment shall not be attached to a fixed installation or to the external body of road vehicles, a fixed infrastructure or a fixed outdoor antenna. Use by unmanned aircraft systems (UAS) is limited to within the 5170 - 5250 MHz band. Frequency band: 5250 - 5350 MHz: Indoor use: Inside buildings only. Installations and use in road vehicles, trains and aircraft are not permitted. Outdoor use is not permitted. Frequency band: 5470 - 5725 MHz: Installations and use in road vehicles, trains and aircraft and use for unmanned aircraft systems (UAS) are not permitted. UKCA Mark UK Declaration of Conformity TP-Link hereby declares that the AX3000 Dual Band Wi-Fi 6 Wireless USB Adapter is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017. The original UK Declaration of Conformity may be found at https://www.tp- link.com/support/ukca/. Attention: This device may only be used indoors in Great Britain. Canadian Compliance Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: This device may not cause interference. This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: l’appareil ne doit pas produire de brouillage; l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, meme si le brouillage est susceptible d’en compromettre le fonctionnement. Caution: The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potent…

Text truncated - open the document above for the full version.

2 Install Driver a. Go to My Computer or This PC. b. Double-click the TP-Link CD Drive, then run SetupInstall.exe to install the driver. SetupInstall.exe Note: • If you cannot find the setup program, please download the driver at www.tp-link.com/support. You can also check for new releases and download the latest drivers on this website. • If an unknown publisher message pops up, then select Ye s to continue. • If Windows User Account Control requires your admin credentials, type the user name and password of your Windows administrator account. 1 Connect to a Computer Note: • It is recommended to connect the adapter to a USB 3.0 port. • If you are experiencing an unstable wireless connection with your adapter, try a different USB port on your computer. OR USB-C ConnectorComputer USB-C Port Computer USB-A Port USB-A Connector Wireless USB Adapter Quick Installation Guide Images are for demonstration only. 7100002090 REV1.0.0©2025 TP-Link TP-Link hereby declares that the Wireless USB Adapter is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2011/65/EU and (EU) 2015/863. The original EU Declaration of Conformity may be found at https://www.tp-link.com/en/support/ce TP-Link hereby declares that the Wireless USB Adapter is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017. The original UK Declaration of Conformity may be found at https://www.tp-link.com/support/ukca Safety Information For technical support, replacement services, user guides, and other information, please visit https://www.tp-link.com/support, or simply scan the QR code. Support · Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us. · Do not use the device where wireless devices are not allowed. · Keep the device away from water, fire, humidity or hot environments. · This equipment can be powered only by equipments that comply with Power Source Class 2 (PS2) or Limited Power Source (LPS) defined in the standard of IEC 62368-1. If you have problems during the installation, please refer to the following online FAQs. 3 Join a Wireless Network a. Click the network icon on the taskbar (the icon might look like one of these: , , , or ). b. Select your Wi-Fi network, click Connect and enter the password when prompted. Network 6 Connected Network settings Connect automatically Connect √ TP-Link_XXXX Troubleshooting ? T1. Can’t find the hardware version of the adapter: https://www.tp-link.com/faq-46.html T2. Can’t find or connect to the wireless networks: https://www.tp-link.com/faq-2253.html T3. Can’t install the driver: https://www.tp-link.com/faq-2252.html

MRT Technology (Suzhou) Co., Ltd. Report No.: R25S1039102-U401 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 2026-06-01 Template Version: 2.1 1 of 78 SAR MEASUREMENT REPORT FCC ID: 2BH7FTXE70U Applicant: TP-Link Systems Inc. Product: AXE5400 Tri-Band Wi-Fi 6E Mini Wireless USB Adapter Model No.: Archer TXE70U Brand Name: tp-link FCC Rule Part(s): FCC 47 CFR Part 2.1093 Result: Complies Received Date: 2025-10-29 Test Date: 2025-12-04 ~ 2026-01-29 Reviewed By: Yuri Li Approved By: Robin Wu The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report. Testing was performed in accordance with the applicable measurement procedures. The test results reported herein apply only to the specific item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: R25S1039102-U401 2 of 78 Revision History Report No. Version Description Issue Date Note R25S1039102-U401 V01 Initial Report 2026-06-01 Valid Report No.: R25S1039102-U401 3 of 78 CONTENTS Description Page 1. General Information ................................................................................................................................ 5 1.1. Applicant ....................................................................................................................................... 5 1.2. Manufacturer ................................................................................................................................. 5 1.3. Testing Facility .............................................................................................................................. 5 1.4. Product Information ....................................................................................................................... 6 1.5. Radio Specification under Test ..................................................................................................... 6 1.6. Antennas Details ........................................................................................................................... 7 2. Summary of Test Result ......................................................................................................................... 8 2.1. Test Standards .............................................................................................................................. 8 2.2. Environment Condition .................................................................................................................. 8 2.3. RF Exposure Limits below 6 GHz ................................................................................................. 9 2.4. RF Exposure Limits above 6 GHz ................................................................................................ 9 2.5. Test Result Summary ................................................................................................................. 10 3. Specific Absorption Rate (SAR) ........................................................................................................... 11 3.1. Introduction ................................................................................................................................. 11 3.2. Definition ..................................................................................................................................... 11 4. DASY6 Measurement System .............................................................................................................. 12 4.1. Introduction ................................................................................................................................. 12 4.2. DASY6 Measurement System Diagram ..................................................................................... 12 4.3. System Components Details ....................................................................................................... 14 5. The SAR Measurement Procedure ...................................................................................................... 27 5.1. Measurement Process Diagram ................................................................................................. 27 5.2. Test Position Definition ............................................................................................................... 28 5.3. Test Procedure ........................................................................................................................... 31 6. System Verification ............................................................................................................................... 34 6.1. SAR Tissue Check ...................................................................................................................... 34 6.2. SAR System Check .................................................................................................................... 37 6.3. PD System Check ....................................................................................................................... 40 7. Analysis and Results ............................................................................................................................ 41 7.1. Antenna Location ........................................................................................................................ 41 7.2. Conducted Power ....................................................................................................................... 41 7.3. SAR Test Results ........................................................................................................................ 50 7.4. PD Test Results .......................................................................................................................... 53 8…

Text truncated - open the document above for the full version.

Report No.: R25S1039102-UT 1 of 5 SAR Test Setup Photograph Description: Horizontal-UP Position with 5 mm gap Description: Horizontal-UP_Type C Position with 5 mm gap Report No.: R25S1039102-UT 2 of 5 Description: Horizontal-Down Position with 5 mm gap Description: Horizontal-Down_Type C Position with 5 mm gap Report No.: R25S1039102-UT 3 of 5 Description: Vertical-Front Position with 5 mm gap Description: Vertical-Back Position with 5 mm gap Report No.: R25S1039102-UT 4 of 5 Description: Vertical-Back_Type C Position with 5 mm gap Report No.: R25S1039102-UT 5 of 5 PD Test Setup Photograph Description: Vertical-Back Position with 2 mm gap

Report No.: 2510TW0117-UT 1 of 7 Wi-Fi 2.4GHz Test Photograph Description: Front View of Conducted Emission Test Setup Description: Back View of Conducted Emission Test Setup Report No.: 2510TW0117-UT 2 of 7 Description: Radiated Emission Test Setup for below 1GHz Description: Radiated Emission Test Setup for above 1GHz Report No.: 2510TW0117-UT 3 of 7 Description: Radiated Emission Test Setup for 18GHz~40GHz Description: Radiated Emission Test Setup for 9kHz~30MHz Report No.: 2510TW0117-UT 4 of 7 Description: Conducted Measurement Test Setup Description: DFS Test Setup Report No.: 2510TW0117-UT 5 of 7 Wi-Fi 5GHz / 6GHz Test Photograph Description: Front View of Conducted Emission Test Setup Description: Back View of Conducted Emission Test Setup Report No.: 2510TW0117-UT 6 of 7 Description: Radiated Emission Test Setup for below 1GHz Description: Radiated Emission Test Setup for above 1GHz Report No.: 2510TW0117-UT 7 of 7 Description: Conducted Measurement Test Setup Description: Adaptivity Test Setup

Report No.: 2510TW0117-U2 Page Number: 52 of 179 802.11 ax40 CH03 (2422MHz) 802.11 ax40 CH03 (2422MHz) 802.11 ax40 CH06 (2437MHz) 802.11 ax40 CH06 (2437MHz) 802.11 ax40 CH09 (2452MHz) 802.11 ax40 CH09 (2452MHz) Report No.: 2510TW0117-U2 Page Number: 53 of 179 7.6. Radiated Spurious Emission Measurement 7.6.1.Test Limit All out of band emissions appearing in a restricted band as specified in Section 15.205 of the Title 47CFR must not exceed the limits shown in Table per Section 15.209. FCC Part 15 Subpart C Paragraph 15.209 Frequency [MHz] Field Strength [Uv/m] Measured Distance [Meters] 0.009 - 0.490 2400/F (kHz) 300 0.490 - 1.705 24000/F (kHz) 30 1.705 - 30 30 30 30 - 88 100 3 88 - 216 150 3 216 - 960 200 3 Above 960 500 3 7.6.2.Test Procedure Used ANSI C63.10-2020 Section 11.11 & 11.12 ANSI C63.10-2020 Section 6.3 (General Requirements) ANSI C63.10-2020 Section 6.4 (Standard test method below 30MHz) ANSI C63.10-2020 Section 6.5 (Standard test method above 30MHz to 1GHz) ANSI C63.10-2020 Section 6.6 (Standard test method above 1GHz) 7.6.3.Test Setting Table 1 - RBW as a function of frequency Frequency RBW 9 ~ 150 kHz 200 ~ 300 Hz 0.15 ~ 30 MHz 9 ~ 10 kHz 30 ~ 1000 MHz 100 ~ 120 kHz > 1000MHz 1MHz Report No.: 2510TW0117-U2 Page Number: 54 of 179 Quasi-Peak Measurements below 1GHz 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. Span was set greater than 1MHz 3. RBW = as specified in Table 1 4. Detector = CISPR quasi-peak 5. Sweep time = auto couple 6. Trace was allowed to stabilize Peak Measurements above 1GHz 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = 1MHz 3. VBW = 3MHz 4. Detector = peak 5. Sweep time = auto couple 6. Trace mode = max hold 7. Trace was allowed to stabilize Average Measurements above 1GHz (Method VB) 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = 1MHz 3. VBW; If the EUT is configured to transmit with duty cycle ≥ 98%, set VBW = 10 Hz. If the EUT duty cycle is < 98%, set VBW ≥ 1/T. T is the minimum transmission duration. 4. Detector = Peak 5. Sweep time = auto 6. Trace mode = max hold 7. Trace was allowed to stabilize Report No.: 2510TW0117-U2 Page Number: 55 of 179 7.6.4.Test Setup Below 1GHz Test Setup: Above 1GHz Test Setup: Report No.: 2510TW0117-U2 Page Number: 56 of 179 7.6.5.Test Result EUT AXE5400 Tri-Band Wi-Fi 6E Mini Wireless USB Adapter Date of Test 2025-12-29 Factor VULB 9162 Temp. / Humidity 22C /63% Polarity Horizontal Site / Test Engineer AC1 / James Test Mode 802.11n-20MHz_TX_CH 6_ANT 0+1 Test Voltage By Notebook PC No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 * 46.855 11.35 20.54 31.89 -8.11 40.00 150 155 QP 2 86.724 13.08 15.75 28.83 -11.17 40.00 150 205 QP 3 134.488 17.67 15.16 32.83 -10.67 43.50 150 285 QP 4 236.804 15.02 19.53 34.55 -11.45 46.00 100 235 QP 5 356.809 7.48 22.69 30.17 -15.83 46.00 100 140 QP 6 717.026 4.58 28.70 33.28 -12.72 46.00 100 45 QP Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB/m) + Cable Loss (dB). 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. 5. The amplitude of radiated emissions (frequency range from 9kHz to 30MHz) is that proximity to ambient noise, which also are attenuated more than 20dB below the permissible value. Therefore, the data is not presented in the report. Report No.: 2510TW0117-U2 Page Number: 57 of 179 EUT AXE5400 Tri-Band Wi-Fi 6E Mini Wireless USB Adapter Date of Test 2025-12-29 Factor VULB 9162 Temp. / Humidity 22C /63% Polarity Vertical Site / Test Engineer AC1 / James Test Mode 802.11n-20MHz_TX_CH 6_ANT 0+1 Test Voltage By Notebook PC No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 * 44.375 13.34 20.29 33.63 -6.37 40.00 100 60 QP 2 82.298 15.99 14.40 30.39 -9.61 40.00 150 120 QP 3 237.856 7.61 19.58 27.19 -18.81 46.00 150 190 QP 4 425.476 11.06 23.66 34.72 -11.28 46.00 100 210 QP 5 716.047 3.65 28.69 32.34 -13.66 46.00 100 360 QP 6 996.912 11.64 32.16 43.80 -10.20 54.00 100 175 QP Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB/m) + Cable Loss (dB). 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. 5. The amplitude of radiated emissions (frequency range from 9kHz to 30MHz) is that proximity to ambient noise, which also are attenuated more than 20dB below the permissible value. Therefore, the data is not presented in the report. Report No.: 2510TW0117-U2 Page Number: 58 of 179 EUT AXE5400 Tri-Band Wi-Fi 6E Mini Wireless USB Adapter Date of Test 2026-01-08 Factor DRH18-E Temp. / Humidity 21C /41% Polarity Horizontal Site / Test Engineer AC1 / James Test Mode 802.11b_TX_CH 1_ANT 0+1 Test Voltage By Notebook PC No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 4824.000 39.74 4.56 44.30 -29.70 74.00 100 299 Peak 2 7236.000 35.36 9.57 44.93 -29.07 74.00 100 237 Peak 3 * 9648.000 38.59 9.12 47.71 -26.29 74.00 100 313 Peak Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB/m) + Cable Loss (dB) – Preamplifier(dB). 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2510TW0117-U2 Page Number: 59 of 179 EUT AXE5400 Tri-Band Wi-Fi 6E Mini Wireless USB Adapter Date of Test 2026-01-08 Factor DRH18-E Temp. / Humidity 21C /41% Pol…

Text truncated - open the document above for the full version.

Report No.: 2510TW0117-U2 Page Number: 42 of 179 802.11 g CH01 (2412MHz) 802.11 g CH01 (2412MHz) 802.11 g CH06 (2437MHz) 802.11 g CH06 (2437MHz) 802.11 g CH11 (2462MHz) 802.11 g CH11 (2462MHz) Report No.: 2510TW0117-U2 Page Number: 43 of 179 802.11 n20 CH01 (2412MHz) 802.11 n20 CH01 (2412MHz) 802.11 n20 CH06 (2437MHz) 802.11 n20 CH06 (2437MHz) 802.11 n20 CH11 (2462MHz) 802.11 n20 CH11 (2462MHz) Report No.: 2510TW0117-U2 Page Number: 44 of 179 802.11 n40 CH03 (2422MHz) 802.11 n40 CH03 (2422MHz) 802.11 n40 CH06 (2437MHz) 802.11 n40 CH06 (2437MHz) 802.11 n40 CH09 (2452MHz) 802.11 n40 CH09 (2452MHz) Report No.: 2510TW0117-U2 Page Number: 45 of 179 802.11 ax20 CH01 (2412MHz) 802.11 ax20 CH01 (2412MHz) 802.11 ax20 CH06 (2437MHz) 802.11 ax20 CH06 (2437MHz) 802.11 ax20 CH11 (2462MHz) 802.11 ax20 CH11 (2462MHz) Report No.: 2510TW0117-U2 Page Number: 46 of 179 802.11 ax40 CH03 (2422MHz) 802.11 ax40 CH03 (2422MHz) 802.11 ax40 CH06 (2437MHz) 802.11 ax40 CH06 (2437MHz) 802.11 ax40 CH09 (2452MHz) 802.11 ax40 CH09 (2452MHz) Report No.: 2510TW0117-U2 Page Number: 47 of 179 Ant 1 802.11 b CH01 (2412MHz) 802.11 b CH01 (2412MHz) 802.11 b CH06 (2437MHz) 802.11 b CH06 (2437MHz) 802.11 b CH11 (2462MHz) 802.11 b CH11 (2462MHz) Report No.: 2510TW0117-U2 Page Number: 48 of 179 802.11 g CH01 (2412MHz) 802.11 g CH01 (2412MHz) 802.11 g CH06 (2437MHz) 802.11 g CH06 (2437MHz) 802.11 g CH11 (2462MHz) 802.11 g CH11 (2462MHz) Report No.: 2510TW0117-U2 Page Number: 49 of 179 802.11 n20 CH01 (2412MHz) 802.11 n20 CH01 (2412MHz) 802.11 n20 CH06 (2437MHz) 802.11 n20 CH06 (2437MHz) 802.11 n20 CH11 (2462MHz) 802.11 n20 CH11 (2462MHz) Report No.: 2510TW0117-U2 Page Number: 50 of 179 802.11 n40 CH03 (2422MHz) 802.11 n40 CH03 (2422MHz) 802.11 n40 CH06 (2437MHz) 802.11 n40 CH06 (2437MHz) 802.11 n40 CH09 (2452MHz) 802.11 n40 CH09 (2452MHz) Report No.: 2510TW0117-U2 Page Number: 51 of 179 802.11 ax20 CH01 (2412MHz) 802.11 ax20 CH01 (2412MHz) 802.11 ax20 CH06 (2437MHz) 802.11 ax20 CH06 (2437MHz) 802.11 ax20 CH11 (2462MHz) 802.11 ax20 CH11 (2462MHz)

MRT Technology (Taiwan) Co., Ltd Report No.: 2510TW0117-U2 Phone: +886-3-3288388 Report Version: 1.0 Web: www.mrt-cert.com Issue Date: 2026-04-13 Page Number: 1 of 179 FCC ID : 2BH7FTXE70U Applicant : TP-Link Systems Inc. Application Type : Certification Product : AXE5400 Tri-Band Wi-Fi 6E Mini Wireless USB Adapter Model No. : Archer TXE70U Brand Name : tp-link FCC Classification : Digital Transmission System (DTS) FCC Rule Part(s) : Part15 Subpart C (Section 15.247) Test Procedure(s) : ANSI C63.10-2020+Cor 1-2023+C63.10a-2024 + Errata to C63.10a-2024 Received Date : October 30, 2025 Test Date : December 29, 2025~January 10, 2026 MEASUREMENT REPORT The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2020. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Test By : ( Kaunaz Lee ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) Report No.: 2510TW0117-U2 Page Number: 2 of 179 Revision History Report No. Version Description Issue Date Note 2510TW0117-U2 1.0 Original Report 2026-04-13 Report No.: 2510TW0117-U2 Page Number: 3 of 179 CONTENTS Description Page 1. INTRODUCTION ...................................................................................................................... 6 1.1. Scope ........................................................................................................................... 6 1.2. MRT Test Location ....................................................................................................... 6 2. PRODUCT INFORMATION ...................................................................................................... 7 2.1. Feature of Equipment under Test ................................................................................. 7 2.2. Product Specification Subjective to this Report ............................................................ 7 2.3. Working Frequencies for this report .............................................................................. 8 2.4. Description of Available Antennas ................................................................................. 9 2.5. Test Mode .................................................................................................................. 10 2.6. Configuration of Test System ...................................................................................... 11 2.7. Test System Details ................................................................................................... 12 2.8. Description of Test Software ....................................................................................... 12 2.9. Applied Standards ...................................................................................................... 12 2.10. Duty Cycle .............................................................................................................. 13 2.11. Test Configuration .................................................................................................. 14 2.12. EMI Suppression Device(s)/Modifications ............................................................... 14 2.13. Labeling Requirements ........................................................................................... 14 3. DESCRIPTION of TEST ......................................................................................................... 15 3.1. Evaluation Procedure ................................................................................................. 15 3.2. AC Line Conducted Emissions ................................................................................... 15 3.3. Radiated Emissions .................................................................................................... 16 4. ANTENNA REQUIREMENTS................................................................................................. 17 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................. 18 6. MEASUREMENT UNCERTAINTY ......................................................................................... 20 7. TEST RESULT ....................................................................................................................... 21 7.1. Summary .................................................................................................................... 21 7.2. 6dB Bandwidth Measurement ..................................................................................... 22 7.2.1. Test Limit ................................................................................................................ 22 7.2.2. Test Procedure used ............................................................................................... 22 7.2.3. Test Setting ............................................................................................................. 22 7.2.4. Test Setup .............................................................................................................. 22 7.2.5. Test Result .............................................................................................................. 23 7.3. Output Power Measurement ................................................…
