2BH82-X1Dog training collar

1 Dog Training Guide Basic Obedience Training with E-Collar 2 狗狗训练指南 E-Collar的基本服从训练 3 Dog Training Collar Introduction Whether training companion, working, or sport dog, we all want a happy and willing puppy that responds quickly to commands at a distance and under distraction. Your new collar is a powerful training tool that can help you reach that goal. electronic training collar (e-collar) is a safe, reliable, and effective training tool. With it, you can make perfectly timed corrections even at great distances. In addition, the adjustable intensity feature allows you to match the stimulation of the training collar to your dog’s temperament and the distraction level of the moment for maximum training efficiency. However, correcting to stop unwanted behavior is only a fraction of what you can do with your e-collar. Here is an example of a dog training collar that consists of the Remote Transmitter and Receiver Collar: 4 训犬项圈介绍 无论是训练伙伴、工作犬还是运动犬，我们都想要一只快乐、乐于助人 的小狗，它能在远距离、分心的情况下对命令做出快速反应。你的新项 圈是一个强大的训练工具，可以帮助你达到这个目标。 电子训练项圈（e- collar）是一种安全、可靠、有效的训练工具。有了它，即使在很远的距 离上，你也可以进行完美的定时校正。此外，可调节的强度功能使你能 够将训练项圈的刺激与你的狗的气质和当时的分心程度相匹配，以获得 最大的训练效率。然而，纠正不必要的行为只是你使用电子贺卡所能做 的一小部分。 以下是由远程发射器和接收器项圈组成的狗狗训练项圈的示例： 5 e-collar can be a powerful tool for encouraging desired behavior. But first, you must identify an e-collar intensity setting for your dog that is high enough to be noticed but not so high as to be disruptive. Then, your dog must learn to act in response to the e- collar and that he can, by his actions, control it. You will find this method of e-collar training is even gentler than many traditional leash-training methods. Additionally, the e-collar improves communication by provid- ing instant feedback to your dog during training. This reduces confusion, fosters a pos- itive training attitude, and accelerates learning, rapidly producing off-leash reliability. Even if your dog already knows the basic obedience commands, follow the procedures given. Your dog must learn how to respond to the e-collar for each command before you can use your collar for training at a distance. Find the Best Stimulation Level for Your Pet Important: Start with the vibration mode first & use the static shock mode as a last resort. Based on the model, the Remote Trainer can have anywhere from 1 to16 different stimulation levels. This allows you to choose the level that is best for your pet. Once you have placed the Receiver Collar on your pet, it is time to find the Stimulation Level that is best for him. This is called the Recognition Level. A slight change in your pet’s behavior, such as looking around in curiosity, scratching at his collar, or flicking his ears, indicates the Recognition Level that is best for him. Follow the steps below to find your pet’s Recognition Level: 1. Starting at the Lowest Level of stimulation on the Remote Display, press the Vibration or Shock Stimulation Button continuously (further referred to as an [S] button). 2. If your pet shows no reaction, repeat the Stimulation Level several times before moving up to the next level. 3. YOUR PET SHOULD NOT BARK OR PANIC WHEN RECEIVING STIMULATION. IF THIS HAPPENS, THE STIMULATION LEVEL IS TOO HIGH AND YOU NEED TO GO BACK TO THE PREVIOUS LEVEL AND REPEAT THE PROCESS. 6 电子贺卡可以成为鼓励理想行为的有力工具。但首先，你必须为你的狗确定一个电子项 圈强度设置，该设置足够高，足以引起注意，但又不至于高到破坏性的程度。然后，你 的狗必须学会对电子项圈做出反应，并通过自己的行为来控制它。 你会发现这种电子项圈训练方法甚至比许多传统的皮带训练方法更温和。此外，电子项 圈通过在训练过程中向狗狗提供即时反馈来改善沟通。这减少了混乱，培养了积极的训 练态度，加速了学习，迅速产生了不受约束的可靠性。 即使你的狗已经知道了基本的服从命令，也要遵循给出的程序。在你可以使用项圈进行 远距离训练之前，你的狗必须学会如何对每个命令的电子项圈做出反应。 为您的宠物找到最佳刺激级别 重要提示：首先从振动模式开始，最后使用静态冲击模式。 基于该模型，远程训练器可以具有1到16种不同的刺激水平。这可以让你选择最适合你宠 物的等级。一旦你把接收器项圈放在你的宠物身上，是时候找到最适合他的刺激等级了 。这被称为识别级别。宠物行为的轻微变化，如好奇地环顾四周、抓它的项圈或弹它的 耳朵，都表明它的识别水平最适合它。 按照以下步骤查找您宠物的识别级别： 1.从远程显示器上的最低刺激水平开始，连续按下振动或电击刺激按钮（也称为[S]按钮 ）。 2.如果你的宠物没有反应，在升级到下一个级别之前，重复刺激级别几次。 3.你的宠物在接受刺激时不应该吠叫或惊慌。如果发生这种情况，刺激水平太高，你需 要回到以前的水平并重复这个过程。 7 4. Move up through the Stimulation Levels until your pet reliably responds to the stim- ulation. 5. If your pet continues to show no response at the Highest Level, check the fit of the Receiver Collar. If your pet has long or thick fur, use the longer set of Contact Points. Then go back to step 1 and repeat the process. If this still does not yield any results, your pet’s hair will need to be trimmed around the Contact Points. Teaching Basic Obedience The “Sit” Command 1. Put a separate, non-metallic collar on your pet’s neck ABOVE the Receiver Collar, and attach a 10-foot leash. Note: Be sure the extra collar does not put pressure on the Contact Points. 2. Hold the leash and the Remote Transmitter in one hand. Keep your other hand free to guide your pet into a “Sit” position. 3. Press and hold the [S] Button, starting at your pet’s Recognition Level. 4. Immediately give the “Sit” command while continuing to hold the [S] Button. 5. Release the [S] Button as soon as your pet is in position, and praise him. 6. Release your pet from the “Sit” command and play. 7. Repeat Steps 2 through 6. Note: If your pet breaks the “Sit” command, repeat steps 3 through 6. Keep your pet close to you while teaching the “Sit” command. 4.通过刺激级别向上移动，直到您的宠物对刺激做出可靠反应。 5.如果您的宠物在最高级别上仍然没有反应，请检查接收器项圈的贴合度。 如果宠物的毛发较长或较厚，请使用较长的“接触点”集。然后返回步骤1并 重复该过程。如果这仍然没有产生任何结果，则需要在接触点周围修剪宠物 的毛发。 教学基本服从 “坐”命令 1.在接收项圈上方的宠物脖子上放一个单独的非金属项圈，并系上一条10英 尺长的皮带。注意：确保额外的套环不会对接触点造成压力。 2.一只手握住皮带和遥控发射器。保持你的另一只手自由，引导你的宠物进 入“坐”的姿势。 3.按住[S]按钮，从您宠物的识别级别开始。 4.在继续按住[S]按钮的同时，立即发出“坐”的命令。 5.一旦你的宠物就位，就松开[S]按钮，并表扬他。 6.将你的宠物从“坐下”命令中释放出来，开始玩耍。 7.重复步骤2到6。 注意：如果你的宠物违反了“坐”的命令，重复步骤3到6。在教授“坐下”命令 时，让你的宠物靠近你。 The “Come” Command 1. Put a separate, non-metallic collar on your pet’s neck ABOVE the Receiver Collar, and attach a 10-foot leash. Note: Be sure the extra collar does not put pressure onthe Contact Points. 2. Hold your leash in one hand and the Remote Transmitter in the other. 3. Wait for your pet to walk away from you. Using the Recognition Level for your pet, press and hold the [S] Button on your Remote. 4. Immediately give the command “Come” while conti…

Text truncated - open the document above for the full version.

Xiongxing Precision Moulding (Huizhou) Co., Ltd. 2024.08.09 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2BH82-X1 [Xiongxing Precision Moulding (Huizhou) Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Sun fake Xiongxing Precision Moulding (Huizhou) Co., Ltd. 2024.08.09 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2BH82-X1 [Xiongxing Precision Moulding (Huizhou) Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Sun fake

Xiongxing Precision Moulding (Huizhou) Co., Ltd. 2024.08.09 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Dog training collar Trademark: N/A MODEL : X1 FCC ID : 2BH82-X1 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Sun fake /Manager Contact information / address: First floor(Factory Building B), Xinpi Village Group, Changbu Village, Xinxu Town, Huiyang District, Huizhou City, China

Xiongxing Precision Moulding (Huizhou) Co., Ltd. 2024.08.09 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Sun fake /Manager Contact information / address:First floor(Factory Building B), Xinpi Village Group, Changbu Village, Xinxu Town, Huiyang District, Huizhou City, China

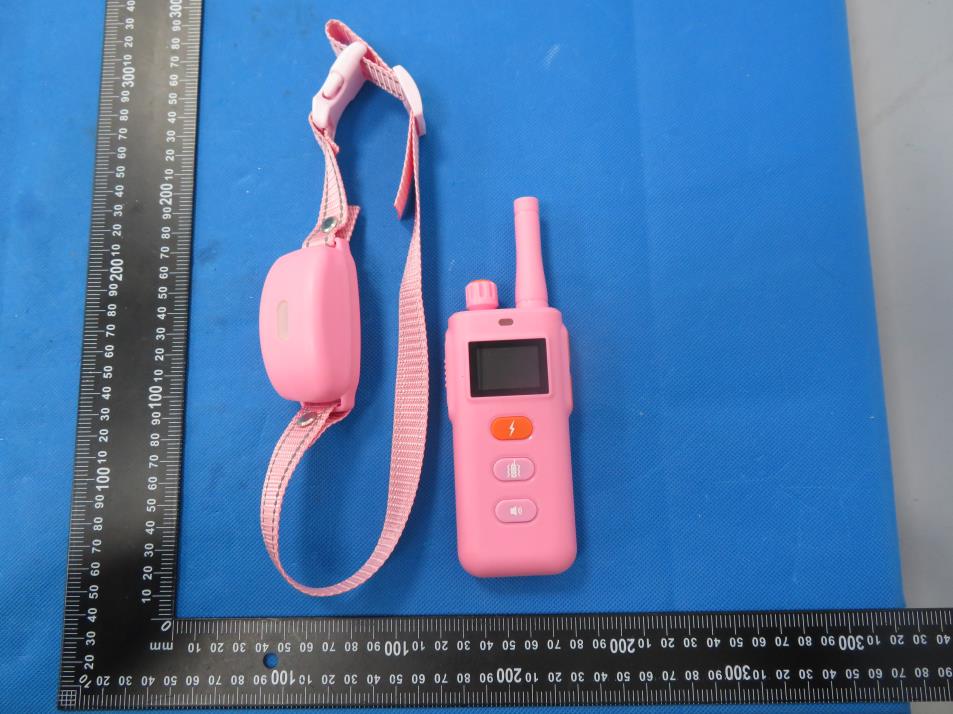

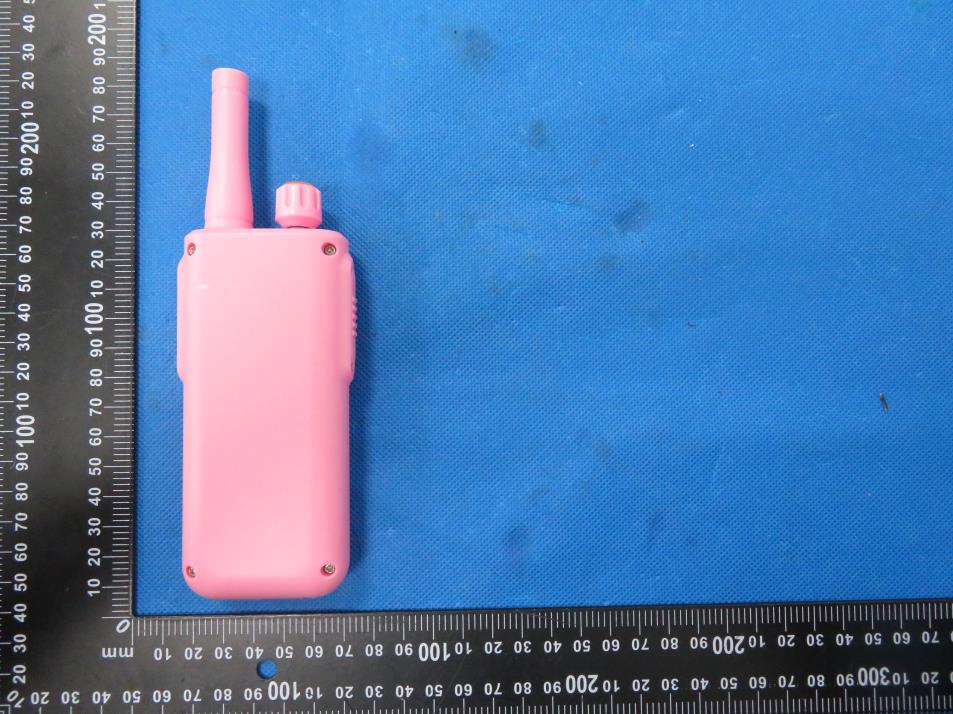

External Photos

Label & label location 20mm*10mm FCC ID:2BH82-X1

Internal Photos Antenna

RF EXPOSURE EVALUATION METHOD FCC ID:2BH82-X1 Applicable standard： In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEEC95.1-1992. and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Modulation Test Channel Output Power (dBuV/m) Output Power (dBm) ASK 433.72 53.66 -46.24 Below 1GHz: dBm=dBuV/m-95.2-4.7 max possible output power (PK,ERP)：-46dBm±1dBm -2.05dBi logarithmic terms convert to numeric result is nearly 0.62 -45dBm=0.00003mW 433.72MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 0.00003/5*√0.43372=0.00000417≤3.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required.

深圳市艾汇科技有限公司 ShenzhenAIHUITechnologyCo.,LTD 深圳市艾汇科技有限公司 拟定 曹杨 产品规格书 版本A 发文部门研发部发行日期18.05.04 产品规格承认书 移动通信终端天线 产品设计与制造 产品名称:0067-发射 客户名称：安服优 客户料号：/ 客户客户 深圳市艾汇科技有限公 司 客户确认品质研发部结构核准 日期：年月日日期： 2023 年 07 月 04 日 深圳市艾汇科技有限公司 ShenzhenAIHUITechnologyCo.,LTD 地址：深圳市宝安区西乡固戍南昌路58号钜鑫科技产业园C栋4楼 TEL ： 0755-23203435 FAX ： 0755-23203435 深 圳 市艾 汇科 技 有 限 公 司 ShenzhenAIHUITechnologyCo.,LTD 深 圳 市艾 汇科 技 有 限 公 司 拟定 曹杨 产品规格书 版本A 发文部门研发部发行日期18.05.04 1. 目的 对于深圳市艾汇科技有限公司出品的移动通信终端天线产品规格、测试方法进行规范，避免因测试条 件，方法的不同引起误差。 2. 产品类别和产品型号概述 2.1 产品型号概述 这份报告主要概述的是0067-发射项目所设计的天线的电气结果。此天线设计频段为:433Mhz 段。 3. 基本参数和实验设备说明 3.1 基本参数 产品电气性能指标 工作频率范围 433 MHz 驻波比 433 MHz: < 2.0 天线增益 433MHz:--2.05dbi 辐射效率 433 MHz: > 25 % 阻抗50 ohm 产品材料说明 433弹簧镍丝 热缩管Pvc 产品环境说明 工作温度- 30 ̊C ~ + 85 ̊C 储藏温度- 30 ̊C ~ + 85 ̊C 3.2 实验设备说明 ListTestingprojectEquipment 1. S Parameters 1.Returnloss 2. VSWRat Networkanalyzer:Agilent8753ES 2. Couplingpower test 1. Transmissionpower 2. Receivingsensitivity Comprehensivetester: Agilent8960 E5515C 3. Radiationpatternand gain 1. Radiationpattern 2. Antennagain 1. Darkroom：7x4x3 m (3D) 2. Networkanalyzer：Agilent 8753ES 深圳市艾汇科技有限公司 ShenzhenAIHUITechnologyCo.,LTD 深圳市艾汇科技有限公司 拟定 曹杨 产品规格书 版本A 发文部门研发部发行日期18.05.04 4.天线测试数据 测试数据： 433Mhz Freq(MHz)Efficiency(%)Gain(dBi) 43033.25-1.77 43134.45-1.87 43233.65-1.98 43331.25-2.05 43430.25-2.54 43529.58-2.36 43634.25-1.98 43731.52-2.03 43831.30-2.25 深 圳 市 艾 汇 科 技 有 限 公 司 Shenzhen AIHUI Technology Co., LTD 深 圳 市 艾 汇 科 技 有 限 公 司 拟定 曹杨 产品规格书 版本A 发文部门研发部发行日期18.05.04 5.1 天线驻波比 6.1 天线结构图纸 深 圳 市 艾 汇 科 技 有 限 公 司 Shenzhen AIHUI Technology Co., LTD 深 圳 市 艾 汇 科 技 有 限 公 司 拟定 曹杨 产品规格书 版本A 发文部门研发部发行日期18.05.04 unit：mm

No.：BCTC/RF-EMC-005 Page: 1 of 33 Edition：B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2407513639E Applicant: Xiongxing Precision Moulding (Huizhou) Co., Ltd. Product Name: Dog training collar Test Model: X1 Tested Date: 2024-07-18 to 2024-08-06 Issued Date: 2024-08-06 Report No.: BCTC2407513639E No.：BCTC/RF-EMC-005 Page: 2 of 33 Edition：B.2 FCC ID:2BH82-X1 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Dog training collar Trademark: N/A Model/Type reference: X1 Prepared For: Xiongxing Precision Moulding (Huizhou) Co., Ltd. Address: First floor(Factory Building B), Xinpi Village Group, Changbu Village, Xinxu Town, Huiyang District, Huizhou City Manufacturer: Xiongxing Precision Moulding (Huizhou) Co., Ltd. Address: First floor(Factory Building B), Xinpi Village Group, Changbu Village, Xinxu Town, Huiyang District, Huizhou City Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2024-07-18 Sample tested Date: 2024-07-18 to 2024-08-06 Issue Date: 2024-08-06 Report No.: BCTC2407513639E Test Standards: FCC Part15.231 ANSI C63.10-2013 Test Results: PASS Tested by: Approved by: Tang Changyu/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2407513639E No.：BCTC/RF-EMC-005 Page: 3 of 33 Edition：B.2 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 4 2. Test Summary ....................................................................................................... 5 3. Measurement Uncertainty ..................................................................................... 6 4. Product Information And Test Setup ..................................................................... 7 4.1 Product Information ............................................................................................... 7 4.2 Test Setup Configuration ...................................................................................... 7 4.3 Support Equipment ............................................................................................... 8 4.4 Channel List .......................................................................................................... 8 4.5 Test Mode ............................................................................................................. 8 5. Test Facility And Test Instrument Used ................................................................. 9 5.1 Test Facility ........................................................................................................... 9 5.2 Test Instrument Used ............................................................................................ 9 6. Conducted Emissions .......................................................................................... 11 6.1 Block Diagram Of Test Setup .............................................................................. 11 6.2 Limit .................................................................................................................... 11 6.3 Test Procedure ................................................................................................... 11 6.4 EUT Operating Conditions .................................................................................. 12 6.5 Test Result .......................................................................................................... 13 7. Radiated Emissions ............................................................................................. 15 7.1 Block Diagram Of Test Setup .............................................................................. 15 7.2 Limit .................................................................................................................... 16 7.3 Test Procedure ................................................................................................... 17 7.4 EUT Operating Conditions .................................................................................. 19 7.5 Test Result .......................................................................................................... 19 8. Bandwidth Test .................................................................................................... 23 8.1 Block Diagram Of Test Setup .............................................................................. 23 8.2 Limit .................................................................................................................... 23 8.3 Test Procedure ................................................................................................... 23 8.4 EUT Operating Conditions .................................................................................. 23 8.5 Test Result .......................................................................................................... 24 9. Calculation Of Average Factor ............................................................................ 25 10. Dwell Time........................................................................................................... 27 10.1 Block Diagram Of Test Setup ............................................................................ 27 10.2 Limit .................................................................................................................. 27 10.3 Test Procedure ................................................................................................. 27 10.4 Test Result ............…

Text truncated - open the document above for the full version.

13. EUT TEST SETUP PHOTOGRAPHS Conducted Emissions Photo Radiated Measurement Photos
