2BH9H-HARISON-T101Treadmill

Youngth Sports Products (Hubei) Co.,Ltd. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 8/19/2024 U.S. Agent Designation Youngth Sports Products (Hubei) Co.,Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BH9H-HARISON-T101): Name and company of U.S. agent: UUX GROUP INC Physical U.S. address of agent: 36 South 18th Avenue, Suite A Brighton, CO USA 80601 FRN of U.S. agent: 0033701590 Email address of U.S. agent: [email protected] UUX GROUP INC acknowledges their obligation to accept service of process on behalf of Youngth Sports Products (Hubei) Co.,Ltd.. Youngth Sports Products (Hubei) Co.,Ltd. with the FRN 0035797851 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature sarah xiang Manager Youngth Sports Products (Hubei) Co.,Ltd. Signature Jack Fu Manager UUX GROUP INC 48_[model] US_Agent_2.911(d)(7)-U, V05

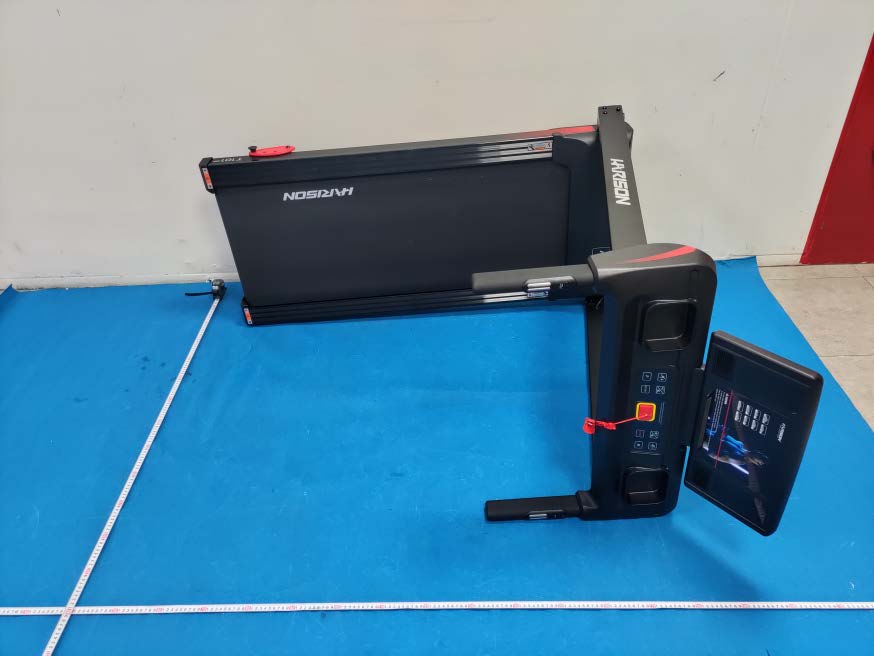

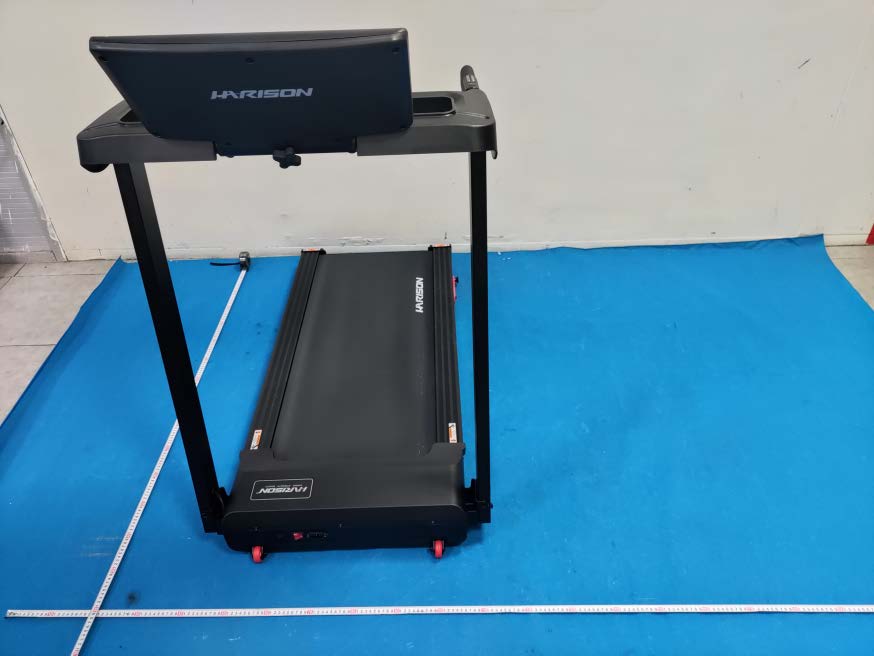

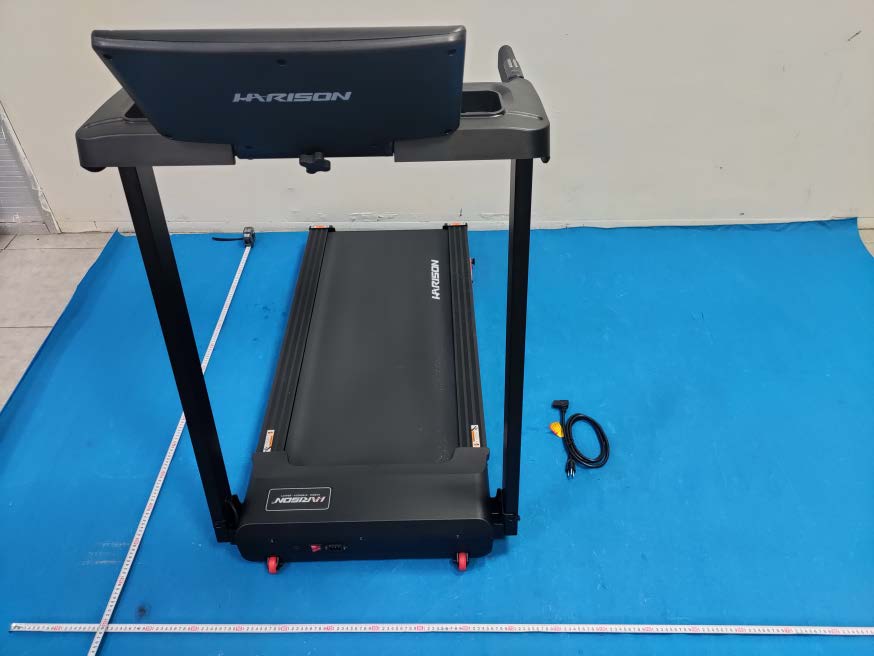

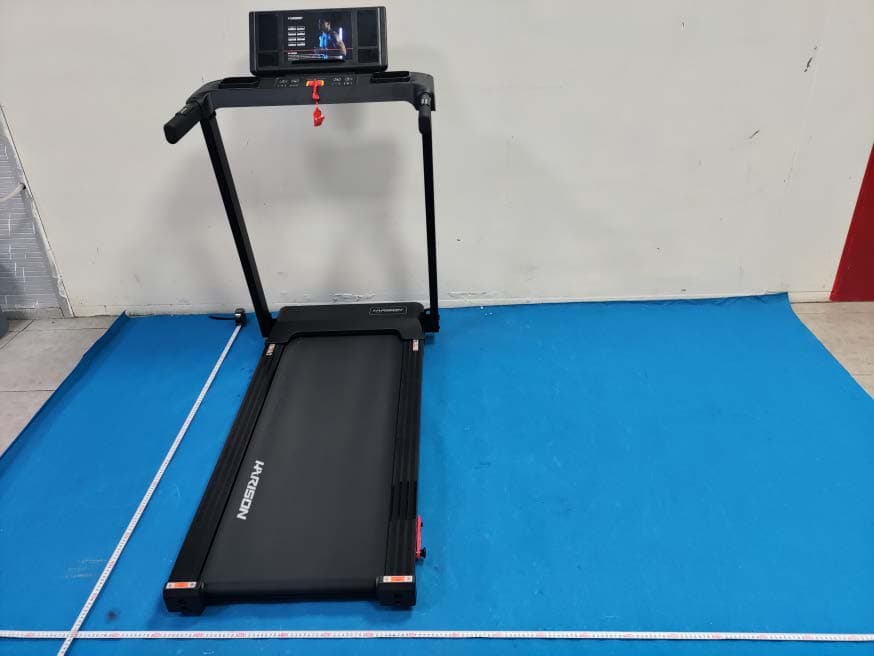

Page 1 of 4 FCC ID: 2BH9H-HARISON-T101 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. External Photos Photo 1 Photo 2 Page 2 of 4 FCC ID: 2BH9H-HARISON-T101 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 Page 3 of 4 FCC ID: 2BH9H-HARISON-T101 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 5 Photo 6 Page 4 of 4 FCC ID: 2BH9H-HARISON-T101 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 7 ------End------

Label FCCID:2BH9H-HARISON-T101

Page 1 of 13 FCC ID: 2BH9H-HARISON-T101 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Internal Photos Photo 1 Photo 2 Page 2 of 13 FCC ID: 2BH9H-HARISON-T101 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 Page 3 of 13 FCC ID: 2BH9H-HARISON-T101 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 5 Photo 6 Page 4 of 13 FCC ID: 2BH9H-HARISON-T101 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 7 Photo 8 Page 5 of 13 FCC ID: 2BH9H-HARISON-T101 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 9 Photo 10 Page 6 of 13 FCC ID: 2BH9H-HARISON-T101 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 11 Photo 12 Page 7 of 13 FCC ID: 2BH9H-HARISON-T101 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 13 Photo 14 Antenna Page 8 of 13 FCC ID: 2BH9H-HARISON-T101 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 15 Photo 16 Page 9 of 13 FCC ID: 2BH9H-HARISON-T101 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 17 Photo 18 Page 10 of 13 FCC ID: 2BH9H-HARISON-T101 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 19 Photo 20 Page 11 of 13 FCC ID: 2BH9H-HARISON-T101 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 21 Photo 22 Page 12 of 13 FCC ID: 2BH9H-HARISON-T101 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 23 Photo 24 Page 13 of 13 FCC ID: 2BH9H-HARISON-T101 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 25 Photo 26 ------End------

RF Exposure evaluation FCC ID: 2BH9H-HARISON-T101 Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.1. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.2. Manufacturing tolerance BLE(Conducted) Frequency (MHz) BLE 1M 2402 2440 2480 Target (dBm) -4.0 -3.0 -2.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) BLE 2M 2402 2440 2480 Target (dBm) -4.0 -3.0 -2.0 Tolerance ± (dB) 1.0 1.0 1.0 Page 2 of 2 BR_EDR (Conducted) Frequency (MHz) BR_EDR_GFSK 2402 2441 2480 Target (dBm) 0.0 0.0 0.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) BR_EDR_π/4-DQPSK 2402 2441 2480 Target (dBm) 1.0 1.0 1.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) BR_EDR_8-DPSK 2402 2441 2480 Target (dBm) 1.0 1.0 1.0 Tolerance ± (dB) 1.0 1.0 1.0 2 . E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) Max.RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BLE 2.5 5 -1 0.79 0.251<3 Yes BR_EDR 2.5 5 2.0 1.58 0.50<3 Yes 3 . C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

Page 1 of 39 Report No.: AiTDG-240725001W2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. TEST REPORT Client Information: Applicant: Youngth Sports Products (Hubei) Co.,Ltd. Applicant add.: Room A207, No.7 Zhengda Road, XiaoTing District, Yichang City, Hubei Province, China Manufacturer: DONGGUAN JOGWAY FITNESS EQUIPMENT CO., LTD Manufacturer add.: NO.4 DENGWU,SHUIBEI VILLAGE,SHIPAI TOWN,DONGGUAN CITY,GUANGDONG,CHINA. Product Information: Product Name: Treadmill Model No.: HR-101, HR-101A Brand Name: HARISON FCC ID: 2BH9H-HARISON-T101 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Prepared By: Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang,Dongguan, Guangdong, China Tel.: +86-769-8202 0499 Fax.: +86-769-8202 0495 Date of Receipt: July 25, 2024 Date of Test: July 25, 2024~Aug. 08, 2024 Date of Issue: Aug. 08, 2024 Test Result: Pass This device described above has been tested by Dongguan Yaxu (AiT) Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Dongguan Yaxu (AiT) Technology Limited, this document may be altered or revised by Dongguan Yaxu (AiT) Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Emiya Lin Simba Huang Page 2 of 39 Report No.: AiTDG-240725001W2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. 1 Contents Page COVER PAGE 1 CONTENTS .................................................................................................................................................................... 2 2 TEST SUMMARY .......................................................................................................................................................... 4 2.1 Statement of the Measurement Uncertainty ................................................................................ 4 2.2 Measurement Uncertainty ........................................................................................................... 4 3 TEST FACILITY ............................................................................................................................................................. 5 3.1 Deviation from standard .............................................................................................................. 5 3.2 Abnormalities from standard conditions ...................................................................................... 5 3.3 Test Location ............................................................................................................................... 5 4 GENERAL INFORMATION ......................................................................................................................................... 6 4.1 Test frequencies .......................................................................................................................... 7 4.2 EUT Peripheral List ..................................................................................................................... 8 4.3 Test Peripheral List ...................................................................................................................... 8 4.4 TEST METHODOLOGY .............................................................................................................. 9 4.5 Description of Test Modes ......................................................................................................... 10 5 EQUIPMENT USED DURING TEST ........................................................................................................................ 11 6 TEST RESULTS AND MEASUREMENT DATA .................................................................................................... 13 6.1 Antenna requirement ................................................................................................................. 13 6.2 Peak Power Measurement ........................................................................................................ 14 6.3 Frequency Separation and 20 dB Bandwidth ............................................................................ 16 6.4 Number of Hopping Frequency ................................................................................................. 18 6.5 Time of Occupancy (Dwell Time) .............................................................................................. 19 6.6 Conducted Spurious Emissions and Band Edges Test ............................................................. 21 6.7 Restrict-band Band-edge Measurements ................................................................................. 23 6.8 Radiated Emissions Measurement ........................................................................................... 25 6.9 Conducted Emissions ................................................................................................................ 35 6.10 Pseudorandom frequency hopping sequence .......................................................................... 38 7 TEST SETUP PHOTOGRAPHS OF EUT ................................................................................................................ 39 8 EXTERNAL PHOTOGRAPHS OF EUT ................................................................................................................... 39 9 INTERNAL PHOTOGRAPHS OF EUT .................................................................................................................... 39 Page 3 of 39 Report No.: A…

Text truncated - open the document above for the full version.

Dongguan Yaxu(AiT) Technology Limited Report No.: AiTDG-240725001W2 FCC ID: 2BH9H-HARISON-T101 Page 1 of 61 Appendix A RF Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: Treadmill Trade Mark: HARISON Test Model: HR-101 Environmental Conditions Temperature: 24.6 C Relative Humidity: 52.4% ATM Pressure: 100.0 kPa Test Engineer: Emiya lin Supervised by: Simba Haung Dongguan Yaxu(AiT) Technology Limited Report No.: AiTDG-240725001W2 FCC ID: 2BH9H-HARISON-T101 Page 2 of 61 Contents Page COVER PAGE 1 Duty Cycle....................................................................................................................................................................................... 3 1.1 Test Result .......................................................................................................................................................................... 3 1.2 Test Graphs ......................................................................................................................................................................... 4 2 Maximum Conducted Peak Output Power ....................................................................................................................................... 9 2.1 Test Result .......................................................................................................................................................................... 9 2.2 Test Graphs ....................................................................................................................................................................... 10 3 20dB Bandwidth ............................................................................................................................................................................ 15 3.1 Test Result ........................................................................................................................................................................ 15 3.2 Test Graphs ....................................................................................................................................................................... 16 4 Carrier Frequency Separation ....................................................................................................................................................... 21 4.1 Test Result ........................................................................................................................................................................ 21 4.2 Test Graphs ....................................................................................................................................................................... 22 5 Hopping Channel Number ............................................................................................................................................................. 24 5.1 Test Result ........................................................................................................................................................................ 24 5.2 Test Graphs ....................................................................................................................................................................... 25 6 Dwell Time .................................................................................................................................................................................... 27 6.1 Test Result ........................................................................................................................................................................ 27 6.2 Test Graphs ....................................................................................................................................................................... 28 7 RF Conducted Spurious Emissions ............................................................................................................................................... 31 7.1 Test Result ........................................................................................................................................................................ 31 7.2 Test Graphs ....................................................................................................................................................................... 32 8 Band-edge for RF Conducted Emissions ....................................................................................................................................... 41 8.1 Test Result ........................................................................................................................................................................ 41 8.2 Test Graphs ....................................................................................................................................................................... 42 9 Restrict-band band-edge measurements ....................................................................................................................................... 54 9.1 Test Result ........................................................................................................................................................................ 54 9.2 Test Graphs ....................................................................................................................................................................... 56 Dongguan Yaxu(AiT) Technology Limited Report No.: AiTDG-240725001W2 FCC ID: 2BH9H-HARISON-T101 Page 3 of 61 1 Duty Cycle 1.1 Test Result Mode Frequency (MHz) Duty Cycle (%) Correction Factor 1/T (kHz) 1-DH1 2402 30.71 5.13 2.7 1-DH1 2441 31 5.09 2.63 1-DH1 2480 31.21 5.06 2.63 2-DH1 2402 32 4.95 2.56 2-DH1 2441 32.01 4.95 2.56 2-DH1 2480 32 4.95 2.56 3-DH1 2402 31.21 5.06 2.63 3-DH1 2441 32 4.95 2.56 3-DH1 2480 32.01 4.95 2.56 Don…

Text truncated - open the document above for the full version.

Dongguan Yaxu(AiT) Technology Limited Report No.: AiTDG-240725001W2 FCC ID: 2BH9H-HARISON-T101 Page 36 of 61 π/4DQPSK_MCH_Graphs Pref Puw Dongguan Yaxu(AiT) Technology Limited Report No.: AiTDG-240725001W2 FCC ID: 2BH9H-HARISON-T101 Page 37 of 61 π/4DQPSK_HCH_Graphs Pref Puw Dongguan Yaxu(AiT) Technology Limited Report No.: AiTDG-240725001W2 FCC ID: 2BH9H-HARISON-T101 Page 38 of 61 8DPSK_LCH_Graphs Pref Puw Dongguan Yaxu(AiT) Technology Limited Report No.: AiTDG-240725001W2 FCC ID: 2BH9H-HARISON-T101 Page 39 of 61 8DPSK_MCH_Graphs Pref Puw Dongguan Yaxu(AiT) Technology Limited Report No.: AiTDG-240725001W2 FCC ID: 2BH9H-HARISON-T101 Page 40 of 61 8DPSK_HCH_Graphs Pref Puw Dongguan Yaxu(AiT) Technology Limited Report No.: AiTDG-240725001W2 FCC ID: 2BH9H-HARISON-T101 Page 41 of 61 8 Band-edge for RF Conducted Emissions 8.1 Test Result Mode Channe l Carrier Frequency [MHz] Frequenc y Hopping Max Spurious Level [dBc] Limit [dBc] Verdict GFSK LCH 2402 Off -48.09 -20 Pass On -47.17 -20 Pass HCH 2480 Off -55.39 -20 Pass On -46.85 -20 Pass π/4DQPSK LCH 2402 Off -48.98 -20 Pass On -46.58 -20 Pass HCH 2480 Off -53.59 -20 Pass On -47.42 -20 Pass 8DPSK LCH 2402 Off -47.81 -20 Pass On -48.48 -20 Pass HCH 2480 Off -53.85 -20 Pass On -45.77 -20 Pass Dongguan Yaxu(AiT) Technology Limited Report No.: AiTDG-240725001W2 FCC ID: 2BH9H-HARISON-T101 Page 42 of 61 8.2 Test Graphs Test Graphs Pref GFSK/LCH/No Hop Dongguan Yaxu(AiT) Technology Limited Report No.: AiTDG-240725001W2 FCC ID: 2BH9H-HARISON-T101 Page 43 of 61 Ref GFSK/LCH/Hop Dongguan Yaxu(AiT) Technology Limited Report No.: AiTDG-240725001W2 FCC ID: 2BH9H-HARISON-T101 Page 44 of 61 Ref GFSK/HCH/No Hop Dongguan Yaxu(AiT) Technology Limited Report No.: AiTDG-240725001W2 FCC ID: 2BH9H-HARISON-T101 Page 45 of 61 Ref. GFSK/HCH/Hop Dongguan Yaxu(AiT) Technology Limited Report No.: AiTDG-240725001W2 FCC ID: 2BH9H-HARISON-T101 Page 46 of 61 Ref π/4DQPSK/LCH/No Hop Dongguan Yaxu(AiT) Technology Limited Report No.: AiTDG-240725001W2 FCC ID: 2BH9H-HARISON-T101 Page 47 of 61 Ref π/4DQPSK/LCH/Hop Dongguan Yaxu(AiT) Technology Limited Report No.: AiTDG-240725001W2 FCC ID: 2BH9H-HARISON-T101 Page 48 of 61 Ref π/4DQPSK/HCH/No Hop Dongguan Yaxu(AiT) Technology Limited Report No.: AiTDG-240725001W2 FCC ID: 2BH9H-HARISON-T101 Page 49 of 61 Ref π/4DQPSK/HCH/Hop Dongguan Yaxu(AiT) Technology Limited Report No.: AiTDG-240725001W2 FCC ID: 2BH9H-HARISON-T101 Page 50 of 61 Ref 8DPSK/LCH/No Hop Dongguan Yaxu(AiT) Technology Limited Report No.: AiTDG-240725001W2 FCC ID: 2BH9H-HARISON-T101 Page 51 of 61 Ref 8DPSK/LCH/Hop Dongguan Yaxu(AiT) Technology Limited Report No.: AiTDG-240725001W2 FCC ID: 2BH9H-HARISON-T101 Page 52 of 61 Ref 8DPSK/HCH/No Hop Dongguan Yaxu(AiT) Technology Limited Report No.: AiTDG-240725001W2 FCC ID: 2BH9H-HARISON-T101 Page 53 of 61 Ref 8DPSK/HCH/Hop Dongguan Yaxu(AiT) Technology Limited Report No.: AiTDG-240725001W2 FCC ID: 2BH9H-HARISON-T101 Page 54 of 61 9 Restrict-band band-edge measurements 9.1 Test Result Test Mode Hopping Freq. Power [dBm] Gain Duty Factor E [dBuV/m] Detector Limit [dBuV/m] Verdict GFSK Off 2310.0 -49.13 2 - 48.13 PEAK 74 Pass Off 2310.0 -56.7 2 5.13 45.69 AV 54 Pass Off 2377.968 -43.62 2 - 53.64 PEAK 74 Pass Off 2377.968 -52.86 2 5.13 49.53 AV 54 Pass Off 2390.0 -49.71 2 - 47.55 PEAK 74 Pass Off 2390.0 -56.03 2 5.13 46.36 AV 54 Pass Off 2483.5 -48.94 2 - 48.32 PEAK 74 Pass Off 2483.5 -55.64 2 5.06 46.68 AV 54 Pass Off 2495.536 -46.02 2 - 51.24 PEAK 74 Pass Off 2498.056 -55.19 2 5.06 47.13 AV 54 Pass Off 2500.0 -49.55 2 - 47.71 PEAK 74 Pass Off 2500.0 -55.57 2 5.06 46.75 AV 54 Pass π/4DQPSK Off 2310.0 -50.45 2 - 46.81 PEAK 74 Pass Off 2310.0 -56.53 2 4.95 45.68 AV 54 Pass Off 2377.872 -44.53 2 - 52.73 PEAK 74 Pass Off 2378.064 -54.35 2 4.95 47.86 AV 54 Pass Off 2390.0 -49.06 2 - 48.2 PEAK 74 Pass Off 2390.0 -55.81 2 4.95 46.4 AV 54 Pass Off 2483.5 -50.6 2 - 46.66 PEAK 74 Pass Off 2483.5 -56.12 2 4.95 46.09 AV 54 Pass Off 2499.256 -45.07 2 - 52.19 PEAK 74 Pass Off 2493.328 -54.7 2 4.95 47.51 AV 54 Pass Off 2500.0 -46.78 2 - 50.48 PEAK 74 Pass Off 2500.0 -55.55 2 4.95 46.66 AV 54 Pass 8DPSK Off 2310.0 -49.9 2 - 47.36 PEAK 74 Pass Off 2310.0 -56.94 2 5.06 45.38 AV 54 Pass Off 2339.856 -45.5 2 - 51.76 PEAK 74 Pass Off 2378.064 -53.26 2 5.06 49.06 AV 54 Pass Dongguan Yaxu(AiT) Technology Limited Report No.: AiTDG-240725001W2 FCC ID: 2BH9H-HARISON-T101 Page 55 of 61 Off 2390.0 -48.09 2 - 49.17 PEAK 74 Pass Off 2390.0 -56.19 2 5.06 46.13 AV 54 Pass Off 2483.5 -48.18 2 - 49.08 PEAK 74 Pass Off 2483.5 -56.3 2 4.95 45.91 AV 54 Pass Off 2491.504 -45.28 2 - 51.98 PEAK 74 Pass Off 2498.776 -54.51 2 4.95 47.7 AV 54 Pass Off 2500.0 -47.59 2 - 49.67 PEAK 74 Pass Off 2500.0 -55.21 2 4.95 47 AV 54 Pass Dongguan Yaxu(AiT) Technology Limited Report No.: AiTDG-240725001W2 FCC ID: 2BH9H-HARISON-T101 Page 56 of 61 9.2 Test Graphs Restrict-band band-edge measurements_Hopping Off_ GFSK_PEAK (Low Channel) Restrict-band band-edge measurements_Hopping Off_ GFSK_Average (Low Channel) Dongguan Yaxu(AiT) Technology Limited Report No.: AiTDG-240725001W2 FCC ID: 2BH9H-HARISON-T101 Page 57 of 61 Restrict-band band-edge measurements_Hopping Off_ GFSK_PEAK (High Channel) Restrict-band band-edge measurements_Hopping Off_ GFSK_Average (High Channel) Dongguan Yaxu(AiT) Technology Limited Report No.: AiTDG-240725001W2 FCC ID: 2BH9H-HARISON-T101 Page 58 of 61 Restrict-band band-edge measurements_Hopping Off_π/4-DQPSK_PEAK (Low Channel) Restrict-band band-edge measurements_Hopping Off_π/4-DQPSK_Average (Low Channel) Dongguan Yaxu(AiT) Technology Limited Report No.: AiTDG-240725001W2 FCC ID: 2BH9H-HARISON-T101 Page 59 of 61 Restrict-band band-edge measurements_Hopping Off_π/4-DQPSK_PEAK (High Channel) Restrict-band band-edge measurements_Hopping Off_π/4-DQPSK_Average (High Channel) Dongguan Yaxu(AiT) Technology Limited Report No.: AiTDG-240725001W2 FCC ID: 2BH9H-HARISON-T101 Page 60 of 61 Restrict-band band-edge measurements_Hopping Off_8DPSK_PEAK (Low Channel) Restrict-ba…

Text truncated - open the document above for the full version.

Inverted F Antenna Specification Summary ITEM ANT SPEC 2.4G ANTModel Name Horizontal Vertical 2400MHz2400MHz 2450MHz2500MHz Center Frequency -1.26 -0.76 -0.58 -5.25 -2.46 -1.86 -0.58dBiMAX. Gain Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm 38.20mmAntenna Length Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Frequency Gain(dBi) (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Frequency Gain(dBi) (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Page 1 of 2 FCC ID: 2BH9H-HARISON-T101 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Test Setup Photo Radiated Emission Page 2 of 2 FCC ID: 2BH9H-HARISON-T101 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Conducted Emission ------End------
