2BHAF-T10A863-21Tablet computer

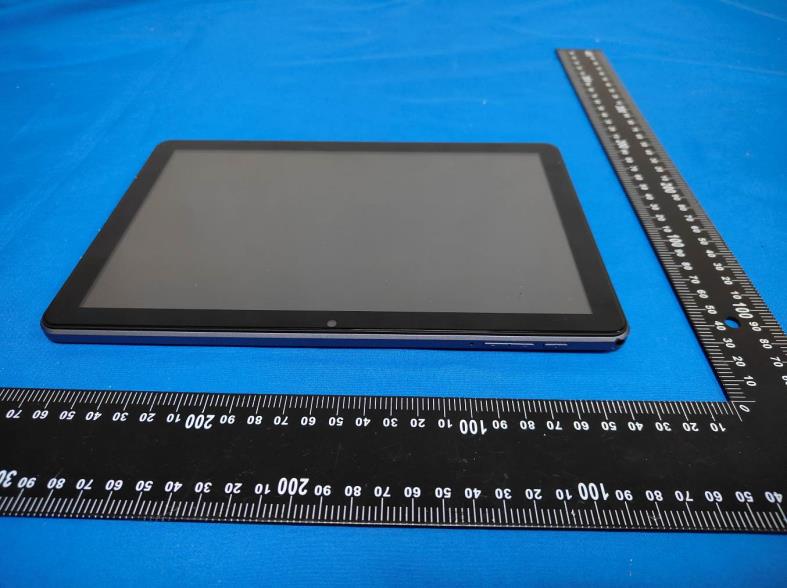

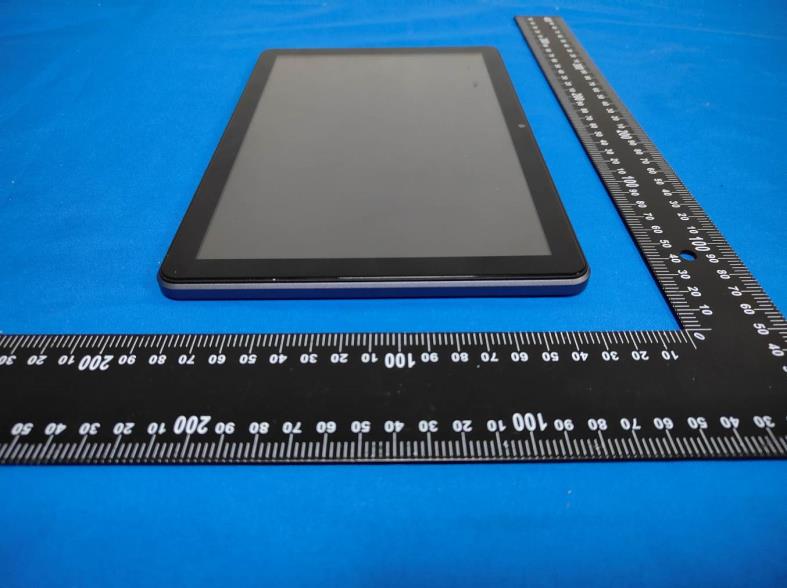

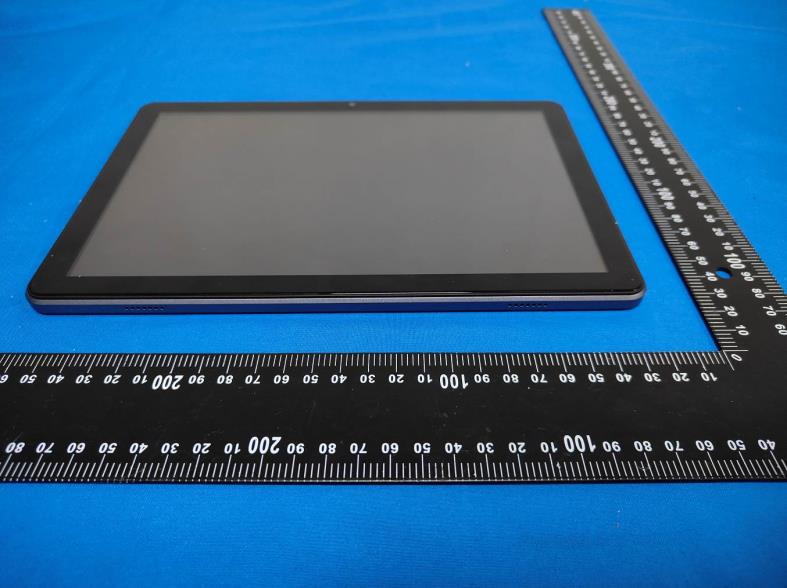

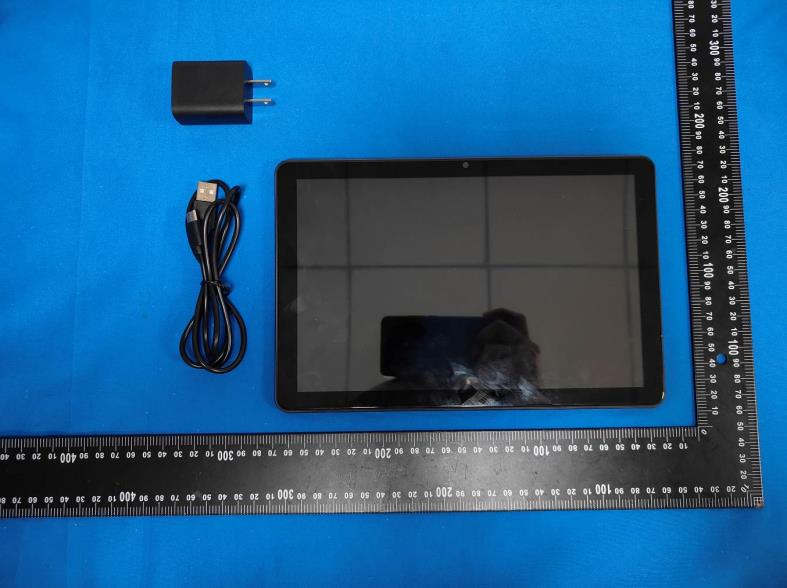

T0863-2 Tablet computer

FCC ID: 2BHAF-T10A863-21 Internal Photos of the EUT FCC ID: 2BHAF-T10A863-21 BT/WIFI ANT FCC ID: 2BHAF-T10A863-21 FCC ID: 2BHAF-T10A863-21

FCC ID: 2BHAF-T10A863-21 Test Setup Photos of the EUT FCC ID: 2BHAF-T10A863-21

深圳星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,TangweiBusinessBuilding,FuhaiStreet,FuyongTown,BaoanDistrict,Shenzhen Tel：0755-82103639QQ：487580356Email：[email protected] 规格承认书 ApprovalSheet 客户名称 Customer 索沃思 日期 Data 2025/07/03 产品名称 Product WiFi/BT 天线 客户机型 Models A16 料号 P/N T506B-13RB-055 客户料号 CustomerP/N 3010809000003 规格描述 Specifications 黑色FPC；RF0.81三代端子黑色同轴线，L=55mm 供应商承认签印 VenderApprovedBy 客户承认签印 CustomerApprovedBy CheckedBy:CheckedBy: AuditBy:AuditBy: ApprovalBy:ApprovalBy: 文件修订履历表 版本 Version 修订内容 ReviseTheContent 修订人 Revused 核准 Approval 修订日期 Date 备注 Note 深圳星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,TangweiBusinessBuilding,FuhaiStreet,FuyongTown,BaoanDistrict,Shenzhen Tel：0755-82103639QQ：487580356Email：[email protected] Content NO.ProectPageNO. 1Specification3 2AntennaPlacement4 3TestData5~~9 4AntennaAssembly10 5Notes11 6InspectionStandard12 7OutgoingInspectionReport13 8PackingSpecification14 深圳星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,TangweiBusinessBuilding,FuhaiStreet,FuyongTown,BaoanDistrict,Shenzhen Tel：0755-82103639QQ：487580356Email：[email protected] Specification 1.1ElectricalProperties CharacteristicsSpecifications WorkingBand 2.4GWiFi/BT； 5GWiFi AntennaFromPIFA Impedance50Ω PolarizationLinear PeakEffi 39%@2.4G; 27%@5G PeakGain [email protected]; 0.8dBi@5G 1.2PhysicalProperties CharacteristicsSpecifications OperatingTemp -10°C~+60°C StorageTemp -10°C~+70°C Humidity10~95%RH 深圳星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,TangweiBusinessBuilding,FuhaiStreet,FuyongTown,BaoanDistrict,Shenzhen Tel：0755-82103639QQ：487580356Email：[email protected] AntennaPlacement 深圳星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,TangweiBusinessBuilding,FuhaiStreet,FuyongTown,BaoanDistrict,Shenzhen Tel：0755-82103639QQ：487580356Email：[email protected] TestData S11Parameter-VSWR EfficiencyTable（2.4G） 深圳星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,TangweiBusinessBuilding,FuhaiStreet,FuyongTown,BaoanDistrict,Shenzhen Tel：0755-82103639QQ：487580356Email：[email protected] EfficiencyTable （ 5G ） 深圳星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,TangweiBusinessBuilding,FuhaiStreet,FuyongTown,BaoanDistrict,Shenzhen Tel：0755-82103639QQ：487580356Email：[email protected] RadiationPattern WIFI/BTMeasured 深圳星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,TangweiBusinessBuilding,FuhaiStreet,FuyongTown,BaoanDistrict,Shenzhen Tel：0755-82103639QQ：487580356Email：[email protected] WiFiActiveTestData 深圳星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,TangweiBusinessBuilding,FuhaiStreet,FuyongTown,BaoanDistrict,Shenzhen Tel：0755-82103639QQ：487580356Email：[email protected] ThroughputTest(2.4G) ThroughputTest(5G) 深圳星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,TangweiBusinessBuilding,FuhaiStreet,FuyongTown,BaoanDistrict,Shenzhen Tel：0755-82103639QQ：487580356Email：[email protected] AntennaAssembly 深圳星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,TangweiBusinessBuilding,FuhaiStreet,FuyongTown,BaoanDistrict,Shenzhen Tel：0755-82103639QQ：487580356Email：[email protected] Notes 深圳星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,TangweiBusinessBuilding,FuhaiStreet,FuyongTown,BaoanDistrict,Shenzhen Tel：0755-82103639QQ：487580356Email：[email protected] InspectionStandard 深圳星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,TangweiBusinessBuilding,FuhaiStreet,FuyongTown,BaoanDistrict,Shenzhen Tel：0755-82103639QQ：487580356Email：[email protected] SampleInspectionReport 深圳市星源创科技有限公司 样品检验报告 客户 索沃思 品名规格 WIFI天线 出货数量 5 抽样数量 2 机型 A16 料号 T506B-13RB-055 出货日期 2025/07/03 检验标准☑正常检验□加严检验□减量检验 抽样方式MIL-STD-105D（II）单次抽样接受限AQL:CR：0Maj：0.4Min：1.5 质量允收水平 CRAcc 0 MajACC 0 Min ACC 0 CRREJ 1 MajREJ 1 Min REJ 1 项目检验内容检验要求检验方法 检验结果判定 1234 尺寸检验 线总长 55±1 直尺 5555 合格 FPC外形 19.6±0.3 卡尺 19.619.6 合格 FPC外形 29.9±0.3 卡尺 29.929.8 合格 项目检验内容检验要求检验方法缺陷描述 CRMajMin 判定 外观检验 线外皮外被有无刮伤现象目视无异常 000 合格 焊盘加锡无氧化、锡尖等现象目视无异常000合格 IPEX 无缺料，烈痕，色差，缩 水，烫伤，无氧化、变 色、变形脱线等不良现象 目视无异常000合格 电气特性 其它 最终判定☑OK□NG 表格编号：XYC-WF-PZ-001 深圳星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,TangweiBusinessBuilding,FuhaiStreet,FuyongTown,BaoanDistrict,Shenzhen Tel：0755-82103639QQ：487580356Email：[email protected] PackingSpecification

111 11N20SISO_Ant1_5180_5360~40000 11N20SISO_Ant1_5220_30~5140 112 11N20SISO_Ant1_5220_5360~40000 11N20SISO_Ant1_5240_30~5140 11N20SISO_Ant1_5240_5360~40000 113 11N20SISO_Ant1_5745_30~5650 11N20SISO_Ant1_5745_5925~40000 114 11N20SISO_Ant1_5785_30~5650 11N20SISO_Ant1_5785_5925~40000 11N20SISO_Ant1_5825_30~5650 115 11N20SISO_Ant1_5825_5925~40000 11N40SISO_Ant1_5190_30~5140 116 11N40SISO_Ant1_5190_5360~40000 11N40SISO_Ant1_5230_30~5140 11N40SISO_Ant1_5230_5360~40000 117 11N40SISO_Ant1_5755_30~5650 11N40SISO_Ant1_5755_5925~40000 118 11N40SISO_Ant1_5795_30~5650 11N40SISO_Ant1_5795_5925~40000 11AC20SISO_Ant1_5180_30~5140 119 11AC20SISO_Ant1_5180_5360~40000 11AC20SISO_Ant1_5220_30~5140 120 11AC20SISO_Ant1_5220_5360~40000 11AC20SISO_Ant1_5240_30~5140 11AC20SISO_Ant1_5240_5360~40000 121 11AC20SISO_Ant1_5745_30~5650 11AC20SISO_Ant1_5745_5925~40000 122 11AC20SISO_Ant1_5785_30~5650 11AC20SISO_Ant1_5785_5925~40000 11AC20SISO_Ant1_5825_30~5650 123 11AC20SISO_Ant1_5825_5925~40000 11AC40SISO_Ant1_5190_30~5140 124 11AC40SISO_Ant1_5190_5360~40000 11AC40SISO_Ant1_5230_30~5140 11AC40SISO_Ant1_5230_5360~40000 125 11AC40SISO_Ant1_5755_30~5650 11AC40SISO_Ant1_5755_5925~40000 126 11AC40SISO_Ant1_5795_30~5650 11AC40SISO_Ant1_5795_5925~40000 11AC80SISO_Ant1_5210_30~5140 127 11AC80SISO_Ant1_5210_5360~40000 11AC80SISO_Ant1_5775_30~5650 128 11AC80SISO_Ant1_5775_5925~40000 11AX20SISO_Ant1_5180_30~5140 11AX20SISO_Ant1_5180_5360~40000 129 11AX20SISO_Ant1_5220_30~5140 11AX20SISO_Ant1_5220_5360~40000 130 11AX20SISO_Ant1_5240_30~5140 11AX20SISO_Ant1_5240_5360~40000 11AX20SISO_Ant1_5745_30~5650 131 11AX20SISO_Ant1_5745_5925~40000 11AX20SISO_Ant1_5785_30~5650 132 11AX20SISO_Ant1_5785_5925~40000 11AX20SISO_Ant1_5825_30~5650 11AX20SISO_Ant1_5825_5925~40000 133 11AX40SISO_Ant1_5190_30~5140 11AX40SISO_Ant1_5190_5360~40000 134 11AX40SISO_Ant1_5230_30~5140 11AX40SISO_Ant1_5230_5360~40000 11AX40SISO_Ant1_5755_30~5650 135 11AX40SISO_Ant1_5755_5925~40000 11AX40SISO_Ant1_5795_30~5650 136 11AX40SISO_Ant1_5795_5925~40000 11AX80SISO_Ant1_5210_30~5140 11AX80SISO_Ant1_5210_5360~40000 137 11AX80SISO_Ant1_5775_30~5650 11AX80SISO_Ant1_5775_5925~40000

72 11N20SISO_Ant1_5240 11N20SISO_Ant1_5745 73 11N20SISO_Ant1_5785 11N20SISO_Ant1_5825 11N40SISO_Ant1_5190 74 11N40SISO_Ant1_5230 11N40SISO_Ant1_5755 75 11N40SISO_Ant1_5795 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5220 76 11AC20SISO_Ant1_5240 11AC20SISO_Ant1_5745 77 11AC20SISO_Ant1_5785 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5190 78 11AC40SISO_Ant1_5230 11AC40SISO_Ant1_5755 79 11AC40SISO_Ant1_5795 11AC80SISO_Ant1_5210 11AC80SISO_Ant1_5775 80 11AX20SISO_Ant1_5180 11AX20SISO_Ant1_5220 81 11AX20SISO_Ant1_5240 11AX20SISO_Ant1_5745 11AX20SISO_Ant1_5785 82 11AX20SISO_Ant1_5825 11AX40SISO_Ant1_5190 83 11AX40SISO_Ant1_5230 11AX40SISO_Ant1_5755 11AX40SISO_Ant1_5795 84 11AX80SISO_Ant1_5210 11AX80SISO_Ant1_5775 85 Appendix E: Band edge measurements Test Result B1 TestMode Antenna ChName Freq(MHz) Result[dBm] Limit[dBm] Verdict 11A Ant1 Low 5180 -43.01 ≤-27 PASS High 5240 -46.99 ≤-27 PASS 11N20SISO Ant1 Low 5180 -43.14 ≤-27 PASS High 5240 -46.28 ≤-27 PASS 11N40SISO Ant1 Low 5190 -48.1 ≤-27 PASS High 5230 -46.98 ≤-27 PASS 11AC20SISO Ant1 Low 5180 -42.18 ≤-27 PASS High 5240 -47.7 ≤-27 PASS 11AC40SISO Ant1 Low 5190 -46 ≤-27 PASS High 5230 -47.24 ≤-27 PASS 11AC80SISO Ant1 Low 5210 -46.71 ≤-27 PASS High 5210 -47.27 ≤-27 PASS 11AX20SISO Ant1 Low 5180 -43.66 ≤-27 PASS High 5240 -46.93 ≤-27 PASS 11AX40SISO Ant1 Low 5190 -45.93 ≤-27 PASS High 5230 -47.76 ≤-27 PASS 11AX80SISO Ant1 Low 5210 -47.31 ≤-27 PASS High 5210 -47.68 ≤-27 PASS Test Result B4 TestMode Antenna ChName Freq(MHz) FreqRange [MHz] Result [dBm] Limit [dBm] Verdict 11A Ant1 Low 5745 5650~5700 -51.2 ≤-26.87 PASS 5700~5720 -42.38 ≤14.31 PASS 5720~5725 -45.58 ≤16.34 PASS 5760~5650 -50.05 ≤-27 PASS High 5825 5850~5855 -42.36 ≤16.03 PASS 5855~5875 -47.8 ≤10.02 PASS 5875~5925 -49.94 ≤-26.91 PASS 5925~5935 -49.46 ≤-27 PASS 11N20SI SO Ant1 Low 5745 5650~5700 -49.1 ≤-24.66 PASS 5700~5720 -42.62 ≤13.76 PASS 5720~5725 -43.79 ≤16.60 PASS 5760~5650 -50.84 ≤-27 PASS High 5825 5850~5855 -43.21 ≤16.03 PASS 5855~5875 -45.58 ≤10.02 PASS 86 5875~5925 -50.14 ≤-26.91 PASS 5925~5935 -48.12 ≤-27 PASS 11N40SI SO Ant1 Low 5755 5650~5700 -51.5 ≤-26.90 PASS 5700~5720 -47.16 ≤10.40 PASS 5720~5725 -43.94 ≤15.74 PASS 5780~5650 -50.16 ≤-27 PASS High 5795 5850~5855 -49.39 ≤16.41 PASS 5855~5875 -49.84 ≤10.11 PASS 5875~5925 -50.36 ≤-26.59 PASS 5925~5935 -49.68 ≤-27 PASS 11AC20S ISO Ant1 Low 5745 5650~5700 -50.35 ≤-26.70 PASS 5700~5720 -42.53 ≤13.95 PASS 5720~5725 -44.53 ≤15.82 PASS 5760~5650 -49.87 ≤-27 PASS High 5825 5850~5855 -43.17 ≤16.34 PASS 5855~5875 -46.72 ≤10.70 PASS 5875~5925 -50.28 ≤-26.91 PASS 5925~5935 -48.76 ≤-27 PASS 11AC40S ISO Ant1 Low 5755 5650~5700 -50.49 ≤-26.90 PASS 5700~5720 -46.94 ≤10.97 PASS 5720~5725 -43.69 ≤16.66 PASS 5780~5650 -49.88 ≤-27 PASS High 5795 5850~5855 -48.77 ≤16.03 PASS 5855~5875 -47.28 ≤10.76 PASS 5875~5925 -48.53 ≤-26.71 PASS 5925~5935 -48.87 ≤-27 PASS 11AC80S ISO Ant1 Low 5775 5650~5700 -50.64 ≤-26.80 PASS 5700~5720 -46.99 ≤10.14 PASS 5720~5725 -45.89 ≤16.71 PASS 5800~5650 -50.06 ≤-27 PASS High 5775 5850~5855 -46.49 ≤17.10 PASS 5855~5875 -47.86 ≤11.33 PASS 5875~5925 -50.29 ≤-26.87 PASS 5925~5935 -48.34 ≤-27 PASS 11AX20S ISO Ant1 Low 5745 5650~5700 -50.15 ≤-26.45 PASS 5700~5720 -43.41 ≤13.47 PASS 5720~5725 -44.07 ≤16.08 PASS 5760~5650 -49.97 ≤-27 PASS High 5825 5850~5855 -43.69 ≤17.57 PASS 5855~5875 -46.56 ≤10.13 PASS 5875~5925 -49.53 ≤-26.31 PASS 5925~5935 -49.78 ≤-27 PASS 11AX40SAnt1 Low 5755 5650~5700 -50.44 ≤-26.70 PASS 87 ISO 5700~5720 -47.38 ≤10.10 PASS 5720~5725 -44.26 ≤16.04 PASS 5780~5650 -48.72 ≤-27 PASS High 5795 5850~5855 -47.34 ≤19.04 PASS 5855~5875 -47.82 ≤12.19 PASS 5875~5925 -50.49 ≤-26.34 PASS 5925~5935 -49.55 ≤-27 PASS 11AX80S ISO Ant1 Low 5775 5650~5700 -49.73 ≤-26.34 PASS 5700~5720 -45.98 ≤10.14 PASS 5720~5725 -46.97 ≤16.00 PASS 5800~5650 -49.31 ≤-27 PASS High 5775 5850~5855 -47.94 ≤16.26 PASS 5855~5875 -48.76 ≤10.24 PASS 5875~5925 -49.63 ≤-26.73 PASS 5925~5935 -47.98 ≤-27 PASS 88 Test Graphs B1 11A_Ant1_Low_5180 11A_Ant1_High_5240 11N20SISO_Ant1_Low_5180 89 11N20SISO_Ant1_High_5240 11N40SISO_Ant1_Low_5190 90 11N40SISO_Ant1_High_5230 11AC20SISO_Ant1_Low_5180 11AC20SISO_Ant1_High_5240 91 11AC40SISO_Ant1_Low_5190 11AC40SISO_Ant1_High_5230 92 11AC80SISO_Ant1_Low_5210 11AC80SISO_Ant1_High_5210 11AX20SISO_Ant1_Low_5180 93 11AX20SISO_Ant1_High_5240 11AX40SISO_Ant1_Low_5190 94 11AX40SISO_Ant1_High_5230 11AX80SISO_Ant1_Low_5210 11AX80SISO_Ant1_High_5210 95 96 Test Graphs B4 11A_Ant1_Low_5745 11A_Ant1_High_5825 11N20SISO_Ant1_Low_5745 97 11N20SISO_Ant1_High_5825 11N40SISO_Ant1_Low_5755 98 11N40SISO_Ant1_High_5795 11AC20SISO_Ant1_Low_5745 11AC20SISO_Ant1_High_5825 99 11AC40SISO_Ant1_Low_5755 11AC40SISO_Ant1_High_5795 100 11AC80SISO_Ant1_Low_5775 11AC80SISO_Ant1_High_5775 11AX20SISO_Ant1_Low_5745 101 11AX20SISO_Ant1_High_5825 11AX40SISO_Ant1_Low_5755 102 11AX40SISO_Ant1_High_5795 11AX80SISO_Ant1_Low_5775 11AX80SISO_Ant1_High_5775 103 104 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] Max. Fre [MHz] Max. Level [dBm] Limit [dBm] Verdict 11A Ant1 5180 30~5140 3161.75 -64.46 ≤-27 PASS 5360~40000 26934.36 -56.98 ≤-27 PASS 5220 30~5140 3201.61 -65.61 ≤-27 PASS 5360~40000 25235.62 -56.97 ≤-27 PASS 5240 30~5140 3148.29 -65.97 ≤-27 PASS 5360~40000 26591.73 -56.81 ≤-27 PASS 5745 30~5650 2861.36 -66.34 ≤-27 PASS 5925~40000 26763.96 -56.15 ≤-27 PASS 5785 30~5650 3162.96 -65.94 ≤-27 PASS 5925~40000 25615.37 -56.38 ≤-27 PASS 5825 30~5650 2673.46 -65.03 ≤-27 PASS 5925~40000 26205.47 -55.91 ≤-27 PASS 11N20SISO Ant1 5180 30~5140 3174.35 -65.63 ≤-27 PASS 5360~40000 26165.42 -56.21 ≤-27 PASS 5220 30~5140 3286.09 -66.22 ≤-27 PASS 5360~40000 26477.03 -55.71 ≤-27 PASS 5240 30~5140 3069.77 -65.52 ≤-27 PASS 5360~40000 26590.28 -56.29 ≤-27 PASS 5745 30~5650 3174.76 -66.11 ≤-27 PASS 5925~40000 26799.09 -56.6 ≤-27 PASS 5785 30~5650 5242.74 -62.89 ≤-27 PASS 5925~40000 26704.95 -56.87 ≤-27 PASS 5825 30~5650 2986.68 -65.42 ≤-27 PASS 5925~40000 26194.23 -56.06 ≤-27 PASS 11N40SISO Ant1 5190 30~5140 3192.41 -65.39 ≤-27 PAS…

Text truncated - open the document above for the full version.

37 11AX80SISO_Ant1_5210 11AX80SISO_Ant1_5775 38 Appendix A3: Min emission bandwidth Test Result B4 TestMode Antenna Freq(MHz) 6db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 16.320 5736.840 5753.160 0.5 PASS 5785 16.320 5776.840 5793.160 0.5 PASS 5825 16.320 5816.840 5833.160 0.5 PASS 11N20SISO Ant1 5745 17.520 5736.240 5753.760 0.5 PASS 5785 17.560 5776.240 5793.800 0.5 PASS 5825 17.560 5816.240 5833.800 0.5 PASS 11N40SISO Ant1 5755 36.080 5737.080 5773.160 0.5 PASS 5795 36.320 5776.840 5813.160 0.5 PASS 11AC20SISO Ant1 5745 17.520 5736.240 5753.760 0.5 PASS 5785 17.560 5776.200 5793.760 0.5 PASS 5825 17.560 5816.240 5833.800 0.5 PASS 11AC40SISO Ant1 5755 36.320 5736.840 5773.160 0.5 PASS 5795 36.320 5776.840 5813.160 0.5 PASS 11AC80SISO Ant1 5775 75.040 5737.400 5812.440 0.5 PASS 11AX20SISO Ant1 5745 18.200 5735.840 5754.040 0.5 PASS 5785 18.560 5775.840 5794.400 0.5 PASS 5825 18.360 5815.840 5834.200 0.5 PASS 11AX40SISO Ant1 5755 37.680 5736.280 5773.960 0.5 PASS 5795 37.600 5776.280 5813.880 0.5 PASS 11AX80SISO Ant1 5775 75.200 5737.400 5812.600 0.5 PASS 39 Test Graphs B4 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 40 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 41 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 42 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 43 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 44 11AC80SISO_Ant1_5775 11AX20SISO_Ant1_5745 45 11AX20SISO_Ant1_5785 11AX20SISO_Ant1_5825 11AX40SISO_Ant1_5755 46 11AX40SISO_Ant1_5795 11AX80SISO_Ant1_5775 47 Appendix B: Duty Cycle Test Result TestMode Antenna Freq(MHz) Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Duty factor(dB) Limit Verdict 11A Ant1 5180 0.15 0.20 75.00 1.25 --- --- 5220 0.14 0.19 73.68 1.33 --- --- 5240 0.15 0.19 78.95 1.03 --- --- 5745 0.15 0.20 75.00 1.25 --- --- 5785 0.14 0.19 73.68 1.33 --- --- 5825 0.15 0.20 75.00 1.25 --- --- 11N20SISO Ant1 5180 0.17 0.22 77.27 1.12 --- --- 5220 0.17 0.22 77.27 1.12 --- --- 5240 0.17 0.22 77.27 1.12 --- --- 5745 0.18 0.23 78.26 1.06 --- --- 5785 0.18 0.23 78.26 1.06 --- --- 5825 0.17 0.22 77.27 1.12 --- --- 11N40SISO Ant1 5190 0.18 0.23 78.26 1.06 --- --- 5230 0.18 0.23 78.26 1.06 --- --- 5755 0.18 0.23 78.26 1.06 --- --- 5795 0.18 0.23 78.26 1.06 --- --- 11AC20SISO Ant1 5180 0.16 0.21 76.19 1.18 --- --- 5220 0.16 0.21 76.19 1.18 --- --- 5240 0.16 0.21 76.19 1.18 --- --- 5745 0.16 0.21 76.19 1.18 --- --- 5785 0.16 0.21 76.19 1.18 --- --- 5825 0.16 0.21 76.19 1.18 --- --- 11AC40SISO Ant1 5190 0.16 0.21 76.19 1.18 --- --- 5230 0.16 0.21 76.19 1.18 --- --- 5755 0.15 0.20 75.00 1.25 --- --- 5795 0.15 0.20 75.00 1.25 --- --- 11AC80SISO Ant1 5210 0.16 0.21 76.19 1.18 --- --- 5775 0.17 0.22 77.27 1.12 --- --- 11AX20SISO Ant1 5180 0.26 0.31 83.87 0.76 --- --- 5220 0.25 0.30 83.33 0.79 --- --- 5240 0.25 0.30 83.33 0.79 --- --- 5745 0.26 0.31 83.87 0.76 --- --- 5785 0.25 0.30 83.33 0.79 --- --- 5825 0.26 0.31 83.87 0.76 --- --- 11AX40SISO Ant1 5190 0.18 0.23 78.26 1.06 --- --- 5230 0.17 0.22 77.27 1.12 --- --- 48 5755 0.18 0.23 78.26 1.06 --- --- 5795 0.18 0.23 78.26 1.06 --- --- 11AX80SISO Ant1 5210 0.16 0.21 76.19 1.18 --- --- 5775 0.15 0.20 75.00 1.25 --- --- 49 Test Graphs 11A_Ant1_5180 11A_Ant1_5220 11A_Ant1_5240 50 11A_Ant1_5745 11A_Ant1_5785 51 11A_Ant1_5825 11N20SISO_Ant1_5180 11N20SISO_Ant1_5220 52 11N20SISO_Ant1_5240 11N20SISO_Ant1_5745 53 11N20SISO_Ant1_5785 11N20SISO_Ant1_5825 11N40SISO_Ant1_5190 54 11N40SISO_Ant1_5230 11N40SISO_Ant1_5755 55 11N40SISO_Ant1_5795 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5220 56 11AC20SISO_Ant1_5240 11AC20SISO_Ant1_5745 57 11AC20SISO_Ant1_5785 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5190 58 11AC40SISO_Ant1_5230 11AC40SISO_Ant1_5755 59 11AC40SISO_Ant1_5795 11AC80SISO_Ant1_5210 11AC80SISO_Ant1_5775 60 11AX20SISO_Ant1_5180 11AX20SISO_Ant1_5220 61 11AX20SISO_Ant1_5240 11AX20SISO_Ant1_5745 11AX20SISO_Ant1_5785 62 11AX20SISO_Ant1_5825 11AX40SISO_Ant1_5190 63 11AX40SISO_Ant1_5230 11AX40SISO_Ant1_5755 11AX40SISO_Ant1_5795 64 11AX80SISO_Ant1_5210 11AX80SISO_Ant1_5775 65 Appendix C: Maximum conducted output power Test Result Channel Power Test Mode Antenna Freq(MH z) Channel Power [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant1 5180 2.31 75.00 1.25 3.56 ≤23.98 PASS 5220 2.23 73.68 1.33 3.56 ≤23.98 PASS 5240 2.05 78.95 1.03 3.08 ≤23.98 PASS 5745 2.13 75.00 1.25 3.38 ≤30.00 PASS 5785 1.67 73.68 1.33 3.00 ≤30.00 PASS 5825 1.18 75.00 1.25 2.43 ≤30.00 PASS 11N20SI SO Ant1 5180 2.61 77.27 1.12 3.73 ≤23.98 PASS 5220 2.36 77.27 1.12 3.48 ≤23.98 PASS 5240 2.24 77.27 1.12 3.36 ≤23.98 PASS 5745 2.41 78.26 1.06 3.47 ≤30.00 PASS 5785 1.89 78.26 1.06 2.95 ≤30.00 PASS 5825 1.56 77.27 1.12 2.68 ≤30.00 PASS 11N40SI SO Ant1 5190 2.64 78.26 1.06 3.70 ≤23.98 PASS 5230 2.52 78.26 1.06 3.58 ≤23.98 PASS 5755 2.43 78.26 1.06 3.49 ≤30.00 PASS 5795 1.91 78.26 1.06 2.97 ≤30.00 PASS 11AC20S ISO Ant1 5180 2.59 76.19 1.18 3.77 ≤23.98 PASS 5220 2.41 76.19 1.18 3.59 ≤23.98 PASS 5240 2.26 76.19 1.18 3.44 ≤23.98 PASS 5745 2.36 76.19 1.18 3.54 ≤30.00 PASS 5785 1.88 76.19 1.18 3.06 ≤30.00 PASS 5825 1.54 76.19 1.18 2.72 ≤30.00 PASS 11AC40S ISO Ant1 5190 2.57 76.19 1.18 3.75 ≤23.98 PASS 5230 2.47 76.19 1.18 3.65 ≤23.98 PASS 5755 2.34 75.00 1.25 3.59 ≤30.00 PASS 5795 1.85 75.00 1.25 3.10 ≤30.00 PASS 11AC80S ISO Ant1 5210 2.97 76.19 1.18 4.15 ≤23.98 PASS 5775 2.39 77.27 1.12 3.51 ≤30.00 PASS 11AX20S ISO Ant1 5180 2.78 83.87 0.76 3.54 ≤23.98 PASS 5220 2.50 83.33 0.79 3.29 ≤23.98 PASS 5240 2.29 83.33 0.79 3.08 ≤23.98 PASS 5745 2.43 83.87 0.76 3.19 ≤30.00 PASS 5785 2.03 83.33 0.79 2.82 ≤30.00 PASS 5825 1.65 83.87 0.76 2.41 ≤30.00 PASS 11AX40S ISO Ant1 5190 2.23 78.26 1.06 3.29 ≤23.98 PASS 5230 1.79 77.27 1.12 2.91 ≤23.98 PASS 66 5755 1.76 78.26 1.06 2.82 ≤30.00 PASS 5795 0.80 78.26 1.06 1.86 ≤30.00 PASS 11AX80S ISO Ant1 5210 2.72 76.19 1.18 3.90 ≤23.98 PASS 5775 2.16 75.00 1.25 3.41 ≤30.00 PASS 67 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result [dBm/1MHz] For 5.2G RBW Fa…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 5GWIFI FCC ID : 2BHAF-T10A863-21 Company : South Holdings Technology Co., Limited EUT : Tablet computer Model Number : T10A863-21 Report No. : CTA25103001203 Reviewed By : Eric Wang 2 Appendix A1: Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 26db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5180 21.960 5169.320 5191.280 --- --- 5220 22.280 5209.000 5231.280 --- --- 5240 21.840 5229.440 5251.280 --- --- 5745 23.440 5733.640 5757.080 --- --- 5785 22.960 5773.680 5796.640 --- --- 5825 23.600 5813.040 5836.640 --- --- 11N20SISO Ant1 5180 22.120 5169.120 5191.240 --- --- 5220 22.040 5209.160 5231.200 --- --- 5240 22.160 5228.920 5251.080 --- --- 5745 22.760 5733.560 5756.320 --- --- 5785 22.960 5773.520 5796.480 --- --- 5825 23.160 5813.200 5836.360 --- --- 11N40SISO Ant1 5190 42.800 5168.560 5211.360 --- --- 5230 43.760 5209.040 5252.800 --- --- 5755 44.880 5732.920 5777.800 --- --- 5795 44.960 5772.920 5817.880 --- --- 11AC20SISO Ant1 5180 22.760 5168.480 5191.240 --- --- 5220 22.440 5208.560 5231.000 --- --- 5240 22.200 5229.160 5251.360 --- --- 5745 23.400 5733.480 5756.880 --- --- 5785 23.160 5773.560 5796.720 --- --- 5825 23.160 5813.440 5836.600 --- --- 11AC40SISO Ant1 5190 43.680 5168.960 5212.640 --- --- 5230 43.440 5209.120 5252.560 --- --- 5755 44.480 5733.400 5777.880 --- --- 5795 44.560 5773.400 5817.960 --- --- 11AC80SISO Ant1 5210 84.320 5168.400 5252.720 --- --- 5775 83.520 5733.720 5817.240 --- --- 11AX20SISO Ant1 5180 23.160 5168.520 5191.680 --- --- 5220 23.160 5208.320 5231.480 --- --- 5240 22.520 5228.880 5251.400 --- --- 5745 22.520 5733.720 5756.240 --- --- 5785 24.400 5772.560 5796.960 --- --- 5825 23.000 5813.480 5836.480 --- --- 11AX40SISO Ant1 5190 40.640 5169.760 5210.400 --- --- 5230 41.120 5209.520 5250.640 --- --- 5755 42.720 5734.040 5776.760 --- --- 3 5795 43.920 5773.640 5817.560 --- --- 11AX80SISO Ant1 5210 82.080 5169.680 5251.760 --- --- 5775 82.880 5734.360 5817.240 --- --- 4 Test Graphs 11A_Ant1_5180 11A_Ant1_5220 11A_Ant1_5240 5 11A_Ant1_5745 11A_Ant1_5785 6 11A_Ant1_5825 11N20SISO_Ant1_5180 11N20SISO_Ant1_5220 7 11N20SISO_Ant1_5240 11N20SISO_Ant1_5745 8 11N20SISO_Ant1_5785 11N20SISO_Ant1_5825 11N40SISO_Ant1_5190 9 11N40SISO_Ant1_5230 11N40SISO_Ant1_5755 10 11N40SISO_Ant1_5795 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5220 11 11AC20SISO_Ant1_5240 11AC20SISO_Ant1_5745 12 11AC20SISO_Ant1_5785 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5190 13 11AC40SISO_Ant1_5230 11AC40SISO_Ant1_5755 14 11AC40SISO_Ant1_5795 11AC80SISO_Ant1_5210 11AC80SISO_Ant1_5775 15 11AX20SISO_Ant1_5180 11AX20SISO_Ant1_5220 16 11AX20SISO_Ant1_5240 11AX20SISO_Ant1_5745 11AX20SISO_Ant1_5785 17 11AX20SISO_Ant1_5825 11AX40SISO_Ant1_5190 18 11AX40SISO_Ant1_5230 11AX40SISO_Ant1_5755 11AX40SISO_Ant1_5795 19 11AX80SISO_Ant1_5210 11AX80SISO_Ant1_5775 20 Appendix A2: Occupied channel bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5180 16.993 5171.5554 5188.5484 --- --- 5220 16.936 5211.5903 5228.5263 --- --- 5240 16.936 5231.5979 5248.5339 --- --- 5745 17.279 5736.3910 5753.6700 --- --- 5785 17.275 5776.3955 5793.6705 --- --- 5825 17.312 5816.4037 5833.7157 --- --- 11N20SISO Ant1 5180 18.029 5171.0116 5189.0406 --- --- 5220 18.056 5211.0205 5229.0765 --- --- 5240 18.040 5230.9926 5249.0326 --- --- 5745 18.371 5735.8194 5754.1904 --- --- 5785 18.341 5775.8256 5794.1666 --- --- 5825 18.364 5815.8206 5834.1846 --- --- 11N40SISO Ant1 5190 36.222 5171.9651 5208.1871 --- --- 5230 36.212 5211.9676 5248.1796 --- --- 5755 36.769 5736.7205 5773.4895 --- --- 5795 36.760 5776.7047 5813.4647 --- --- 11AC20SISO Ant1 5180 18.071 5171.0135 5189.0845 --- --- 5220 18.003 5211.0412 5229.0442 --- --- 5240 18.018 5231.0388 5249.0568 --- --- 5745 18.303 5735.8567 5754.1597 --- --- 5785 18.332 5775.8364 5794.1684 --- --- 5825 18.321 5815.8537 5834.1747 --- --- 11AC40SISO Ant1 5190 36.131 5171.9951 5208.1261 --- --- 5230 36.143 5212.0165 5248.1595 --- --- 5755 36.703 5736.7164 5773.4194 --- --- 5795 36.754 5776.6927 5813.4467 --- --- 11AC80SISO Ant1 5210 75.102 5172.5862 5247.6882 --- --- 5775 75.228 5737.5643 5812.7923 --- --- 11AX20SISO Ant1 5180 18.978 5170.5291 5189.5071 --- --- 5220 18.962 5210.5600 5229.5220 --- --- 5240 18.980 5230.5749 5249.5549 --- --- 5745 19.224 5735.4136 5754.6376 --- --- 5785 19.186 5775.4385 5794.6245 --- --- 5825 19.207 5815.4321 5834.6391 --- --- 11AX40SISO Ant1 5190 37.644 5171.2718 5208.9158 --- --- 5230 37.653 5211.2743 5248.9273 --- --- 5755 38.100 5736.0280 5774.1280 --- --- 21 5795 38.057 5776.0478 5814.1048 --- --- 11AX80SISO Ant1 5210 76.663 5171.7259 5248.3889 --- --- 5775 76.700 5736.7812 5813.4812 --- --- 22 Test Graphs 11A_Ant1_5180 11A_Ant1_5220 11A_Ant1_5240 23 11A_Ant1_5745 11A_Ant1_5785 24 11A_Ant1_5825 11N20SISO_Ant1_5180 11N20SISO_Ant1_5220 25 11N20SISO_Ant1_5240 11N20SISO_Ant1_5745 26 11N20SISO_Ant1_5785 11N20SISO_Ant1_5825 11N40SISO_Ant1_5190 27 11N40SISO_Ant1_5230 11N40SISO_Ant1_5755 28 11N40SISO_Ant1_5795 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5220 29 11AC20SISO_Ant1_5240 11AC20SISO_Ant1_5745 30 11AC20SISO_Ant1_5785 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5190 31 11AC40SISO_Ant1_5230 11AC40SISO_Ant1_5755 32 11AC40SISO_Ant1_5795 11AC80SISO_Ant1_5210 11AC80SISO_Ant1_5775 33 11AX20SISO_Ant1_5180 11AX20SISO_Ant1_5220 34 11AX20SISO_Ant1_5240 11AX20SISO_Ant1_5745 11AX20SISO_Ant1_5785 35 11AX20SISO_Ant1_5825 11AX40SISO_Ant1_5190 36 11AX40SISO_Ant1_5230 11AX40SISO_Ant1_5755 11AX40SISO_Ant1_5795

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn TEST REPORT FCC PART 15 SUBPART E 15.407 Report Reference No. ..................... : FCC ID. ........................................... : CTA25103001203 2BHAF-T10A863-21 Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Ace Chai Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Nov. 08, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : South Holdings Technology Co., Limited Address ............................................. : Room 1123, 11/F., Star House, 3 Salisbury Road, Tsim Sha Tsui, Kowloon, Hong Kong, China Test specification .......................... : Standard ........................................... : FCC Part 15 Subpart E 15.407 TRF Originator .................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Tablet computer Trade Mark ....................................... : N/A Manufacturer..................................... : JiangMen South Intelligent Manufacturing Co., LTD. Model/Type reference ....................... : T10A863-21 Listed Models ................................... : Refer to page 2 Modulation ....................................... : OFDM/ OFDMA Frequency .......................................... From 5180MHz-5240MHz, 5745MHz-5825MHz Ratings .............................................. : Input: 5V2.0A Battery: 3.8V 6000mAh 22.8Wh Result ................................................ : PASS Report No.: CTA25103001203 Page 2 of 42 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Tablet computer Model /Type : T10A863-21 Listed Models : T10A863-20, T10A863-30, T10A863-40, T10A863-50, T10A863-60, T10A863-70, T10A863-80, T10A863-10 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : South Holdings Technology Co., Limited Address : Room 1123, 11/F., Star House, 3 Salisbury Road, Tsim Sha Tsui, Kowloon, Hong Kong, China Manufacturer : JiangMen South Intelligent Manufacturing Co., LTD. Address : 6th Floor and West Side of 10th Floor, Building 1, No. 139 Jiangmu Road, Jianghai District, Jiangmen City, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25103001203 Page 3 of 42 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 6 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ....…
