2BHAO-6273LMEchoDome Speaker

UsermanualforEchoDomeSpeaker-6273LM Specifications Input:5V,1A Battery:1x186501800mAh Bluetoothspeaker:4Ω5W Chargingtime:3-4hours Workingtime:approx.3hours(Highmode) Lightsource:20pcsSMD2835 Light:Low-Medium-High-Off USB-Ccable:19.7inches(50cm) Size:Dia4.65x8.66inches(Dia118x220mm) Weight:0.73lbs(330g) Productpart: 1xProduct1xUSB-Ccable CHARGINGECHODOMESPEAKER 1.InserttheUSB-Cendoftheprovidedchargingcableintothechargingportlocatedonthe bottomoftheEchoDomeSpeaker.InserttheotherendintoanyUSBpowersource(USB adapter,powerbank,etc.).Seepictureasbelow. 2.Thebatteryindicatorlightwilllightupred,indicatingchargingisinprocess. 3.Itwilltakeapproximately3-4hourstofullychargeyourEchoDomeSpeaker. 4.Oncetheunitisfullycharged,thebatteryindicatorlightwillturnoff. CONNECTTOBLUETOOTH 1.Pressandholdthebluetoothbuttontoturnontheunit'sBluetooth.Chimewillsound andtheunitwillenterBluetoothmode.Seepictureasbelow. 2.Turnyourphone'sBluetoothfunctionbyaccessingtheSettingsmenu.Select “BELL+HOWELLBYDESIGN”fromtheBluetoothdevicelistandconnecttoit.Onceconnected, thechimewillsound. 3.Youwillbeabletocontrolthesound,volume,etc.throughyourphone.Playmusic throughthisBluetoothspeaker. 4.OncetheEchoDomeSpeakerhasbeensuccessfullypairedtoyourphone,itwill automaticallypairupthenexttimetheunitison. 5.IfyouneedtopairtheEchoDomeSpeakertoadifferentphone,youhavetodisconnect fromthecurrentphoneandrepeatthepairingprocessforthenewphone.Ifthephone's Bluetoothisturnedoffandthenturnedonagain,youneedtore-connecttoproduct manually. 6.TurnofftheBluetoothbypressingandholdingthebluetoothbutton. LAMPFUNCTIONS TaptheTouchSensoronthetopofthelamptoturntheWarmlightonLow. Seepictureasright. KeeptappingtoselectWarmlightMedium,WarmlightHigh,OFFandback toWarmlightLow. FCCStatement: Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwo conditions: (1)Thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause undesiredoperation. ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital device,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovide reasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.This equipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledand usedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradio communications.However,thereisnoguaranteethatinterferencewillnotoccurina particularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioor televisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,the userisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowing measures: —Reorientorrelocatethereceivingantenna. —Increasetheseparationbetweentheequipmentandreceiver. —Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiver isconnected. —Consultthedealeroranexperiencedradio/TVtechnicianforhelp. Caution:Anychangesormodificationsnotexpresslyapprovedbythepartyresponsible forcompliancecouldvoidtheuser'sauthoritytooperatetheequipment. ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolled environment.Thistransmittermustnotbeco-locatedoroperatinginconjunctionwithany otherantennaortransmitter. Thisequipmentshouldbeinstalledandoperatedwithminimumdistance20cmbetweenthe radiator&yourbody.

NINGBOLONGMARCHIMPORT&EXPORTCO.,LTD ROOM1505, 15TH FLOOR,BUILDING3, YUNHUICENTER,NO. 299 TONGJIROAD, JIANGBEIDISTRICT,NINGBO,CHINA U.S. Agent Desig nationfor Serviceof Process- Certification AttestationLetter 08/23 /202 4 FederalCommunicationsCommission Authorizationand EvaluationDivision 1435 OaklandMills Road Columbia, MD 21046 ATTN .: ReviewingEngineer FCC ID : 2BHAO-6273LM FederalRegistrationNumber(FRN) 0035614486 Per section2.911( d)(7) of the FCC rules,NINGBOLONGMARCHIMPORT&EXPORTCO.,LTD (“the applicant”) certifiesthat the equipmentfor which authorizationis soughtis designatedto thefollowingU.S. agent*for serviceof process: FederalRegistrationNumber(FRN ): 0033701590 CompanyName : UUX GROUPINC PhysicalU.S. CompanyAddress: 36 South18 th Avenue, Suite A Brighton, CO USA 80601 County: Adams Agentname:Jack Fu AgentEmailAddress: uuxforever@ outlook. com The abovecontactpersonacceptsthe obligationfor serviceof process. The applicantacceptsto maintainan agentfor no less than one year after the granteehas terminatedall marketingand importationor the conclusionof any Commission-related proceedinginvolvingthe equipment. This Agreementis valid until : Eternally. ApplicantSigned: Signed: Printedname:Mazy Ma Title: ProjectAssistant CompanyName: NINGBOLONGMARCHIMPORT&EXPORTCO.,LTD Date :23/08 /2 024 AgentSigned(if differentto Applicant): Signed: Printedname :Jack Fu Title : Manager CompanyName:UUX GROUPINC Date: 23/08 /202 4 * the applicantmust designatea contactlocatedin the UnitedStatesfor purposesof actingas the applicant’s agentfor serviceof process, regardlessof whetherthe applicantis a domesticor foreign entity . An applicantlocatedin the UnitedStatesmay designateitself as the agentfor serviceof process.

NINGBOLONGMARCHIMPORT&EXPORTCO.,LTD (2024.09.19) EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(i)requestfor(FCCID:2BHAO-6273LM) [NINGBOLONGMARCHIMPORT&EXPORTCO.,LTD](“theapplicant”)certifiesthatthe equipmentforwhichauthorizationissoughtisnot“covered”equipmentprohibited fromreceivinganequipmentauthorizationpursuanttosection2.903oftheFCCrules. Sincerely, (Applicantsignature) (Applicantprintedname) MazyMa NINGBOLONGMARCHIMPORT&EXPORTCO.,LTD (2024.09.19) EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(ii)requestfor(FCCID:2BHAO-6273LM) [NINGBOLONGMARCHIMPORT&EXPORTCO.,LTD](“theapplicant”)certifiesthat,asof thedateofthefilingoftheapplication,theapplicantisnotidentifiedontheCovered Listasanentityproducing“covered”equipment. Sincerely, (Applicantsignature) (Applicantprintedname) MazyMa

NINGBOLONGMARCHIMPORT&EXPORTCO.,LTD AgentAuthorizationLetter 2024-09-19 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 USA RE:LETTEROFAGENTAUTHORIZATION ToWhomItMayConcern: We,theundersigned,herebyauthorizeShenzhenMostTechnologyServiceCo.,Ltd.toact onourbehalfinallmattersrelatingtoapplicationforequipmentauthorization,includingthe signingofalldocumentsrelatingtothesematters. Wealsoherebycertifythatnopartytotheapplicationauthorizedhereunderissubjecttothe denialofbenefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuse Actof1988,21U.S.C.853(a). Thisagreementexpiresoneyearfromthecurrentdate. Sincerely, Name:MazyMa Position:PROJECTASSISTANT CompanyName:NINGBOLONGMARCHIMPORT&EXPORTCO.,LTD Address:ROOM1505,15THFLOOR,BUILDING3,YUNHUICENTER,NO.299 TONGJIROAD,JIANGBEIDISTRICT,NINGBO,China Tel/Fax0574-87849225/0574-87849225 E-Mail:[email protected]

NINGBOLONGMARCHIMPORT&EXPORTCO.,LTD LongTermConfidentialityRequestLetter 2024-09-19 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 USA RE:CONFIDENTIALITYREQUESTFOR(FCCID:2BHAO-6273LM) ToWhomItMayConcern: Thisletterservesasanofficialrequestforconfidentialityundersections0.457and0.459of CFR47.Wehaverequestedthatthe -e.g.Blockdiagram -e.g.SCH -e.g.OperationalDescription requiredtobesubmittedwiththisapplicationbepermanentlywithheldfrompublicreview. Theabovedocumentsarecompanyproprietaryinformationthatcouldnevergetinto thepossessionofyourcompetition. Pleasecontactmeifthereisanyinformationyoumayneed. Sincerely, Name:MazyMa Position:PROJECTASSISTANT CompanyName:NINGBOLONGMARCHIMPORT&EXPORTCO.,LTD Address:ROOM1505,15THFLOOR,BUILDING3,YUNHUICENTER,NO.299 TONGJIROAD,JIANGBEIDISTRICT,NINGBO,China Tel/Fax0574-87849225/0574-87849225 E-Mail:[email protected]

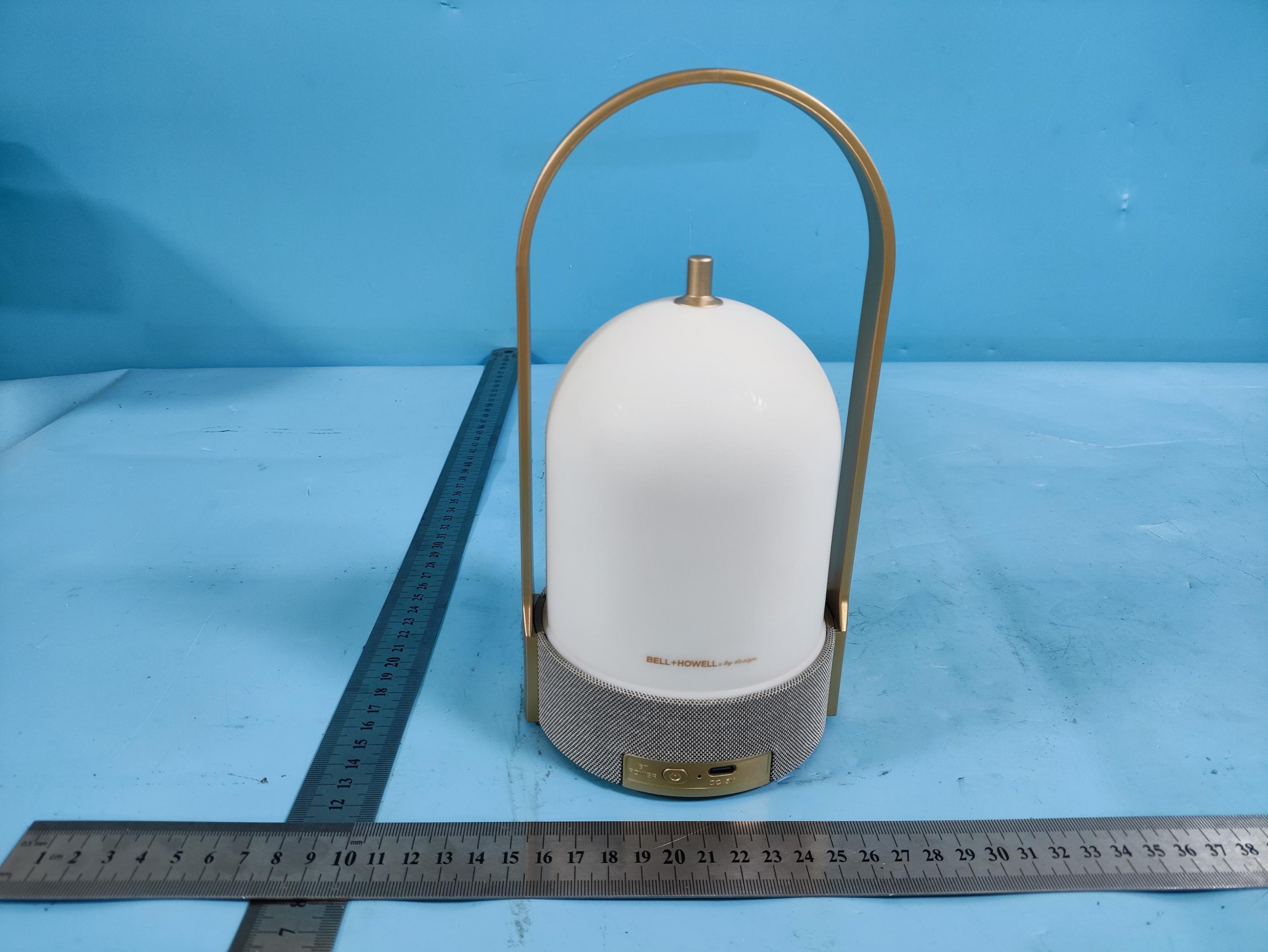

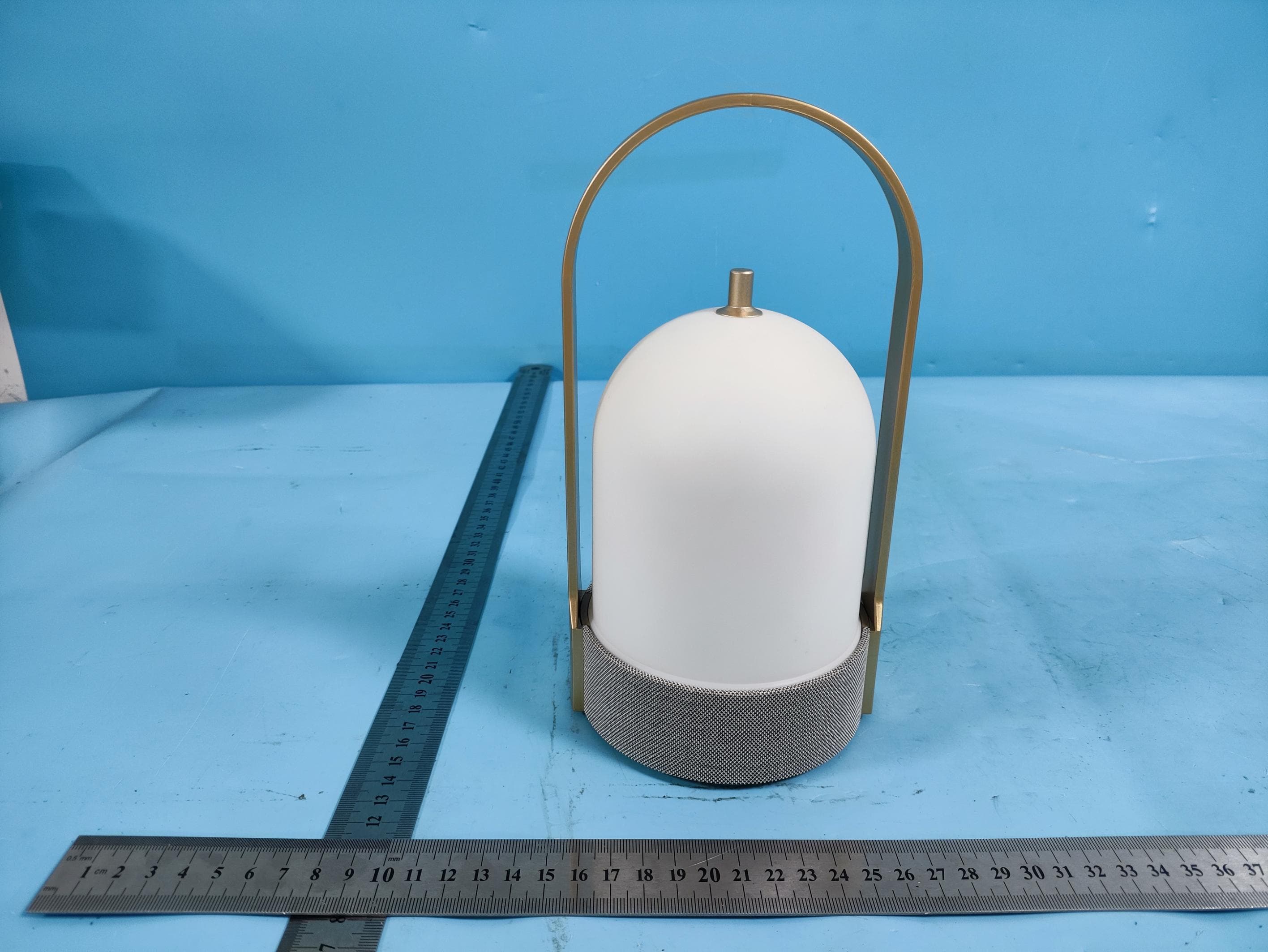

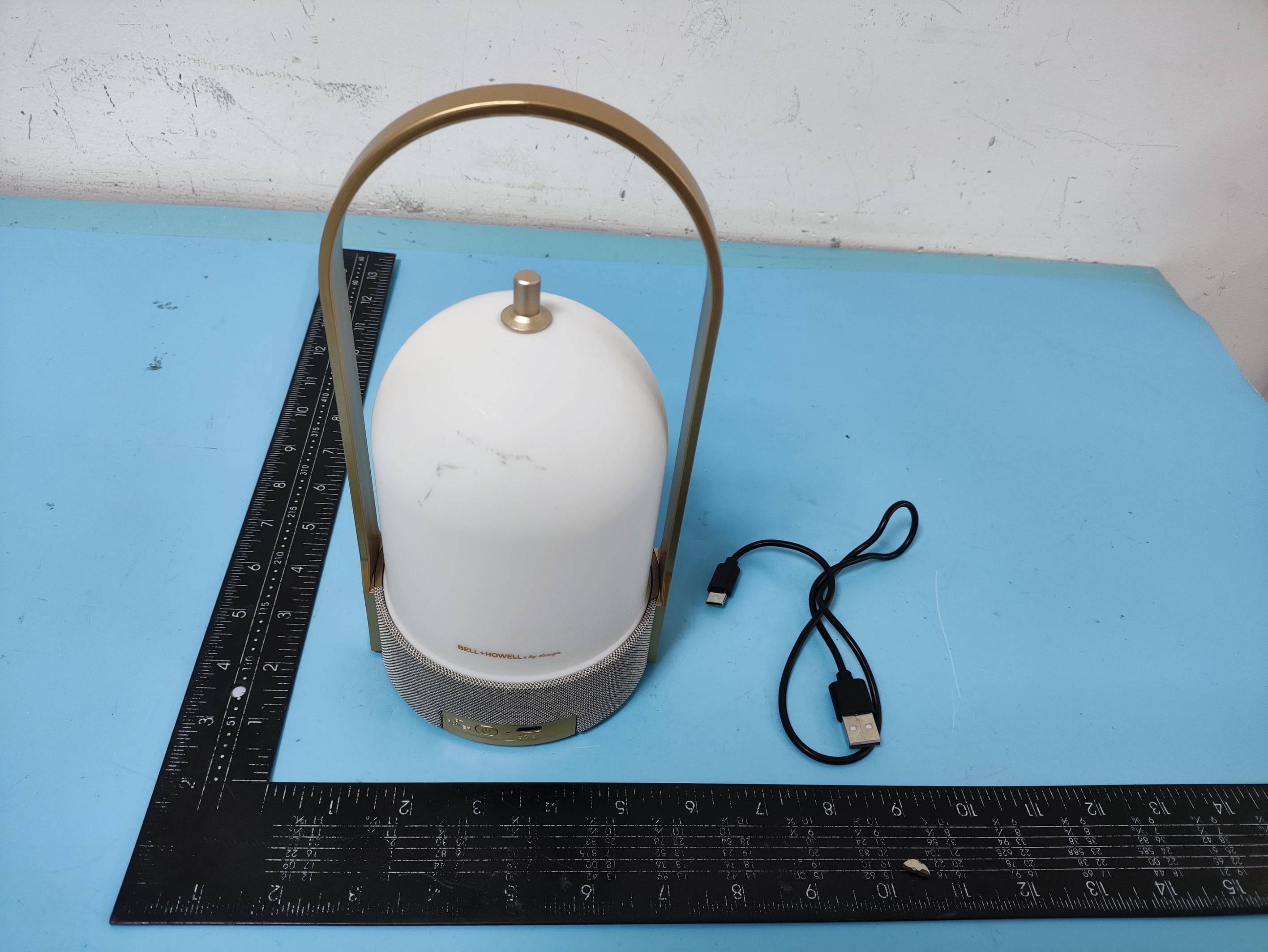

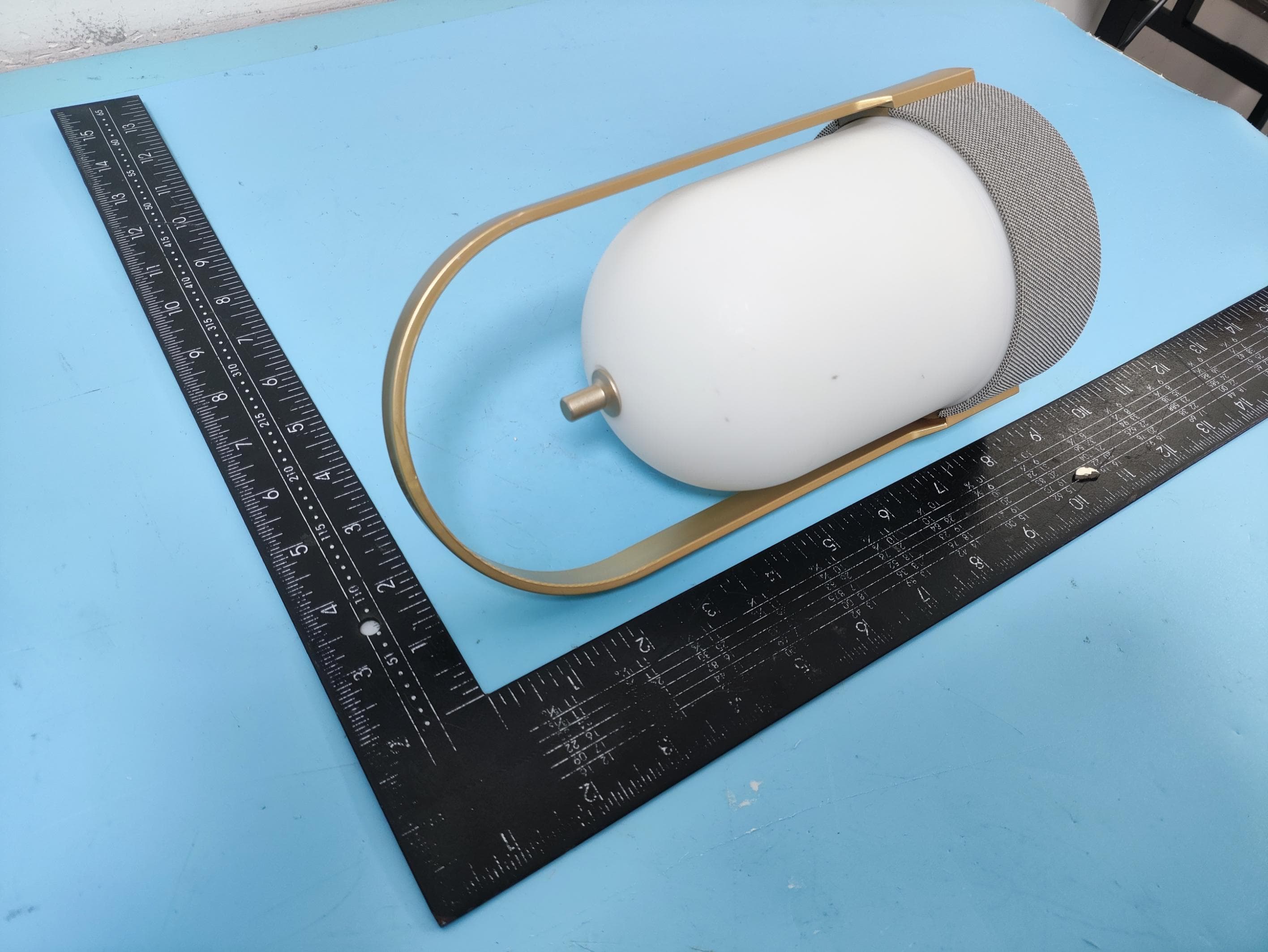

ModelNo.:6273LM FRONTVIEWOFSAMPLE BACKVIEWOFSAMPLE ModelNo.:6273LM LEFTVIEWOFSAMPLE RIGHTVIEWOFSAMPLE ModelNo.:6273LM TOPVIEWOFSAMPLE BOTTOMVIEWOFSAMPLE ModelNo.:6273LM

Label: SPEAKERLIGHTBULB Model:6273LM FCCID:2BHAO-6273LM Labellocation

ModelNo.:6273LM Page1of3 INTERNALPHOTOOFSAMPLE INTERNALPHOTOOFSAMPLE ANT Location ModelNo.:6273LM Page2of3 INTERNALPHOTOOFSAMPLE INTERNALPHOTOOFSAMPLE ModelNo.:6273LM Page3of3 Battery

ShenzhenMostTechnologyServiceCo.,Ltd. EastA,1floorofNewAolinFactorybuiding,LangshanErlu,NorthDistrict, Hi-techIndustryPark,Nanshan,Shenzhen,Guangdong,China RFExposureEvaluationReport ReportReferenceNo. ....................... : FCCID.. ............................................... : MTEB24090235-H 2BHAO-6273LM Compiledby (position+printedname+signature)..:FileadministratorsAlisaLuo Supervisedby (position+printedname+signature)..:TestEngineerSunnyDeng Approvedby (position+printedname+signature) .. : ManagerYvetteZhou Dateofissue ......................................... :August.29,2024 RepresentativeLaboratoryName . :ShenzhenMostTechnologyServiceCo.,Ltd. Address.................................................: No.5,2ndLangshanRoad,NorthDistrict,Hi-techIndustrialPark, Nanshan,Shenzhen,Guangdong,China. Applicant’sname ............................... :NINGBOLONGMARCHIMPORT&EXPORTCO.,LTD Address ................................................. : ROOM1505,15THFLOOR,BUILDING3,YUNHUICENTER,NO. 299TONGJIROAD,JIANGBEIDISTRICT,NINGBO,CHINA Testspecification/Standard............: 47CFRPart1.1307;47CFRPart1.1310 KDB447498D01GeneralRFExposureGuidancev06 TRFOriginator......................................:ShenzhenMostTechnologyServiceCo.,Ltd. ShenzhenMostTechnologyServiceCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenMostTechnologyServiceCo.,Ltd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenMostTechnologyServiceCo.,Ltd.takesnoresponsibilityforandwillnotassume liabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. Testitemdescription........................: EchoDomeSpeaker TradeMark............................................: BELL+HOWELL Model/Typereference ......................... : 6273LM ListedModels......................................: N/A ModulationType .................................. : GFSK GFSK,π/4DQPSK,8DPSK OperationFrequency..........................: 2402MHzto2480MHz HardwareVersion ................................. JH-SP-LYV3.11 SoftwareVersion ................................... JH-SP-LYV3.09A58 Rating.....................................................: DC5VbyUSBPort DC3.7VbyBattery Result ..................................................... :PASS ReportNo.:MTEB24090235-HPage 2 of 6 TESTREPORT EquipmentunderTest:EchoDomeSpeaker Model/Type: 6273LM ListedModels: N/A Remark N/A Applicant: NINGBOLONGMARCHIMPORT&EXPORTCO.,LTD Address:ROOM1505,15THFLOOR,BUILDING3,YUNHUICENTER, NO.299TONGJIROAD,JIANGBEIDISTRICT,NINGBO, CHINA Manufacturer: YUYAOSHENGPUPLASTICCO.,LTD Address: NO.5HUNNANVILLAGE,LINNANVILLAGE,LINSHANTOWN, YUYAOCITY,NINGBO,CHINA TestResult : PASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetest laboratory. ReportNo.:MTEB24090235-HPage 3 of 6 1.RevisionHistory RevisionIssueDateRevisionsRevisedBy 002024.09.19InitialIssueAlisaLuo ReportNo.:MTEB24090235-HPage 4 of 6 2.SAREvaluation 2.1RFExposureComplianceRequirement 2.1.1StandardRequirement AccordingtoKDB447498D01GeneralRFExposureGuidancev06 4.3.1.StandaloneSARtestexclusionconsiderations UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures,standalone1-gheador bodyand10-gextremitySARevaluationforgeneralpopulationexposureconditions,bymeasurementor numericalsimulation,isnotrequiredwhenthecorrespondingSARExclusionThresholdcondition,listed below,issatisfied. 2.1.2Limits AccordingtoFCCPart1.1310:Thecriterialistedinthefollowingtableshallbeusedtoevaluatethe environmentimpactofhumanexposuretoradiofrequency(RF)radiationasspecifiedinpart1.1307(b) F=FrequencyinMHz FriisFormula Friistransmissionformula:Pd=(Pout*G)/(4*Pi*R 2 )Where Pd=powerdensityinmW/cm 2 Pout=outputpowertoantennainmW G=gainofantennainlinearscale Pi=3.1416 R=distancebetweenobservationpointandcenteroftheradiatorincm PdidthelimitofMPE,1mW/cm2.Ifweknowthemaximumgainoftheantennaandthetotalpower inputtotheantenna,throughthecalculation,wewillknowthedistancerwheretheMPElimitisreached. ReportNo.:MTEB24090235-HPage 5 of 6 2.1.3EUTRFExposure BLE GFSK Testchannel PeakOutputPower (dBm) Tuneuptolerance (dBm) Maximumtune-upPower (dBm) Lowest(2402MHz) 0.943 0.943±1 1.943 Middle(2440MHz) 0.821 0.821±1 1.821 Highest(2480MHz) 0.175 0.175±1 1.175 Worstcase:GFSK Channel Maximum tune-upPower (dBm) Maximumtune-up Power (MW) AntennaGain(dBi) Power Density atR=20 cm (mW/cm2) LimitResult Middle(2402MHz)1.9431.56-0.580.000271.0Pass Note:1)RefertoreportMTEB24090235-R1forEUTtestMaxConductedaverageOutputPowervalue. Note:2)Pd=(Pout*G)/(4*Pi*R 2 )=(1.56*0.87)/(4*3.1416*20 2 )=0.00027 Note:3)EUT'sBluetoothmoduleismorethan20cmawayfromthehumanbody. ReportNo.:MTEB24090235-HPage 6 of 6 BTclassic GFSK Testchannel PeakOutputPower (dBm) Tuneuptolerance (dBm) Maximumtune-upPower (dBm) Lowest(2402MHz) -1.296 -1.296±1 -0.296 Middle(2441MHz) -1.364 -1.364±1 -0.364 Highest(2480MHz) -1.692 -1.692±1 -0.692 π/4DQPSK Testchannel PeakOutputPower (dBm) Tuneuptolerance (dBm) Maximumtune-upPower (dBm) Lowest(2402MHz) -0.442 -0.442±1 0.558 Middle(2441MHz) -0.507 -0.507±1 0.493 Highest(2480MHz) -0.831 -0.831±1 0.169 8DPSK Testchannel PeakOutputPower (dBm) Tuneuptolerance (dBm) Maximumtune-upPower (dBm) Lowest(2402MHz) 0.052 0.052±11.052 Middle(2441MHz) -0.023 -0.023±10.977 Highest(2480MHz) -0.363 -0.363±10.637 Worstcase: 8DPSK Channel Maximum tune-upPower (dBm) Maximumtune-up Power (MW) AntennaGain(dBi) Power Density atR=20 cm (mW/cm2) LimitResult Middle(2402MHz) 1.0521.27-0.580.000221.0Pass Note:1)RefertoreportMTEB24090235-RforEUTtestMaxConductedaverageOutputPowervalue. Note:2)Pd=(Pout*G)/(4*Pi*R 2 )=(1.27*0.87)/(4*3.1416*20 2 )=0.00022 Note:3)EUT'sBluetoothmoduleismorethan20cmawayfromthehumanbody. .......................THEENDOFREPORT.........................

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.26 -0.76 -0.58 -5.25 -2.46 -1.86 MAX. Gain -0.58dB PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

ShenzhenMostTechnologyServiceCo.,Ltd. No.5,2ndLangshanRoad,NorthDistrict,Hi-techIndustrialPark,Nanshan, Shenzhen,Guangdong,China. TESTREPORT FCCRulesPart15.247 ReportReferenceNo........................: FCCID................................................: MTEB24090235-R 2BHAO-6273LM Compiledby (position+printedname+signature)..:FileadministratorsAlisaLuo Supervisedby (position+printedname+signature)..:TestEngineerSunnyDeng Approvedby (position+printedname+signature) .. : ManagerYvetteZhou Dateofissue.........................................:September.19,2024 RepresentativeLaboratoryName.:ShenzhenMostTechnologyServiceCo.,Ltd. Address ................................................. : No.5,2ndLangshanRoad,NorthDistrict,Hi-techIndustrialPark, Nanshan,Shenzhen,Guangdong,China. Applicant’sname...............................:NINGBOLONGMARCHIMPORT&EXPORTCO.,LTD Address.................................................: ROOM1505,15THFLOOR,BUILDING3,YUNHUICENTER,NO. 299TONGJIROAD,JIANGBEIDISTRICT,NINGBO,CHINA Testspecification/Standard ............ : FCCRulesPart15.247 TRFOriginator......................................:ShenzhenMostTechnologyServiceCo.,Ltd. ShenzhenMostTechnologyServiceCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenMostTechnologyServiceCo.,Ltd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenMostTechnologyServiceCo.,Ltd.takesnoresponsibilityforandwillnotassume liabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. Testitemdescription........................: EchoDomeSpeaker TradeMark............................................: BELL+HOWELL Model/Typereference.........................: 6273LM ListedModels.....................................: N/A ModulationType .................................. : GFSK,π/4DQPSK,8DPSK OperationFrequency..........................: From2402MHzto2480MHz HardwareVersion ................................. JH-SP-LYV3.11 SoftwareVersion................................... JH-SP-LYV3.09A58 Rating.....................................................: DC5VbyUSBPort DC3.7VbyBattery Result ..................................................... :PASS ReportNo.:MTEB24090235-R Page2of53 TESTREPORT EquipmentunderTest:EchoDomeSpeaker Model/Type:6273LM ListedModels: N/A Remark N/A Applicant: NINGBOLONGMARCHIMPORT&EXPORTCO.,LTD Address:ROOM1505,15THFLOOR,BUILDING3,YUNHUICENTER, NO.299TONGJIROAD,JIANGBEIDISTRICT,NINGBO, CHINA Manufacturer: YUYAOSHENGPUPLASTICCO.,LTD Address: NO.5HUNNANVILLAGE,LINNANVILLAGE,LINSHANTOWN, YUYAOCITY,NINGBO,CHINA TestResult:PASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetest laboratory. ReportNo.:MTEB24090235-R Page3of53 Contents 1REVISIONHISTORY...........................................................................................................................4 2TESTSTANDARDS..............................................................................................................................5 3SUMMARY.................................................................................................................................................6 3.1GeneralRemarks..........................................................................................................................................6 3.2ProductDescription.....................................................................................................................................6 3.3EquipmentUnderTest.................................................................................................................................6 3.4ShortdescriptionoftheEquipmentunderTest(EUT).............................................................................6 3.5EUToperationmode.....................................................................................................................................7 3.6BlockDiagramofTestSetup.......................................................................................................................7 3.7TestItem(EquipmentUnderTest)Description*........................................................................................7 3.8AuxiliaryEquipment(AE)Description........................................................................................................7 3.9AntennaInformation*...................................................................................................................................7 3.10RelatedSubmittal(s)/Grant(s).................................................................................................................8 3.11Modifications...............................................................................................................................................8 3.12EUTconfiguration.......................................................................................................................................8 4TESTENVIRONMENT........................................................................................................................9 4.1Addressofthetestlaboratory....................................................................................................................9 4.2Environmentalconditions............................................................................................................................9 4.3Summaryofmeasurementresults............................................................................................................10 4.4Statementofthemeasurementuncertainty............................................................................................10 4.5EquipmentsUsedduringtheTest............................................................................................................11 5TESTCONDITIONSANDRESULTS..................................................…

Text truncated - open the document above for the full version.

ReportNo.:MTEB24090235-R Page39of53 2397.30-50.068-21.61-28.458PASS 2400.00-51.452-21.61-29.842PASS 2483.50-52.145-21.96-30.185PASS 8DPSK3-DH5 2396.47-50.325-21.83-28.495PASS 2400.00-51.051-21.83-29.221PASS 2483.50-50.745-22.02-28.725PASS 2397.11-49.322-21.49-27.832PASS 2400.00-52.002-21.49-30.512PASS 2483.50-50.793-21.89-28.903PASS 2397.67-49.824-21.48-28.344PASS 2400.00-52.115-21.48-30.635PASS 2483.50-50.717-22.07-28.647PASS TestGraphs OutOfBandEmission GFSK_DH5_Channel0 OutOfBandEmission π/4DQPSK_2-DH5_Channel0 30.0MHz-25000.0MHz GFSK_DH5_Channel0 30.0MHz-25000.0MHz π/4DQPSK_2-DH5_Channel0 OutOfBandEmission GFSK_DH5_Channel39 OutOfBandEmission π/4DQPSK_2-DH5_Channel39 ReportNo.:MTEB24090235-R Page40of53 30.0MHz-25000.0MHz GFSK_DH5_Channel39 30.0MHz-25000.0MHz π/4DQPSK_2-DH5_Channel39 OutOfBandEmission GFSK_DH5_Channel78 OutOfBandEmission π/4DQPSK_2-DH5_Channel78 30.0MHz-25000.0MHz GFSK_DH5_Channel78 30.0MHz-25000.0MHz π/4DQPSK_2-DH5_Channel78 OutOfBandEmission 8DPSK_3-DH5_Channel0 30.0MHz-25000.0MHz 8DPSK_3-DH5_Channel0 ReportNo.:MTEB24090235-R Page41of53 OutOfBandEmission 8DPSK_3-DH5_Channel39 30.0MHz-25000.0MHz 8DPSK_3-DH5_Channel39 OutOfBandEmission 8DPSK_3-DH5_Channel78 30.0MHz-25000.0MHz 8DPSK_3-DH5_Channel78 OutOfBandEmission(Left) GFSK_DH5_ChannelHopping OutOfBandEmission(Left) π/4DQPSK_2-DH5_ChannelHopping OutOfBandEmission(Right) GFSK_DH5_ChannelHopping OutOfBandEmission(Right) π/4DQPSK_2-DH5_ChannelHopping ReportNo.:MTEB24090235-R Page42of53 OutOfBandEmission(Left) GFSK_DH5_ChannelHopping OutOfBandEmission(Left) π/4DQPSK_2-DH5_ChannelHopping OutOfBandEmission(Right) GFSK_DH5_ChannelHopping OutOfBandEmission(Right) π/4DQPSK_2-DH5_ChannelHopping OutOfBandEmission(Left) GFSK_DH5_ChannelHopping OutOfBandEmission(Left) π/4DQPSK_2-DH5_ChannelHopping OutOfBandEmission(Right) GFSK_DH5_ChannelHopping OutOfBandEmission(Right) π/4DQPSK_2-DH5_ChannelHopping ReportNo.:MTEB24090235-R Page43of53 OutOfBandEmission(Left) 8DPSK_3-DH5_ChannelHopping OutOfBandEmission(Right) 8DPSK_3-DH5_ChannelHopping OutOfBandEmission(Left) 8DPSK_3-DH5_ChannelHopping OutOfBandEmission(Right) 8DPSK_3-DH5_ChannelHopping OutOfBandEmission(Left) 8DPSK_3-DH5_ChannelHopping OutOfBandEmission(Right) 8DPSK_3-DH5_ChannelHopping

ReportNo.:MTEB24090235-R Page44of53 APPENDIXVI.DutyCycle TestResult ModulationPacketsChannel OnTime (ms) Period(ms) DutyCycle (%) DutyCycle (linear) DutyCycle Factor(dB) GFSKDH5 02.8863.74877.000.77001.1351 392.8843.74876.950.76951.1379 782.8843.74876.950.76951.1379 π/4DQPSK2-DH5 02.8923.74877.160.77161.1261 392.8903.74877.110.77111.1289 782.8903.74877.110.77111.1289 8DPSK3-DH5 02.8923.74877.160.77161.1261 392.8943.74877.210.77211.1233 782.8923.74877.160.77161.1261 TestGraphs GFSK(DH5)_Channel0 ReportNo.:MTEB24090235-R Page45of53 GFSK(DH5)_Channel39 GFSK(DH5)_Channel78 ReportNo.:MTEB24090235-R Page46of53 π/4DQPSK(2-DH5)_Channel0 π/4DQPSK(2-DH5)_Channel39 ReportNo.:MTEB24090235-R Page47of53 π/4DQPSK(2-DH5)_Channel78 8DPSK(3-DH5)_Channel0 ReportNo.:MTEB24090235-R Page48of53 8DPSK(3-DH5)_Channel39 8DPSK(3-DH5)_Channel78 ReportNo.:MTEB24090235-R Page49of53 APPENDIXVII.DwellTime TestResult ModulationPacketChannel Pulse Width(ms) Numberof Pulsesin 31.6 seconds DwellTime (ms) Limit(ms)Result GFSK DH1 CH39 (2441MHz) 0.3828318121.73 <400 PASS DH31.620161260.82PASS DH52.88094270.72PASS π/4DQPSK 2-DH10.3900316123.24PASS 2-DH31.656159263.3PASS 2-DH52.88097279.36PASS 8DPSK 3-DH10.3888313121.69PASS 3-DH31.632161262.75PASS 3-DH52.896110318.56PASS TestGraphs PulseWidth GFSK_DH1 NumberofPulsesin31.6seconds GFSK_DH1 PulseWidth GFSK_DH3 NumberofPulsesin31.6seconds GFSK_DH3 PulseWidth GFSK_DH5 NumberofPulsesin31.6seconds GFSK_DH5 ReportNo.:MTEB24090235-R Page50of53 PulseWidth π/4DQPSK_2-DH1 NumberofPulsesin31.6seconds π/4DQPSK_2-DH1 PulseWidth π/4DQPSK_2-DH3 NumberofPulsesin31.6seconds π/4DQPSK_2-DH3 PulseWidth π/4DQPSK_2-DH5 NumberofPulsesin31.6seconds π/4DQPSK_2-DH5 PulseWidth 8DPSK_3-DH1 NumberofPulsesin31.6seconds 8DPSK_3-DH1 ReportNo.:MTEB24090235-R Page51of53 PulseWidth 8DPSK_3-DH3 NumberofPulsesin31.6seconds 8DPSK_3-DH3 PulseWidth 8DPSK_3-DH5 NumberofPulsesin31.6seconds 8DPSK_3-DH5 ReportNo.:MTEB24090235-R Page52of53 APPENDIXVIII.NumberOfHoppingChannel TestResult ModulationPacket NumberofHopping Channel LimitResult GFSKDH57915PASS GFSKDH57915PASS GFSKDH57915PASS π/4DQPSK2-DH57915PASS π/4DQPSK2-DH57915PASS π/4DQPSK2-DH57915PASS 8DPSK3-DH57915PASS 8DPSK3-DH57915PASS 8DPSK3-DH57915PASS TestGraphs HoppingPlot GFSK HoppingPlot GFSK HoppingPlot GFSK HoppingPlot π/4DQPSK HoppingPlot π/4DQPSK HoppingPlot π/4DQPSK ReportNo.:MTEB24090235-R Page53of53 HoppingPlot 8DPSK HoppingPlot 8DPSK HoppingPlot 8DPSK **********************EndofReport**********************

ModelNo.:6273LM CETESTSETUP RETESTSETUP ModelNo.:6273LM RETESTSETUP
