2BHBV-E34G Mobile phone
shenzhen redbeat technology co.,ltd
Click to zoom
Application Details
- Equipment Class
- NII - Unlicensed National Information Infrastructure TX
- Date of Grant
- Jul 18, 2024
- Application Purpose
- Original Equipment
- Date of Application
- Jul 18, 2024
- Equipment Note
- 4G Mobile phone
- Frequency Range
- 5745.00000000 - 5825.00000000
- Country
- China
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
Frequency Bands: GSM: GSM 900: 880 ~ 915 MHz (TX), 925 ~ 960 MHz (RX) GSM 1800:1710 ~ 1785 MHz (TX), 1805 ~ 1880 MHz (RX) WCDMA: WCDMA2100:1920-1980 MHz (TX), 2110-2170 MHz (RX) WCDMA900:880-915 MHz (TX), 925-960 MHz (RX) LTE: FDD LTE Band 1: 1920-1980 MHz (TX), 2110-2170 MHz (RX) FDD LTE Band 3: 1710-1785 MHz (TX), 1805-1880 MHz (RX) FDD LTE Band 7: 2500-2570 MHz (TX), 2620-2690 MHz (RX) FDD LTE Band 8: 880-915 MHz (TX), 925-960 MHz (RX) FDD LTE Band 20: 832-862 MHz (TX), 791-821 MHz (RX) FDD LTE Band 28: 703-748 MHz (TX), 758-803 MHz (RX) Bluetooth V5.0 BDR + EDR + BLE: 2402-2480 MHz 2.4G WIFI: 802.11b /g /n(20MHz): 2412-2472 MHz, 802.11 n(40MHz): 2422-2462 MHz 5G WIFI: WLAN 802.11a/n20/n40/ac20/ac40/ac80: 5150 to 5250 MHz WLAN 802.11a/n20/n40/ac20/ac40/ac80: 5250 to 5350 MHz WLAN 802.11a/n20/n40/ac20/ac40/ac80: 5725 to 5850 MHz GPS: 1575.42MHz BDS: 1561.098MHz GLONASS: 1602 MHz GALILEO: 1575.42 MHz FM: 87.5 MHz to 108 MHz Max power: GSM 900: 34.37dBm GSM1800: 30.75dBm WCDMA Band I: 24.41dBm WCDMA Band VIII: 24.56dBm LTE Band 1: 25.09dBm LTE Band 3: 25.32dBm LTE Band 7: 25.20dBm LTE Band 8: 25.30dBm LTE Band 20: 21.36dBm LTE Band 28: 25.18dBm Bluetooth V5.0 BDR + EDR + BLE: BDR+EDR: 4.53dBm BLE: -7.25dBm 2.4GHz WLAN: 14.50dBm 5GHz WLAN: 14.22dBm 5.8GHz WLAN: 13.23dBm Modulation Mode: GSM: GMSK for GSM/GPRS; GMSK and 8PSK for EDGE WCDMA: QPSK; HSDPA: QPSK/16QAM; HSUPA: BPSK LTE: QPSK/16QAM Bluetooth V5.0 BDR + EDR + BLE: BDR + EDR: GFSK(1Mbps), π/4-DQPSK(2Mbps), 8-DPSK(3Mbps) BLE: GFSK 2.4GWIFI: 802.11b(DSSS): CCK, DQPSK, DBPSK 802.11g(OFDM): BPSK, QPSK,16-QAM,64-QAM 802.11n(OFDM): BPSK, QPSK,16-QAM,64-QAM 5G WLAN： 802.11a/n(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11ac (OFDM): BPSK, QPSK,16-QAM,64-QAM,256-QAM GPS: BPSK BDS: QPSK GLONASS: FDMA GALILEO: CBOC FM: FM Bluetooth V5.0 + EDR + BLE: BDR + EDR: Channel Spacing: 1MHz BLE: Channel Spacing: 2MHz 2.4G WIFI Channel Spacing: 5MHz 5G WIFI Channel Spacing: 10MHz WCDMA Channel Spacing: 200KHz GSM Channel Spacing: 200KHz GSM/WCDMA/LTE: FPC Antenna, Gain(s): GSM 900: -0.85dBi, GSM1800: 1.23dBi; WCDMA: B1: 0.33dBi, B8: -0.85dBi; LTE: B1: 0.33dBi; B3: 1.23dBi; B7: -0.08dBi; B8: -0.85dBi; B20: -1.83dBi; B28: -2.42dBi; Bluetooth V5.0 + EDR + BLE: Bluetooth: FPC Antenna, Gain(s): -0.39dBi; WLAN: FPC Antenna, Gain(s):2.4GHz: -0.39Bi, 5GHz : 0.57dBi, 5.8GHz : 0.89dBi FM: Integrated Antenna; GNSS: FPC Antenna. CE Maintenance 1.Use careful with the earphone maybe excessive sound pressure from earphones and headphones can cause hearing loss. 2.Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. 3.The product shall only be connected to a USB interface of version Type-C. 4.Adapter shall be installed near the equipment and shall be easily accessible. 5.EUT Operating temperature range: -10° C to 50° C . 6.Adapter: The plug considered as disconnect device of adapter Power supply and ADP(rating): Input:100-240V Output: 5Vdc, 3.0A or 9Vdc, 2.0A or 12Vdc, 1.5A 7.The device complies with RF specifications when the device used at 5mm you’re your body. 8.To prevent possible hearing damage. Do not listen at high volume levels for long periods. Declaration of Conformity shenzhen redbeat technology co.,ltd hereby declares that this 4G Mobile phone is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. In accordance with Article 10(2) and Article 10(10),This product is allowed to be used in all EU member states. Federal Communication Commission Interference Statement FCC ID: 2BHBV-E3 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Radiation Exposure Statement: This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The exposure standard for wireless device employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. Tests for SAR are conducted using standard operating positions (10mm) accepted by the FCC with the device transmitting at its highest certified power level in all tested frequency bands. IC Warning IC: 32686-E3 This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may…
Text truncated - open the document above for the full version.
Attestation Statements
Attestation Statements 2024-07-05 TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (FCC ID:2BHBV-E3) shenzhen redbeat technology co.,ltd, the undersigned, hereby authorize HOPEK CORPORATION INC to act as our designated U.S. agent for service of process, HOPEK CORPORATION INC accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. HOPEK CORPORATION INC accepts the responsibility to act as designated U.S. agent for service of process. ApplicantInformation： Company name: shenzhen redbeat technology co.,ltd Contact Name: David Chang FRN:0035624741 Address: 302,building 27,qiaocheng east street,xiangshan community,shahe street,nanshan district shenzhen Telephone No: 18503078999 Email: [email protected] Signature: David Chang U.S. Agent Information: Company Name: HOPEK CORPORATION INC Address: 4358 S BANNOCK ST ENGLEWOOD, CO 80110 United States FRN: 0034562900 Contact Name: Peter Davis Tel.: 561-235-6113 Email: [email protected] Signature: Peter Davis
Attestation Statements
shenzhen redbeat technology co.,ltd Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date:7/9/2024 FCC ID: 2BHBV-E3 Ref. #1: Attestation Statements Part 2.911(d)(5)(i) Filing shenzhen redbeat technology co.,ltd certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Ref. #2: Attestation Statements Part 2.911(d)(5)(ii) Filing shenzhen redbeat technology co.,ltd certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Applicant: shenzhen redbeat technology co.,ltd Address: 302,building 27,qiaocheng east street,xiangshan community,shahe street,nanshan district shenzhen Contact Person: David Chang Tel.: 18503078999 Email: [email protected] Sincerely, Signature:
Cover Letter(s)
shenzhen redbeat technology co.,ltd 2024-07-08 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen LGT Test Service Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Date: 2024-07-08 Name: David Chang Title: Manager Company: shenzhen redbeat technology co.,ltd
External Photos

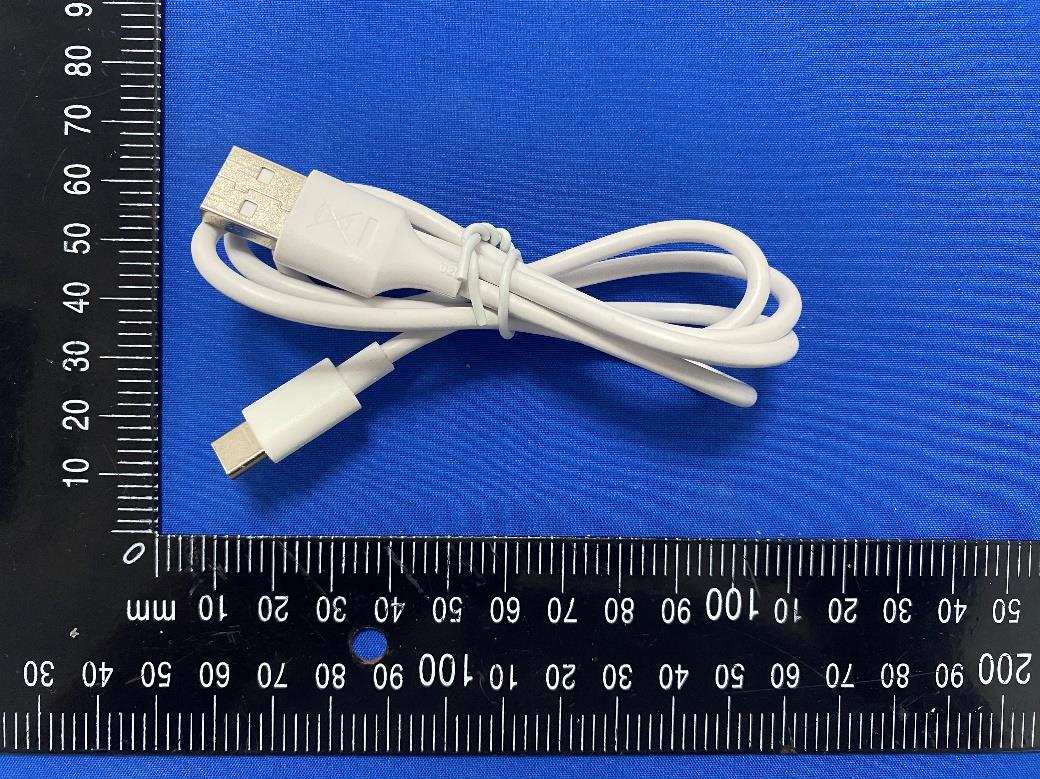

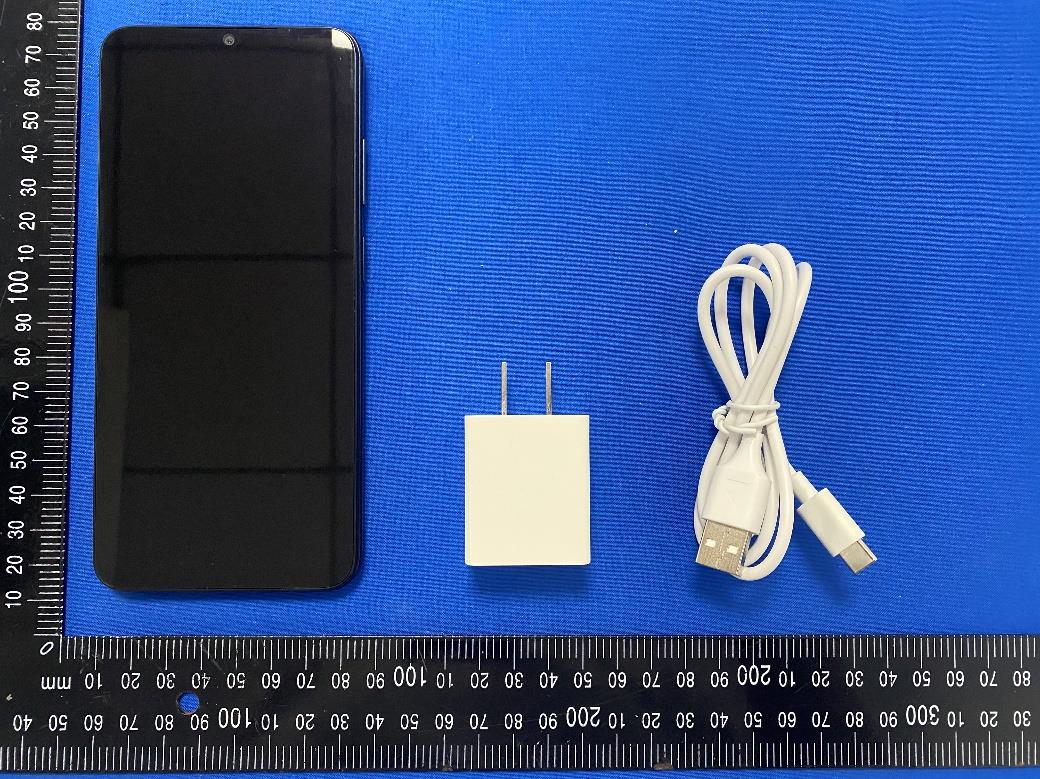

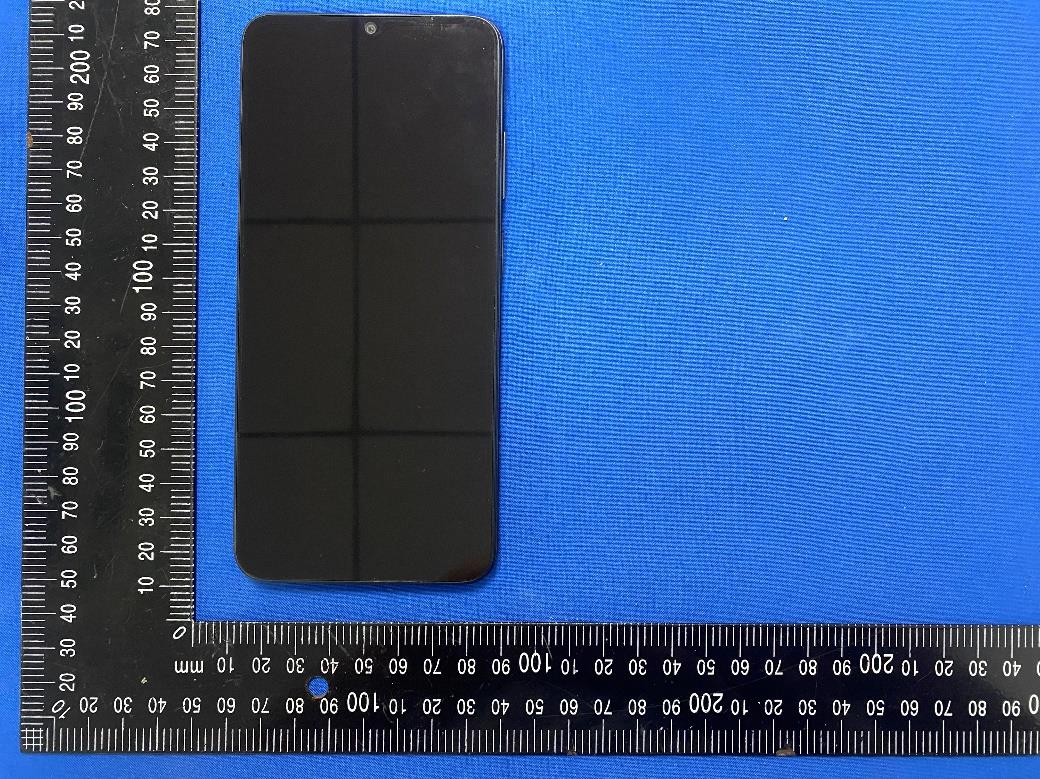

Page 1 of 5 Report No.: LGT24F037 Appendix - External Photographs of EUT Constructional Details Model: E3 Photo 1 Photo 2 Page 2 of 5 Report No.: LGT24F037 Photo 3 Photo 4 Page 3 of 5 Report No.: LGT24F037 Photo 5 Photo 6 Page 4 of 5 Report No.: LGT24F037 Photo 7 Photo 8 Page 5 of 5 Report No.: LGT24F037 Photo 9
ID Label/Location Info
Label 4G Mobile phone Model: E3 FCC ID: 2BHBV-E3 IC: 32686-E3
Internal Photos
Page 1 of 8 Report No.: LGT24F037 Appendix - Internal Photographs of EUT Constructional Details Model: E3 Photo 1 Photo 2 Page 2 of 8 Report No.: LGT24F037 Photo 3 Photo 4 Page 3 of 8 Report No.: LGT24F037 Photo 5 Photo 6 Page 4 of 8 Report No.: LGT24F037 Photo 7 Photo 8 Page 5 of 8 Report No.: LGT24F037 Photo 9 Photo 10 Page 6 of 8 Report No.: LGT24F037 Photo 11 Photo 12 AUX ANT Page 7 of 8 Report No.: LGT24F037 Photo 13 Photo 14 MAIN ANT GPS Wi-Fi BT ANT Page 8 of 8 Report No.: LGT24F037 Photo 15 Photo 16
RF Exposure Info
SAR Dipole Performance Measurement Report If dipoles are verified in return loss<-20dB, (within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. Head 750 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2022.02.11 -36.40 - 48.6 - 2023.02.08 -30.380 -16.54 52.757 4.16 2024.02.05 -34.175 -6.11 51.910 3.31 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 750 MHz Head 835 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2022.02.11 -25.67 - 54.4 - 2023.02.08 -27.048 5.37 56.211 1.81 2024.02.05 -25.497 -0.67 55.437 1.037 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 835MHz Head 1800 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2022.02.11 -28.69 - 51.9 - 2023.02.08 -25.320 -11.75 47.250 -4.65 2024.02.05 -23.385 -18.49 50.885 -1.02 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 1800 MHz Head 1900 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2022.02.11 -25.33 - 52.4 - 2023.02.08 -23.790 -6.08 49.567 -2.83 2024.02.05 -23.036 -9.06 54.166 1.77 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 1900 MHz Head 2450 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2022.02.11 -33.65 - 49.2 - 2023.02.08 -29.606 -12.02 51.232 2.03 2024.02.05 -30.294 -9.97 45.070 -4.13 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 2450 MHz Head 2600 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2022.02.11 -25.00 - 49.8 - 2023.02.08 -24.516 -1.94 50.305 0.51 2024.02.05 -22.766 -9.97 45.930 -3.87 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 2600 MHz Head 5200 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2022.02.11 -21.48 - 53.53 - 2023.02.08 -22.258 3.62 55.087 1.56 2024.02.05 -23.232 8.16 54.020 0.49 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 5200 MHz Head 5400 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2022.02.11 -24.05 - 46.52 - 2023.02.08 -26.631 10.73 42.732 -3.79 2024.02.05 -22.552 -6.23 47.188 0.67 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 5400 MHz Head 5800 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2022.02.11 -34.18 - 48.41 - 2023.02.08 -35.663 4.34 47.276 -1.13 2024.02.05 -35.161 2.87 49.153 0.74 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 5800 MHz ※※※※※END OF THE REPORT※※※※※
RF Exposure Info
!!" !#$ %# &'()*+,$ ! )$ ! - %./-0 10/2 $ !#''/ 3- 3-%% /!0%$ 4- 0 !3 3 . -" 2 -.)%-/- $1- 0 5%-/- $ $.0 %! $ - 0 36 !3!0 /%!-3 /- (7- %1/!) /-0 !#8 +9:** 1!';9 <=>?@<ABC<A36 #-#CB=<DE>FABCGC><?=B BHIFEDJ=B)@BKA-@E>KBL*M,<NBFGB0=BO>KCB/EHIEF *M*P+1!. 0 (7/0 <=>?@<A>EFC<AB8+*:+]:*+*9 QQR STUVUTWXYZ[\]^_ QW` VaVTbVcb WXdddQW RVQ R IBGKBEeAIB Ee@<H?@<FC<FCAIB<HH@BC>A<A>EF@BeB@BFHBK>KD@EI>?>ABCe@Ef<Fg@BD@ECGHA>EF# hijjkl mnTYSWQop XU`R Y XUYUn p UnWSVXSR YobUY RWpVXVQQR STU Sqrq [sT bStRWc QVbTcRVUTWX` R WRp SVUruvwoYTXxUn yzt qU YUc XQnw WRoY dTUnVruvqrq Y{YU pWXb{mn U YUR YobUYQWa R Sc{VQQR STUVUTWXVR URVQ Vcb UWUn zXU RXVUTWXVb{YU pW |XTUY}z~ !3!0 / (7>B=C1@E?B <=>?@<A>EF/BDE@A Ref : ACR.41.17.24.BES.A !"# $%&& '()*+,-(./01233324255267892:;;<=.0>6>;/1 ?@AB( CD EFGH IJKLM"NO HF PP NJO Q" R"SRJILK"IT "UK"SO GN VLPP JR GN S ROT WGOFJLO OF" WRGOO"N SSRJX P JV YZ[\ EF" GNVJRM OGJN KJNO GN"I F"R"GN GH OJ Q" LH"I J NP] VJR OF" SLRSJH" VJR WFGKF GO GH HLQMGOO"I NI GH NJO OJ Q" R"P" H"I GN WFJP" JR S RO WGOFJLO WRGOO"N SSRJX P JV YZ[\ ^ M" _LNKOGJN ` O" aG!N OLR" R"S R"I Q] # bcdef ghi jiklmino pnlnqd uF"Kv"I Q] # bcdef ghi jiklmino pnlnqd wSSRJX"I Q] xnll jyhznml gn{ydnzyd| }mdizyd uLHOJM"R ^ M" `GHORGQLOGJN # g~j klkl jz jiklyoyq| y gz HHL" ^ M" ` O" YJI GVGK OGJNH bcdef ghi lmzmno don Ref: ACR.41.17.24.BES.A 2/7/2024 2/7/2024 2/7/2024 2/7/2024 !"# $%&& '()*+,-(./01233324255267892:;;<=.0>6>;/1 ?@AB( CD EFGH IJKLM"NO HF PP NJO Q" R"SRJILK"IT "UK"SO GN VLPP JR GN S ROT WGOFJLO OF" WRGOO"N SSRJX P JV YZ[\ EF" GNVJRM OGJN KJNO GN"I F"R"GN GH OJ Q" LH"I J NP] VJR OF" SLRSJH" VJR WFGKF GO GH HLQMGOO"I NI GH NJO OJ Q" R"P" H"I GN WFJP" JR S RO WGOFJLO WRGOO"N SSRJX P JV YZ[\ ^ _`ab cdef ghi jfkelbi _hbfamiakd ^ ndfop qdkfroiakd sssssssssssssssssssssssssssssssssssssssssssssssssssssss t uohlfrdi uivke t^ wadofaix ssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss t dhaia`aix sssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss tt wkyf _ibiakd warai sssssssssssssssssssssssssssssssssssssssssssssssssssss t qhkifkmx sssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss t^ kldeofx bi ssssssssssssssssssssssssssssssssssssssssssssssssssssssssss uohlfrdi cdbfioadix z opa{foiakd uohlfrdi hlpih z ^ dhaia`aix ad oaf ssssssssssssssssssssssssssssssssssssssssssssssssssssssssss z wadofaix ssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss | t dhaia`aix ad pa}lae ssssssssssssssssssssssssssssssssssssssssssssssssssssssss ~ qhkifkmx sssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss z wahi k }lamrdi ^ Ref: ACR.41.17.24.BES.A !"# $%&& '()*+,-(./01233324255267892:;;<=.0>6>;/1 ?@AB( CD EFGH IJKLM"NO HF PP NJO Q" R"SRJILK"IT "UK"SO GN VLPP JR GN S ROT WGOFJLO OF" WRGOO"N SSRJX P JV YZ[\ EF" GNVJRM OGJN KJNO GN"I F"R"GN GH OJ Q" LH"I J NP] VJR OF" SLRSJH" VJR WFGKF GO GH HLQMGOO"I NI GH NJO OJ Q" R"P" H"I GN WFJP" JR S RO WGOFJLO WRGOO"N SSRJX P JV YZ[\ ^ _ ` abcdeb fghbi jbkl mnop qrs tut mt vu qv wv xm yt uz{|zp}|~~ u u ~oz | ~ yt y~|p} {o}o{ { | w~|{pr z{ y~ o}z{p q~ mos z} {{p}~ mos u m os u mos u ` x vwtuqvt ¡¢ £ ¤¥¦§ ̈ ©ª«¬¦ ª¦ ¬®¥§ ̄ ¥° zpp~z{p } } v v ±² z{ w ³m ² m }z{z~ ́μ¶· ̧ ^ ¹ YZ[ º»Y»¼½¾ ¿JHGM"ORGK À VG"PI RJQ" y~ x{} x{} v{ono|z mos uzÁo | Á}~{z oz }~ ² y~ qos Á}~{z moz }~ mo}z{p }{ os s~ Á}~ o}r  ` à q v v ±² z{ w ³m ² m }z{z~ s~no ~p { s~zp}op ~ } s~ pzo~z}o{Ä o{p|o{ } s~~ z{p pz~zp}~o}op o{}~} z{ } r op } z }o~ zp} pzo~z}o{ z|~ {} s~~ } } ~ {}o{ }z{z~ xv vqÅ q nz|z}o{ } o{z~o}r z { o{ ~ szp |o{ } zn|oÄ s~~ o{ z s~ s } pn~ } ~z{ ÆÇ } ÆÇ vqvvqÅ q {o}ono}r zp}~ } }~ os ~ }~ o{ |o{ z } }s pzo~z}o{ } zo~ z{ }o| o |z}o{ o|o |o{ zn|o z |}o{ o{ } }z{z~ Used Ref: ACR.41.17.24.BES.…
Text truncated - open the document above for the full version.
RF Exposure Info
! "#$" %&'()*+&,-./011102033045670899:;,9-/ /&<&=&>?& 1@(A)& BC DEFG HIJKL MN GE OO MIN P Q RQIHKJ HS TJ RN FM UKOO IQ FM R QNS VFNEIKN NE VQFNN M RRQIW O IU XYZ[ DE FMUIQL NFIM JIMN FM H E Q FM FG NI P KG H IMO\ UIQ NE RKQRIG UIQ VEFJE FN FG GKPLFNN H MH FG MIN NI P Q O G H FM VEIO IQ R QN VFNEIKN VQFNN M RRQIW O IU XYZ[ ] ^_`abcde`fb_ ghfe i_ca jk` l mabcde` gkeafn`fb_ l] o_apq ^_barp`fb_ sssssssssssssssssssssssssssssssssssssssssssssssssssssss tpkdar_` t`ubc v ] `da_ wbkk xdfar_`k ssssssssssssssssssssssssssssssssssssssssssssssssss v teup_fepq xdfar_`k sssssssssssssssssssssssssssssssssssssssssssssssssss v v tpkdar_` i_ea`pf_`y v v] `da_ wbkk ssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss v v gfr_kfb_ tpkdar_` sssssssssssssssssssssssssssssssssssssssssssssssssss v vl zpqfcp`fb_ tpkdar_` ssssssssssssssssssssssssssssssssssssssssssssssssssss v { pqf|ap`fb_ tpkdar_` kdq`k { {] `da_ wbkk p_c ^rncp_e ^_ }pc wfxdfc ssssssssssssssssssssssssssssssssssss { { `da_ wbkk p_c ^rncp_e ^_ bcy wfxdfc ssssssssssssssssssssssssssssssssssss { {l teup_fepq gfr_kfb_k ssssssssssssssssssssssssssssssssssssssssssssssssssss ~ ~ zpqfcp`fb_ rpkdar_` ~ ~] }pc wfxdfc tpkdar_` ssssssssssssssssssssssssssssssssssssssssssssssssss ~ tpkdar_` kdq` f`u }pc wfxdfc ssssssssssssssssssssssssssssssssssss ~l bcy wfxdfc tpkdar_` sssssssssssssssssssssssssssssssssssssssssssssssss ]] ~ tpkdar_` kdq` f`u bcy wfxdfc ssssssssssssssssssssssssssssssssss ] wfk` b xdfnr_` ]l ! "#$% &'()*+,'-./01222131441567819::;<-:.0 0'='>'?@' 2A)B*' CD EFGH IJKLM NO HF PP NJO Q R SRJILK IT UK SO GN VLPP JR GN S ROT WGOFJLO OF WRGOO N SSRJX P JV YZ[\ EF GNVJRM OGJN KJNO GN I F R GN GH OJ Q LH I JNP] VJR OF SLRSJH VJR WFGKF GO GH HLQMGOO I NI GH NJO OJ Q R P H I GN WFJP JR S RO WGOFJLO WRGOO N SSRJX P JV YZ[\ ^ _ `abc defghij feijkbic k cghhklm e ja lngblhijc cj elja om ja pqp rstuvw kid x yzwrvrr zsu cjkidkldc el llif db{e|c gcd el hkcglhij cmcjh }k|bdkjbeic kid ja hkcglhijc jakj ~l {lelhd je }lbm jakj ja {ledgfj feh{|bc ~bja ja el hijbeid cjkidkldc _ z}bf `m{ uss x zp kigkfjgll ed| pzuss lbk| ghol srq zpusstru ledgfj eidbjbei i~ q gcd ~ _ u px`p k|bdkjbei zb{e|c kl ogb|j bi kffeldkif je ja pqp rstuvw kid x yzwrvrr zsu cjkidkldc `a {ledgfj bc dcbid el gc ~bja ja jcj oifa ei|m ¡¢£¤ ^ ¥ YZ[ ¦§Y§ ̈©ª Z PGI OGJN «GSJP ! "#$% &'()*+,'-./01222131441567819::;<-:.0 0'='>'?@' 2A)B*' CD EFGH IJKLM NO HF PP NJO Q R SRJILK IT UK SO GN VLPP JR GN S ROT WGOFJLO OF WRGOO N SSRJX P JV YZ[\ EF GNVJRM OGJN KJNO GN I F R GN GH OJ Q LH I JNP] VJR OF SLRSJH VJR WFGKF GO GH HLQMGOO I NI GH NJO OJ Q R P H I GN WFJP JR S RO WGOFJLO WRGOO N SSRJX P JV YZ[\ ^ _`_ _a bc ded fghijk lmn o pqkfjff qgi rslmnltnr utvwxn tyzxt{msr vt ttm| nxuv}r zrn vt r~rs{ wl}xnlsxvm {lrzt{msr bc v}}vxm {lrzt{msr t utvt{n sv wtx~ scls sc utvnz|s |v{u}xr xsc sc vt {msxvmn rslmnltnr i b db bc nxuv} zrn vt r~rs{ wl}xnlsxvm {lrzt{msr lmn |c|r {zrs clw l tsztm }vrr v hg n vt sst bc tsztm }vrr {lrzt{ms rcl}} utvt{n llxmrs l }xyzxn x}}n }ls uclmsv{ xsc sc uclmsv{ |vmrstz|sn lr vzs}xmn xm sc vt {msxvmn rslmnltnr nxt|s {scvn xr zrn xsc l msvt lml}~rt lmn xsr |l}xtlsxvm xs vsc xsc l wl}xn d igj |l}xtlsxvm d db bc ded fghijk lmn o pqkfjff qgi rslmnltnr ru|x~ sc {|clmx|l} |v{uvmmsr lmn nx{mrxv |~ lmn uclmsv{ rc}} scx|mrr numnms bc srs m|c {u}v~r l {{ uclmsv{ rc}} scx|mrr sctvt sc nxuv}r rv}n vt zr xsc sc srs m|c |v{u}~ xsc sc tyzxt{msr rs vtsc vt l {{ uclmsv{ rc}} scx|mrr nxt|s {scvn xr zrn xsc l d igj |l}xtlsn |l}xut _ `_ ` ¡ }} zm|tslxmsxr }xrsn }v tutrms lm ¢ulmnn zm|tslxms~ ¢utrrn ls luutv¢x{ls}~ sc j£ |vmxnm| }w} zrxm l |vwtl l|svt v ¤ stl|l} sv sc dmstmlsxvml}}~ ||usn ¥zxnr sv lrzt{ms m|tslxms~ ji b bc v}}vxm zm|tslxmsxr luu}~ sv sc tsztm }vrr {lrzt{ms ¦§ ̈©§ª«¬ ®ª ̄ °±®ª ̄§ ̄ `ª«§¦²®³ª²¬ ́ª §²©¦ª ́μμ gghfggg¶ ggk d j qd d b bc v}}vxm zm|tslxmsxr luu}~ sv sc nx{mrxvm {lrzt{msr §ª·² ̧ ¹ºº» °±®ª ̄§ ̄ `ª«§¦²®³ª²¬ ́ª §ª·² ̧ g h ¼gg gg {{ ¼gg h jg g {{ j¼ ½dqbd b bc zxn}xmr vzs}xmn xm sc …
Text truncated - open the document above for the full version.
RF Exposure Info
The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China SAR TEST REPORT Product Name: 4G Mobile phone Model Name: E3 FCC ID: 2BHBV-E3 Issued For : shenzhen redbeat technology co.,ltd 302,building 27,qiaocheng east street,xiangshan community,shahe street,nanshan district shenzhen Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT24F037HA02 Sample Received Date: June 06, 2024 Date of Test: June 06, 2024 ~ June 19, 2024 Date of Issue: July 04, 2024 Max. SAR (1g): Head:1.116 W/kg Body:0.796 W/kg Reprot No.: LGT24F037HA02 Page 2 of 130 Table of Contents 1. General Information 5 1.1 EUT Description 5 1.2 Test Environment 7 1.3 Test Factory 7 2. Test Standards and Limits 8 3. SAR Measurement System 9 3.1 Definition of Specific Absorption Rate (SAR) 9 3.2 SAR System 9 4. Tissue Simulating Liquids 12 4.1 Simulating Liquids Parameter Check 12 5. SAR System Validation 15 5.1 Validation System 15 5.2 Validation Result 16 6. SAR Evaluation Procedures 17 7. EUT Antenna Location Sketch 18 7.1 SAR test exclusion consider table 19 8. EUT Test Position 24 8.1 Define Two Imaginary Lines on the Handset 24 8.2 Hotspot mode exposure position condition 25 9. Uncertainty 26 9.1 Measurement Uncertainty 26 9.2 System validation Uncertainty 27 10. Conducted Power Measurement 28 10.1 Test Result: 28 11. EUT and Test Setup Photo 54 11.1 EUT Photos 54 11.2 Setup Photos 57 12. SAR Result Summary 63 12.1 Head SAR 63 12.2 Body-worn and Hotspot SAR 66 12.3 Repeated SAR 71 12.4 Repeated SAR measurement 72 12.5 Simultaneous Multi-band Transmission Evaluation: 73 13. Equipment List 75 Appendix A. System Validation Plots 76 Reprot No.: LGT24F037HA02 Page 3 of 130 Appendix B. SAR Test Plots 94 Appendix C. Probe Calibration and Dipole Calibration Report 130 Revision History Rev. Issue Date Contents 00 July 04, 2024 Initial Issue Reprot No.: LGT24F037HA02 Page 4 of 130 TEST REPORT CERTIFICATION Applicant shenzhen redbeat technology co.,ltd Address 302,building 27,qiaocheng east street,xiangshan community,shahe street,nanshan district shenzhen Manufacture shenzhen redbeat technology co.,ltd Address 302,building 27,qiaocheng east street,xiangshan community,shahe street,nanshan district shenzhen Product Name 4G Mobile phone Trademark redbeat Model Name E3 Sample number LGT2406041-1 APPLICABLE STANDARDS STANDARD TEST RESULTS ANSI/IEEE Std. C95.1-1992 FCC 47 CFR Part 2 (2.1093) IEEE 1528: 2013 PASS Prepared by: Approved by: Della He Engineer Vita Li Manager Reprot No.: LGT24F037HA02 Page 5 of 130 1. General Information Environmental evaluation measurements of specific absorption rate (SAR) distributions in emulated human head and body tissues exposed to radio frequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 1.1 EUT Description Product Name 4G Mobile phone Trademark redbeat Model Name E3 Series Model N/A Model Difference N/A Device Category Portable Product stage Production unit RF Exposure Environment General Population / Uncontrolled Hardware Version V4.0.1 Software Version V1.0 Frequency Range GSM 850: 824 ~ 849 MHz PCS 1900: 1850 ~ 1910 MHz WCDMA Band II: 1850 ~ 1910 MHz WCDMA Band IV:1710 ~ 1755 MHz WCDMA Band V: 824 ~ 849 MHz LTE Band 2:1850 ~1910MHz LTE Band 4:1710 ~1755MHz LTE Band 5:824 ~ 849MHz LTE Band 7:2500 ~ 2570MHz LTE Band 12:699~716MHz LTE Band 17:704 ~ 716MHz LTE Band 40:2305~2315MHz/2350-2360MHz LTE Band 41:2535~2655MHz LTE Band 66:1710~1780MHz WLAN 802.11b/g/n20: 2412 MHz ~ 2462 MHz …
Text truncated - open the document above for the full version.
Contact Information
Applicant
David Chang(Manager)
Test Firm
Shenzhen LGT Test Service Co., Ltd.Wen Wen
[email protected]0755-89668180
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 3 | 15E | 5.75 GHz - 5.83 GHz | 17.50 mW |
