2BHBZ-TK-PRORemote Control

Remote control Frequency (Hz) : 20-20 khz Model: TK-PRO Communication distance: 10 meters Battery capacity: 300 Mah Charging time: about 1.5 hours Charging interface: Type-C User Manual ModleTK-Pro After-sales email [email protected] OK OK OK OK OK OK OK OK OK OK OK OK Packing listPhone holder function introductionButtons function introduction Light status introduction ButtonsNO.FunctionOperationNotes 1. Phone Installation 2. 360 degree rotatable phone stand 1. Turn on the screen lock of the phone 2. Flip the phone to the left to landscape mode. Then long press 3S “Up” button to switch to horizontal screen operation mode 3. Single click “up” button: play the previous video Single click “down“ button: play the next video Single click “OK” button: pause/play 4. Flip your phone to portrait mode. Then long press 3s “Up” button to exit the horizontal screen mode 1.Click to adjust text 2.Turn off continuous scrolling （Note：Only available for Kindle APP not for Kindle devices) Power on 1 2 3 4 5 6 7 long Press 5SPower off state Manual Power offlong Press 5SPower on state Auto Power Off Power on and unconnected state, automatically power off after 3 mins Up/Flip upSingle click Down/Flip downSingle click Left/Flip leftSingle click Right/Flip rightSingle click ConfirmationSingle click Not connected state Phone Holder*1Remote Control*1 （This direction is the front of the remote control） Type-C Cable*1User Manual*1 Guides for Set-up Step 1iOS devices must first turn on AssistiveTouch The iOS system version is higher than 14.8 Step 2Long click the 5S “Camera” button to Power On Red and blue lights flashing Two-Step Solution Scrolling Up/Down Too Far Step 3Pair the Bluetooth “TK-Pro”Lights off Step 4Open the software and operate it Settings>Accessibility>Touch>Turn on AssistiveTouch (Android phones do not have the dots） Single click：Switch camera mode Exit continuous likes 10 9 8 13 12 11 14 15 16 17 Long press 3S Continuous likesLong press 3S Single likeDouble click In the continuous likes state Take photosSingle Click Photo focus Photo focus Long press 3S Single click Volume +Single Click Volume -Double click Disconnect currently pairing Press 2 buttons at the same time，red and blue lights flash alternately Horizontal screen switch Long press 3S In the photo state In the photo state Not in the camera state Not in the camera state Only supports horizontal orientation on one side Disconnect currently connected device NO.Lighting statusFunction Red light is always on 1 2 3 4 5 6 Charging Light offFully charged Red light flashesLow battery Red and blue lights flash alternately Pairing search status Blue light flashes onceRemote control is operated once Red and blue lights flash alternately 3 timesHorizontal screen switch Step 1 Step 2 Step 3 Using on Camera/Video Using on TikTokOr other video playback software Single click：Photo focus Single Click：Take photos Long press 3S：Photo focus Single click：Switch camera mode Single click：Previous video Single click：Next video Single click：Pause/Playback Double click：Single like Long press 3S：Continuous likes Long press 3S：Exit continuous likes Single click：Page up Single click：Page down How to switch the video to a horizontal screen?Product parameters Using on E-book          FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. * RF warning for Portable device: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

- SHENZHEN LINGCHENG TRADING CO. LTD - Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 7/1/2024 U.S. Agent Designation SHENZHEN LINGCHENG TRADING CO. LTD acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BHBZ-TK-PRO): Name and company of U.S. agent: UUX GROUP INC Physical U.S. address of agent: 36 South 18th Avenue, Suite A Brighton, CO USA 80601 FRN of U.S. agent: 0033701590 Email address of U.S. agent: [email protected] UUX GROUP INC acknowledges their obligation to accept service of process on behalf of SHENZHEN LINGCHENG TRADING CO. LTD. SHENZHEN LINGCHENG TRADING CO. LTD with the FRN 0035624725 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Kimi ou QA Manager SHENZHEN LINGCHENG TRADING CO. LTD Signature Jack Fu Manager UUX GROUP INC 48_[model] US_Agent_2.911(d)(7) - U, V05

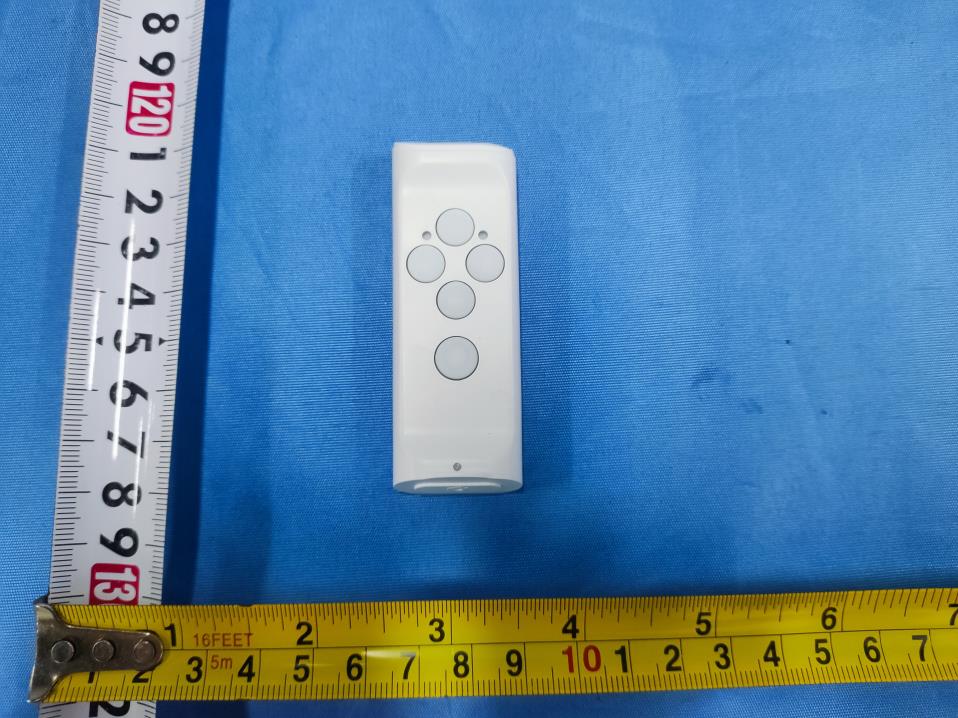

Page 1 of 4 FCC ID: 2BHBZ-TK-PRO Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details External EUT Photo Photo 1 Photo 2 Page 2 of 4 FCC ID: 2BHBZ-TK-PRO Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 4 FCC ID: 2BHBZ-TK-PRO Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 Page 4 of 4 FCC ID: 2BHBZ-TK-PRO Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 7 Photo 8 ---The End---

Label Size: L40mm * W30mm 1. The label is silk-screen on the sample Remote Control Model Name: TK-Pro FCC ID: 2BHAM-TK-PRO L W

Page 1 of 5 FCC ID: 2BHBZ-TK-PRO Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details Internal EUT Photo Photo 1 Photo 2 Page 2 of 5 FCC ID: 2BHBZ-TK-PRO Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 5 FCC ID: 2BHBZ-TK-PRO Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 Antenna Page 4 of 5 FCC ID: 2BHBZ-TK-PRO Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 7 Photo 8 Page 5 of 5 FCC ID: 2BHBZ-TK-PRO Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 9 ------End------

RF Exposure evaluation FCC ID: 2BHBZ-TK-PRO 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. Manufacturing Tolerance [BLE] GFSK1Mbps Channel Channel 0 Channel 19 Channel 39 Target (dBm) 0 2 2 Tolerance ±(dB) 1.0 1.0 1.0 2. E v a l u a t i o n R e s u l t Standalone Band/Mode f (GHz) Antenna Distance (mm) RF output power including tune up SAR Test Exclusion Threshold SAR Test Exclusion Estimated SAR dBm mW BLE 2.48 5 3 2.00 0.628 Yes / Remark: When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06, No SAR is required. .....................End.........................

Page 1 of 34 Report No.: AITSZ24061210W1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. TEST REPORT Client Information: Applicant: SHENZHEN LINGCHENG TRADING CO. LTD Applicant add.: B1010, Block B, Zhantao Technology Building, Xinniu Community, Minzhi Street, Longhua District, Shenzhen, China Manufacturer: Shenzhen Zhijie Technology Co.,Ltd Manufacturer add.: Room 306, Building B, Lianheng Business Building, No. 391 Ainan Road, Longgang Street, Longgang District, Shenzhen，Guangdong Province, China Product Information: Product Name: Remote Control Model No.: TK-Pro Series Model: TK-Pro Max 1,TK-Pro Max 2 Brand Name: N/A Test samples.: AITSZ24061210-1 FCC ID: 2BHBZ-TK-PRO Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Prepared By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Date of Receipt: Jun. 13, 2024 Date of Test: Jun. 13, 2024~ Jun. 21, 2024 Date of Issue: Jun. 21, 2024 Test Result: Pass This device described above has been tested by Guangdong Asia Hongke Test Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited, this document may be altered or revised by Guangdong Asia Hongke Test Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Leon.yi Sean She Page 2 of 34 Report No.: AITSZ24061210W1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. 1 Contents Page COVER PAGE 1 CONTENTS .................................................................................................................................................................... 2 2 TEST SUMMARY .......................................................................................................................................................... 4 2.1 Statement of the Measurement Uncertainty ........................................................................................ 4 2.2 Measurement Uncertainty ................................................................................................................... 4 3 TEST FACILITY ............................................................................................................................................................. 5 3.1 Deviation from standard ...................................................................................................................... 5 3.2 Abnormalities from standard conditions .............................................................................................. 5 3.3 Test Location ....................................................................................................................................... 5 4 GENERAL INFORMATION ......................................................................................................................................... 6 4.1 Test frequencies .................................................................................................................................. 7 4.2 EUT Peripheral List ............................................................................................................................. 7 4.3 Test Peripheral List .............................................................................................................................. 7 4.4 TEST METHODOLOGY ...................................................................................................................... 8 4.4.1 EUT Configuration ................................................................................................................................... 8 4.4.2 EUT Exercise ........................................................................................................................................... 8 4.4.3 General Test Procedures ......................................................................................................................... 8 4.5 Description of Test Modes ................................................................................................................... 9 5 EQUIPMENT USED DURING TEST ........................................................................................................................ 10 6 TEST RESULTS AND MEASUREMENT DATA .................................................................................................... 11 6.1 Antenna requirement .......................................................................................................................... 11 6.2 On Time and Duty Cycle ................................................................................................................... 13 6.3 Maximum Conducted Output Power Measurement .......................................................................... 14 6.4 6 dB Spectrum Bandwidth Measurement .......................................................................................... 16 6.5 Power Spectral Density ..................................................................................................................... 17 6.6 Conducted Spurious Emissions and Band Edges Test ..................................................................... 18 6.7 Radiated Emissions and Radiation Restricted b…

Text truncated - open the document above for the full version.

Page 1 of 23 Report No.: AITSZ24061210W1 1. Duty Cycle 1.1 Ant1 1.1.1 Test Result Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 1M SISO 2402 1.645 1.875 87.73 0.57 0.00 2440 1.645 1.874 87.78 0.57 3.94 2480 1.645 1.875 87.73 0.57 0.00 Page 2 of 23 Report No.: AITSZ24061210W1 1.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 3 of 23 Report No.: AITSZ24061210W1 1M_HCH_2480MHz_Ant1_NTNV Page 4 of 23 Report No.: AITSZ24061210W1 2. Bandwidth 2.1 OBW 2.1.1 Test Result Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 1.018 / Pass 2440 1 1.018 / Pass 2480 1 1.020 / Pass Page 5 of 23 Report No.: AITSZ24061210W1 2.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 6 of 23 Report No.: AITSZ24061210W1 1M_HCH_2480MHz_Ant1_NTNV Page 7 of 23 Report No.: AITSZ24061210W1 2.2 6dB BW 2.2.1 Test Result Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 0.667 >=0.5 Pass 2440 1 0.663 >=0.5 Pass 2480 1 0.664 >=0.5 Pass Page 8 of 23 Report No.: AITSZ24061210W1 2.2.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 9 of 23 Report No.: AITSZ24061210W1 1M_HCH_2480MHz_Ant1_NTNV Page 10 of 23 Report No.: AITSZ24061210W1 3. Maximum Conducted Output Power 3.1 Power 3.1.1 Test Result Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 1M SISO 2402 -0.33 <=30 Pass 2440 2.02 <=30 Pass 2480 2.40 <=30 Pass Note1: Antenna Gain: Ant1: 0.00dBi; Page 11 of 23 Report No.: AITSZ24061210W1 3.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 12 of 23 Report No.: AITSZ24061210W1 1M_HCH_2480MHz_Ant1_NTNV Page 13 of 23 Report No.: AITSZ24061210W1 4. Maximum Power Spectral Density 4.1 PSD 4.1.1 Test Result Mode TX Type Frequency (MHz) Maximum PSD (dBm/3kHz) Verdict ANT1 Limit 1M SISO 2402 -16.45 <=8 Pass 2440 -14.14 <=8 Pass 2480 -13.74 <=8 Pass Note1: Antenna Gain: Ant1: 0.00dBi; Page 14 of 23 Report No.: AITSZ24061210W1 4.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 15 of 23 Report No.: AITSZ24061210W1 1M_HCH_2480MHz_Ant1_NTNV Page 16 of 23 Report No.: AITSZ24061210W1 5. Unwanted Emissions In Non-restricted Frequency Bands 5.1 Ref 5.1.1 Test Result Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 1M SISO 2402 1 -0.53 2440 1 1.86 2480 1 2.23 Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2013, the channel contains the maximum PSD level was used to establish the reference level. Page 17 of 23 Report No.: AITSZ24061210W1 5.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 18 of 23 Report No.: AITSZ24061210W1 1M_HCH_2480MHz_Ant1_NTNV Page 19 of 23 Report No.: AITSZ24061210W1 5.2 CSE 5.2.1 Test Result Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 1M SISO 2402 1 -0.53 -20.53 Pass 2440 1 1.86 -18.14 Pass 2480 1 2.23 -17.77 Pass Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2013, the channel contains the maximum PSD level was used to establish the reference level. Page 20 of 23 Report No.: AITSZ24061210W1 5.2.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV Page 21 of 23 Report No.: AITSZ24061210W1 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV Page 22 of 23 Report No.: AITSZ24061210W1 1M_HCH_2480MHz_Ant1_NTNV Page 23 of 23 Report No.: AITSZ24061210W1 6. Form731 6.1 Form731 6.1.1 Test Result Lower Freq (MHz) High Freq (MHz) MAX Power (W) MAX Power (dBm) 2402 2480 0.0017 2.40

深圳市鑫尔盛科技有限公司 Shenzhen xinersheng Technology Co., Ltd 2.4G板载天线 测试报告 2.4G onboard antenna Test report 深圳市鑫尔盛科技有限公司 Shenzhen xinersheng Technology Co., Ltd 目录 ⚫ 项目调试简介 ⚫ 报告版本提要 ⚫ 测试环境 ⚫ 实验装置 ⚫ 天线效率和峰值增益（MAX） ⚫ 天线装配 ⚫ 调试过程风险提示 ⚫ 总结 LTE-TDD/LTE-FDD/TD/EVDO/WCDMA/ GSM/CDMA2000/WIFI StarLab 3D Laboratory, originally imported from French SATIMO company, can accurately and quickly test TRP, TIS and other data of mobile phones, tablets and laptops, provide customers with antenna orientation and apple chart on the 3D radiation plane, and quickly test the efficiency and gain of GPS/WIFI/BT antenna. Active test range: catalogue Introduction to project debugging Report version summary Test environment Experimental apparatus Antenna efficiency and peak gain (MAX) Antenna assemblyÿ Risk warning during debugging Sum up 深圳市鑫尔盛科技有限公司 Shenzhen xinersheng Technology Co., Ltd 项目调试简介 机型 BLE蓝牙遥控器 天线概 况 主天线 频段 天线状态 天线形式 设计区域 BT 2.4G PCB 单极 样机状 态 调试机 环境处理 报告版本提要 版本 日期 内容概况 V1 2024/07/02 样机调试报告 V2 V3 V4 V5 Introduction to project debugging type BLE Bluetooth remote control Antenna profile Prototype status Main antenna Debug machine Frequency band Antenna state Antenna form Design area monopole Environmental treatment versions date Content details Report version summary Prototype commissioning report dBi 0 深圳市鑫尔盛科技有限公司 Shenzhen xinersheng Technology Co., Ltd 实验装置 experimental facility 深圳市鑫尔盛科技有限公司 Shenzhen xinersheng Technology Co., Ltd 多探头射频天线测试系统 Multi probe RF antenna test system 深圳市鑫尔盛科技有限公司 Shenzhen xinersheng Technology Co., Ltd 天线效率和峰值增益（MAX） 2.4G效率% Antenna efficiency and peak gain (MAX) Antenna gain:0dBi 深圳市鑫尔盛科技有限公司 Shenzhen xinersheng Technology Co., Ltd 无源驻波 Passive standing wave 深圳市鑫尔盛科技有限公司 Shenzhen xinersheng Technology Co., Ltd 天线装配问题 天线辐射范围内，需要保持净空，不可有金属屏蔽等结构件 。 Antenna assembly problem In the radiation range of the antenna, it is necessary to maintain headroom and do not have structural parts such as metal shielding.

Page 1 of 2 FCC ID: 2BHBZ-TK-PRO Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Test Setup Photo DTS Radiated Emission Page 2 of 2 FCC ID: 2BHBZ-TK-PRO Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Conducted Emission ------End------
