2BHC6BMS003Bluetooth module

ProductSpecification Spec-BMS003P-V1.1Page 1 of 29 www.sunitec-cn.com ® Features •SupportsBluetooth5.3dual-mode(BDR/EDR/BLE) specifications •ARM®Cortex®-M33withFloatingPointUnit(FPU) andMemoryProtectionUnit(MPU) Maximumspeed:260MHz •Cadence®HiFi5®AudioEngineDSPcoprocessorwith NeuralNetworkExtension Maximumspeed:520MHz •lowlatency1MBsystemRAM(SYSRAM)with maximumspeed260MHz •USB2.0device •SupportmaximumthreeI2CMastermode400kbpsUp to3.4Mbps •SupportmaximumthreeI3CMastermodeupto12Mbps •SupportmaximumthreeUARTinterfaceUpto3Mbps •SupportmaximumthreeSPImasterinterface,Clockup to52MHz •EMMC4.41/SDIOv2.0,upto52MHz,1-bit/4-bitmode eMMC4.41, •Stand-alonemodulewithon-boardPWBantennaand Bluetoothstack •Supportshighresolutionupto24-bit,192kHzaudiodata format •Supports14PWMchannels •Supports12-bitAUXADCchannels •SupportsmaximumfourI2Sinterface •SupportsSPDIFreceiver •SupportstoconnectmaxthreehostswithHFP/A2DP profilessimultaneously •SupportssmartphoneapplicationsbyBluetoothSPPor BLElink •SupportsfirmwarefieldupgradebyUSB/OTA •Supportsfourmicrophones •Compactsurfacemountmodule:28.28*15.60*4.0mm •LGApackage122pin,Flatnessislessthan0.05mm •RoHScompliant •Idealforportablebatteryoperateddevices •InternalbatteryregulatorcircuitryDSPAudioProcessing •SupportforsingleSCOorEscolinkwithCVSD/mSBC coding. Peripherals •Integrated1.8Vand3Vconfigurableswitching regulatorandlow-dropout(LDO)regulator •Built-inADCforbatterymonitoringandvoltage sense •Built-inADCforchargerthermalprotection •Built-inundervoltageprotection(UVP) •AnAUX-Inportforexternalaudioinput •MultipleI/Opinsforcontrolandstatus HCIInterface •High-speedHCI-UARTinterface(supportsupto 3Mbps) BMS003PBT5.3LEAudioModule MT2833D (ThisPhotosareforreferenceonly) RF/Analog •Frequencyspectrum:2.402GHzto2.480GHz •Receivesensitivity:-97dBm(2MbpsEDR) •Crystal:26MHZ±20PPM@-20°C~+80°C •AVGOutputPower： 10±2dBm(BDR),8±2dBm(EDR) 5±2dBm(BLE1M）14.5±2dBm（BLE2M) •Antennagain：2.73dBi(Peak) AudioCodec •SBC,AAC,LDAC •24-bitdigital-to-analogconverter(DAC)with105dBSNR •24-bitanalog-to-digitalconverter(ADC)with95dBSNR •Supportsupto24-bit,192kHzI2Sdigitalaudio MAC/BasebandProcessor •SupportsBluetooth5.3dual-mode •BDR/EDRtransportforaudio,voice,andSPPdata exchange •BLEtransportforproprietarytransparentserviceand AppleNotificationCenterService(ANCS)dataexchange OperatingCondition •Operatingvoltage:3.2Vto4.6V •Operatingtemperature:-20°Cto+80°C Description TheBMS003PLEAudiomoduleismadeinChina,afully qualifiedBluetooth5.3dual-mode(BDR/EDR/BLE) modulefordesignerstoaddwirelessaudioandvoice applicationstotheirproducts.TheBMS003Pproductsisa Bluetoothmodulethatprovidesacompletewirelesssolution withBluetoothstack,integratedPWBantenna,and worldwideradiocertificationsinacompactsurface-mount package. Applications •SoundbarandSubwoofer(FWdependent) •Bluetoothportablespeakerphone •Multi-speaker(FWdependent) •Bluetoothheadset Qualifie Confidential-Release from Sunitec FCC Statement § 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. § 15.21 Information to user. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. § 15.105 Information to the user. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Country Code selection feature to be disabled for products marketed to the US. This device is intended only for OEM integrators under the following conditions: 1. The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2. The transmitter module may not be co-located with any other transmitter or antenna, Requirement per KDB996369 D03 2.2 List of applicable FCC rules List the FCC rules that are applicable to the modular transmitter. These are the rules that specifically establish the bands of operation, the power, spurious emissions, and operating fundamental frequencies. DO NOT list compliance to unintentional-radiator rules (Part 15 Subpart B) since that is not a condition of a module grant that is extended to a host manufacturer. See also Section 2.10 below concerning the need to notify host manufacturers that further testing is required.3 Explanation: This module meets the requirements of FCC part 15.247. 2.3 Specific operational use conditions This module is stand-alone modular. If the end product will involve the Multiple simultaneously transmitting condition or different operational conditions for a stand-alone modular transmitter in a host, host manufacturer have to consult with module manufacturer for the installation method in end system. 2.4 Limited module procedures Not applicable 2.5 Trace antenna designs Not…

Text truncated - open the document above for the full version.

(Sunitec Technology CO., Limited) (Dec. 15，2025) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID:2BHC6BMS003) [Sunitec Technology CO., Limited] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, signature (Terman Wang) (Sunitec Technology CO., Limited) (Dec. 15，2025) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID:2BHC6BMS003) [Sunitec Technology CO., Limited] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, signature (Terman Wang)

Attestation Statements 2025-11-18 TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (2BHC6BMS003) (Sunitec Technology Co., Limited), the undersigned, hereby authorize (Sony Electronics, Inc.) to act as our designated U.S. agent for service of process, (Sunitec Technology Co., Limited) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. (Sony Electronics, Inc.) accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information： Company name: Sunitec Technology CO., Limited Contact Name: Address: Building C No.725, WeixiangTai Industrial Zone, FuCheng Street, LongHua District, ShenZhen, Guangdong, China. FRN: Telephone No: Email: Signature U.S. Agent Information: Company Name: Sony Electronics, Inc. Address: 16535 Via Esprillo, San Diego California, 92127 FRN: 0034881516 Contact Name: Ms. Kendall Zerman Telephone No: 858-942-2230 Email: [email protected] Signature Terman Wang +86-13926807895 0035629674 [email protected]

Sunitec Technology CO., Limited (Dec. 15, 2025) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Bluetooth module / MODEL BMS003P / FCC ID: 2BHC6BMS003) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (Block diagram, Operational description, Schematics) required to be submitted with this application be permanently withheld from public review. These documents contain detailed system and equipment description and related information about the product which Sunitec Technology CO., Limited considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Sunitec Technology CO., Limited considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Name: Terman Wang Title: Business manager Signature of applicant:

Sunitec Technology CO., Limited (Dec. 12, 2025) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Cerpass Technology Corporation Test Laboratory) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Name: Terman Wang Title: Business manager Signature of applicant:

Sunitec Technology CO., Limited Request for Modular/Limited Modular Approval Date: December 25, 2025 Subject: Manufacturer’s Declaration for ☒ - Modular Approval ☐ - Split Modular Approval ☐ - Limited Modular Approval ☐ - Limited Split Modular Approval Confidentiality Request for: _FCC ID: 2BHC6BMS003 _ 8 Basic Requirements – FCC Part 15.212(a)(1) For Items Marked “NO(*)”, the Limited Module Description Must be Filled Out on the Following Pages Modular Approval Requirement Requirement Met 1. The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with FCC limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation. The physical crystal and tuning capacitors may be located external to the shielded radio elements. 15.212(a)(1)(i) ☒ - YES ☐ - NO(*) The modular with a shield. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with FCC requirements under conditions of excessive data rates or over-modulation. 15.212(a)(1)(ii) ☒ - YES ☐ - NO(*) Yes 3. The modular transmitter must have its own power supply regulation on the module. This is intended to ensure that the module will comply with FCC requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. 15.212(a)(1)(iii) ☒ - YES ☐ - NO(*) The EUT has its own power supply regulation 4. The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b), 15.204(c), 15.212(a), and 2.929(b). The antenna must either be permanently attached or employ a ‘‘unique’’ antenna coupler (at all connections between the module and the antenna, including the cable). The ‘‘professional installation’’ provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph 15.212(b). 15.212(a)(1)(iv) ☒ - YES ☐ - NO(*) The EUT meets the FCC antenna requirements 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)). 15.212(a)(1)(v) ☒ - YES ☐ - NO(*) The modular was tested in a standalone configuration apart from host units. Sunitec Technology CO., Limited Modular Approval Requirement Requirement Met 6. The modular transmitter must be labeled with its own FCC ID number, or use an electron display (see KDB Publication 784748). If using a permanently affixed label with its own FCC ID number, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. 15.212(a)(1)(vi) ☒ - YES ☐ - NO(*) The modular has its own FCC ID number. 7. The modular transmitter must comply with all specific rule or operating requirements applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. 15.212(a)(1)(vii) ☒ - YES ☐ - NO(*) Yes, RF cexposure evaluation performed at 20cm. 8. The modular transmitter …

Text truncated - open the document above for the full version.

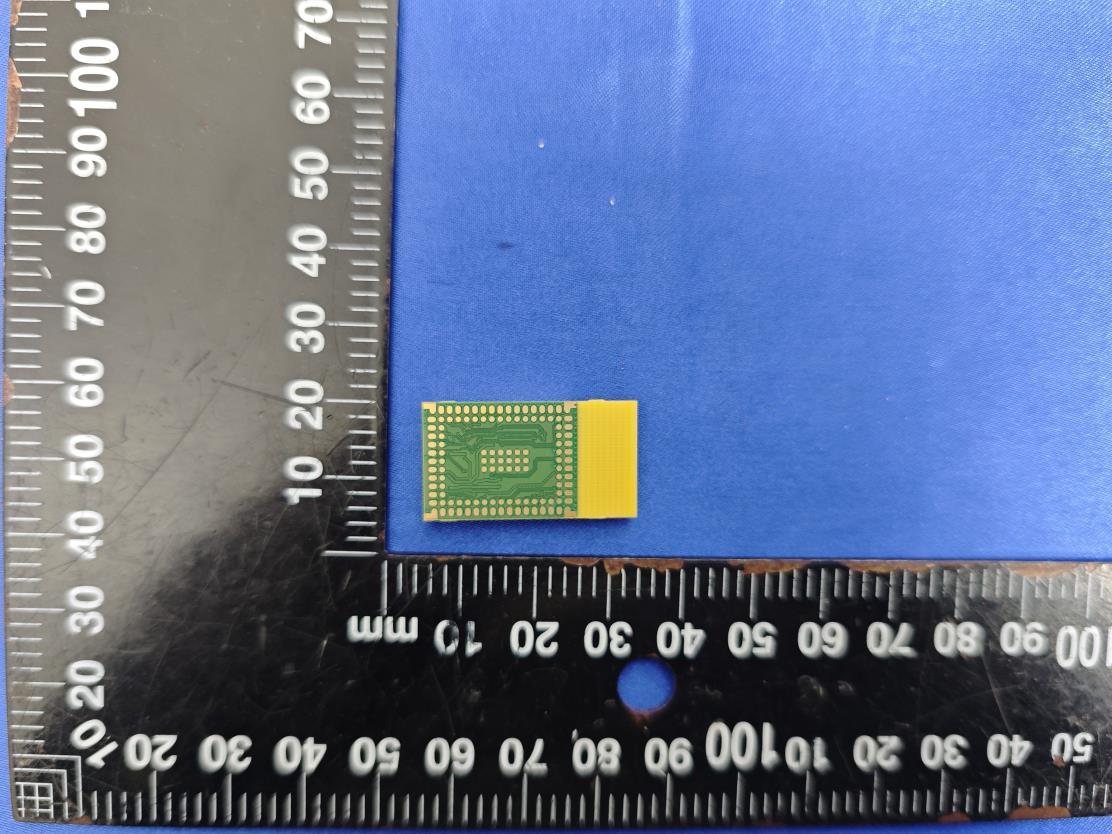

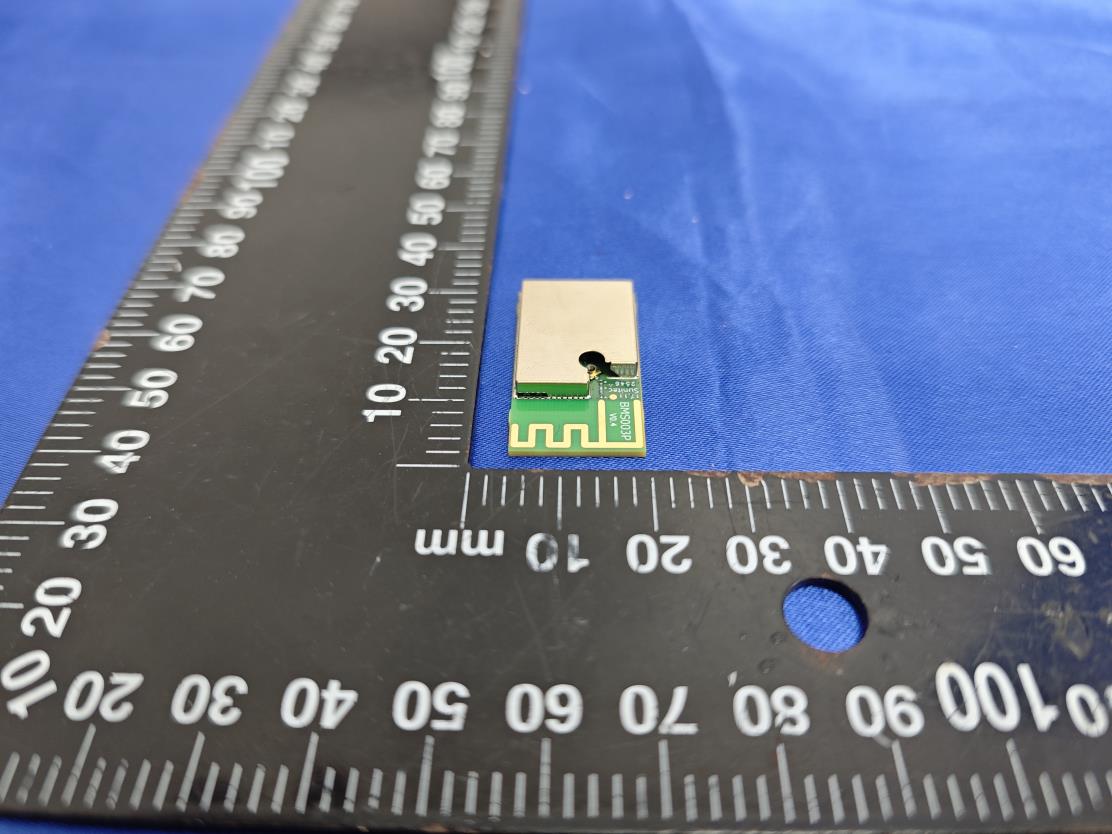

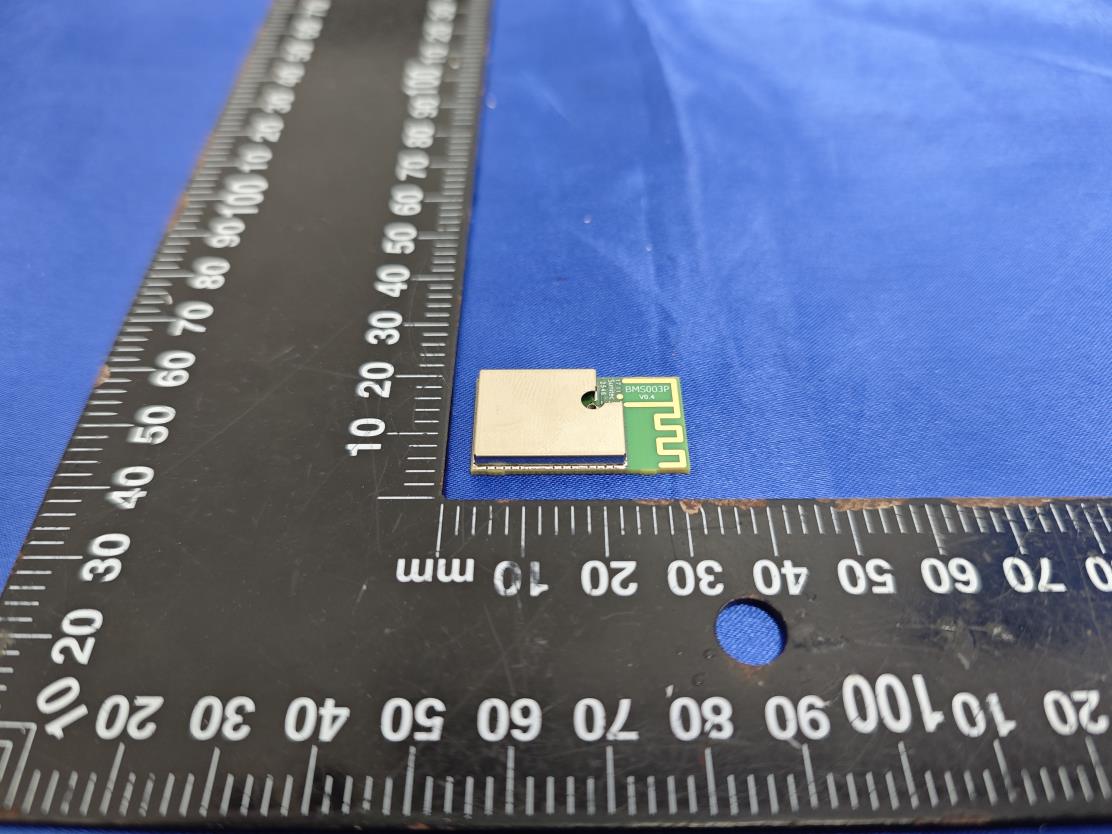

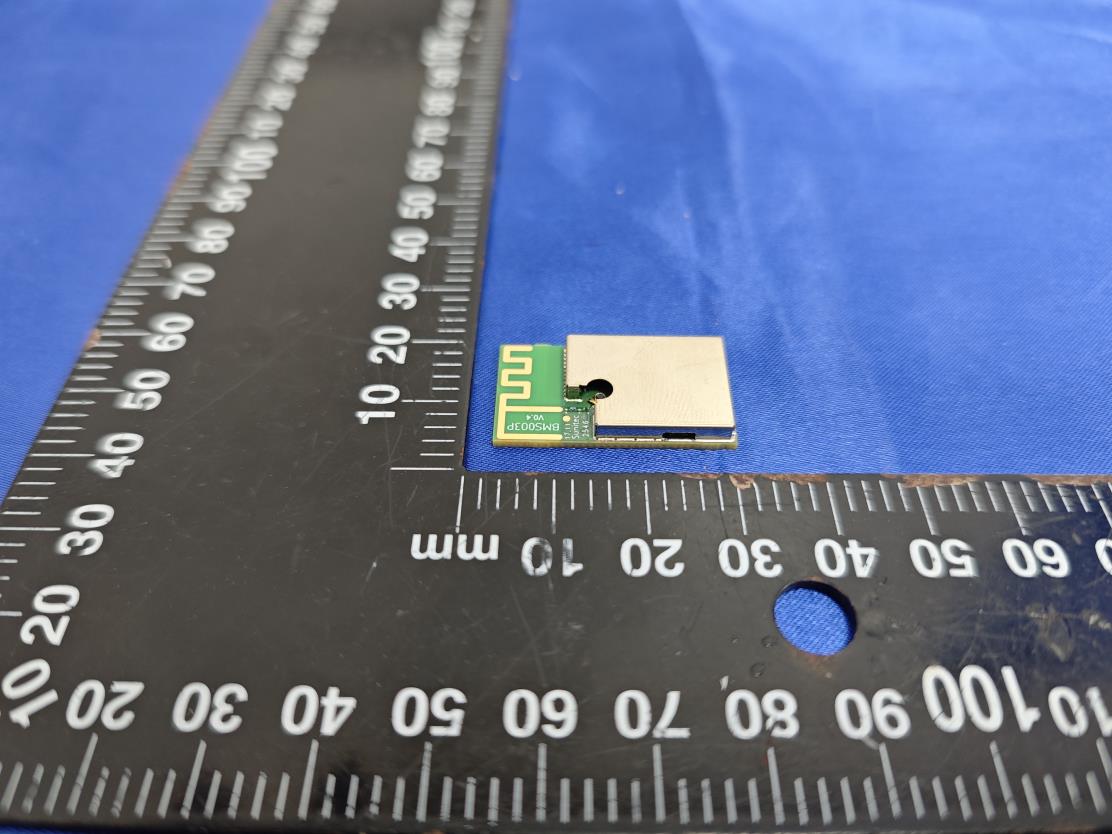

CERPASS TECHNOLOGY CORP. Report No.: 25110060 CERPASS TECHNOLOGY CORP. Issued date : Dec. 02, 2025 Page No. : 1 of 3 EXTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo 2) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: 25110060 CERPASS TECHNOLOGY CORP. Issued date : Dec. 02, 2025 Page No. : 2 of 3 3) EUT Photo 4) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: 25110060 CERPASS TECHNOLOGY CORP. Issued date : Dec. 02, 2025 Page No. : 3 of 3 5) EUT Photo 6) EUT Photo

FCC ID: 2BHC6BMS003 IC: 32740-BMS003 BMS003P

CERPASS TECHNOLOGY CORP. Report No.: 25110060 CERPASS TECHNOLOGY CORP. Issued date : Dec. 02, 2025 Page No. : 1 of 2 INTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo 2) EUT Photo Antenna CERPASS TECHNOLOGY CORP. Report No.: 25110060 CERPASS TECHNOLOGY CORP. Issued date : Dec. 02, 2025 Page No. : 2 of 2 3) EUT Photo 4) EUT Photo

CERPASS TECHNOLOGY CORP. Report No.: 25110060-TRDFCC03 Cerpass Technology Corp. Issued date : Dec. 15, 2025 T-FD-523-0 V1.1 Page No. : 1 of 10 FCC ID : 2BHC6BMS003 Radio Frequency Exposure Applicant : Sunitec Technology CO., Limited Address : Building C No.725, WeixiangTai Industrial Zone, FuCheng Street, LongHua District, ShenZhen, Guangdong, China. Equipment : Bluetooth module Model No. : BMS003P Trade Name : Sunitec FCC ID. : 2BHC6BMS003 I HEREBY CERTIFY THAT: The sample was received Nov. 05, 2025 and the testing was completed on Dec. 14, 2025 at Cerpass Technology Corp. The test result refers exclusively to the test presented test model / sample. Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. Approved by: Mark Liao / Supervisor Laboratory Accreditation: Cerpass Technology Corporation Test Laboratory CERPASS TECHNOLOGY CORP. Report No.: 25110060-TRDFCC03 Cerpass Technology Corp. Issued date : Dec. 15, 2025 T-FD-523-0 V1.1 Page No. : 2 of 10 FCC ID : 2BHC6BMS003 Contents 1. Summary of Test Procedure and Test Results ........................................................................................ 4 1.1 Applicable Standards ................................................................................................................................ 4 2. Test Configuration of Equipment under Test ........................................................................................... 5 2.1 Feature of Equipment ............................................................................................................................... 5 2.2 General Information of Test ....................................................................................................................... 6 2.3 Measurement Uncertainty ......................................................................................................................... 7 3. Test Equipment and Ancillaries Used for Tests ....................................................................................... 8 4. Radio Frequency Exposure ....................................................................................................................... 9 CERPASS TECHNOLOGY CORP. Report No.: 25110060-TRDFCC03 Cerpass Technology Corp. Issued date : Dec. 15, 2025 T-FD-523-0 V1.1 Page No. : 3 of 10 FCC ID : 2BHC6BMS003 History of this test report Report No Issued Date Description 25110060-TRDFCC03 Dec. 15, 2025 Initial Issue CERPASS TECHNOLOGY CORP. Report No.: 25110060-TRDFCC03 Cerpass Technology Corp. Issued date : Dec. 15, 2025 T-FD-523-0 V1.1 Page No. : 4 of 10 FCC ID : 2BHC6BMS003 1. Summary of Test Procedure and Test Results 1.1 Applicable Standards FCC Rules and Regulations Part 2.1091 FCC Rule . Description of Test Result 2.1091 . Radio Frequency Exposure PASS *The lab has reduced the uncertainty risk factor from test equipment, environment and staff technicians which according to the standard on contract. Therefore, the test result will only be determined by standard requirement, measurement uncertainty evaluation is not considered. CERPASS TECHNOLOGY CORP. Report No.: 25110060-TRDFCC03 Cerpass Technology Corp. Issued date : Dec. 15, 2025 T-FD-523-0 V1.1 Page No. : 5 of 10 FCC ID : 2BHC6BMS003 2. Test Configuration of Equipment under Test 2.1 Feature of Equipment Equipment Bluetooth module Model Name BMS003P Model Discrepancy N/A Frequency Range BT/BLE: 2400MHz-2483.5MHz Modulation Type BT: GFSK, π/4-DQPSK, 8DPSK BLE: GFSK Data Rate BT: GFSK:1Mbps, π/4-DQPSK: 2Mbps, 8DPSK: 3Mbps BLE: GFSK: 1Mbps, 2Mbps EUT Power Rating: DC 3.3V Note: For more details, please refer to the User’s manual of the EUT. CERPASS TECHNOLOGY CORP. Report No.: 25110060-TRDFCC03 Cerpass Technology Corp. Issued date : Dec. 15, 2025 T-FD-523-0 V1.1 Page No. : 6 of 10 FCC ID : 2BHC6BMS003 2.2 General Information of Test Organization Cerpass Technology Corp. Test Site Cerpass Technology Corporation Test Laboratory Address: No.10, Ln. 2, Lianfu St., Luzhu Dist., Taoyuan City 33848, Taiwan (R.O.C.) Tel:+886-3-3226-888 Fax:+886-3-3226-881 FCC TW1439, TW1079 IC 4934E-1, 4934E-2 Frequency Range Investigated: Conducted: from 150kHz to 30 MHz Radiation: from 9kHz to 25,000MHz Test Distance: The test distance of radiated emission from antenna to EUT is 3 M. Test Item Test Site Test period Environmental Conditions Tested By RF Conducted (BLE) RFCON01-NK 2025/11/24~2025/12/10 25.3~27.3°C / 50~52% Leon Huang RF Conducted (BR/EDR) RFCON01-NK 2025/12/02~2025/12/14 24.5~25.3°C / 51~52% Leon Huang CERPASS TECHNOLOGY CORP. Report No.: 25110060-TRDFCC03 Cerpass Technology Corp. Issued date : Dec. 15, 2025 T-FD-523-0 V1.1 Page No. : 7 of 10 FCC ID : 2BHC6BMS003 2.3 Measurement Uncertainty ISO/IEC 17025 requires that an estimate of the measurement uncertainties associated with the emissions test results be included in the report. The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2). Measurement Item Uncertainty AC Power Line Conduction(150kHz~30MHz) ±3.2dB Radiated Spurious Emission(9kHz~30MHz) ±3.4dB Radiated Spurious Emission(30MHz~1GHz) ±5.2dB Radiated Spurious Emission(1GHz~25GHz) ±5.2dB Conducted Spurious Emission ±2.1dB 6dB Bandwidth ±4.4% 20dB Bandwidth ±4.5% Occupied Bandwidth ±4.4% Peak Output Power(Conducted Power Meter) ±1.1dB Dwell Time / Deactivation Time ±3.5% Power Spectral Density ±2.0dB Duty Cycle ±3.5% CERPASS TECHNOLOGY CORP. Report No.: 25110060-TRDFCC03 Cerpass Technology Corp. Issued date : Dec. 15, 2025 T-FD-523-0 V1.1 Page No. : 8 of 10 FCC ID : 2BHC6BMS003 3. Test Equipment and Ancillaries Used for Tests Test Item RF Conducted Test Site RFCON01-NK Instrument Manufacturer Model No Serial No Calibration Date Valid Date EXA Signal Analyzer KEYSIGHT N9010A MY54200207 2025/04/23 2026/04/22 Attenuator KEYSIGHT 8491B MY39250703 2025/02/12 2026/02/11 Power Meter Anritsu ML2495A 1224005 2025/02/12 2026/02/11 Power Senso…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: 25110060-TRDFCC02 Cerpass Technology Corp. Issued Date : Dec. 23, 2025 T-FD-507-0 V1.8 Page No. : 1 of 58 FCC ID : 2BHC6BMS003 FCC RADIO TEST REPORT Applicant : Sunitec Technology CO., Limited Address : Building C No.725, WeixiangTai Industrial Zone, FuCheng Street, LongHua District, ShenZhen, Guangdong, China. Equipment : Bluetooth module Model No. : BMS003P Trade Name : Sunitec FCC ID : 2BHC6BMS003 Standard : FCC part 15 Subpart C §15.247 I HEREBY CERTIFY THAT: The sample was received on Nov. 05, 2025 and the testing was completed on Dec. 22, 2025 at Cerpass Technology Corp. The test result refers exclusively to the test presented test model / sample. Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. Approved by: Mark Liao / Supervisor Laboratory Accreditation: Cerpass Technology Corporation Test Laboratory CERPASS TECHNOLOGY CORP. Report No.: 25110060-TRDFCC02 Cerpass Technology Corp. Issued Date : Dec. 23, 2025 T-FD-507-0 V1.8 Page No. : 2 of 58 FCC ID : 2BHC6BMS003 Contents 1. Summary of Test Procedure and Test Results ................................................................................ 5 1.1 Applicable Standards ................................................................................................................. 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test ............................................................................................... 6 2.2 Carrier Frequency of Channels .................................................................................................. 7 2.3 Test Mode & Test Software ........................................................................................................ 8 2.5 General Information of Test ...................................................................................................... 10 2.6 Measurement Uncertainty ........................................................................................................ 10 3. Test Equipment and Ancillaries Used for Tests ............................................................................. 11 4. Antenna Requirements ..................................................................................................................... 13 4.1 Standard Applicable ................................................................................................................. 13 4.2 Antenna Construction and Directional Gain ............................................................................. 13 5. Test of Conducted Emission ............................................................................................................ 14 5.1 Test Limit .................................................................................................................................. 14 5.2 Test Procedures ....................................................................................................................... 14 5.3 Typical Test Setup .................................................................................................................... 15 5.4 Test Result and Data ................................................................................................................ 16 5.5 Test Photographs ..................................................................................................................... 18 6. Test of Radiated Emission ............................................................................................................... 19 6.1 Test Limit .................................................................................................................................. 19 6.2 Test Procedures ....................................................................................................................... 20 6.3 Typical Test Setup ................................................................................................................... 21 6.4 Test Result and Data (9kHz ~ 30MHz) .................................................................................... 22 6.5 Test Result and Data (30MHz ~ 1GHz) ................................................................................... 22 6.6 Test Result and Data (1GHz ~ 25GHz) ................................................................................... 24 6.7 Restricted Bands of Operation ................................................................................................. 36 6.8 Test Photographs (30MHz ~ 1GHz) ......................................................................................... 37 6.9 Test Photographs (1GHz ~ 25GHz) ......................................................................................... 38 7. Test of Conducted Spurious Emission ........................................................................................... 40 7.1 Test Limit .................................................................................................................................. 40 7.2 Test Procedure ......................................................................................................................... 40 7.3 Test Setup Layout .................................................................................................................... 40 7.4 Test Result and Data ................................................................................................................ 40 8. 20dB Bandwidth Measurement Data ............................................................................................... 46 8.1 Test Limit .................................................................................................................................. 46 8.2 Test Procedures ..........................................................…

Text truncated - open the document above for the full version.

深圳市丰禾原电子科技有限公司 SUNITECENTERPRISECO.,LTD. ANTENNASPECIFICATION Project： BMS003P Antennatype： PCBAantenna Version： V1.0 IssuedDate： 2025.11.12 Testedby： Lite.Mo Checkby： ZhiShun.Huang Manufacturer： SunitecEnterpriseCo.,LTD. Address:BuildingCNo.725,WeiXiangTaiIndustrial zone,FuChengstreet,LongHuadistrict, ShenZhen,GuangDong,China THISDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFSUNITEC ENTERPRISECO.,LTD.ANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION PAGE1OF6 Contents 1.RevisionHistory 2.Introduction 3.ElectricalCharacteristics THISDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFSUNITEC ENTERPRISECO.,LTD.ANDSHALLNOTBEREPRODUCEDORU…
