2BHC8-GM-01Magnetic power bank

90mm*61.5mm*18.8mm 9.0V 2A 12V 1.5A 5.0V 2A Thanks for choosing us! This is a magnetic suction wireless power bank,When you use the magnetic series mobile phone, it can be attached to the back of the mobile phone and easily taken away;It can charge tablets, mobile phones, game consoles, e-books, digital cameras, Airpods and other devices. Please read the manual carefully before using the product, and keep properly for checking. Warnning 1 . The battery power of this product is low when leave factory, please charge it fully before use; 2 . Please do not fully discharge the power in the power supply before recharging,to keep product lifetime. 3 . If you do not use the product for a long time, please fully charge the product at least once every 1 month; 4 . Please use the standard accessories of the product. If the product is damaged due to the use of non-standard accessories, it will not be covered by the warranty; 5 . Dismantling the product privately, if the product is damaged, it is not covered by the warranty; 6 . It is forbidden to disassemble, hit or throw this product into fire water; 7 . Do not store this product in dusty, high or low temperature places (Temperature range -10°C—+40°C); 8 . Do not place this product in a humid environment, pay attention to waterproof and moisture-proof;If you need to clean it, please use a soft cloth to clean the product; 9 . To avoid accidents, please keep product away from children. Note: This product is suitable for smartphone products with magnetic suction wireless charging function. When using wireless products without magnetic suction function, please use a protective case with magnetic suction function. If you install additional magnetic suction coils or magnetic disks, it is recommended to use "C" type metal magnetic disk products, and it is not recommended to use "O" type magnetic suction rings. Product. O-type products are seriously heated due to physical phenomena. Product IntroductionUsing Instructions Bracket use scenario Product Specification 1 Charge the wireless power bank Use magnetic wireless power bank to charge phone wirelessly Operation Steps The one endof usb cable is connected to the mobile power supply, and other is connected to the adapter (not include and need support the PD QC AFC protocol) ,then plug the adapter into the mains,the power bank's light flashes,that indicate enter to charging state (4 lights each represents 25% power, 1-25%,2-50%, 3-75%, 4-100%) When all 4 lights are on and not flashing,the charging is complete. 3 Use mobile power to charge the mobile phone wired 2.It is recommended to use a magnetic phone case or use it in bare phone,and must keep away from metal foreign objects when using, so as not to affect charging. 3.Take out the wireless mobile power, press the switch once candetect the power,and at the same time turn on the wireless charging function, then power light on the power bank will be on. After fully charged, the product will automatically enter the standbystate. 4.When only one indicator light of the power bank is on and flashes, the host battery is insufficient, please charge the product. 6.If you find that it cannot be charged, please check whether the wiring is normal and firm; or whether the power adapter is suitable,it is recommended to use a regular brand power adapter for charging. 7.When charging the power bank, the wireless charging will be converted to 5w slow charging mode, and when the wireless charging is used alone, it will be switched to 15w fast charging mode. 8.The heating of the mobile power supply when wireless charging is normal, and the charging power will be automatically adjusted to 5w when the product is heating. 9.Simultaneous charging of wireless charging and wired charging will switch to 5w charging mode. 5.Open wireless mobile power switch,it will automatically read if thereis device on the power bank that need wireless charging when 30 seconds didn't read need charging equipment, or separated the devicefrom mobile power more than 30 seconds, mobile power supply will default no equipment to charge, and will automatically shut down. Use again please restart the switch,that can avoid wasting power. 1.The magnetic suction function is only applicable to magnetic phone series, For example: Apple 12/13/14/15 series, other mobile phones are recommended to use USB power supply as much as possible. Input Frequency Output 15W (wireless); 20W(USB) Efficiency Product Size Power bank capacity 5000 mAh 75% Use one end of the standard usb cable to connect he the mobile power supply,other end is connected to the phone, the phone enters the charge power status (power supply is PD protocol, mobile phones that support PD fast charge protocol can charge quickly . Mobile phones that do not support PD protocol can also be charged, but they must use a standard Type-C cable) Note: This package does not contain USB C-Lighting data cable, please purchase separately. Take out the wireless power bank, Press the switch button once, after the light turns on,put the magnetic function phone on the wireless power bank,the built-in magnet of the wireless charger will automatically align and accurately adsorb to the mobile phone ,and then start to wireless charging. MADE IN CHINA Product Manual 2 1 3 Notes: The standard usb cable need to be used with PD charging adapter 25% 50% 75% 100% HorizontallyVertically 사용방법 수평으로수직으로 PD MADE IN CHINA 제품 설명서 Magnetic Wireless Poldable Power bank 7.보조배터리 충전중 무선충전은 5W일반충전 모드로 바뀌고 충전완료후무 선충전 단독사용시 15W고속충전이 됩니다. 8.무선충전시 발열현상은 정상이고 발열이 심하면 자동으로 5W 일반충전모 드로 바뀝니다. 9.무선충전과 유선충전 동시 사용시 모두 5W 일반충전 모드로 바뀝니다. 사용 설명서 1.본 제품은 마그네틱 무선충전기능이 있는 스마트폰에 사용 가능 합니다. 주: 본제품은 맥세이프 기능 전용 제품이고 맥세이프 기능이 없는 스마트폰 혹은 기타 제품사용시 맥세이프 링이 탑재된 케이스 사용하시고 별도 부착하여 사용시 꼭 “C”모양의 스틸 링 사용을 권장합니다.“O”모양 자석 링 사용시 물리적 현상으로 발열이 심할수 있습니다. 마그테틱 무선충전을 를 지원하지 않는 스마트폰도 무선충전은 가능하오나 부착 할수없습니다. 예: 애플 12와 13시리지 이상 제품이고 기타 제품은 유선충전 권장합니다. 2.무선충전시 메탈류의 금속물를 멀리 하시기 바랍니다. 충전에 영향이 있습니다. 3.무선충전 보조배터리 전원 버튼 짧게 1번 누르면 배터리 용…

Text truncated - open the document above for the full version.

{ShenzhenshiJiasibeiEelctronicsCo.,Ltd} FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 {2024-07-09} U.S.AgentDesignation {ShenzhenshiJiasibeiEelctronicsCo.,Ltd}acknowledgestheirconsentforthefollowingcontactlocatedinthe UnitedStatestoactastheiragentforserviceofprocessfortheequipmentforwhichauthorizationissought(FCC ID:2BHC8-GM-01): NameandcompanyofU.S.agent:{FCCUSAgent,LLC} PhysicalU.S.addressofagent:{3722lllinoisAvenue,SaintCharles,IL,60174,USA} FRNofU.S.agent:{0033402884} EmailaddressofU.S.agent:{[email protected]} {FCCUSAgent,LLC}acknowledgestheirobligationtoacceptserviceofprocessonbehalfof{Shenzhenshi JiasibeiEelctronicsCo.,Ltd}. {ShenzhenshiJiasibeiEelctronicsCo.,Ltd}withtheFRN[{0035625425}]acceptsitsobligationtomaintainan agentforserviceofprocessintheUnitedStatesfornolessthanoneyearaftereitherthegranteehas permanentlyterminatedallmarketingandimportationoftheapplicableequipmentwithintheU.S.,orthe conclusionofanyCommission-relatedadministrativeorjudicialproceedinginvolvingtheequipment,whicheveris later. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirementslistedunder§ 2.911(d)(7). TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB 986446D01. Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,thegranteeisobligatedtonotify theFCCwithin30daysviathegrantingTCB. Sincerely, Signature {Hu}{Cui} {SalesManager} {ShenzhenshiJiasibeiEelctronicsCo.,Ltd} Signature {TimPayne} {CertificationManager} {FCCUSAgent,LLC} 4 8 _ [ m o d e l ] U S _ A g e n t _ 2 . 9 1 1 ( d ) ( 7 ) - U , V 0 5

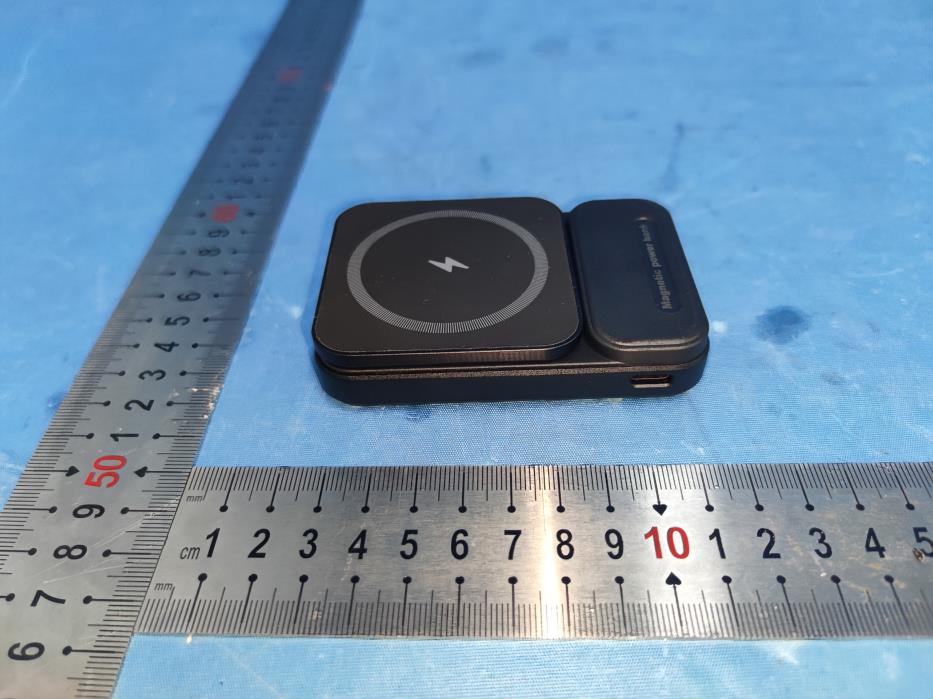

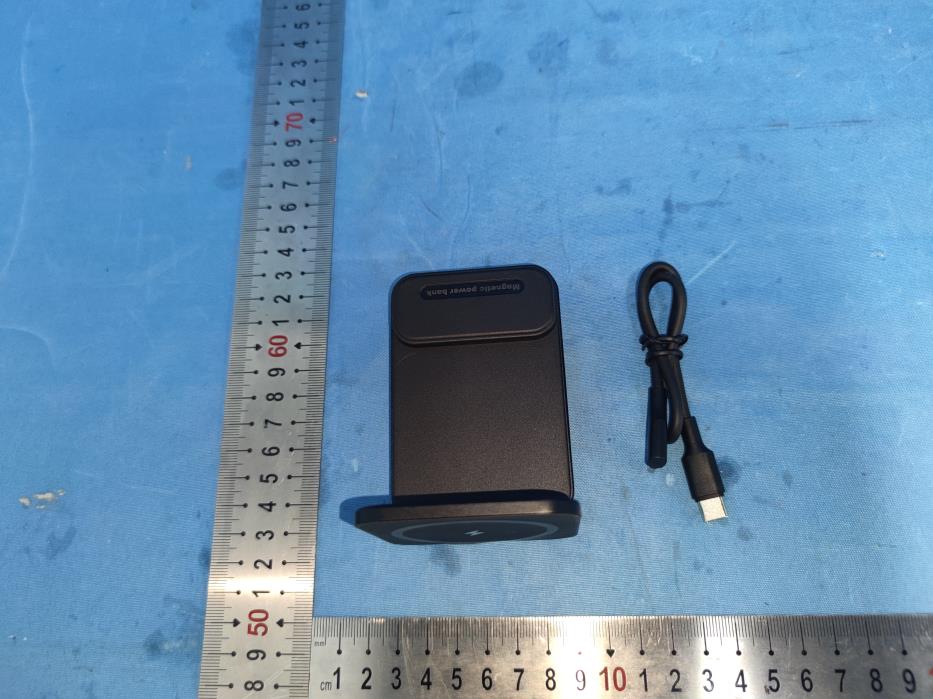

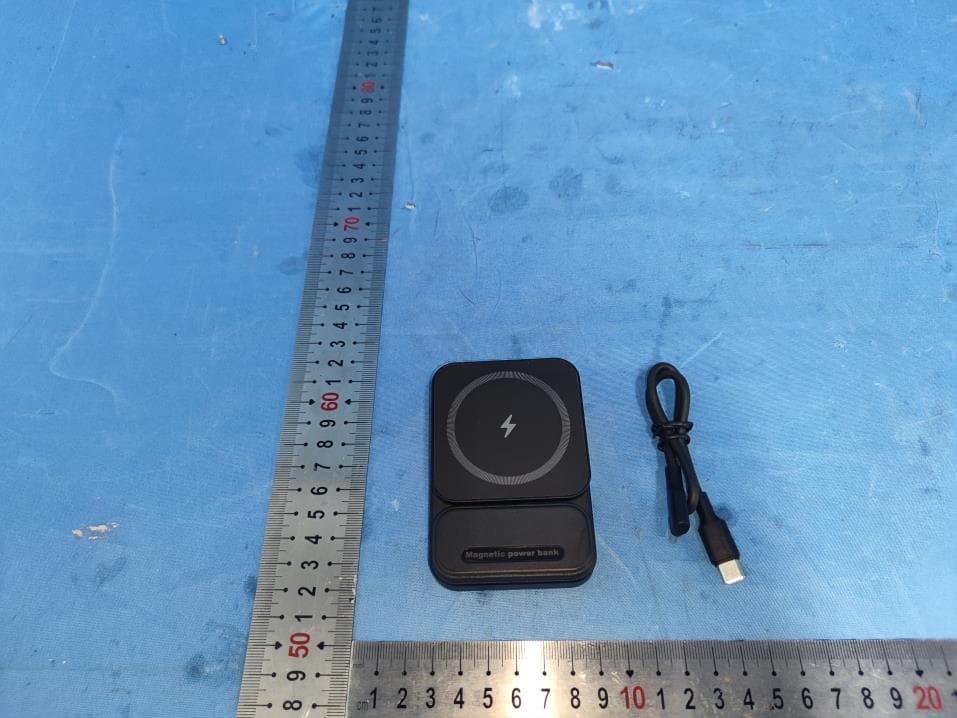

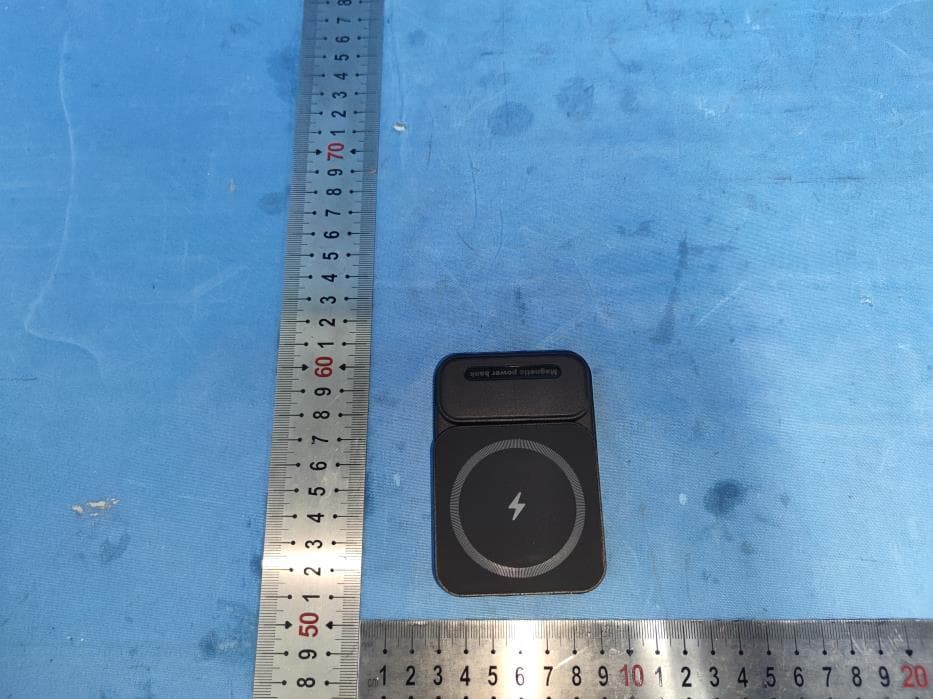

Page 1 of 7 FCC ID: 2BHC8-GM-01 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details External EUT Photo Photo 1 Photo 2 Page 2 of 7 FCC ID: 2BHC8-GM-01 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 7 FCC ID: 2BHC8-GM-01 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 Page 4 of 7 FCC ID: 2BHC8-GM-01 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 7 Photo 8 Page 5 of 7 FCC ID: 2BHC8-GM-01 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 9 Photo 10 Page 6 of 7 FCC ID: 2BHC8-GM-01 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 11 Photo 12 Page 7 of 7 FCC ID: 2BHC8-GM-01 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 13 Photo 14 ---The End---

Label Size: L50mm * W15mm 1. The label is silk-screen on the sample Magnetic power bank Model Name: Echology FCC ID: 2BHC8-GM-01 L W

Page 1 of 6 FCC ID: 2BHC8-GM-01 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details Internal EUT Photo Photo 1 Photo 2 Coil Phone Page 2 of 6 FCC ID: 2BHC8-GM-01 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Page 3 of 6 FCC ID: 2BHC8-GM-01 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 4 Photo 5 Page 4 of 6 FCC ID: 2BHC8-GM-01 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 6 Photo 7 Page 5 of 6 FCC ID: 2BHC8-GM-01 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 8 Photo 9 Page 6 of 6 FCC ID: 2BHC8-GM-01 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 10 Photo 11 ------End------

Page 1 of 24 Report No.: AIT24061902W2 RF Exposure Evaluation Client Information: Applicant: Shenzhenshi Jiasibei Eelctronics Co.,Ltd Applicant add.: Room 1725,Building T5, Hualian city center.No.1001 Nanshan Avenue,Nanshan District,Shenzhen Manufacturer: Shenzhenshi Jiasibei Eelctronics Co.,Ltd Manufacturer add.: Room 1725,Building T5, Hualian city center.No.1001 Nanshan Avenue,Nanshan District,Shenzhen Product Information: Product Name: Magnetic power bank Model No.: Echology Brand Name: GM-01 FCC ID: 2BHC8-GM-01 Applicable standards: FCC CFR 47 PART 1, § 1.1310 KDB 680106 D01 Wireless Power Transfer v04 Prepared By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Date of Receipt: Jun. 19, 2024 Date of Test: Jun. 19, 2024 ~ Jun. 27, 2024 Date of Issue: Jun. 27, 2024 Test Result: Pass This device described above has been tested by Guangdong Asia Hongke Test Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited, this document may be altered or revised by Guangdong Asia Hongke Test Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Leon.yi Sean She Page 2 of 24 Report No.: AIT24061902W2 TABLE OF CONTENTS 1 TEST FACILITY 4 1.1 Deviation from standard 4 1.2 Abnormalities from standard conditions 4 1.3 Test Location 4 2 GENERAL INFORMATION 5 2.1 Coil Specifications 6 2.2 Coil Size 6 2.3 Location(s) – Coil to the outer surface of the enclosure(s) 7 3 TEST METHODOLOGY 8 3.1 Measuring Standard 8 3.2 Requirements 8 3.3 Test Setup 9 3.4 Test Procedure 10 4 Equipment Approval Considerations 11 4.1 Description of the test mode 12 4.2 Peripheral List 12 4.3 Test Instruments list 12 4.4 Duty Cycle 13 4.5 Compliance Location: Center vs Tip-Surface of the Probe 14 4.6 Test Result 16 5 Test Setup photo 19 Page 3 of 24 Report No.: AIT24061902W2 Revision History Revision Issue Date Revisions Revised By 00 Jun. 27, 2024 Initial Issue Sean She Page 4 of 24 Report No.: AIT24061902W2 1 TEST FACILITY The test facility is recognized, certified or accredited by the following organizations: FCC-Registration No.: 251906 Designation Number: CN1376 Guangdong Asia Hongke Test Technology Limited has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. IC —Registration No.: 31737 CAB identifier: CN0165 The 3m Semi-anechoic chamber of Guangdong Asia Hongke Test Technology Limited has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 31737 A2LA-Lab Cert. No.: 7133.01 Guangdong Asia Hongke Test Technology Limited has been accredited by A2LA for technical competence in the field of electrical testing, and proved to be in compliance with ISO/IEC 17025: 2017 General Requirements for the Competence of Testing and Calibration Laboratories and any additional program requirements in the identified field of testing. 1.1 Deviation from standard None 1.2 Abnormalities from standard conditions None 1.3 Test Location Guangdong Asia Hongke Test Technology Limited Address: B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Page 5 of 24 Report No.: AIT24061902W2 2 GENERAL INFORMATION EUT Name: Magnetic power bank Model No: GM-01 Serial Model: N/A Test sample(s) ID: AIT24061902-1 Sample(s) Status: Engineer sample Operation frequency: 113kHz-205kHz Modulation Technology: ASK Antenna Type: loop coil Antenna Antenna gain: 0dBi Hardware version.: N/A Software version.: N/A Power supply: Input: 5V⎓2A,9V⎓2A,12V⎓1.5A Output: 5V⎓2A,9V⎓2A,12V⎓1.67A Wireless Output: 15W(MAX) Model different: N/A Note: For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 6 of 24 Report No.: AIT24061902W2 2.1 Coil Specifications ltem Parameter Input inductance: L: 6.8uH±10% Material of enclosure(s): Enameled wire Number of turns: Transmitter 1: 11 turns 2.2 Coil Size Unit: mm A B C D E F 17±1 38±1.5 44±1 15±2 3.0±1.5 0.8±0.15 Page 7 of 24 Report No.: AIT24061902W2 2.3 Location(s) – Coil to the outer surface of the enclosure(s) Unit: mm Front A Rear B Left C Right D Top E Bottom F 30 8 8 8 3 12 Righ t Front Left Rear Top Bottom Page 8 of 24 Report No.: AIT24061902W2 3 TEST METHODOLOGY 3.1 Measuring Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Cocmission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. According KDB680106 D01: KDB 680106 D01 Wireless Power Transfer v04. 3.2 Requirements According to the item 3 of KDB 680106 D01v04: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation. (1) Mobile Device and Portable Device Configurations (2) Equipment Authorization Procedures for Devices Operating at Frequencies Below 4 MHz (3) The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away from the top surface. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in …

Text truncated - open the document above for the full version.

Coil + hard magnetic Note: 1. The coil is attached to the circular hard magnetic disc with holes and double slots 2. Wrap 8MM of high-temperature tape around the cable outlet position 3. Tape the back of the magnetic disc with ear white glueÿ4. Do not loosen the coil Hot air wire anticlockwise Magnetized sheet Operation frequency Antenna Type Antenna gain 113kHz-205kHz Loop coil Antenna 0dBi

Page 1 of 24 Report No.: AIT24061902W1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. FCC TEST REPORT Client Information: Applicant: Shenzhenshi Jiasibei Eelctronics Co.,Ltd Applicant add.: Room 1725,Building T5, Hualian city center.No.1001 Nanshan Avenue,Nanshan District,Shenzhen Manufacturer: Shenzhenshi Jiasibei Eelctronics Co.,Ltd Manufacturer add.: Room 1725,Building T5, Hualian city center.No.1001 Nanshan Avenue,Nanshan District,Shenzhen Product Information: Product Name: Magnetic power bank Brand Name: Echology Model No.: GM-01 FCC ID: 2BHC8-GM-01 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Prepared By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Date of Receipt: Jun. 19, 2024 Date of Test: Jun. 19, 2024 ~ Jun. 27, 2024 Date of Issue: Jun. 27, 2024 Test Result: Pass This device described above has been tested by Guangdong Asia Hongke Test Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited, this document may be altered or revised by Guangdong Asia Hongke Test Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Leon.yi Sean She Page 2 of 24 Report No.: AIT24061902W1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. 1 Contents Page COVER PAGE 1 CONTENTS .................................................................................................................................................... 2 2 TEST SUMMARY ............................................................................................................................................ 5 2.1 STATEMENT OF THE MEASUREMENT UNCERTAINTY ......................................................................................... 5 2.2 MEASUREMENT UNCERTAINTY ...................................................................................................................... 5 3 TEST FACILITY .............................................................................................................................................. 6 3.1 DEVIATION FROM STANDARD ......................................................................................................................... 6 3.2 ABNORMALITIES FROM STANDARD CONDITIONS ............................................................................................... 6 3.3 TEST LOCATION .......................................................................................................................................... 6 4 GENERAL INFORMATION ............................................................................................................................. 7 4.1 EUT TEST MODE ........................................................................................................................................ 8 4.2 DESCRIPTION OF TEST SETUP ....................................................................................................................... 8 4.3 PERIPHERAL LIST ........................................................................................................................................ 9 4.4 EUT PERIPHERAL LIST ................................................................................................................................ 9 5 EQUIPMENTS LIST FOR ALL TEST ITEMS ................................................................................................. 10 6 CONDUCTED EMISSION TEST.................................................................................................................... 11 6.1 CONDUCTED EMISSION MEASUREMENT............................................................................................ 11 6.2 POWER LINE CONDUCTED EMISSION LIMITS ....................................................................................... 11 6.3 TEST PROCEDURE ............................................................................................................................... 11 6.4 DEVIATION FROM TEST STANDARD .................................................................................................... 11 6.5 TEST SETUP .......................................................................................................................................... 12 6.6 EUT OPERATING CONDITIONS ............................................................................................................ 12 6.7 TEST RESULT ........................................................................................................................................... 13 7 RADIATED EMISSION MEASUREMENT ..................................................................................................... 15 7.1 RADIATED EMISSION LIMITS ........................................................................................................................ 15 7.2 ANECHOIC CHAMBER TEST SETUP DIAGRAM ................................................................................................ 16 7.3 TEST PROCEDURE ..................................................................................................................................... 16 7.4 DEVIATION FROM TEST STANDARD ...........................................…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2BHC8-GM-01 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Test Setup Photo DCD Conduction Radiation (9KHz-30MHz) Page 2 of 2 FCC ID: 2BHC8-GM-01 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Radiation (30MHz-1000MHz) ------End------
