2BHCF-WH3WH3 Wireless Hub

Monitor Pro Ltd Address: 27A Devon St, Mangawhai Heads, Northland 0505, NZ Date: 2024-08-16 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing SUBJECT: FCC Application for FCC ID: 2BHCF-WH3 To Whom It May Concern: Monitor Pro Ltd certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature: Name: Roly Rogers Date: 2024-07-29

Monitor Pro Ltd Address: 27A Devon St, Mangawhai Heads, Northland 0505, NZ Date: 2024-08-16 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing SUBJECT: FCC Application for FCC ID: 2BHCF-WH3 To Whom It May Concern: Monitor Pro Ltd certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature: Name: Roly Rogers Date: 2024-07-29

Monitor Pro Ltd U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Baihetian Innovative Solutions FRN: 0033401605 Contact Name: Kenneth Young Street Address: 6837 Chase Rd City/Province/Zip: Dearborn, MI 48126 Telephone No: 313-395-3113 Email: [email protected] This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: July. 29, 2024 Signed by (Printed Name/Title): Kenneth Young/Manager The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: Monitor Pro Ltd Grantee Code: 2BHCF FCC ID: 2BHCF-WH3 FRN: 0035625326 Contact Name: Roly Rogers Street Address: 27A Devon St, Mangawhai Heads, Northland 0505, NZ Telephone No: +64274334635 Email: [email protected] Applicant Signature: Date: July.29.2024 Signed by (Printed Name/Title): Roly Rogers / CEO

Monitor Pro Ltd 27A Devon St, Mangawhai Heads, Northland 0505, NZ Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: July 29, 2024 Subject; Request for Confidentiality FCC ID: 2BHCF-WH3 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Roly Rogers Title: CEO

Monitor Pro Ltd Date：July.29.2024 Product Model Number: WH3 FCC ID：2BHCF-WH3 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following:  Testing  Approval applications and procedures We declare that ORGANIZATION. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by ORGANIZATION.on our behalf shall have the same effect as acts of our own. By: Contact Listed on FCC Wesbite Name: Roly Rogers Title: CEO Email: [email protected] Telephone: +64274334635 On behalf of: Monitor Pro Ltd.

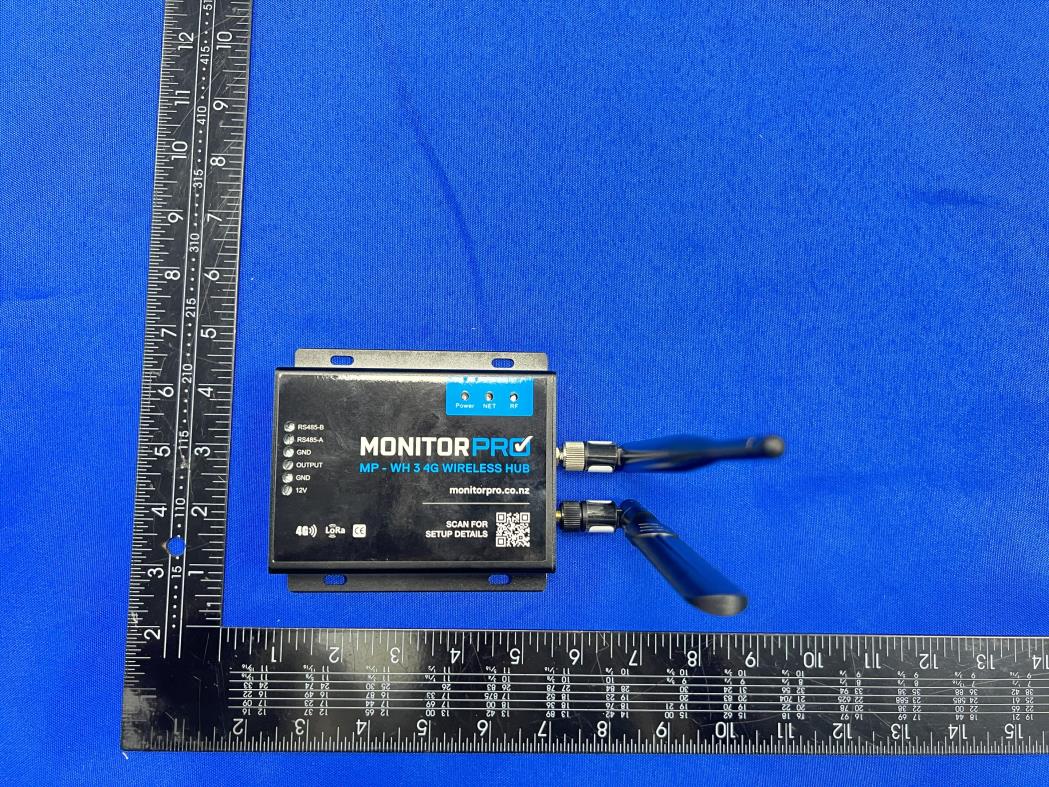

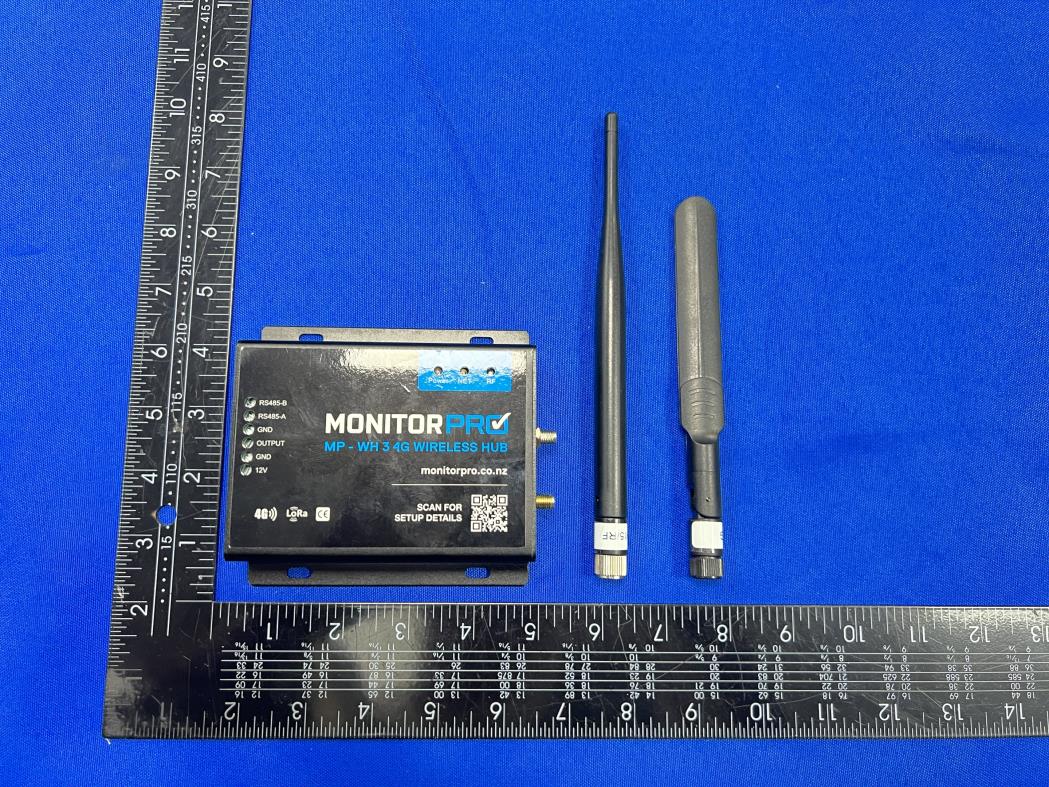

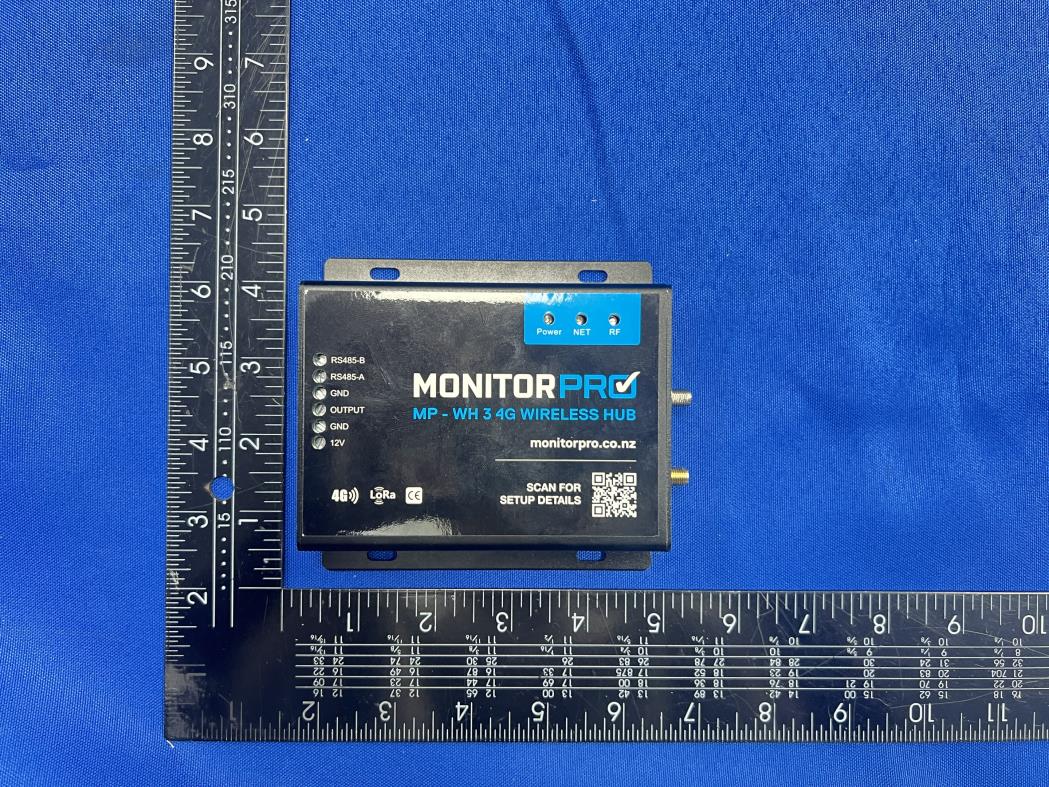

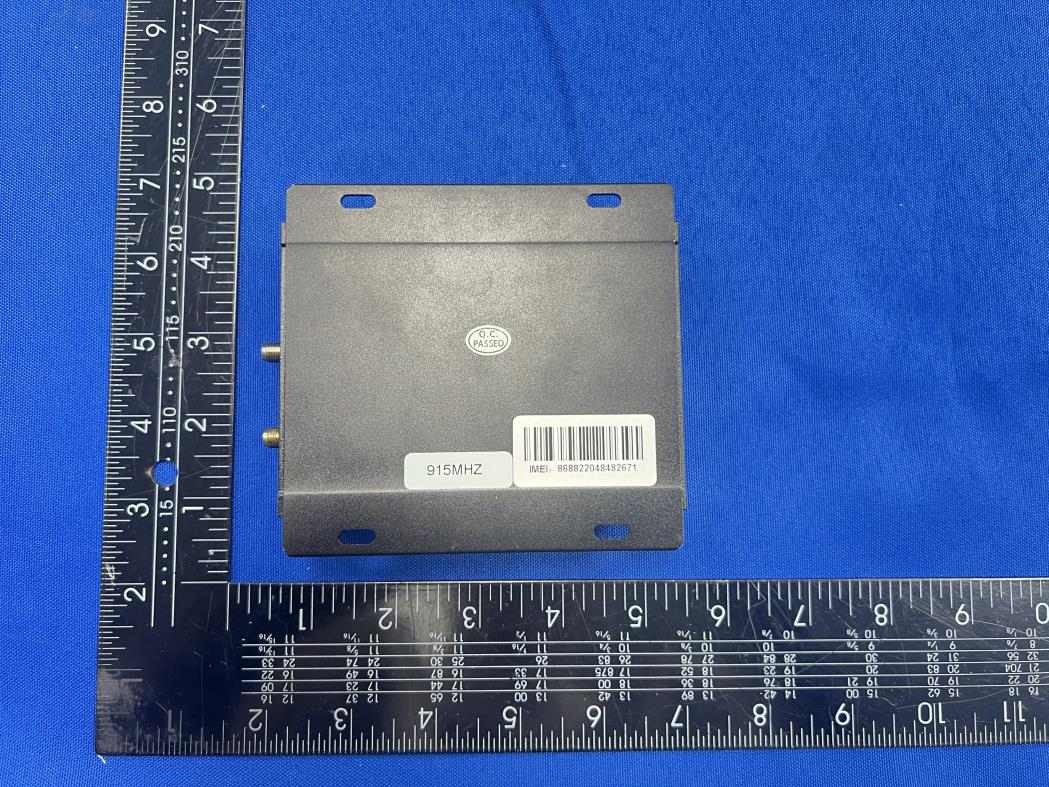

FCC ID: 2BHCF-WH3 Page 1 of 6 IC: 32692-WH3 External Photos of EUT FCC ID: 2BHCF-WH3 Page 2 of 6 IC: 32692-WH3 SRD Antenna 2G&3G&4G Antenna FCC ID: 2BHCF-WH3 Page 3 of 6 IC: 32692-WH3 FCC ID: 2BHCF-WH3 Page 4 of 6 IC: 32692-WH3 FCC ID: 2BHCF-WH3 Page 5 of 6 IC: 32692-WH3 FCC ID: 2BHCF-WH3 Page 6 of 6 IC: 32692-WH3

FCC ID: 2BHCF-WH3 Page 1 of 1 IC: 32692-WH3 Label Information 1. Label location: Size: L3.0cm*W2.0cm WH3 Wireless Hub Model: WH3 FCC ID: 2BHCF-WH3 IC: 32692-WH3 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. I

FCC ID: 2BHCF-WH3 Page 1 of 6 IC: 32692-WH3 Internal Photos of EUT FCC ID: 2BHCF-WH3 Page 2 of 6 IC: 32692-WH3 FCC ID: 2BHCF-WH3 Page 3 of 6 IC: 32692-WH3 FCC ID: 2BHCF-WH3 Page 4 of 6 IC: 32692-WH3 FCC ID: 2BHCF-WH3 Page 5 of 6 IC: 32692-WH3 FCC ID: 2BHCF-WH3 Page 6 of 6 IC: 32692-WH3

V1.0 FCC ID: 2BHCF-WH3 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 5 Maximum Permissible Exposure Report 1. Product Information FCC ID: 2BHCF-WH3 Product name WH3 Wireless Hub Model number WH3 Power supply DC 12V from adapter Adapter infromation Model：GMA25-120200-1A Input:100-240V~50/60Hz 1.0A Output:12V2.0A Modulation Type FM for RoLa, QPSK for UMTS, QPSK, 16QAM for LTE Antenna Type External Antenna Antenna Gain 1.83dBi (max.) For RoLa 3.5dBi (max.) For all GSM Band; 3.5dBi (max.) For all WCDMA Band; 3.5dBi (max.) For all LTE Band; Hardware version V1.0 Software version V1.0 Operation Frequency Band RoLa: 917.1MHz 2G: GSM850, PCS1900 3G: Band II/IV/V 4G: Band 2, Band 4, Band 5, Band 7, Band 12, Band 13, Band 25, Band 26, Band 38, Band 40, Band 41, Band 66 Extreme temp. Tolerance -20°C to +60°C Extreme vol. Limits 10.8VDC to 13.2VDC (nominal: 12.0VDC) Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices. V1.0 FCC ID: 2BHCF-WH3 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 5 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 f=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information The EUT can only use antennas certificated as follows provided by manufacturer; External Identification Antenna type and antenna number Operate frequency band Maximum antenna gain RoLa Antenna External Antenna 800 MHz – 1000 MHz 1.83dBi (max.) For RoLa GSM&WCDMA &LTE Antenna External Antenna 600 MHz – 2500 MHz 3.5dBi (max.) For all GSM, WCDMA and LTE Band 6. Conducted Power General Note: 1. Per KDB 447498 D01v06, the maximum output power channel is used for SAR testing, further SAR test reduction and MPE. V1.0 FCC ID: 2BHCF-WH3 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 5 < RoLa > Modulation Type Channel Frequency (MHz) Field Strength (dBμV /m) d (m) E.R.P. Power (dBm) E.I.R.P. Power (dBm) LoRa 1 917.1 88.00 3.0 -7.20 -5.05 <GSM Max Conducted Power> Test Mode Channel Frequency (MHz) Max Conducted Power (dBm) 2G GSM850 LCH 824.2 27.63 MCH 836.6 27.76 HCH 848.8 27.96 PCS1900 LCH 1850.2 28.73 MCH 1880 28.90 HCH 1909.8 28.91 <WCDMA Max Conducted Power> Test Mode Channel Frequency (MHz) Max Conducted Power (dBm) WCDMA Band II LCH 1852.4 23.15 MCH 1800.0 22.99 HCH 1907.6 23.02 Band IV LCH 1712.4 22.87 MCH 1732.6 22.56 HCH 1752.6 22.73 Band V LCH 826.4 23.03 MCH 836.6 22.96 HCH 846.6 22.91 <LTE Max Conducted Power> Test Mode Modulation Max Conducted Power (dBm) LTE Band 2 QPSK 22.51 16QAM 24.19 Band 4 QPSK 22.55 16QAM 24.19 Band 5 QPSK 23.25 16QAM 24.16 Band 7 QPSK 22.07 16QAM 20.85 Band 12 QPSK 23.13 16QAM 22.56 Band…
