KARSTEN INTERNATIONAL BV U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: August 12, 2024 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID:2BHE2KS4732 KARSTEN INTERNATIONAL BV(“the applicant”) certifies that, as of the date of the filing of the application, CLF Import and Export Limited (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. CLF Import and Export Limited ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: CLF Import and Export Limited FRN: 0033489683 Address: 1312 17th Street #692, Denver, CO 80202, United States Signature: Contact Person: David Chen Tel: +1 949 254 2565 Email: [email protected] Applicant KARSTEN INTERNATIONAL BV FRN: 0035644277 Address: Overschiestraat 63, 1062 XD, Amsterdam, Netherlands Contact Person: Laura Bond Tel: +31(0)206325676
Page 1 of 3 1. General Information 1.1 Product Information Manufacturer: Xiamen Lujiang Technology Co.,Ltd. Address of Manufacturer: Room 601-2, No.63-1, Wanghai Road, Software Park Phase II, Torch Hi-Tech Zone, Xiamen, China Product Name: PCB Antenna Model Name: L13 Frequency Range: 2400MHz - 2483.5MHz Type of Antenna: PCB Antenna Antenna Gain: 0dBi (Max.) Impedance: 50 ohm Antenna View: Length * Width (1.2cm * 0.4cm) Page 2 of 3 2. OTA Test 2.1 Gain Frequency Peak Gain (dBi) Polarity 2402MHz 0 Horizontal 2402MHz -2.2 Vertical 2442MHz -0.3 Horizontal 2442MHz -2.5 Vertical 2480MHz -0.5 Horizontal 2480MHz -2.3 Vertical Page 3 of 3 2.2 Radiation Pattern View ***** END OF REPORT *****

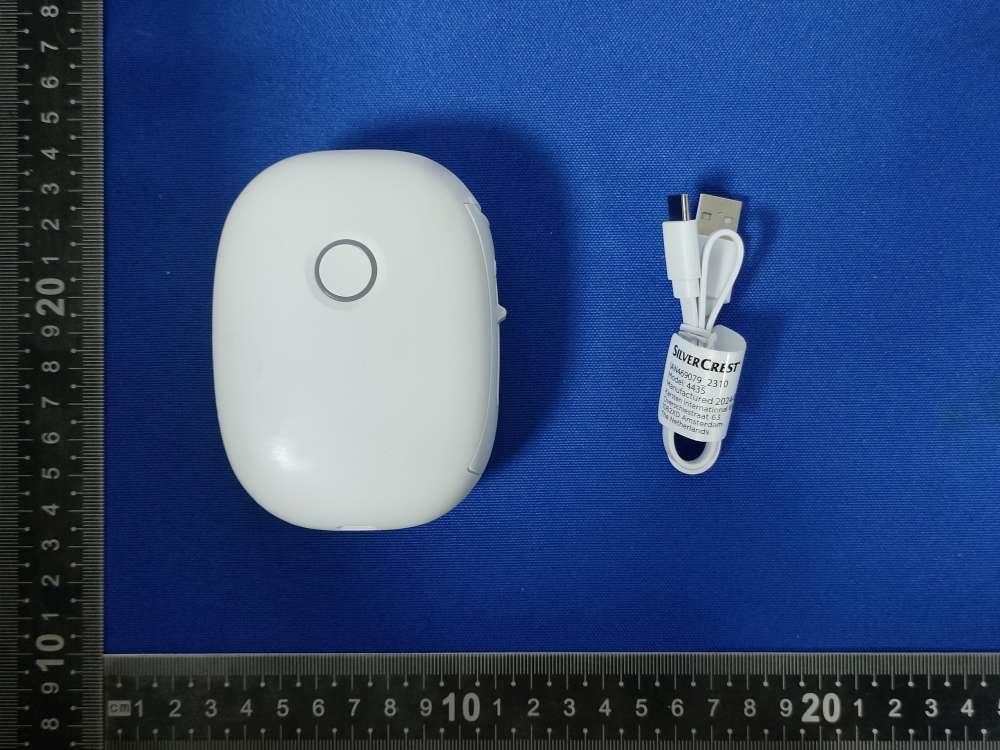

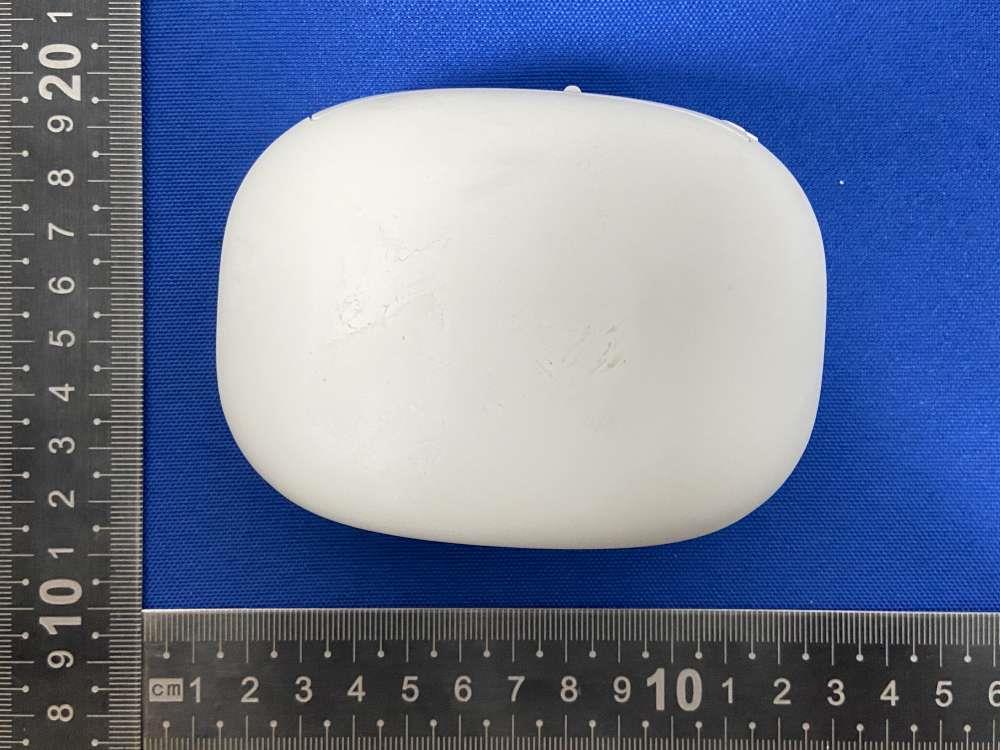

Report No: SSP24070272-1E FCC ID:2BHE2KS4732 Annex of Test Report Annex A. EUT External Photos EUT View 1 EUT View 2 Report No: SSP24070272-1E FCC ID:2BHE2KS4732 Annex of Test Report EUT View 3 EUT View 4 Report No: SSP24070272-1E FCC ID:2BHE2KS4732 Annex of Test Report EUT View 5 EUT View 6 Report No: SSP24070272-1E FCC ID:2BHE2KS4732 Annex of Test Report EUT View 7
Report No: SSP24070272-1E FCC ID:2BHE2KS4732 Annex of Test Report Annex D. Label and Information FCC Label Sample FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location
FCC ID:2BHE2KS4732 RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093,Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. For BR Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit -1.96 -1(±1) 0 1 2441 5 0.312 3.0 For BLE Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit 1.86 1(±1) 2 1.585 2440 5 0.495 3.0 So a SAR test is not required
CCUT Testing & Certification Report No: SSP24070272-1E FCC Test Report Page 1 of 42 FCC TEST REPORT FCC ID:2BHE2KS4732 Report No. : SSP24070272-1E Applicant : KARSTEN INTERNATIONAL BV Product Name : Mini Label Printer Model Name : L13 Test Standard : FCC Part 15.247 Date of Issue : 2024-08-03 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. CCUT Testing & Certification Report No: SSP24070272-1E FCC Test Report Page 2 of 42 Test Report Basic Information Applicant..................................: KARSTEN INTERNATIONAL BV Address of Applicant...............: Overschiestraat 63, 1062 XD, Amsterdam, Netherlands Manufacturer..........................: Xiamen Lujiang Technology Co.,Ltd. Address of Manufacturer........: Room 601-2, No.63-1, Wanghai Road, Software Park Phase II, Torch Hi-Tech Zone, Xiamen, China Product Name.........................: Mini Label Printer Brand Name.............................: - Main Model..............................: L13 Series Models..........................: MPL13, MPL13H, 4435, L12, L13S, L13Pro, A13, D13, 4731, 4732 Test Standard..........................: FCC Part 15 Subpart C ANSI C63.4-2014 ANSI C63.10-2013 Date of Test .............................: 2024-07-23 to 2024-07-30 Test Result...............................: PASS Tested By ................................: (Coke Huang) Reviewed By............................: (Lieber Ouyang) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. CCUT Testing & Certification Report No: SSP24070272-1E FCC Test Report Page 3 of 42 CONTENTS 1. General Information ...................................................................................................................................................... 5 1.1 Product Information ............................................................................................................................................... 5 1.2 Test Setup Information ........................................................................................................................................... 6 1.3 Compliance Standards ............................................................................................................................................. 7 1.4 Test Facilities .......................................................................................................................................................... 7 1.5 List of Measurement Instruments ............................................................................................................................ 8 1.6 Measurement Uncertainty ....................................................................................................................................... 8 2. Summary of Test Results ............................................................................................................................................... 9 3. Antenna Requirement ................................................................................................................................................. 10 3.1 Standard and Limit................................................................................................................................................ 10 3.2 Test Result ............................................................................................................................................................ 10 4. Conducted Emissions................................................................................................................................................... 11 4.1 Standard and Limit................................................................................................................................................ 11 4.2 Test Procedure ...................................................................................................................................................... 11 4.3 Test Data and Results ............................................................................................................................................ 12 5. Radiated Emissions ..................................................................................................................................................... 15 5.1 Standard and Limit................................................................................................................................................ 15 5.2 Test Procedure ...................................................................................................................................................... 15 5.3 Test Data and Results ............................................................................................................................................ 17 6. Band-edge Emissions(Radiated)................................................................................................................................. 21 6.1 Standard and Limit................................................................................................................................................ 21 6.2 Test Procedure ...................................................................................................................................................... 21 6.3 Test Data and Results .............................................................…
Text truncated - open the document above for the full version.
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.40 GHz - 2.48 GHz | 600.00 µW |
