2BHEG-LSCLight Stream (TM) Cloud

Quick Start Sheet 1 Install the Light Stream Cloud TM APP 2 Install the bulbs onto the wire in channel order 6 LED Status Codes*: 3 Bulbs are Color Coded for each Channel* ! Test light the bulbs on the sockets before installing onto your roof-line. Make sure the bulbs are installed tightly into the sockets. 4 Open the App and find the + sign to pair a controller. 5 Activate the controller for Wi-Fi Mode or Hotspot Mode. 7 Choose Wi-Fi or Hotspot & Continue the setup process ? Need more info? Scan this QR Code 8 Create a Theme 9 Set A Schedule Learn More about: •Troubleshooting •Pairing 2 or more controllers Together •Installation Tips •Themes •Schedules 1 2 3 4 5 6 Bulb’s wire must be plugged directly into the controller. Maximum 200 bulbs per Controller ! 10 Select the button for On, Off or Timer Mode. *Sold Separately. Compatible only with LS Gen 3 bulbs Wi-Fi (Recommended) Hold button until flashes blue. (6 Seconds) HotSpot (If Wi-Fi is not available) Press button once. (Flashes white) WWW.VILLAGELIGHTING.COM SIMPLE SCHEDULE Repeat the same schedule every day Standard Channels Advanced Channels Choose up to three colors to fade per channel Make a channel twinkle Adjust fading speed CUSTOM SCHEDULE Create schedule “Blocks” to customize your light schedule PATENTED & PATENT PENDING Green Steady On: Wi-Fi Connected Green Flash: Wi-Fi + Schedule Red Flash: No Connection Blue & White Steady On: Default Mode. Press button once for Hotspot mode, 6 Seconds for Wi-Fi Mode White Flashing: Hotspot Pairing Blue Flashing: Wi-Fi Pairing *See on-line manual for more codes Copyright 2024 Village Lighting Co. FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body

Dong Guan Qiangde Electronics Technology Co.,Ltd. Covered Equipment Certification Attestation Letter 8/6/2024 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2BHEG-LSC Dong Guan Qiangde Electronics Technology Co.,Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Dong Guan Qiangde Electronics Technology Co.,Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Aihua.Yang Title: CEO Company Name: Dong Guan Qiangde Electronics Technology Co.,Ltd. Date 2024-08-06

* Dong Guan Qiangde Electronics Technology Co.,Ltd. the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Aug 06, 2024 Canada ATTN.: Reviewing Engineer Phuntion LLC 25214 Spectrum, Irvine, CA92618 Jun.Tian [email protected] FCC ID: 2BHEG-LSC FRN:0035639350 Per section 2.911(d)(7) of the FCC rules,Wuhan Yixin Technology Co., Ltd.certifies that the equipment for which authorization is sought is designated to thefollowing U.S. Designated agent* for service of process: Company Name: Physical U.S. Company Address: Agent name: Agent Email Address: FRN: Expiration date:Aug 06,2025 0033422403 The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Designated Agent Signed: (Required, if different to Applicant): Signed: Printed name: Jun.Tian Title: CEO Company Name: Phuntion LLC Date: Aug 06 Signed: Printed name:Aihua.Yang Title: CEO Company Name: Dong Guan Qiangde Electronics Technology Co.,Ltd. ,2024 Date: Aug 06, 2024

Dong Guan Qiangde Electronics Technology Co.,Ltd. 8/6/2024 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 AUTHORITY TO ACT AS AGENT - FCC On our behalf, I appoint Dong Guan Qiangde Electronics Technology Co.,Ltd. Room501, Building3, No.60 Xinyang Middle Road, Lincun, Tangxia Town, Dongguan City，Guangdong Province to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko North America Inc., still resides still resides with us. Sincerely, Printed name: Aihua.Yang

Dong Guan Qiangde Electronics Technology Co.,Ltd. 8/6/2024 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 REQUEST FOR CONFIDENTIALITY - FCC FCC ID: 2BHEG-LSC Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules and FCC Guidance document 726920, we hereby request confidential treatment of information accompanying this application as outlined below: PERMANENT LONG-TERM CONFIDENTIALITY: Schematics Block Diagrams Theory of Operation The above information contains trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Sincerely, Signed: Printed name: Aihua.Yang Title: CEO Company Name: Dong Guan Qiangde Electronics Technology Co.,Ltd. Date 2024-08-06

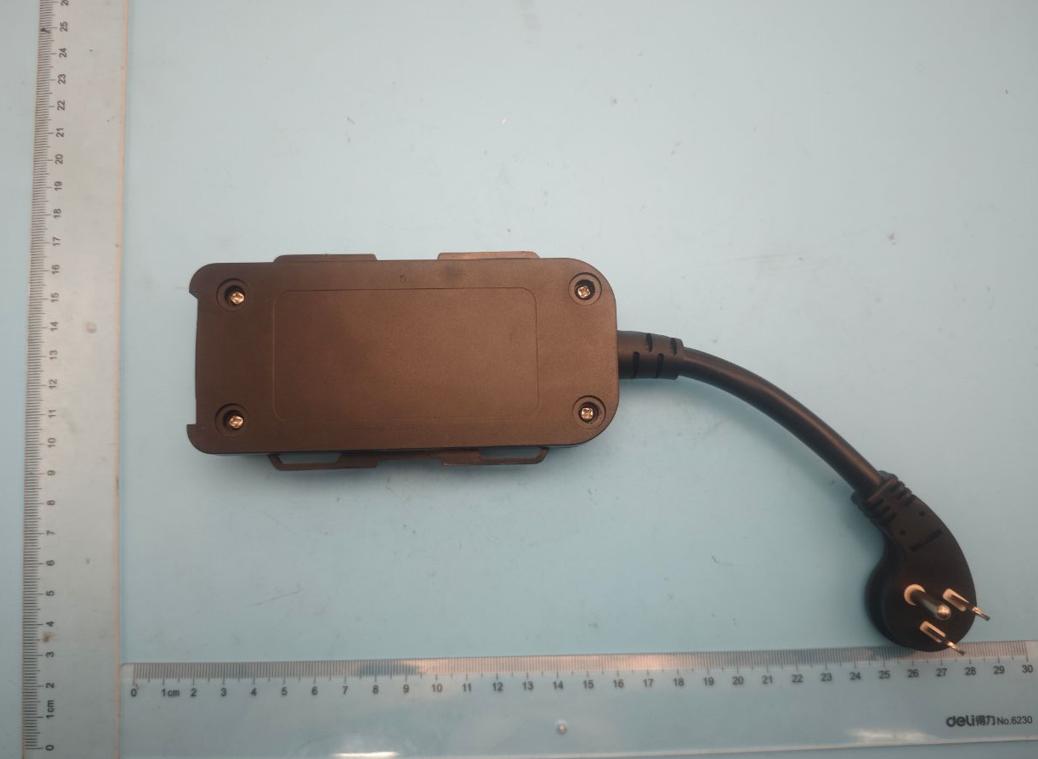

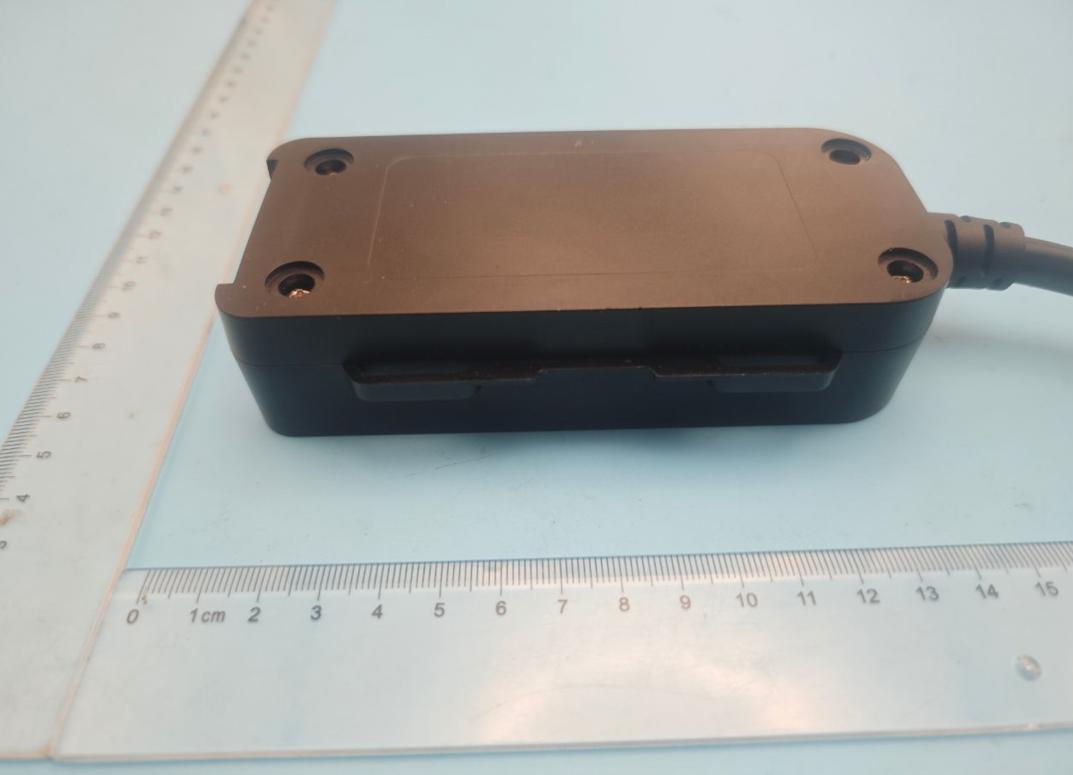

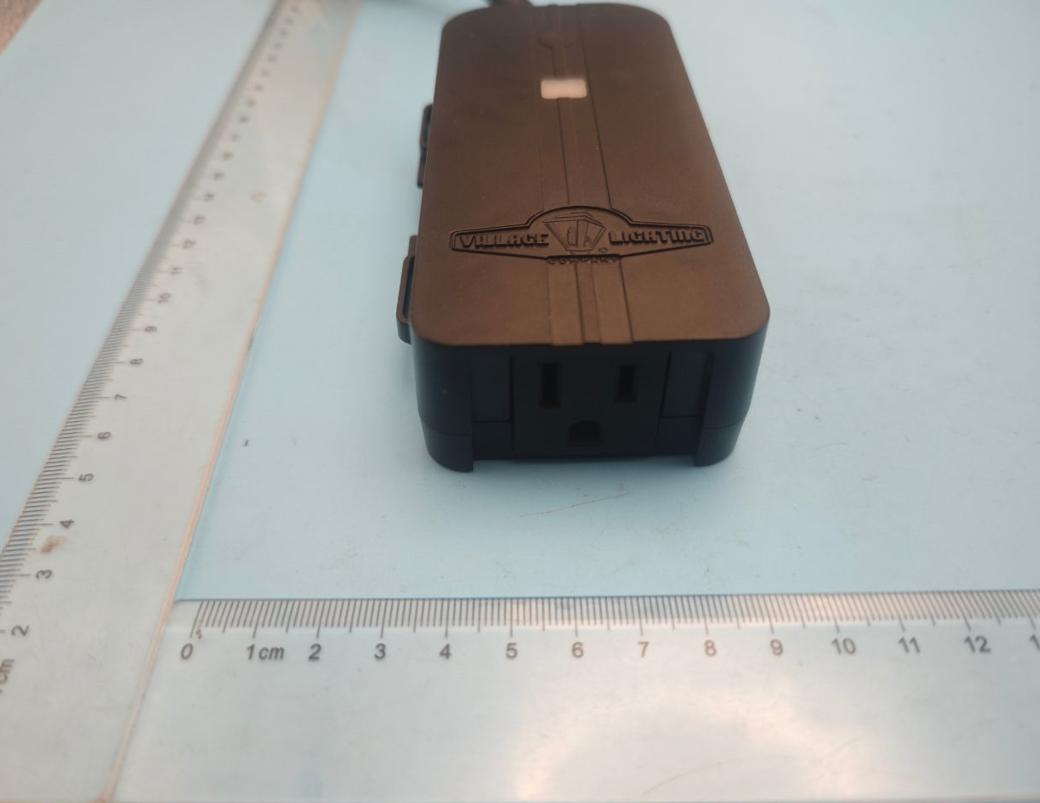

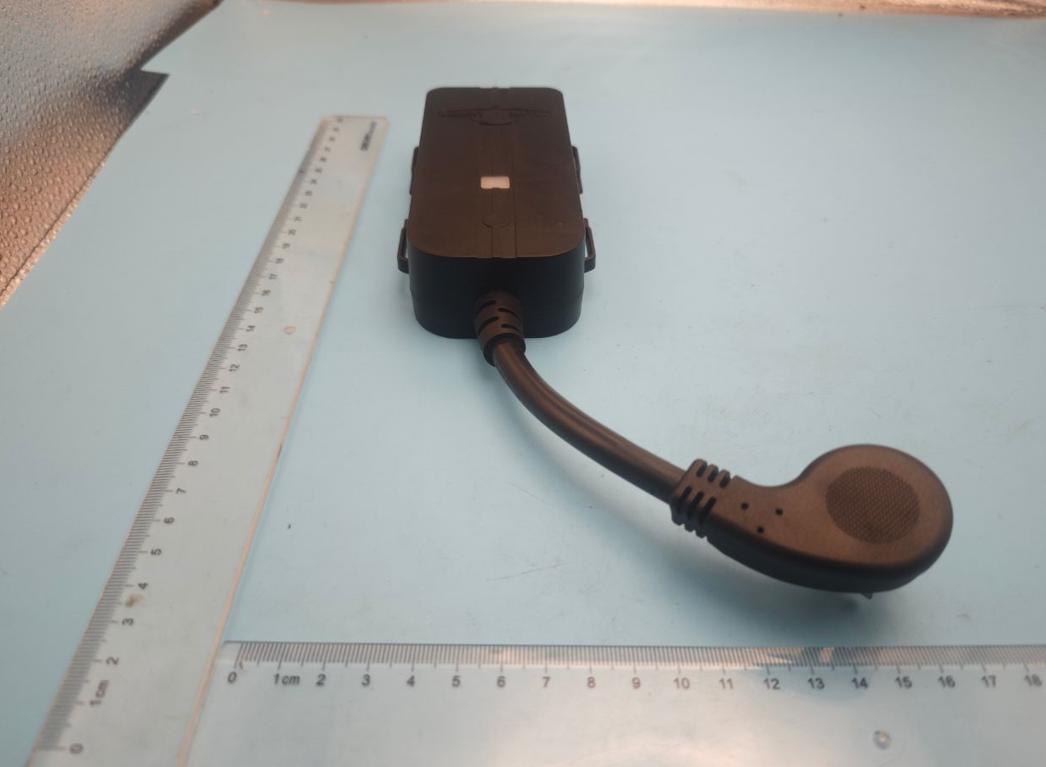

External photo FCC ID: 2BHEG-LSC Page 1/3 External photo FCC ID: 2BHEG-LSC Page 2/3 External photo FCC ID: 2BHEG-LSC Page 3/3 --END---

Label Location

Internal photo FCCID: 2BHEG-LSC Page 1/2 Internal photo FCCID: 2BHEG-LSC Page 2/2 WIFI antenna ISM antenna

承认书项目表 内容 页数页码 NO. （ Number （ Page （ Contents ） ofPage ） Code ） 1 承认书封面（SpecCover） 11 2 承认书项目表（SpecItem） 12 3 工程成品图（ Drawing ） 13 4 电性测试报告（TestReports） 14 5 S 参数测试（ SParameter ） 15 6 增益测试（GainTest） 16 7 8 9 10 --- 11--- 12--- Tel:0769-33691210Fax:0769-东莞市脉讯电子有限公司82381572 Manufacturer:Dongguan Maisun Electronics Co., LTD Address:405, 4th Floor, No.6, Qilin East Road, Daning Community, Humen Town, Dongguan City M/N:NB080-13B-IX150 电性测试报告 TestReports ElectricalProperties Frequency2.4-2.5GHz Impedance500hmNominal V.S.W.R<=2.0Max ReturnLoss-10dBMax RadiationOmni-directional Gain(Peak) Cable 3.0 dBi max Loss3.2dB/mMax@2450MHz PolarizationLinear,Vertical AdmittedPower1W Connectoripex PhysicalProperties AntennaMaterialCU CableTypeO.D.1.13mm//150mm OperatingTemp.-10~+60 ̊C StorageTemp. -10~+70 ̊C CableColorBlack 东莞市脉讯电子有限公司Tel:0769-33691210Fax:0769-82381572 ᶡ㧎㜹䇟䴫ᴹ䲀ޜਨ Tel:86-0769-33691210 Fax:86-0769-82381572 SIGN DATE DESCRIPTION APPROVER R -CB- 113 B NB080 CI-113 No. CU Coaxial Cable Connector Name ĭ4.4 * 24.5 mm SHOWA-O.D. 1.13mm Black Mini Connector Material Q ty Part Number TITLE: 2.4GHz Antenna PART NO.: NB0 8 0-13B-IX1 5 0 APPROVED BY DWG NAME: NB0 8 0-13B-IX1 5 0.DWG DESIDNED BY UNITS: mm Tolerance CHECKED BY SCALE: 1/1 REVISION: A jeff 2014-02-26 2014-02-26 leon 2014-02-26 YD X.X ±0.20X.XX ±0.10X° ±3° ✝㕙㇑˅ S 参数测试 SParameterTest AgilentE5071C 东莞市脉讯电子有限公司 Tel:0769-33691210Fax:0769-82381572 增益测试 GainTest Antenna Radiation Pattern VS Gain 东莞市脉讯电子有限公司Tel:0769-33691210Fax:0769-82381572

RF Exposure Evaluation Report No. LP23080282C01-31 LP23080282C01-32 2BHEG-LSC Page 1/3 Limits for Maximum Permissible Exposure (MPE) The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 Friis transmission formula: Pd=(Pout*G)\(4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= gain of antenna in linear scale Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm2. If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is Reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. RF Exposure Evaluation Report No. LP23080282C01-31 LP23080282C01-32 2BHEG-LSC Page 2/3 Measurement Result Mode Frequenc y (MHz) Peak output power (dBm) Peak output power (mW) Target power （dBm） Maximum tune-up Power (mW) Antenna gain Power Density (S) (mW /cm2) Limited of Power Density (S) (mW /cm2) Test Result (dBi) (Linear) ISM 2402 -0.240 0.946 0±1 1.25 3.0 2.0 0.0050 1 Complies 2441 0.005 1.001 1±1 1.58 3.0 2.0 0.0063 1 Complies 2480 -0.068 0.984 0±1 1.25 3.0 2.0 0.0050 1 Complies Mode Frequenc y (MHz) output power (dBm) output power (mW) Target power （dBm） Maximu m tune-up Power (mW) Antenna gain Power Density (S) (mW /cm2) Limited of Power Density (S) (mW /cm2) Test Result (dBi) (Linear) IEEE 802.11b 2412 15.23 33.34 15±1 39.81 -0.58 0.87 0.0693 1 Compiles 2437 14.68 29.37 15±1 39.81 -0.58 0.87 0.0693 1 Compiles 2462 14.91 30.97 15±1 39.81 -0.58 0.87 0.0693 1 Compiles IEEE 802.11g 2412 16.43 43.95 16±1 50.11 -0.58 0.87 0.0872 1 Compiles 2437 16.09 40.64 16±1 50.11 -0.58 0.87 0.0872 1 Compiles 2462 17.15 51.88 17±1 63.09 -0.58 0.87 0.1098 1 Compiles IEEE 802.11n HT20 2412 17.48 55.97 17±1 63.09 -0.58 0.87 0.1098 1 Compiles 2437 17.52 56.49 17±1 63.09 -0.58 0.87 0.1098 1 Compiles 2462 17.89 61.51 17±1 63.09 -0.58 0.87 0.1098 1 Compiles RF Exposure Evaluation Report No. LP23080282C01-31 LP23080282C01-32 2BHEG-LSC Page 3/3 Power Density (S) (mW/cm2) Limited of Power Density (S) (mW/cm2) Test Result ISM WIFI Sum 0.0063 0.1098 0.1161 1 Compiles The Maxinum power is less than the limit, complies with the exemption requirements, SAR is exempted. Remark: The Max Conducted Peak Output Power data refer to report Report No.: LP23080282C01-31 , LP23080282C01-32 Prepared by: Approved & Authorized Signer: Jerry Hu/ Engineer Frank Shen/ Manager Issue Date: August 6, 2024

Report No. LP23080282C01-32 Dongguan Lepont Testing Service Co.,Ltd. page 1 of 49 TEST REPORT Applicant: Address: Dong Guan Qiangde Electronics Technology Co.,Ltd. Room501, Building3, No.60 Xinyang Middle Road, Lincun, Tangxia Town, Dongguan City，Guangdong Province Manufacturer: Address: Dong Guan Qiangde Electronics Technology Co.,Ltd. Room501, Building3, No.60 Xinyang Middle Road, Lincun, Tangxia Town, Dongguan City，Guangdong Province Factory: Address: Dong Guan Qiangde Electronics Technology Co.,Ltd. Room501, Building3, No.60 Xinyang Middle Road, Lincun, Tangxia Town, Dongguan City，Guangdong Province E.U.T.: Light Stream (TM) Cloud Model Number: V-20913 Trade mark: N/A FCC ID: 2BHEG-LSC Date of Receipt: July 03, 2024 Date of Test: July 04, 2024 - July2 4, 2024 Test Specification: FCC 47 CFR Part 15, Subpart C Test Result: The equipment under test was found to be compliance with the requirements of the standards applied. Prepared by: Approved & Authorized Signer: Jerry Hu/ Engineer Frank Shen/ Manager Issue Date: August 6, 2024 This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Dongguan Lepont Service Co., Ltd. Report No. LP23080282C01-32 Dongguan Lepont Testing Service Co.,Ltd. page 2 of 49 TABLE OF CONTENTS 1. GENERAL PRODUCT INFORMATION 4 1.1. PRODUCT FUNCTION ..................................................................................................................................................... 4 1.2. EUT TECHNICAL DESCRIPTION ............................................................................................................................ 4 1.3. INDEPENDENT OPERATION MODES ............................................................................................................................... 5 2. TEST STANDARDS AND SITES 6 2.1. DESCRIPTION OF STANDARDS AND RESULTS ................................................................................................................. 6 2.2. LIST OF TEST AND MEASUREMENT INSTRUMENTS ........................................................................................................ 7 2.3. MEASUREMENT UNCERTAINTY .......................................................................................................................... 8 2.4. TEST FACILITY .............................................................................................................................................................. 8 3. SETUP OF EQUIPMENT UNDER TEST 9 3.1. RADIO FREQUENCY TEST SETUP 1 ...................................................................................................................... 9 3.2. RADIO FREQUENCY TEST SETUP 2 ...................................................................................................................... 9 3.3. CONDUCTED EMISSION TEST SETUP .................................................................................................................. 11 3.4. BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM .................................................................................. 11 3.5. SUPPORT EQUIPMENT ............................................................................................................................................ 12 4. TEST RESULTS AND MEASUREMENT DATA 13 4.1. 20DB BANDWIDTH .................................................................................................................................................. 13 4.2. CARRIER FREQUENCY SEPARATION .................................................................................................................. 17 4.3. NUMBER OF HOPPING FREQUENCIES ................................................................................................................. 21 4.4. AVERAGE TIME OF OCCUPANCY (DWELL TIME) ............................................................................................. 24 4.5. MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................................................. 27 4.6. RADIATED SPURIOUS EMISSION .......................................................................................................................... 31 4.7. CONDUCTED EMISSION TEST ............................................................................................................................... 46 4.8. ANTENNA APPLICATION ....................................................................................................................................... 49 Report No. LP23080282C01-32 Dongguan Lepont Testing Service Co.,Ltd. page 3 of 49 Revision History of This Test Report Report Number Description Issued Date LP23080282C01-32 Initial Issue 2024-8-6 Report No. LP23080282C01-32 Dongguan Lepont Testing Service Co.,Ltd. page 4 of 49 1. GENERAL PRODUCT INFORMATION 1.1. PRODUCT FUNCTION Refer to Technical Construction Form and User Manual. 1.2. EUT TECHNICAL DESCRIPTION Product Name: Light Stream (TM) Cloud Model No.: V-20913 Test Model No: V-20913 Remark: All above models are identical in the same PCB layout, interior structure and electrical circuits. The differences are model name for commercial purpose. Test sample(s) ID: LP23080009C32-S008 Sample(s) Status Engineer sample Operation Frequency: 2402MHz-2480MHz Channel numbers: 79 Channel separation: 1MHz Modulation type: ISM Antenna Type: External antenna Antenna gain: 3dBi Power supply: AC 120V/60Hz Report No. LP23080282C01-32 Dongguan Lepont Testing Service Co.,Ltd. page 5 of 49 1.3. INDEPENDENT OPERATION MODES The EUT has been tested under its typical operating condition. The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner which intends to maximize its emission characteristics in a continuous normal application. The Transmitter was operated in the normal operating …
