2BHF2-4GRF014G security camera

(VisionCam LLC) (July 6, 2024) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BHF2-4GRF01) [VisionCam LLC] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Timothy John Haubach (VisionCam LLC) (July 6, 2024) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2BHF2-4GRF01) [VisionCam LLC] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Timothy John Haubach

Attestation Statements (July 6, 2024) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (FCC ID: 2BHF2-4GRF01 ) (VisionCam LLC), the undersigned, hereby authorize (VisionCam LLC) to act as our designated U.S. agent for service of process, (VisionCam LLC) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. (VisionCam LLC) accepts the responsibility to act as designated U.S. agent for service of process, provides an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Information： Company name: VisionCam LLC Contact Name: Timothy John Haubach Address: 2372 Highland Avenue, Allison Park, Pennsylvania 15101 Telephone No: 13538214502 Email: [email protected] FRN: 0035652197 Signature [Timothy John Haubach] U.S. Agent Information: Company name: VisionCam LLC Contact Name: Timothy John Haubach Address: 2372 Highland Avenue, Allison Park, Pennsylvania 15101 Telephone No: 13538214502 Email: [email protected] FRN: 0035652197 Signature [Timothy John Haubach]

VisionCam LLC Model Difference Data：2024.07.06 Product description: 4G security camera Model name: 4G-RF-01, 4G-001, ICAM-Q8-4G, ZY-189W2B01, ZY-214B2B01, ZY-217W3801, HK-7W-Q8-4G, 4G-RF-03, 4G-RF-04, 4G-RF-05, 4G-RF-06, 4G-RF-07, 4G-RF-08, 4G-RF-09, 4G-RF-10, 4G-RF-11, 4G-RF-12, 4G-RF-13, 4G-RF-14, 4G-RF-15 Trade Name: FCC ID: 2BHF2-4GRF01 All models only have different names and appearances, everything else is the same. Regards Sincerely Client’s signature : Client’s name / title : Timothy John Haubach（Manager） Contact information / address：2372 Highland Avenue, Allison Park, Pennsylvania 15101

VisionCam LLC (2024.07.06) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (4G security camera / 4G-RF-01, 4G- 001, ICAM-Q8-4G, ZY-189W2B01, ZY-214B2B01, ZY-217W3801, HK-7W-Q8- 4G, 4G-RF-03, 4G-RF-04, 4G-RF-05, 4G-RF-06, 4G-RF-07, 4G-RF-08, 4G-RF- 09, 4G-RF-10, 4G-RF-11, 4G-RF-12, 4G-RF-13, 4G-RF-14, 4G-RF-15 / FCC ID: 2BHF2-4GRF01) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☒ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: Timothy John Haubach Title: Manager

VisionCam LLC (2024.07.08) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen CTB Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Timothy John Haubach Title: Manager

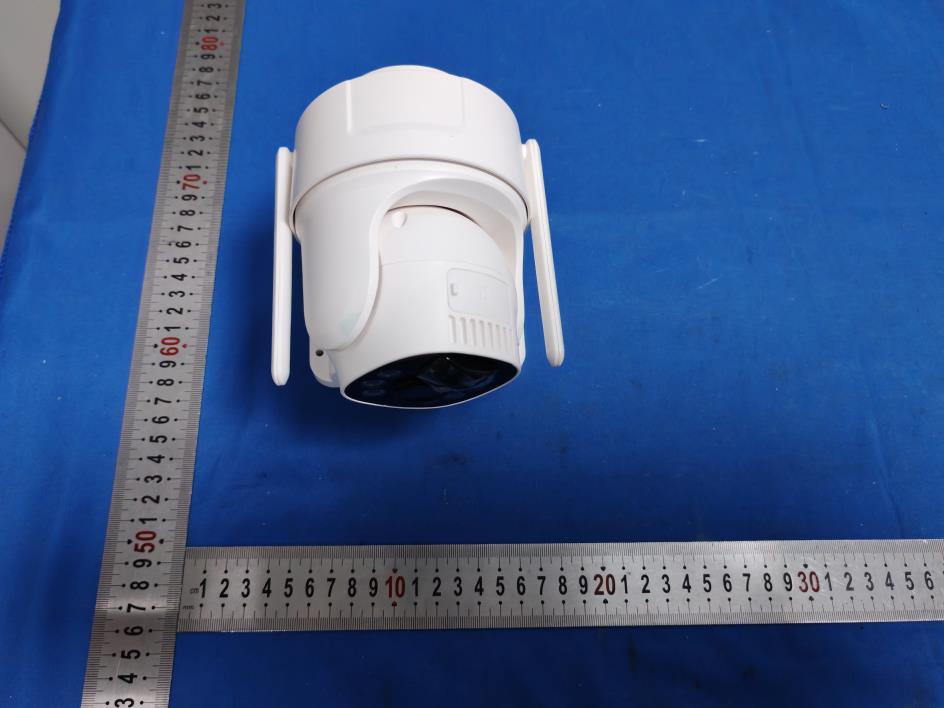

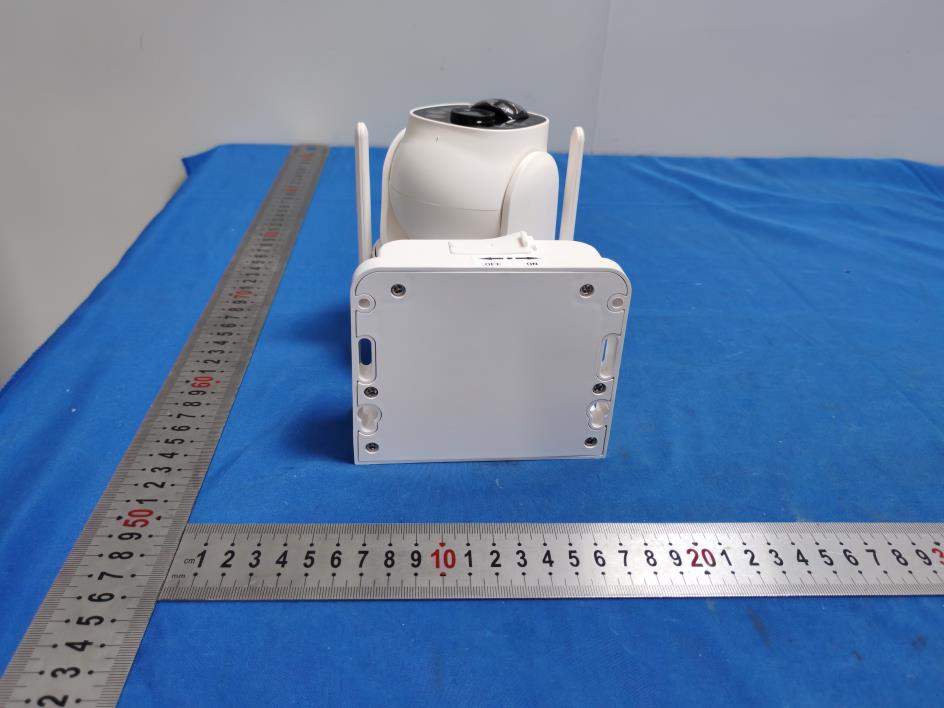

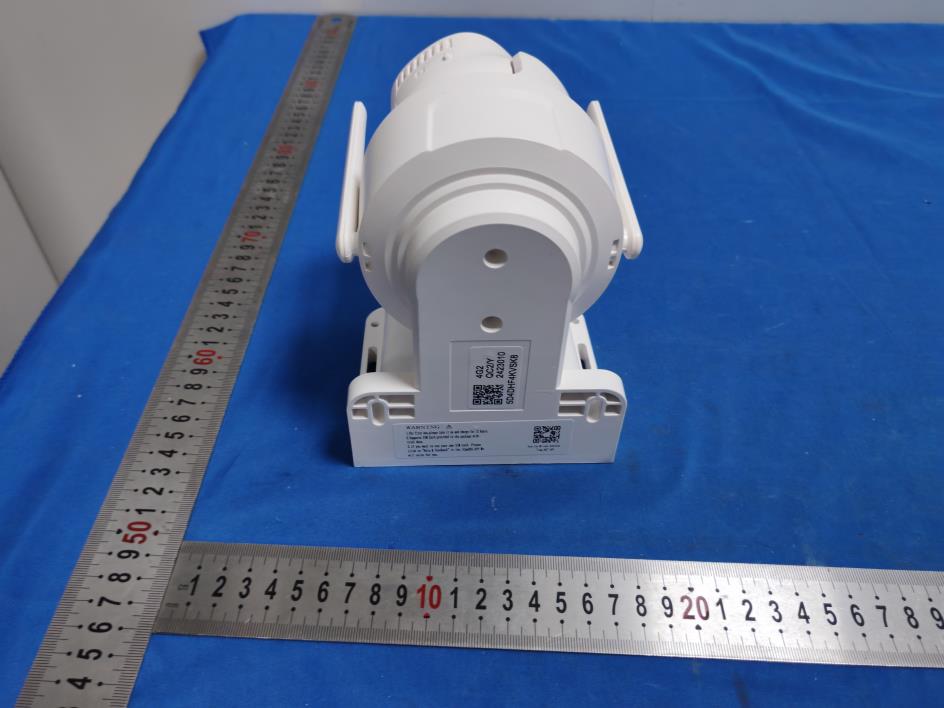

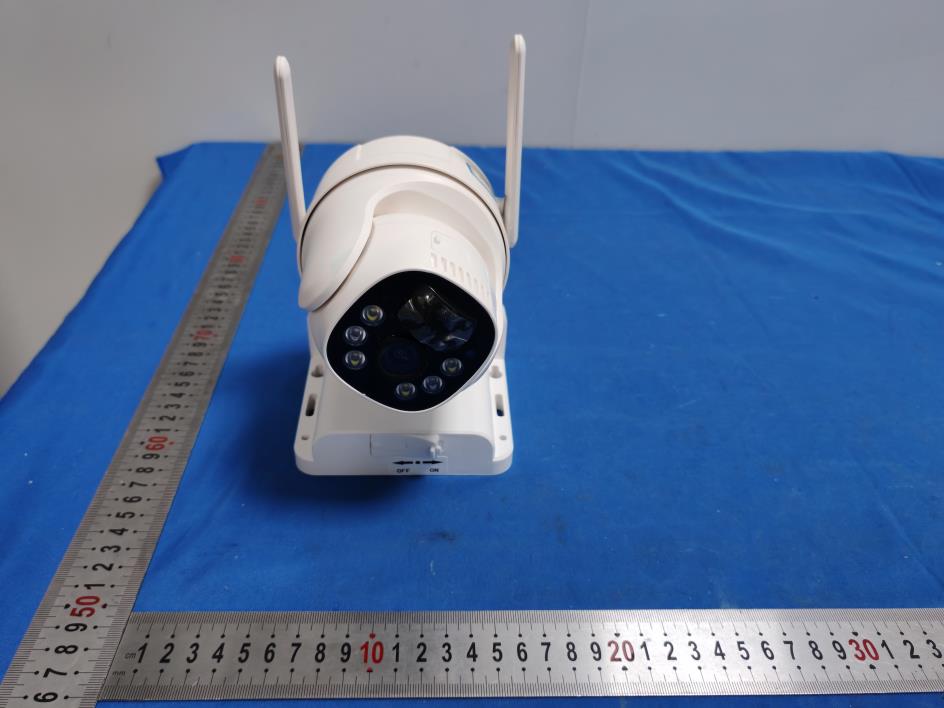

Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 4 Model: 4G-RF-01 External Photos Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 4 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 3 of 4 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 4 of 4

FCC ID LABEL: Label Location: FCC ID: 2BHF2-4GRF01 Model No.: 4G-RF-01

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2BHF2-4GRF01 Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna,R=20cm Test Result of RF Exposure Evaluation Tune up Produce power Maximu m peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result LTE BAND 2 25±1 26 398.107 2 1.7179 (2.35dBi) 0.0136 1 Pass LTE BAND 4 23±1 24 251.188 6 1.7579 (2.45dBi) 0.0879 1 Pass LTE BAND 5 24±1 25 316.227 8 0.867 (-0.62dBi) 0.0546 0.6 Pass LTE BAND 12 24±1 25 316.227 8 0.865 (-0.63dBi) 0.0544 0.5 Pass LTE BAND 13 24±1 25 316.227 8 0.865 (-0.63dBi) 0.0544 0.5 Pass LTE BAND 17 25±1 26 398.107 2 0.865 (-0.63dBi) 0.0685 0.5 Pass LTE BAND 66 20±1 21 125.892 5 0.5689 (-2.45dBi) 0.0143 1 Pass

Report 1 Conducted output power Band Bandwidth (MHz) UL Channel RB Size RB Position Modulation Power (dBm) Gain (dB) ERP (dBm) ERP (mW) ERP Limit (mW) Verdict Band12 1.4 23017 1 #0 QPSK 24.63 -0.63 21.85 153.11 3000 PASS Band12 1.4 23017 1 #Mid QPSK 24.69 -0.63 21.91 155.24 3000 PASS Band12 1.4 23017 1 #Max QPSK 24.70 -0.63 21.92 155.60 3000 PASS Band12 1.4 23017 3 #0 QPSK 24.54 -0.63 21.76 149.97 3000 PASS Band12 1.4 23017 3 #Max QPSK 24.58 -0.63 21.80 151.36 3000 PASS Band12 1.4 23017 6 #0 QPSK 23.15 -0.63 20.37 108.89 3000 PASS Band12 1.4 23017 1 #0 QAM16 22.97 -0.63 20.19 104.47 3000 PASS Band12 1.4 23017 1 #Mid QAM16 23.03 -0.63 20.25 105.93 3000 PASS Band12 1.4 23017 1 #Max QAM16 23.11 -0.63 20.33 107.89 3000 PASS Band12 1.4 23017 3 #0 QAM16 23.06 -0.63 20.28 106.66 3000 PASS Band12 1.4 23017 3 #Max QAM16 23.10 -0.63 20.32 107.65 3000 PASS Band12 1.4 23017 6 #0 QAM16 21.84 -0.63 19.06 80.54 3000 PASS Band12 1.4 23095 1 #0 QPSK 24.53 -0.63 21.75 149.62 3000 PASS Band12 1.4 23095 1 #Mid QPSK 24.52 -0.63 21.74 149.28 3000 PASS Band12 1.4 23095 1 #Max QPSK 24.50 -0.63 21.72 148.59 3000 PASS Band12 1.4 23095 3 #0 QPSK 24.45 -0.63 21.67 146.89 3000 PASS Band12 1.4 23095 3 #Max QPSK 24.42 -0.63 21.64 145.88 3000 PASS Band12 1.4 23095 6 #0 QPSK 23.14 -0.63 20.36 108.64 3000 PASS Band12 1.4 23095 1 #0 QAM16 23.11 -0.63 20.33 107.89 3000 PASS Band12 1.4 23095 1 #Mid QAM16 23.17 -0.63 20.39 109.40 3000 PASS Band12 1.4 23095 1 #Max QAM16 23.08 -0.63 20.30 107.15 3000 PASS Band12 1.4 23095 3 #0 QAM16 23.23 -0.63 20.45 110.92 3000 PASS Band12 1.4 23095 3 #Max QAM16 23.21 -0.63 20.43 110.41 3000 PASS Band12 1.4 23095 6 #0 QAM16 21.80 -0.63 19.02 79.80 3000 PASS Band12 1.4 23173 1 #0 QPSK 24.22 -0.63 21.44 139.32 3000 PASS Band12 1.4 23173 1 #Mid QPSK 24.09 -0.63 21.31 135.21 3000 PASS Band12 1.4 23173 1 #Max QPSK 24.01 -0.63 21.23 132.74 3000 PASS Band12 1.4 23173 3 #0 QPSK 24.05 -0.63 21.27 133.97 3000 PASS Band12 1.4 23173 3 #Max QPSK 23.97 -0.63 21.19 131.52 3000 PASS Band12 1.4 23173 6 #0 QPSK 22.84 -0.63 20.06 101.39 3000 PASS Band12 1.4 23173 1 #0 QAM16 22.83 -0.63 20.05 101.16 3000 PASS Band12 1.4 23173 1 #Mid QAM16 22.63 -0.63 19.85 96.61 3000 PASS Band12 1.4 23173 1 #Max QAM16 22.60 -0.63 19.82 95.94 3000 PASS Band12 1.4 23173 3 #0 QAM16 22.81 -0.63 20.03 100.69 3000 PASS Band12 1.4 23173 3 #Max QAM16 22.43 -0.63 19.65 92.26 3000 PASS Band12 1.4 23173 6 #0 QAM16 22.69 -0.63 19.91 97.95 3000 PASS Band12 3 23025 1 #0 QPSK 24.34 -0.63 21.56 143.22 3000 PASS Band12 3 23025 1 #Mid QPSK 24.51 -0.63 21.73 148.94 3000 PASS Band12 3 23025 1 #Max QPSK 24.41 -0.63 21.63 145.55 3000 PASS Report Band12 3 23025 8 #0 QPSK 23.18 -0.63 20.40 109.65 3000 PASS Band12 3 23025 8 #Max QPSK 23.32 -0.63 20.54 113.24 3000 PASS Band12 3 23025 15 #0 QPSK 23.27 -0.63 20.49 111.94 3000 PASS Band12 3 23025 1 #0 QAM16 23.10 -0.63 20.32 107.65 3000 PASS Band12 3 23025 1 #Mid QAM16 23.33 -0.63 20.55 113.50 3000 PASS Band12 3 23025 1 #Max QAM16 23.26 -0.63 20.48 111.69 3000 PASS Band12 3 23025 8 #0 QAM16 21.83 -0.63 19.05 80.35 3000 PASS Band12 3 23025 8 #Max QAM16 22.00 -0.63 19.22 83.56 3000 PASS Band12 3 23025 15 #0 QAM16 21.94 -0.63 19.16 82.41 3000 PASS Band12 3 23095 1 #0 QPSK 24.28 -0.63 21.50 141.25 3000 PASS Band12 3 23095 1 #Mid QPSK 24.40 -0.63 21.62 145.21 3000 PASS Band12 3 23095 1 #Max QPSK 24.21 -0.63 21.43 139.00 3000 PASS Band12 3 23095 8 #0 QPSK 23.16 -0.63 20.38 109.14 3000 PASS Band12 3 23095 8 #Max QPSK 23.06 -0.63 20.28 106.66 3000 PASS Band12 3 23095 15 #0 QPSK 23.06 -0.63 20.28 106.66 3000 PASS Band12 3 23095 1 #0 QAM16 23.08 -0.63 20.30 107.15 3000 PASS Band12 3 23095 1 #Mid QAM16 23.18 -0.63 20.40 109.65 3000 PASS Band12 3 23095 1 #Max QAM16 22.95 -0.63 20.17 103.99 3000 PASS Band12 3 23095 8 #0 QAM16 21.72 -0.63 18.94 78.34 3000 PASS Band12 3 23095 8 #Max QAM16 21.67 -0.63 18.89 77.45 3000 PASS Band12 3 23095 15 #0 QAM16 21.61 -0.63 18.83 76.38 3000 PASS Band12 3 23165 1 #0 QPSK 24.47 -0.63 21.69 147.57 3000 PASS Band12 3 23165 1 #Mid QPSK 24.21 -0.63 21.43 139.00 3000 PASS Band12 3 23165 1 #Max QPSK 23.95 -0.63 21.17 130.92 3000 PASS Band12 3 23165 8 #0 QPSK 23.19 -0.63 20.41 109.90 3000 PASS Band12 3 23165 8 #Max QPSK 22.98 -0.63 20.20 104.71 3000 PASS Band12 3 23165 15 #0 QPSK 23.05 -0.63 20.27 106.41 3000 PASS Band12 3 23165 1 #0 QAM16 23.06 -0.63 20.28 106.66 3000 PASS Band12 3 23165 1 #Mid QAM16 22.86 -0.63 20.08 101.86 3000 PASS Band12 3 23165 1 #Max QAM16 22.56 -0.63 19.78 95.06 3000 PASS Band12 3 23165 8 #0 QAM16 21.96 -0.63 19.18 82.79 3000 PASS Band12 3 23165 8 #Max QAM16 21.77 -0.63 18.99 79.25 3000 PASS Band12 3 23165 15 #0 QAM16 21.83 -0.63 19.05 80.35 3000 PASS Band12 5 23035 1 #0 QPSK 24.72 -0.63 21.94 156.31 3000 PASS Band12 5 23035 1 #Mid QPSK 24.49 -0.63 21.71 148.25 3000 PASS Band12 5 23035 1 #Max QPSK 24.61 -0.63 21.83 152.41 3000 PASS Band12 5 23035 12 #0 QPSK 23.20 -0.63 20.42 110.15 3000 PASS Band12 5 23035 12 #Max QPSK 23.18 -0.63 20.40 109.65 3000 PASS Band12 5 23035 25 #0 QPSK 23.16 -0.63 20.38 109.14 3000 PASS Band12 5 23035 1 #0 QAM16 23.38 -0.63 20.60 114.82 3000 PASS Band12 5 23035 1 #Mid QAM16 23.34 -0.63 20.56 113.76 3000 PASS Band12 5 23035 1 #Max QAM16 23.45 -0.63 20.67 116.68 3000 PASS Band12 5 23035 12 #0 QAM16 21.84 -0.63 19.06 80.54 3000 PASS Band12 5 23035 12 #Max QAM16 21.90 -0.63 19.12 81.66 3000 PASS Report Band12 5 23035 25 #0 QAM16 21.90 -0.63 19.12 81.66 3000 PASS Band12 5 23095 1 #0 QPSK 24.52 -0.63 21.74 149.28 3000 PASS Band12 5 23095 1 #Mid QPSK 24.49 -0.63 21.71 148.25 3000 PASS Band12 5 23095 1 #Max QPSK 24.73 -0.63 21.95 156.68 3000 PASS Band12 5 23095 12 #0 QPSK 23.11 -0.63 20.33 107.89 3000 PASS Band12 5 23095 12 #Max QPSK 23.03 -0.63 20.25 105.93 3000 PASS Band12 5 23095 25 #0 QPSK 23.04 -0.63 20.26 106.17 3000 PASS Band12 5 23095 1 #0 QAM16 23.17 -0.63 20.39 109.40 3000 PASS Band12 5 23095 1 #Mid QAM16 23.23 -0.63 20.45 110.92 3000 PASS Band12 5 23095 1 #Max QAM16 23.37 -0.63 20.59 114.55 3000 PASS Band12 5 23095 12 #0 QAM16 21.73 -0.63 1…

Text truncated - open the document above for the full version.

Report Band66 5 131997 1 #0 QAM16 18.50 2.45 20.95 124.45 1000 PASS Band66 5 131997 1 #Mid QAM16 18.81 2.45 21.26 133.66 1000 PASS Band66 5 131997 1 #Max QAM16 18.80 2.45 21.25 133.35 1000 PASS Band66 5 131997 12 #0 QAM16 17.24 2.45 19.69 93.11 1000 PASS Band66 5 131997 12 #Max QAM16 17.42 2.45 19.87 97.05 1000 PASS Band66 5 131997 25 #0 QAM16 17.38 2.45 19.83 96.16 1000 PASS Band66 5 132322 1 #0 QPSK 19.70 2.45 22.15 164.06 1000 PASS Band66 5 132322 1 #Mid QPSK 19.84 2.45 22.29 169.43 1000 PASS Band66 5 132322 1 #Max QPSK 19.89 2.45 22.34 171.40 1000 PASS Band66 5 132322 12 #0 QPSK 18.84 2.45 21.29 134.59 1000 PASS Band66 5 132322 12 #Max QPSK 18.92 2.45 21.37 137.09 1000 PASS Band66 5 132322 25 #0 QPSK 18.87 2.45 21.32 135.52 1000 PASS Band66 5 132322 1 #0 QAM16 19.07 2.45 21.52 141.91 1000 PASS Band66 5 132322 1 #Mid QAM16 19.19 2.45 21.64 145.88 1000 PASS Band66 5 132322 1 #Max QAM16 18.77 2.45 21.22 132.43 1000 PASS Band66 5 132322 12 #0 QAM16 17.86 2.45 20.31 107.40 1000 PASS Band66 5 132322 12 #Max QAM16 17.95 2.45 20.40 109.65 1000 PASS Band66 5 132322 25 #0 QAM16 17.89 2.45 20.34 108.14 1000 PASS Band66 5 132647 1 #0 QPSK 19.32 2.45 21.77 150.31 1000 PASS Band66 5 132647 1 #Mid QPSK 19.10 2.45 21.55 142.89 1000 PASS Band66 5 132647 1 #Max QPSK 18.62 2.45 21.07 127.94 1000 PASS Band66 5 132647 12 #0 QPSK 18.37 2.45 20.82 120.78 1000 PASS Band66 5 132647 12 #Max QPSK 18.07 2.45 20.52 112.72 1000 PASS Band66 5 132647 25 #0 QPSK 18.21 2.45 20.66 116.41 1000 PASS Band66 5 132647 1 #0 QAM16 18.75 2.45 21.20 131.83 1000 PASS Band66 5 132647 1 #Mid QAM16 18.53 2.45 20.98 125.31 1000 PASS Band66 5 132647 1 #Max QAM16 18.13 2.45 20.58 114.29 1000 PASS Band66 5 132647 12 #0 QAM16 17.49 2.45 19.94 98.63 1000 PASS Band66 5 132647 12 #Max QAM16 17.21 2.45 19.66 92.47 1000 PASS Band66 5 132647 25 #0 QAM16 17.31 2.45 19.76 94.62 1000 PASS Band66 10 132022 1 #0 QPSK 19.03 2.45 21.48 140.60 1000 PASS Band66 10 132022 1 #Mid QPSK 19.21 2.45 21.66 146.55 1000 PASS Band66 10 132022 1 #Max QPSK 19.41 2.45 21.86 153.46 1000 PASS Band66 10 132022 25 #0 QPSK 18.03 2.45 20.48 111.69 1000 PASS Band66 10 132022 25 #Max QPSK 18.29 2.45 20.74 118.58 1000 PASS Band66 10 132022 50 #0 QPSK 18.14 2.45 20.59 114.55 1000 PASS Band66 10 132022 1 #0 QAM16 18.15 2.45 20.60 114.82 1000 PASS Band66 10 132022 1 #Mid QAM16 18.59 2.45 21.04 127.06 1000 PASS Band66 10 132022 1 #Max QAM16 18.68 2.45 21.13 129.72 1000 PASS Band66 10 132022 25 #0 QAM16 17.07 2.45 19.52 89.54 1000 PASS Band66 10 132022 25 #Max QAM16 17.44 2.45 19.89 97.50 1000 PASS Band66 10 132322 1 #0 QPSK 19.61 2.45 22.06 160.69 1000 PASS Band66 10 132322 1 #Mid QPSK 19.70 2.45 22.15 164.06 1000 PASS Band66 10 132322 1 #Max QPSK 20.12 2.45 22.57 180.72 1000 PASS Report Band66 10 132322 25 #0 QPSK 18.50 2.45 20.95 124.45 1000 PASS Band66 10 132322 25 #Max QPSK 18.67 2.45 21.12 129.42 1000 PASS Band66 10 132322 50 #0 QPSK 18.57 2.45 21.02 126.47 1000 PASS Band66 10 132322 1 #0 QAM16 18.48 2.45 20.93 123.88 1000 PASS Band66 10 132322 1 #Mid QAM16 18.70 2.45 21.15 130.32 1000 PASS Band66 10 132322 1 #Max QAM16 18.54 2.45 20.99 125.60 1000 PASS Band66 10 132322 25 #0 QAM16 17.53 2.45 19.98 99.54 1000 PASS Band66 10 132322 25 #Max QAM16 17.72 2.45 20.17 103.99 1000 PASS Band66 10 132622 1 #0 QPSK 19.79 2.45 22.24 167.49 1000 PASS Band66 10 132622 1 #Mid QPSK 19.25 2.45 21.70 147.91 1000 PASS Band66 10 132622 1 #Max QPSK 18.94 2.45 21.39 137.72 1000 PASS Band66 10 132622 25 #0 QPSK 18.52 2.45 20.97 125.03 1000 PASS Band66 10 132622 25 #Max QPSK 18.12 2.45 20.57 114.02 1000 PASS Band66 10 132622 50 #0 QPSK 18.30 2.45 20.75 118.85 1000 PASS Band66 10 132622 1 #0 QAM16 18.76 2.45 21.21 132.13 1000 PASS Band66 10 132622 1 #Mid QAM16 18.76 2.45 21.21 132.13 1000 PASS Band66 10 132622 1 #Max QAM16 17.95 2.45 20.40 109.65 1000 PASS Band66 10 132622 25 #0 QAM16 17.65 2.45 20.10 102.33 1000 PASS Band66 10 132622 25 #Max QAM16 17.26 2.45 19.71 93.54 1000 PASS Band66 15 132047 1 #0 QPSK 18.88 2.45 21.33 135.83 1000 PASS Band66 15 132047 1 #Mid QPSK 19.27 2.45 21.72 148.59 1000 PASS Band66 15 132047 1 #Max QPSK 19.45 2.45 21.90 154.88 1000 PASS Band66 15 132047 36 #0 QPSK 18.18 2.45 20.63 115.61 1000 PASS Band66 15 132047 36 #Max QPSK 18.52 2.45 20.97 125.03 1000 PASS Band66 15 132047 75 #0 QPSK 18.34 2.45 20.79 119.95 1000 PASS Band66 15 132047 1 #0 QAM16 18.29 2.45 20.74 118.58 1000 PASS Band66 15 132047 1 #Mid QAM16 18.77 2.45 21.22 132.43 1000 PASS Band66 15 132047 1 #Max QAM16 18.94 2.45 21.39 137.72 1000 PASS Band66 15 132322 1 #0 QPSK 19.40 2.45 21.85 153.11 1000 PASS Band66 15 132322 1 #Mid QPSK 19.60 2.45 22.05 160.32 1000 PASS Band66 15 132322 1 #Max QPSK 19.75 2.45 22.20 165.96 1000 PASS Band66 15 132322 36 #0 QPSK 18.56 2.45 21.01 126.18 1000 PASS Band66 15 132322 36 #Max QPSK 18.81 2.45 21.26 133.66 1000 PASS Band66 15 132322 75 #0 QPSK 18.70 2.45 21.15 130.32 1000 PASS Band66 15 132322 1 #0 QAM16 18.77 2.45 21.22 132.43 1000 PASS Band66 15 132322 1 #Mid QAM16 19.03 2.45 21.48 140.60 1000 PASS Band66 15 132322 1 #Max QAM16 19.19 2.45 21.64 145.88 1000 PASS Band66 15 132597 1 #0 QPSK 19.70 2.45 22.15 164.06 1000 PASS Band66 15 132597 1 #Mid QPSK 19.55 2.45 22.00 158.49 1000 PASS Band66 15 132597 1 #Max QPSK 18.81 2.45 21.26 133.66 1000 PASS Band66 15 132597 36 #0 QPSK 18.78 2.45 21.23 132.74 1000 PASS Band66 15 132597 36 #Max QPSK 18.34 2.45 20.79 119.95 1000 PASS Band66 15 132597 75 #0 QPSK 18.54 2.45 20.99 125.60 1000 PASS Band66 15 132597 1 #0 QAM16 18.85 2.45 21.30 134.90 1000 PASS Report Band66 15 132597 1 #Mid QAM16 18.80 2.45 21.25 133.35 1000 PASS Band66 15 132597 1 #Max QAM16 17.95 2.45 20.40 109.65 1000 PASS Band66 20 132072 1 #0 QPSK 18.77 2.45 21.22 132.43 1000 PASS Band66 20 132072 1 #Mid QPSK 19.36 2.45 21.81 151.71 1000 PASS Band66 20 132072 1 #Max QPSK 19.39 2.45 21.84 152.76 1000 PASS Band66 20 132072 50 #0 QPSK 18.26 2.45 20.71 117.76 1000 PASS Band66 20 132072 50 #Max QPSK 18.54 2.45 20.99 125.60 1000 PASS Band66 20 132072 100 #0 QPSK 18.38 2.45…

Text truncated - open the document above for the full version.

Report Band5 QPSK BW=3MHz Channel=20525 RB Size=15 Position=#0 Band5 QAM16 BW=3MHz Channel=20525 RB Size=15 Position=#0 Report Band5 QPSK BW=5MHz Channel=20525 RB Size=25 Position=#0 Band5 QAM16 BW=5MHz Channel=20525 RB Size=25 Position=#0 Report Band5 QPSK BW=10MHz Channel=20525 RB Size=50 Position=#0 Band66 QPSK BW=1.4MHz Channel=132322 RB Size=6 Position=#0 Report Band66 QAM16 BW=1.4MHz Channel=132322 RB Size=6 Position=#0 Band66 QPSK BW=3MHz Channel=132322 RB Size=15 Position=#0 Report Band66 QAM16 BW=3MHz Channel=132322 RB Size=15 Position=#0 Band66 QPSK BW=5MHz Channel=132322 RB Size=25 Position=#0 Report Band66 QAM16 BW=5MHz Channel=132322 RB Size=25 Position=#0 Band66 QPSK BW=10MHz Channel=132322 RB Size=50 Position=#0 Report Band66 QPSK BW=15MHz Channel=132322 RB Size=75 Position=#0 Band66 QPSK BW=20MHz Channel=132322 RB Size=100 Position=#0 Report 5 Band edge Band Bandwidth (MHz) UL Channel RB Size RB Position Modulation Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict Band12 1.4 23017 6 #0 QPSK 698.83 -24.87 -13 PASS Band12 1.4 23017 6 #0 QAM16 698.90 -25.30 -13 PASS Band12 1.4 23173 6 #0 QPSK 716.16 -25.60 -13 PASS Band12 1.4 23173 6 #0 QAM16 716.11 -25.98 -13 PASS Band12 3 23025 15 #0 QPSK 698.90 -27.10 -13 PASS Band12 3 23025 15 #0 QAM16 698.79 -20.50 -13 PASS Band12 3 23165 15 #0 QPSK 716.19 -16.06 -13 PASS Band12 3 23165 15 #0 QAM16 716.15 -20.09 -13 PASS Band12 5 23035 25 #0 QPSK 698.71 -18.26 -13 PASS Band12 5 23035 25 #0 QAM16 698.89 -22.19 -13 PASS Band12 5 23155 25 #0 QPSK 716.29 -18.23 -13 PASS Band12 5 23155 25 #0 QAM16 716.16 -21.89 -13 PASS Band12 10 23060 50 #0 QPSK 698.90 -22.08 -13 PASS Band12 10 23130 50 #0 QPSK 716.51 -24.05 -13 PASS Band13 5 23205 25 #0 QPSK 774.92 -44.10 -35 PASS Band13 5 23205 25 #0 QAM16 774.99 -49.76 -35 PASS Band13 5 23255 25 #0 QPSK 787.14 -26.73 -13 PASS Band13 5 23255 25 #0 QAM16 787.42 -30.98 -13 PASS Band13 10 23230 50 #0 QPSK 774.87 -43.40 -35 PASS Band17 5 23755 25 #0 QPSK 703.96 -22.30 -13 PASS Report Band17 5 23755 25 #0 QAM16 703.95 -27.96 -13 PASS Band17 5 23825 25 #0 QPSK 716.09 -18.96 -13 PASS Band17 5 23825 25 #0 QAM16 716.00 -24.50 -13 PASS Band17 10 23780 50 #0 QPSK 703.80 -23.15 -13 PASS Band17 10 23800 50 #0 QPSK 716.06 -26.62 -13 PASS Band2 1.4 18607 6 #0 QPSK 1850.00 -28.21 -13 PASS Band2 1.4 18607 6 #0 QAM16 1849.97 -30.97 -13 PASS Band2 1.4 19193 6 #0 QPSK 1910.00 -30.08 -13 PASS Band2 1.4 19193 6 #0 QAM16 1910.00 -31.68 -13 PASS Band2 3 18615 15 #0 QPSK 1850.00 -31.44 -13 PASS Band2 3 18615 15 #0 QAM16 1850.00 -32.74 -13 PASS Band2 3 19185 15 #0 QPSK 1910.00 -32.29 -13 PASS Band2 3 19185 15 #0 QAM16 1910.00 -32.50 -13 PASS Band2 5 18625 25 #0 QPSK 1849.98 -32.12 -13 PASS Band2 5 18625 25 #0 QAM16 1850.00 -30.95 -13 PASS Band2 5 19175 25 #0 QPSK 1910.01 -29.75 -13 PASS Band2 5 19175 25 #0 QAM16 1910.01 -30.90 -13 PASS Band2 10 18650 50 #0 QPSK 1850.00 -28.07 -13 PASS Band2 10 19150 50 #0 QPSK 1910.08 -33.24 -13 PASS Band2 15 18675 75 #0 QPSK 1850.00 -26.07 -13 PASS Band2 15 19125 75 #0 QPSK 1910.09 -28.78 -13 PASS Band2 20 18700 100 #0 QPSK 1849.88 -28.99 -13 PASS Band2 20 19100 100 #0 QPSK 1910.44 -33.30 -13 PASS Band4 1.4 19957 6 #0 QPSK 1709.99 -24.08 -13 PASS Band4 1.4 19957 6 #0 QAM16 1709.94 -28.34 -13 PASS Band4 1.4 20393 6 #0 QPSK 1755.01 -22.82 -13 PASS Band4 1.4 20393 6 #0 QAM16 1755.01 -26.60 -13 PASS Band4 3 19965 15 #0 QPSK 1709.98 -24.11 -13 PASS Band4 3 19965 15 #0 QAM16 1709.82 -28.87 -13 PASS Band4 3 20385 15 #0 QPSK 1755.00 -24.57 -13 PASS Band4 3 20385 15 #0 QAM16 1755.00 -27.52 -13 PASS Band4 5 19975 25 #0 QPSK 1710.00 -24.64 -13 PASS Band4 5 19975 25 #0 QAM16 1710.00 -28.14 -13 PASS Band4 5 20375 25 #0 QPSK 1755.00 -25.18 -13 PASS Band4 5 20375 25 #0 QAM16 1755.02 -27.42 -13 PASS Band4 10 20000 50 #0 QPSK 1709.80 -28.06 -13 PASS Band4 10 20350 50 #0 QPSK 1755.36 -27.38 -13 PASS Band4 15 20025 75 #0 QPSK 1709.43 -26.13 -13 PASS Band4 15 20325 75 #0 QPSK 1755.69 -24.77 -13 PASS Band4 20 20050 100 #0 QPSK 1709.96 -27.74 -13 PASS Band4 20 20300 100 #0 QPSK 1755.08 -28.33 -13 PASS Band5 1.4 20407 6 #0 QPSK 824.00 -34.67 -13 PASS Band5 1.4 20407 6 #0 QAM16 824.00 -34.49 -13 PASS Band5 1.4 20643 6 #0 QPSK 849.00 -31.99 -13 PASS Report Band5 1.4 20643 6 #0 QAM16 849.00 -33.86 -13 PASS Band5 3 20415 15 #0 QPSK 824.00 -32.98 -13 PASS Band5 3 20415 15 #0 QAM16 824.00 -34.33 -13 PASS Band5 3 20635 15 #0 QPSK 849.00 -29.85 -13 PASS Band5 3 20635 15 #0 QAM16 849.00 -32.08 -13 PASS Band5 5 20425 25 #0 QPSK 824.00 -31.84 -13 PASS Band5 5 20425 25 #0 QAM16 824.00 -34.33 -13 PASS Band5 5 20625 25 #0 QPSK 849.00 -27.98 -13 PASS Band5 5 20625 25 #0 QAM16 849.00 -27.13 -13 PASS Band5 10 20450 50 #0 QPSK 824.00 -36.77 -13 PASS Band5 10 20600 50 #0 QPSK 849.04 -33.22 -13 PASS Band66 1.4 131979 6 #0 QPSK 1710.00 -41.78 -13 PASS Band66 1.4 131979 6 #0 QAM16 1709.98 -35.92 -13 PASS Band66 1.4 132665 6 #0 QPSK 1780.00 -36.56 -13 PASS Band66 1.4 132665 6 #0 QAM16 1780.00 -37.84 -13 PASS Band66 3 131987 15 #0 QPSK 1710.00 -35.21 -13 PASS Band66 3 131987 15 #0 QAM16 1710.00 -36.17 -13 PASS Band66 3 132657 15 #0 QPSK 1780.00 -36.60 -13 PASS Band66 3 132657 15 #0 QAM16 1780.00 -37.82 -13 PASS Band66 5 131997 25 #0 QPSK 1710.00 -34.84 -13 PASS Band66 5 131997 25 #0 QAM16 1710.00 -35.67 -13 PASS Band66 5 132647 25 #0 QPSK 1780.01 -37.22 -13 PASS Band66 5 132647 25 #0 QAM16 1780.00 -37.52 -13 PASS Band66 10 132022 50 #0 QPSK 1709.98 -37.37 -13 PASS Band66 10 132622 50 #0 QPSK 1780.04 -41.59 -13 PASS Band66 15 132047 75 #0 QPSK 1707.84 -37.77 -13 PASS Band66 15 132597 75 #0 QPSK 1781.77 -41.87 -13 PASS Band66 20 132072 100 #0 QPSK 1709.80 -38.01 -13 PASS Band66 20 132572 100 #0 QPSK 1780.00 -41.59 -13 PASS Band12 QPSK BW=1.4MHz Channel=23017 RB Size=6 Position=#0 Report Band12 QAM16 BW=1.4MHz Channel=23017 RB Size=6 Position=#0 Band12 QPSK BW=1.4MHz Channel=23173 RB Size=6 Position=#0 Report Band12 QAM16 BW=1.4MHz Channel=23173 RB Size=6 Position=#0 Band12 QPSK BW=3MHz Channel=23025 RB Size=15 Position=#0 Report Band12 QAM16…

Text truncated - open the document above for the full version.

Report Band2 QAM16 BW=5MHz Channel=18625 RB Size=25 Position=#0 Band2 QAM16 BW=5MHz Channel=19175 RB Size=25 Position=#0 Report Band2 QPSK BW=10MHz Channel=18650 RB Size=50 Position=#0 Band2 QPSK BW=10MHz Channel=19150 RB Size=50 Position=#0 Report Band2 QPSK BW=15MHz Channel=18675 RB Size=75 Position=#0 Band2 QPSK BW=15MHz Channel=19125 RB Size=75 Position=#0 Report Band2 QPSK BW=20MHz Channel=19100 RB Size=100 Position=#0 Band2 QPSK BW=20MHz Channel=18700 RB Size=100 Position=#0 Report Band4 QPSK BW=1.4MHz Channel=19957 RB Size=6 Position=#0 Band4 QPSK BW=1.4MHz Channel=20393 RB Size=6 Position=#0 Report Band4 QAM16 BW=1.4MHz Channel=19957 RB Size=6 Position=#0 Band4 QAM16 BW=1.4MHz Channel=20393 RB Size=6 Position=#0 Report Band4 QPSK BW=3MHz Channel=19965 RB Size=15 Position=#0 Band4 QAM16 BW=3MHz Channel=19965 RB Size=15 Position=#0 Report Band4 QPSK BW=3MHz Channel=20385 RB Size=15 Position=#0 Band4 QAM16 BW=3MHz Channel=20385 RB Size=15 Position=#0 Report Band4 QAM16 BW=5MHz Channel=19975 RB Size=25 Position=#0 Band4 QPSK BW=5MHz Channel=19975 RB Size=25 Position=#0 Report Band4 QPSK BW=5MHz Channel=20375 RB Size=25 Position=#0 Band4 QAM16 BW=5MHz Channel=20375 RB Size=25 Position=#0 Report Band4 QPSK BW=10MHz Channel=20000 RB Size=50 Position=#0 Band4 QPSK BW=10MHz Channel=20350 RB Size=50 Position=#0 Report Band4 QPSK BW=15MHz Channel=20025 RB Size=75 Position=#0 Band4 QPSK BW=15MHz Channel=20325 RB Size=75 Position=#0 Report Band4 QPSK BW=20MHz Channel=20300 RB Size=100 Position=#0 Band4 QPSK BW=20MHz Channel=20050 RB Size=100 Position=#0 Report Band5 QPSK BW=1.4MHz Channel=20407 RB Size=6 Position=#0 Band5 QAM16 BW=1.4MHz Channel=20407 RB Size=6 Position=#0 Report Band5 QPSK BW=1.4MHz Channel=20643 RB Size=6 Position=#0 Band5 QAM16 BW=1.4MHz Channel=20643 RB Size=6 Position=#0 Report Band5 QPSK BW=3MHz Channel=20415 RB Size=15 Position=#0 Band5 QAM16 BW=3MHz Channel=20415 RB Size=15 Position=#0 Report Band5 QPSK BW=3MHz Channel=20635 RB Size=15 Position=#0 Band5 QAM16 BW=3MHz Channel=20635 RB Size=15 Position=#0 Report Band5 QPSK BW=5MHz Channel=20425 RB Size=25 Position=#0 Band5 QAM16 BW=5MHz Channel=20425 RB Size=25 Position=#0 Report Band5 QPSK BW=5MHz Channel=20625 RB Size=25 Position=#0 Band5 QAM16 BW=5MHz Channel=20625 RB Size=25 Position=#0 Report Band5 QPSK BW=10MHz Channel=20450 RB Size=50 Position=#0 Band5 QPSK BW=10MHz Channel=20600 RB Size=50 Position=#0 Report Band66 QPSK BW=1.4MHz Channel=131979 RB Size=6 Position=#0 Band66 QAM16 BW=1.4MHz Channel=131979 RB Size=6 Position=#0 Report Band66 QPSK BW=1.4MHz Channel=132665 RB Size=6 Position=#0 Band66 QAM16 BW=1.4MHz Channel=132665 RB Size=6 Position=#0 Report Band66 QPSK BW=3MHz Channel=131987 RB Size=15 Position=#0 Band66 QAM16 BW=3MHz Channel=131987 RB Size=15 Position=#0 Report Band66 QPSK BW=3MHz Channel=132657 RB Size=15 Position=#0 Band66 QAM16 BW=3MHz Channel=132657 RB Size=15 Position=#0 Report Band66 QPSK BW=5MHz Channel=131997 RB Size=25 Position=#0 Band66 QAM16 BW=5MHz Channel=131997 RB Size=25 Position=#0 Report Band66 QPSK BW=5MHz Channel=132647 RB Size=25 Position=#0 Band66 QAM16 BW=5MHz Channel=132647 RB Size=25 Position=#0 Report Band66 QPSK BW=10MHz Channel=132022 RB Size=50 Position=#0 Band66 QPSK BW=10MHz Channel=132622 RB Size=50 Position=#0 Report Band66 QPSK BW=15MHz Channel=132047 RB Size=75 Position=#0 Band66 QPSK BW=15MHz Channel=132597 RB Size=75 Position=#0 Report Band66 QPSK BW=20MHz Channel=132072 RB Size=100 Position=#0 Band66 QPSK BW=20MHz Channel=132572 RB Size=100 Position=#0 Report

TEST REPORT Compiled by: Reviewed by: Approved by: Zhou Kui Arron Liu Bin Mei / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by …
