2BHG3-M300PA speaker

1：电源开关/音量调节 2：模式切换 3：上一曲 4：播放/暂停 5：下一曲 6：录音 7：MP3模式显示灯 8：麦克风接口 9：U盘 10：TF卡接口 11:DC 5V接口 1.电源开关/音量调节： 将旋钮开关按顺时方向转动，当听到“咔”的一声，蓝色指示灯亮， 表示已经开机；同时转动顺时方向为音量加，转动逆时方向为音量 减；将旋钮逆时方向转动，当听到“咔”的一声，蓝色指示灯灭，表示 机器关机。 2.模式切换： 在插入U盘，TF卡时可通过短按“M”键来对U盘/TF卡/蓝牙模式之 间的切换。在音乐模式长按“M”键提示单曲循环播放为单曲循环模 式；再次长按提示全部循环播放为全部循环模式。 3.上一曲：长按“ ”为快退，短按为上一曲。 4.播放/暂停 ： 在音乐模式下短按“ ”键为暂停，再次短按为播放。 5.下一曲：长按“ ”为快进，短按为下一曲。 6.录音 在插入U盘或TF卡状态下，并将有线麦克风插入“MIC”话筒接口， 短按“ ”键机器提示开始录音，表示开始录音；在录音模式下，再 次短按“ ”键将停止录音并播放当前录音。录音文件将自动保存 至U盘或TF卡内；开机后在未插入麦克风的状态下，长按“ ”键可 播放最后一首录音文件。 注意：录音模式下，必须插入标配的麦克风方可实现正常录音。 7.MP3模式显示灯 8.麦克风接口：本机支持有线麦克风输入。 9.U盘（仅限数据传输读取U盘数据） 10.TF卡接口 11.DC 5V充电接口： 当充电时，将DC 5V充电器连接主机DC 5V插口；再接驳电源（220V ）插座充电。充电时红色显示灯长亮，充满电后，红色显示灯熄灭。 注意： a.在工作时，机器提示电池电量低时，请及时充电；本机充电时间需 要3-4小时； b.第一次使用主机时，电池有小部份电量，但是为了达到最好的效 果，建议先充满电再使用； C.本机适用于各类手机充电头为本机充电，充电完成 后可方便的 通过拔掉电源适配器插头断开电源。 第一步：开机，按“M”键切换至蓝牙模式，（当主机提示“蓝牙已准备 好，正在等待配对”，显示灯蓝灯在闪烁时为蓝牙模式； 第二步：打开手机，进入手机的“设置”菜单，找到蓝牙功能选项，打 开手机的蓝牙功能，点“扫描”按钮，待搜索到“M300”点击“M300” 连接即可；同时，主机会提示蓝牙已配对。 第三步:连接成功后，即可通过主机播放手机教学教材，培训资料， 歌曲播放等。 2.4G无线麦克风开/关机：将电源开关拨至“ON”位置为开机状态， “OFF”位置为关机 状态。 自动配对：先将2.4G无线扩音器开机，再打开2.4G无线麦克风， 2.4G无线麦克风蓝灯停止闪烁，表示配对成功可以扩音。 2.4G无线麦克风音量调节： 在使用时如果有啸叫声或2.4G无线麦克风音量小，调节2.4G无线 麦克风的音量 “-”键是音量减，音量“+”键是音量加。 2.4G无线麦克风在工作时出现蓝色指示灯快速闪烁时，表示电池 低电需要充电，请将2.4G无线麦克风电源关闭后，将2.4G无线麦克 风DC 5V接口连接数据线TYPE-C接头，另一端数据线USB接头与 DC 5V的USB电源接口连接；充电时2.4G无线麦克风红色指示灯长 亮，充满电后红色指示灯熄灭。 注意： 1、正常充电时间约2-4小时； 2、第一次使用2.4G无线麦克风时，电池有小部分电量，但为了达到 最佳扩音效果，请先充满电再使用。 3、充完电后可方便的通过拔掉电源适配器插头断开电网电源。 9、 符合“微功率短距离无线电发射设备目录和技术要求”的具体条 款和使用场景，采用的天线类型和性能，控制、调整及开关等使 用方法； 10、不得擅自改变使用场景或使用条件、扩大发射频率范围、加大发 射功率（包括额外加装射频功率放大器），不得擅自更改发射天 线； 11、不得对其他合法的无线电台（站）产生有害干扰，也不得提出免 受有害干扰保护； 12、应当承受辐射射频能量的工业、科学及医疗（ISM）应用设备的 干扰或其他合法的无线电台（站）干扰； 13、如对其他合法的无线电台（站）产生有害干扰时，应立即停止使 用，并采取措施消除干扰后方可继续使用； 14、在航空器内和依据法律法规、国家有关规定、标准划设的射电 天文台、气象雷达站、卫星地球站（含测控、测距、接收、导航站） 等军民用无线电台（站）、机场等的电磁环境保护区域内使用微 功率设备，应当遵守电磁环境保护及相关行业主管部门的规定； 15、禁止在以机场跑道中心点为圆心、半径5000米的区域内使用各 类模型遥控器； 16、微功率设备使用时温度和电压的环境条件。 17、制造型号:S611 销售型号：M300（具体型号以实物为准） ·采用ABS素材表面晒纹工艺,外观简约大方 ·采用高保真强磁喇叭，高、低音澎湃有力,中频饱满 ·采用十度原声扩音电声系统 ·MP3音频解码技术,支持TF卡/U盘 ·智能语音提示操作 ·支持断电续播/一键录音 ·音量调节旋钮 10W 6-8小时（中等音量） ≥80db 6-8小时（中等音量） 频率范围 信噪比 120Hz~18KHz 3-4小时 Please read the instruction carefully before using it. Note: Before turn on the amplifier, ensure that the MIC don't point at the amplifier, this will eliminate any annoyance associated with howling. For ensure better amplification, aim at the headset MIC capsule when speaking, and keep the distance between the voice amplifier and the MIC more than 60 cm to avoid howling. Simply tucking the speaker around waist, and mounting headphone over head can help to achieve the required distance. 1.Power switch and volume control: Rotate the knob switch in the clockwise direction to turn on the speaker,the blue indicator will turn on.Rotate the knob switch in the clockwise direction continuously to increase the volume, rotate it in counterclockwise direction to decrease the volume till the speaker is turned off. 1.SHIDU patented appearance; 2.Stylish, ergonomic and comfortable design; 3.10W power output; 4.Support TF card and USB flash drive music playback; 5.Support Bluetooth 5.0; 6.Support Recording. 2.Mode: Short press the “M” button to select the following modes:TF card mode ,USB flash drive mode, Bluetooth mode. When playing music on TF card/USB flash drive, long press it for 3 seconds to switch to single song repeat,long press it again to switch back to all repeat. 3.Previous: Short press to play previous song; long press to fast rewind. 4.Play / pause: Short press it to pause, and press again to play the music. 5.Next: Short press to play next song; long press to fast forward 6.Recording: A.Plug in the wired microphone to the “MIC” port, insert an USB flash drive or TF card, short press “ ” to start recording,short press “ ” again to stop recording, it will save and play the present recording files automatically. B.Play recording :Insert an USB flash drive or TF card with recording files ,long press “ ” to play recording .It will play the last recording by default ,short press “ ” or “ ” to select the recordings. Note:in recording mode,the wired microphone must be plugged in for proper recording. 7.MP3 mode indicator 8.Microphone Jack: Insert the wired microphone into this socket to amplify voice. 9.USB port: Insert the USB flash drive to play audio, the maximum capacity is 32GB. 10.TF card slot: Insert the TF card to play audio, the maximum capacity is 32GB. 11.DC 5V charging port : Please charge through Type-C charging cable with DC 5V output adaptor. The red indicator light will keeps on when charging,and it will go out after fully charged. Unplug the charger as soon as it is fully charged.( the charging time is about 3~4 hours ) Warning： do not connect the laptop's USB port to charge the speaker. Notes: 1.The normal charge time is 2~4 hours,unplug the charger as soon as it is fully charged. 2.Fully charge before first use of the microphone to ensure best results. . 3.Turn off the 2.4G wireless microphone when not in use. 4.Warning： do not connect the laptop's USB port to charge the microphone. 1.While powered on, short press “M” button to switch to Bluetooth mode. A voice will prompt “Bluetooth is waiting for connection” indicating that the speaker is in Bluetooth pairing mode . 2.Turn on your device's Bluetooth function,then search for “M300” and select it to pair. Bluetooth pairing is completed with a voice prompt “Bluetooth is connected”. When playing music, please keep the speaker close to the device to maintain a stable connection. When the blue light of the microphone flashes rapidly, it means low battery. Please charge through Type-C charging cable with DC 5V output adapter. The red indicator light will keep on when charging; and it will go out after fully charged. Unplug the charger as soon as it is fully charged. Bluetooth Function: Microphone charging: Trouble shooting: 1. Turn on the power switch, but the amplifier has no sound. A. The blue indicator light is off: it means low power and you should charge…

Text truncated - open the document above for the full version.

SHENZHEN SHIDU DIGITAL CO.,LTD. 1/F, 2/F, 3/F, 4/F, Building A8, Zone 2, Xinhe Xinxing Industrial Park, Fuhai Street, Baoan District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024/07/11 U.S. Agent Designation SHENZHEN SHIDU DIGITAL CO.,LTD.. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BHG3-M300): Name and company of U.S. agent: REP America LLC Physical U.S. address of agent: 1942 Broadway St. STE 314C Boulder, CO 80302 United States FRN of U.S. agent: 0034192500 Email address of U.S. agent: [email protected] REP America LLC acknowledges their obligation to accept service of process on behalf of SHENZHEN SHIDU DIGITAL CO.,LTD.. SHENZHEN SHIDU DIGITAL CO.,LTD.. with the FRN [0035661727] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Mark Peng Manager SHENZHEN SHIDU DIGITAL CO.,LTD.. Signature Ben Xu Manager REP America LLC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

SHENZHEN SHIDU DIGITAL CO.,LTD. Add: 1/F, 2/F, 3/F, 4/F, Building A8, Zone 2, Xinhe Xinxing Industrial Park, Fuhai Street, Baoan District, Shenzhen, China Date: 2024-7-16 FCC ID: 2BHG3-M300 Dear Sir/Madam, We, SHENZHEN SHIDU DIGITAL CO.,LTD. Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: PA speaker Model no.: M300, M200, M6, M7, M400, M801, M802, M803, M900, M1000, M2000, S18, S611, S278, S617, H12, U8, S2, S93, S96, F5, H5 Sincerely, Name/Title： Mark Peng/Manager Company: SHENZHEN SHIDU DIGITAL CO.,LTD. Address: 1/F, 2/F, 3/F, 4/F, Building A8, Zone 2, Xinhe Xinxing Industrial Park, Fuhai Street, Baoan District, Shenzhen, China Phone: 1342442978 Fax: N/A E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-7-16> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2BHG3-M300 M300 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Mark Peng/Manager Company: SHENZHEN SHIDU DIGITAL CO.,LTD. Address: 1/F, 2/F, 3/F, 4/F, Building A8, Zone 2, Xinhe Xinxing Industrial Park, Fuhai Street, Baoan District, Shenzhen, China Phone: 1342442978 Fax: N/A E-Mail: [email protected]

SHENZHEN SHIDU DIGITAL CO.,LTD. 1/F, 2/F, 3/F, 4/F, Building A8, Zone 2, Xinhe Xinxing Industrial Park, Fuhai Street, Baoan District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-7-16 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2BHG3-M300 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Mark Peng/Manager Company: SHENZHEN SHIDU DIGITAL CO.,LTD. Address: 1/F, 2/F, 3/F, 4/F, Building A8, Zone 2, Xinhe Xinxing Industrial Park, Fuhai Street, Baoan District, Shenzhen, China Phone: 1342442978 Fax: N/A E-Mail: [email protected]

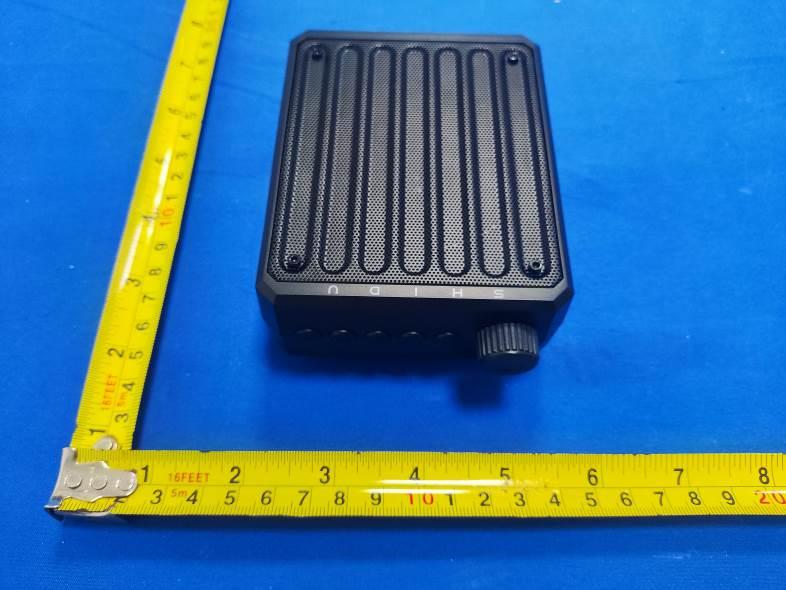

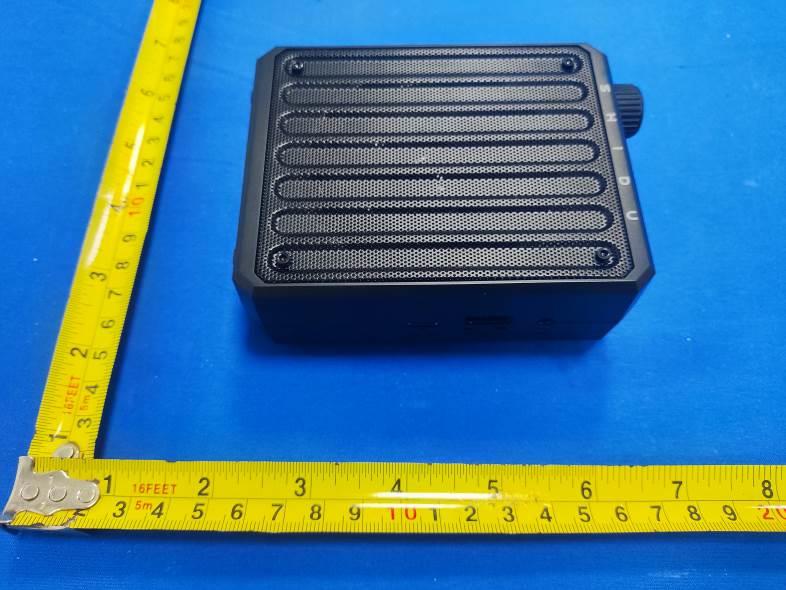

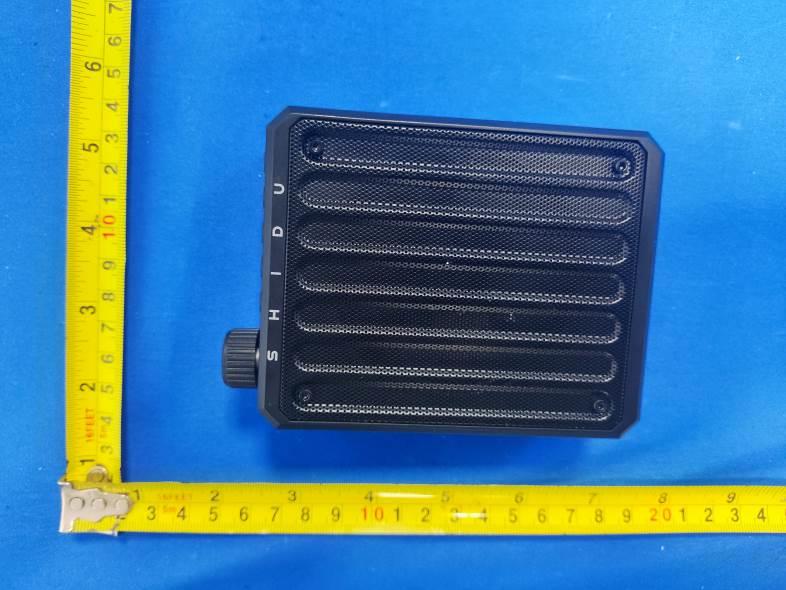

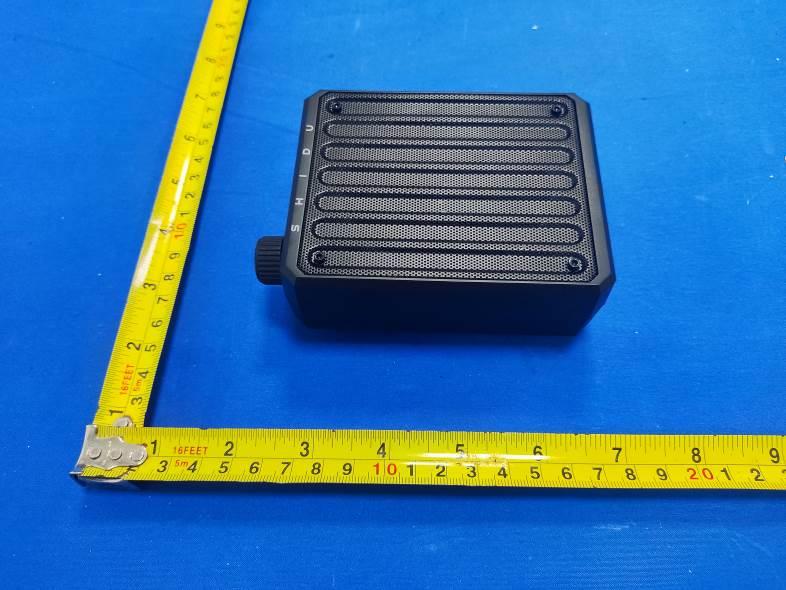

FCC ID: 2BHG3-M300 External Photos of the EUT FCC ID: 2BHG3-M300 FCC ID: 2BHG3-M300

扩音器
Voice
Amplifier 深圳市十度数码科技有限公司 Shenzhen
SHIDU
Digital
Co.,Ltd. 型号Model：M300

输入Input：5V






1.5A CMIIT
ID:2022DP12458 43.5
mm 2 1 . 5
m m FCC ID: 2BHG3-M300 Label and Location

FCC ID: 2BHG3-M300 Internal Photos of the EUT FCC ID: 2BHG3-M300 ANT FCC ID: 2BHG3-M300

RF Exposure evaluation FCC ID: 2BHG3-M300 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -1.0 -1.0 0.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2.0 -2.0 -1.0 Tolerance ±(dB) 1.0 1.0 1.0 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT 2.450 5 1.0 1.2589 0.3941<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

1. Antenna Description: Antenna type PCB antenna Model M300 Frequency range 2400-2500MHz Manufacturer SHENZHEN SHIDU DIGITAL CO.,LTD. ANT Peak Gain 1.25 dBi 2. Antenna Photo: Length :13.74mm Width:5.87mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : CTA24062701001 2BHG3-M300 Compiled by ( position+printed name+signature) . : File administrators Jinghua Xiao Supervised by ( position+printed name+signature) . : Project Engineer Xudong Zhang Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jul. 03, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : SHENZHEN SHIDU DIGITAL CO.,LTD. Address ............................................ : 1/F, 2/F, 3/F, 4/F, Building A8, Zone 2, Xinhe Xinxing Industrial Park, Fuhai Street, Baoan District, Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : PA speaker Trade Mark ....................................... : N/A Manufacturer .................................... : SHENZHEN SHIDU DIGITAL CO.,LTD. Model/Type reference ...................... : M300 Listed Models .................................. : M200, M6, M7, M400, M801, M802, M803, M900, M1000, M2000, S18, S611, S278, S617, H12, U8, S2, S93, S96, F5, H5 Modulation ....................................... : GFSK, Π/4DQPSK Frequency ......................................... From 2402MHz to 2480MHz Rating ............................................... : DC 3.7V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA24062701001 Page 2 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : PA speaker Model /Type : M300 Listed Models : M200, M6, M7, M400, M801, M802, M803, M900, M1000, M2000, S18, S611, S278, S617, H12, U8, S2, S93, S96, F5, H5 Applicant : SHENZHEN SHIDU DIGITAL CO.,LTD. Address : 1/F, 2/F, 3/F, 4/F, Building A8, Zone 2, Xinhe Xinxing Industrial Park, Fuhai Street, Baoan District, Shenzhen, China Manufacturer : SHENZHEN SHIDU DIGITAL CO.,LTD. Address : 1/F, 2/F, 3/F, 4/F, Building A8, Zone 2, Xinhe Xinxing Industrial Park, Fuhai Street, Baoan District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24062701001 Page 3 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emission 14 4.3 Maximum Peak Output Power 20 4.4 20dB Bandwidth 21 4.5 Frequency Separation 24 4.6 Number of hopping frequency 26 4.7 Time of Occupancy (Dwell Time) 28 4.8 Out-of-band Emissions 31 4.9 Pseudorandom Frequency Hopping Sequence 37 4.10 Antenna Requirement 38 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 39 6 P H O T O S O F T H E E U T ........................................................... 40 Report No.: CTA24062701001 Page 4 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices Report No.: CTA24062701001 Page 5 of 45 Shenzhen CTA T…
