2BHH7-7010Car MP5 player

TF TF CARD 1 2 3 4 5 19 25 18 17 2221 20 23 24 7042-A 24 1918 17 22 23 21 20 25 17 18 19 20 21 22 23 24 25 26 27 28 GPS ANT Rearview Video Output1 Audio output Audio output R L ANT Recorder input Video Output2 Video Input 7042 6 Description of the steering wheel learning function TF 1 2 3 4 5 6 7 8 9 10 AUX RES TF 4 5 6 8 1 3 2 9 10 7 MirrorLinkFunctioninstruction: Connectthemobile-phonetotheunitwithanUSB cable,Prompt interface as follows: MobilePhoneUI Please don't playback video or mobile phone while driving 8 UnitInterface Treatmentstatus: Aboutrunningprocessesstatus USBdebugging ConnectUSBdebuggingmode WithdrawalUSBdebugmode MobilePhoneInterface: AllowUSBdebugging? Thecomputer'sRSAkeyfingerprint codeasfollows: xxxxxxxxxxxxxxxxxxxx Willallowtheuseofthiscomputer fordebugging Cancel confirm 9 Multiple national languages 10 FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. *RF warning for Mobile device: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

- SHENZHEN ZDZT ELECTRONIC TECHNOLOGY CO L - Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 7/18/2024 U.S. Agent Designation SHENZHEN ZDZT ELECTRONIC TECHNOLOGY CO L acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BHH7-7010): Name and company of U.S. agent: UUX GROUP INC Physical U.S. address of agent: 36 South 18th Avenue, Suite A Brighton, CO USA 80601 FRN of U.S. agent: 0033701590 Email address of U.S. agent: [email protected] UUX GROUP INC acknowledges their obligation to accept service of process on behalf of SHENZHEN ZDZT ELECTRONIC TECHNOLOGY CO L. SHENZHEN ZDZT ELECTRONIC TECHNOLOGY CO L with the FRN 0035666452 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature lu wang Manager SHENZHEN ZDZT ELECTRONIC TECHNOLOGY CO L Signature Jack Fu Manager UUX GROUP INC 48_[model] US_Agent_2.911(d)(7) - U, V05

Label Size: L70mm * W40mm 1. The label is silk-screen on the sample Car MP5 player Model Name: 7010 FCC ID: 2BHH7-7010 W L

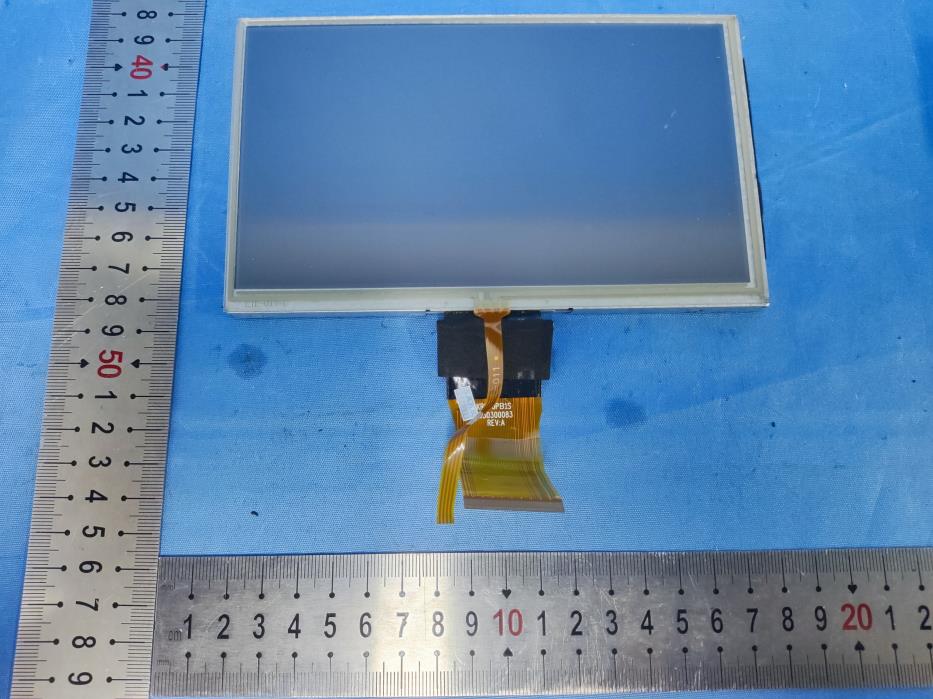

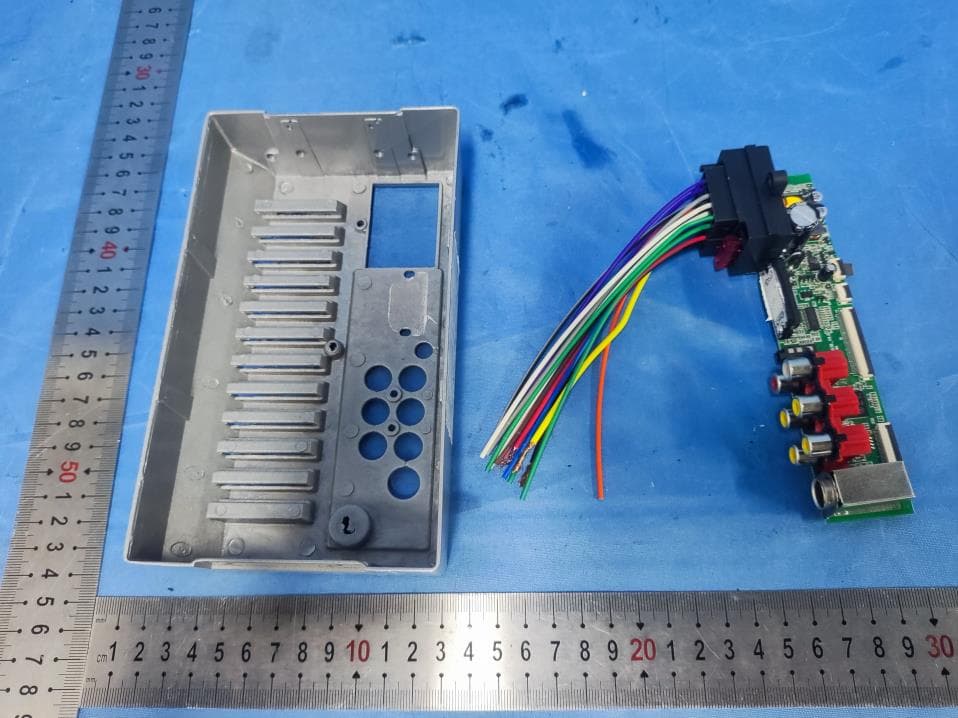

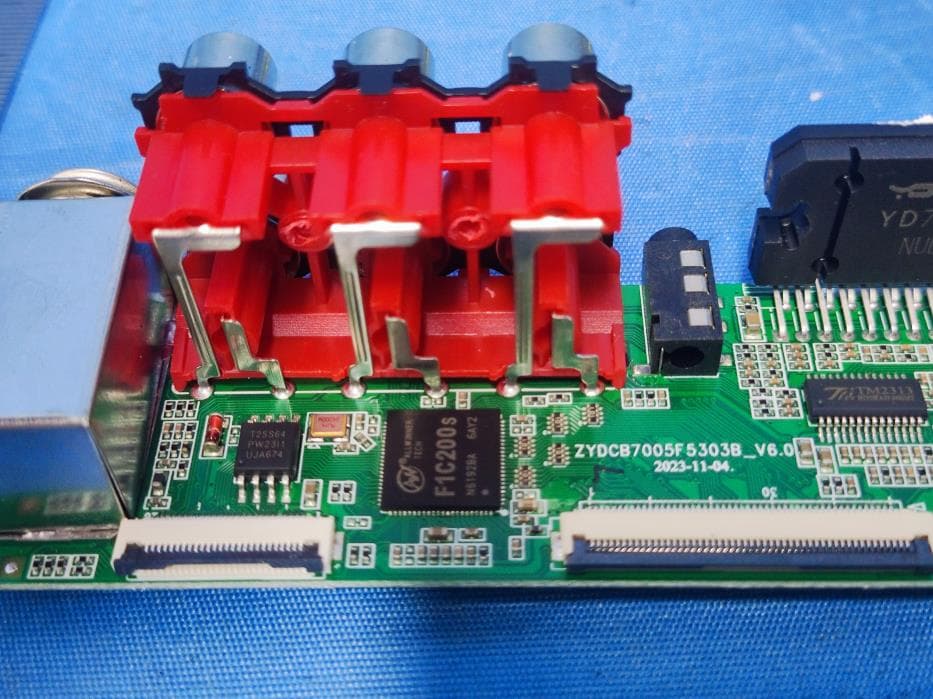

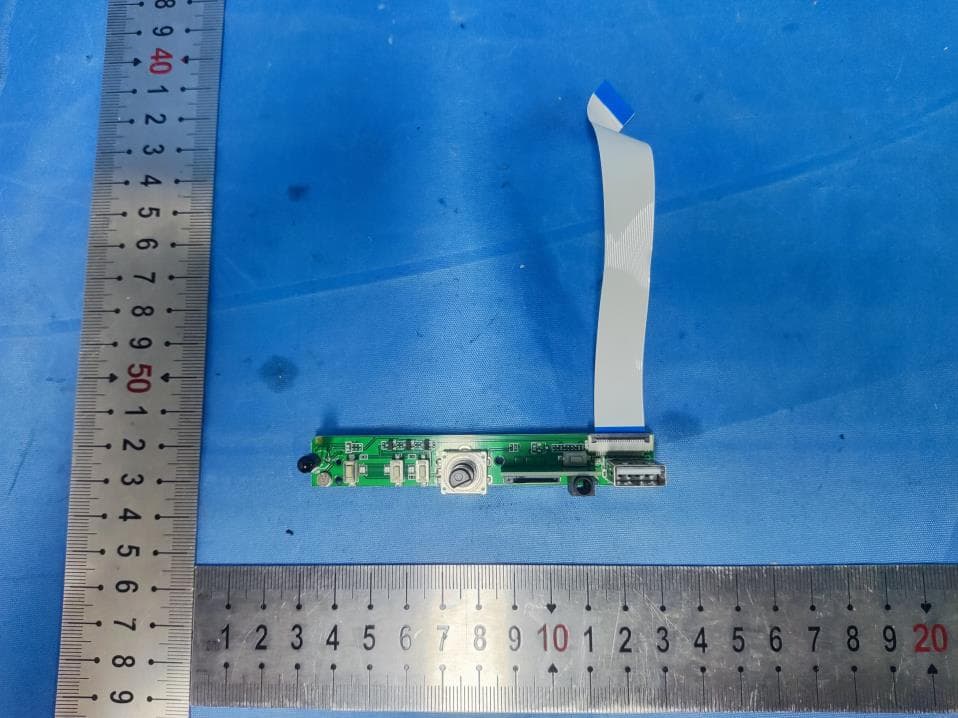

Page 1 of 6 FCC ID: 2BHH7-7010 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details Internal EUT Photo Photo 1 Photo 2 Page 2 of 6 FCC ID: 2BHH7-7010 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 6 FCC ID: 2BHH7-7010 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 Page 4 of 6 FCC ID: 2BHH7-7010 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 7 Photo 8 Antenna Page 5 of 6 FCC ID: 2BHH7-7010 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 9 Photo 10 Page 6 of 6 FCC ID: 2BHH7-7010 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 11 Photo 12 ------End------

RF Exposure evaluation FCC ID: 2BHH7-7010 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Devices 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information EUT can only use antennas certificated as follows provided by manufacturer; Antenna Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: WIFI-BT / PIFA antenna Antenna 0dBi For 2.4G 5. Manufacturing Tolerance BR_EDR (Conducted) Frequency BR_EDR_GFSK (MHz) 2402 2441 2480 Target (dBm) 2 4 4 Tolerance ± (dB) 1 1 1 Frequency BR_EDR_π/4-DQPSK (MHz) 2402 2441 2480 Target (dBm) 2 6 6 Tolerance ± (dB) 1 1 1 Frequency BR_EDR_8DQPSK (MHz) 2402 2441 2480 Target (dBm) 4 6 6 Tolerance ± (dB) 1 1 1 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is refer to section 4, the RF power density can be obtained. ANT 1 Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW BR_EDR 7 5.01 0 1.000 0.00100 1 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 3.WIFI and BT do not support simultaneous transmission . 7. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

Page 1 of 36 Report No.: AITSZ24062504W1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. TEST REPORT Client Information: Applicant: SHENZHEN ZDZT ELECTRONIC TECHNOLOGY CO L Applicant add.: 402, 4/F, Factory Building 2, Hezhou Fishery Industrial Zone, Hangcheng Street, Bao'an District, Shenzhen Manufacturer: SHENZHEN ZDZT ELECTRONIC TECHNOLOGY CO L Manufacturer add.: 402, 4/F, Factory Building 2, Hezhou Fishery Industrial Zone, Hangcheng Street, Bao'an District, Shenzhen Product Information: Product Name: Car MP5 player Model No.: 7010 Series Model: 7018,7012,7605,7625,7635,7645,7655,719,726,4304,5504,5004,4704,736,102 6,7001,9001,1001 Brand Name: N/A Test samples.: AITSZ24062504-1 FCC ID: 2BHH7-7010 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Prepared By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Date of Receipt: Jun. 25, 2024 Date of Test: Jun. 25, 2024 ~ July 04, 2024 Date of Issue: July 04, 2024 Test Result: Pass This device described above has been tested by Guangdong Asia Hongke Test Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited, this document may be altered or revised by Guangdong Asia Hongke Test Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Leon.yi Sean She Page 2 of 36 Report No.: AITSZ24062504W1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. 1 Contents Page COVER PAGE 1 CONTENTS ............................................................................................................................................................ 2 2 TEST SUMMARY ................................................................................................................................................... 4 2.1 Statement of the Measurement Uncertainty .........................................................................................4 2.2 Measurement Uncertainty ....................................................................................................................4 3 TEST FACILITY ..................................................................................................................................................... 5 3.1 Deviation from standard .......................................................................................................................5 3.2 Abnormalities from standard conditions ...............................................................................................5 3.3 Test Location ........................................................................................................................................5 4 GENERAL INFORMATION ................................................................................................................................... 6 4.1 Test frequencies ...................................................................................................................................7 4.2 EUT Peripheral List ..............................................................................................................................8 4.3 Test Peripheral List ...............................................................................................................................8 4.4 TEST METHODOLOGY .......................................................................................................................9 4.5 Description of Test Modes ................................................................................................................. 10 5 EQUIPMENT USED DURING TEST ...................................................................................................................11 6 TEST RESULTS AND MEASUREMENT DATA ................................................................................................12 6.1 Antenna requirement ......................................................................................................................... 12 6.2 Peak Power Measurement ................................................................................................................ 13 6.3 Frequency Separation and 20 dB Bandwidth.................................................................................... 15 6.4 Number of Hopping Frequency ......................................................................................................... 17 6.5 Time of Occupancy (Dwell Time) ...................................................................................................... 18 6.6 Conducted Spurious Emissions and Band Edges Test ..................................................................... 20 6.7 Radiated Emissions and Radiation Restricted band Measurement ................................................. 22 6.8 Conducted Emissions ........................................................................................................................ 34 6.9 Pseudorandom frequency hopping sequence .................................................................................. 35 7 TEST SETUP PHOTOGRAPHS OF EUT ......................................................................................................…

Text truncated - open the document above for the full version.

Page 1 of 54 Report No.: AITSZ24062504W1 1. Bandwidth 1.1 Test Result 1.1.1 OBW Mode TX Type Frequency (MHz) Packet Type ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit GFSK SISO 2402 DH5 1 0.859 / Pass 2441 DH5 1 0.860 / Pass 2480 DH5 1 0.860 / Pass Pi/4DQPSK SISO 2402 2DH5 1 1.176 / Pass 2441 2DH5 1 1.174 / Pass 2480 2DH5 1 1.175 / Pass 8DPSK SISO 2402 3DH5 1 1.179 / Pass 2441 3DH5 1 1.180 / Pass 2480 3DH5 1 1.179 / Pass 1.1.2 20dB BW Mode TX Type Frequency (MHz) Packet Type ANT 20dB Bandwidth (MHz) Verdict Result Limit GFSK SISO 2402 DH5 1 0.961 / Pass 2441 DH5 1 0.958 / Pass 2480 DH5 1 0.959 / Pass Pi/4DQPSK SISO 2402 2DH5 1 1.297 / Pass 2441 2DH5 1 1.295 / Pass 2480 2DH5 1 1.297 / Pass 8DPSK SISO 2402 3DH5 1 1.312 / Pass 2441 3DH5 1 1.312 / Pass 2480 3DH5 1 1.312 / Pass Page 2 of 54 Report No.: AITSZ24062504W1 1.2 Test Graph 1.2.1 OBW GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV Page 3 of 54 Report No.: AITSZ24062504W1 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Page 4 of 54 Report No.: AITSZ24062504W1 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Page 5 of 54 Report No.: AITSZ24062504W1 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV Page 6 of 54 Report No.: AITSZ24062504W1 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV Page 7 of 54 Report No.: AITSZ24062504W1 1.2.2 20dB BW GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV Page 8 of 54 Report No.: AITSZ24062504W1 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Page 9 of 54 Report No.: AITSZ24062504W1 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Page 10 of 54 Report No.: AITSZ24062504W1 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV Page 11 of 54 Report No.: AITSZ24062504W1 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV Page 12 of 54 Report No.: AITSZ24062504W1 2. Maximum Conducted Output Power 2.1 Test Result 2.1.1 Power Mode TX Type Frequency (MHz) Packet Type Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit GFSK SISO 2402 DH5 2.91 <=30 Pass 2441 DH5 4.03 <=30 Pass 2480 DH5 4.12 <=30 Pass Pi/4DQPSK SISO 2402 2DH5 2.85 <=20.97 Pass 2441 2DH5 6.06 <=20.97 Pass 2480 2DH5 6.23 <=20.97 Pass 8DPSK SISO 2402 3DH5 4.84 <=20.97 Pass 2441 3DH5 6.24 <=20.97 Pass 2480 3DH5 6.39 <=20.97 Pass Note1: Antenna Gain: Ant1: 0.00dBi; Page 13 of 54 Report No.: AITSZ24062504W1 2.2 Test Graph 2.2.1 Power GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV Page 14 of 54 Report No.: AITSZ24062504W1 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Page 15 of 54 Report No.: AITSZ24062504W1 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Page 16 of 54 Report No.: AITSZ24062504W1 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV Page 17 of 54 Report No.: AITSZ24062504W1 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV Page 18 of 54 Report No.: AITSZ24062504W1 3. Carrier Frequency Separation 3.1 Test Result 3.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type Channel Separation (MHz) 20dB Bandwidth (MHz) Limit (MHz) Verdict GFSK SISO HOPP DH5 1.000 0.961 >=0.961 Pass Pi/4DQPSK SISO HOPP 2DH5 0.982 1.297 >=0.865 Pass 8DPSK SISO HOPP 3DH5 1.001 1.312 >=0.875 Pass Page 19 of 54 Report No.: AITSZ24062504W1 3.2 Test Graph 3.2.1 Ant1 GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Page 20 of 54 Report No.: AITSZ24062504W1 8DPSK_3DH5_HOPP_Ant1_NTNV Page 21 of 54 Report No.: AITSZ24062504W1 4. Number of Hopping Frequencies 4.1 Test Result 4.1.1 HoppNum Mode TX Type Frequency (MHz) Packet Type Num of Hopping Frequencies Verdict ANT1 Limit GFSK SISO HOPP DH5 79 >=15 Pass Pi/4DQPSK SISO HOPP 2DH5 79 >=15 Pass 8DPSK SISO HOPP 3DH5 79 >=15 Pass Page 22 of 54 Report No.: AITSZ24062504W1 4.2 Test Graph 4.2.1 HoppNum GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Page 23 of 54 Report No.: AITSZ24062504W1 8DPSK_3DH5_HOPP_Ant1_NTNV Page 24 of 54 Report No.: AITSZ24062504W1 5. Time of Occupancy (Dwell Time) 5.1 Test Result 5.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type Duration of Single Pulse (ms) Observation Period (s) Num of Pulse in Observation Period Dwell Time (ms) Limit (ms) Verdict GFSK SISO HOPP DH1 0.426 31.600 320 136.320 <=400 Pass DH3 1.666 31.600 156 259.896 <=400 Pass DH5 2.932 31.600 102 299.064 <=400 Pass Pi/4DQPSK SISO HOPP 2DH1 0.416 31.600 319 132.704 <=400 Pass 2DH3 1.668 31.600 150 250.200 <=400 Pass 2DH5 2.920 31.600 109 318.280 <=400 Pass 8DPSK SISO HOPP 3DH1 0.400 31.600 320 128.000 <=400 Pass 3DH3 1.666 31.600 153 254.898 <=400 Pass 3DH5 2.916 31.600 107 312.012 <=400 Pass Page 25 of 54 Report No.: AITSZ24062504W1 5.2 Test Graph 5.2.1 Ant1 GFSK_DH1_HOPP_Ant1_NTNV GFSK_DH1_HOPP_Ant1_NTNV Page 26 of 54 Report No.: AITSZ24062504W1 GFSK_DH3_HOPP_Ant1_NTNV GFSK_DH3_HOPP_Ant1_NTNV Page 27 of 54 Report No.: AITSZ24062504W1 GFSK_DH5_HOPP_Ant1_NTNV GFSK_DH5_HOPP_Ant1_NTNV Page 28 of 54 Report No.: AITSZ24062504W1 Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV Page 29 of 54 Report No.: AITSZ24062504W1 Pi/4DQPSK_2DH3_HOPP_Ant1_NTNV Pi/4DQPSK_2DH3_HOPP_Ant1_NTNV Page 30 of 54 Report No.: AITSZ24062504W1 Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Page 31 of 54 Report No.: AITSZ24062504W1 8DPSK_3DH1_HOPP_Ant1_NTNV 8DPSK_3DH1_HOPP_Ant1_NTNV Page 32 of 54 Report No.: AITSZ24062504W1 8DPSK_3DH3_HOPP_Ant1_NTNV 8DPSK_3DH3_HOPP_Ant1_NTNV Page 33 of 54 Report No.: AITSZ24062504W1 8DPSK_3DH5_HOPP_Ant1_NTNV 8DPSK_3DH5_HOPP_Ant1_NTNV Page 34 of 54 Report No.: AITSZ24062504W1 6. Unwanted Emissions In Non-restricted Frequency Bands 6.1 Test Result 6.1.1 Ref Mode TX Type Frequency (MHz) Packet Type ANT Level of Reference (dBm) GFSK SISO 2402 DH5 1 2.66 2441 DH5 1 3.81 2480 DH5 1 3.91 HOPP DH5 1 4.15 4.15 Pi/4DQPSK SISO 2402 2DH5 1 2.46 2441 2DH5 1 3.77 2480 2DH5 1 3.93 HOPP 2DH5 1 4.26 4.26 8DPSK SISO 2402 3DH5 1 2.44 2441 3DH5 1 3.82 2480 3DH5 1 4.00 HOPP 3DH5 1 4.33 4.33 Note1: Refer to FCC Part 15.247 (d) and ANS…

Text truncated - open the document above for the full version.

ANTENNASPECIFICATION0 CUSP/N ： T2970 ApplicationDate:2022-12-9Rev:R:A0 CREDITSP/N:Editor:Page1of7 Index 1.GeneralDescription 1 2.ElectricalSpecifications 2 2-1Set-up 2 2-1-1 FrequencyBand 2 2-1-2 Impedance 2 2-1-3 MatchingRequirements 2 2-1-4 VSWR 2 2-2TestData 3to4 2-2-1 VSWR 3 2-2-2 TRP&TIS 4 3.MechanicalSpecification 5to7 3-1MechanicalConfiguration 5 3-1-1MechanicalConfiguration 5 3-1-2MechanicalConfiguration 6 3-2MeasurementData 7 3-3Salt-SprayTest 7 4.EnvironmentCharacteristics 7 ANTENNASPECIFICATION0 CUSP/N ： T2970 ApplicationDate:2022-12-9Rev:R:A0 CREDITSP/N:Editor:Page2of7 1.GeneralDescription Thisreportsummarizestheelectricalperformanceresultsoftheproposed InternalantennatosupporttheF12（BT）program.Theantennaisan assemblyBT2.4G. 2. ElectricalSpecifications 2-1 Set-up 2-1-1FrequencyBand FrequencyBandTx(MHz)Rx(MHz) GSM900880~915925~960 DCS18001710~17851805~1880 WIFI2400-2450-2500 2-1-2Impedance NominalImpedance(includingmatchingcircuit):50ohms 2-1-3MatchingRequirements ThematchingcircuitonthePCBofthehandsetisaccordingto Figure1 Optimummatchingcircuitishighlydependentonthehandset andthus. Finalmatchingcircuitlayoutandvalueswillbedefinedwhen handsetisavailable. 客供 2-1-4VSWRAndGAIN VSWRGAIN Freq.BandOPENSPECBandFreq.OPENSPEC ANTENNASPECIFICATION0 CUSP/N ： T2970 ApplicationDate:2022-12-9Rev:R:A0 CREDITSP/N:Editor:Page3of7 2400MHz ≦ 2.5 2400MHz ≧-1.0dBi 2450MHz ≦ 2.0 2450MHz ≧0.5dBi 2500MHz ≦2.0 2500MHz ≧-1.0dBi ※Measuringa50Ωtestjigisconnectedtoanetworkanalyzertomeasure theVSWR ※※Alltestvalueisdoneincustomerapprovalfixture. 2-2TestData 2-2-1BTVSWR ModelNo:File: CREDITSNO: Note: BT-VSWR SampleNo: TestCondition:FreeSpaceMatching: Confirmation:Engineer: Customer provided ANTENNASPECIFICATION0 CUSP/N ： T2970 ApplicationDate:2022-12-9Rev:R:A0 CREDITSP/N:Editor:Page4of7 2-2-2BTGAIN&EFF ANTENNASPECIFICATION0 CUSP/N ： T2970 ApplicationDate:2022-12-9Rev:R:A0 CREDITSP/N:Editor:Page5of7 ANTENNASPECIFICATION0 CUSP/N ： T2970 ApplicationDate:2022-12-9Rev:R:A0 CREDITSP/N:Editor:Page6of7 ANTENNASPECIFICATION0 CUSP/N ： T2970 ApplicationDate:2022-12-9Rev:R:A0 CREDITSP/N:Editor:Page7of7 3.MechanicalSpecification 3-1-1MechanicalConfiguration() 3-2MeasurementData 3-3Salt-Spraytest 35°C,85%RH,48Hours(AccordingtoMIL-STD-810E)The salt-sprayisgeneratedfroma5%saltsolution.,TheVSWR, Gain,RadiationPatternmustbemetspecificationsafterthe salt-spraytest. 4.EnvironmentCharacteristic NO.ITEMTESTCONDITIONSPECIFICATION 4-1 HighTemperature/Humidity StorageTest(nonoperating) 1.Temperature:+70±2°C 2.Humidity:90~95%RH 3.Time:48hrs Nomaterialdeformationis allowed. assembly drawing ANTENNASPECIFICATION0 CUSP/N ： T2970 ApplicationDate:2022-12-9Rev:R:A0 CREDITSP/N:Editor:Page8of7 TheVSWR,Gain,Radiation Patternmustbemet specificationsafterthesetest. 4-2 LowTemperature/Humidity StorageTest(nonoperating) 1.Temperature:-30±2°C 2.Humidity:0%RH 3.Time:48hrs tin Color: Black specification material unit demand

Page 1 of 1 FCC ID: 2BHH7-7010 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Test Setup Photo DSS Radiated Emission ------End------
