2BHI6-XSENTRYGPS Outdoor Wireless Dog Fence System

F840 GPS Outdoor Wireless Dog Fence System Please read this manual carefully before use Contents 2 3 4 5 5 8 8 9 15 15 16 17 23 24 25 What You Get Description of buttons 1.At a glance 2.Charging 3.Installation 4.Function introduction 1.Wearing Method 2.Wearing Precautions Wearing Method And Precautions Frequently Asked Questions About After-Sales Compliance FCC Warning Safety Instructions Product Introduction 2 Safety Instructions This product cannot be tested directly on humans, otherwise it will violate local laws 4 This product is suitable for large and medium dogs. 1 Do not use the product indoors or in places with interference (Such as under trees, indoors, or under eaves where there is no GPS signal or weak signal.) 3 Product signals cannot locate the center point in grids 2 and below. It also doesn't trigger any penalties. Even if the dog is outside the perimeter of the fence. 2 5 6 7 8 Turn off or remove the product before playing with the dog. Please do not wear the product on your dog for a long time. Do not place the product near a stove or at high temperatures. Do not open the shell of the product, which will cause the lithium battery disconnect or fire. 3 Product Introduction 1.The center point and the safe radius distance are set through GPS satellite positioning, your pet can move freely within the set safe range. 2.The product is designed to activate a warning tone, vibration, and static stimulation when your pet goes beyond the set distance range. Once your pet returns to the safe distance range, the product will stop any warning signals. 3.Basically, you need to train your pet on how to stop the warning triggered by the product. GPS Out of the radius rangeIn the radius range Positioning center point 4 What You Get COMPONENTS 1 10 1 1 2 pairs 1 Boundary flag F840 outdoor GPS wireless electric dog fence Static stimulation test light Magnetic charging cable User manual Contact points F840 GPS Outdoor Wireless Dog Fence System Opera�ng Guide ③ Up/down button ① Multi- function button Magnetic charging port Contact points ② Center point setting button 5 Description of buttons 1.At a glance 6 Multi- function button Used to turn on/off and mode adjustment. Center point setting button Used to setting the center point and adjust the safe radius distance. Up/down button Used to adjust the level of static stimulation/vibration function and the distance of safe radius. ① ② ③ GPS signal iconGPS signal strength Positioning icon Battery power icon Vibration mode This icon is displayed when the center point is positioned successfully. If positioned fails, the icon will blink and the product beeps for 5 seconds. Used to display the battery power status. If this icon is on, it indicates that the product is currently in vibration mode setting. ① ② ③ ④ 7 Static stimulation mode If this icon is on, it indicates that the product is currently in static stimulation mode setting. L level strength icon Current distance from the center point Device status description Low signal strength No signal It is the level icon displayed during operation. When the distance icon is displayed, the number represents the currently set safe distance radius, which is not displayed when it is not set. It indicates that the GPS searching is in progress when the icon is flashing. It indicates an undetermined center point or a sleep state when the icon does not flash. When the product shows a GPS signal strength of 2 bars or lower. If the product still does not find the GPS signal within 6 minutes, it goes into the deep sleep state, and the GPS will be suspended to reduce the power consumption. ⑤ ⑥ ⑦ ⑧ ⑨ ⑪ ⑩ A successful location is indicated by the display of the location icon and "000". 2 8 ❶ Install the contact points Tips: Please fully charge the product before use Contact the magnetic charging cable port with the charging port, and the product can be charged once they are adsorbed to each other. Red light means on charging Green Light means product fully charged Protection mode The product enters the 1min protection mode after every 6 times of punishment, the screen displays P and beeps, and this mode lasts for one minute to enter the next cycle ⑫ 2.Charging 3.Installation ❸ Tighten the static stimulation column with the test light ❷ As wrench 9 ❸ Center point positioning ❶ Turn on/off ❷ GPS signal searching Press and hold the M button about 3s to turn on/off the product. The product takes 3-5 minutes to search for GPS signals after the product is turned on. The GPS icon and == icon are flashing is an indication that the signal is being searched. When the signal is found, and it is 3 bars or higher, you can move to the next step. Recommended best use with 5 bars GPS signal. It is necessary to set the center point before using the device for the first time. To do this, when the screen is lit up (orange background), press and hold the positioning button until the screen displays the positioning icon and '000', which is an indication of a successful positioning of the center point. (The center point can only be positioned when the signal strength ≥ 3 bars. If there is no positioning symbol “ ’’ and “000”, it means that the center point positioning is failed 4.Function introduction 10 ❹ Automatic memory function ❺ Safe radius distance setting The product automatically saves the last center point and safety radius distance upon startup. If the training location is changed, please reset it according to Step 3. (Note: To ensure optimal accuracy, it is recommended to reset the center point and safety radius distance every 5 days). After the successful positioning of the center point in Step 3, please click the positioning button again, and the distance icon along with the distance number will start flashing on the screen. Then, press the up or down button to adjust the desired safe radius distance between 33 to 999 yards. The distance will be automatically confirmed after 5 seconds. However, if you do not want to wait, y…

Text truncated - open the document above for the full version.

(Pawious Inc.) (2024.8.29) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BHI6-XSENTRY) [Pawious Inc.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Sergii Savchenko (Pawious Inc.) (2024.8.29) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2BHI6-XSENTRY) [Pawious Inc.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Sergii Savchenko

Attestation Statements (2024.8.29) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (FCC ID: 2BHI6-XSENTRY) (Pawious Inc.), the undersigned, hereby authorize Pawious Inc. to act as our designated U.S. agent for service of process, (Pawious Inc.) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Pawious Inc. accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information： Company Name: Pawious Inc. Contact Name: Sergii Savchenko Address: 34 N Franklin Ave Ste 687 1790 Pinedale, WY, 82941, USA FRN: 0035671205 Telephone No: +1 307 4486420 Email: [email protected] Signature [name] U.S. Agent Information: Company Name: Pawious Inc. Contact Name: Sergii Savchenko Address: 34 N Franklin Ave Ste 687 1790 Pinedale, WY, 82941, USA FRN: 0035671205 Telephone No: +1 307 4486420 Email: [email protected] Signature [Louie Liu]

Pawious Inc. 2024.08.29 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: GPS Outdoor Wireless Dog Fence System Trademark: / MODEL : XSentry, F840 FCC ID: 2BHI6-XSENTRY To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Sergii Savchenko / Owner Contact information / address: 34 N Franklin Ave Ste 687 1790 Pinedale, WY, 82941, USA

Pawious Inc. 2024.08.29 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION EUT NAME: GPS Outdoor Wireless Dog Fence System Trademark: / MODEL : XSentry, F840 FCC ID: 2BHI6-XSENTRY To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Sergii Savchenko / Owner Contact information / address: 34 N Franklin Ave Ste 687 1790 Pinedale, WY, 82941, USA

Pawious Inc. Model Difference 2024/08/29 EUT NAME: GPS Outdoor Wireless Dog Fence System FCC ID: 2BHI6-XSENTRY MODEL : XSentry, F840 All the model are the same circuit and RF module, except model names. Sincerely Client’s signature Client’s name / title : Sergii Savchenko / Owner Contact information / address: 34 N Franklin Ave Ste 687 1790 Pinedale, WY, 82941, USA

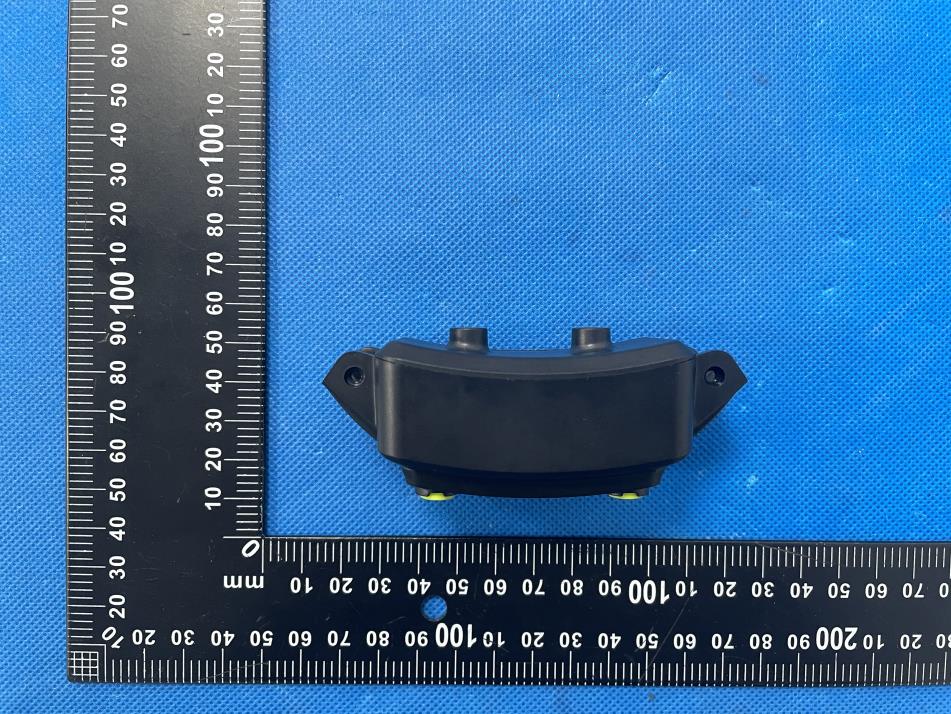

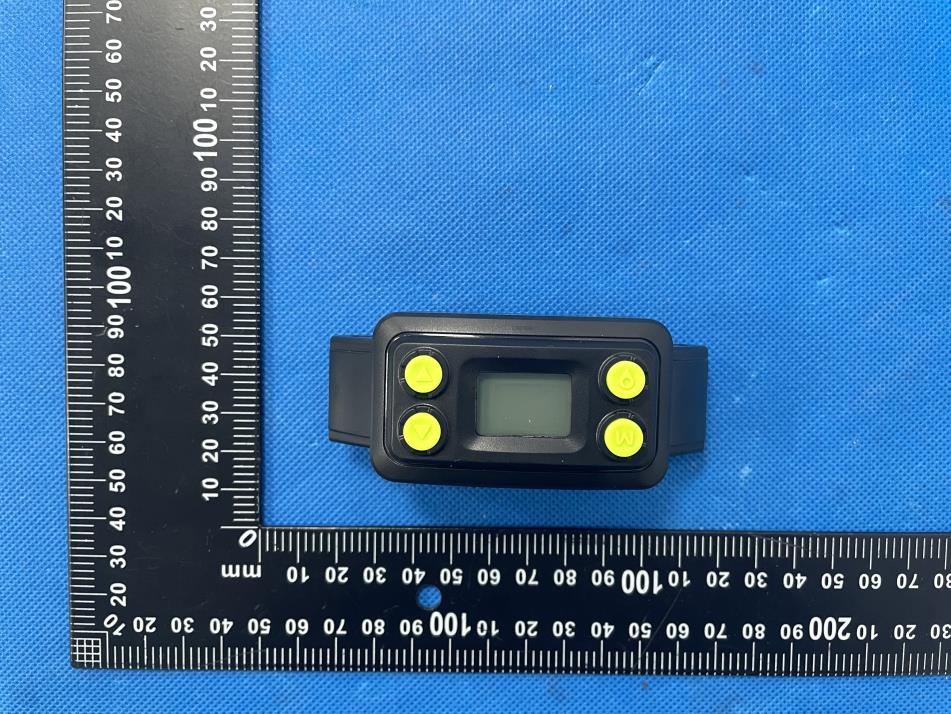

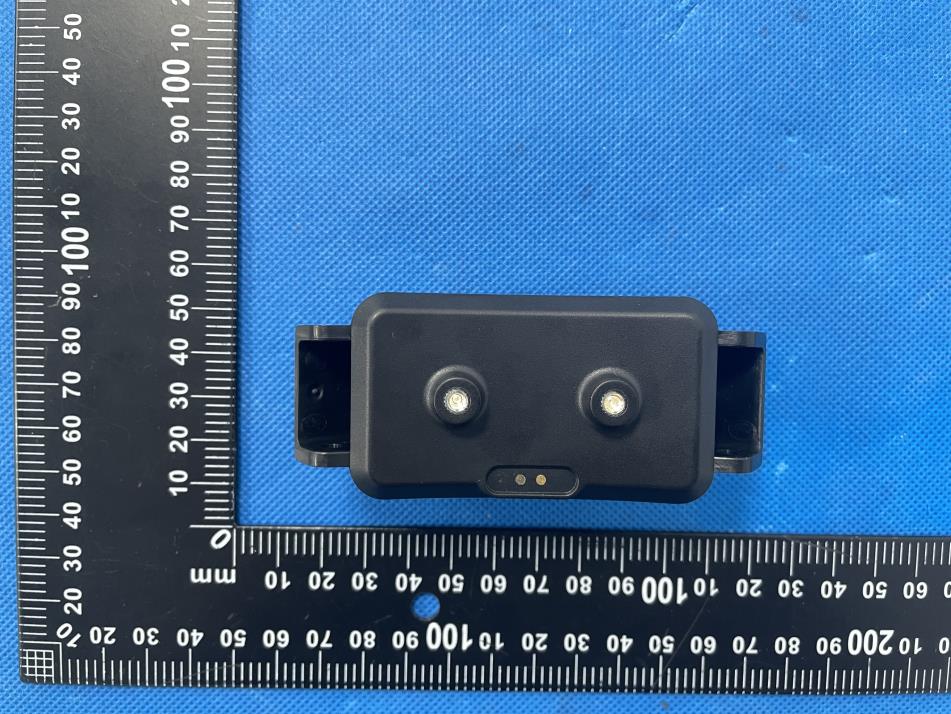

External Photos

Size:20*10mm FCC ID: 2BHI6-XSENTRY Label location

Internal Photos Antenna

No.：BCTC/RF-EMC-005 Page 1 of 22 Edition：B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2407296642E Applicant: Pawious Inc. Product Name: GPS Outdoor Wireless Dog Fence System Test Model: XSentry Tested Date: 2024-07-03 to 2024-07-09 Issued Date: 2024-09-06 Report No.：BCTC2407296642E No.：BCTC/RF-EMC-005 Page 2 of 22 Edition：B.2 FCC ID: 2BHI6-XSENTRY The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: GPS Outdoor Wireless Dog Fence System Trademark: N/A Model/Type Reference: XSentry F840 Prepared For: Pawious Inc. Address: 34 N Franklin Ave Ste 687 1790 Pinedale, WY, 82941, USA Manufacturer: Shenzhen Wellturn Technology Co., Ltd Address: Room 606, Building F, Lvkai Zhihui Park, Liuxian 2nd Road, 71 District, Xin'an Street, Bao'an District, Shenzhen City, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2024-07-03 Sample tested Date: 2024-07-03 to 2024-07-09 Issue Date: 2024-09-06 Report No.: BCTC2407296642E Test Standards: FCC Part 15B ANSI C63.4:2014 Test Results: PASS Tested by: Approved by: Brave Zeng/ Project Handler Zero Zhou/Reviewer Report No.：BCTC2407296642E No.：BCTC/RF-EMC-005 Page 3 of 22 Edition：B.2 Table Of Content Test Report Declaration Page 1. Version ........................................................................................................................ 4 2. Test Summary ............................................................................................................. 5 3. Measurement Uncertainty ............................................................................................ 6 4. Product Information And Test Setup ............................................................................ 7 4.1 Product Information ................................................................................................... 7 4.2 Test Setup Configuration ........................................................................................... 7 4.3 Support Equipment.................................................................................................... 7 4.4 Test Mode .................................................................................................................. 8 5. Test Facility And Test Instrument Used ....................................................................... 9 5.1 Test Facility ............................................................................................................... 9 5.2 Test Instrument Used ................................................................................................ 9 6. Conducted Emission At The Mains Terminals Test ................................................... 10 6.1 Block Diagram Of Test Setup .................................................................................. 10 6.2 Limit ......................................................................................................................... 10 6.3 Test Procedure ........................................................................................................ 10 6.4 Test Result .............................................................................................................. 11 7. Radiation Emission Test ............................................................................................ 13 7.1 Block Diagram Of Test Setup .................................................................................. 13 7.3 Test Procedure ........................................................................................................ 14 7.4 Test Result .............................................................................................................. 15 8. EUT Photographs ...................................................................................................... 19 9. EUT Test Setup Photographs .................................................................................... 20 (Note: N/A Means Not Applicable) Report No.：BCTC2407296642E No.：BCTC/RF-EMC-005 Page 4 of 22 Edition：B.2 1. Version Report No. Issue Date Description Approved BCTC2407296642E 2024-09-06 Original Valid Report No.：BCTC2407296642E No.：BCTC/RF-EMC-005 Page 5 of 22 Edition：B.2 2. Test Summary The Product has been tested according to the following specifications: Standard Test Item Test result FCC 15.107 Conducted Emission Pass FCC 15.109 Radiated Emission Pass Report No.：BCTC2407296642E No.：BCTC/RF-EMC-005 Page 6 of 22 Edition：B.2 3. Measurement Uncertainty Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the Product as specified in CISPR 16-4-2. This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Test item Value (dB) Conducted Emission (150kHz-30MHz) 3.10 Radiated Emission(30MHz~200MHz) 4.60 Radiated Emission(200MHz~1GHz) 5.20 Radiated Emission(1GHz~6GHz) 5.20 Report No.：BCTC2407296642E No.：BCTC/RF-EMC-005 Page 7 of 22 Edition：B.2 4. Product Information And Test Setup 4.1 Product Information Ratings: DC 5V from adapter/DC 3.7V from battery Model differences: All models are identical except for the appearance color. The highest frequency of the internal sources of the EUT is above 1 GHz: less than 1.705 MHz, the measurement shall only be made up to 30 MHz. between 1.705 MHz and 108 MHz, the measurement shall only be made up to 1 GHz. between 108 MHz and 500 MHz, the measurement shall only be made up to 2 GHz. between 500 MHz and 1 GHz, the measur…

Text truncated - open the document above for the full version.

Report No.：BCTC2407296642E No.：BCTC/RF-EMC-005 Page 20 of 22 Edition：B.2 9. EUT Test Setup Photographs Conducted emissions Radiated emissions Report No.：BCTC2407296642E No.：BCTC/RF-EMC-005 Page 21 of 22 Edition：B.2
