2BHJD-C-01Wireless receiver

PDF created with pdfFactory Pro trial version www.pdffactory.com PDF created with pdfFactory Pro trial version www.pdffactory.com FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. * RF warning for Portable device: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. PDF created with pdfFactory Pro trial version www.pdffactory.com

- Huizhou Shuangyuan Electronic Technology Co., Ltd. - Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 7/12/2024 U.S. Agent Designation Huizhou Shuangyuan Electronic Technology Co., Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID:2BHJD-C-01): Name and company of U.S. agent: UUX GROUP INC Physical U.S. address of agent: 36 South 18th Avenue, Suite A Brighton, CO USA 80601 FRN of U.S. agent: 0033701590 Email address of U.S. agent: [email protected] UUX GROUP INC acknowledges their obligation to accept service of process on behalf of Huizhou Shuangyuan Electronic Technology Co., Ltd.. Huizhou Shuangyuan Electronic Technology Co., Ltd. with the FRN 0035674951 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Jackg Guo manager Huizhou Shuangyuan Electronic Technology Co., Ltd. Signature Jack Fu Manager UUX GROUP INC 48 _[model] US_Agent_2.911(d)(7) - U, V05

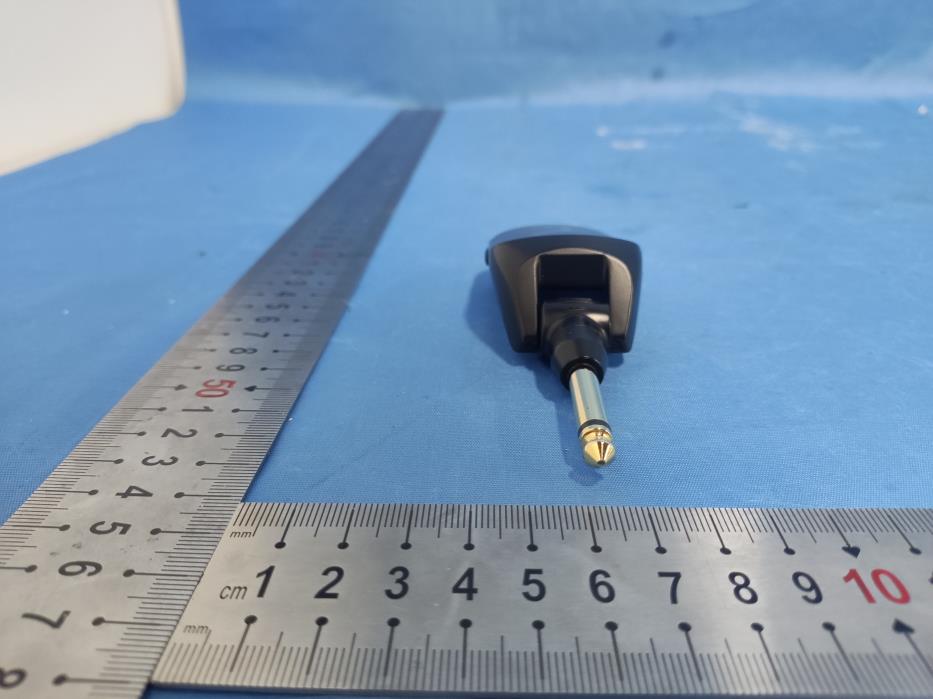

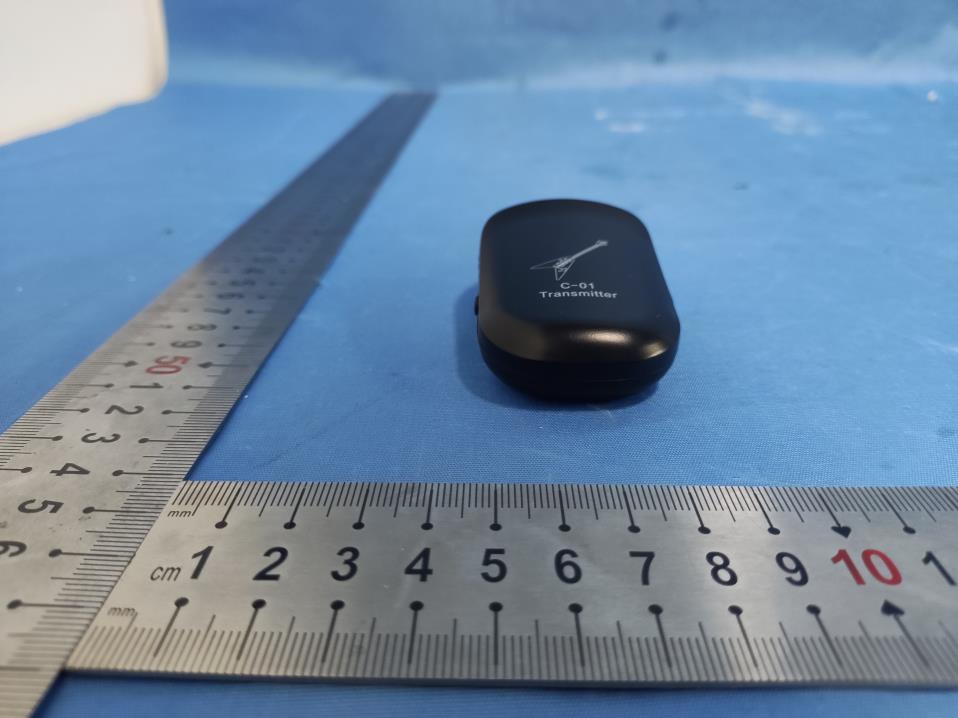

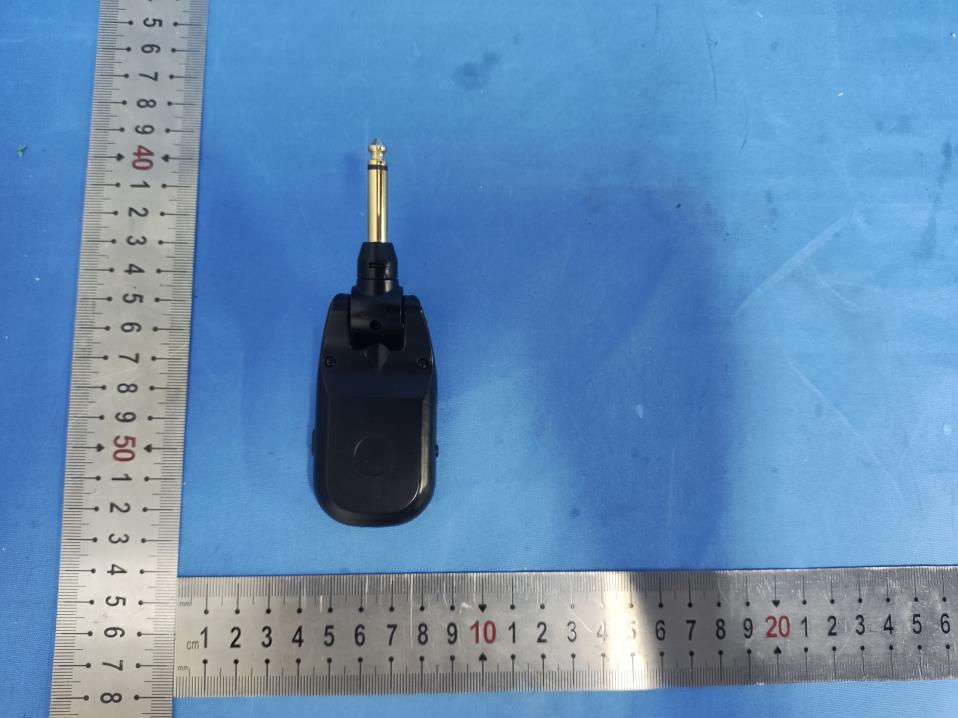

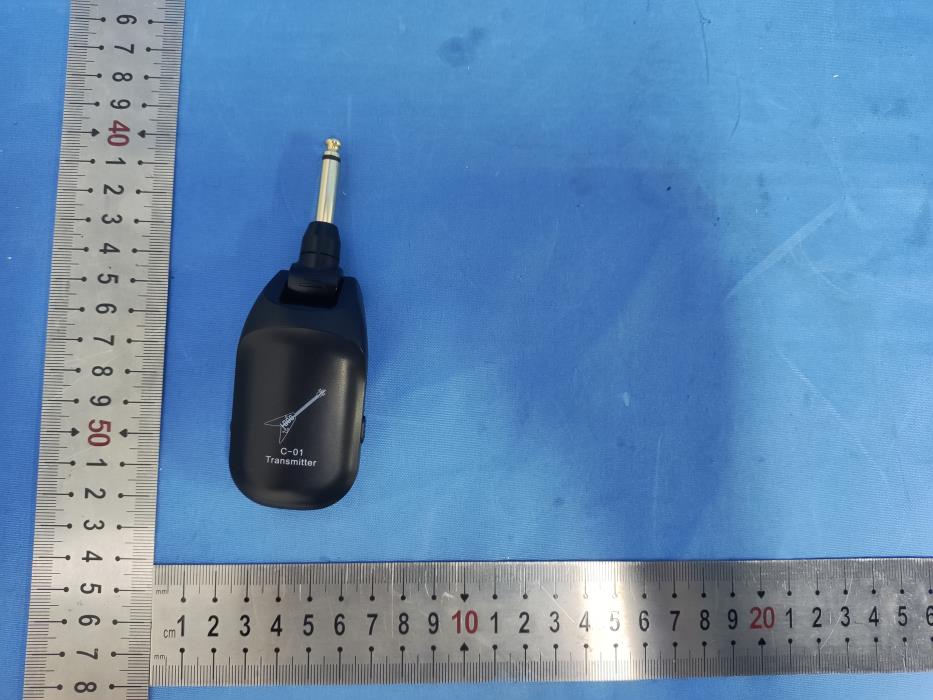

Page 1 of 4 FCC ID: 2BHJD-C-01 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details External EUT Photo Photo 1 Photo 2 Page 2 of 4 FCC ID: 2BHJD-C-01 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 4 FCC ID: 2BHJD-C-01 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 Page 4 of 4 FCC ID: 2BHJD-C-01 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 7 ---The End---

Label Size: L30mm * W25mm 1. The label is silk-screen on the sample Wireless receiver Model Name: C-01 FCC ID: 2BHJD-C-01

Page 1 of 4 FCC ID: 2BHJD-C-01 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details Internal EUT Photo Photo 1 Photo 2 Antenna Page 2 of 4 FCC ID: 2BHJD-C-01 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 4 FCC ID: 2BHJD-C-01 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 Page 4 of 4 FCC ID: 2BHJD-C-01 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 7 Photo 8 ------End------

RF Exposure evaluation FCC ID: 2BHJD-C-01 Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.1. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. Manufacturing Tolerance Wireless Microphone Frequency EIRP (MHz) 658.05 661 Target (dBm) 7 6 Tolerance ± (dB) 1 2. E v a l u at i o n R e s u l t Standalone Band/Mode f (GHz) Antenna Distance RF output power including tune up SAR Test Exclusion Threshold SAR Test Exclusion Estimated (mm) dBm mW SAR Wireless Microphone 0.65805 5 8 6.31 1.024<3.00 Yes / Remark: When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06, No SAR is required. .....................End.........................

Page 1 of 26 Report No.: AIT24060605W2 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. TEST REPORT Client Information: Applicant: Huizhou Shuangyuan Electronic Technology Co., Ltd. Applicant add.: No. 76, Jinqiu Avenue, Qiuchang Street, Huiyang District, Huizhou City, Guangdong Province, China Manufacturer: Huizhou Shuangyuan Electronic Technology Co., Ltd. Manufacturer add.: No. 76, Jinqiu Avenue, Qiuchang Street, Huiyang District, Huizhou City, Guangdong Province, China Product Information: Product Name: Wireless receiver Model No.: C-01 Brand Name: N/A Test samples.: AIT24060605-1 FCC ID: 2BHJD-C-01 Applicable standards: FCC Part 15.236 Prepared By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Date of Receipt: Jun. 07, 2024 Date of Test: Jun. 07, 2024 ~ Jun. 28, 2024 Date of Issue: Jun. 28, 2024 Test Result: Pass This device described above has been tested by Guangdong Asia Hongke Test Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited, this document may be altered or revised by Guangdong Asia Hongke Test Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Leon.yi Sean She Page 2 of 26 Report No.: AIT24060605W2 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Table of Contents Page 1. SUMMARY OF TEST RESULTS 4 1.1 TEST FACTORY 5 1.2 DEVIATION FROM STANDARD 5 1.3 ABNORMALITIES FROM STANDARD CONDITIONS 5 1.4 TEST LOCATION 5 1.5 MEASUREMENT UNCERTAINTY 5 2. GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF THE EUT 6 2.2 DESCRIPTION OF THE TEST MODES 7 2.3 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 8 2.5 TEST EQUIPMENT 9 3. EMC EMISSION TEST 10 3.1 CONDUCTED EMISSION MEASUREMENT 10 3.2 RADIATED EMISSIONS MEASUREMENT 12 4. PART 15.236 REQUIREMENTS 19 4.1 FREQUENCY STABILITY VS. TEMPERATURE & VOLTAGE 19 4.2 OCCUPIED BANDWIDTH 22 4.3 RADIATED POWER 24 PHOTOS OF TEST SETUP 26 Page 3 of 26 Report No.: AIT24060605W2 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Revision History Revision Issue Date Revisions Revised By 01 Jun. 28, 2024 Initial Issue Sean She Page 4 of 26 Report No.: AIT24060605W2 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: The EUT has been tested according to FCC CFR 47: Part 15.236: Operation of wireless microphones in the bands 54-72 MHz, 76-88 MHz, 174-216 MHz, 470-608 MHz and 614-698 MHz. Emission Standard Item Limit Result FCC 15.236(g) Radiated Spurious Emission Refer to 300 422-1 V1.4.2 (8.4) PASS FCC 15.236(d)(1) EIRP ≤50 mW PASS FCC 15.215 Occupied Bandwidth -- PASS FCC 15.236(f)(3) Frequency tolerance ±0.005% PASS FCC 15.236(g) Necessary Bandwidth (Mask) Refer to 300 422-1 V1.4.2 (8.3) PASS FCC 15.207 Conducted Emission -- PASS NOTE: (1) “N/A” denotes test is not applicable in this Test Report. Page 5 of 26 Report No.: AIT24060605W2 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. 1.1 TEST FACTORY The test facility is recognized, certified or accredited by the following organizations: FCC-Registration No.: 251906 Designation Number: CN1376 Guangdong Asia Hongke Test Technology Limited has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. IC —Registration No.: 31737 CAB identifier: CN0165 The 3m Semi-anechoic chamber of Guangdong Asia Hongke Test Technology Limited has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 31737 A2LA-Lab Cert. No.: 7133.01 Guangdong Asia Hongke Test Technology Limited has been accredited by A2LA for technical competence in the field of electrical testing, and proved to be in compliance with ISO/IEC 17025: 2017 General Requirements for the Competence of Testing and Calibration Laboratories and any additional program requirements in the identified field of testing. 1.2 DEVIATION FROM STANDARD None 1.3 ABNORMALITIES FROM STANDARD CONDITIONS None 1.4 TEST LOCATION Guangdong Asia Hongke Test Technology Limited Address: B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 1.5 MEASUREMENT UNCERTAINTY Test Item Frequency Range Measurement Uncertainty Notes Radiated Emission 0.009MHz-30MHz 3.10dB (1) Radiated Emission 30MHz-1GHz 3.75dB (1) Radiated Emission 1GHz-18GHz 3.88dB (1) Radiated Emission 18GHz-40GHz 3.88dB (1) AC Power Line Conducted Emission 0.15MHz ~ 30MHz 1.20dB (1) Note (1): The measurement uncertainty is for coverage factor of k=2 and a level of confidence of 95%. Page 6 of 26 Report No.: AIT24060605W2…

Text truncated - open the document above for the full version.

SHENZHEN 客户 ： 品名规格 DESCRIPTION ： mx5-650-700MHz 料号 PARTNO. ： 客户料号 CUSPARTNO.： 日期 DATE ： 2024.5.13 云顶呈样签章 工程 ENGINEERINGDEPARTMENT 品保 QCDEPARTMENT 业务 SALESDEPARTMENT 客户承认签章 工程 ENGINEERINGDEPARTMENT 品保 QCDEPARTMENT 采购 PURCHASINGDEPARTMENT 联系电话：075523073599 ж承认书一式三份，惠蒙贵司承认签章 жApprovalinduplicate,pleasesignedbyyourcompany. 承認書 APPROVALSHEET SHENZHEN 1.测试项目与设备 测试项目设备 1.S11参数 （S-parameter） 1.回波损耗（ReturnLoss） 2.电压驻波比（VSWR） 网络分析仪:AgilentE5071B HP8753D 2.有源测试 （Active） 1.发射功率（TRP） 2.接收灵敏度（TIS） 1.暗室：ETS7x4x3m(3D)Chamber ETS5x3x3m(3D)Chamber 2.综合测试仪:Agilent8960E5515B×2 StarPointSP6011Cmw500 3.无源测试 （Passive） 1.天线增益（Gain）2.天线效 率（Efficiency） 1.暗室：ETS7x4x3m(3D)Chamber ETS5x3x3m(3D)Chamber 2.网络分析仪：AgilentE5071B HP8753D Test item Equipment Network analyzer darkroom general-purpose tester darkroom general-purpose tester Test items and equipment SHENZHEN 2.天线性能 SWR antenna performance SHENZHEN 3.天线结构图： Antenna structure diagram SHENZHEN 电器技术参数 电性能指标 ElectricalSpecifications 频率范围650~700MHzFrequencyRange650~700MHz 输入阻抗50ΩInputImpedance50Ω 电压驻波比≤2 . 0VSWR≤2 . 0 机械指标 MechanicalSpecifications 天线颜色黄色AntennacolorYellow 工作温度-40°C~+85°CWorkingTemperature-40°C~+85°C 工作湿度20~80%WorkingHumidity20~80% Technical parameters of electrical apparatus SHENZHEN 环境性能测试（Environmentperformancetest）: 项目测试条件测试结果 储存环境 在没有指定的情况下测试温度、湿度、气压如下： 1.温度为-30°C～+80°C 2.相对湿度为45%-85% 3.气压为86kpa-106kpa 电气机械性能正常 高低温试验 在70°C与-40°C之间进行5次循环，然后在正常条件下 1-2H，检查外观质量。 尺寸应满足规定并应 满足 于机械、电气性能 耐恒定湿热 试验 相对湿度95±3%，试验温度：40°C.持续2H作用后， 试品取出后5min之内测定电气性能，试品在正常条 件下1-2H，检查外观质量 尺寸应满足规定并应 满足 于机械、电气性能 振动试验 振频范围10-55HZ，位移幅值：0.35MM，加速度幅值： 50.0M/S，扫频循环次数：30次 电气机械性能正常 跌落试验1M高空按照互相垂直的轴方向自由跌落3次电气机械性能正常 ProjectTestconditionTestresults Storage environment Testtemperature,humidity,pressurewithout statedconditionasfollwings:1.Temperature:-30°C～ +80°C;2.Relativehumidity:45%-85%;3,Pressure: 86kpa-106kpa Electricaland mechanical performancenormal Highandlow temperaturetest Having5timescyclebetween-40°Cto70°C,Thenincommon condition1-2hourstestexteriorquality. Measurement satisfiedwith electricaland mechanical performancenormal. Resistance constanthotand humidtest Relativehumidity:95±3%,Testtemperature:40°C,last2 hours,putitafter5mintesttheelectricalfunction.Test productsduringcommoncondition1-2hours,Thentest exteriorquality. Measurement satisfiedwith electricaland mechanical performancenormal. Vibrationtest VibrateFrequency:10-55HZ; Distance:0.35mm;Acceleration:50.0m/s;Sweepfrequency cycle:30times Electricaland mechanical performancenormal FalltestFrom1mheightfalldown3timesfreely(verticaldirection) Electricaland mechanical performancenormal

Page 1 of 2 FCC ID: 2BHJD-C-01 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Test Setup Photo Radiated Emission Page 2 of 2 FCC ID: 2BHJD-C-01 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Conducted Emission ------End------
