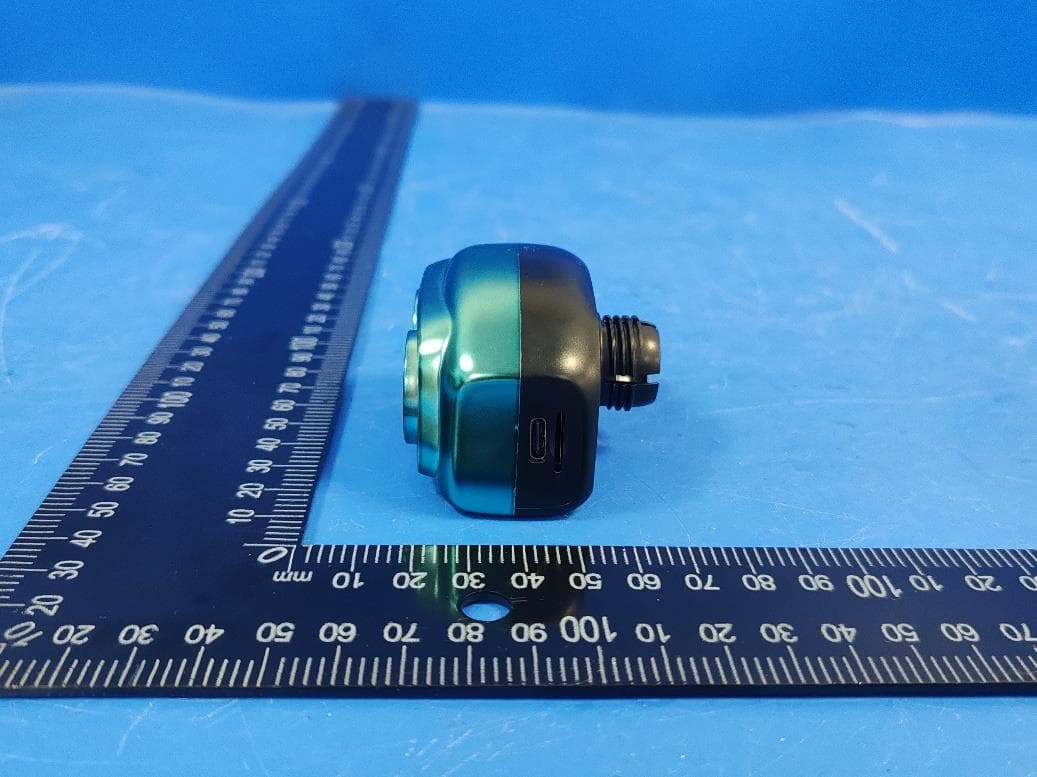

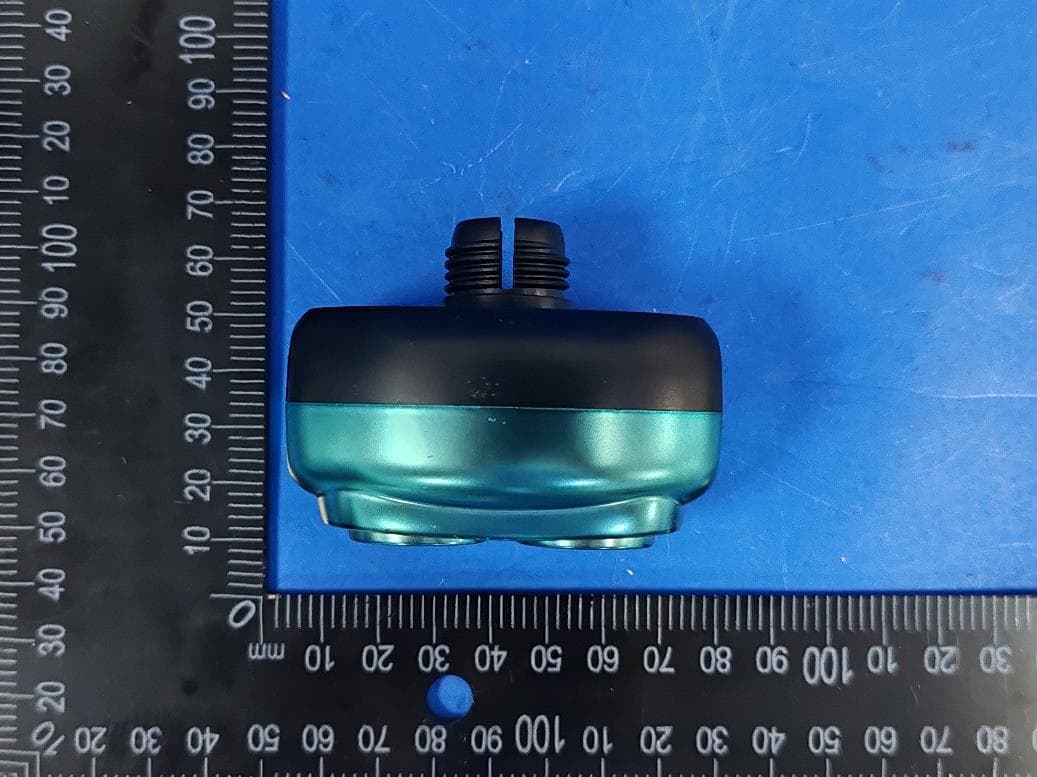

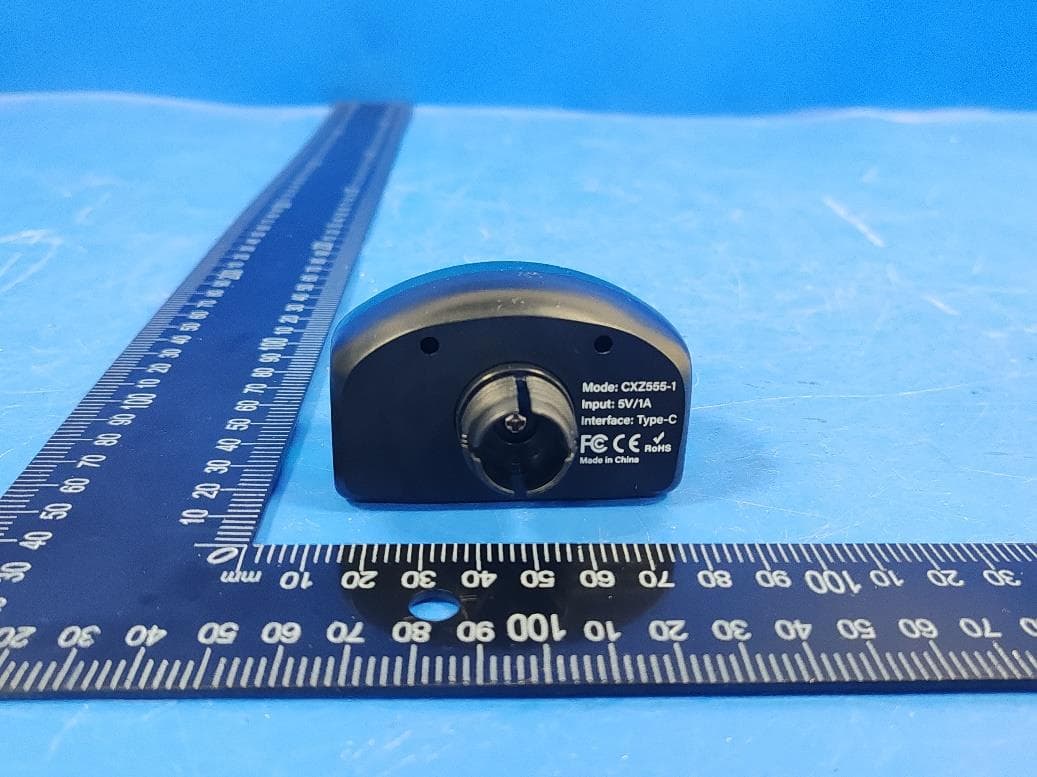

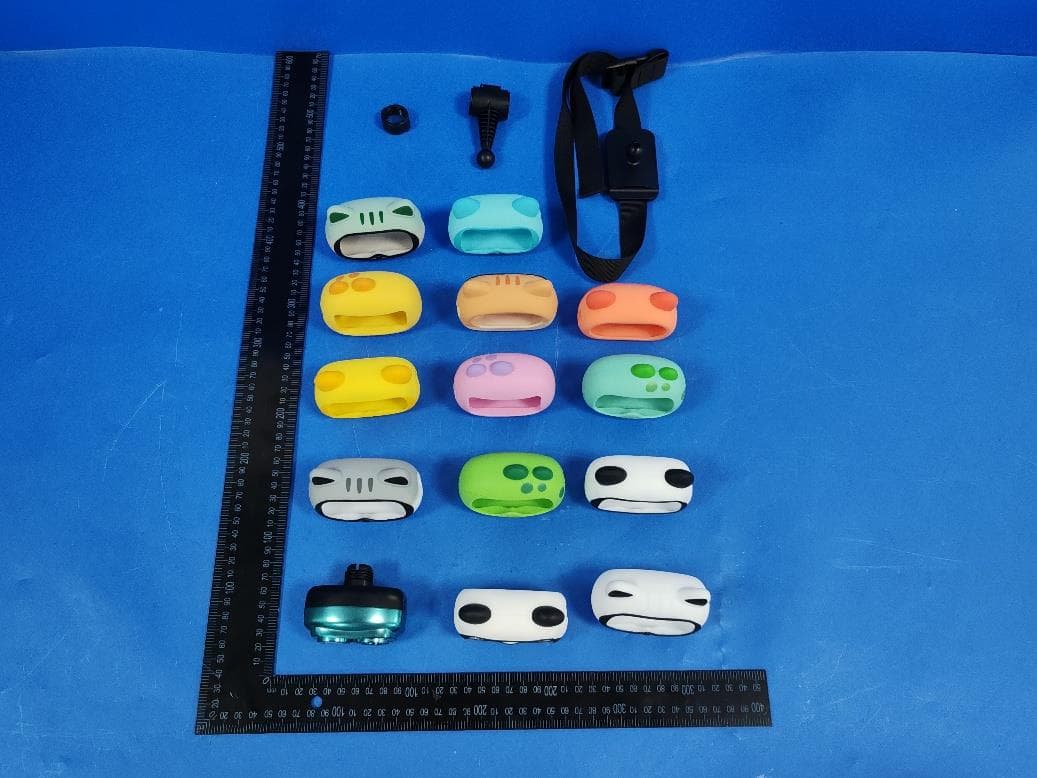

Page 1 of 4 Report No.: LGT26G047 Appendix - External Photographs of EUT Constructional Details Photo 1 Photo 2 Page 2 of 4 Report No.: LGT26G047 Appendix - External Photographs of EUT Constructional Details Photo 3 Photo 4 Page 3 of 4 Report No.: LGT26G047 Appendix - External Photographs of EUT Constructional Details Photo 5 Photo 6 Page 4 of 4 Report No.: LGT26G047 Appendix - External Photographs of EUT Constructional Details Photo 7

FCC ID: 2BHJP-55XFCC ID: 2BHJP-55X

Page 1 of 3 Report No.: LGT26G047 Appendix - Internal Photographs of EUT Constructional Details Photo 1 Photo 2 ANT Page 2 of 3 Report No.: LGT26G047 Appendix - Internal Photographs of EUT Constructional Details Photo 3 Photo 4 Page 3 of 3 Report No.: LGT26G047 Appendix - Internal Photographs of EUT Constructional Details Photo 5 Photo 6

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Page 1 of 8 EMF TEST REPORT Product Name: Monitor Model Number: CXZ555, CXZ555-1, CXZ555-2, CXZ555-3, CXZ555-5, CXZ555-6, CXZ555-7, CXZ555-8, CXZ555-9 FCC ID: 2BHJP-55X Issued For : Dongguan Chenxin Zheng hardware plastic technology Co., LTD No. 78, Qinglin Road, Qingxi Town, Dongguan City, China Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT26G047HA01 Sample Received Date: July 06, 2026 Date of Test: July 06, 2026 ~ July 20, 2026 Date of Issue: July 20, 2026 Report No.: LGT26G047HA01 Page 2 of 8 TEST REPORT CERTIFICATION Applicant: Dongguan Chenxin Zheng hardware plastic technology Co., LTD Address: No. 78, Qinglin Road, Qingxi Town, Dongguan City, China Manufacturer: Dongguan Chenxin Zheng hardware plastic technology Co., LTD Address: No. 78, Qinglin Road, Qingxi Town, Dongguan City, China Product Name: Monitor Trademark: N/A Model Number: CXZ555, CXZ555-1, CXZ555-2, CXZ555-3, CXZ555-5, CXZ555-6, CXZ555-7, CXZ555-8, CXZ555-9 Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47 CFR §2.1091 KDB 447498 D01 General RF Exposure Guidance v06 PASS Prepared by: Approved by: Chris Chen Engineer Technical Director Report No.: LGT26G047HA01 Page 3 of 8 TABLE OF CONTENTS 1 . GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST LABORATORY 5 2 . FCC 47CFR §2.1091 REQUIREMENT 6 2.1 TEST STANDARDS 6 2.2 LIMIT 6 2.3 EUT OPERATION CONDITION 7 2.4 CLASSIFICATION 7 2.5 TEST RESULT 8 Report No.: LGT26G047HA01 Page 4 of 8 Revision History Rev. Issue Date Revisions 00 July 20, 2026 Initial Issue Report No.: LGT26G047HA01 Page 5 of 8 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name: Monitor Test Model Number: CXZ555 Series Number: CXZ555-1, CXZ555-2, CXZ555-3, CXZ555-5, CXZ555-6, CXZ555-7, CXZ555-8, CXZ555-9 Model Difference: Only model name is different. Frequency Bands: 5G WLAN IEEE 802.11a/n(HT20): 5.180GHz-5.240GHz IEEE 802.11n(HT40): 5.190GHz-5.230GHz I IEEE 802.11a/n(HT20): 5.745GHz-5.825GHz IEEE 802.11a/n(HT40): 5.755GHz-5.795GHz Rating: Input: 5V/1A Hardware Version: C622-V3.1 Software Version: C622-V3.1.1 1.2 TEST LABORATORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate: FCC Registration No.: 746540 CAB ID: CN0136 Report No.: LGT26G047HA01 Page 6 of 8 2. FCC 47CFR §2.1091 REQUIREMENT 2.1 TEST STANDARDS The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. 2.2 LIMIT According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Limits for Occupational / controlled Exposures 0.3-3.0 614 1.63 *(100) 3.0-30 1842/f 4.89/f *(900/f 2 ) 30-300 61.4 0.163 1.0 300 - 1500 -- -- F/300 1500 – 100000 -- -- 5.0 Limits for General population / Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 1.34-30 824/f 2.19/f *(180/f 2 ) 30-300 27.5 0.073 0.2 300 - 1500 -- -- F/1500 1500 – 100000 -- -- 1.0 F= Frequency in MHz * = Plane-wave equivalent power density. Friss Formula Friss Transmission Formula: Pd = (Pout * G) / (4*pi*r²) Where Pd = power density in mW/cm² Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = Distance between observation point and the center of radiator in cm If we know the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value at distance 20cm. Report No.: LGT26G047HA01 Page 7 of 8 2.3 EUT OPERATION CONDITION EUT was enabled to transmit and receive at lowest, middle and highest channels. 2.4 CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance from the antenna should be included in the User manual. So, this device is classified as Mobile device. Report No.: LGT26G047HA01 Page 8 of 8 2.5 TEST RESULT Turn up Result Mode Turn up Power 5G WIFI-802.11a 16.5±1dBm 5G WIFI-802.11n(HT20) 14±1dBm 5G WIFI-802.11n(HT40) 14±1dBm The MPE result of worst mode: RF Function Max Turn up Power (dBm) Max Turn up Power (mW) ANT Gain (dBi) ANT Gain (gain of antenna in linear scale) Power Density (mW/cm²) Limit (mW/cm²) Ratio Result 5G WIFI 17.50 56.23 2.67 1.85 0.021 1 0.021 Pass Note: The RF Exposure is less than the limit, complies with the exemption requirements. ※※※※※END OF THE REPORT※※※※※

5GHz 3216 Chip Antenna: HT-3216-C07 _ Application: WLAN,802.11WLAN,etc... Features SMD,highreliability,ultraImpact,Omni-directional... PartnumberInformation F585 C 07 HT (A)(B)(C) (D)(E) (F) Electrical Specification The specification is defined on EVB. Dimension and Terminal Configuration No.Terminal Name 1Feeding/GNG 2GND/Feeding (A)Product TypeChip Antenna (B) Size Code 3.2x1.6mm( ± 0.2mm) (C) MaterialHigh K material (D) Frequency5.1 ~ 5.9GHz (E) Feeding modePIFA & Single Feeding (F) Antenna typeType=0X Working Frequency Range5100 ~5900 MHz Peak Gain2.67 dBi (Typ.) Impedance50 Ohm Return loss10 dB ( Min) PolarizationLinear Azimuth BeamwidthOmni-directional Operation Temperature( °C )-40 ~85 °C Resistance to Soldering Heats 10sec. ( @ 280 °C ) TerminationNi / Au (Leadless) Dimension (mm) L 3.20±0.20 W 1.60±0.20 T 0.45±0.20  3216 深圳市合拓科技有限公司 Shenzhen Hetuo Technology Co.,Ltd. TEL: 18665934465 5GHz 3216 Chip Antenna: HT-3216-C07 _ 1 Evaluation BoardReference PCB DimensionAntenna Layout Reference Unit :mm Electrical Characteristics Return Loss & Radiation Return Loss Frequency(MHz) S11(dB) 5100-10.50 5500-30.62 5900-11.47 Radiation X Y Z 深圳市合拓科技有限公司 Shenzhen Hetuo Technology Co.,Ltd. 5100MHz 5500MHz 5900MHz 5GHz 3216 Chip Antenna: HT-3216-C07 _ Taping Specifications Reel and Taping Specification Reel Specification TYPESIZEABCD 32167” 5K/Reel 9.0±0.5 60±213.5±0.5178±2 Tapping Specification PackagingTypeABWEFGHTψDP Paper Type 3216 1.90±0.20 3.50±0.20 8.0±0.20 1.75±0.10 3.5±0.05 4.0±0.10 2.0±0.05 0.75±0.10 1.50±0.10 4.0±0.1 深圳市合拓科技有限公司 Shenzhen Hetuo Technology Co.,Ltd. 5GHz 3216 Chip Antenna: HT-3216-C07 _ Reliability Table Test ItemProcedure Requirements Ceramic Type Remark (Reference) Electrical Characterization Fulfill the electrical specification User Spec. Thermal Shock 1. Preconditioning: 50 ± 10°C/ 1 hr , then keep for 24 ± 1 hrs at room temp. 2. Initial measure: Spec: refer Initialspec. 3. Rapid change of temperature test: -30°Cto +85°C; 100 cycles; 15 minutes at Lower category temperature; 15 minutes at Upper category temperature. No Visible Damage. Fulfill the electrical specif ication. MIL-STD-202 107 Temperature Cycling 1. Initial measure: Spec: refer Initialspec. 2. 100 Cycles (-30°Cto +85°C), Soak Mode=1 (2 Cycle/hours). 3. Measurement at 24 ± 2Hours after testcondition. No Visible Damage. Fulfill the electrical specification. JESD22 JA104 High Temperature Exposure 1. Initial measure: Spec: refer Initialspec. 2. Unpowered; 500hours @ T=+85°C. 3. Measurement at 24 ± 2 hours aftertest. No Visible Damage. Fulfill the electrical specific ation. MIL-STD-202 108 Low Temperature Storage 1. Initial measure: Spec: refer Initialspec. 2. Unpowered: 500hours @ T=-30°C. 3. Measurement at 24 ± 2 hours aftertest. No Visible Damage. Fulfill the electrical specification. MIL-STD-202 108 Solderability (SMD Bottom Side) Dipping method: a. Temperature: 235 ±5°C b. Dipping time: 3 ±0.5s The solder should cover over 95% of the critical area of bottom side. IEC 60384-21/22 4.10 Soldering Heat Resistance (RSH) Preheating temperature: 150 ± 10°C. Preheating time: 1~2 min. Solder temperature: 260 ± 5°C. Dipping time: 5 ± 0.5s No Visible Damage.IEC 60384-21/22 4.10 Vibration5g's for 20 min., 12 cycles each of 3 orientations Note: Use 8"X5" PCB .031" thick 7 secure points on, one long side and 2 secure points at corners of opposite sides. Parts mounted within 2" from any secure point. Test from 10-2000 Hz. No Visible Damage.MIL-STD-202 Method 204 Mechanical Shock Three shocks in each directio n shall be applied along the three mutually perpendicular axes of the test specimen (18 shocks) Peak value: 1,500g’s Duration: 0.5ms Velocity change: 15.4 ft/s Waveform: Half-sine No Visible Damage.MIL-STD-202 Method 213 Humidity Bias 1. Humidity: 85% R.H., Temperature:85 ± 2 °C. 2. Time: 500 ± 24hours. 3. Measurement at 24 ± 2hrs after testcondition. No Visible Damage. Fulfill the electrical specification. MIL-STD-202 Method 106 深圳市合拓科技有限公司 Shenzhen Hetuo Technology Co.,Ltd. 5GHz 3216 Chip Antenna: HT-3216-C07 _ Board Flex (SMD) 1. Mounting method: IR-Reflow. PCB Size (L:100 × W:40 × T:1.6mm) 2. Apply the load in direction of the arrow until bending reaches 2 mm. No Visible Damage.AEC-Q200 005 AdhesionForce of 1.8Kg for 60 seconds. No Visible Damage Magnification of 20X or greater may be employed for inspection of the mechanical integrity of the device body terminals and body/terminal junction. AEC-Q200 006 Physical Dimension Any applicable method using x10 magnification, micrometers, calipers, gauges, contour projectors, or other measuring equipment, capable of determining the actual specimen dimensions. In accordance with specification. JESD22 JB100 Revision History RevisionDateContent 12019/03/01 New Datasheet 22020/02/22 Add 2D radiation characteristic 深圳市合拓科技有限公司 Shenzhen Hetuo Technology Co.,Ltd.

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Page 1 of 78 RF TEST REPORT Product Name: Monitor Model Number: CXZ555, CXZ555-1, CXZ555-2, CXZ555-3, CXZ555-5, CXZ555-6, CXZ555-7, CXZ555-8, CXZ555-9 FCC ID: 2BHJP-55X Issued For : Dongguan Chenxin Zheng hardware plastic technology Co., LTD No. 78, Qinglin Road, Qingxi Town, Dongguan City, China Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT26G047RF01 Sample Received Date: July 06, 2026 Date of Test: July 06, 2026 ~ July 20, 2026 Date of Issue: July 20, 2026 Report No.: LGT26G047RF01 Page 2 of 78 TEST REPORT CERTIFICATION Applicant: Dongguan Chenxin Zheng hardware plastic technology Co., LTD Address: No. 78, Qinglin Road, Qingxi Town, Dongguan City, China Manufacturer: Dongguan Chenxin Zheng hardware plastic technology Co., LTD Address: No. 78, Qinglin Road, Qingxi Town, Dongguan City, China Product Name: Monitor Trademark: N/A Model Number: CXZ555, CXZ555-1, CXZ555-2, CXZ555-3, CXZ555-5, CXZ555-6, CXZ555-7, CXZ555-8, CXZ555-9 Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 15.407, Subpart E ANSI C63.10-2020 + Cor. 1-2023+C63.10a- 2024 + Errata to C63.10a-2024 PASS Prepared by: Approved by: Chris Chen Vita Li Engineer Technical Director Report No.: LGT26G047RF01 Page 3 of 78 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 6 1.1 TEST LABORATORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2 . GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF TEST MODES 10 2.3 TEST SOFTWARE AND POWER LEVEL 10 2.4 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 14 3.1 CONDUCTED EMISSION MEASUREMENT 14 3.2 RADIATED EMISSION AND ( BANDEDGE) MEASUREMENT 18 4. POWER SPECTRAL DENSITY TEST 28 4.1 LIMIT 28 4.2 TEST PROCEDURE 28 4.3 DEVIATION FROM STANDARD 28 4.4 TEST SETUP 29 4.5 EUT OPERATION CONDITIONS 29 4.6 TEST RESULTS 29 5. BANDWIDTH MEASUREMENT 30 5.1 EMISSION BANDWIDTH (EBW) 26 BANDWID PROCEDURES / LIMIT 30 5.2 OCCUPIED BANDWIDTH ( 99%) TEST APPLIED PROCEDURES / LIMIT 31 5.3 MINIMUM EMISSION BANDWIDTH(6 DB) PROCEDURES / LIMIT 32 6. MAXIMUM CONDUCTED OUTPUT POWER 33 6.1 LIMIT 33 6.2 TEST PROCEDURE 33 6.3 DEVIATION FROM STANDARD 34 6.4 TEST SETUP 34 6.5 EUT OPERATION CONDITIONS 34 6.6 TEST RESULTS 34 7. CONDUCTED BANDEDGE 35 7.1 LIMIT 35 7.2 TEST PROCEDURE 35 7.3 DEVIATION FROM STANDARD 35 Report No.: LGT26G047RF01 Page 4 of 78 Table of Contents Page 7.4 TEST SETUP 35 7.5 EUT OPERATION CONDITIONS 35 7.6 TEST RESULTS 35 8. AUTOMATICALLY DISCONTINUE TRANSMISSION 35 8.1 LIMIT OF AUTOMATICALLY DISCONTINUE TRANSMISSION 35 8.2 TEST RESULT OF AUTOMATICALLY DISCONTINUE TRANSMISSION 36 9. ANTENNA REQUIREMENT 37 9.1 STANDARD REQUIREMENT 37 9.2 EUT ANTENNA 37 APPENDIX I - TEST RESULTS 38 1. DUTY CYCLE 38 2. BANDWIDTH 45 3. MAXIMUM CONDUCTED OUTPUT POWER 59 4. MAXIMUM POWER SPECTRAL DENSITY 66 5. BAND EDGE 73 APPENDIX II - MEASUREMENT PHOTOS 78 Report No.: LGT26G047RF01 Page 5 of 78 Revision History Rev. Issue Date Contents 00 July 20, 2026 Initial Issue Report No.: LGT26G047RF01 Page 6 of 78 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: Part 15.407,KDB 789033 D02 General U-NII Test Procedures New Rules v02r01 FCC Part 15.407 FCC standard Test Item Results 15.207 AC Conducted Emission PASS 15.407 (a) /15.407 (e) 26dB/6dB &99% Bandwidth PASS 15.407(a) Maximum Conducted Output Power PASS 15.407(b)/15.205/15.209 Radiated Emission And (bandedge Emissions) Measurement PASS 15.407(a) Power Spectral Density PASS 15.407(c) Automatically Discontinue Transmission PASS 15.203/15.204 Antenna Requirement PASS NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2020 + Cor. 1-2023+C63.10a-2024 + Errata to C63.10a-2024. (3) Manufacturers of U-NII devices are responsible for ensuring frequency stability such that an emission is maintained within the band of operation under all conditions of normal operation as specified in the users manual. Report No.: LGT26G047RF01 Page 7 of 78 1.1 TEST LABORATORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate: FCC Registration No.: 746540 CAB ID: CN0136 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 Occupied Channel Bandwidth ±0.46% 2 RF Output Power, Conducted ±0.71dB 3 Power Spectral Density, Conducted ±1.57dB 4 Unwanted Emission, Conducted ±0.63dB 5 Conducted emission ±2.80dB 6 All Emissions, Radiated (0.009-30MHz) ±2.16dB 7 All Emissions, Radiated (30MHz-1GHz) ±4.61dB 8 All Emissions, Radiated (1GHz-18GHz) ±5.49dB 9 All Emissions, Radiated (18GHz-40GHz) ±4.31dB 10 Temperature ±0.5°C 11 Humidity ±2% 12 Duty Cycle ±2.3% Note: The measurement uncertainty is not included in the test result. Report No.: LGT26G047RF01 Page 8 of 78 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name: Monitor Test Model Number: CXZ555 Series Number: CXZ555-1, CXZ555-2, CXZ555-3, CXZ555-5, CXZ555-6, CXZ555-7, CXZ555-8, CXZ555-9 Model Difference: Only m…

Text truncated - open the document above for the full version.

Report No.: LGT26G047RF01 Page 55 of 78 802.11n(HT40)_LCH_5190MHz_Ant1_NTNV 802.11n(HT40)_HCH_5230MHz_Ant1_NTNV Report No.: LGT26G047RF01 Page 56 of 78 2.2.3 6dB BW 802.11a_LCH_5745MHz_Ant1_NTNV 802.11a_MCH_5785MHz_Ant1_NTNV 802.11a_HCH_5825MHz_Ant1_NTNV Report No.: LGT26G047RF01 Page 57 of 78 802.11n(HT20)_LCH_5745MHz_Ant1_NTNV 802.11n(HT20)_MCH_5785MHz_Ant1_NTNV 802.11n(HT20)_HCH_5825MHz_Ant1_NTNV Report No.: LGT26G047RF01 Page 58 of 78 802.11n(HT40)_LCH_5755MHz_Ant1_NTNV 802.11n(HT40)_HCH_5795MHz_Ant1_NTNV Report No.: LGT26G047RF01 Page 59 of 78 3. MAXIMUM CONDUCTED OUTPUT POWER 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Maximum Average Conducted Output Power (dBm) Verdict ANT1 Limit 802.11a SISO 5180 16.81 <=23.98 Pass 5200 16.57 <=23.98 Pass 5240 16.41 <=23.98 Pass 5745 16.03 <=30 Pass 5785 16.18 <=30 Pass 5825 16.30 <=30 Pass 802.11n (HT20) SISO 5180 14.59 <=23.98 Pass 5200 14.46 <=23.98 Pass 5240 14.14 <=23.98 Pass 5745 13.85 <=30 Pass 5785 13.81 <=30 Pass 5825 14.17 <=30 Pass 802.11n (HT40) SISO 5190 14.78 <=23.98 Pass 5230 14.38 <=23.98 Pass 5755 13.93 <=30 Pass 5795 13.96 <=30 Pass Note1: Antenna Gain: - Band: 1 Ant1: 2.67dBi; - Band: 3 Ant1: 2.67dBi; Report No.: LGT26G047RF01 Page 60 of 78 3.2 Test Graph 3.2.1 Power 802.11a_LCH_5180MHz_Ant1_NTNV 802.11a_MCH_5200MHz_Ant1_NTNV 802.11a_HCH_5240MHz_Ant1_NTNV Report No.: LGT26G047RF01 Page 61 of 78 802.11a_LCH_5745MHz_Ant1_NTNV 802.11a_MCH_5785MHz_Ant1_NTNV 802.11a_HCH_5825MHz_Ant1_NTNV Report No.: LGT26G047RF01 Page 62 of 78 802.11n(HT20)_LCH_5180MHz_Ant1_NTNV 802.11n(HT20)_MCH_5200MHz_Ant1_NTNV 802.11n(HT20)_HCH_5240MHz_Ant1_NTNV Report No.: LGT26G047RF01 Page 63 of 78 802.11n(HT20)_LCH_5745MHz_Ant1_NTNV 802.11n(HT20)_MCH_5785MHz_Ant1_NTNV 802.11n(HT20)_HCH_5825MHz_Ant1_NTNV Report No.: LGT26G047RF01 Page 64 of 78 802.11n(HT40)_LCH_5190MHz_Ant1_NTNV 802.11n(HT40)_HCH_5230MHz_Ant1_NTNV 802.11n(HT40)_LCH_5755MHz_Ant1_NTNV Report No.: LGT26G047RF01 Page 65 of 78 802.11n(HT40)_HCH_5795MHz_Ant1_NTNV Report No.: LGT26G047RF01 Page 66 of 78 4. MAXIMUM POWER SPECTRAL DENSITY 4.1 Test Result 4.1.1 PSD Mode TX Type Frequency (MHz) Maximum PSD (dBm/MHz) Verdict ANT1 Limit 802.11a SISO 5180 6.53 <=11 Pass 5200 6.17 <=11 Pass 5240 5.87 <=11 Pass 802.11n (HT20) SISO 5180 4.03 <=11 Pass 5200 3.57 <=11 Pass 5240 3.42 <=11 Pass 802.11n (HT40) SISO 5190 0.77 <=11 Pass 5230 0.28 <=11 Pass Note1: Antenna Gain: - Band: 1 Ant1: 2.67dBi; - Band: 3 Ant1: 2.67dBi; 4.1.2 PSD-Band3 Mode TX Type Frequency (MHz) Maximum PSD (dBm/500kHz) Verdict ANT1 Limit 802.11a SISO 5745 2.76 <=30 Pass 5785 2.71 <=30 Pass 5825 2.96 <=30 Pass 802.11n (HT20) SISO 5745 0.12 <=30 Pass 5785 0.39 <=30 Pass 5825 0.47 <=30 Pass 802.11n (HT40) SISO 5755 -2.83 <=30 Pass 5795 -2.80 <=30 Pass Note1: Antenna Gain: - Band: 3 A…
