2BHP2-Z07Waterproof Mobile Phone Stand

Z07 mobile phone waterproof stand instruction manual Waterproof speaker Fix the sponge MIC call receiving hole Charging port (When charging, a red light will be displayed; when fully charged, a green light will be displayed.) Product Model Waterproof Mobile Phone Stand Product Name Z07 245 44 110(mm) 167 13 84(mm) 255g Main material (s) ABS.PET. silicone, electronic components Input Power DC5V/1A(USB Type-C) Battery capacity (approx.) 800mAh (Lithium - ion battery） power Charging time (approx.) 2.5 hours Continuous use time (approx.) 12 hours when the volume is at 50%. Battery cycle times (approx.) 300 times IPX5 Waterproof rating Wireless specifications Send output Frequency range Support configuration files Communication distance (approximate) Accessories Charging cable Wall-mounted stickers * 3 Instruction manual Place of origin Technical Specifications Dimensions (approx.) Inner dimensions (approx.) Weight (approx.) China Common Bluetooth connection methods are as follows: Wipe the wall surface where the wall-mounted sticker will be pasted clean. Tear off the protective film and stick the wall-mounted sticker onto the wall surface. When using it for the first time, you need to pair it via Bluetooth. After long-pressing the power button to turn it on, turn on the Bluetooth of your mobile phone and search for a device named Z07. Click on it and start the pairing process. Once you hear a sound, the pairing is completed. installation steps; Align the back fixing base with the wall-mounted sticker, and press it down firmly until it reaches the bottom. Put the phone in. Open the cover. Close the cover, and then the installation is completed. ※ The product itself cannot be immersed in water for a long time. Please do not submerge it in water. ※ Before use, please check whether the water proof plug of the charging port is tightly closed. Made in China button PET touch panel Button operation Project Button working status Indicator Short press for 1 second to power on Long press for 3 seconds to power off Power ON Audio / Video Volume Increase volume Next track Turn down the volume Single tap Pause/Play Phone call Function Answer the call/ End the call Red and blue lights flashing / / / / / / / Power off Power OFF Long press Previous track Volume Single tap Single tap Single tap Long press Power on [Indicator light turns off when connection is complete]

Rev 1/26/2023 Shenzhen Zhuanyi Technology Co. , Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 05-08-2026 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2BHP2-Z07 [Shenzhen Zhuanyi Technology Co. , Ltd.] certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [Shenzhen Zhuanyi Technology Co. , Ltd.] certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Sincerely, (Applicant signature) (Applicant printed name) Lemon feng Rev 1/26/2023 Shenzhen Zhuanyi Technology Co. , Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 05-08-2026 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2BHP2-Z07 [Shenzhen Zhuanyi Technology Co. , Ltd.] ce8rtifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Lemon feng

Shenzhen Zhuanyi Technology Co. , Ltd. U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: May 08, 2026 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2BHP2-Z07 Shenzhen Zhuanyi Technology Co. , Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, CLF Import and Export Limited (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. CLF Import and Export Limited ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: CLF Import and Export Limited FRN: 0033489683 Address: 1312 17th Street #692, Denver, CO 80202, United States Signature: Contact Person: David Chen Tel: +1 949 254 2565 Email: [email protected] Applicant Company Name: Shenzhen Zhuanyi Technology Co. , Ltd. FRN: 0035704048 Address: 503, Floor 5, Building 12, Huayao City, Tiedong Logistics Zone, Pinghu Street, Longgang District, Shenzhen, China Signature: Contact Person: Lemon feng Tel: +86-18211307641 Email: [email protected]

Shenzhen Zhuanyi Technology Co. , Ltd. Date: May 08, 2026 Product Model Number: Z07, ZY08, ZY09, ZY10, ZY12, ZY13, ZY14, ZY15, ZY16, ZY17, ZY18, ZY19, ZY20 FCC ID: 2BHP2-Z07 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following: • Testing • Approval applications and procedures We declare that QAI Laboratories Ltd. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by QAI Laboratories Ltd. on our behalf shall have the same effect as acts of our own. By: Lemon feng Contact Listed on FCC Wesbite Title: Manager Email: [email protected] Telephone: +86-18211307641 On behalf of: Shenzhen Zhuanyi Technology Co. , Ltd.

Shenzhen Zhuanyi Technology Co. , Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: May 8, 2026 Subject; Request for Confidentiality FCC ID: 2BHP2-Z07 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Lemon feng Title: Manager

Shenzhen Zhuanyi Technology Co. , Ltd. Model Difference Statement DATE: May 08, 2026 FCC ID: 2BHP2-Z07 Dear Sir/Madam, Added models ZY08, ZY09, ZY10, ZY12, ZY13, ZY14, ZY15, ZY16, ZY17, ZY18, ZY19, ZY20 asis of the original product Z07 The color of appearance and model name of series models listed are different from the main model, but the circuit and the electronic construction are the same, declared by the manufacturer. Sincerely, Name: Lemon feng Title: Manager Company name: Shenzhen Zhuanyi Technology Co. , Ltd. Address: 503, Floor 5, Building 12, Huayao City, Tiedong Logistics Zone, Pinghu Street, Longgang District, Shenzhen, China

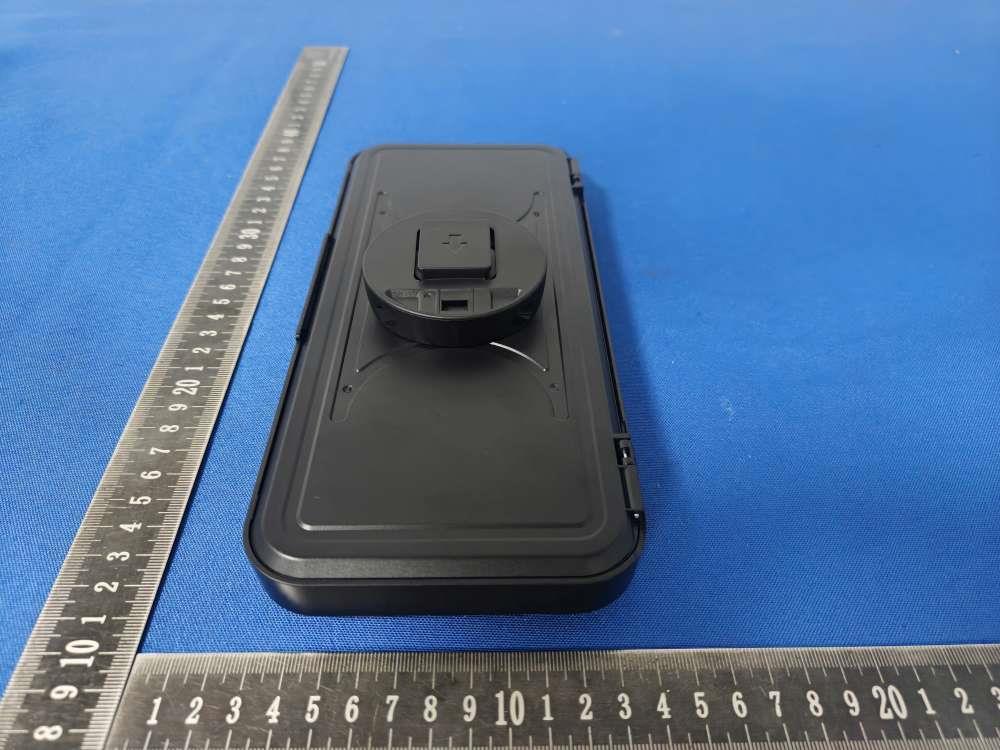

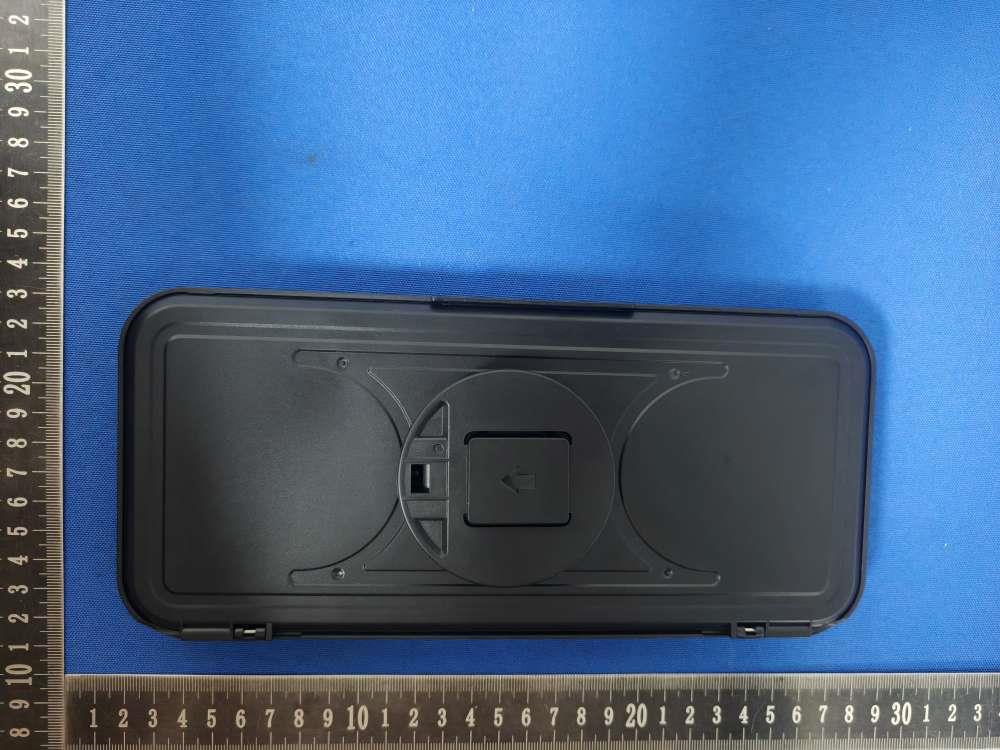

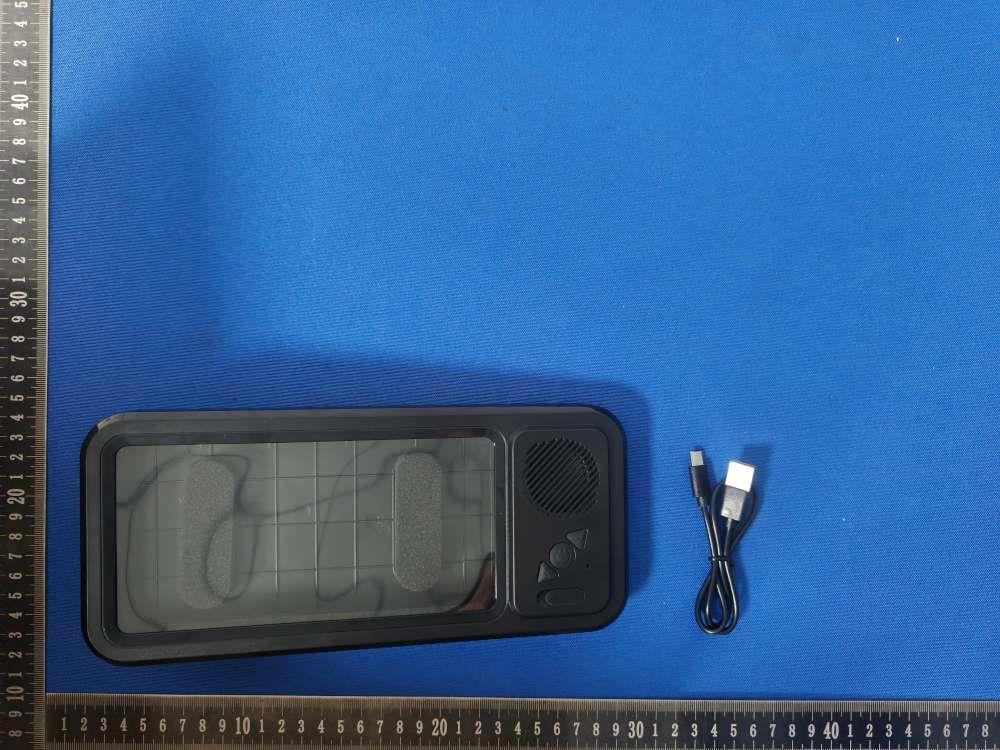

Report No: SSP26040577-1E FCC ID: 2BHP2-Z07 Annex of Test Report Annex A. EUT External Photos Model: Z07 EUT View 1 EUT View 2 Report No: SSP26040577-1E FCC ID: 2BHP2-Z07 Annex of Test Report EUT View 3 EUT View 4 Report No: SSP26040577-1E FCC ID: 2BHP2-Z07 Annex of Test Report EUT View 5 EUT View 6 Report No: SSP26040577-1E FCC ID: 2BHP2-Z07 Annex of Test Report EUT View 7

Report No: SSP26040577-1E FCC ID: 2BHP2-Z07 Annex of Test Report Annex D. Label and Information FCC Label Sample Label Size:3cm*1.5cm FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location

Report No: SSP26040577-1E FCC ID: 2BHP2-Z07 Annex of Test Report Annex B. EUT Internal Photos Model: Z07 EUT Internal View 1 EUT Internal View 2 PCB Antenna Report No: SSP26040577-1E FCC ID: 2BHP2-Z07 Annex of Test Report EUT Internal View 3 EUT Internal View 4

FCC ID: 2BHP2-Z07 RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. For BR+EDR Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit 0.8 0(±1) 1 1.259 2402 5 0.3902 3.0 So a SAR test is not required

Page 1 of 3 1. General Information 1.1 Product Information Manufacturer: Shenzhen Zhuanyi Technology Co. , Ltd. Address of Manufacturer: 503, Floor 5, Building 12, Huayao City, Tiedong Logistics Zone, Pinghu Street, Longgang District, Shenzhen, China Product Name: 2.4G Antenna Model Name: Z07 Frequency Range: 2400MHz - 2483.5MHz Type of Antenna: PCB Antenna Antenna Gain: 0dBi (Max.) Impedance: 50 ohm Antenna View: Page 2 of 3 2. OTA Test 2.1 Gain Frequency Peak Gain (dBi) Polarity 2402MHz 0 Horizontal 2402MHz -0.45 Vertical 2442MHz -1.28 Horizontal 2442MHz -1.69 Vertical 2480MHz -1.66 Horizontal 2480MHz -1.92 Vertical Page 3 of 3 2.2 Radiation Pattern View

Report No: SSP26040577-1E FCC Test Report Page 1 of 51 FCC TEST REPORT FCC ID: 2BHP2-Z07 Report No. : SSP26040577-1E Applicant : Shenzhen Zhuanyi Technology Co. , Ltd. Product Name : Waterproof Mobile Phone Stand Model Name : Z07 Test Standard : FCC Part 15.247 Date of Issue : 2026-05-06 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. Report No: SSP26040577-1E FCC Test Report Page 2 of 51 Test Report Basic Information Applicant..................................: Shenzhen Zhuanyi Technology Co. , Ltd. Address of Applicant...............: 503, Floor 5, Building 12, Huayao City, Tiedong Logistics Zone, Pinghu Street, Longgang District, Shenzhen, China Manufacturer..........................: Shenzhen Zhuanyi Technology Co. , Ltd. Address of Manufacturer........: 503, Floor 5, Building 12, Huayao City, Tiedong Logistics Zone, Pinghu Street, Longgang District, Shenzhen, China Product Name.........................: Waterproof Mobile Phone Stand Brand Name.............................: - Main Model..............................: Z07 Series Models..........................: See section 1.1 (Page 5) Test Standard..........................: FCC Part 15 Subpart C ANSI C63.4-2014 ANSI C63.10-2020 Date of Test .............................: 2026-04-23 to 2026-05-06 Test Result...............................: PASS Tested By ................................: (Coke Huang) Reviewed By............................: (Lorzix Luo) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. Report No: SSP26040577-1E FCC Test Report Page 3 of 51 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................6 1.3 Compliance Standards ...........................................................................................................................................7 1.4 Test Facilities ........................................................................................................................................................7 1.5 List of Measurement Instruments ..........................................................................................................................8 1.6 Measurement Uncertainty .....................................................................................................................................9 2. Summary of Test Results ........................................................................................................................................... 10 3. Antenna Requirement ............................................................................................................................................... 11 3.1 Standard and Limit.............................................................................................................................................. 11 3.2 Test Result .......................................................................................................................................................... 11 4. Conducted Emissions ................................................................................................................................................ 12 4.1 Standard and Limit.............................................................................................................................................. 12 4.2 Test Procedure.................................................................................................................................................... 12 4.3 Test Data and Results .......................................................................................................................................... 13 5. Radiated Emissions ................................................................................................................................................... 16 5.1 Standard and Limit.............................................................................................................................................. 16 5.2 Test Procedure.................................................................................................................................................... 16 5.3 Test Data and Results .......................................................................................................................................... 18 6. Band-edge Emissions(Radiated) ............................................................................................................................... 22 6.1 Standard and Limit.............................................................................................................................................. 22 6.2 Test Procedure.................................................................................................................................................... 22 6.3 Test Data and Results .........................................................................................................…

Text truncated - open the document above for the full version.

Report No: SSP26040577-1E FCC ID: 2BHP2-Z07 Annex of Test Report Annex C. Test Photos Conducted Emission Test View 1 Radiated Emission Test View Below 1GHz Report No: SSP26040577-1E FCC ID: 2BHP2-Z07 Annex of Test Report Radiated Emission Test View Above 1GHz
