2BHV3-CF001Same-screen projector

Open Settings ⇨ Open WLAN ⇨ Find AnyCast-xxxx device name connection �. Same-screen projector This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

1/1 US Agent for Service of Process LETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: Company Name: UGK-LVM UNITED INC FRN: 0033476375 Contact Name: Jimmychen Address: 6547NAcademyBlvd#2266,ColoradoSprings,CO80918 Telephone No: 001-323-51 04660 Email: [email protected] Applicant: Company name: Guangdong Ruichuang Cable Co., Ltd Grantee code: 2BHV3 FCC ID: 2BHV3-CF001 FRN: 0035732098 Contact Name: Songkai Hou Address: No. 399, Group 8, Shrimp Village, Ruhu Town, Huicheng District, Huizhou City Telephone: 15899505208 Fax: 15899505208 E-mail: [email protected] [Guangdong Ruichuang Cable Co., Ltd] certifies that, as of the date of this filing of the application with the TCB, [UGK-LVM UNITED INC] is our designated US agent for service of process for the above referenced FCC ID. [Guangdong Ruichuang Cable Co., Ltd] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any commission related proceeding involving equipment. [UGK-LVM UNITED INC] accepts, as of the date of the filing of the application, the obligation of the designated US agent for service of process for the above reference FCC ID. The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. The Applicant is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Date: 2024-07-25 Applicant’s Name: Songkai Hou US Agent for Service of Process’s Name: Jimmychen Title: Manager Title: Manager Signature Signature

C5266091_X24_Ed.2 1/1 “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: Guangdong Ruichuang Cable Co., Ltd Grantee code: 2BHV3 FCC ID: 2BHV3-CF001 FRN: 0035732098 Contact Name: Songkai Hou Address: No. 399, Group 8, Shrimp Village, Ruhu Town, Huicheng District, Huizhou City Telephone: 15899505208 Fax: 15899505208 E-mail: [email protected] i. [Guangdong Ruichuang Cable Co., Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. [Guangdong Ruichuang Cable Co., Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. [Guangdong Ruichuang Cable Co., Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [ is not] identified on the Covered List as an entity producing “covered”equipment . Date: 2024-07-25 Applicant’s Name: Songkai Hou Title: Manager Signature 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

Guangdong Ruichuang Cable Co., Ltd Product Similarity Declaration Company: Guangdong Ruichuang Cable Co., Ltd Address: No. 399, Group 8, Shrimp Village, Ruhu Town, Huicheng District, Huizhou City Product Name: Same-screen projector Model Number: CF-001, CF-002, CF-003, CF-004, CF-005, CF-006, CF-007, CF-008, CF- 009, CF-010 FCC Identifier: 2BHV3-CF001 We (Guangdong Ruichuang Cable Co., Ltd) hereby state that all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.,), same mechanical structure and design (including product enclosure, materials, etc.,), the only difference is the model name. Client’s signature Name: Songkai Hou Date: 2024-07-25 Title: Manager Signature of applicant:

Guangdong Ruichuang Cable Co., Ltd 1/1 Letter of Authorization Company: Guangdong Ruichuang Cable Co., Ltd Address: No. 399, Group 8, Shrimp Village, Ruhu Town, Huicheng District, Huizhou City Product Name: Same-screen projector Model Number: CF-001, CF-002, CF-003, CF-004, CF-005, CF-006, CF-007, CF-008, CF- 009, CF-010 FCC Identifier: 2BHV3-CF001 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Songkai Hou Date: 2024-07-25 Title: Manager Signature of applicant:

Guangdong Ruichuang Cable Co., Ltd 1/1 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2024-07-25 Subject: Request for Confidentiality FCC ID: 2BHV3-CF001 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual No ☐ Internal Photos No ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Songkai Hou Title: Manager

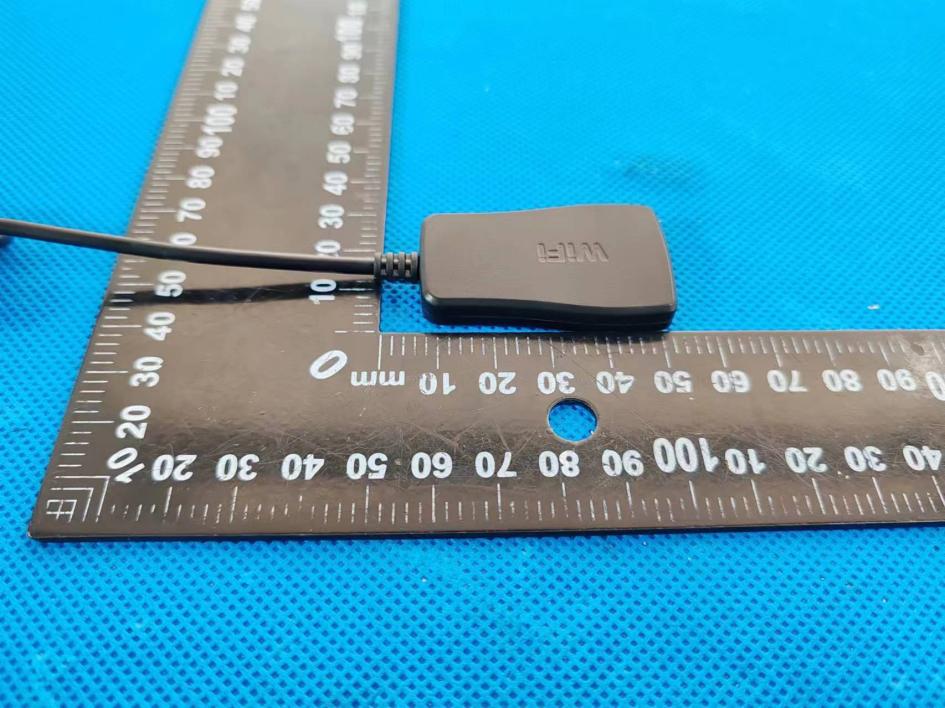

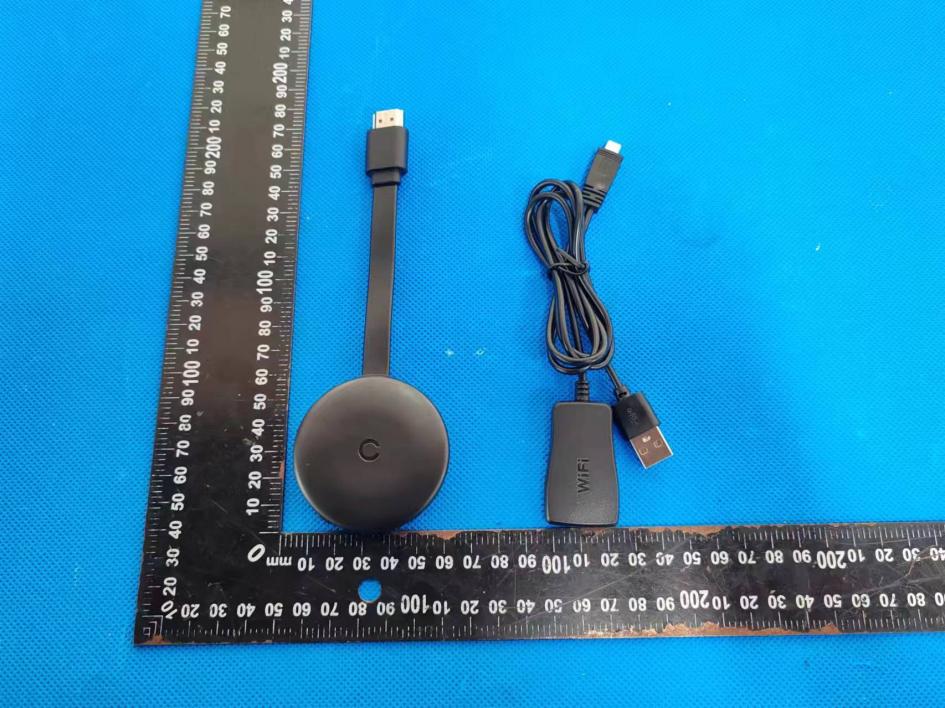

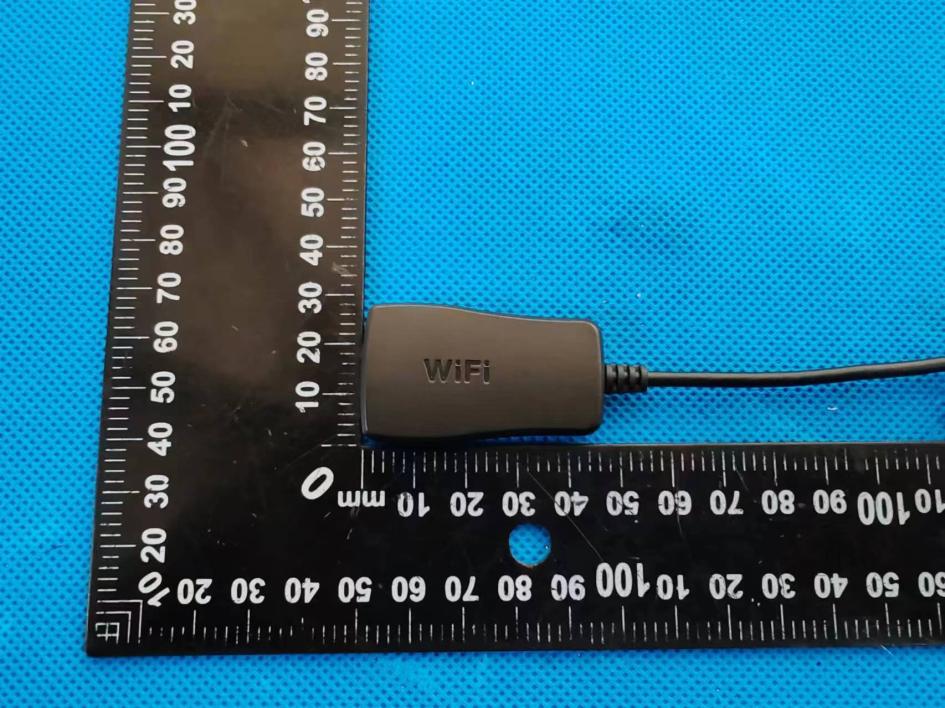

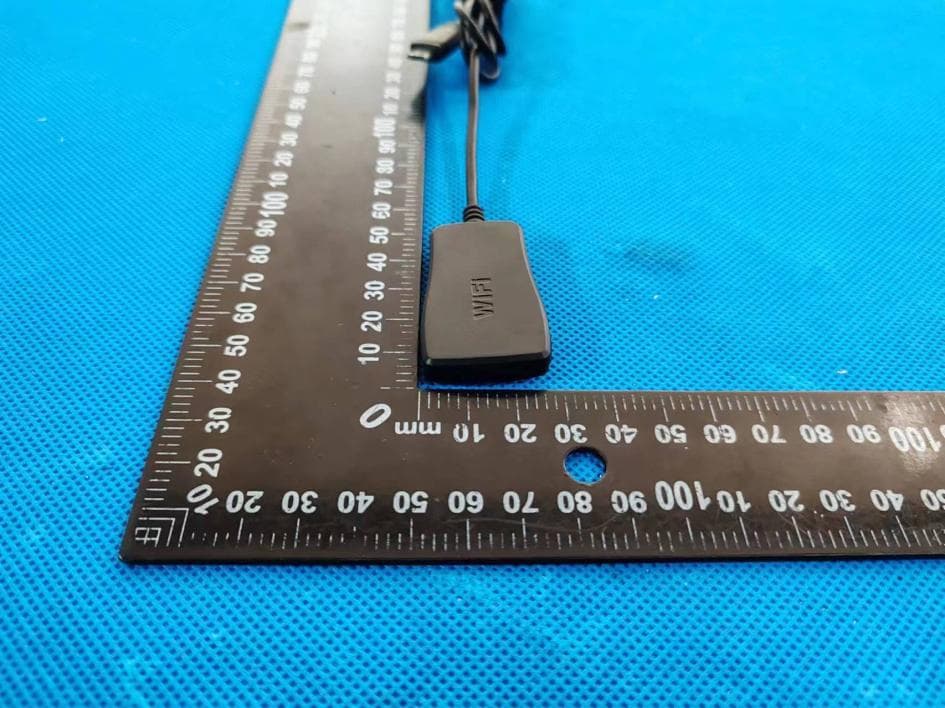

Shenzhen DL Testing Technology Co., Ltd. EUT PHOTO(External Photos) Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. ※※※※※ END OF REPORT ※※※※※

Size:12*6mm Model: CF-001 FCC ID: 2BHV3-CF001 Label location

Shenzhen DL Testing Technology Co., Ltd. EUT PHOTO(Internal Photos) ANT Shenzhen DL Testing Technology Co., Ltd. ※※※※※ END OF REPORT ※※※※※

FCC ID: 2BHV3-CF001 RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in KDB 447498 D01 V06 and 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm EIRP=E Meas +20log(d Meas )-104.7 EIRP is the equivalent isotropically radiated power, in dBm E Meas is the field strength of the emission at the measurement distance, in dBμV/m d Meas is the measurement distance, in m Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Test Result of RF Exposure Evaluation wifi 2.4G mode: Channel Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 802.11b 16.954 49.5907 0.01707 1.0 PASS 802.11g 13.671 23.2863 0.00801 1.0 PASS 802.11n HT20 14.868 30.6761 0.01056 1.0 PASS 802.11n HT40 14.121 25.8285 0.00889 1.0 PASS Remark: antenna gain=2.38 dBi

Shenzhen DL Testing Technology Co., Ltd. Report No.:DL-240611033ER Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 1 of 45 FCC Part 15C Test Report FCC ID: 2BHV3-CF001 Applicant: Guangdong Ruichuang Cable Co., Ltd Address: No. 399, Group 8, Shrimp Village, Ruhu Town, Huicheng District, Huizhou City Manufacturer: Guangdong Ruichuang Cable Co., Ltd Address: No. 399, Group 8, Shrimp Village, Ruhu Town, Huicheng District, Huizhou City EUT: Same-screen projector Trade Mark: N/A Model Number: CF-001 CF-002, CF-003, CF-004, CF-005, CF-006, CF-007, CF-008, CF-009, CF-010 Date of Receipt: Jun. 11, 2024 Test Date: Jun. 11, 2024 –Jul. 12, 2024 Date of Report: Jul. 12, 2024 Prepared By: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Building C, Shuanghuan, No.8, Baoqing Road, Baolong Industrial Zone, Baolong Street, Longgang District, Shenzhen, Guangdong, China Applicable Standards: FCC PART 15 C 15.247 ANSI C63.10:2013 Test Result: Pass Report Number: DL-240611033ER Prepared (Test Engineer): Alisa Song Reviewer (Supervisor): Jack Bu Approved (Manager): Jade Yang This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Report No.:DL-240611033ER Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 2 of 45 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 MEASUREMENT UNCERTAINTY 4 2 . GENERAL INFORMATION 5 2.1 GENERAL DESCRIPTION OF EUT 5 2.2 DESCRIPTION OF TEST MODES 6 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 6 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 7 2.5 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 7 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 8 3 . EMC EMISSION TEST 9 3.1 CONDUCTED EMISSION MEASUREMENT 9 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 9 3.1.2 TEST PROCEDURE 9 3.1.3 DEVIATION FROM TEST STANDARD 9 3.1.4 TEST SETUP 10 3.1.5 EUT OPERATING CONDITIONS 10 3.1.6 TEST RESULTS 10 3.2 RADIATED EMISSION MEASUREMENT 13 3.2.1 RADIATED EMISSION LIMITS 13 3.2.2 TEST PROCEDURE 14 3.2.3 DEVIATION FROM TEST STANDARD 14 3.2.4 TEST SETUP 14 3.2.5 EUT OPERATING CONDITIONS 15 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 16 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 17 3.2.8 TEST RESULTS (1GHZ~25GHZ) 19 3.3 RADIATED BAND EMISSION MEASUREMENT 23 3.3.1 TEST REQUIREMENT: 23 3.3.2 TEST PROCEDURE 23 3.3.3 DEVIATION FROM TEST STANDARD 23 3.3.4 TEST SETUP 24 3.3.5 EUT OPERATING CONDITIONS 24 3.4 CONDUCTED BAND EDGE EMISSION&CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 29 3.4.1 APPLICABLE STANDARD 29 3.4.2 TEST PROCEDURE 29 3.4.3 DEVIATION FROM STANDARD 29 Shenzhen DL Testing Technology Co., Ltd. Report No.:DL-240611033ER Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 3 of 45 Table of Contents Page 3.4.4 TEST SETUP 29 3.4.5 EUT OPERATION CONDITIONS 29 3.4.6 TEST RESULTS 29 4 . AVERAGE OUTPUT POWER 33 4.1 APPLIED PROCEDURES / LIMIT 33 4.1.1 TEST PROCEDURE 33 4.1.2 DEVIATION FROM STANDARD 33 4.1.3 TEST SETUP 33 4.1.4 EUT OPERATION CONDITIONS 33 4.1.5 TEST RESULTS 34 5 . POWER SPECTRAL DENSITY TEST 37 5.1 APPLIED PROCEDURES / LIMIT 37 5.1.1 TEST PROCEDURE 37 5.1.2 DEVIATION FROM STANDARD 37 5.1.3 TEST SETUP 37 5.1.4 EUT OPERATION CONDITIONS 37 5.1.5 TEST RESULTS 38 6 . 6DB BANDWIDTH TEST 41 6.1 APPLIED PROCEDURES / LIMIT 41 6.1.1 TEST PROCEDURE 41 6.1.2 DEVIATION FROM STANDARD 41 6.1.3 TEST SETUP 41 6.1.4 EUT OPERATION CONDITIONS 41 6.1.5 TEST RESULTS 42 7 . ANTENNA REQUIREMENT 45 7.1 STANDARD REQUIREMENT 45 7.2 EUT ANTENNA 45 8 . TEST SEUUP PHOTO 45 9 . EUT PHOTO 45 Shenzhen DL Testing Technology Co., Ltd. Report No.:DL-240611033ER Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 4 of 45 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.205, 15.209, 15.247(d) Radiated Spurious Emission PASS 15.205, 15.247(d) Band Edge Emission& Conducted Spurious Emissions PASS 15.247(b) Average Output Power PASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(e) Power Spectral Density PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Test lab: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Building C, Shuanghuan, No.8, Baoqing Road, Baolong Industrial Zone, Baolong Street, Longgang District, Shenzhen, Guangdong, China FCC Test Firm Registration Number: 854456 Designation Number: CN1307 IC Registered No.: 27485 CAB ID.: CN0118 1.1 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±2.56dB 2 RF power,conducted ±0.42dB 3 Spurious emissions,conducted ±2.76dB 4 All emissions,radiated(<1G) ±3.65dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% 8 6dB Bandwidth ±0.2MHz Shenzhen DL Testing Technology Co., Ltd. Report No.:DL-240611033ER Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 5 of 45 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Product Name: Same-screen projector Trademark N/A Model No.: CF-001 CF-002, CF-003, CF-004, CF-005, CF-006, CF-007, CF-008, CF-009, CF-010 Model Difference The product's different for model name. Operation Frequency: 2412~2462 MHz for 802.11b/g/nHT20 2422~2452 MHz for 802.11nHT40 Channel numbers: 11 Channels for 802.11b/g/n(HT20) 7 channels for 802.11nHT40 Channel separation: 5MHz Modulation technology: 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g/n(20/40): OFDM(QPSK, BPSK, 16-QAM, 64-QAM) Rate of Transmitter: 802.11b: 11/5.5/2/1Mbps 802.11g: 54/48/36/24/18/12/9/6Mbps 802.11n: up …

Text truncated - open the document above for the full version.

第 1 页 Shenzhen Qianmu Communication Technology Co.,Ltd. No. 443, 4th Floor, Block A2, Huafeng Zhigu High-tech Industrial Park, Gushu Aviation Road, Xixiang, Bao'an District, Shenzhen 一、Specification 1.Electrical performance parameters lFrequency Range........................................2400MHz ~2500MHz lVSWR..................................................................................... <3 lEfficiency.................................................................... Max59.37% lPeak Gain................................................................... Max3.2dBi lPolarization.......................................................................... Linear lInput Impedance.............................................................. 50Ω 第 2 页 二、Antenna standing wave diagram： 第 3 页 Band WIFI ANT 2400 2500 R.L(dB) -9.5 -7.6 VSWR 2.4 2.5 第 4 页 三、WIFI antenna gain efficiency： Passive Test For 2.4GWIFI ANT Freq Effi Effi Gain Gain UHIS DHIS Max Min Attenut Attenut (MHz ) (%) (dB) (dBi) (dBd) (%) (%) (dB) (dB) Hor Ver 2400 61.52 -2.11 2.22 0.07 35.571 25.949 2.22 -27.55 48.51 48.38 2410 64.06 -1.93 2.29 0.14 36.742 27.314 2.29 -25.53 48.83 48.65 2420 66.12 -1.8 2.38 0.23 37.612 28.512 2.38 -22.28 49.05 49 2430 65.81 -1.82 2.26 0.11 37.346 28.461 2.26 -20.6 49.05 48.89 2440 65.35 -1.85 2.02 -0.13 37.17 28.18 2.02 -20.01 49.08 48.97 2450 65.38 -1.85 2.07 -0.08 37.527 27.856 2.07 -20.5 49.01 48.85 2460 64.41 -1.91 1.98 -0.17 37.405 27.004 1.98 -22.62 48.86 48.7 2470 63.62 -1.96 2.02 -0.13 37.359 26.262 2.02 -25.86 48.86 48.78 2480 67.12 -1.73 2.4 0.25 39.779 27.344 2.4 -24.33 49.29 49.19 2490 73.47 -1.34 2.97 0.82 43.799 29.668 2.97 -20.77 49.92 49.75 2500 75.94 -1.2 3.2 1.05 45.483 30.45 2 3.2 -20.26 49.95 49.77 四、Product images： 五、Apple Diagram： ANT1- 2.4GW iF i

Shenzhen DL Testing Technology Co., Ltd. EUT TEST PHOTO Radiated Measurement Photos Shenzhen DL Testing Technology Co., Ltd. Conducted Measurement Photos ※※※※※ END OF REPORT ※※※※※
